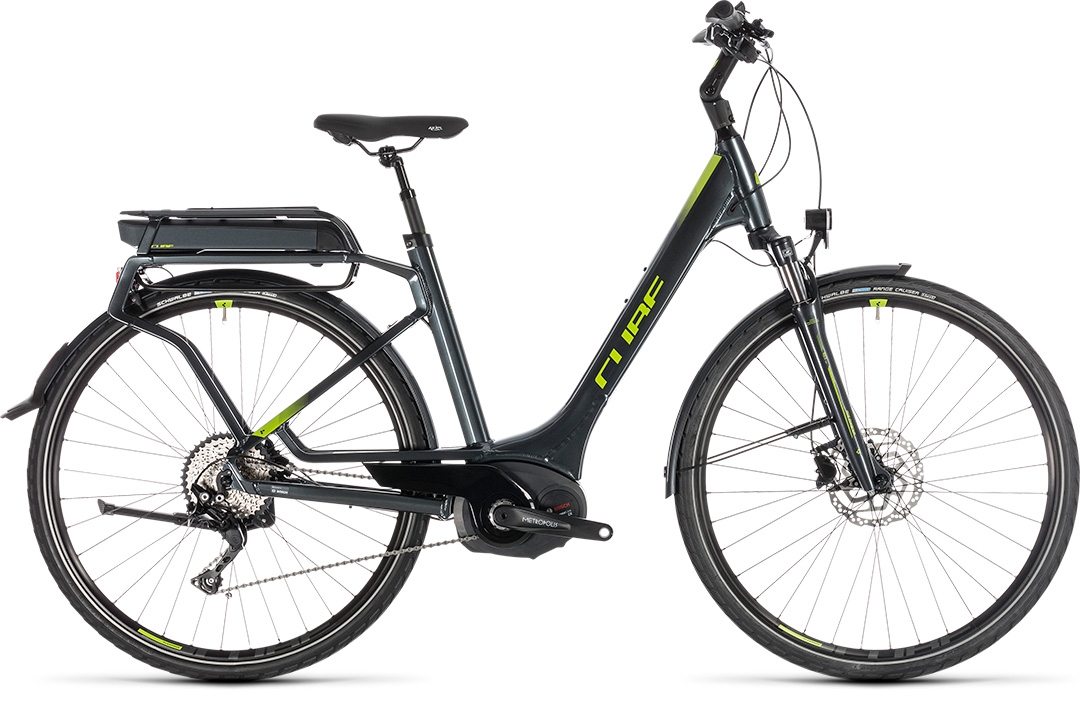

KATHMANDU HYBRID
Pro 500
The Kathmandu Hybrid Pro is the Bosch e-bike for all reasons; an adaptable, versatile and easy-to-ride two-wheeled companion. Whether you're an occasional commuter or regular cyclist; whether you ride to get around the city or to escape to the countryside at the weekends. Bosch's powerful CX drive unit has the power and range to help you ride further, faster and more often. You'll love details like the included kickstand and mudguards, neatly integrated luggage rack and powerful, high capacity battery. We added a suspension fork to smooth out rough road surfaces, and lights so that you can be seen and stay safe. Shimano's 10 speed Deore gears work with the Bosch motor to make light work of any road, and Shimano hydraulic disc brakes offer powerful stopping in all weather conditions. We've thought of everything, so you can just enjoy the ride.
AUSSTATTUNG
| FRAME | Aluminium Superlite, Efficient Comfort Geometry, Gravity Casting, Integrated Carrier 1.0 Classic, Double Butted, Tapered, Disc Only; EE: Integrated Carrier 1.0 Hybrid |
|---|---|
| SIZE | Men: 50, 54, 58, 62; Trapeze: 46, 50, 54; Easy Entry: 46, 50, 54, 58 |
| FORK | SR Suntour NEX-E25, 63mm |
| BRAKE SYSTEM | Shimano BR-MT200, Hydr. Disc Brake (180/160) |
| REAR DERAILLEUR | Shimano Deore RD-M6000-GS, 10-Speed |
| SHIFTERS | Shimano Deore SL-M6000, Rapidfire-Plus |
| CRANKSET | FSA Metropolis Urban AL-8, 15T, 175mm |
| CASSETTE | Shimano Deore CS-HG500, 11-42T |
| CHAIN | KMC X10-73 |
| FRONT HUB | Shimano HB-TX505, QR, Centerlock |
| REAR HUB | Shimano FH-TX505, QR, Centerlock |
| RIMS | CUBE ZX20, 36H, Disc |
| TYRES | Schwalbe Range Cruiser, Active, K-Guard, 40x622 |
| HANDLEBAR | CUBE Rise Trail Bar, 700mm |
| GRIPS | Natural Fit Comfort |
| SEAT POST | CUBE Suspension Seatpost, 27.2mm |
| SEATCLAMP | CUBE Varioclose, 31.8mm |
| SADDLE | Selle Royal Ariel |
| HEADSET | FSA Orbit Z-t-R ECO, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Integrated 1 1/2"; EE: FSA No.10, Semi-Integrated |
| PEDALS | CUBE PP Trekking |
| FRONT LIGHT | Trelock LS230, 6V, DC |
| REAR LIGHT | Busch&Müller Toplight 321 E Plus |
| KICKSTAND | CUBEstand Cmpt |
| MUDGUARDS | SKS Stingray |
| BELL | Mini Bell |

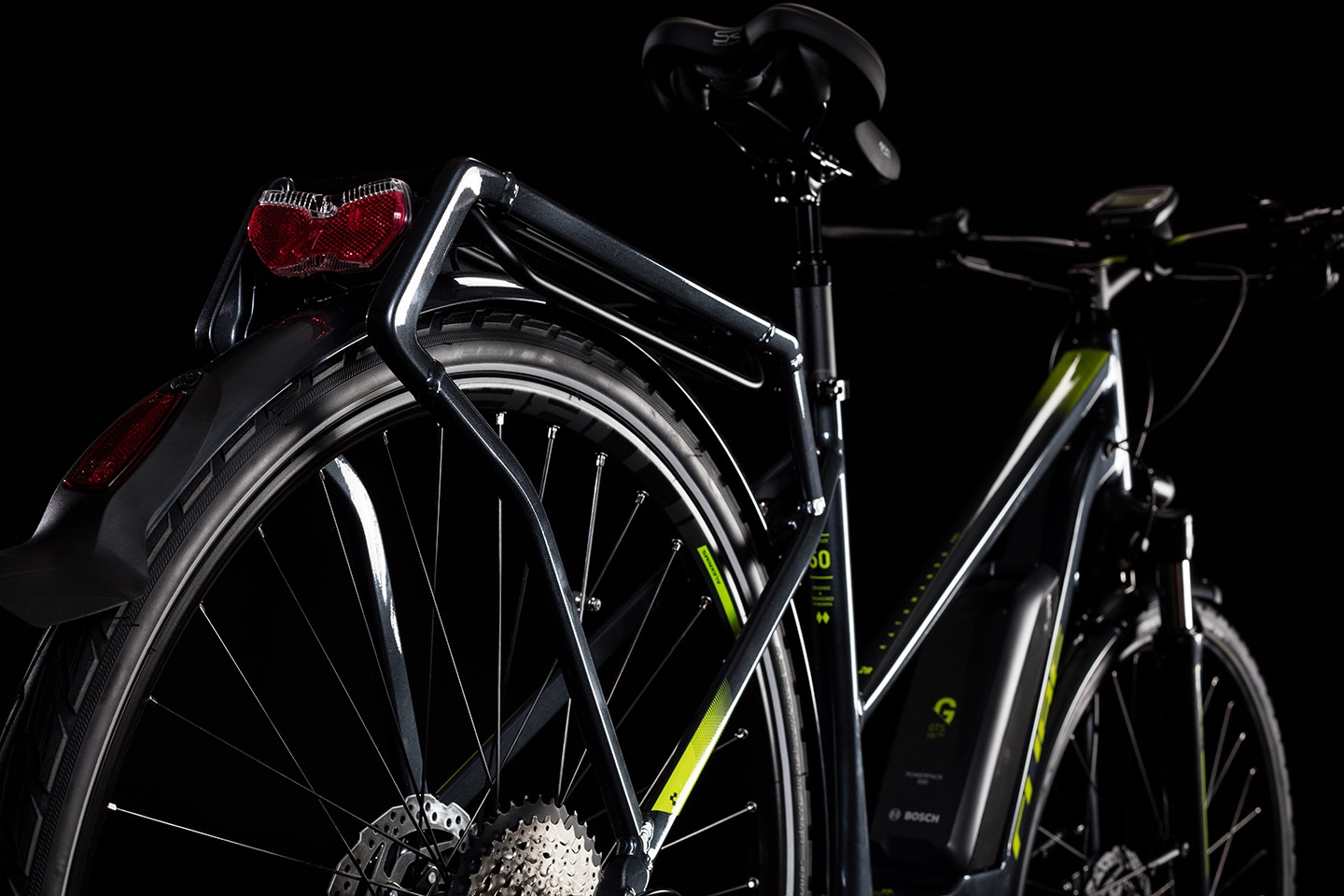

| CARRIER | CUBE Integrated Carrier 1.0 Classic, SnapIt Adapter and Rails; EE: CUBE Integrated Carrier 1.0 Hybrid, SnapIt Adapter, Spring and Rail |
| WEIGHT | 23,9 kg |
| COLOUR | iridium´n´green |
| DRIVE UNIT | Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt) |

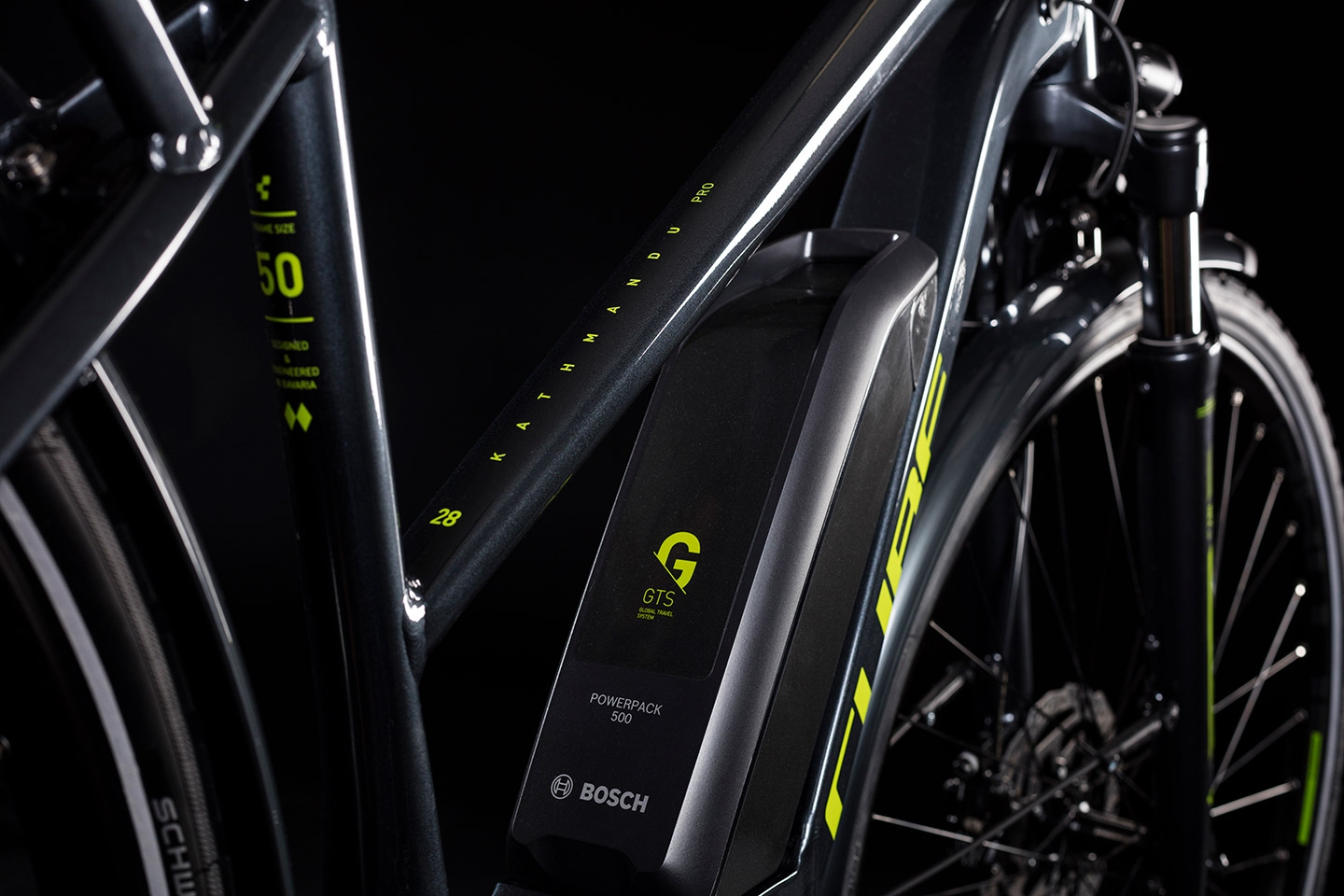

| BATTERY | Bosch PowerPack 500 |

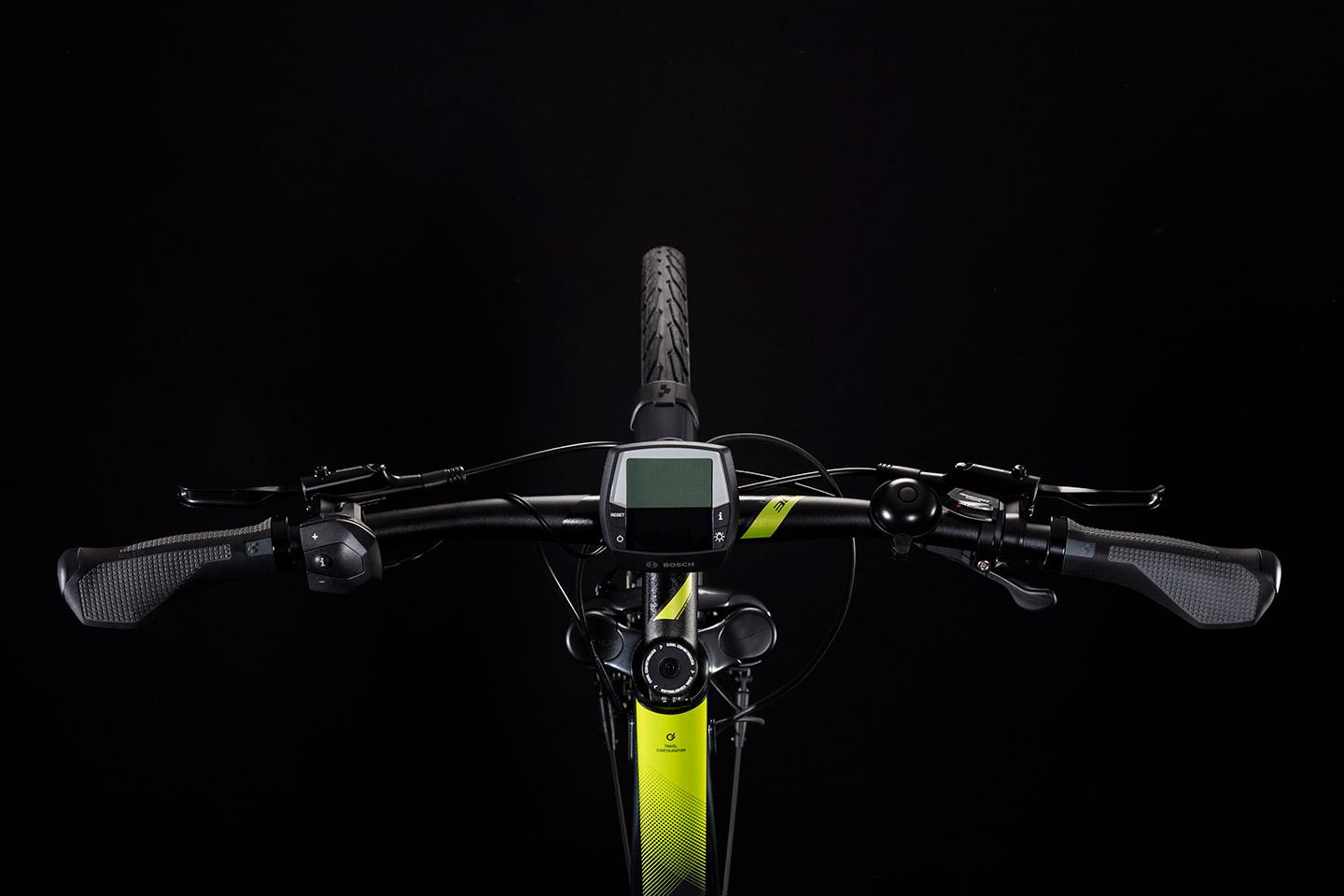

| DISPLAY | Bosch Intuvia |
| CHARGER | Bosch 2A |
| ČÍSLO VÝROBKU | 231300 |
Geometrie
The CUBE integrated luggage carrier is a great example of how our designers' attention to detail pays off. It's neat, stiff, strong and will carry a variety of loads in complete safety. The powerful Bosch motor and 500Wh battery are mounted low for the best possible handling characteristics, helped along by our proprietary Efficient Comfort Geometry for stress-free pedalling, mile after mile. Advanced design features borrowed from our engineering team's vast experience include oversized, double butted tubes for safe handling and efficient power delivery, plus the extra strength of gravity casting for the motor housing. We even routed cables internally for clean looks and long-lasting, low maintenance gear shifting.
