ACID HYBRID
Pro 400 29
A bike shouldn't just fit easily into your life, it should be an extension of your life. The Acid Hybrid Pro is designed to meet all your riding needs in one sleek, adaptable and reliable package; a Bosch e-bike that can do it all. The Bosch Active Plus drive unit and battery - housed so neatly in the elegant down tube most people won't even notice they're there - give your pedalling an extra helping hand for easier hills, hassle-free commuting and the range to explore further afield at the weekends. Slick-shifting Shimano Deore 10 speed gears are complemented by matching hydraulic disc brakes for dependable all-weather stopping, while the easily-adjustable air sprung Suntour fork with lockout smoothes out the roughest of roads and trails and the Schwalbe tyres grip tenaciously in all conditions. Ride to work, ride to the shops, ride into the hills... the Acid Hybrid Pro is your ideal companion.
AUSSTATTUNG
| FRAME | Aluminium Superlite, Advanced Hydroforming, Agile Ride Geometry, Double Butted, Tapered Headtube, Internal Cable Routing, Full Integrated Battery |
|---|---|
| SIZE | Men: 15", 17", 19", 21", 23", Trapeze: 15", 17", 19" |

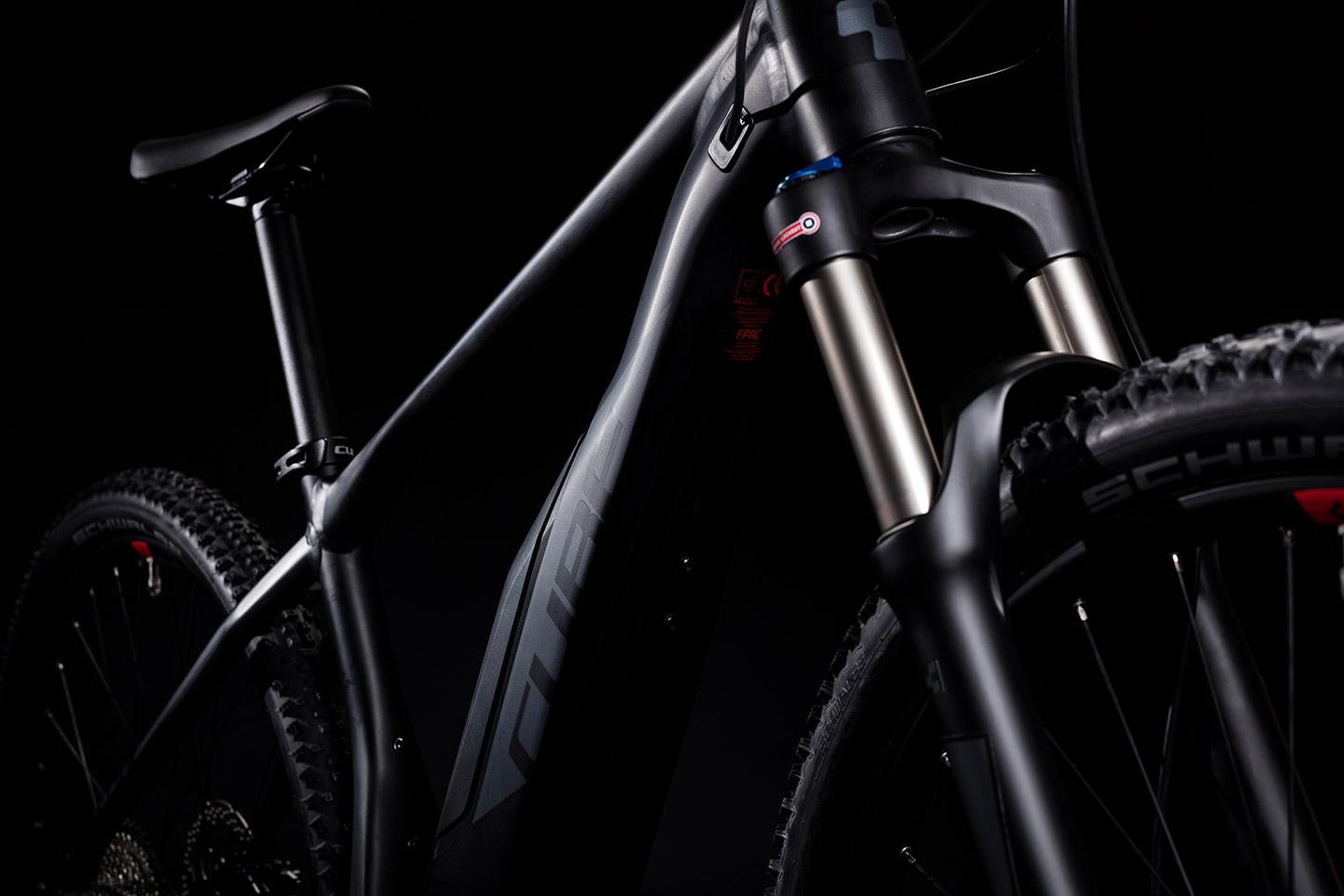

| FORK | SR Suntour XCR32 Air, 100mm, Lockout |

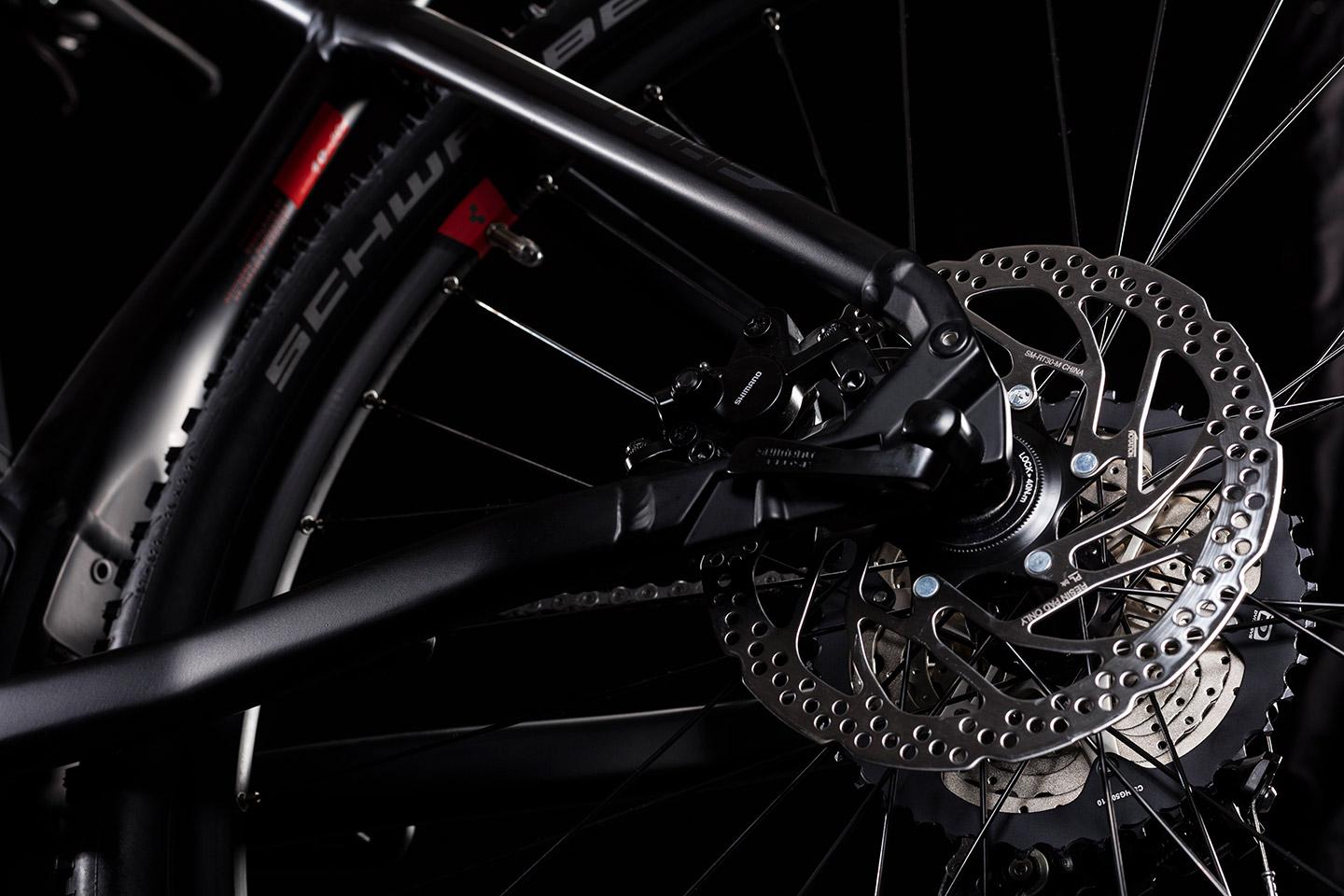

| BRAKE SYSTEM | Shimano BR-MT400, Hydr. Disc Brake (180/180) |
| REAR DERAILLEUR | Shimano Deore RD-M6000-DGS, ShadowPlus, 10-Speed |
| SHIFTERS | Shimano Deore SL-M6000, Rapidfire-Plus |
| CRANKSET | FSA CK-602, 38T, 175mm |
| CASSETTE | Shimano Deore CS-HG500, 11-42T |
| CHAIN | KMC X10 |
| FRONT HUB | Shimano Deore HB-M6000, QR, Centerlock |
| REAR HUB | Shimano Deore FH-M6000, QR, Centerlock |
| RIMS | CUBE ZX20, 32H, Disc |
| FRONT TIRE | Schwalbe Tough Tom, Active, 2.25 |
| REAR TIRE | Schwalbe Rapid Rob, Active, 2.25 |

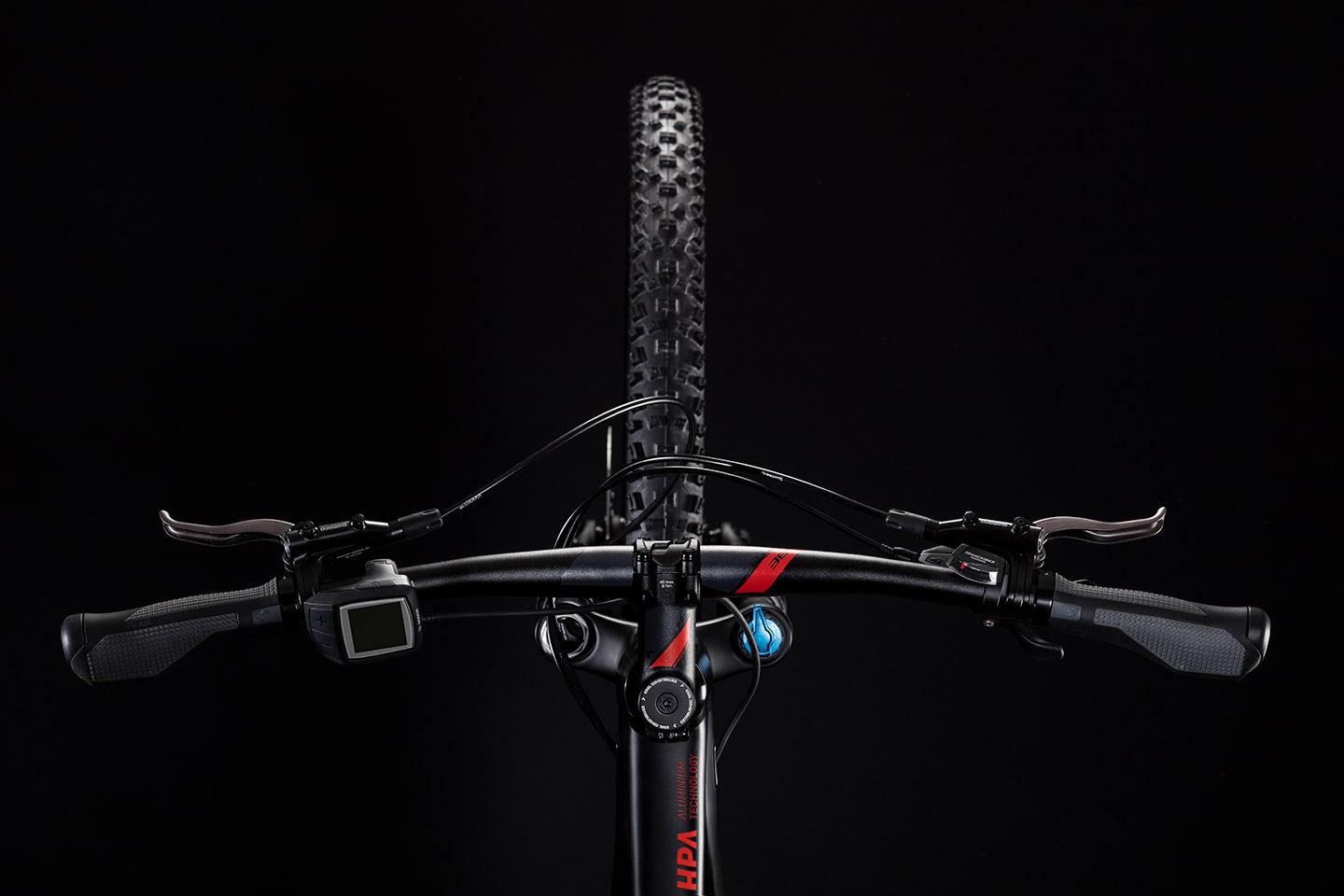

| HANDLEBAR | CUBE Rise Trail Bar, 700mm |
| GRIPS | Natural Fit GRIP All Terrain |
| SEAT POST | CUBE Performance Post, 30.9mm |
| SEATCLAMP | CUBE Varioclose, 34.9mm |
| SADDLE | Natural Fit Active |
| HEADSET | FSA Orbit 1.5B ZS-R, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm) |
| PEDALS | CUBE PP MTB |
| WEIGHT | 21,1 kg |
| COLOUR | black´n´iridium |
| DRIVE UNIT | Bosch Drive Unit Active Plus Generation 3 (50Nm) Cruise (250Watt) |
| BATTERY | Bosch PowerPack 400 |

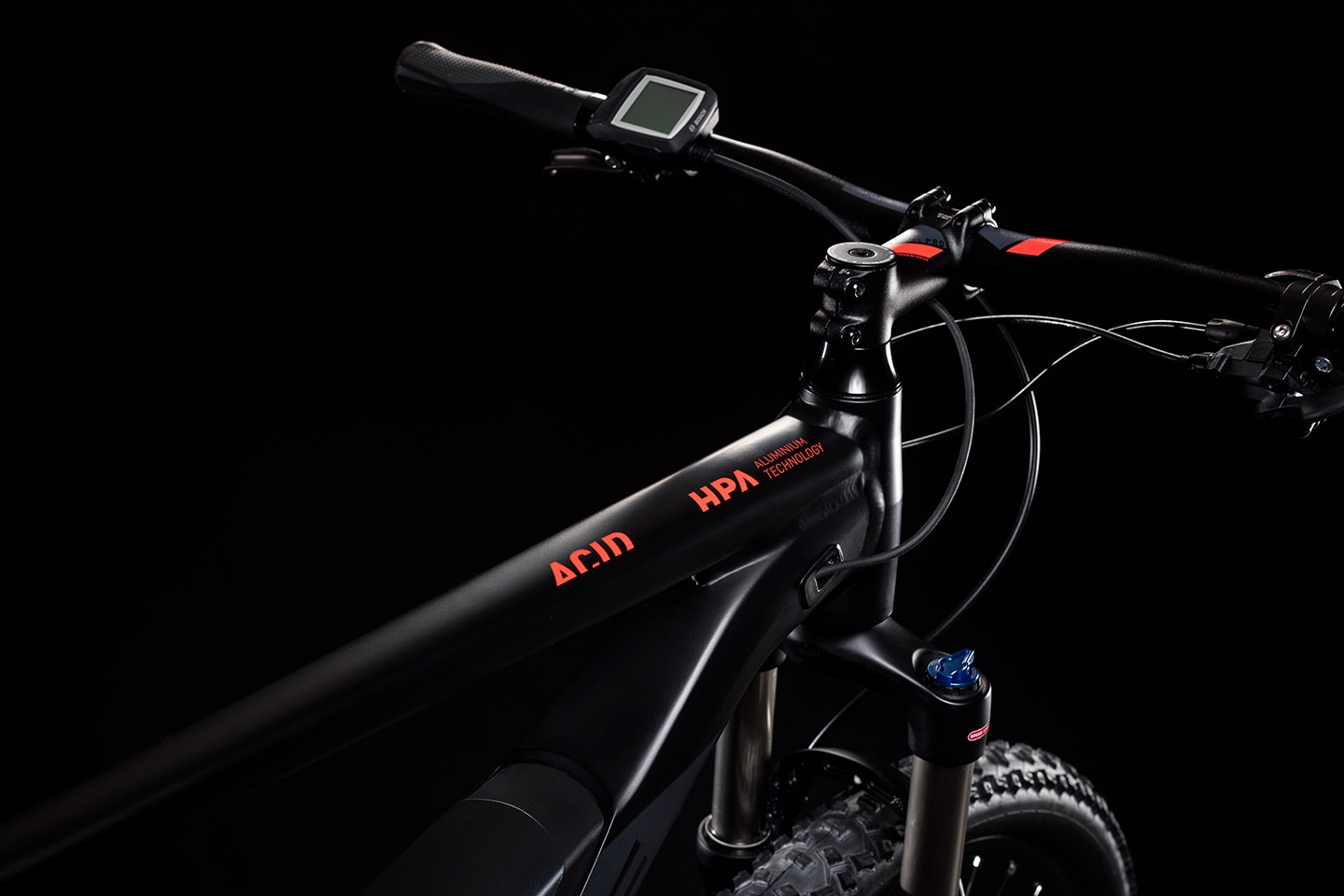

| DISPLAY | Bosch Purion |
| CHARGER | Bosch 2A |
| ČÍSLO VÝROBKU | 233200 |
Geometrie
Building an e-bike isn't particularly hard. Building a Bosch e-bike that works seamlessly with the motor and battery system, is light and easy to handle, and looks superb too... that's the tricky part. It's a good thing, then, that the CUBE engineering team loves a challenge. The Acid Hybrid Pro's aluminium superlite chassis is a masterclass in elegant functionality. From the cunningly integrated battery and drive unit to the sleek hydroformed tubing, weight-saving double butting and tapered head tube, the features here are exactly the same as you'd find on one of our range-topping hybrids. Agile Ride Geometry ensures that handling is as intuitive and easy as you'd expect, while integrated mudguard mounts make all-weather riding a simple upgrade away. We've even included cable routing, so that gear cables run inside the frame out of reach of mud, grit and water for long-lasting smooth shifting. It's everything you need, and nothing that you don't.
