TOURING HYBRID

400

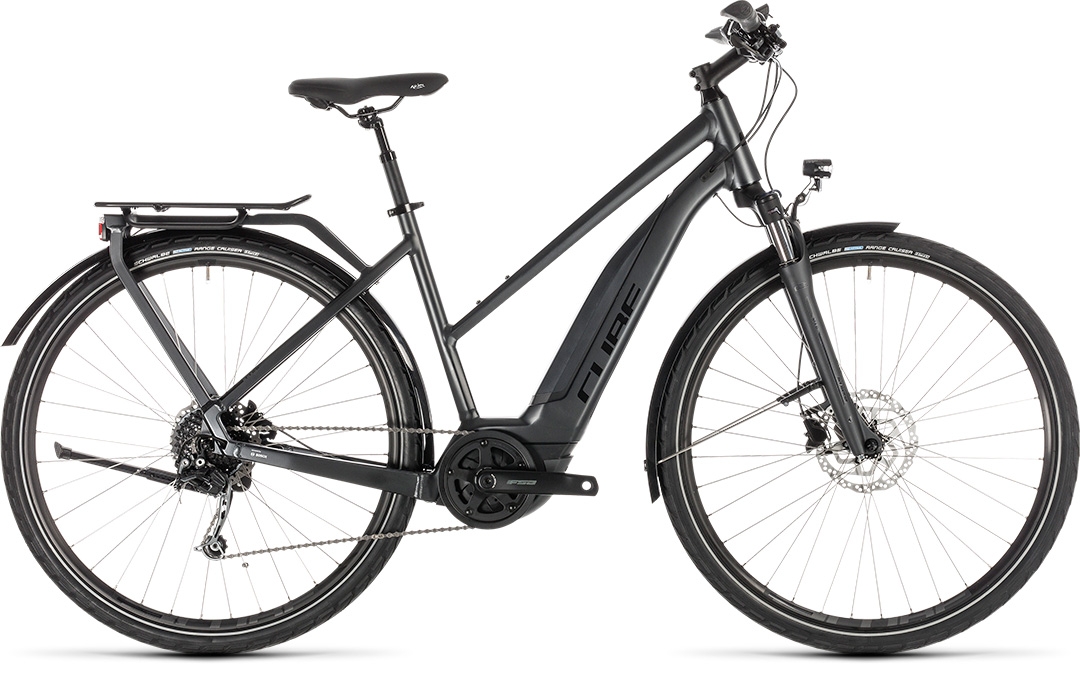

The Touring Hybrid is a thoroughly thought out, well-equipped touring e-bike. Whether you use yours as a day-to-day commuter or on multi-day tours further afield, you'll find its combination of features and functionality hard to beat. The integrated luggage rack is light, stiff and amazingly versatile. A full complement of accessories - from mudguards and lights to kickstand - ensures you and your bike will always be ready for anything. Wide 47mm tyres are comfortable, grippy and safe in all riding conditions. And the reliable component package encompasses a comfortable Suntour suspension fork, powerful hydraulic disc brakes for safe stopping in any weather, and smooth 9 speed Shimano Deore gears for tackling any road, no matter how steep. Available in Men's, Trapeze and Easy Entry frame options to suit every rider, it's the two-wheeled companion that'll slot right into your life - a Bosch e-bike for everyone.

AUSSTATTUNG

FRAMEAluminium Superlite, Gravity Casting, Efficient Comfort Geometry, Integrated Carrier 2.0
SIZEMen: 50, 54, 58, 62; Trapeze: 46, 50, 54; Easy Entry: 46, 50, 54, 58
FORKSR Suntour NEX-E25 HLO, 63mm, Lockout
BRAKE SYSTEMShimano BR-MT200, Hydr. Disc Brake (180/160)
REAR DERAILLEURShimano Deore RD-M592-SGS, 9-Speed
SHIFTERSShimano SL-M2000, Rapidfire-Plus
CRANKSETFSA Metropolis Comfort, 38T, 165mm
CASSETTEShimano CS-HG200, 11-34T
CHAINKMC X9
FRONT HUBShimano HB-TX505, QR, Centerlock
REAR HUBShimano FH-TX505, QR, Centerlock
RIMSCUBE ZX20, 36H, Disc
TYRESSchwalbe Range Cruiser, Active, K-Guard, 47-622
HANDLEBARCUBE Rise Trail Bar, 700mm
GRIPSNatural Fit GRIP Comfort
SEAT POSTCUBE Suspension Seatpost, 27.2mm
SEATCLAMPCUBE Varioclose, 31.8mm
SADDLESelle Royal Ariel
HEADSETFSA Orbit 1.5B ZS-1-R, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
PEDALSCUBE PP MTB
FRONT LIGHTAXA Compactline 20, 6-12V, DC
REAR LIGHTHerrmans H-Trace
KICKSTANDCUBEstand Cmpt
MUDGUARDSSKS Black Shiny
BELLMini Bell

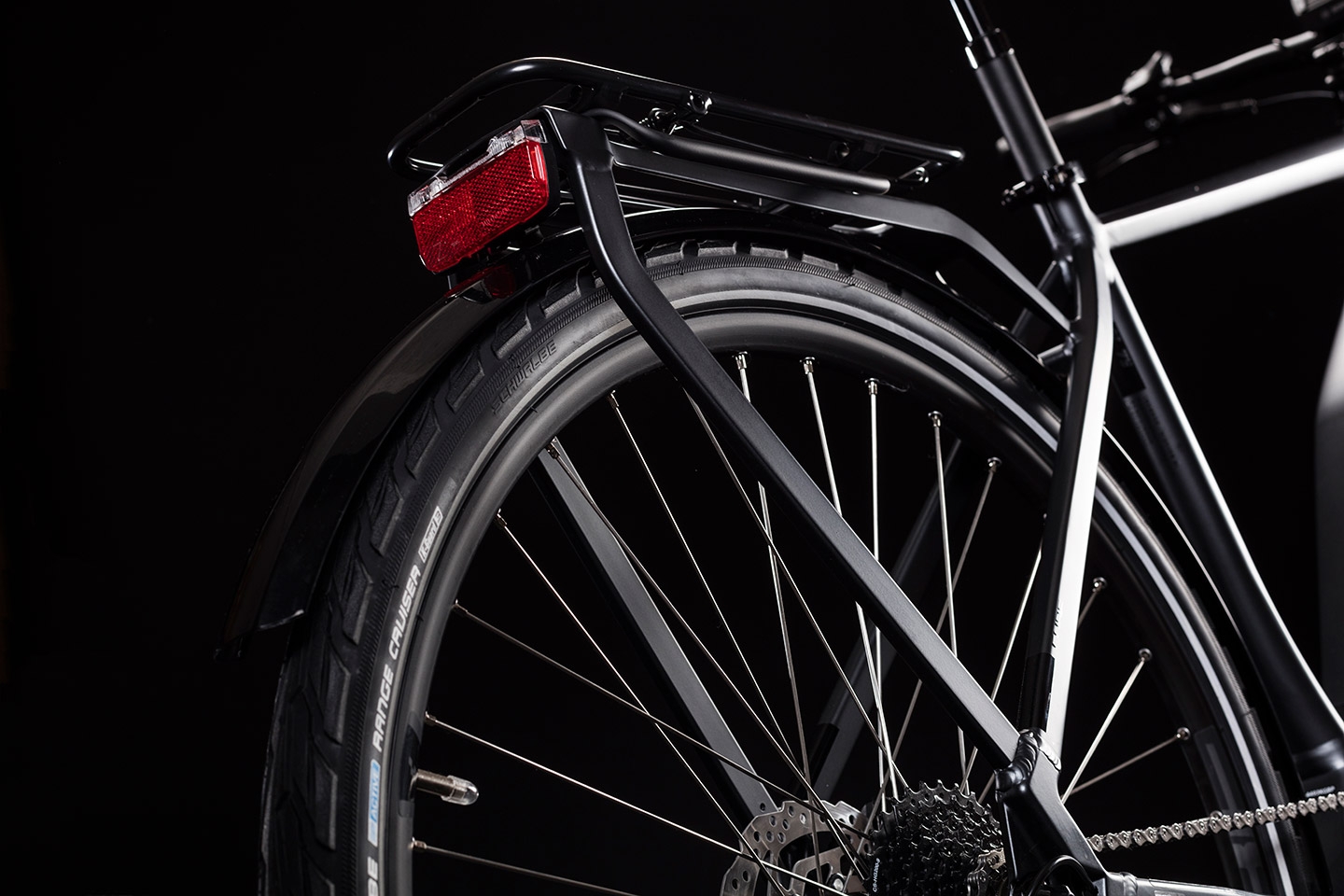

CARRIERCUBE Integrated Carrier 2.0, ACID RILink Adapter Compatible, SnapIt Compatible and Rail
WEIGHT23,8 kg
COLOURiridium´n´black
DRIVE UNITBosch Drive Unit Active Plus Generation 3 (50Nm) Cruise (250Watt)
BATTERYBosch PowerPack 400
DISPLAYBosch Intuvia
CHARGERBosch 2A
ART. NO231100

GEOMETRY

Key to a great-handling Bosch e-bike is getting the battery and drive unit in exactly the right position. Our engineers understand that, which is why they went to such lengths to get this crucial design detail right on each of the Touring Hybrid's three frame designs: Men's, Trapeze and Easy Entry. Combined with our Efficient Comfort Geometry, the resulting low centre of gravity means you'll soon forget you're riding an e-bike. Fast, slow, up or down, on winding roads or through narrow city streets, the Touring Hybrid is stable, intuitive and easy to live with. Smooth welds, the clever integrated luggage carrier and internally routed cables all contribute to the frame's understated good looks. You'll know, every time you ride, that you're on a thoroughbred.
