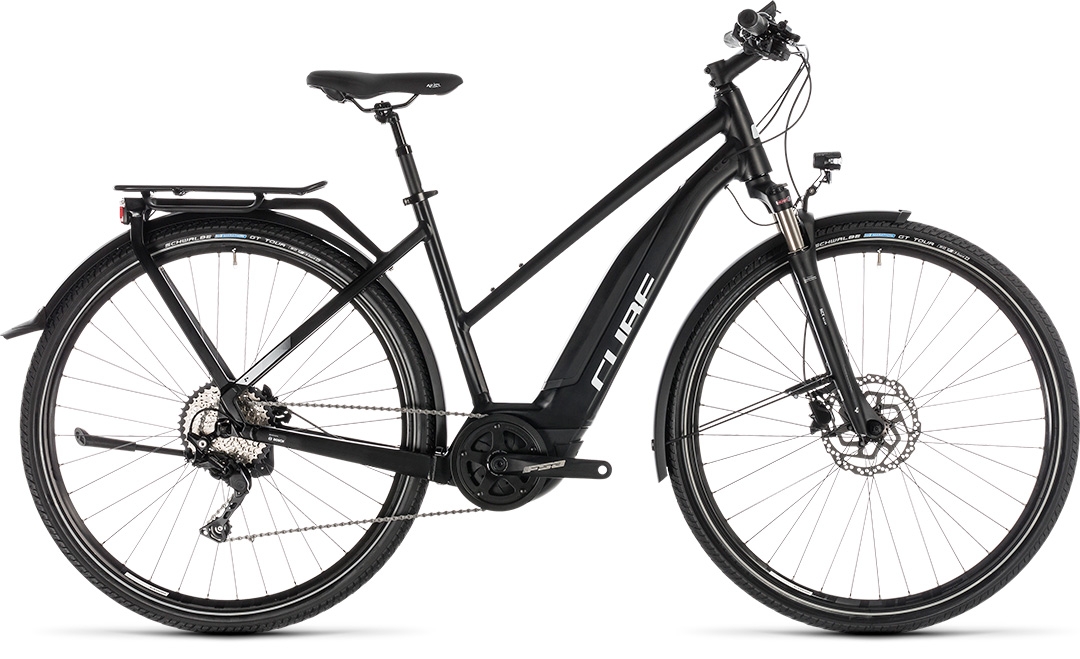

TOURING HYBRID
Pro 500
Whether you're tackling a longer commute or fancy a challenging, multi-day route away from the hustle and bustle of the city, the Touring Hybrid Pro is the Bosch e-bike for the job. The Bosch drive system is a work of art in its own right. Quiet, unobtrusive and powerful, it works seamlessly with Bosch's clever software to deliver a ride that's so smooth, you'll soon forget that you're riding a pedal assist bike at all. Throw in the integrated luggage rack, the mudguards and lights, inspiring but safe handling and a set of components picked for their reliability, and you've all you need for any riding adventure. From the easily adjustable air sprung Suntour fork for more comfort on rough roads, to the wide-ranging 10 speed Shimano Deore gears and powerful, all-weather hydraulic disc brakes, there's everything here that you need... and nothing that you don't. We even included a suspension seatpost for extra comfort on those long rides at the weekend. Now, where will your next ride take you?
AUSSTATTUNG
| FRAME | Aluminium Superlite, Gravity Casting, Efficient Comfort Geometry, Integrated Carrier 2.0 |
|---|---|
| SIZE | Men: 50, 54, 58, 62; Trapeze: 46, 50, 54; Easy Entry: 46, 50, 54, 58 |
| FORK | SR Suntour NCX D LO Air, 63mm, Lockout |
| BRAKE SYSTEM | Shimano BR-MT200, Hydr. Disc Brake (180/160) |
| REAR DERAILLEUR | Shimano Deore RD-M6000-DGS, ShadowPlus, 10-Speed |
| SHIFTERS | Shimano Deore SL-M6000, Rapidfire-Plus |
| CRANKSET | FSA CK-602, 38T, 175mm |
| CASSETTE | Shimano Deore CS-HG500, 11-42T |
| CHAIN | KMC X10 |
| FRONT HUB | Shimano Deore HB-M6000, QR, Centerlock |
| REAR HUB | Shimano Deore FH-M6000, QR, Centerlock |
| RIMS | CUBE ZX20, 36H, Disc |
| TYRES | Schwalbe Marathon GT Tour, Performance, Dualguard, 47-622 |
| HANDLEBAR | CUBE Rise Trail Bar, 700mm |
| GRIPS | Natural Fit GRIP Comfort |
| SEAT POST | CUBE Suspension Seatpost, 27.2mm |
| SEATCLAMP | CUBE Varioclose, 31.8mm |
| SADDLE | Selle Royal Ariel |
| HEADSET | FSA Orbit 1.5E ZS-R, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm) |
| PEDALS | CUBE PP MTB |
| FRONT LIGHT | AXA Compactline 20, 6-12V, DC |
| REAR LIGHT | Herrmans H-Trace |
| KICKSTAND | CUBEstand Pro, Adjustable |
| MUDGUARDS | SKS Stingray |
| BELL | Mini Bell |
| CARRIER | CUBE Integrated Carrier 2.0, ACID RILink Adapter Compatible, SnapIt Compatible and Rail |
| WEIGHT | 23,2 kg |
| COLOUR | black´n´white |
| DRIVE UNIT | Bosch Drive Unit Active Plus Generation 3 (50Nm) Cruise (250Watt) |
| BATTERY | Bosch PowerPack 500 |
| DISPLAY | Bosch Intuvia |
| CHARGER | Bosch 2A |
| ART. NO | 231150 |
GEOMETRY
There's some clever technology lurking in the smooth, clean lines of the Touring Hybrid Pro. Our engineering team worked overtime to position the Bosch battery and drive system optimally for each of the three frame designs - Men's, Trapeze and Easy Entry. Using complex hydroforming and gravity casting, they created three frames that combine our Efficient Comfort Geometry with a low centre of gravity for handling that's completely intuitive - lively when you need it, stable the rest of the time. A light, stiff structure translates into a bike that's as easy to pedal as it is to steer. Smooth welds, the neatly integrated luggage carrier and internal cable routing all complement the svelte appearance, and the added bonus is that gear cables tucked out of harm's way in the frame reduce maintenance and help to keep your gear shifts clean and smooth for longer. As we like to say at CUBE, it's the details that count.
