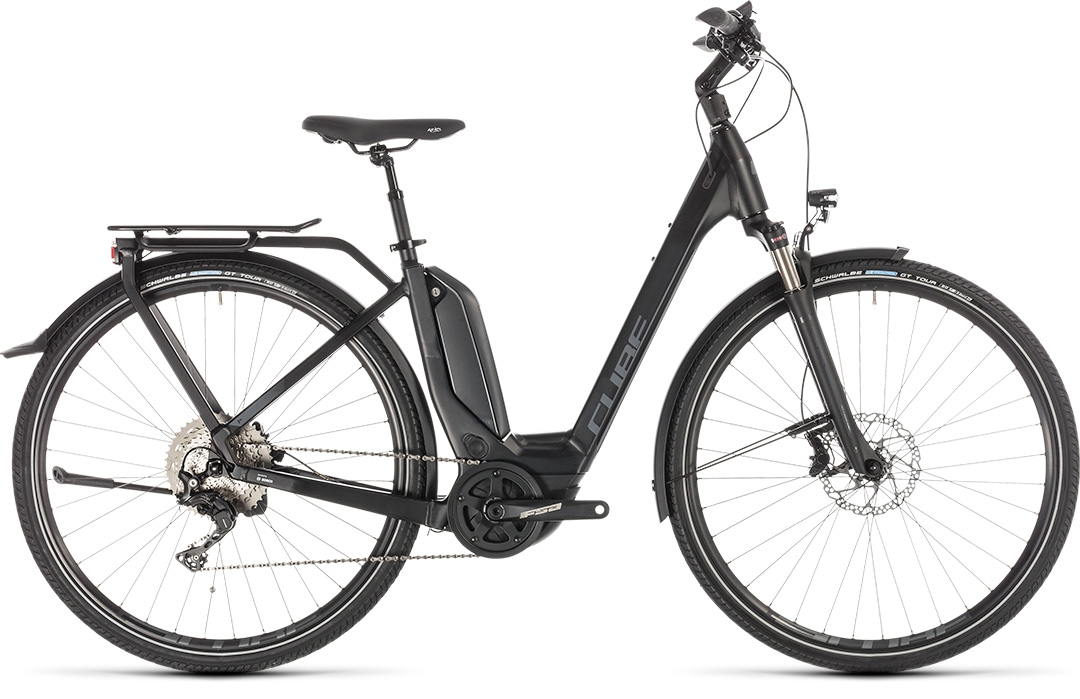

TOURING HYBRID

Exc 500

Sometimes, picking the right tool for the job entails knowing when to up the ante. The Touring Hybrid EXC does just that, putting the best quality components at the fingertips of its rider for the ultimate in hassle-free reliability. Based around our sleek, durable and easy-to-ride Touring Hybrid frame - available in Men's, Trapeze and Easy Entry versions to suit any rider - our designers have selected the kit that's proven itself over time. So, for example, there's an 11 speed Shimano XT-based transmission with wide-ranging 11-46 tooth cassette - putting the right gear for any hill just a click or two away. Shimano Deore hydraulic disc brakes offer smooth, powerful stopping in any weather conditions, while 47mm Schwalbe tyres give you the comfort and control you need to stay safe. And the easily adjustable, air sprung Suntour suspension fork helps smooth out the roughest of road surfaces. Combined with standard equipment including the integrated luggage carrier, mudguards and lighting set, it's all you need for miles of smiles - a Bosch e-bike for all reasons.

AUSSTATTUNG

FRAMEAluminium Superlite, Gravity Casting, Efficient Comfort Geometry, Integrated Carrier 2.0
SIZEMen: 50, 54, 58, 62; Trapeze: 46, 50, 54; Easy Entry: 46, 50, 54, 58
FORKSR Suntour NCX D LO Air, 63mm
BRAKE SYSTEMShimano Deore BR-M6000, Hydr. Disc Brake (180/160)
REAR DERAILLEURShimano XT RD-M8000-DGS, ShadowPlus, 11-Speed
SHIFTERSShimano XT SL-M8000-I, Direct Attach
CRANKSETFSA CK-602, 38T, 175mm
CASSETTEShimano SLX CS-M7000, 11-46T
CHAINKMC X11
FRONT HUBShimano XT HB-M8000, QR, Centerlock
REAR HUBShimano XT FH-M8000, QR, Centerlock
RIMSCUBE ZX20, 36H, Disc
TYRESSchwalbe Marathon GT Tour, Performance, Dualguard, 47-622
HANDLEBARCUBE Rise Trail Bar, 700mm
GRIPSNatural Fit GRIP Comfort
SEAT POSTCUBE Suspension Seatpost, 27.2mm
SEATCLAMPCUBE Varioclose, 31.8mm
SADDLESelle Royal Ariel
HEADSETFSA Orbit 1.5E ZS-R, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
PEDALSCUBE PP MTB
FRONT LIGHTAXA Compactline 20, 6-12V, DC
REAR LIGHTHerrmans H-Trace
KICKSTANDCUBEstand Pro, Adjustable
MUDGUARDSSKS Stingray
BELLMini Bell
CARRIERCUBE Integrated Carrier 2.0, ACID RILink Adapter Compatible, SnapIt Compatible and Rail
WEIGHT22,9 kg
COLOURblack´n´grey
ART. NO231200

GEOMETRY

One of the hallmarks of the CUBE Touring Hybrid range is its versatility. But it was just as important to us that that versatility should be available to the widest possible range of riders which is why we set our engineers the task of designing not one, but three frame designs. We knew they'd come up trumps, and they did. Whether you opt for the trapeze, men's or easy entry version of the Touring Hybrid EXC, you can be assured of a frame that's passed our rigorous in-house safety testing. Each one positions the Bosch drive unit and battery optimally, using a combination of clever frame manufacturing technologies like complex hydroforming and gravity casting, so that weight is kept low and stiffness is kept high. The result, when combined with our proprietary Efficent Comfort Geometry, is a Bosch e-bike that handles just as good as it looks. Internal cable routing reduces clutter and maintenance and helps keep gears shifting cleanly. And the integrated luggage rack is such a neat idea, you'll wonder how you managed without it.

Bike details

detail_image_0
detail_image_1
detail_image_2
detail_image_3
