TOWN HYBRID
Exc 400

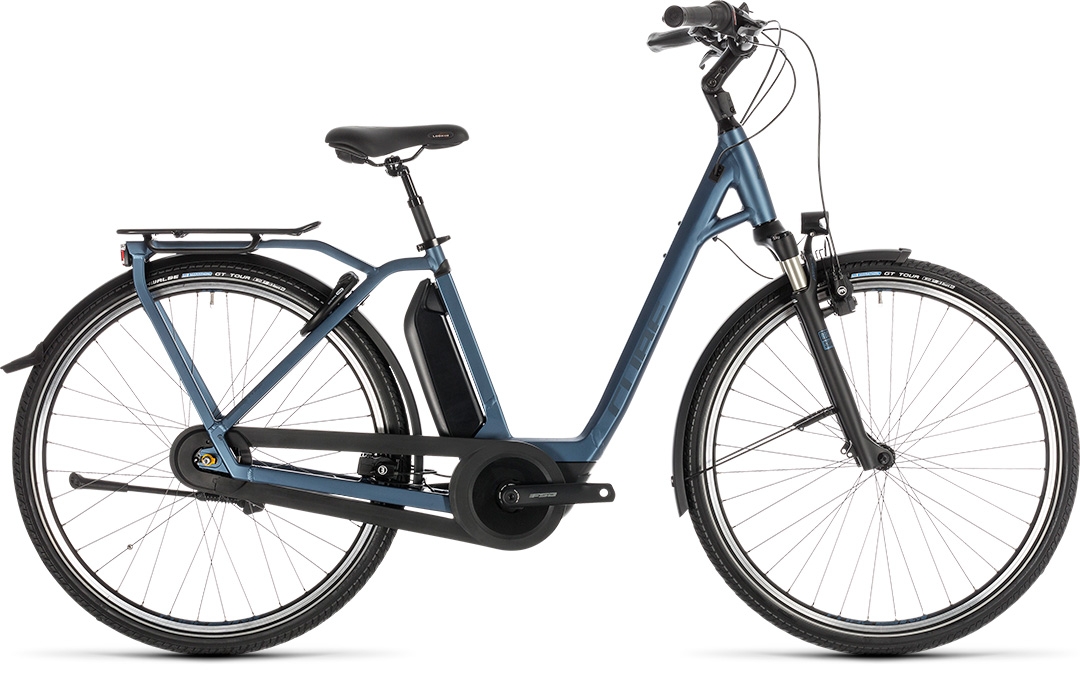

With the Town Hybrid EXC we set out to build a Bosch e-bike for comfortable everyday use: for work, for shopping, for fun. Available in easy entry, trapeze and classic men's frame configurations and in a wide range of sizes, there's one to suit everybody. Shimano's smooth-shifting 8 speed Nexus hub gear system works seamlessly with the Bosch Active Plus drive unit to make light work of any journey, whether across town or in the countryside. Hydraulic rim brakes deliver safe, assured stopping in any weather conditions, while the fully enclosed chain and full length mudguards help keep splashes and spray at bay. The integrated luggage carrier is a CUBE work of engineering art, combining elegant looks with incredible functionality for easy, secure load carrying. The RockShox Paragon Gold air fork lockout helps smooth out even the most potholed of city streets, and we included front and rear lights and a kickstand so that all you need to do is step aboard and ride. Smooth, reliable, adaptable and incredibly easy to live with, this is the Bosch e-bike that'll slot seamlessly into your everyday life.
AUSSTATTUNG
| FRAME | Aluminium Superlite, Comfort Ride Geometry, Premium Comfort And Safety, Integrated Carrier 2.0, Double Butted |
|---|---|
| SIZE | 50, 54, 58, 62; Trapeze: 46, 50, 54; Easy Entry: 42, 46, 50, 54, 58 |

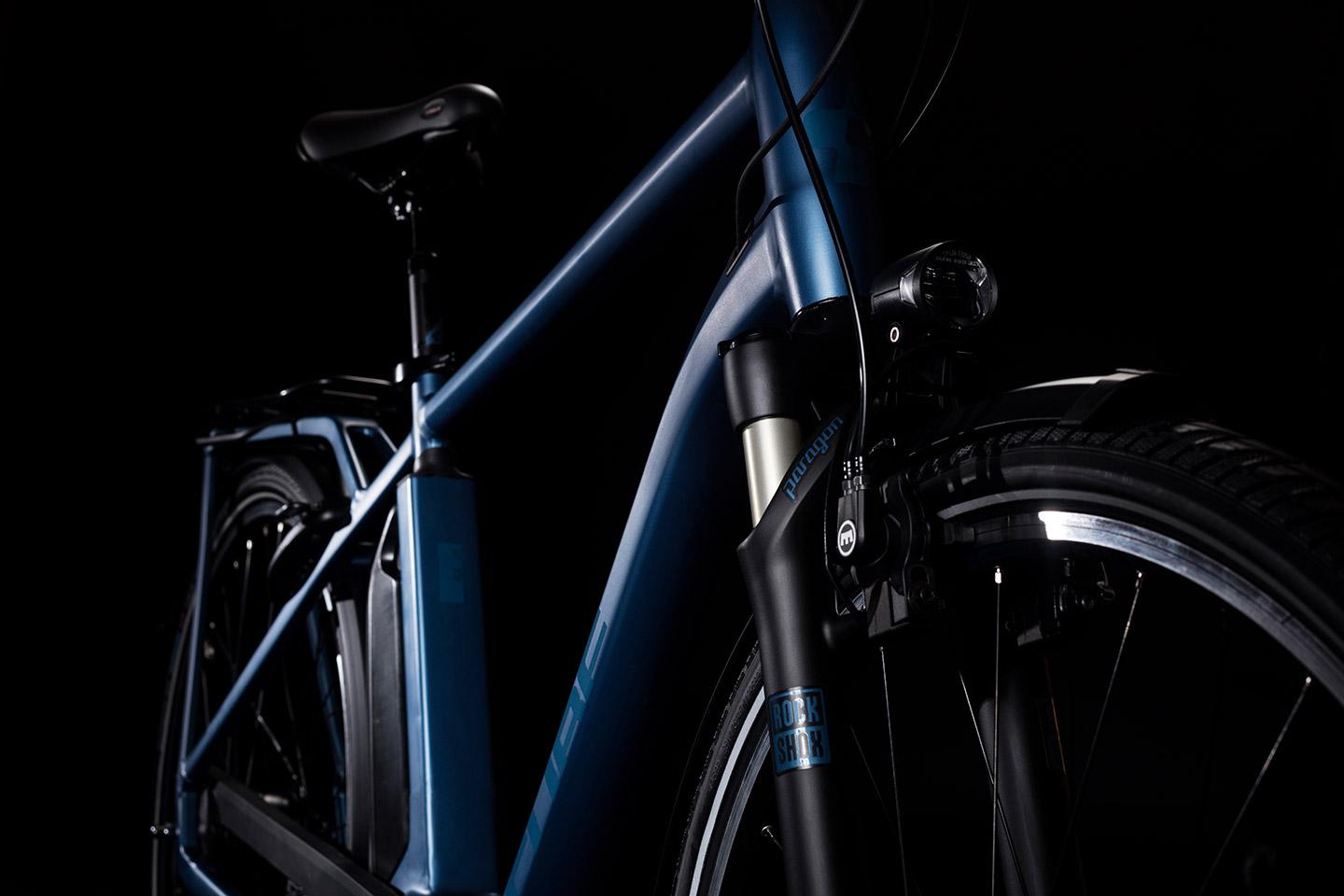

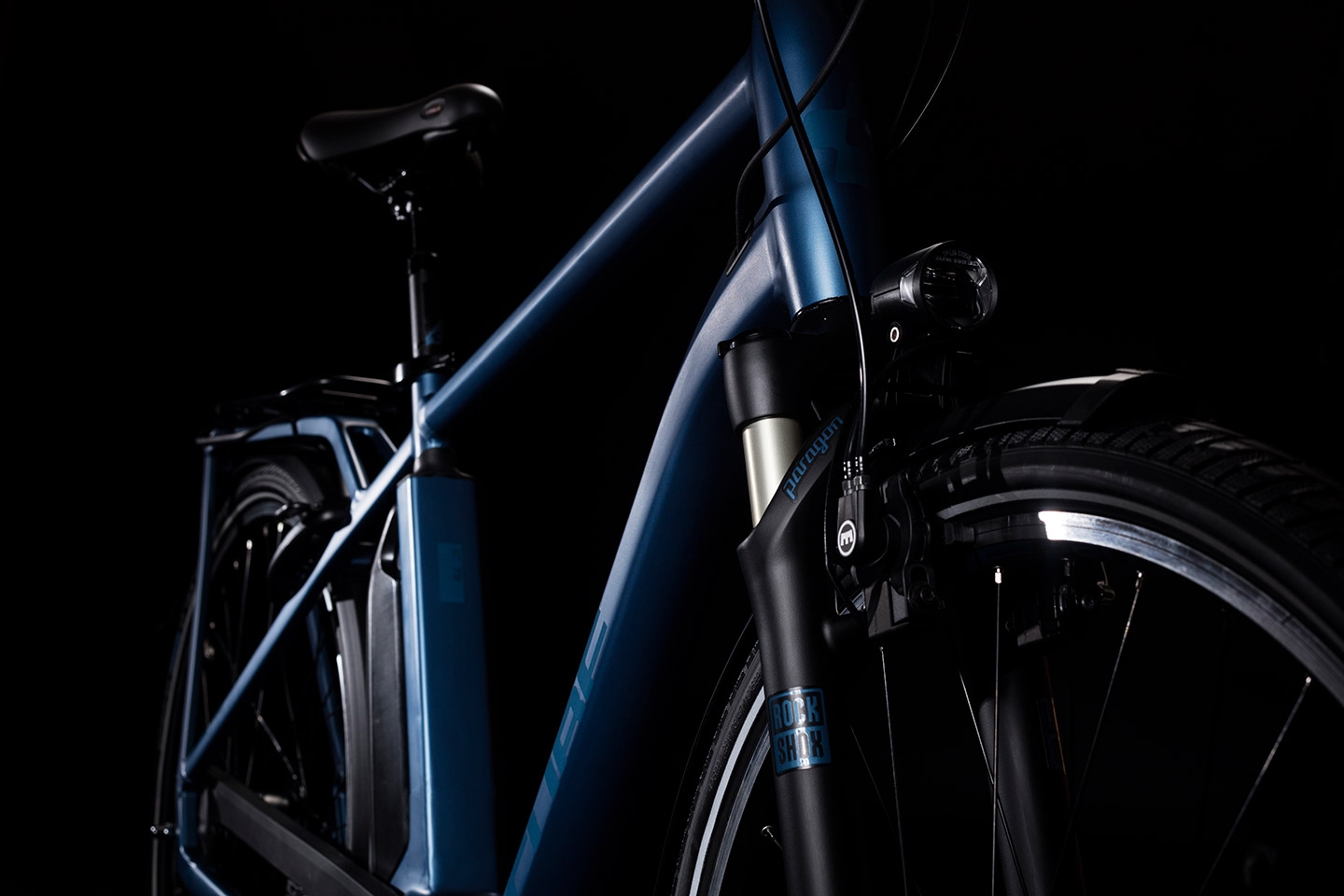

| FORK | RockShox Paragon Gold Air, 50mm, Lockout |
| SPROCKET | Shimano Nexus, 20T |
| BRAKE SYSTEM | Magura HS11, Hydr. Caliper Brake |
| SHIFTERS | Shimano Nexus SL-C6000-8, Revoshift |
| CRANKSET | FSA Metropolis Comfort, 40T, 165mm |
| SPROCKET | Shimano Nexus, 20T |
| CHAIN | KMC Z610, EcoProTeQ |
| FRONT HUB | Shimano Deore HB-T610, QR |
| REAR HUB | Shimano Nexus SG-C6001-8V, 8-Speed, Nut |
| RIMS | CUBE ZX27, 36H, V-Brake |
| TYRES | Schwalbe Marathon GT Tour, Performance, Dualguard, 47-622 |
| HANDLEBAR | CUBE Comfort Shape Bar |
| GRIPS | RFR Comfort, Revoshift |
| SEAT POST | CUBE Suspension Seatpost, 27.2mm |
| SEATCLAMP | CUBE Varioclose, 31.8mm; EE42: CUBE Screwlock 31.8mm |
| SADDLE | Selle Royal Lookin Classic, Royalgel™ |
| HEADSET | FSA No.10, Semi-Integrated |
| PEDALS | CUBE PP MTB |
| FRONT LIGHT | Herrmanns H-Black MR8, 6-12V, DC |
| REAR LIGHT | Herrmans H-Trace |
| KICKSTAND | CUBEstand Pro, Adjustable |
| MUDGUARDS | SKS Stingray |
| BELL | Mini Bell |

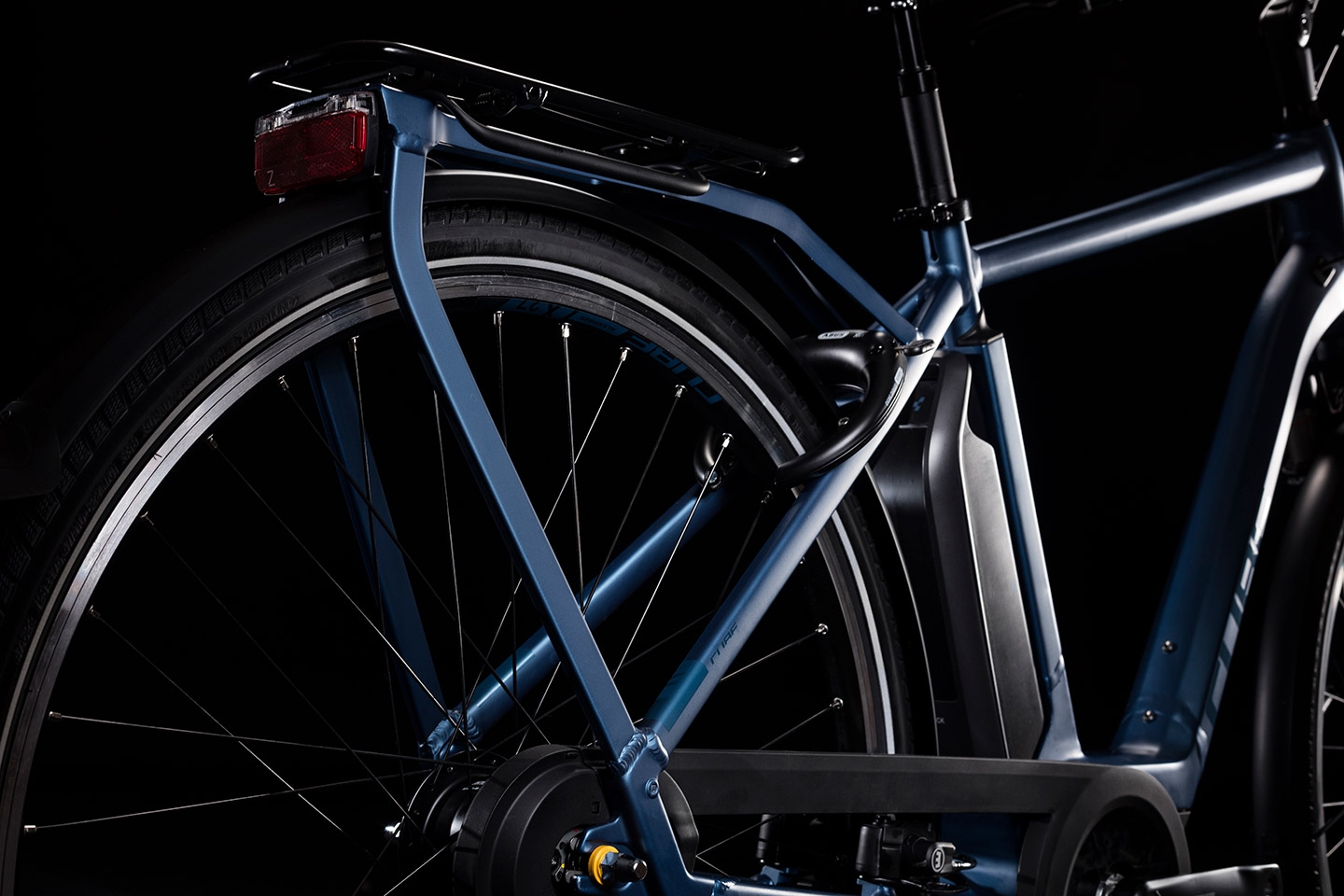

| CARRIER | CUBE Integrated Carrier 2.0, ACID RILink Adapter Compatible, SnapIt Compatible and Rail |
| WEIGHT | 25,7 kg |
| COLOUR | blue´n´blue |
| DRIVE UNIT | Bosch Drive Unit Active Plus Generation 3 (50Nm) Cruise (250Watt) |
| BATTERY | Bosch PowerPack 400 |

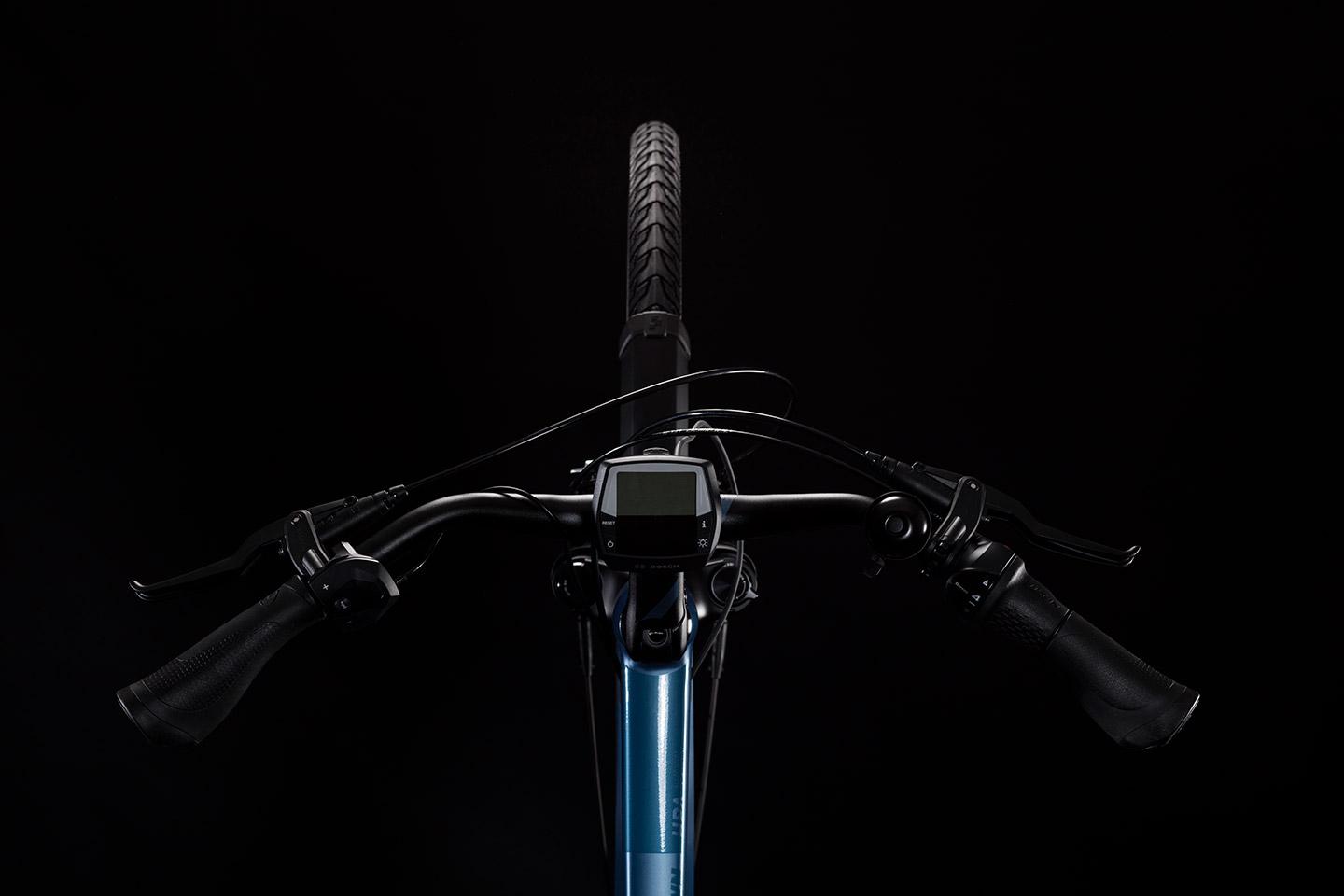

| DISPLAY | Bosch Intuvia |
| CHARGER | Bosch 4A |
| ART. NO | 232210 |
GEOMETRY

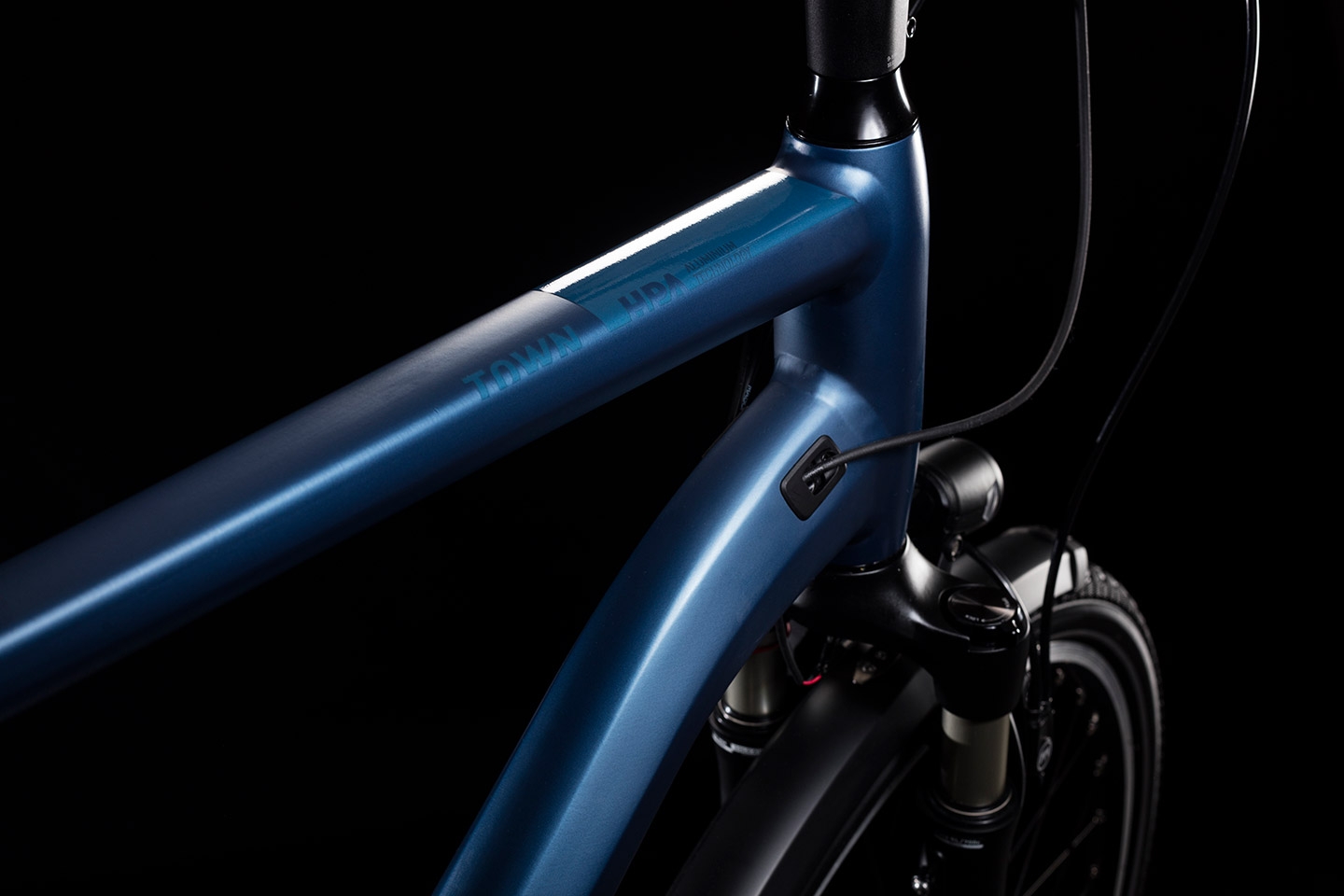

Why create three different frames for the same bike? Because we like to make sure that every rider is catered for, that's why. The Easy Entry is as easy to use as its name implies, offering the easiest access in a frame that's still light, stiff and stable. The Trapeze option features traditional styling and straightforward step-through access, while the classic Men's frame is an instantly recognisable classic. Each has been carefully configured to combine the best blend of low weight, easy handling and more than enough strength to sail through our strict in-house testing regime. The Bosch drive unit's location in a custom gravity cast housing harnesses its power safely and effortlessly, while the battery is positioned in the optimum place to ensure the best possible handling. Speaking of which, you can rely on our Comfort Ride Geometry to make you feel at home every time you ride, ensuring that you'll be safe and secure whether you're riding across town out out in the countryside. We even routed cables internally, complementing the frame's elegant looks and keeping your gear shifts effortlessly smooth for longer.
