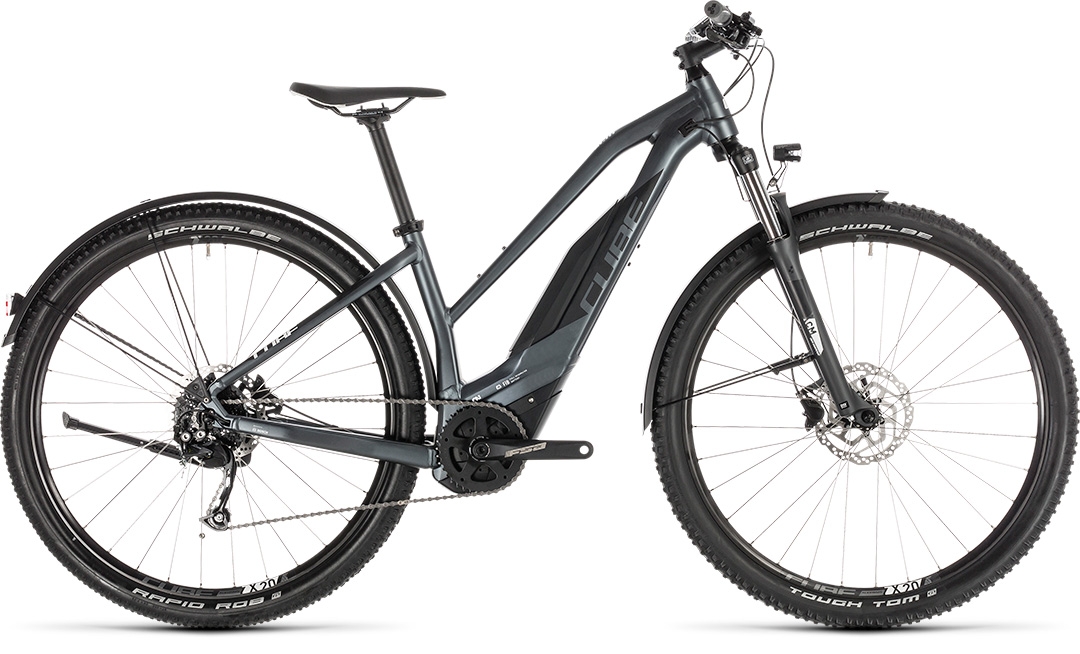

ACID HYBRID
ONE ALLROAD 400 29
What if you could combine the go-anywhere versatility of a mountain bike, the practical flexibility of a tourer and the power and ease-of-use of a Bosch e-bike? That's what we've built with the Acid Hybrid ONE Allroad. We call it cross-mountain, and we reckon it's the perfect setup for busy folk looking for a bike that'll fit easily into their lives. We even designed a trapeze frame option, so that everyone can find their perfect fit. For commuting we've equipped it with full length mudguards, front and rear lights powered by the Bosch battery, a bell and a kickstand. Just jump on, and the office is a sweat-free ride away. For weekend adventuring the Suntour suspension fork, grippy Schwalbe tyres, smooth Shimano 9 speed gears and powerful Shimano MT200 hydraulic disc brakes are all you need to explore away from the traffic. And of course, it's all powered by Bosch's reliable, smooth and eerily silent Active Line Plus drive unit and battery, sleekly incorporated into the elegant frame design in such a way that you'll forget it's there.
AUSSTATTUNG
| FRAME | Aluminium Superlite, Advanced Hydroforming, Agile Ride Geometry, Double Butted, Tapered Headtube, Internal Cable Routing, Full Integrated Battery |
|---|---|
| SIZE | Men: 15", 17", 19", 21", 23", Trapeze: 15", 17", 19" |
| FORK | SR Suntour XCM ATB Coil, 100mm |
| BRAKE SYSTEM | Shimano BR-MT200, Hydr. Disc Brake (180/180) |
| REAR DERAILLEUR | Shimano RD-M2000-SGS, 9-Speed |
| SHIFTERS | Shimano SL-M2000, Rapidfire-Plus |
| CRANKSET | FSA CK-602, 38T, 175mm |
| CASSETTE | Shimano CS-HG200, 11-34T |
| CHAIN | KMC X9 |
| FRONT HUB | Shimano HB-TX505, QR, Centerlock |
| REAR HUB | Shimano FH-TX505, QR, Centerlock |
| RIMS | CUBE ZX20, 32H, Disc |
| FRONT TIRE | Schwalbe Tough Tom, Active, 2.25 |
| REAR TIRE | Schwalbe Rapid Rob, Active, 2.25 |
| HANDLEBAR | CUBE Rise Trail Bar, 680mm |
| GRIPS | CUBE Performance Grip |
| SEAT POST | CUBE Performance Post, 30.9mm |
| SEATCLAMP | CUBE Varioclose, 34.9mm |
| SADDLE | Natural Fit Active |
| HEADSET | FSA Orbit 1.5B ZS-R, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm) |
| PEDALS | CUBE PP MTB |
| FRONT LIGHT | AXA Compactline 20, 6-12V, DC |

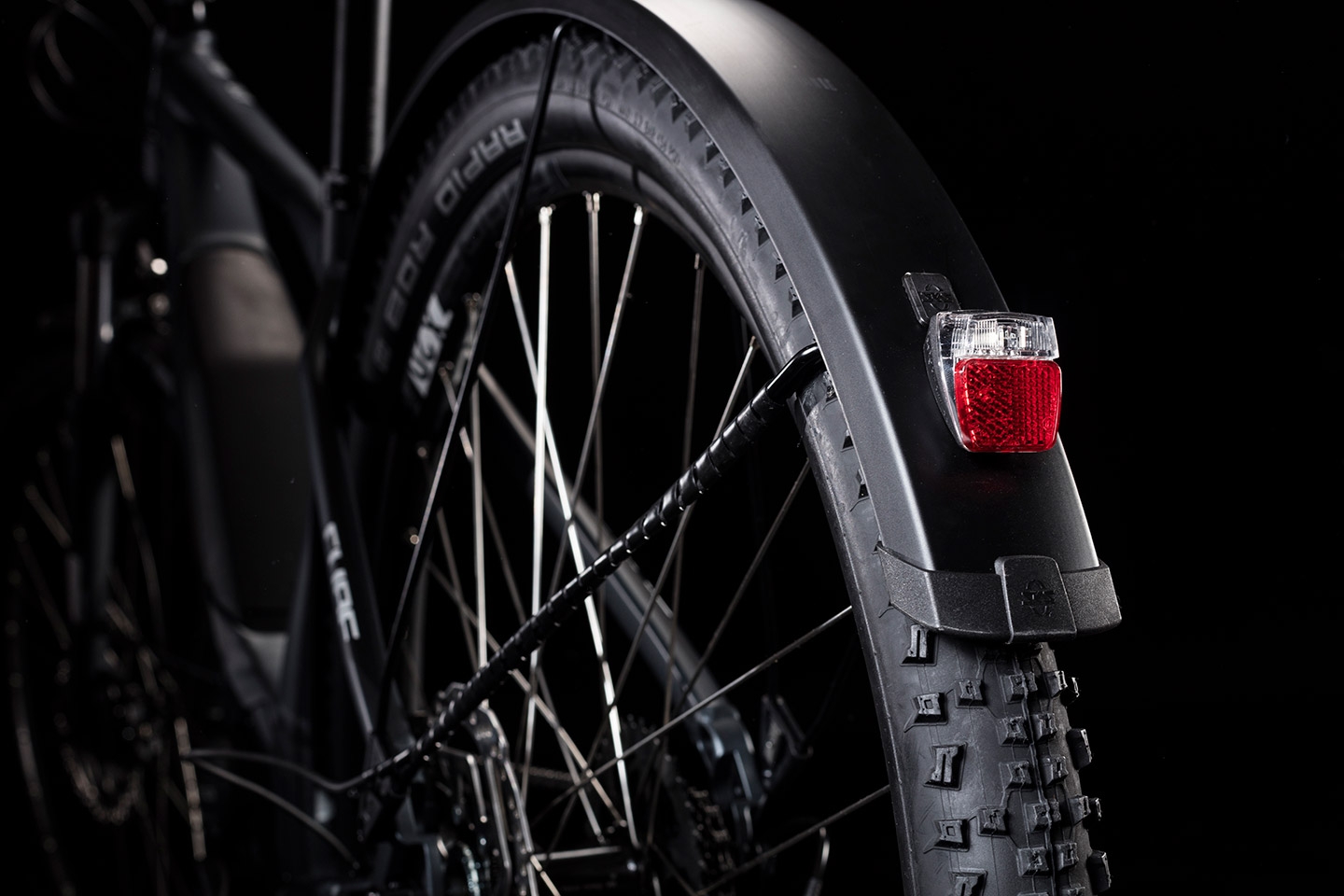

| REAR LIGHT | Herrmans H-Trace Mini, DC |
| KICKSTAND | CUBEstand Cmpt |
| MUDGUARDS | SKS E-MTB Allroad Black Matt |
| BELL | Mini Bell |
| WEIGHT | 22,7 kg |
| COLOUR | grey´n´white |
| DRIVE UNIT | Bosch Drive Unit Active Plus Generation 3 (50Nm) Cruise (250Watt) |
| BATTERY | Bosch PowerPack 400 |
| DISPLAY | Bosch Purion |
| CHARGER | Bosch 2A |
| ART. NO | 233150 |
GEOMETRY

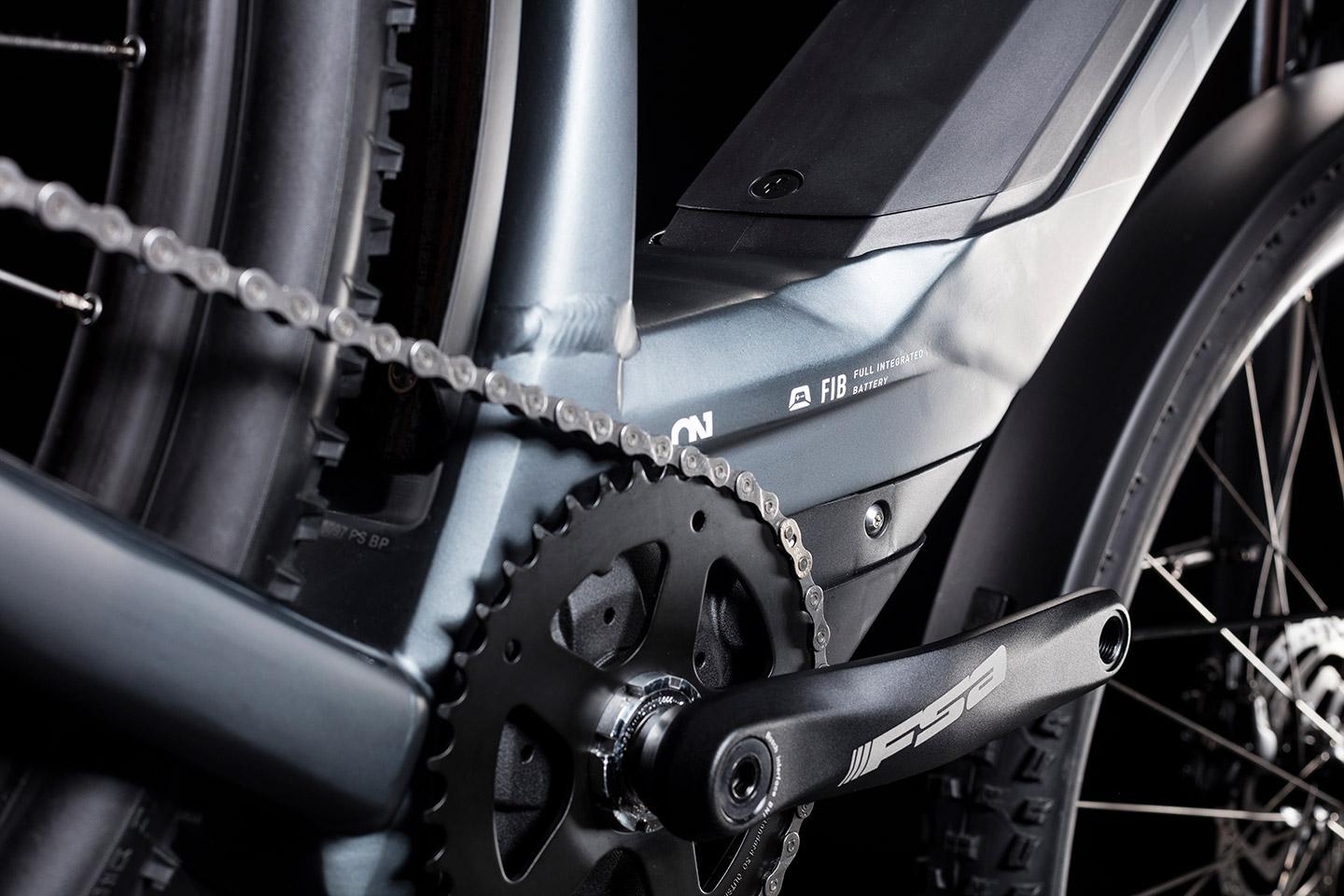

At first glance you'd be forgiven for thinking that the Acid Hybrid ONE Allroad is just a 'normal' bike. That's because our engineering team has been burning the midnight oil, developing an aluminiumm superlite frame that elegantly incorporates the Bosch drive unit and battery into a sleek, strong and rigid down tube. Double butting and advanced hydroforming have allowed our designers to shave weight where possible and add extra strength where it's needed. Combined with our widely admired Agile Ride Geometry, it's a combination that ensures safe, predictable handling in any situation from busy city streets to deserted dirt trails. Internal cable routing - including for a possible future dropper post upgrade - complements the frame's sleek looks and ensures long-lasting, precise gear shifting with minimal maintenance. You can even charge the battery without removing it from the frame, should you wish.
