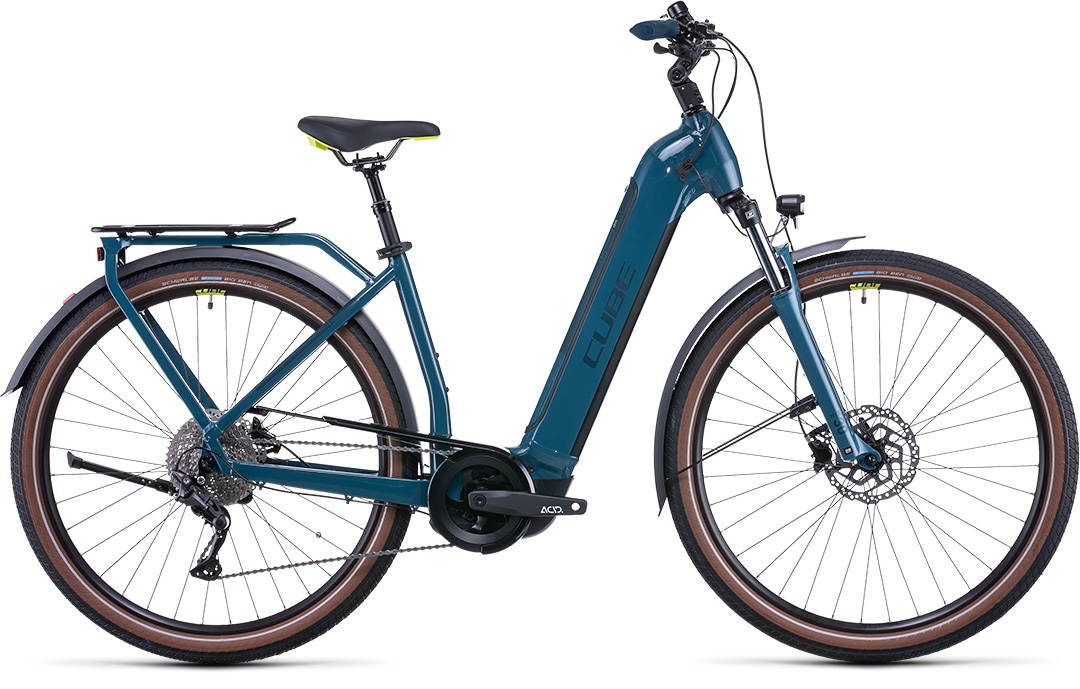

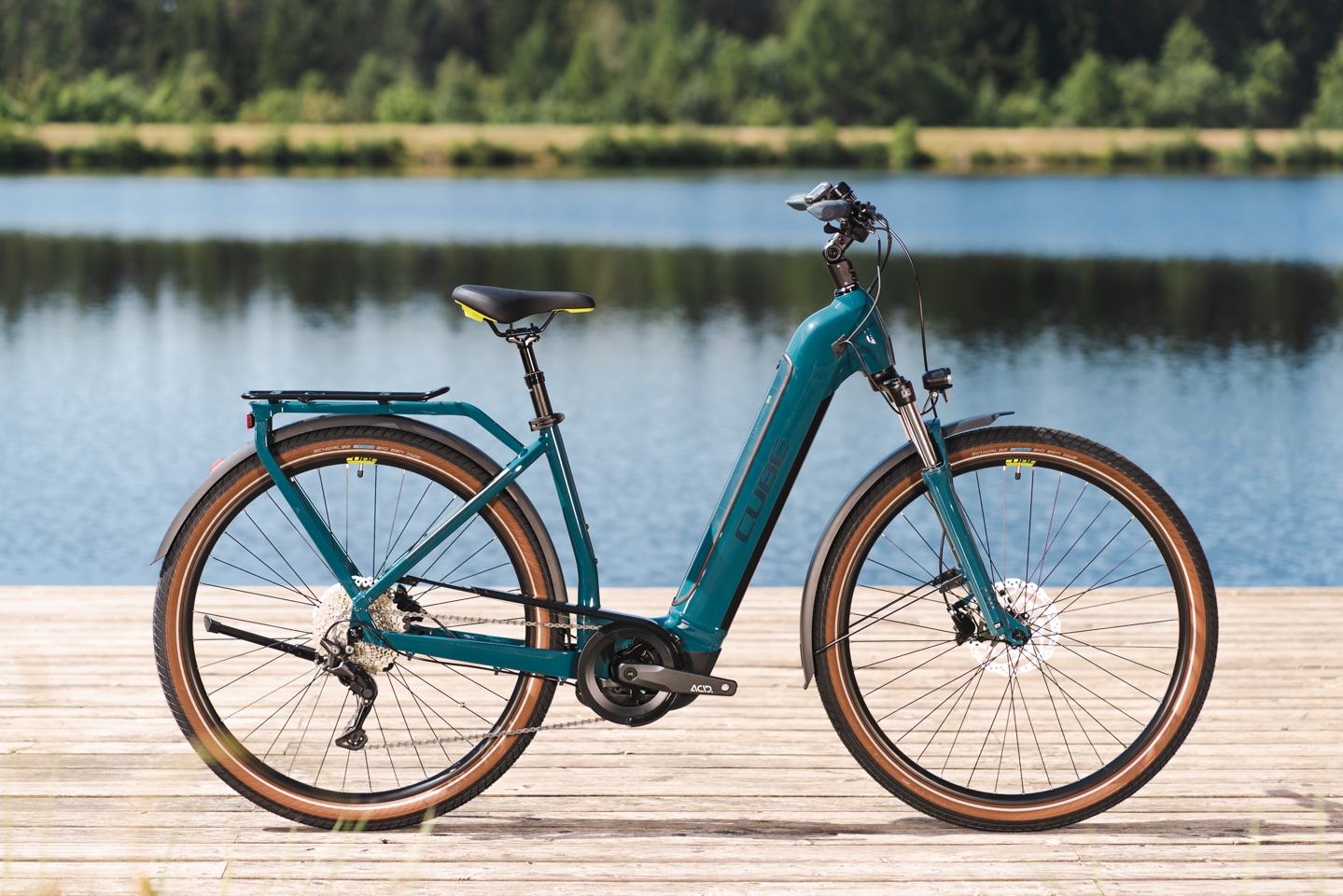

KATHMANDU HYBRID
ONE 625
The Kathmandu Hybrid ONE 625 will help you get to wherever your imagination leads you. Shimano's easy-to-use, legendarily reliable 1x10 gears work seamlessly with Bosch's smooth, fourth-generation drive unit and high-capacity 625Wh battery to make light work of any journey, whether it's across town or across countries. The Suntour suspension fork, suspension seatpost and adjustable stem ensure you're comfortable for the duration. Powerful Shimano hydraulic disc brakes bring you safely to a stop in all weathers. And a full complement of accessories - from lights and mudguards to our neat Integrated Carrier - means you're ready for anything.
AUSSTATTUNG
| FRAME | Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Tapered Headtube, Full Integrated Battery, Integrated Carrier 2.0 |
|---|---|
| SIZE | Men: S (50cm), M (54cm), L (58cm), XL (62cm); Trapeze: XS (46cm), S (50cm), M (54cm); Easy Entry: XS (46cm), S (50cm), M (54cm), L (58cm) |
| FORK | SR Suntour NVX30 Coil, 100mm |
| SUSPENSION FORK | SR Suntour NVX30 Coil, 100mm |
| BRAKE SYSTEM | Shimano BR-MT200, Hydr. Disc Brake (180/180) |
| REAR DERAILLEUR | Shimano Deore RD-M4120-SGS, 10-Speed |
| SHIFTERS | Shimano Deore SL-M4100, Rapidfire-Plus |
| CRANKSET | ACID E-Crank, 38T, 175mm (EE: 170mm) |
| CASSETTE | Shimano Deore CS-M4100, 11-42T |
| CHAIN | KMC X10 |
| FRONT HUB | Shimano HB-TX505, QR, Centerlock |
| REAR HUB | Shimano FH-TX505, QR, Centerlock |
| RIMS | CUBE EX23, 36H, Disc, Tubeless Ready |
| TYRES | Schwalbe Big Ben, Performance, K-Guard, 55-622 |
| STEM | CUBE Comfort Stem Pro, 31.8mm, Adjustable |
| HANDLEBAR | CUBE Comfort Trail Bar, 700mm |
| GRIPS | Natural Fit Comfort |

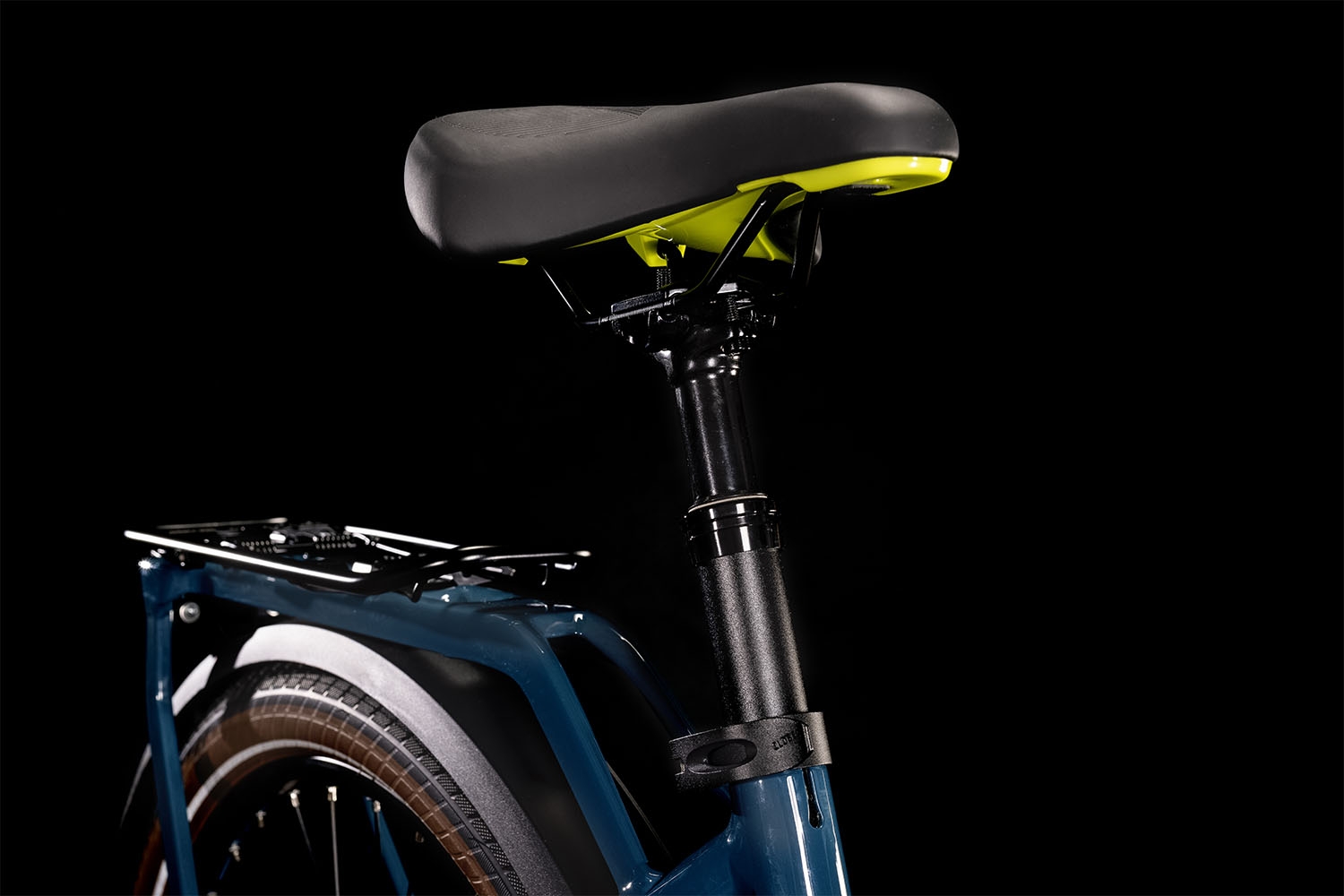

| SEAT POST | CUBE Suspension Seatpost HD, 30.9mm |
| SEAT CLAMP | CUBE Varioclose, 34.9mm |
| SADDLE | Natural Fit Sequence Comfort |
| HEADSET | M/Z: ACROS AZF-1039, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1041, BlockLock 135°, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
| PEDALS | ACID PP Trekking |

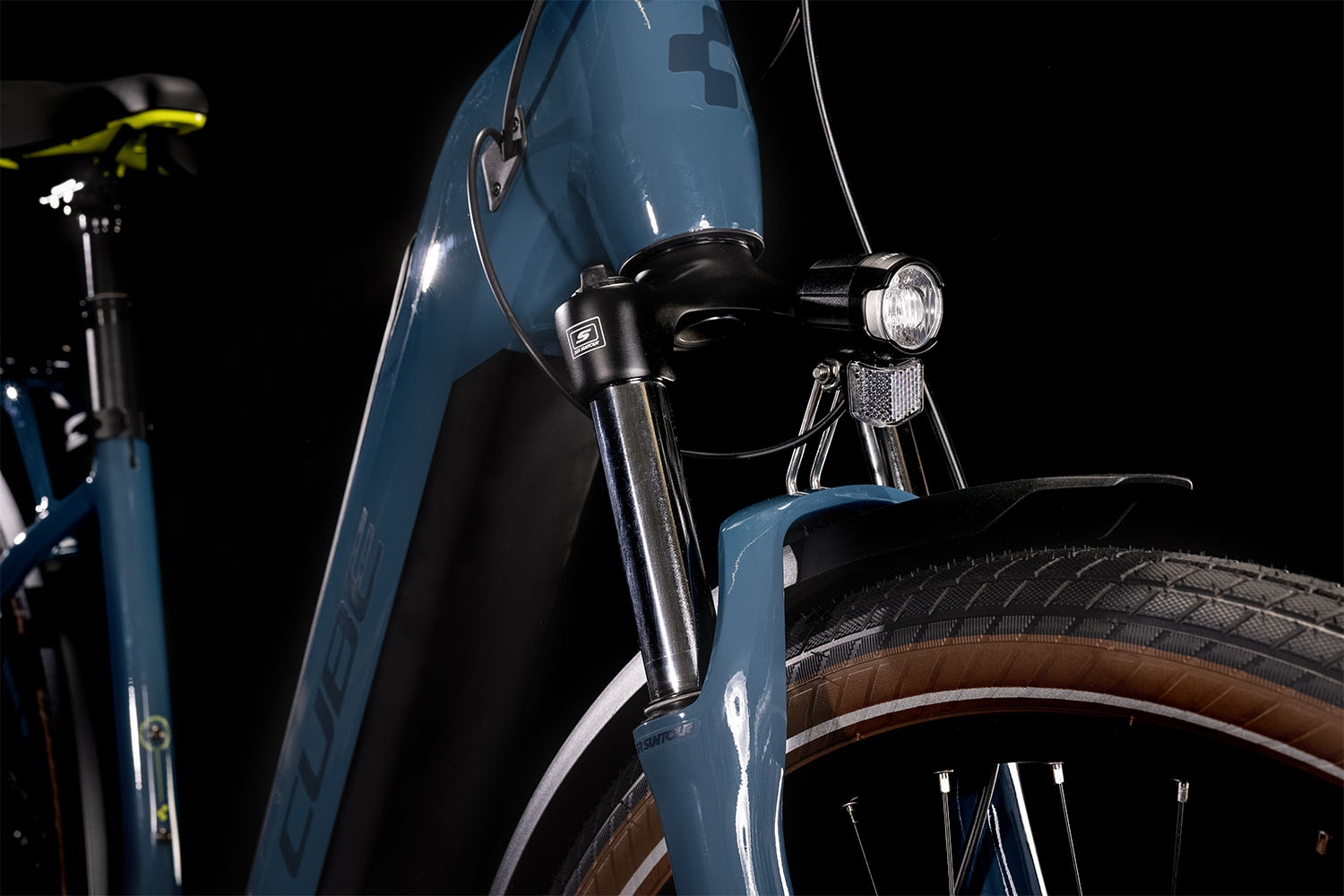

| FRONT LIGHT | CUBE Shiny 50 Lux, 12V, DC |

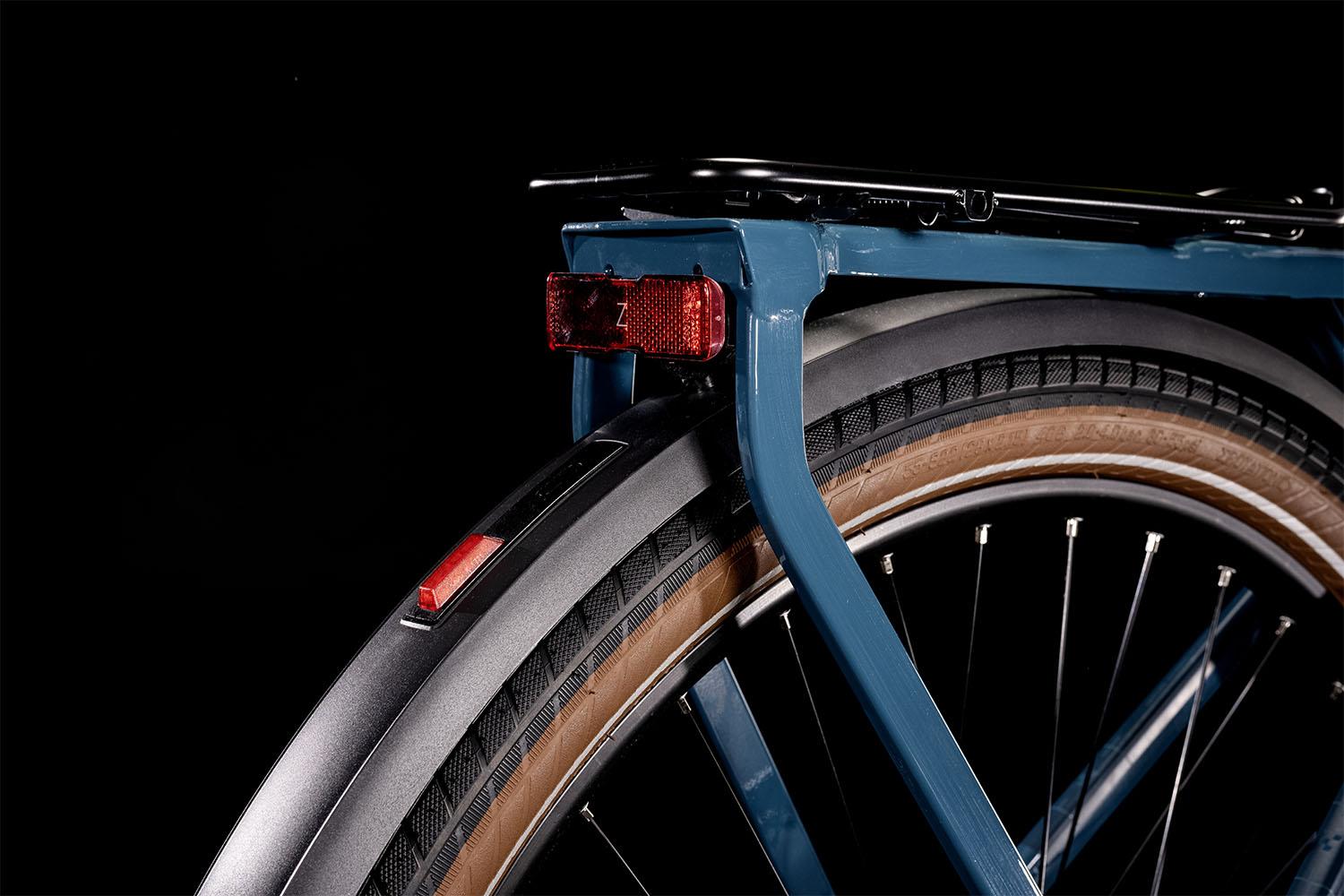

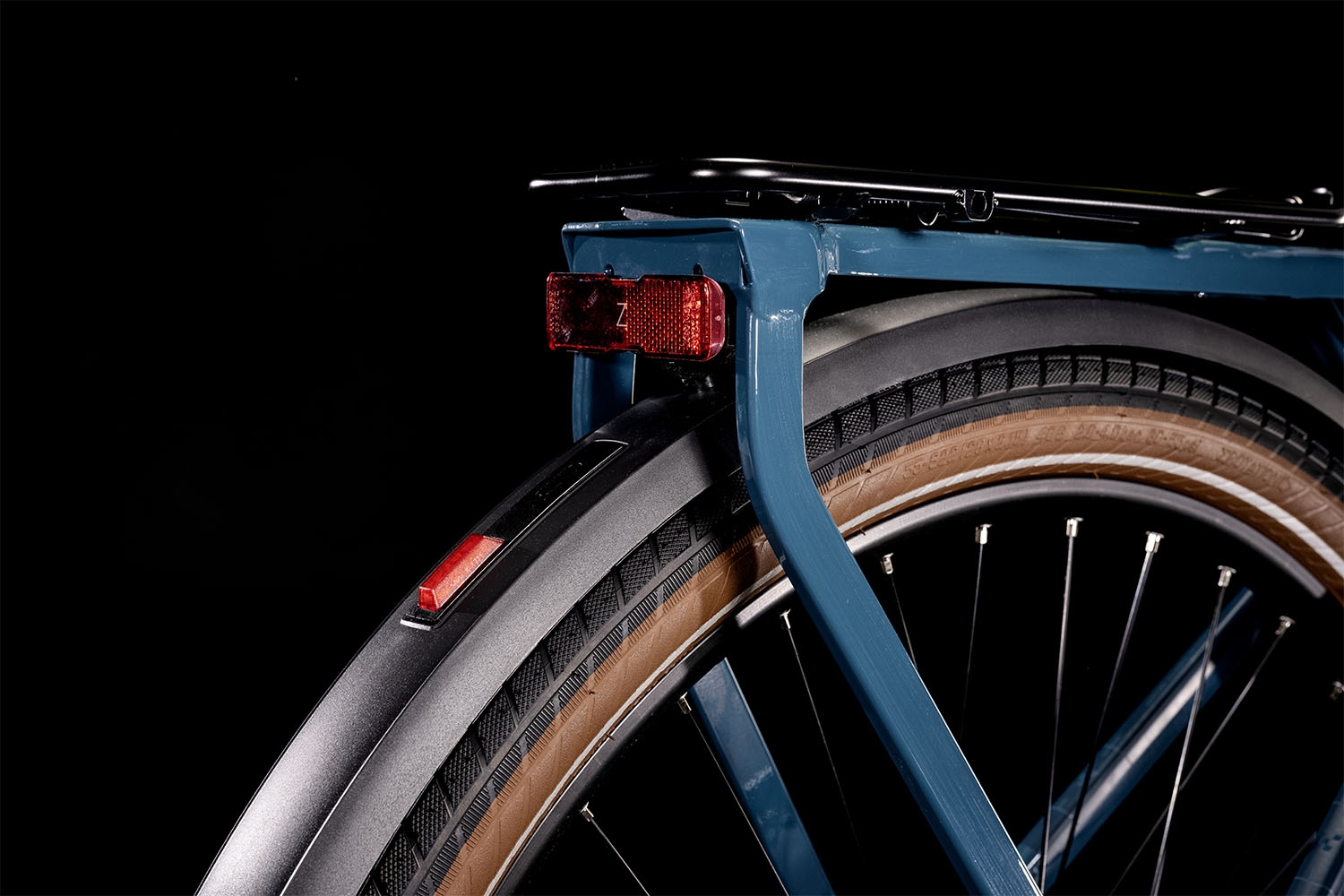

| REAR LIGHT | ACID Mudguard Rear Light PRO-E, 12V, DC |
| KICKSTAND | CUBEstand Cmpt |
| MUDGUARDS | ACID 65 BB-Mount |
| BELL | Easy Bell |
| CARRIER | CUBE Integrated Carrier 2.0, ACID RILink Adapter Compatible, SnapIt Compatible |
| WEIGHT | 26,1 kg |
| COLOUR | teal´n´lime |
| DRIVE UNIT | Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt) |
| BATTERY | Bosch PowerTube 625 |
| DISPLAY | Bosch Purion |
| CHARGER | Bosch 2A |
| ART. NO | 531182 |
GEOMETRY

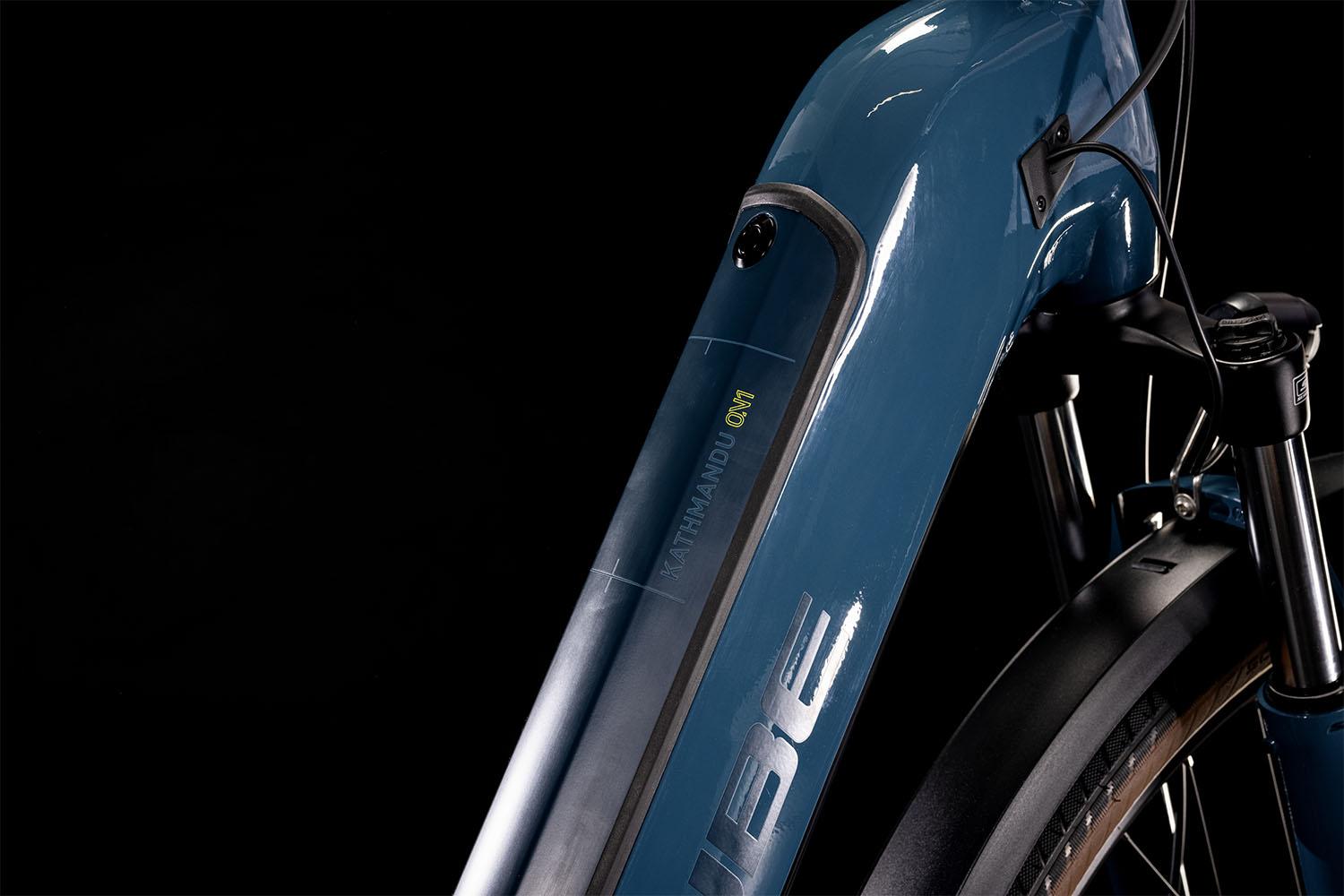

Based around our Modular Battery System, the Kathmandu Hybrid's elegant frame design completely encloses the Bosch battery for sleek looks and better protection. A tapered head tube ensures accurate steering whether you're riding laden or unladen, so you can be assured of a ride that's comfortable and safe. The incredibly neat Integrated Carrier is a strong, stable platform with which to carry whatever you need for your journey. And our Efficient Comfort Geometry will help keep you pedalling for miles of smiles - so whether you choose the Easy Entry, Trapeze, or standard frame, the Kathmandu Hybrid will be a pleasure to own and ride.
