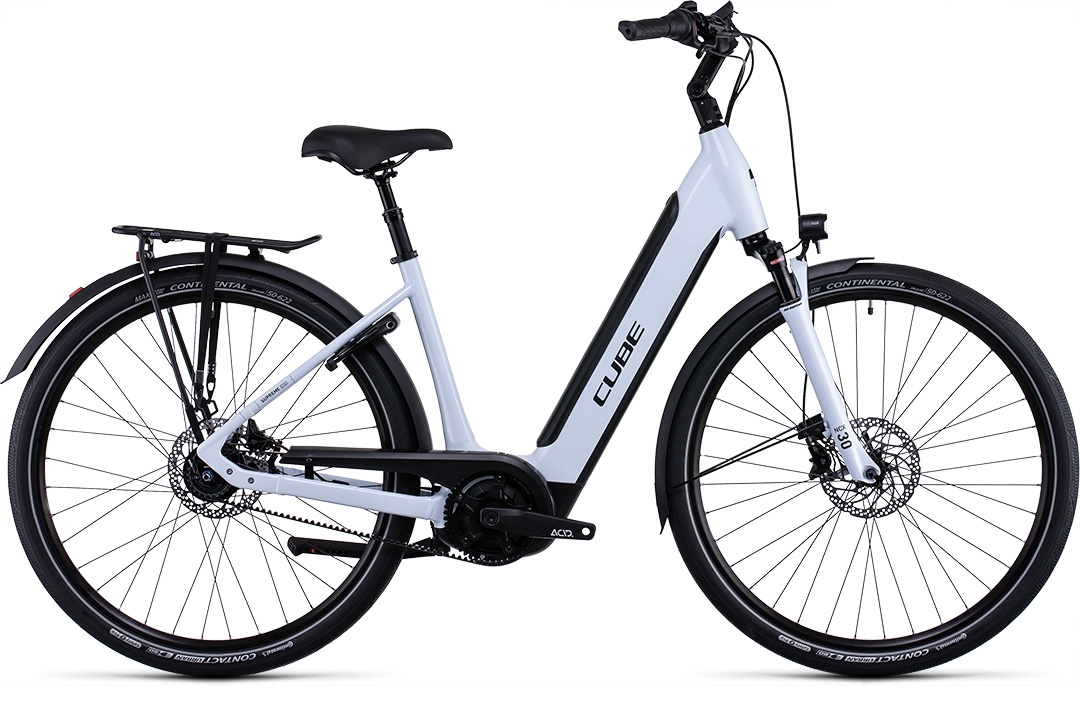

SUPREME HYBRID
EXC 500

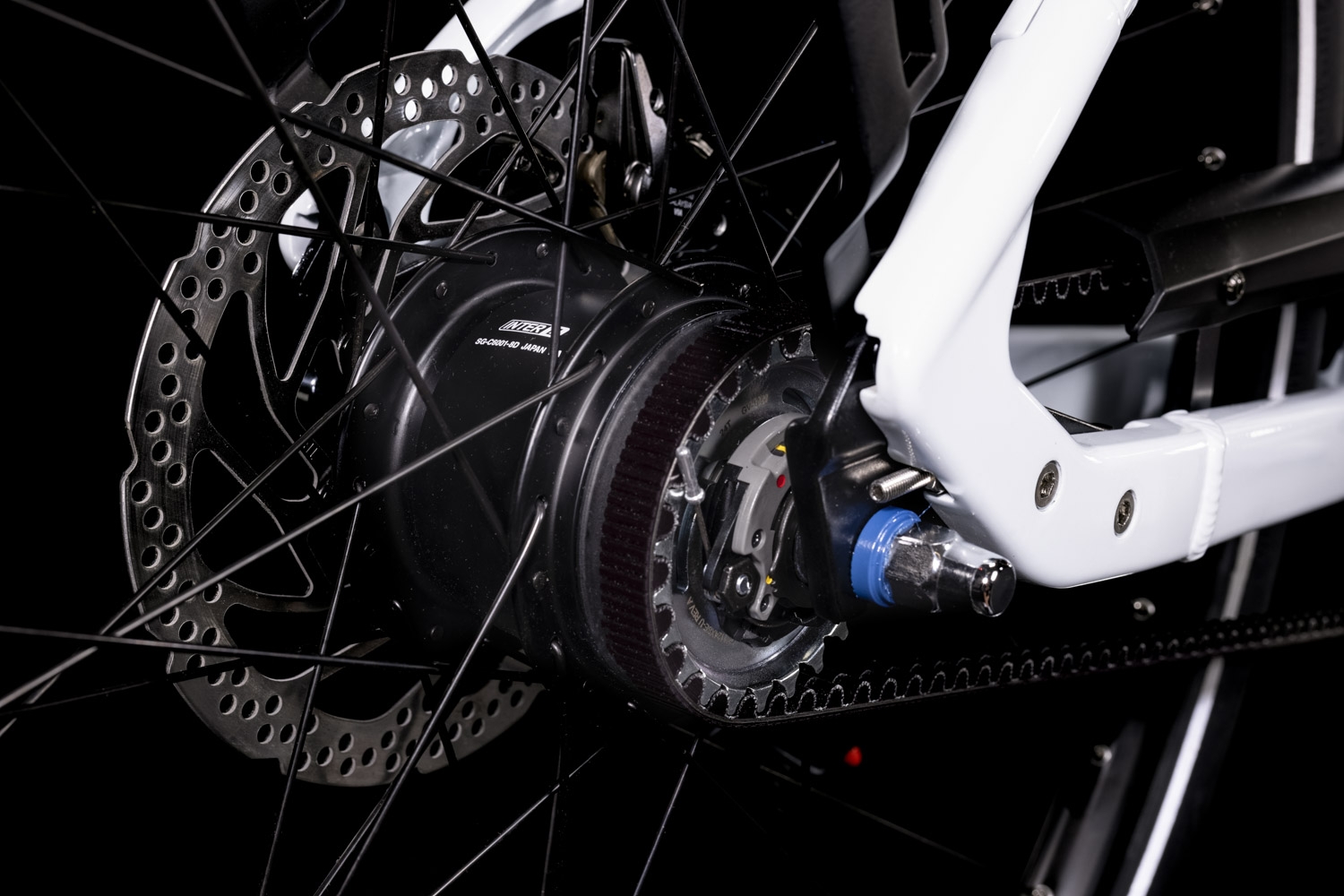

A great bike just blends seamlessly into your life. That's why the brand-new Supreme Hybrid EXC's smooth Bosch power is transferred to the rear wheel with a clean, maintenance-free Gates belt drive - so you can just ride. Shimano's 8-speed Nexus hub gears do the hard work for you, while powerful Shimano hydraulic disc brakes and grippy Continental urban tyres help keep you safe, even in the wet. An adjustable stem, suspension seatpost and suspension fork make sure you're comfortable. And the lighting set, full-length mudguards with integrated rear light, semi-integrated luggage rack and included kickstand mean you're set up to take on any journey, anywhere, anytime.
AUSSTATTUNG
| FRAME | Aluminium Superlite, Comfort Ride Geometry, Tapered Headtube, Premium Comfort And Safety, Semi-Integrated Carrier, Full Integrated Battery, Slider Dropout |
|---|---|
| SIZE | Easy Entry: XS (46cm), S (50cm), M (54cm), L (58cm) |
| FORK | SR Suntour NCX D LO Air, 50mm, Lockout |
| SUSPENSION FORK | SR Suntour NCX D LO Air, 50mm, Lockout |
| BRAKE SYSTEM | Shimano BR-MT410, Hydr. Disc Brake (180/180) |
| SHIFTERS | Shimano Nexus SL-C6000-8, Revoshift |
| CRANKSET | ACID E-Crank, 165mm, 50T |
| CASSETTE | Gates Rear Sprocket CDC, 24T |
| DRIVE BELT | Gates CDX, 128T |
| FRONT HUB | Shimano Deore HB-M6000, QR, Centerlock |
| REAR HUB | Shimano Nexus SG-C6001-8D, 8-Speed, Centerlock, Nut |
| RIMS | CUBE EX23, 36H, Disc, Tubeless Ready |
| TYRES | Conti Contact Urban, SafetyPro, 50-622 |
| STEM | CUBE Comfort Stem Pro, 31.8mm, Adjustable |
| HANDLEBAR | CUBE Comfort Shape Bar |
| GRIPS | RFR Comfort |
| SEAT POST | CUBE Suspension Seatpost HD, 30.9mm |
| SEAT CLAMP | CUBE Screwlock, 36mm |
| SADDLE | Natural Fit Shen+ |
| HEADSET | ACROS AZF-1039, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
| PEDALS | ACID PP Trekking |

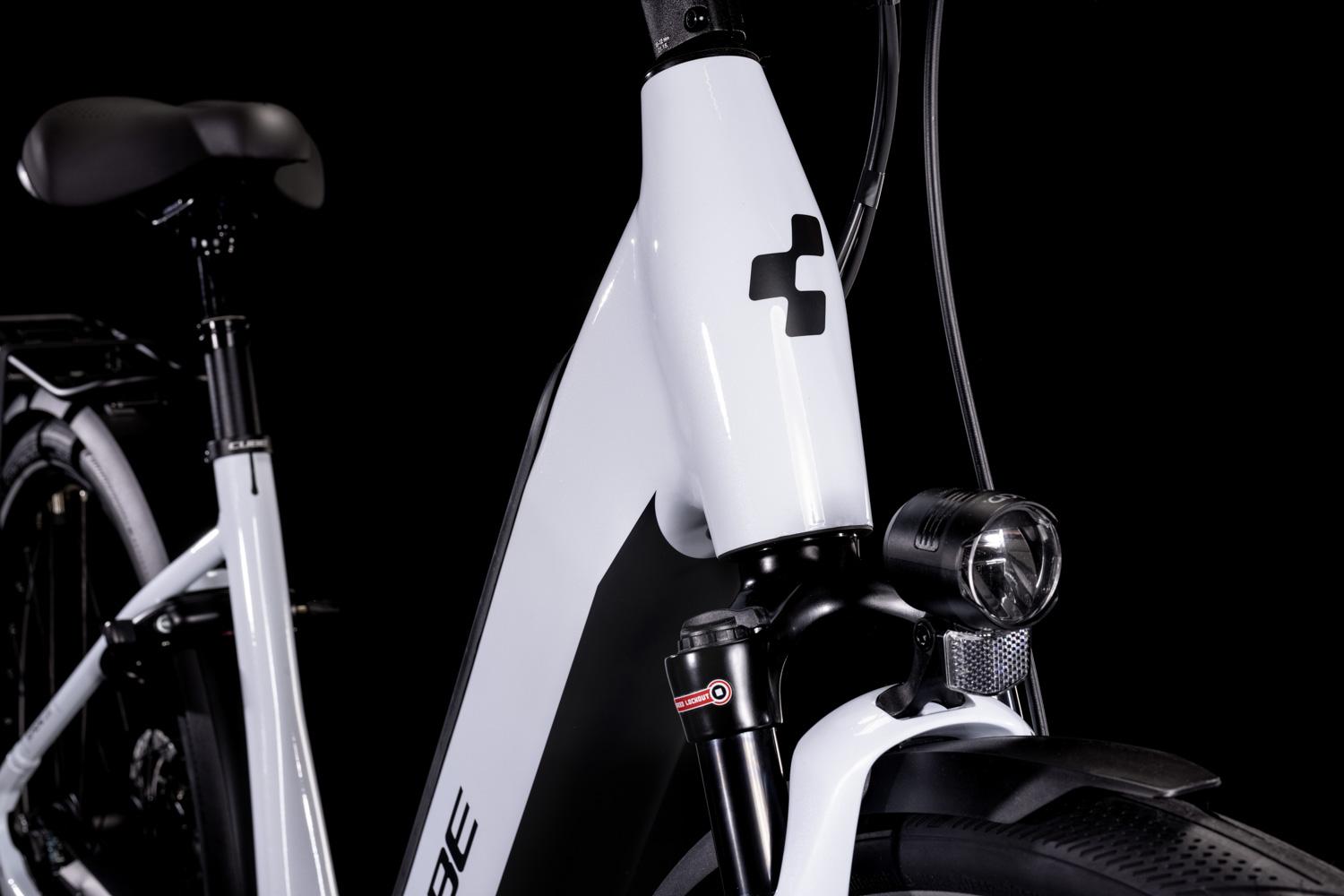

| FRONT LIGHT | ACID Front Light PRO-E 60, 12V, DC |
| REAR LIGHT | ACID Mudguard Rear Light PRO-E, 12V, DC |
| KICKSTAND | ACID Pro Flat Mount Kickstand |
| MUDGUARDS | ACID 56 BB-Mount |
| BELL | Ring Bell |

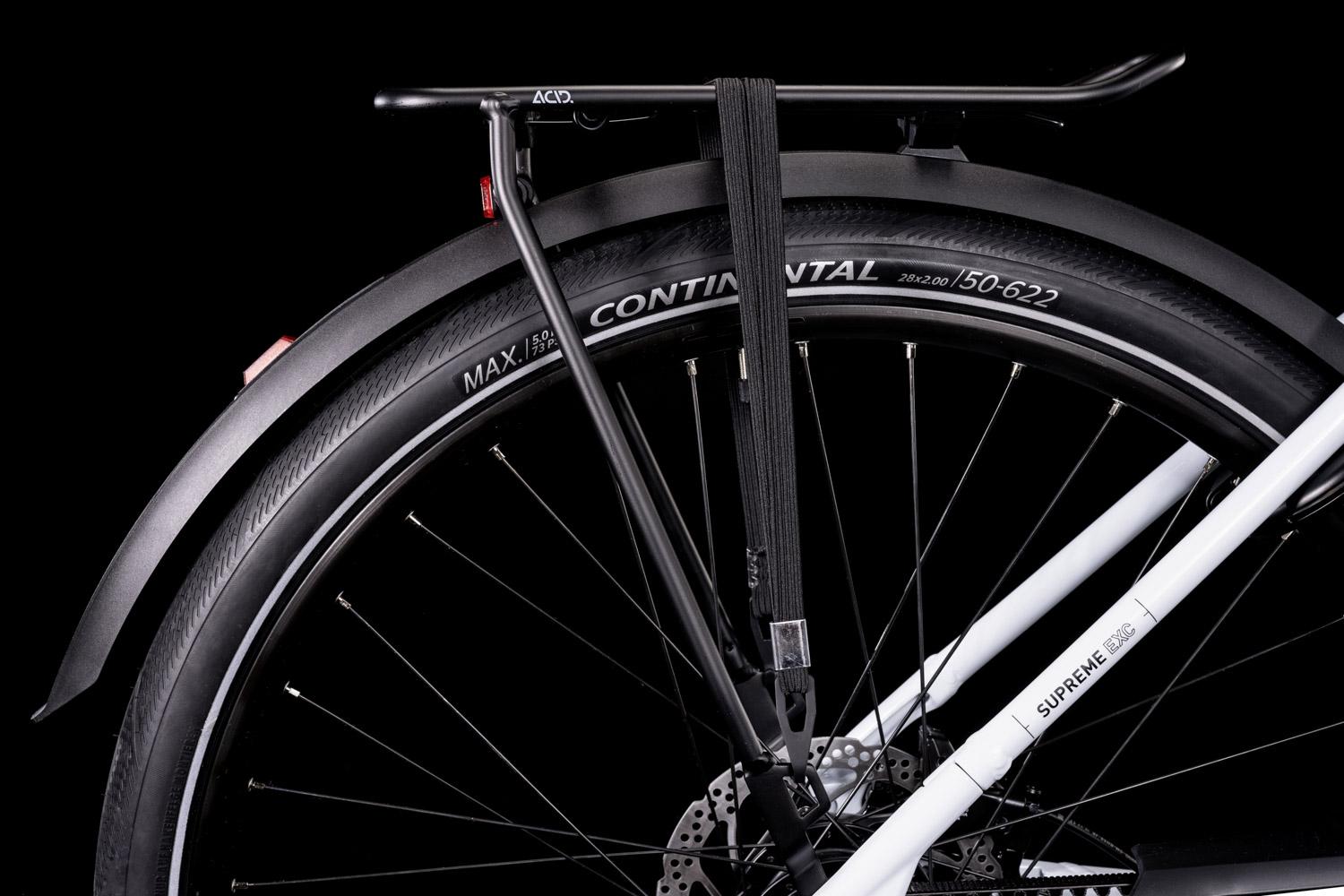

| CARRIER | ACID Semi-Integrated Carrier, ACID RILink Adapter Compatible |
| WEIGHT | 26,4 kg |
| COLOUR | flashwhite´n´black |
| DRIVE UNIT | Bosch Drive Unit Active Plus Generation 3 (50Nm) Cruise (250Watt) |
| BATTERY | Bosch PowerTube 500 |
| DISPLAY | Bosch Intuvia |
| CHARGER | Bosch 2A |
| ART. NO | 532241 |
GEOMETRY
Simple, elegant, safe and practical: those are the qualities embodied by the new Supreme Hybrid's frame. The PowerTube design incorporates the Bosch battery inside the frame for sleek looks and ease of use. The Easy Entry design does exactly what it says, making access simple for any rider. We fitted a tapered head tube because it's strong, safe and improves steering accuracy for easy, intuitive handling. There's a semi-integrated luggage carrier, and the frame is specifically designed for low-maintenance hub gears. But it's not all about practicality - we also used our smooth-welding technique for an organic, elegant appearance that you'll love.
