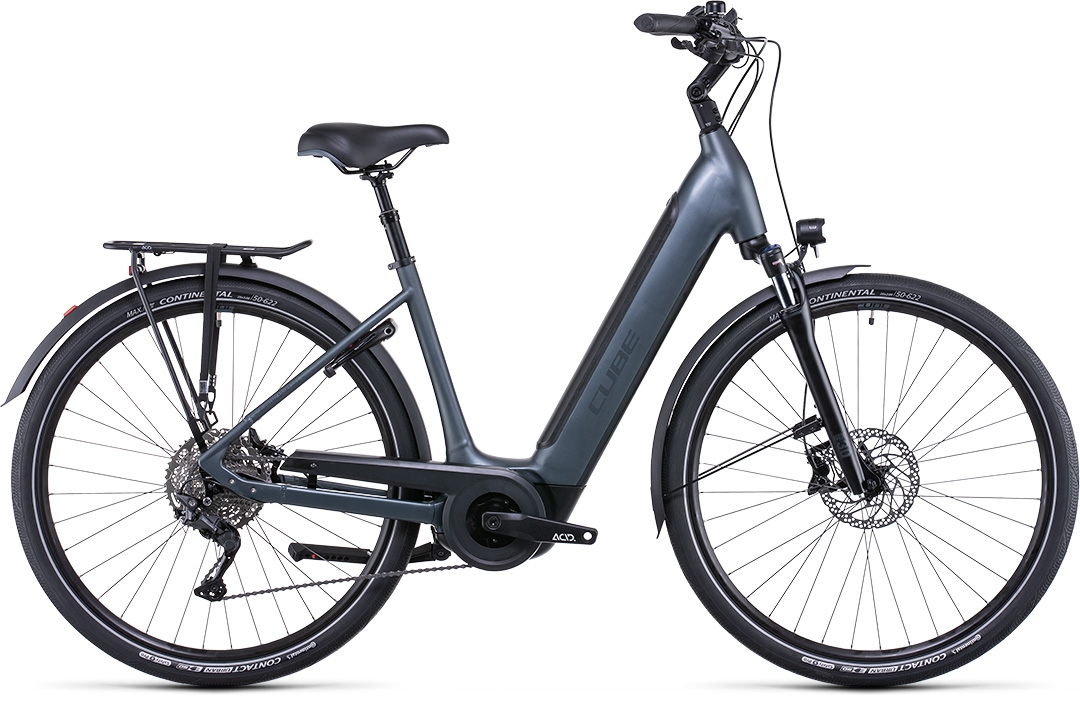

SUPREME SPORT HYBRID
PRO 500
An urban hybrid should slot into your life seamlessly. That's why, with the Supreme Sport Hybrid Pro, we included a semi-integrated carrier and a full complement of practical accessories, so you can just add your belongings and go. Easy-shifting Shimano 10-speed gears have a wide range which, combined with the smooth power delivery of Bosch's third-generation motor, will make light work of any route. Powerful hydraulic disc brakes - with four pistons at the front - and grippy, comfortable Continental tyres make it easy to slow and stop safely, whatever the weather. And the suspension fork - with lockout - and suspension seatpost help smooth the way on rough roads.
AUSSTATTUNG
| FRAME | Aluminium Superlite, Comfort Ride Geometry, Tapered Headtube, Premium Comfort And Safety, Semi-Integrated Carrier, Full Integrated Battery, Slider Dropout |
|---|---|
| SIZE | Easy Entry: XS (46cm), S (50cm), M (54cm), L (58cm) |
| FORK | SR Suntour NEX-E25 NLO, 50mm, Lockout |
| SUSPENSION FORK | SR Suntour NEX-E25 NLO, 50mm, Lockout |
| BRAKE SYSTEM | Shimano BR-MT420/MT410, Hydr. Disc Brake (180/180) |
| REAR DERAILLEUR | Shimano Deore RD-M5120-SGS, 10-Speed |
| SHIFTERS | Shimano Deore SL-M4100-IR, Direct Attach, Rapidfire-Plus |
| CRANKSET | ACID E-Crank, 165mm, 38T |
| CASSETTE | Shimano Deore CS-M4100, 11-46T |
| CHAIN | KMC X10 |
| FRONT HUB | Shimano HB-TX505, QR, Centerlock |
| REAR HUB | Shimano FH-TX505, QR, Centerlock |
| RIMS | CUBE EX23, 36H, Disc, Tubeless Ready |
| TYRES | Conti Contact Urban, SafetyPro, 50-622 |
| STEM | CUBE Comfort Stem Pro, 31.8mm, Adjustable |
| HANDLEBAR | CUBE Comfort Shape Bar |
| GRIPS | Natural Fit Comfort |
| SEAT POST | CUBE Suspension Seatpost HD, 30.9mm |
| SEAT CLAMP | CUBE Screwlock, 36mm |
| SADDLE | Natural Fit Shen |
| HEADSET | ACROS AZF-1039, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
| PEDALS | ACID PP Trekking |

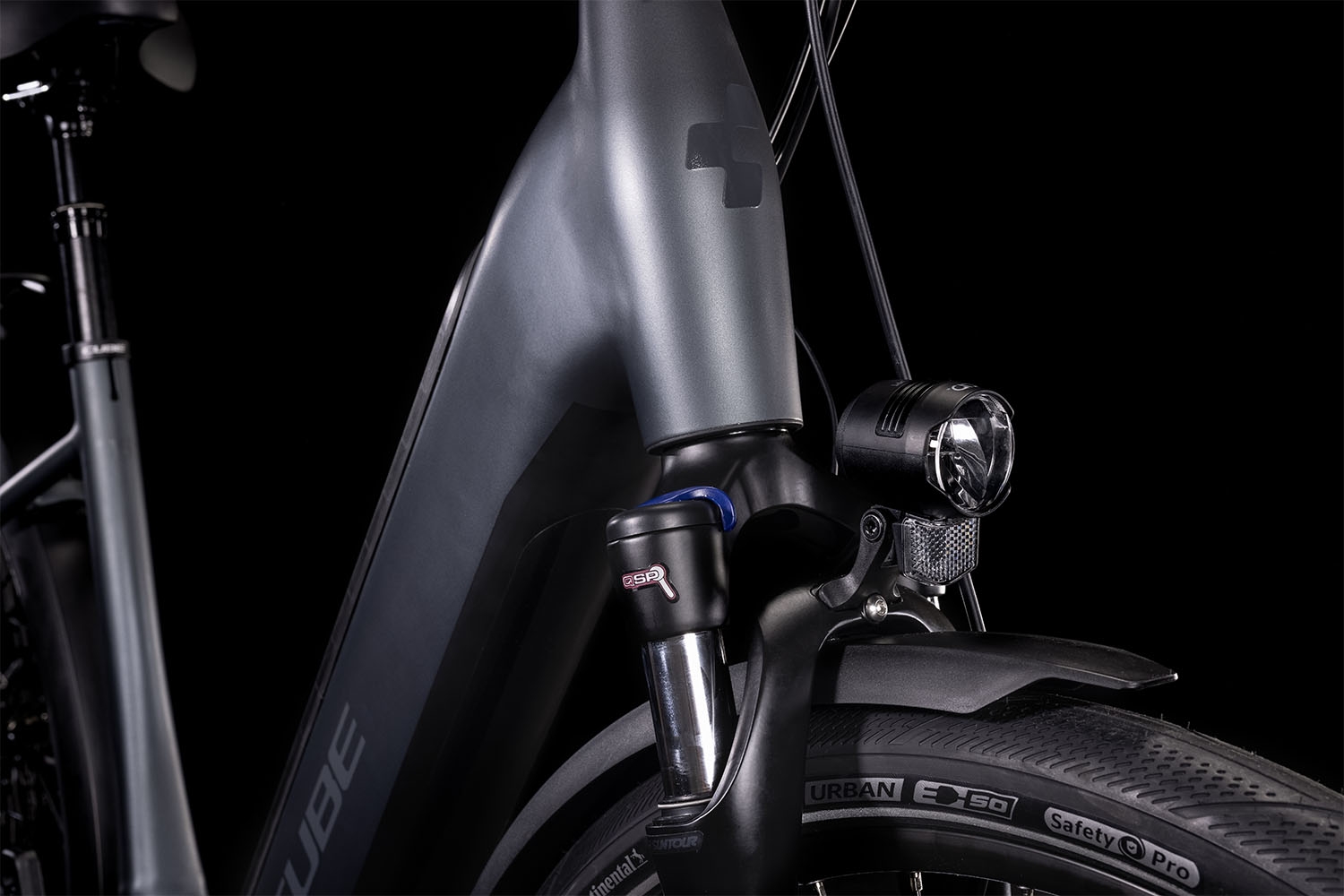

| FRONT LIGHT | ACID Front Light PRO-E 60, 12V, DC |
| REAR LIGHT | ACID Mudguard Rear Light PRO-E, 12V, DC |
| KICKSTAND | ACID Pro Flat Mount Kickstand |
| MUDGUARDS | ACID 56 BB-Mount |
| BELL | Easy Bell |

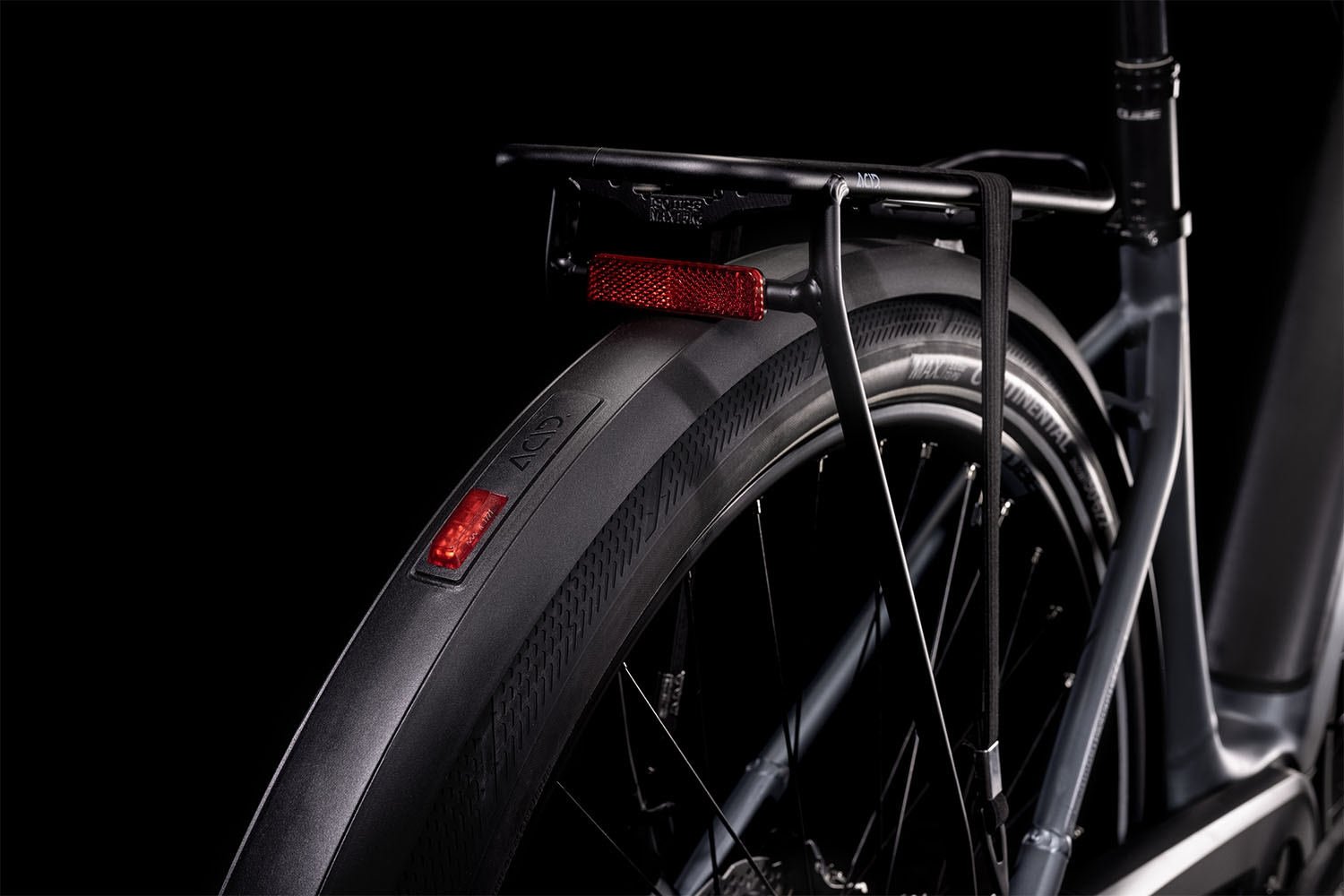

| CARRIER | ACID Semi-Integrated Carrier, ACID RILink Adapter Compatible |
| WEIGHT | 26,1 kg |
| COLOUR | grey´n´grey |
| DRIVE UNIT | Bosch Drive Unit Performance Generation 3 (65Nm) Cruise (250Watt) |
| BATTERY | Bosch PowerTube 500 |

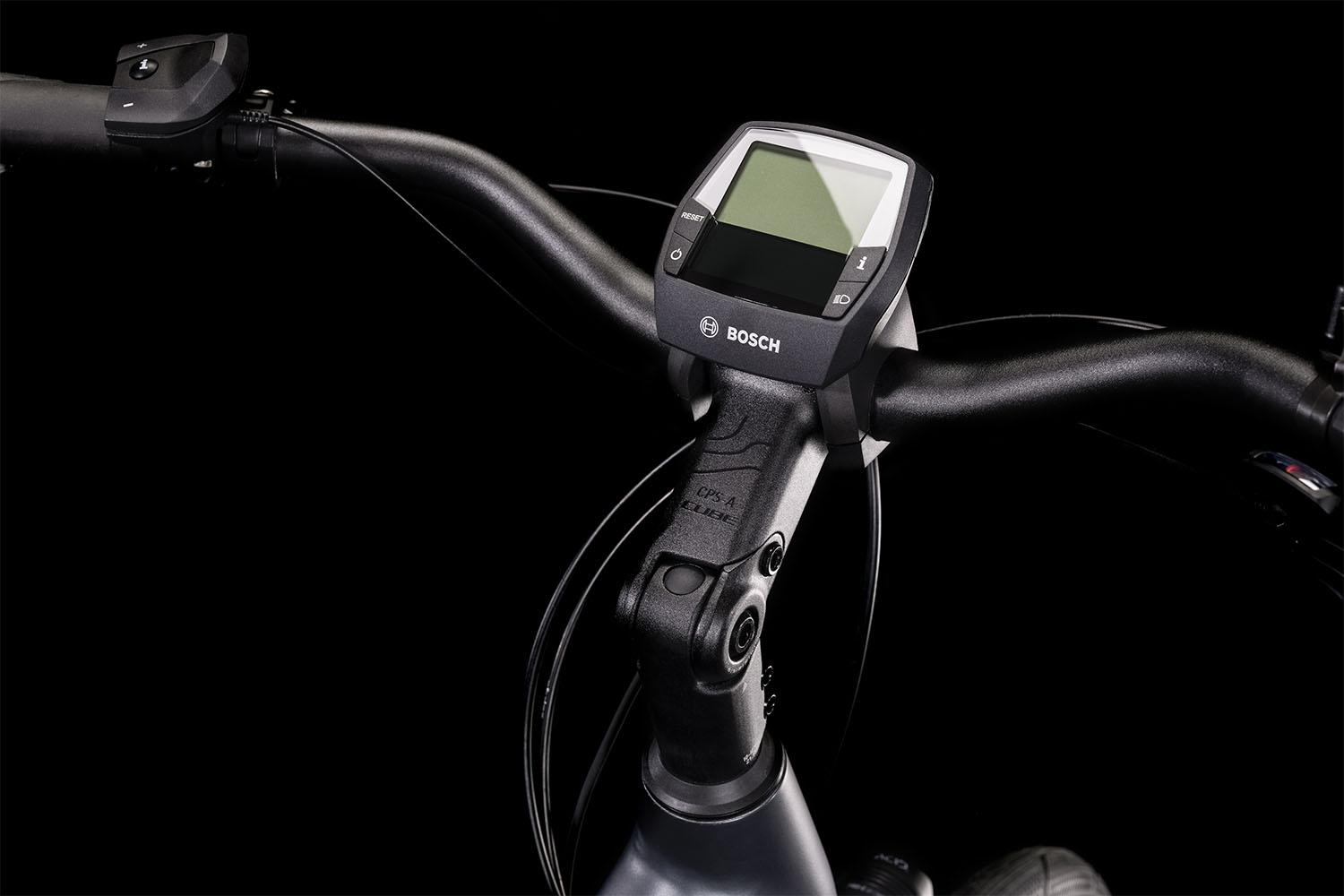

| DISPLAY | Bosch Intuvia |
| CHARGER | Bosch 2A |
| ART. NO | 532361 |
GEOMETRY
Simple, elegant, safe and practical: those are the qualities embodied by the new Supreme Sport Hybrid's frame. The PowerTube design incorporates the Bosch battery inside the frame and allows a capacity up to 625Wh, for the best possible range. The Easy Entry design does exactly what it says, making access simple for any rider. We fitted a tapered head tube because it's strong, safe and improves steering accuracy for easy, intuitive handling. There's a semi-integrated luggage carrier, and the rear is designed specifically for derailleur gears. But it's not all about practicality - we also used our smooth-welding technique for an organic, elegant appearance that you'll love.
