TOURING
ONE

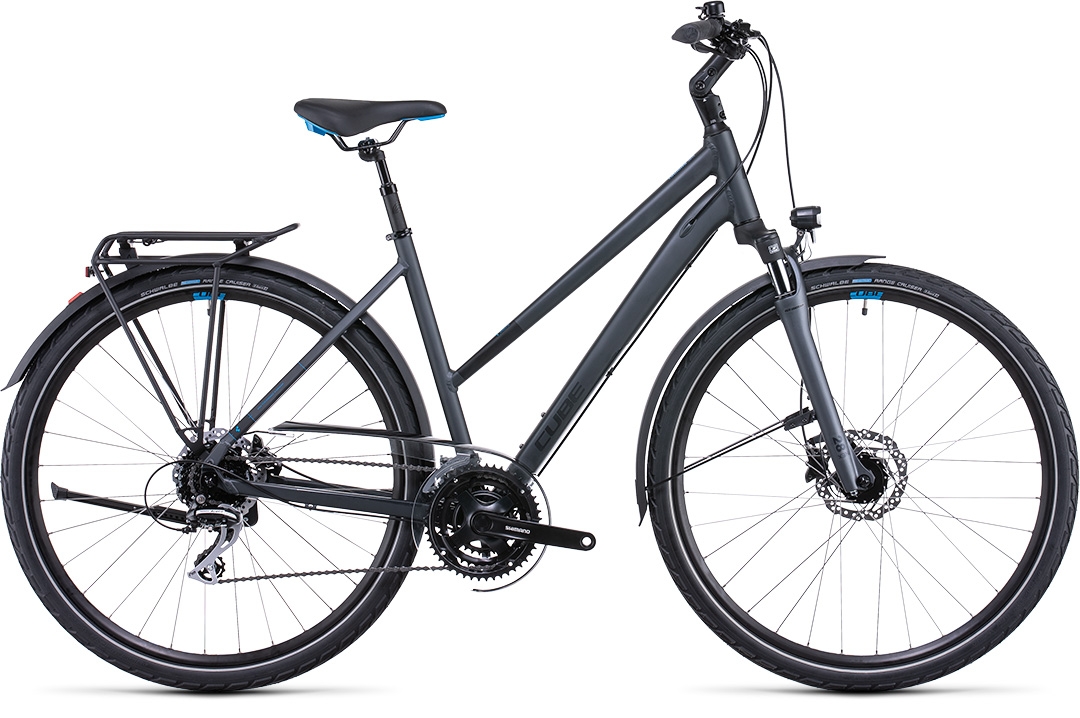

The Touring ONE's full equipment package and comfortable design is all you need to broaden your riding horizons. Easy-to-use 3x8 Shimano gears make light work of any route by putting gear selection literally at your fingertips. Powerful disc brakes work better than standard brakes in the wet, for safer stopping. A suspension fork and suspension seatpost help smooth out rough roads. And full-length mudguards, a neatly integrated luggage carrier, built-in dynamo lights and a handy kickstand mean you've everything you need for short trips across town and longer forays into the countryside.
AUSSTATTUNG
| FRAME | Aluminium Superlite, Trekking Comfort, Double Butted |
|---|---|
| SIZE | Men: XS (46cm), S (50cm), M (54cm), L (58cm), XL (62cm), Trapeze: XS (46cm), S (50cm), M (54cm), Easy Entry: XS (45cm), S (49cm), M (53cm) |
| FORK | SR Suntour NEX, 63mm |
| SUSPENSION FORK | SR Suntour NEX, 63mm |
| BRAKE SYSTEM | Shimano BR-MT200, Hydr. Disc Brake (160/160) |
| REAR DERAILLEUR | Shimano RD-M360, 8-Speed |
| FRONT DERAILLEUR | Shimano FD-TX800, Topswing, 31.8mm |
| SHIFTERS | Shimano SL-M315, Rapidfire-Plus |
| CRANKSET | Shimano FC-TY301, 48x38x28T, 175mm |
| CASSETTE | Shimano CS-HG200, 12-32T |
| CHAIN | KMC Z51 |
| FRONT HUB | Shimano DH-3D37, Hub Dynamo, QR, Centerlock |
| REAR HUB | Shimano FH-TX505, QR, Centerlock |
| RIMS | CUBE ZX20, 32H, Disc |
| TYRES | Schwalbe Range Cruiser, Active, 47-622 |
| STEM | CUBE Comfort Stem Pro, 31.8mm, Adjustable |
| HANDLEBAR | CUBE Comfort Trail Bar, 660mm |
| GRIPS | Natural Fit Comfort |
| SEAT POST | CUBE Suspension Seatpost, 27.2mm |
| SEAT CLAMP | CUBE Screwlock, 31.8mm |
| SADDLE | Natural Fit Sequence Comfort |
| HEADSET | CUBE H863, 1 1/8", Semi-Integrated |
| PEDALS | ACID PP Trekking |
| FRONT LIGHT | CUBE Shiny 50 |
| REAR LIGHT | ACID Mudguard Rear Light PRO-D, 6V, AC |
| KICKSTAND | CUBEstand Cmpt |
| MUDGUARDS | ACID 53 BB-Mount |
| BELL | Easy Bell |

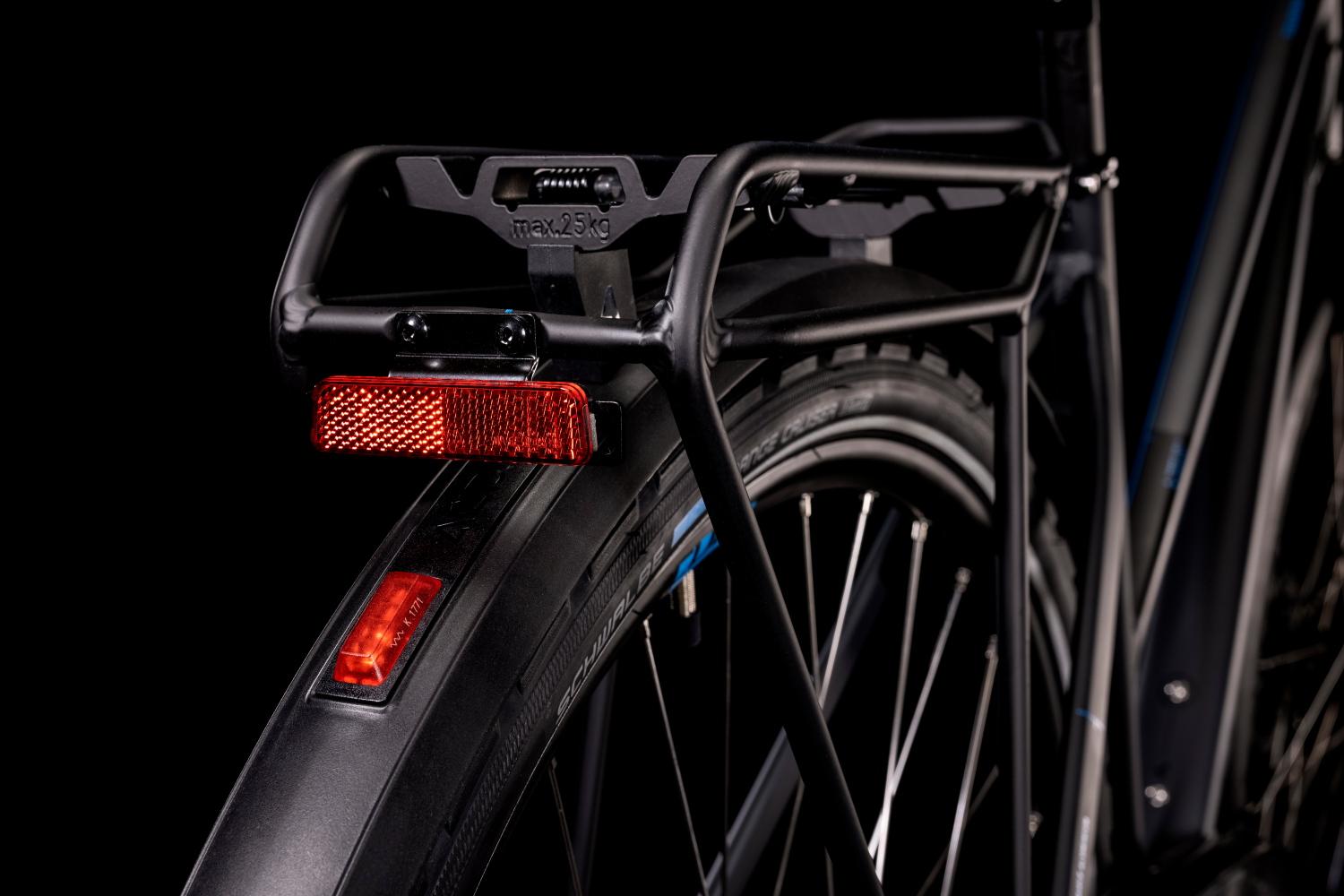

| CARRIER | ACID Semi-Integrated Carrier, ACID RILink Adapter Compatible |
| WEIGHT | 17,2 kg |
| COLOUR | grey´n´blue |
| ART. NO | 548050 |
GEOMETRY

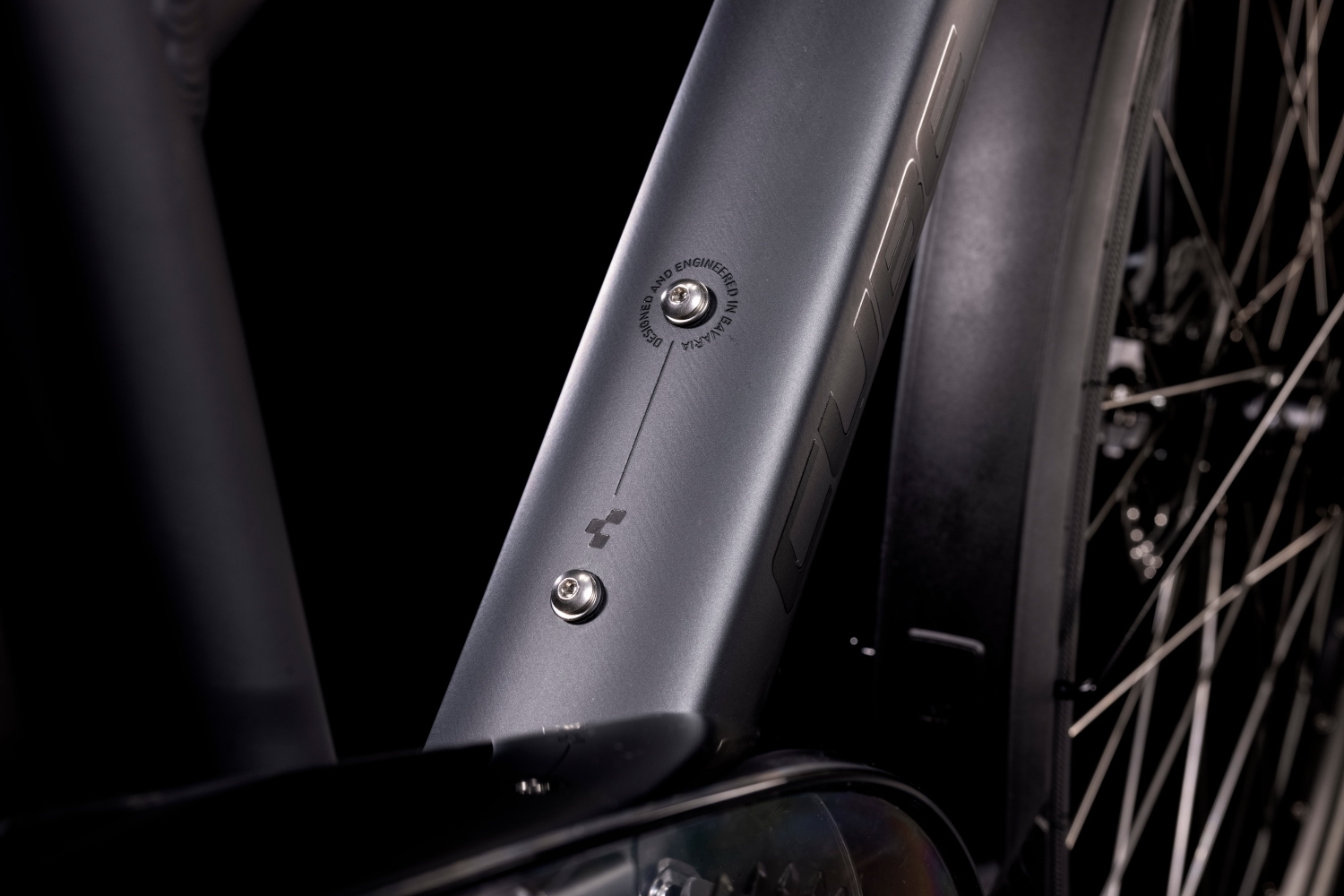

The heart of the Touring is its high-quality, low-weight, double-butted aluminium frame. Designed with our Efficient Comfort Geometry to make light work of even long days in the saddle, it'll surprise you with its nimble and intuitive handling. The Easy Entry version is sleek and easy to use, there's a sporty-looking Trapeze option, while the Men's classic diamond frame is available in five sizes for the perfect fit. Every frame features our exceptionally neat luggage carrier and gear cables routed inside the down tube, for long-lasting accurate gear shifts with minimal maintenance.
