TOURING
EXC

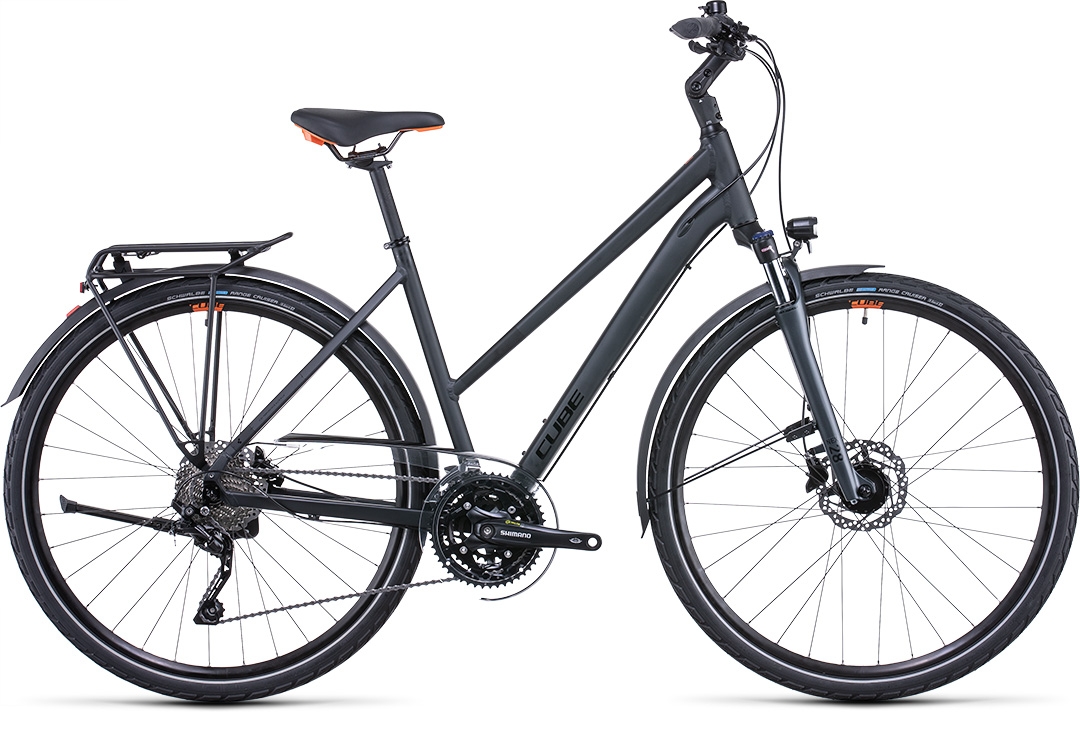

The Touring EXC is our versatile all-rounder. With the slick shifting and legendary reliability of Shimano's Deore 3x10 gears - plus powerful, all-weather hydraulic disc brakes - it's ideally equipped to help you with everyday journeys and one-off adventures alike. The Suntour suspension fork - with lockout - helps smooth out the lumps and bumps of modern roads. There's a neat luggage carrier for all your essentials. We fitted full-length mudguards to help keep you dry. And the dynamo-powered lighting system means you can always see and be seen. Where will it take you next?
AUSSTATTUNG
| FRAME | Aluminium Superlite, Trekking Comfort, Double Butted |
|---|---|
| SIZE | Men: XS (46cm), S (50cm), M (54cm), L (58cm), XL (62cm), Trapeze: XS (46cm), S (50cm), M (54cm), Easy Entry: XS (45cm), S (49cm), M (53cm) |
| FORK | SR Suntour NEX HLO, 63mm, Lockout |

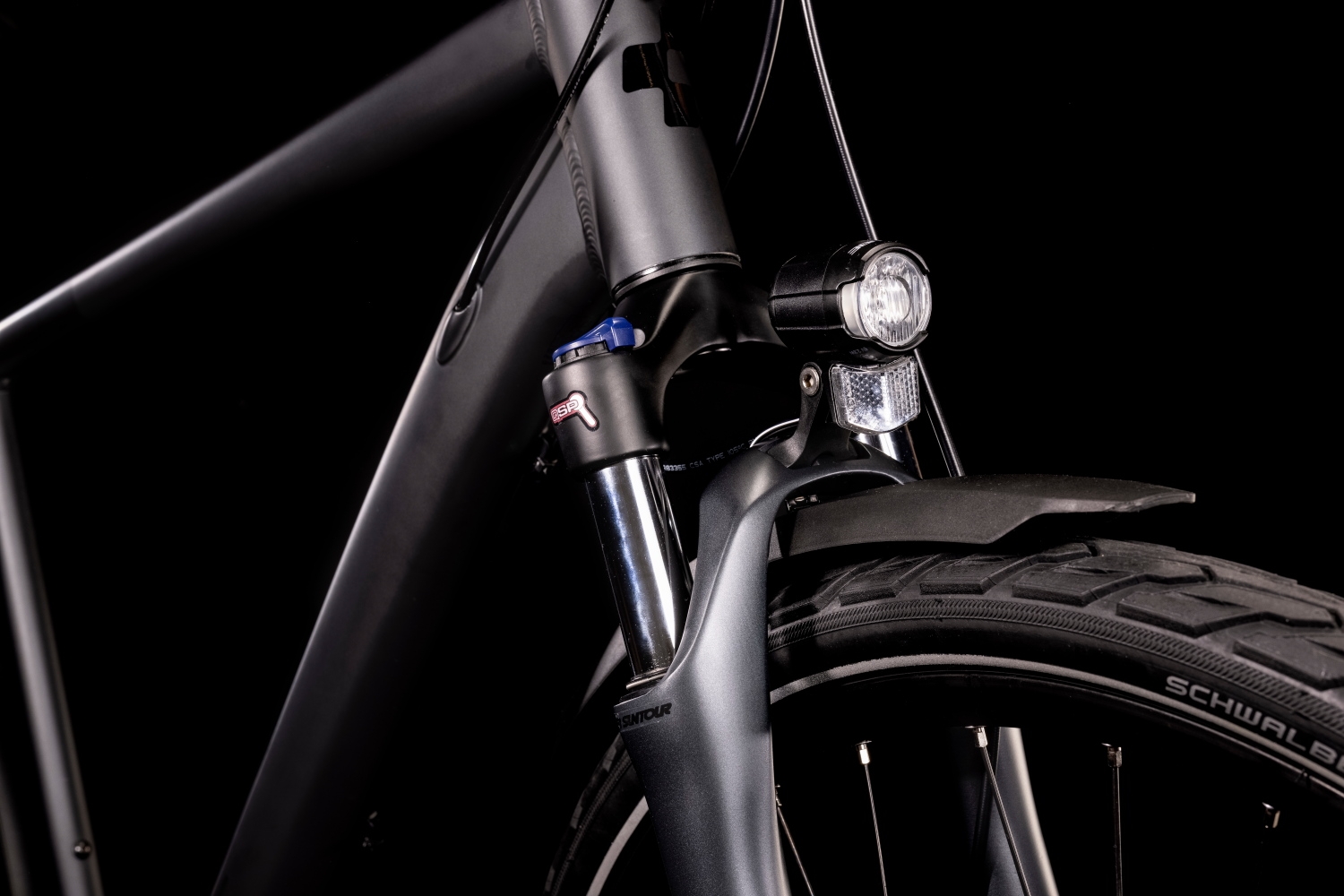

| SUSPENSION FORK | SR Suntour NEX HLO, 63mm, Lockout |
| BRAKE SYSTEM | Shimano BR-MT200, Hydr. Disc Brake (160/160) |
| REAR DERAILLEUR | Shimano Deore RD-T6000, 10-Speed |
| FRONT DERAILLEUR | Shimano Deore FD-T6000, Top-Swing, 31.8mm |
| SHIFTERS | Shimano Deore SL-M6000, Rapidfire-Plus |
| CRANKSET | Shimano FC-T521, 48x36x26T, Octalink, BB-ES300, 175mm |
| CASSETTE | Shimano CS-HG500, 11-34T |
| CHAIN | KMC X10 |
| FRONT HUB | Shimano DH-3D37, Hub Dynamo, QR, Centerlock |
| REAR HUB | Shimano FH-TX505, QR, Centerlock |
| RIMS | CUBE ZX20, 32H, Disc |

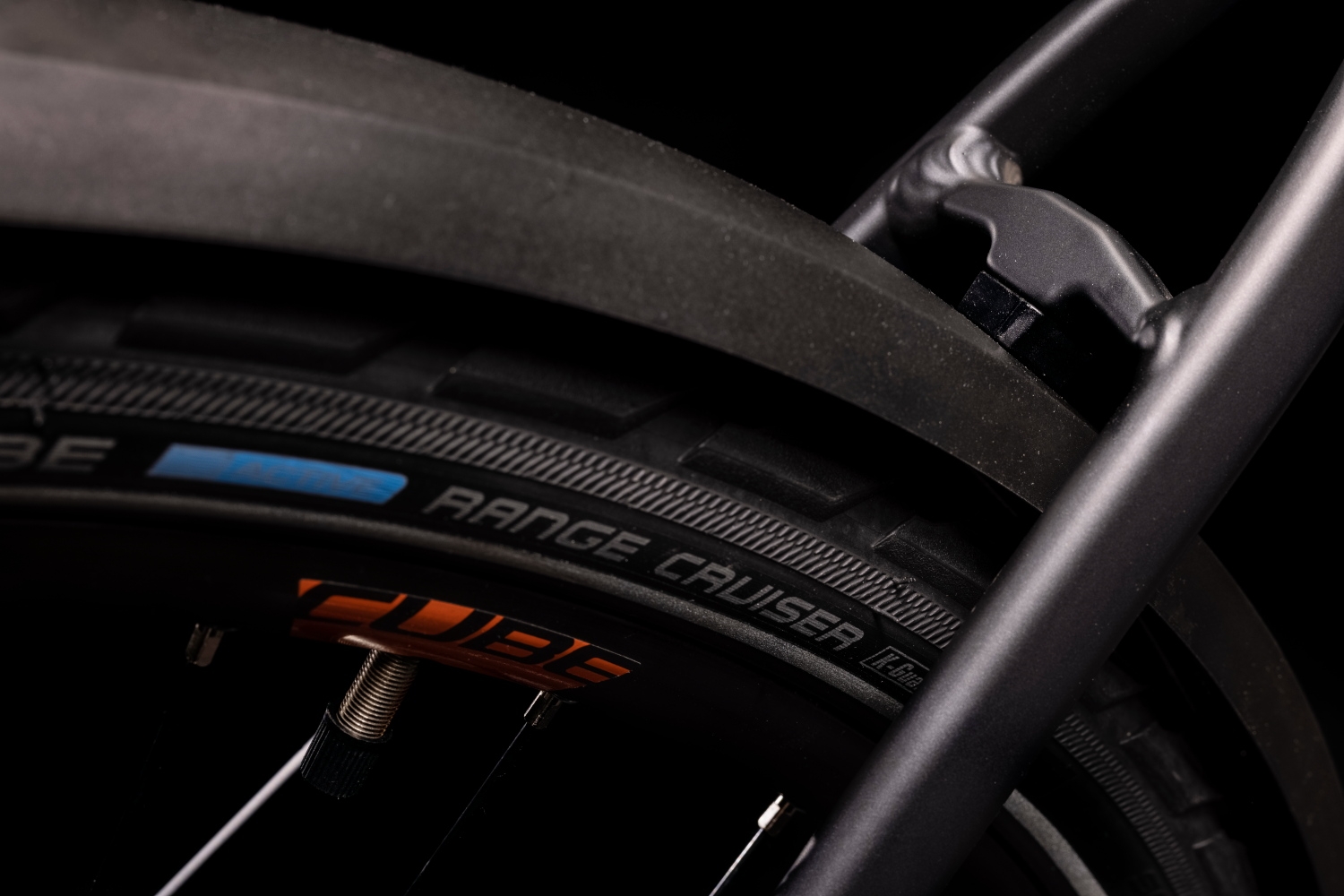

| TYRES | Schwalbe Range Cruiser, Active, 47-622 |
| STEM | CUBE Comfort Stem Pro, 31.8mm, Adjustable |
| HANDLEBAR | CUBE Comfort Trail Bar, 660mm |
| GRIPS | Natural Fit Comfort |
| SEAT POST | CUBE Performance Post, 27.2mm |
| SEAT CLAMP | CUBE Screwlock, 31.8mm |
| SADDLE | Natural Fit Sequence Comfort |
| HEADSET | CUBE H863, 1 1/8", Semi-Integrated |
| PEDALS | ACID PP Trekking |
| FRONT LIGHT | CUBE Shiny 50 |
| REAR LIGHT | ACID Mudguard Rear Light PRO-D, 6V, AC |
| KICKSTAND | CUBEstand Cmpt |
| MUDGUARDS | ACID 53 BB-Mount |
| BELL | Easy Bell |

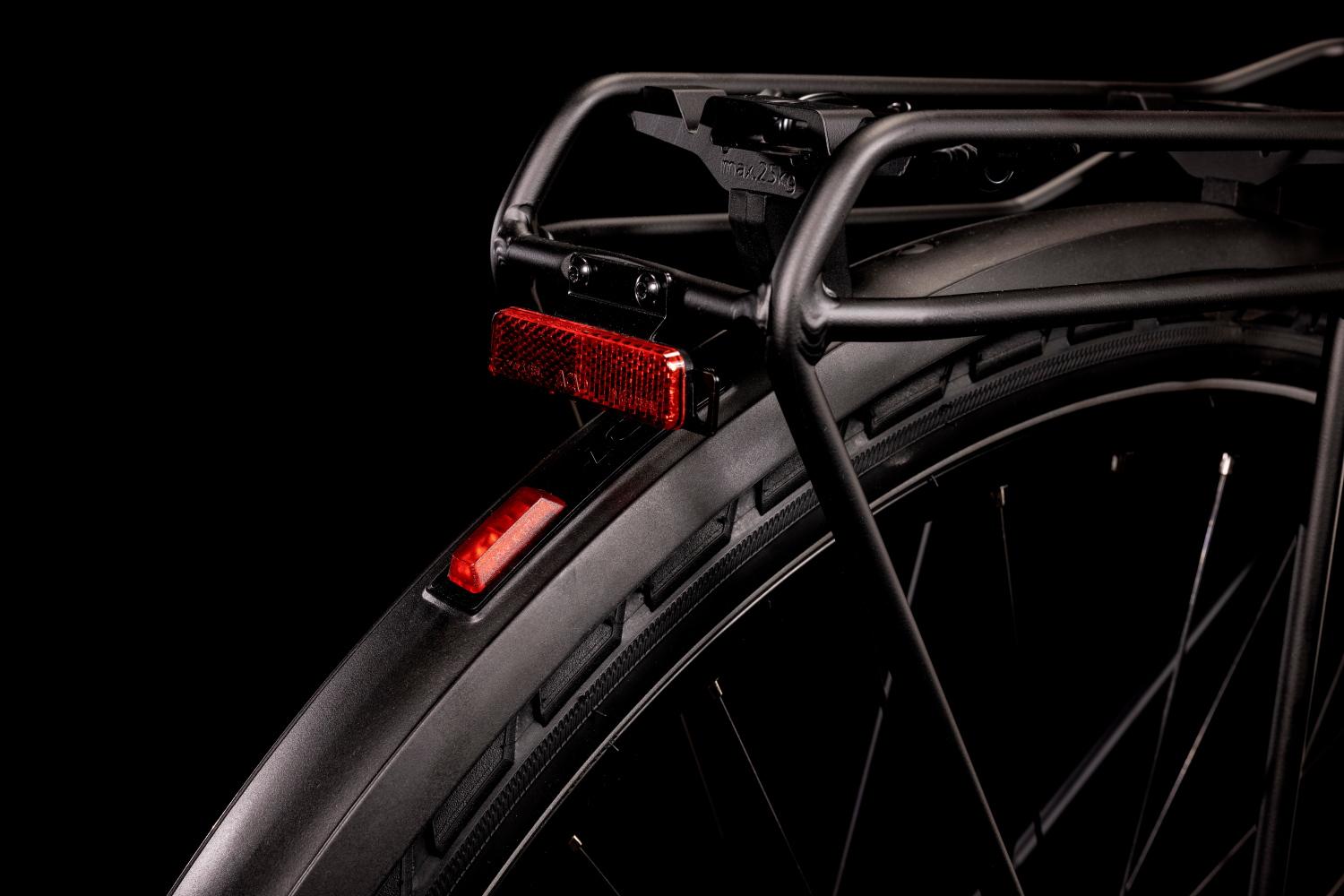

| CARRIER | ACID Semi-Integrated Carrier, ACID RILink Adapter Compatible |
| WEIGHT | 16,9 kg |
| COLOUR | grey´n´orange |
| ART. NO | 548200 |
GEOMETRY

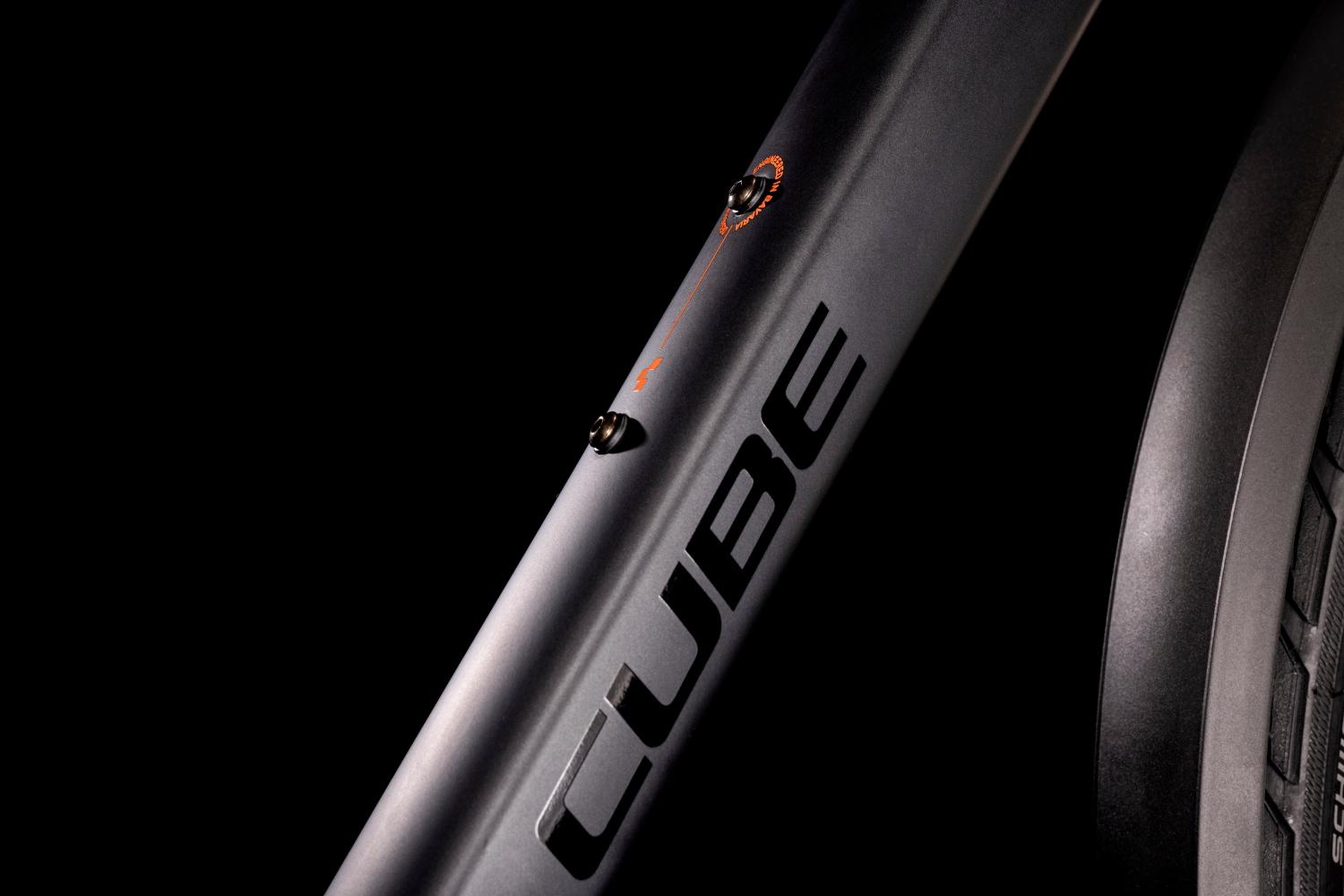

The heart of the Touring is its high-quality, low-weight, double-butted aluminium frame. Designed with our Efficient Comfort Geometry to make light work of even long days in the saddle, it'll surprise you with its nimble and intuitive handling. The Easy Entry version is sleek and easy to use, there's a sporty-looking Trapeze option, while the Men's classic diamond frame is available in five sizes for the perfect fit. Every frame features our exceptionally neat luggage carrier and gear cables routed inside the down tube, for long-lasting accurate gear shifts with minimal maintenance.
