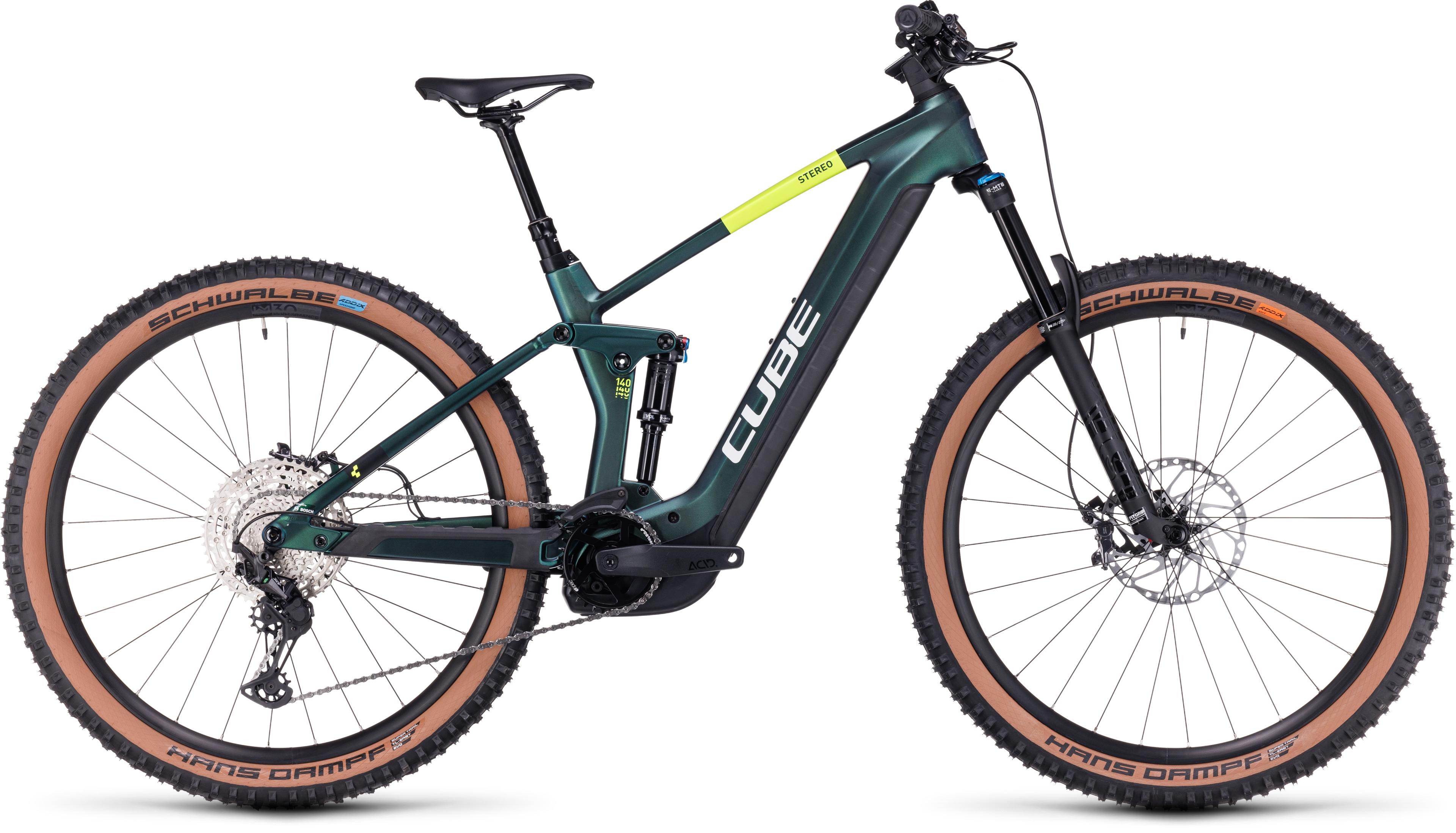

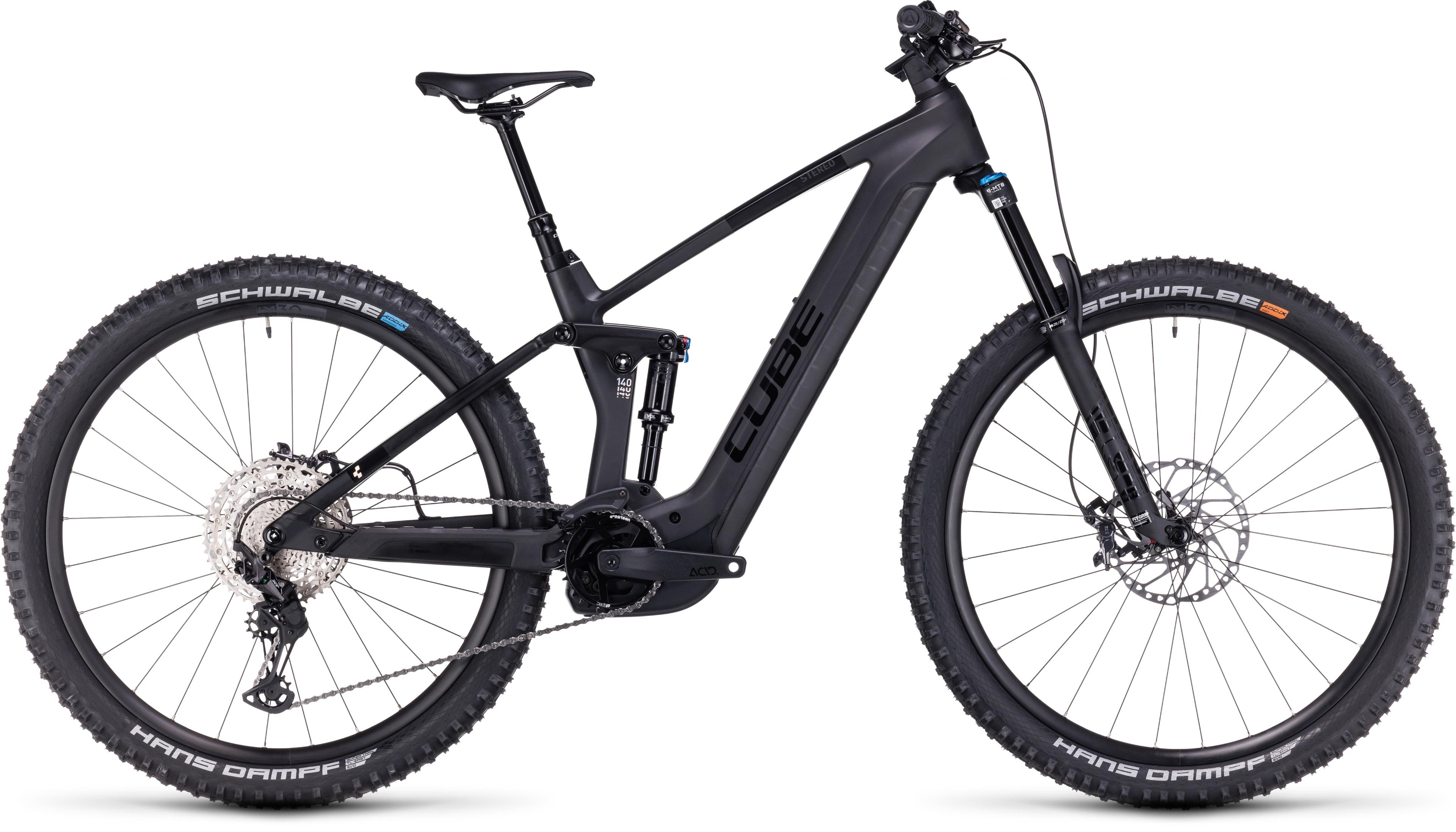

STEREO HYBRID 140 HPC
SLX 750
The secret of a really great bike? It should just get out of the way and let you enjoy the ride. That's why, for the Stereo Hybrid 140 HPC SLX 750, we began with a 150mm Fox 34 Rhythm fork and matching Float DPS Performance shock. Combined with a Newmen Performance wheelset and Schwalbe 2.6in tyres, it's the closest we can get to a magic carpet ride. Bosch's fourth-generation CX drive unit and a 750Wh battery with Kiox 300 display deliver your power to the trail via Shimano's slick-shifting, legendarily reliable XT 1x12 gears. And strong, progressive Shimano XT four-piston hydraulic disc brakes with 203mm rotors bring you safely to a stop, on demand. With a remote dropper post included in the mix, you simply need to add your spirit of adventure.
AUSSTATTUNG
| FRAME | C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fully Integrated Battery, Advanced Internal Cable Routing |
|---|---|
| SIZE | Size Split: 27.5: S // 29: M L XL |
| SUSPENSION FORK | Fox 34 Float Rhythm, 2-Position Sweep-Adjust GRIP Damper, Tapered, 15x110mm, E-Bike Tune, 150mm |
| SHOCK | Fox Float DPS EVOL, 205x60mm (27.5: 185x55mm), Open/Medium/Firm Mode, Trunnion Mount |
| SHOCK HARDWARE | Top: 54mm Trunnion Mount, Bottom: 22.2x8mm |
| BRAKE SYSTEM | Shimano XT BR-M8120, Hydr. Disc Brake (203/203) |
| REAR DERAILLEUR | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
| SHIFTERS | Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus |
| CRANKSET | ACID E-Crank, 165mm (27.5: 36T // 29: 34T) |
| CHAIN GUIDE | Reverse Flip-Guide E-Chain Guide, Direct Mount, GEN4 |
| CASSETTE | Shimano Deore CS-M6100, 10-51T |
| CHAIN | Shimano CN-M6100 |
| WHEELSET | Newmen Performance 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| FRONT TYRE | Schwalbe Hans Dampf, Addix Soft, Super Trail, Tubeless Easy, 2.6 |
| REAR TYRE | Schwalbe Hans Dampf, Addix Speedgrip, Super Trail, Tubeless Easy, 2.6 |
| STEM | CUBE Performance Stem E-MTB, 31.8mm |
| HANDLEBAR | Newmen Evolution SL 318.25, 780mm |
| GRIPS | ACID Disrupt, Soft Compound |
| SEAT POST | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm |
| SADDLE | Natural Fit Venec |
| HEADSET | ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
| WEIGHT | 24,1 kg |
| COLOUR | liquidblue´n´blue |
| DRIVE UNIT | Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System |
| BATTERY | Bosch PowerTube 750 |
| DISPLAY | Bosch Kiox 300 |
| REMOTE | Bosch LED Remote |
| CHARGER | Bosch 4A |
| ART. NO | 736310 |
GEOMETRY
What good is a go-anywhere, ride-all-day, Bosch-powered bike without power? Not much, which is why every frame size of the Stereo Hybrid 140 HPC, right down to the smallest, accepts a 750Wh battery. Combined with up to 85Nm from the Bosch CX drive unit, it's your ticket to extended off-road adventures. The Boost 148 rear axle, large pivot bearings and All Mountain Geometry deliver assured handling, even when you're exploring the limits of the 140mm rear and 150mm front travel. Sram's UDH gear hanger helps protect against crash damage and is easily replaceable. And Internal Cable Routing reduces maintenance and complements the clean lines of the full carbon main frame.
