ANALOG

Caught the mountain bike bug? Then you'll find a perfect partner in the Analog. Its high quality aluminium frame, balanced handling and fast responses add up to a package that's perfect for trail fun - whether that's a fast blast or a longer ride out in the hills. Whether you pick the 27.5 or 29 inch version, you're assured a good fit thanks to our Size Split system. Each one is ergonomically tailored to offer an exciting, dynamic ride at a price that represents outstanding value. With a 3x9 Shimano transmission, powerful hydraulic disc brakes and the assured performance of a RockShox suspension fork, you've everything you need to explore as far off-road as your curiosity takes you.

AUSSTATTUNG

FRAMEAluminium Lite, AMF, Internal Cable Routing, Easy Mount Kickstand Ready
SIZE27.5: 14", 16", 18" // 29: 17", 19", 21", 23"
FORKRockShox XC 30 TK Coil, 100mm, Remote Lockout
BRAKE SYSTEMShimano BR-M315, Hydr. Disc Brake (160/160)
REAR DERAILLEURShimano XT RD-M772-SGS, Shadow, 9-Speed
FRONT DERAILLEURShimano FD-M4000, Downswing, 31.8mm Clamp
SHIFTERSShimano SL-M4000, Rapidfire-Plus
CRANKSETShimano FC-M2000, 40x30x22T, 175mm
CASSETTEShimano CS-HG400, 12-36T
CHAINShimano CN-HG53
FRONT HUBShimano HB-TX505, QR, Centerlock
REAR HUBShimano FH-TX505, QR, Centerlock
RIMSCUBE ZX20, 32H, Disc
TYRESSchwalbe Smart Sam, Active, 2.25
HANDLEBARCUBE Rise Trail Bar, 680mm
GRIPSCUBE Performance Grip
SEAT POSTCUBE Performance Post, 27.2mm
SEATCLAMPCUBE Varioclose, 31.8mm
SADDLECUBE Active 1.1
HEADSETFSA No.10, Semi-Integrated
PEDALSCUBE PP MTB
WEIGHT14,3 kg
COLOURflashgreen´n´grey
ČÍSLO VÝROBKU102110

Geometrie

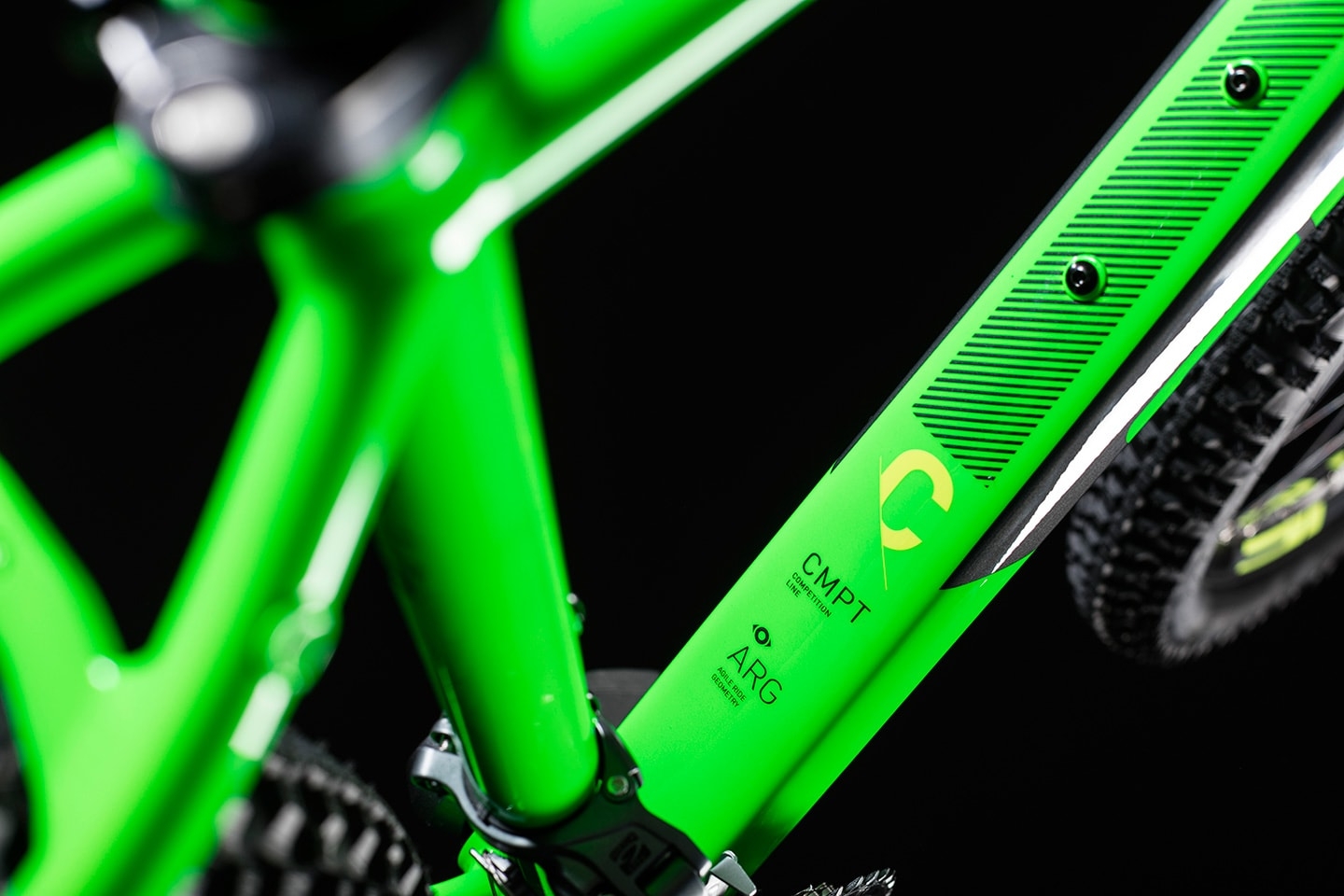

The complex profile top and down tubes of the Analog's frame are designed to be both light and strong - we achieve their sleek shapes using our proprietary Mechanical Forming process. Neat, integrated disc mounts are part of the disc-specific design, while internal cable routing and a tough paint finish mean that this is a bike that will keep its good looks through the rough and tumble of off-road use. And, of course, CUBE's Agile Ride Geometry lends the Analog the manoevrability, playfulness, stability and comfort that you'd expect from one of our hardtails, regardless of how you ride it.

Bike details

detail_image_0
detail_image_1
detail_image_2

VÍCE MODELŮ Z TÉTO SÉRIE

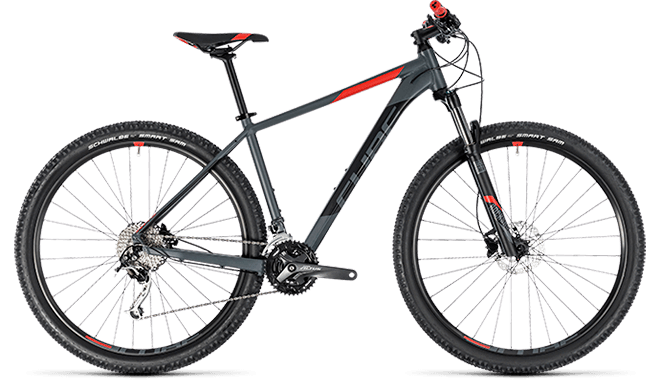

CUBE Analog grey´n´red 2018

ANALOG

CUBE Analog flashgreen´n´grey 2018

ANALOG

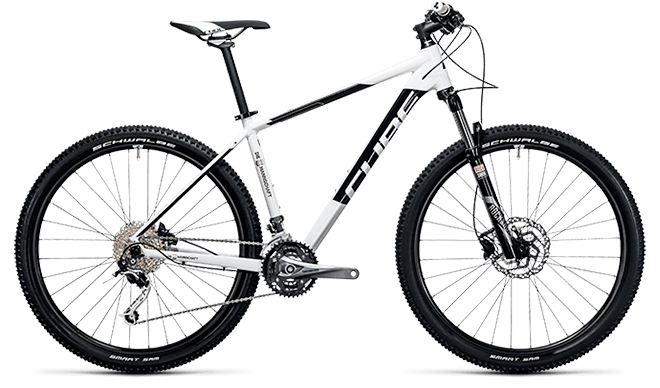

CUBE Analog DFB Edition "Die Mannschaft" 2018
