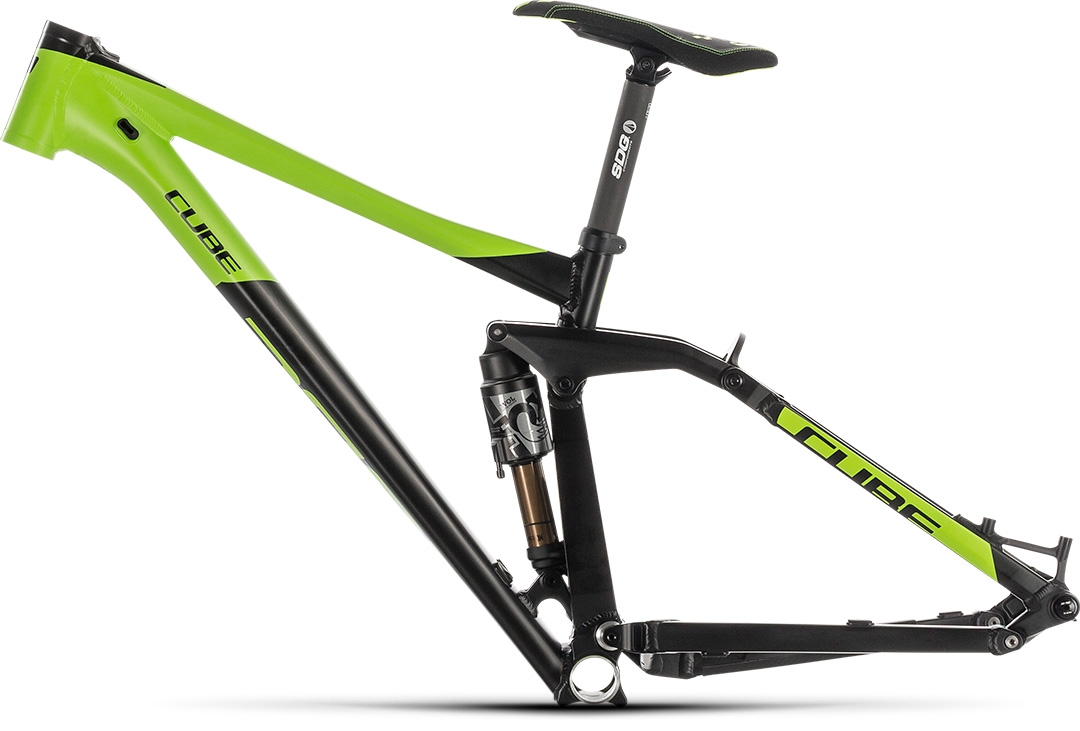

CUBE TWO15 FRAMESET

The Two15 frameset is your chance to set up a piece of World Cup-tested high-end kit to your own specifications. This is a genuine race replica so, of course, we finished it in our Global Squad design.

AUSSTATTUNG

FRAMEHPA Ultralight, Advanced Hydroform, Triple Butted, ETC 4-Link, ISCG Mount, 215mm travel (29": 200mm)
SIZES / 27.5, M / 27.5, L / 29, XL / 29
SHOCKFox Float X2 Factory, 240x76mm, High/Low Speed Rebound & Compression, Kashima Coated
SHOCK HARDWARETop: 30x8mm, Bottom: 22x8mm
SEAT POSTSDG I-Beam Carbon, 31.6mm
SEATCLAMPCUBE Screwlock, 34.9mm
SADDLESDG FLY 2.0 I-Beam
WEIGHT4,8 kg
COLOURglobalsquad
ČÍSLO VÝROBKU258300

Geometrie

The principle behind the Two15's frame design is the same successful four pivot concept that powers all our full suspension bikes. That's important, because it means that we were able to realise the same suspension characteristics as our super-efficient trail bikes, but with plenty of rear wheel travel and noticeably better agility and control than simpler DH bike designs. But we didn't stop with the kinematics - our engineers also put a lot of effort into reducing weight. The Two15's hydroformed, triple butted tubeset with 157mm rear hub spacing weighs only a little more than an enduro frame, but delivers extaordinary steering precision and epic rock swallowing ability. Our optimised suspension design provides apparently endless grip on every trail surface, and the internal cable routing keeps gear shifts clean and the the frame's looks cleaner still.

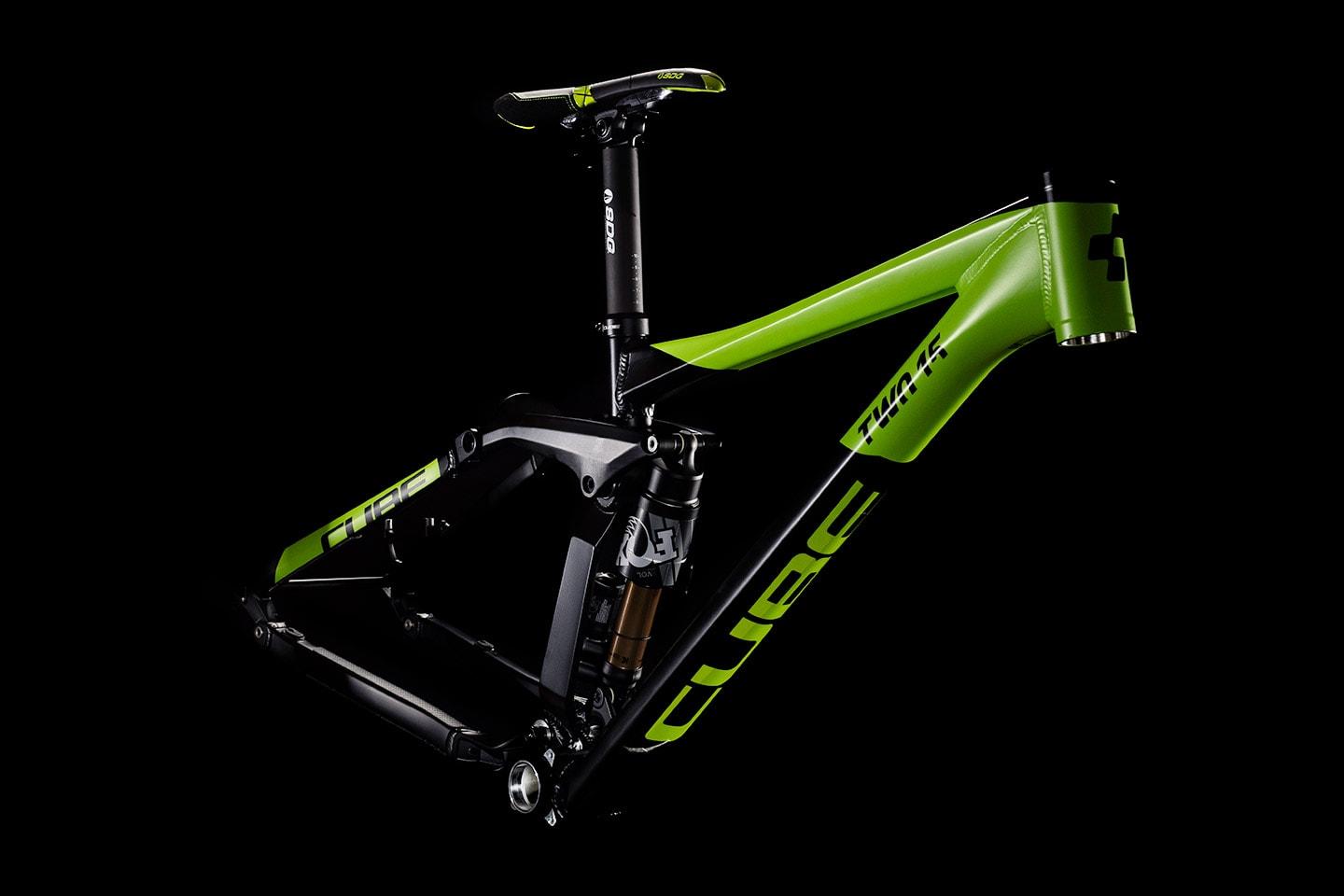

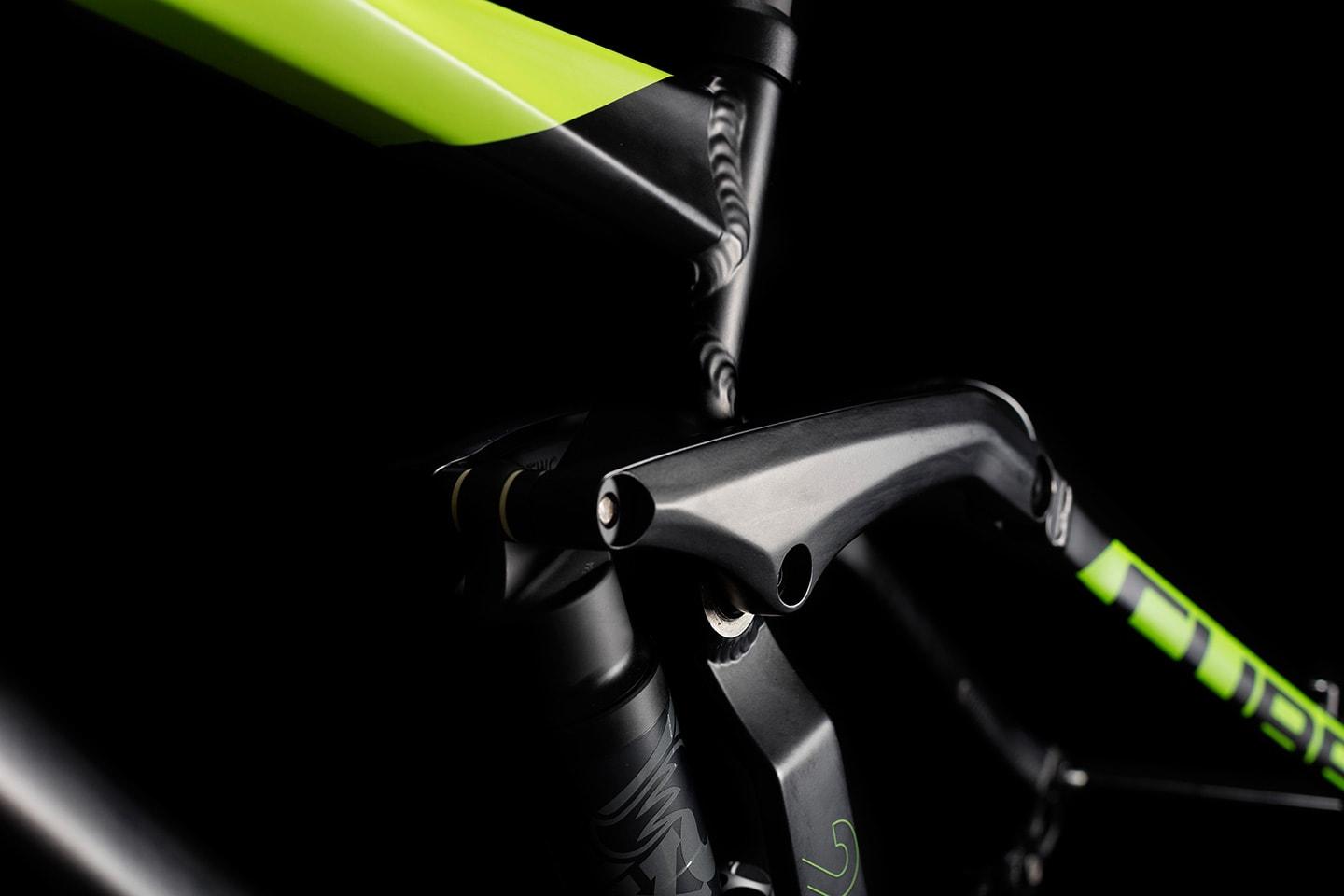

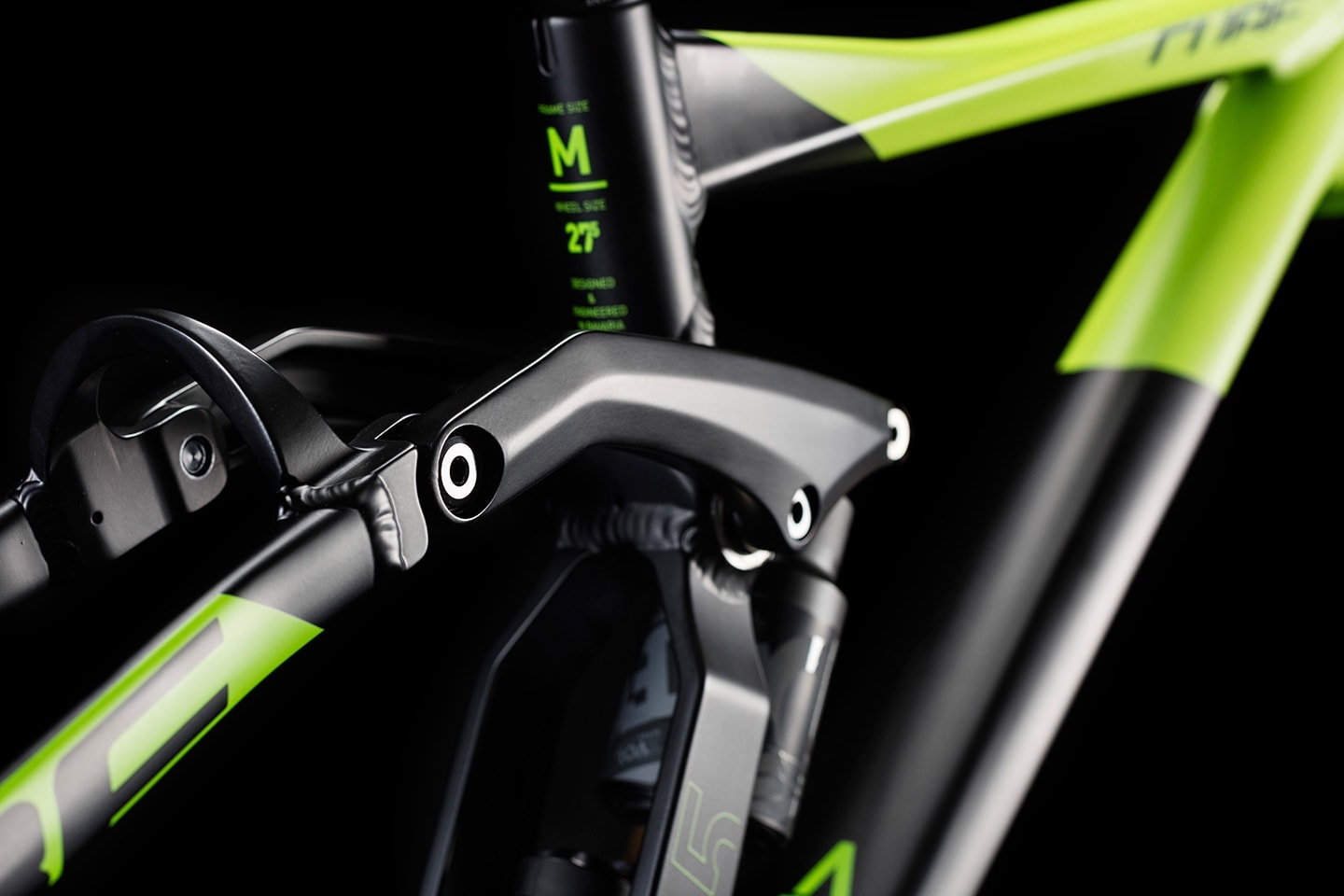

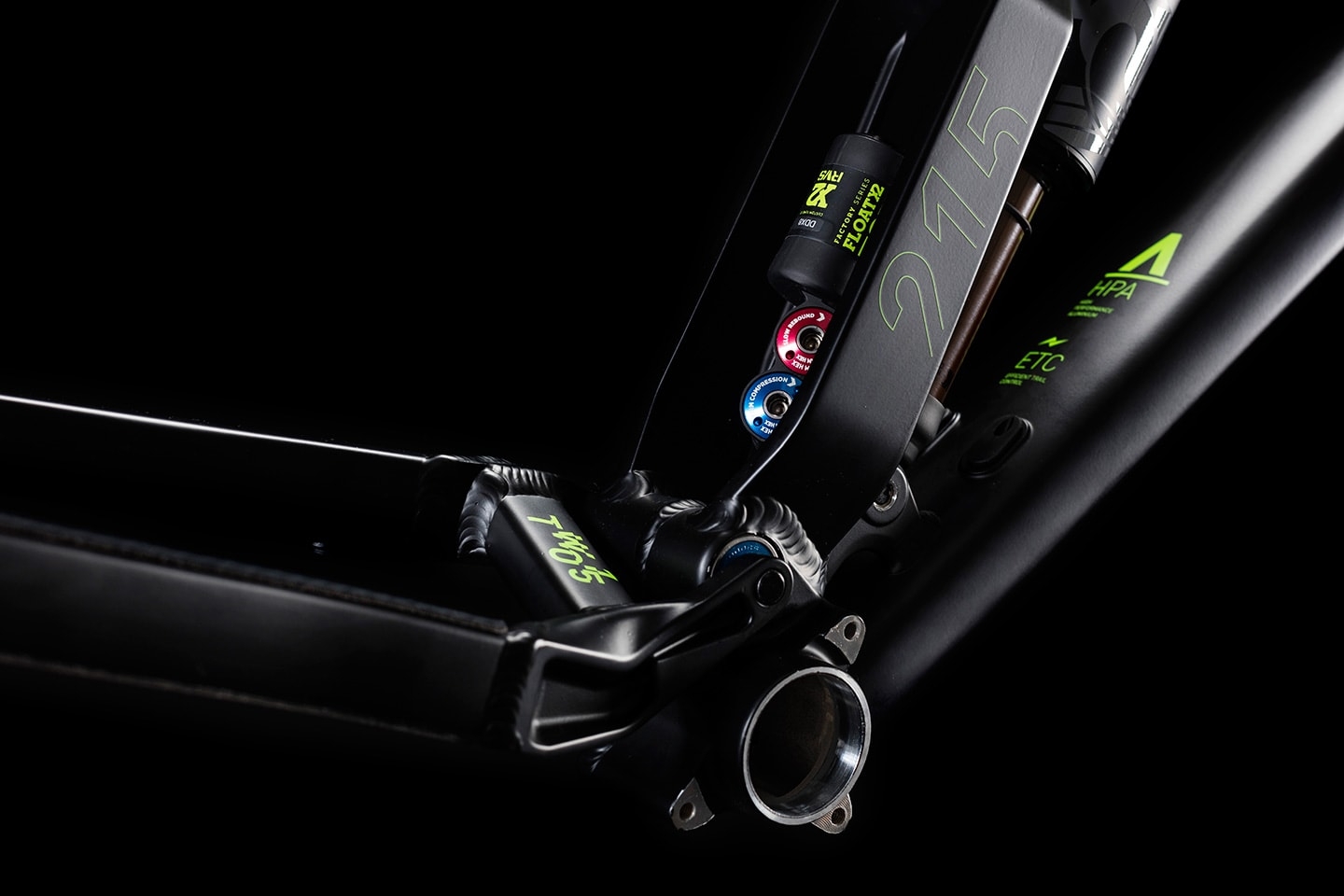

Bike details

porn_image
detail_image_0
detail_image_1
detail_image_2
