curve

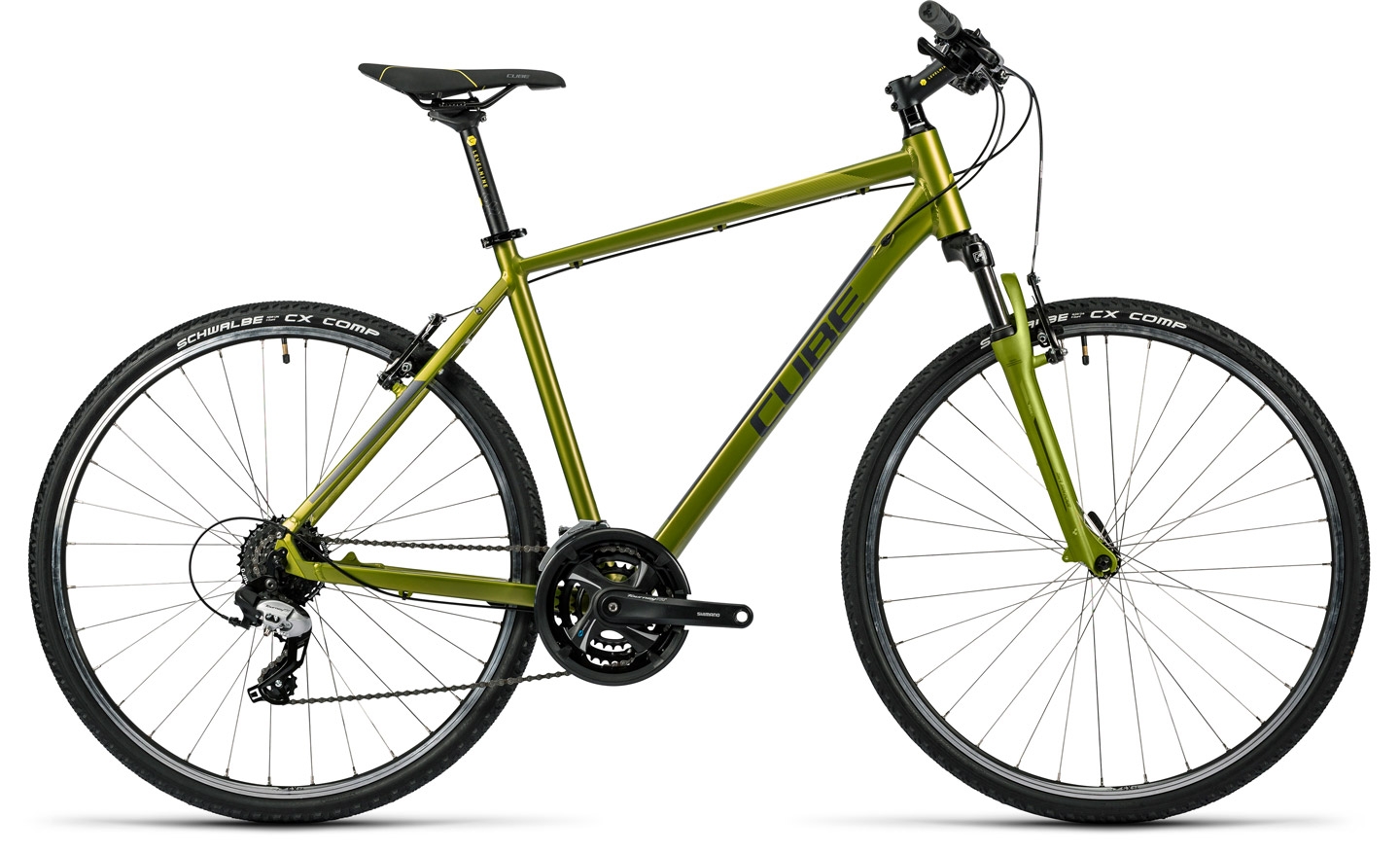

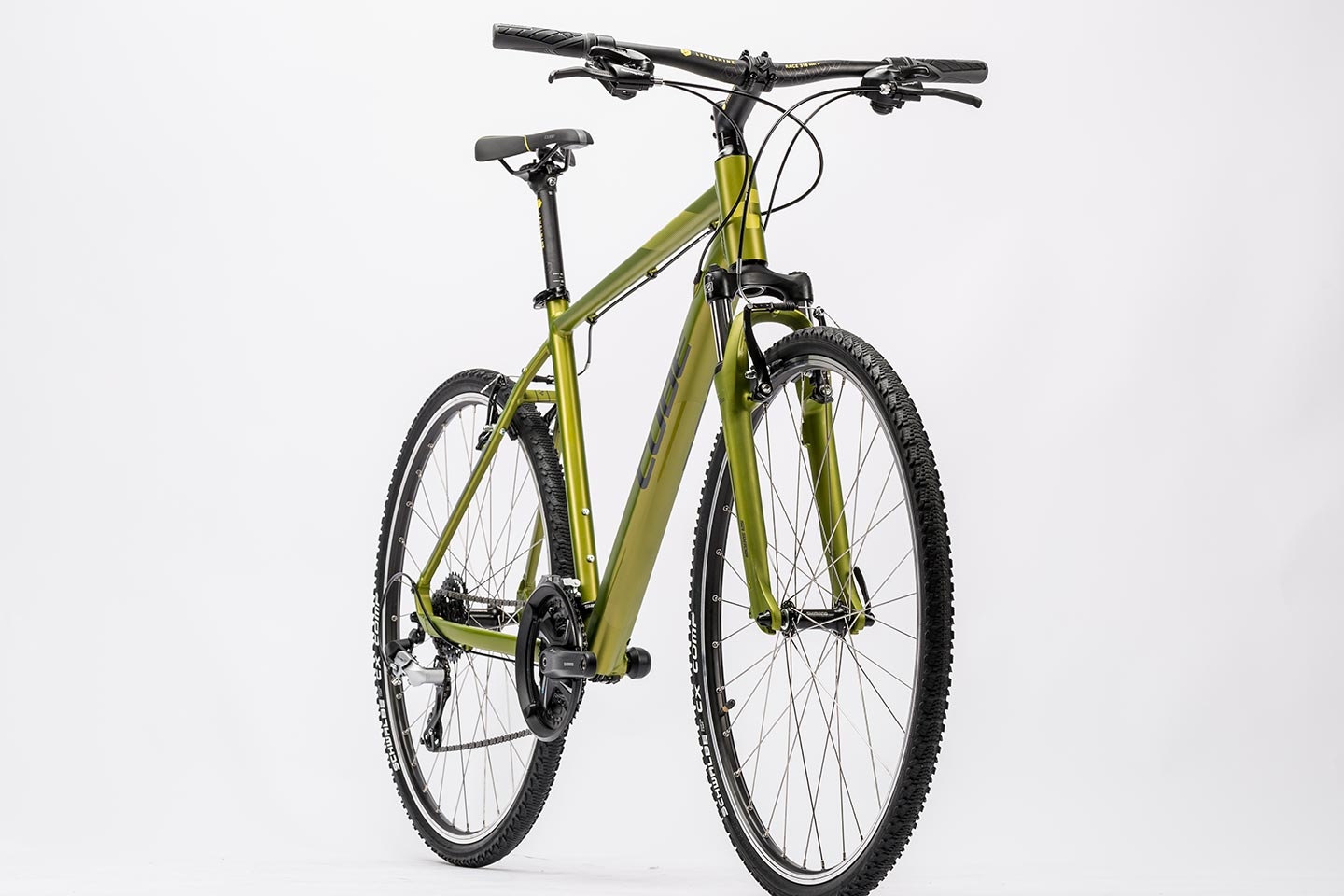

Our Curve is the ideal introduction to the world of freedom on two wheels. It's the perfect Country Lite Series bike for exploring urban areas or even further afield. With a high quality frame featuring details you wouldn't normally see in this category plus powerful V-brakes, 24 gears and a comfortable Suntour suspension fork, this is a reliable and safe ride companion in any situation.

AUSSTATTUNG

FRAMEAluminium Superlite Trekking Cross Double Butted
SIZE46, 50, 54, 58, 62, Trapeze: 46, 50, 54

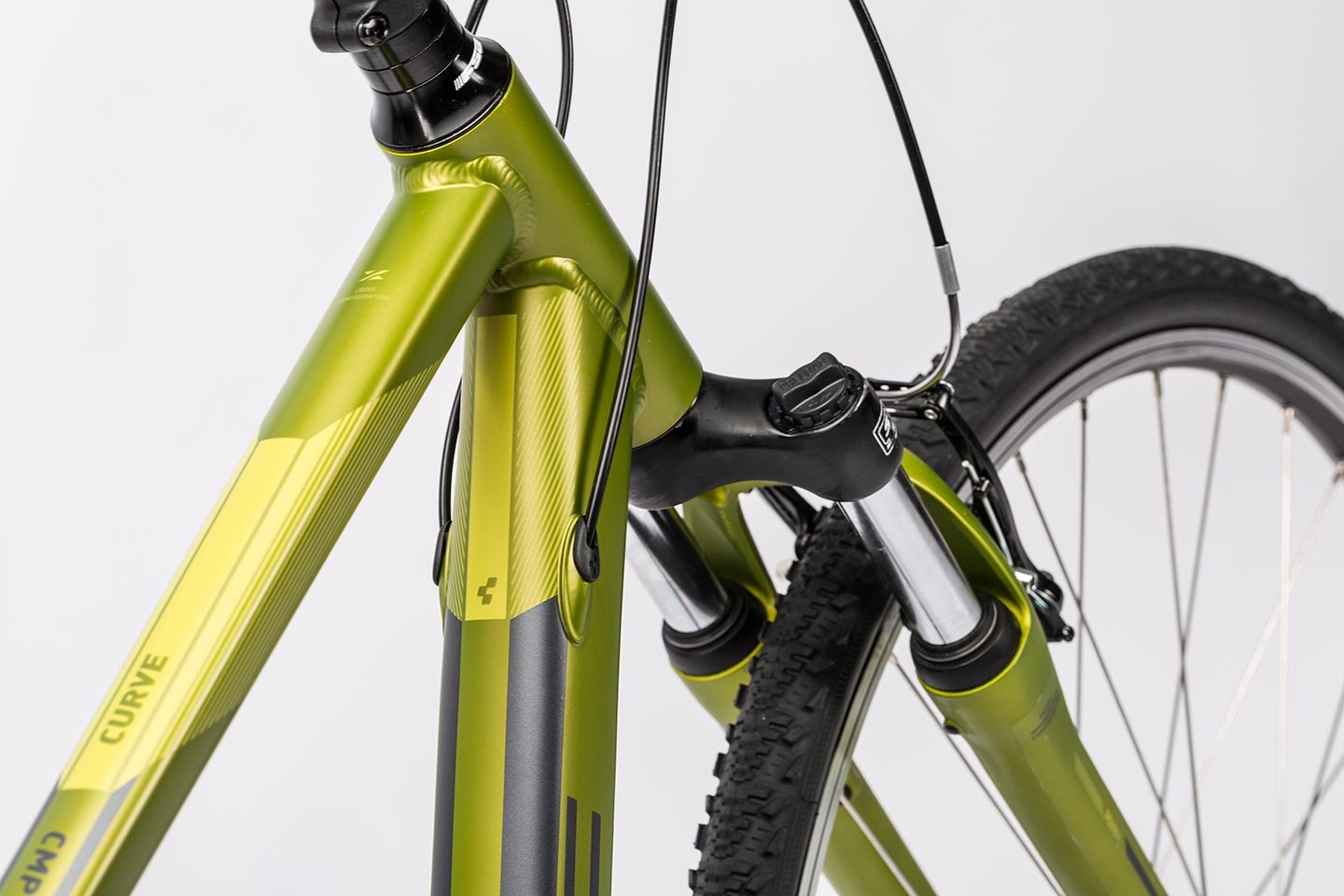

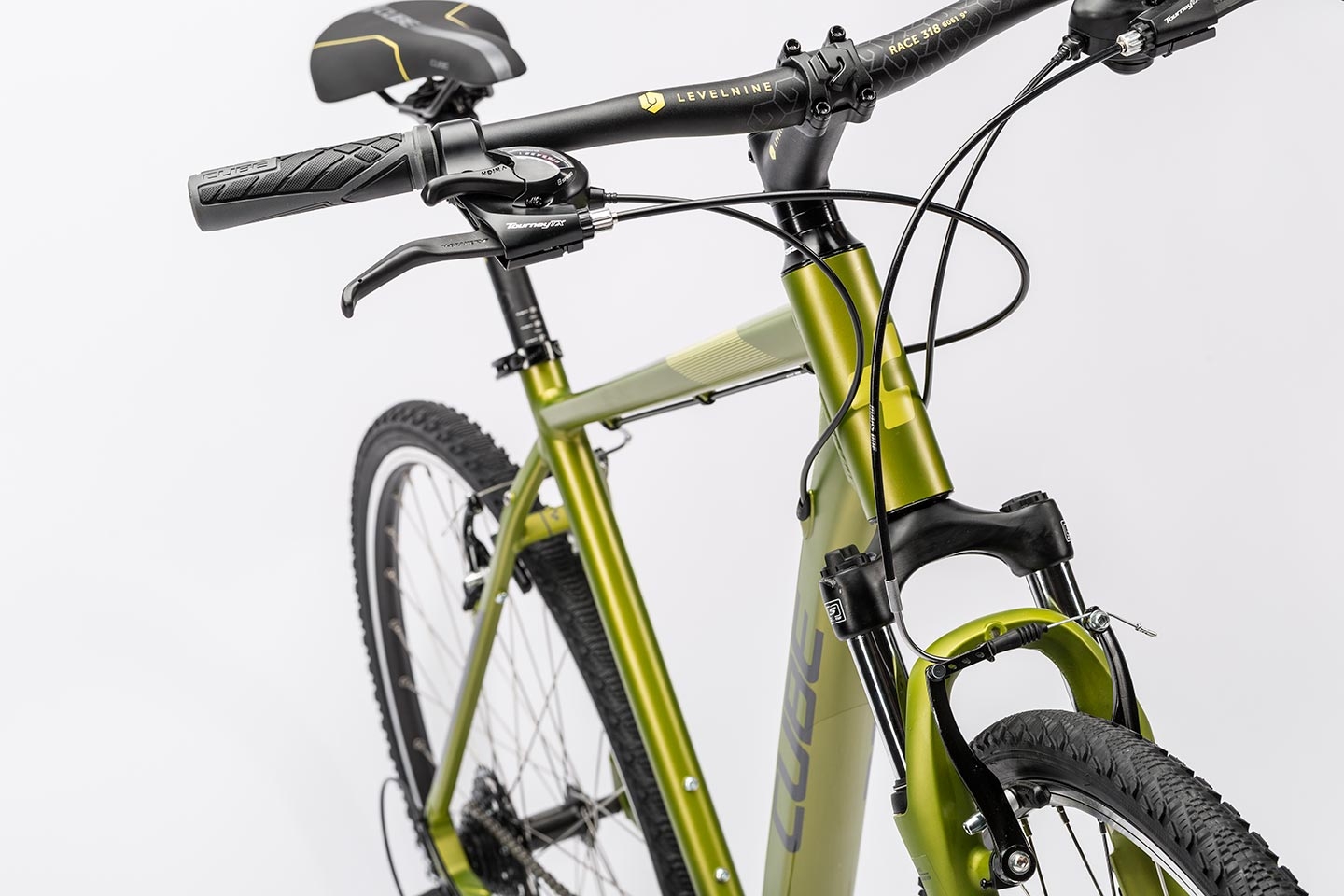

FORKSR Suntour

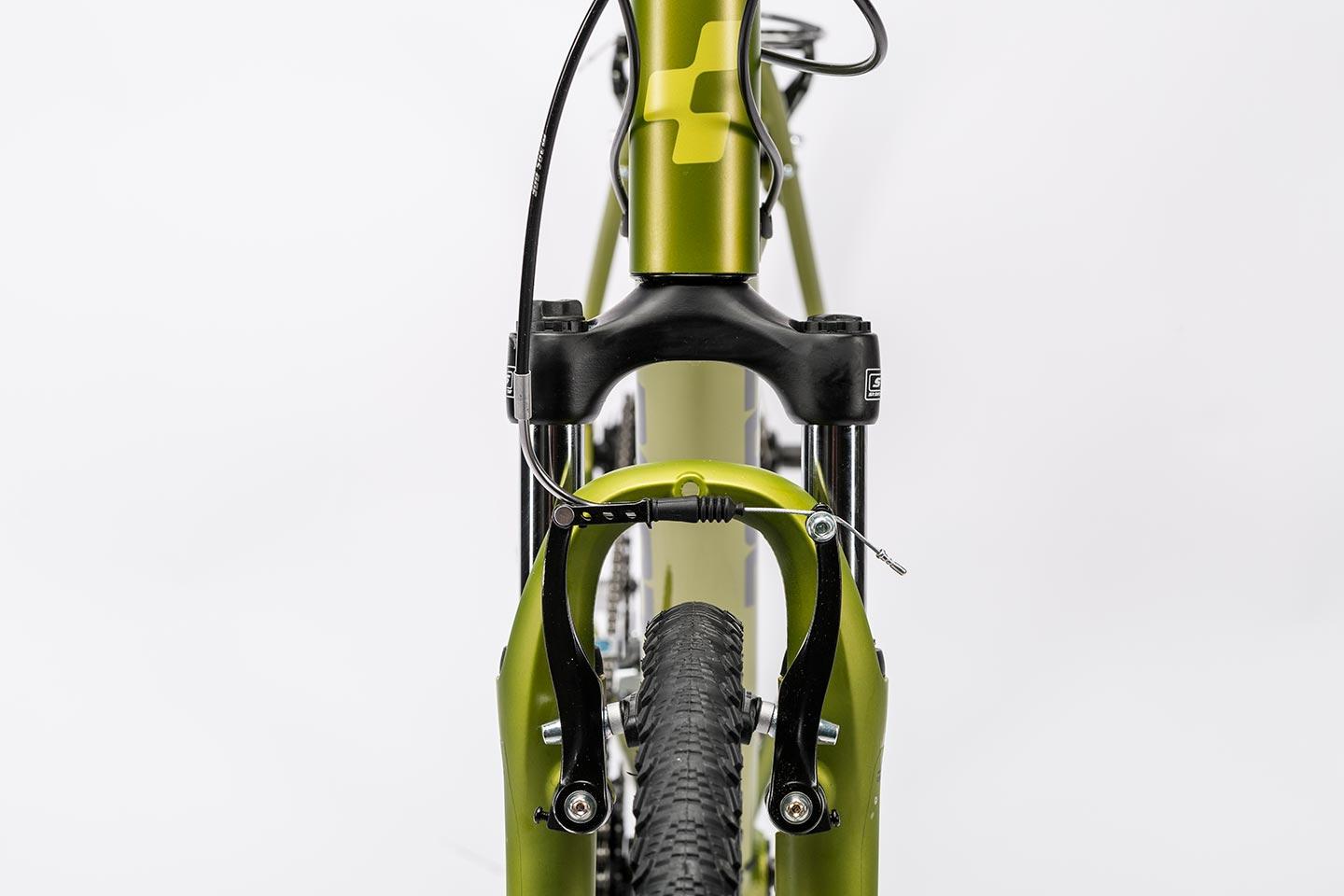

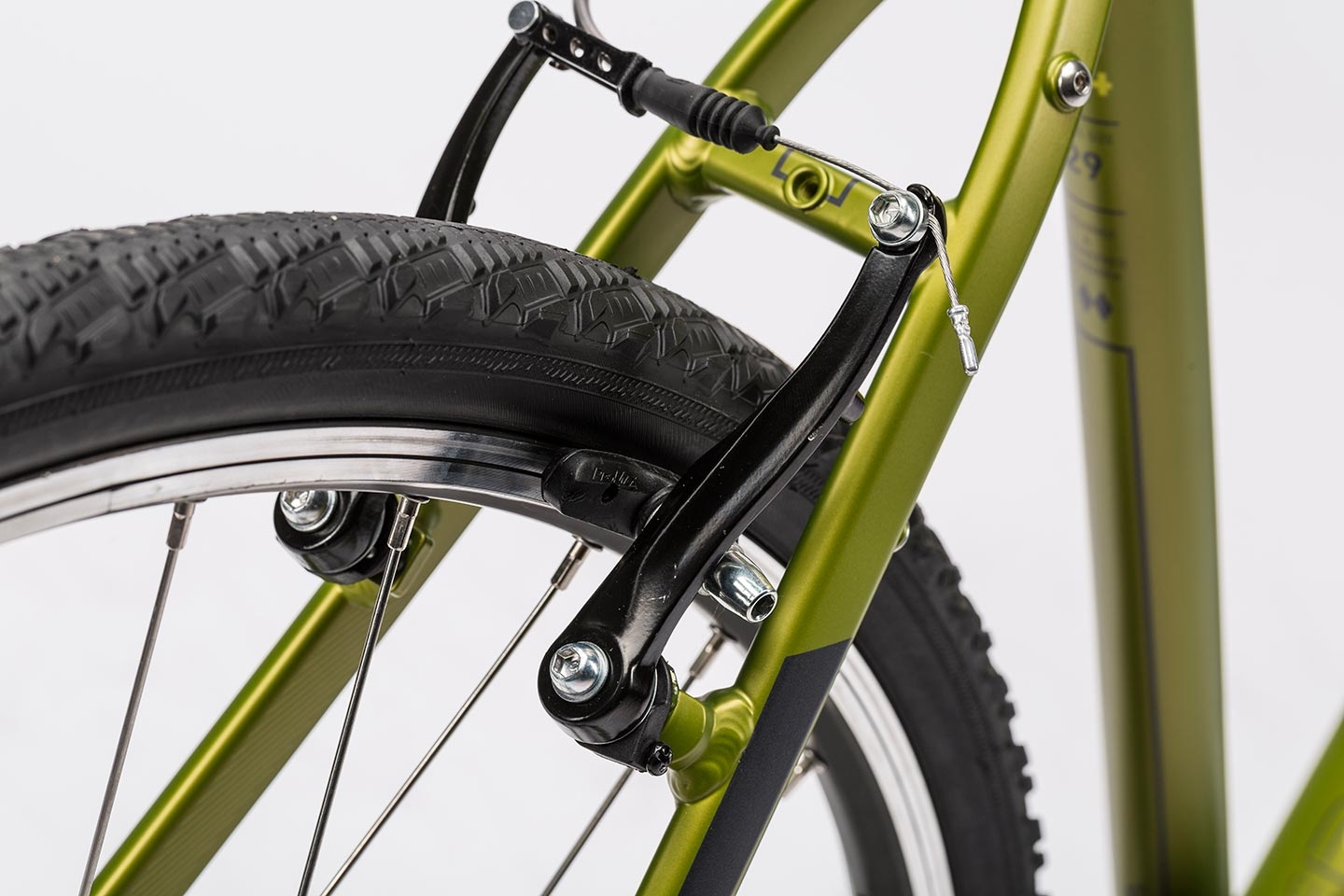

BRAKE SYSTEMTektro 857AL V-Brake
REAR DERAILLEURShimano Tourney RD-TX800, 8-Speed

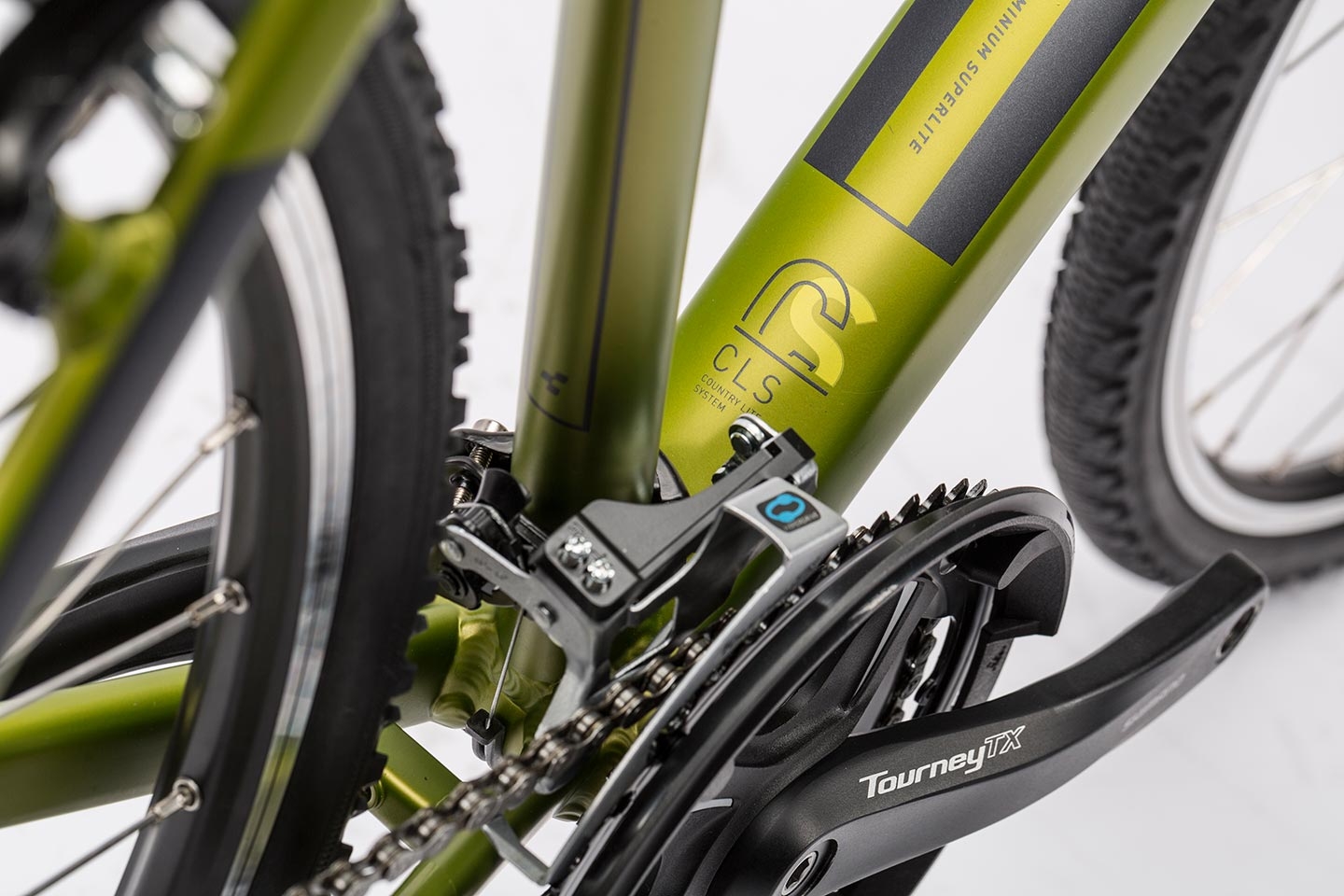

FRONT DERAILLEURShimano Tourney FD-TX800, Topswing, 31.8mm
SHIFT-BRAKE-LEVERSShimano STI Tourney ST-TX800
CRANKSETShimano Tourney FC-T801, 48x36x26T, BB-UN100, 175mm, Chainguard
CASSETTEShimano CS-HG31, 11-34T
CHAINKMC Z51
FRONT HUBShimano Altus HB-RM40
REAR HUBShimano Altus FH-RM30
RIMSCUBE SX24
TIRESSchwalbe CX Comp, Active, 40x622

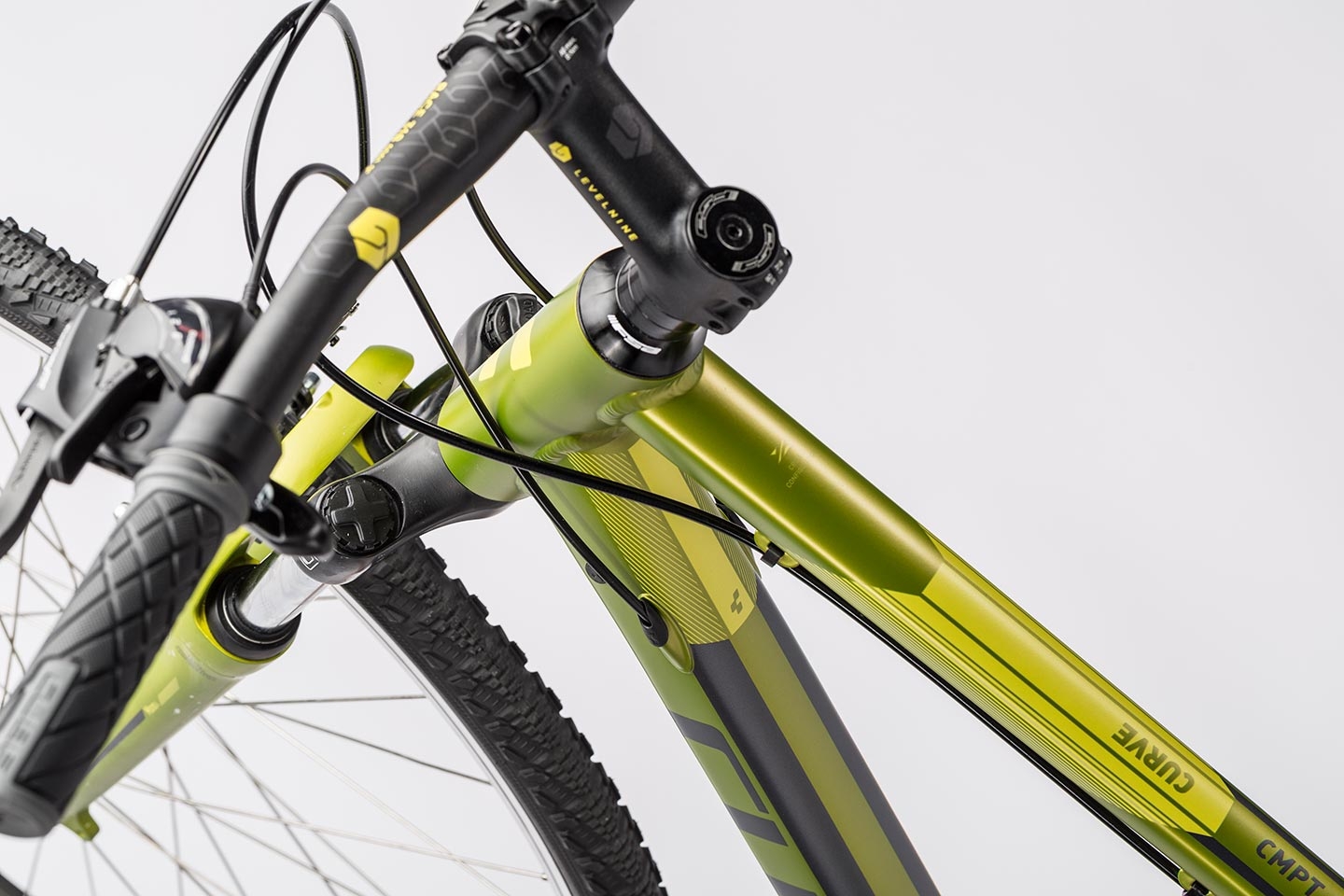

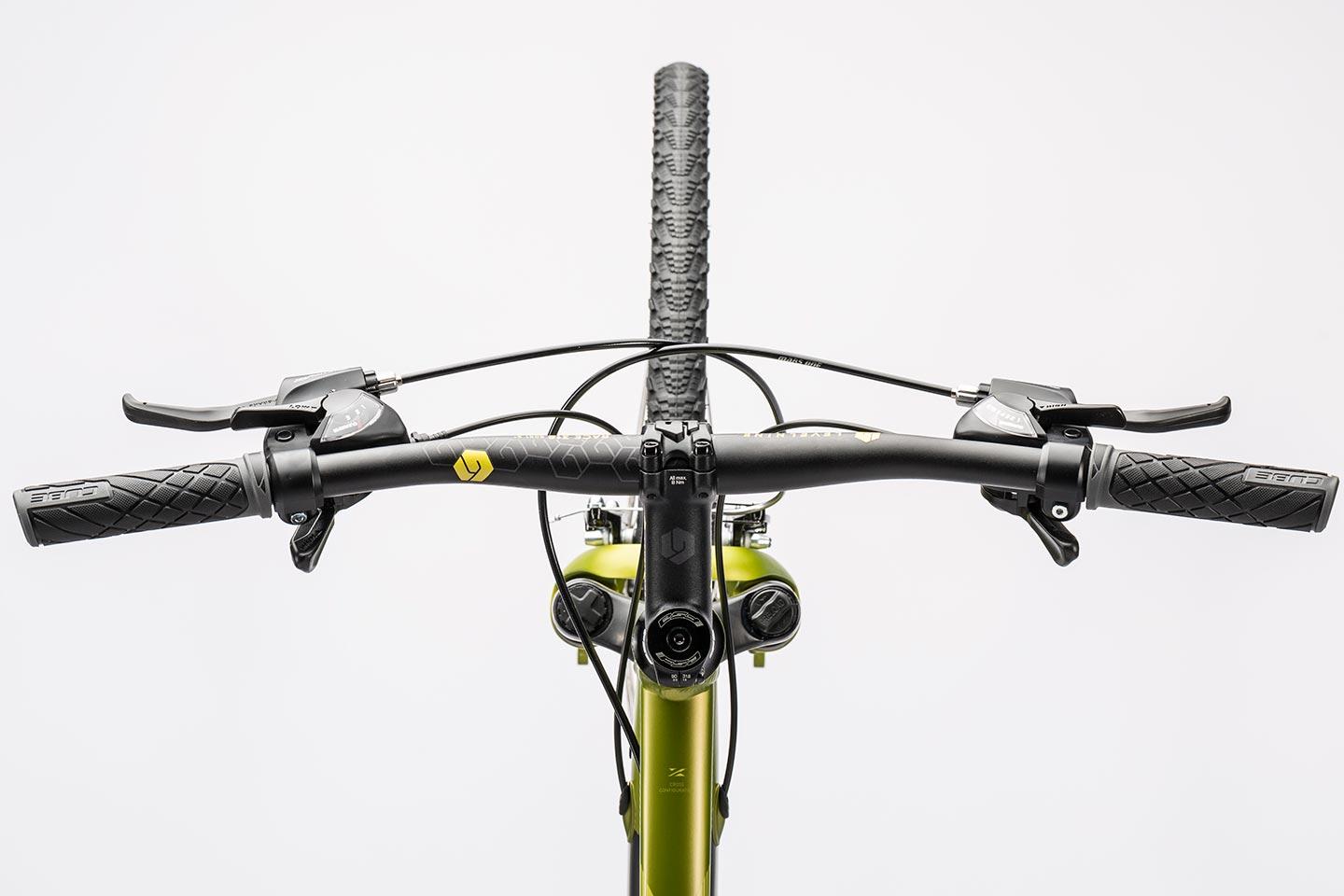

HANDLEBARLevel 9 Riser, 660mm
GRIPSCUBE Performance Grip
SEAT POST Level 9, 27.2mm

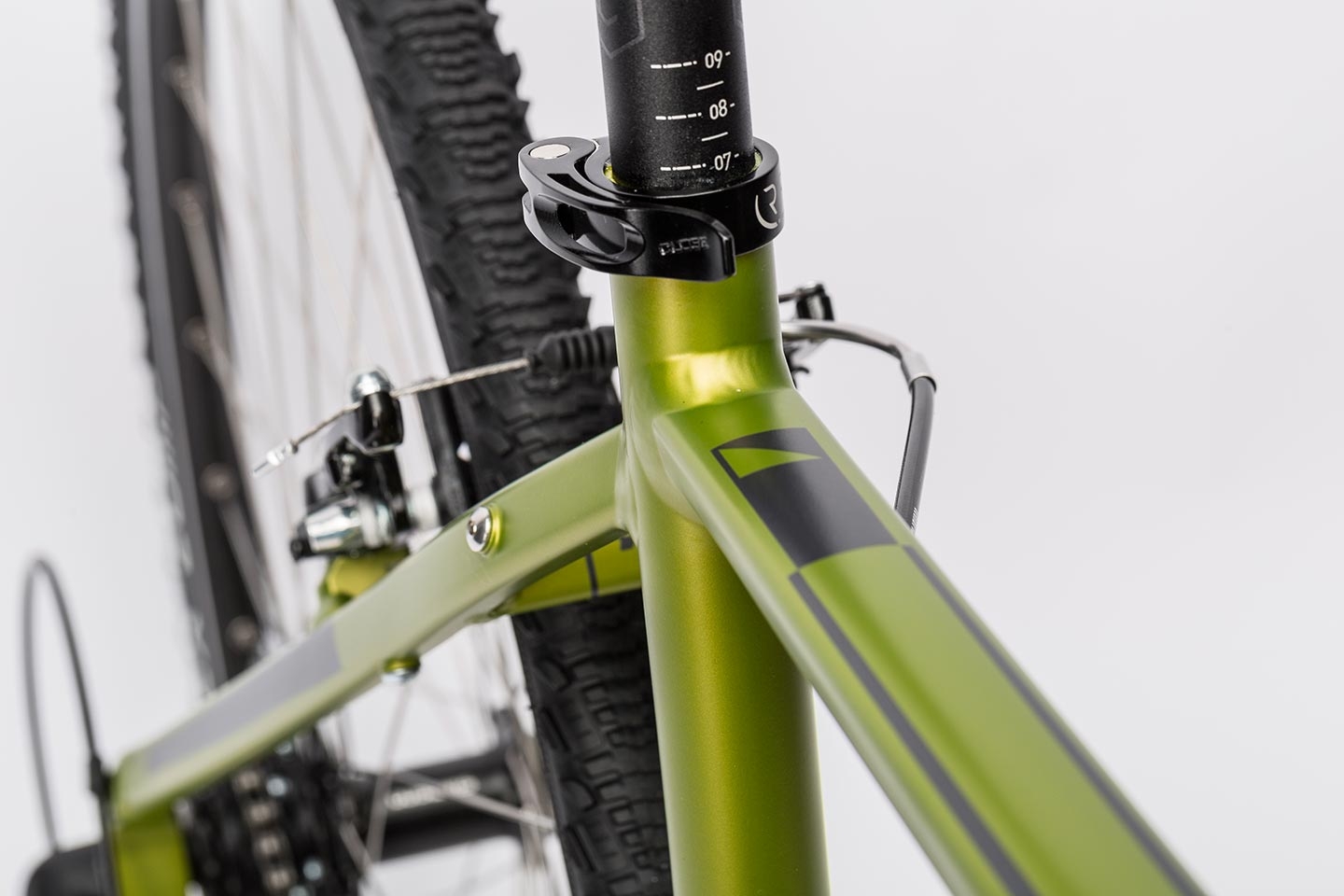

SEATCLAMPCUBE Varioclose, 31.8mm
SADDLECUBE Active 1.1
HEADSETFSA No.10, Semi-Integrated
PEDALSCUBE PP MTB
WEIGHT12.8 kg
COLORgreen grey green
ART. NO731001

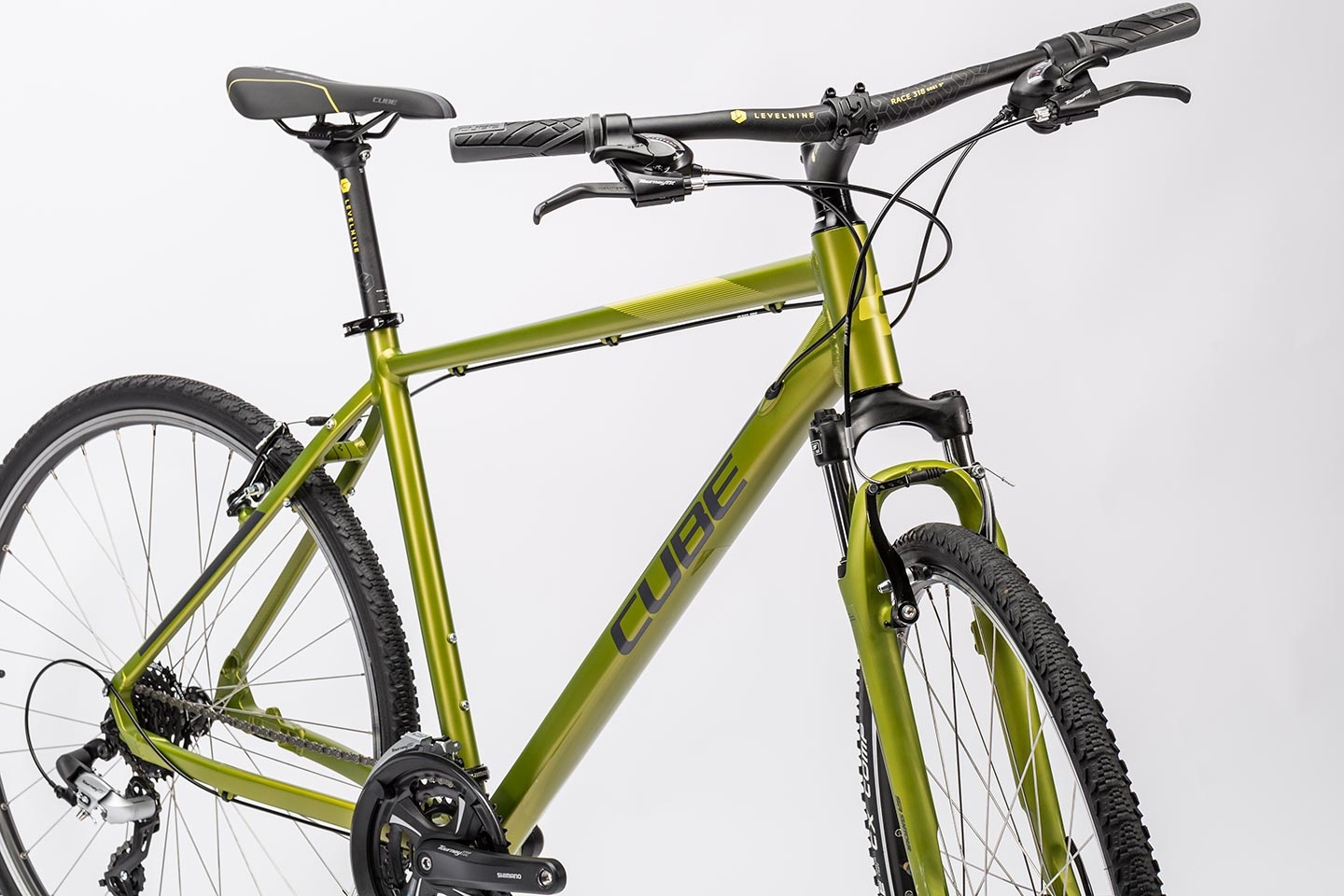

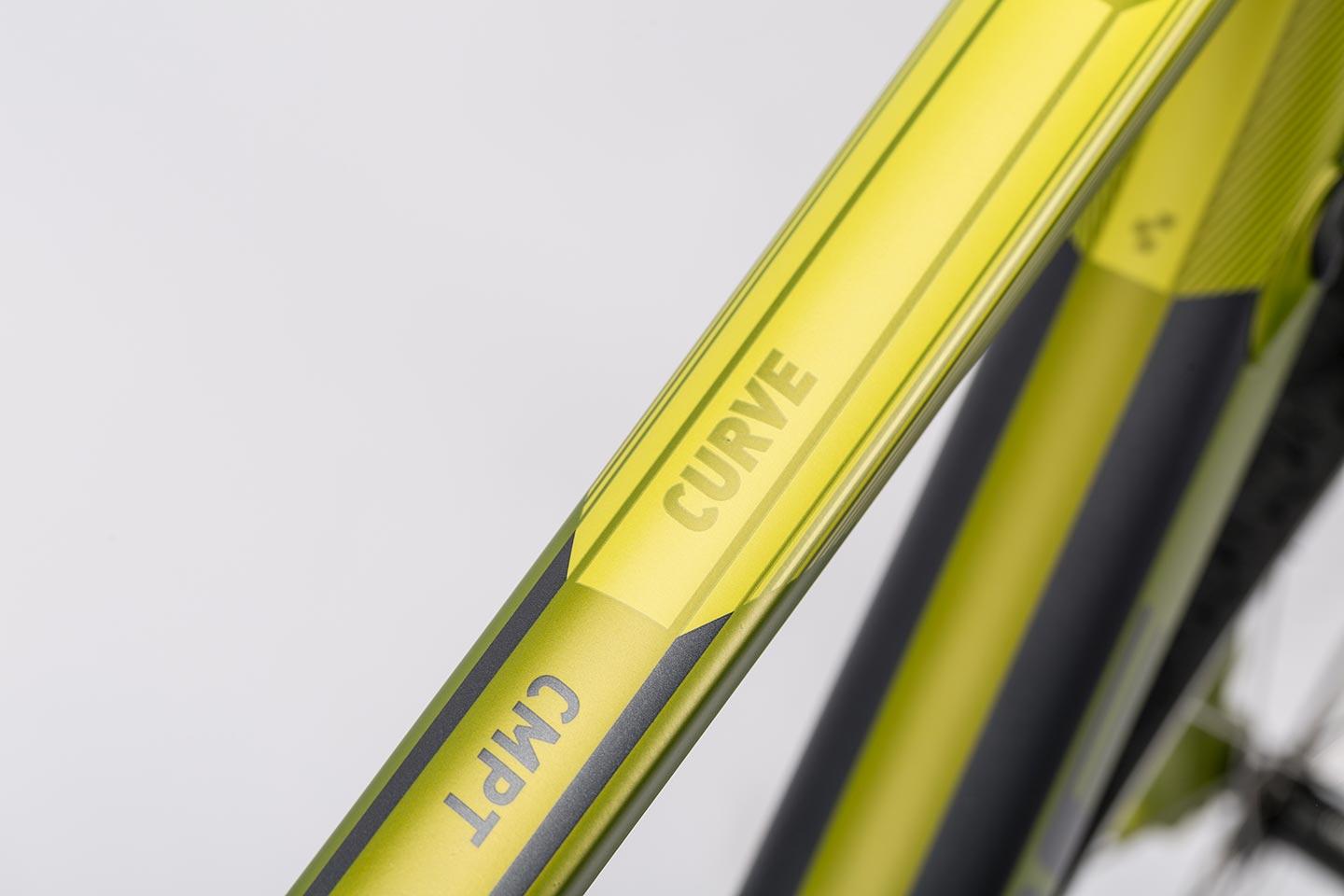

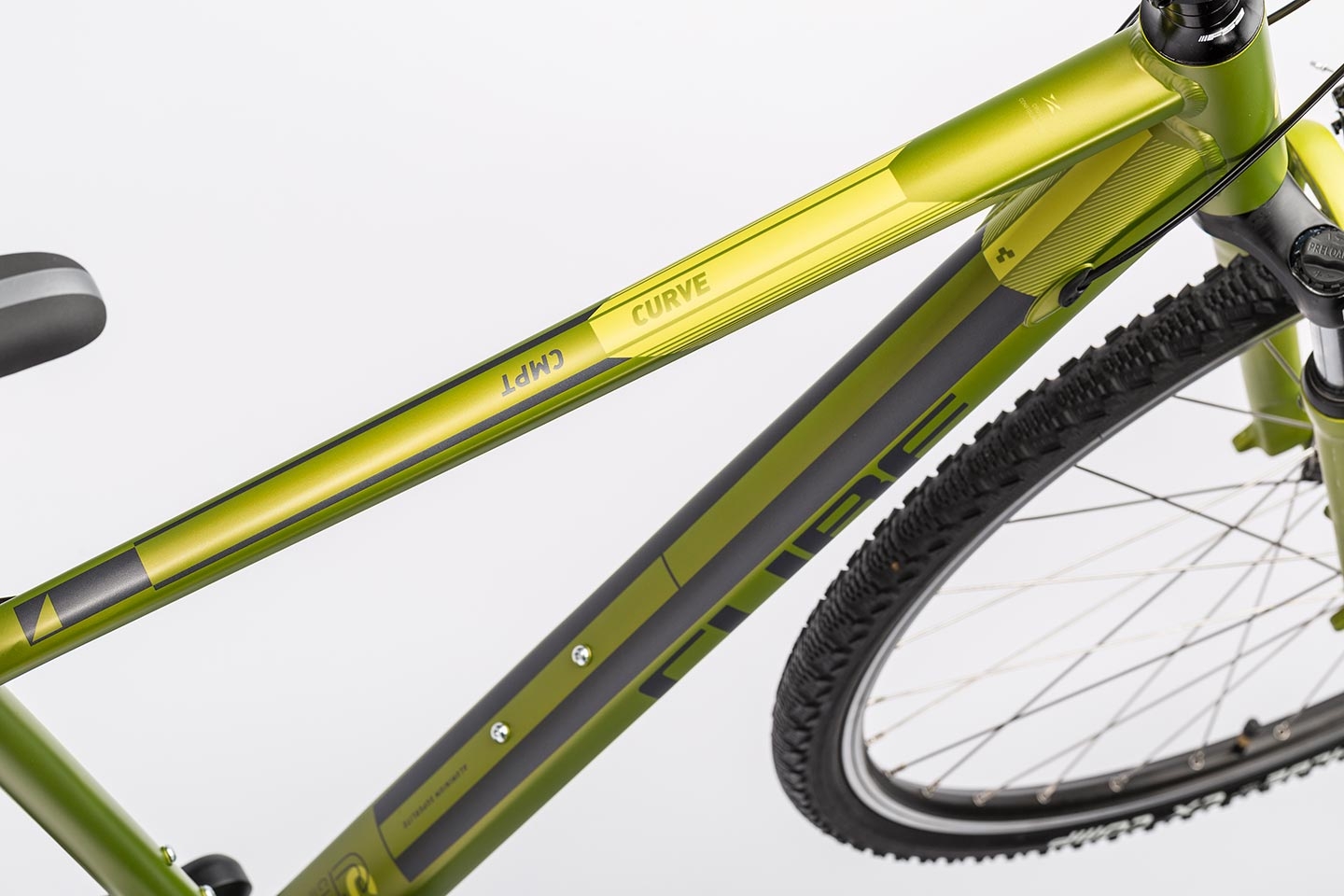

There's a good reason our Curve is lighter than other similar models. It's down to the light, double butted tubes that make up the aluminium frame - including the complex design of the down tube and top tube - plus the 3D forged, multi-funcitonal dropouts with integrated Easy Mount kickstand. As with all our bikes, the CUBE Curve has comfortably passed every EU and in-house stress test we could throw at it.

Bike details

detail_image_0
detail_image_1
detail_image_2
detail_image_3
detail_image_4
detail_image_5
detail_image_6
detail_image_7
detail_image_8
detail_image_9
detail_image_10
detail_image_11
detail_image_12
detail_image_13
detail_image_14
