ANALOG

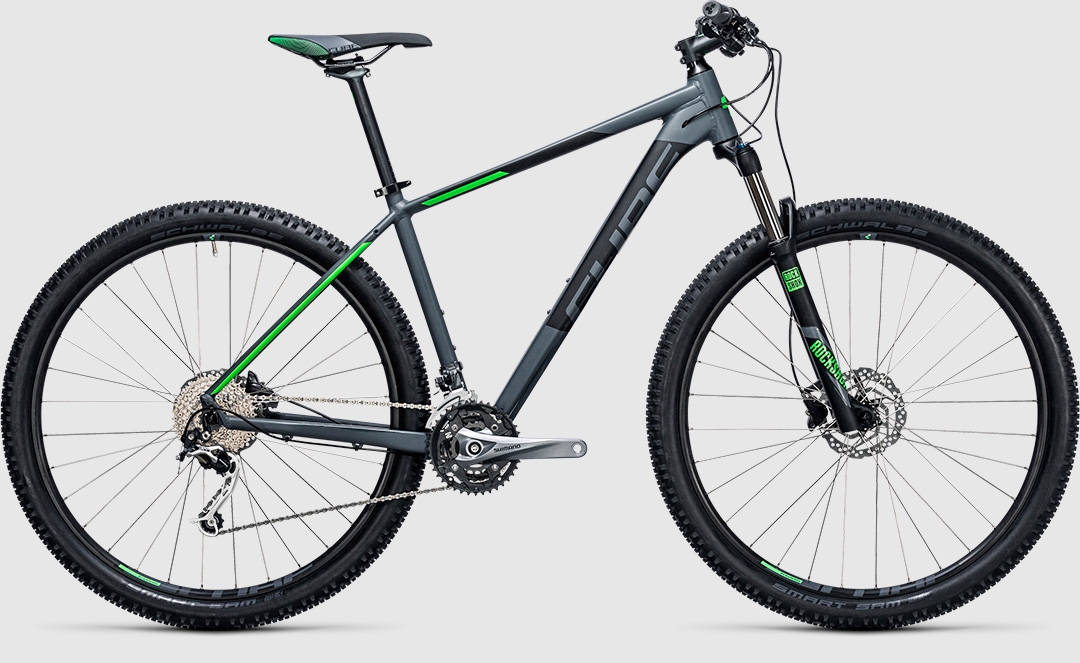

Got the mtb bug? Then you'll find the Analog's high quality aluminium frame, balanced handling and fast responses perfect for trail fun, whether it's a fast blast or a longer ride out in the hills. Whether you pick the 27.5 or 29 inch version, each is ergonomically tailored to offer an exciting, dynamic ride - and at a price that represents outstanding value. We can't fit all that on the top tube, so one word will have to do: Analog.

AUSSTATTUNG

FRAMEAluminium Lite, AMF, Internal Cable Routing, Easy Mount Kickstand Ready
SIZE27.5: 14", 16", 18" // 29er: 17", 19", 21", 23"

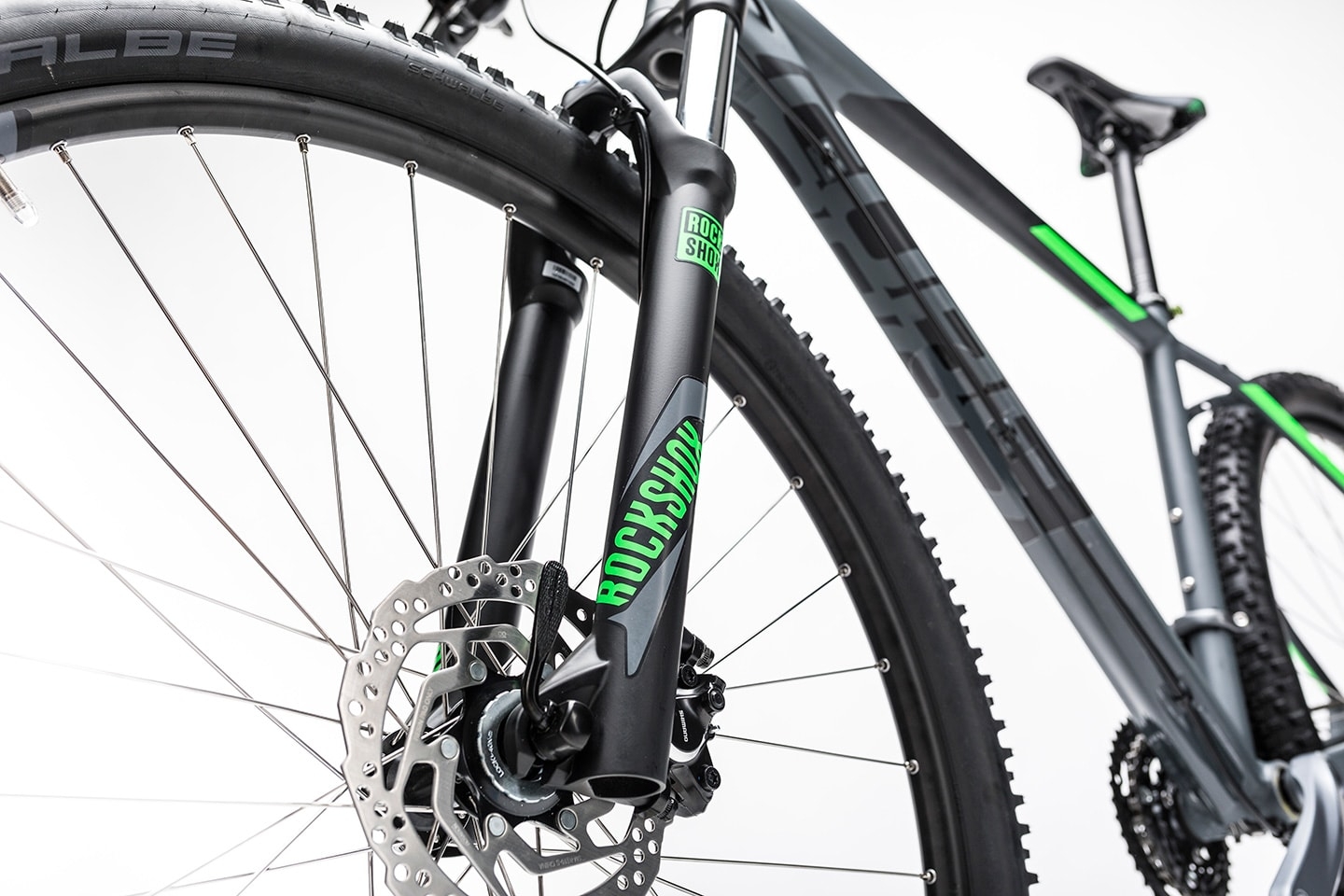

FORKRock Shox XC 30 TK Coil, 100mm, Remote Lockout

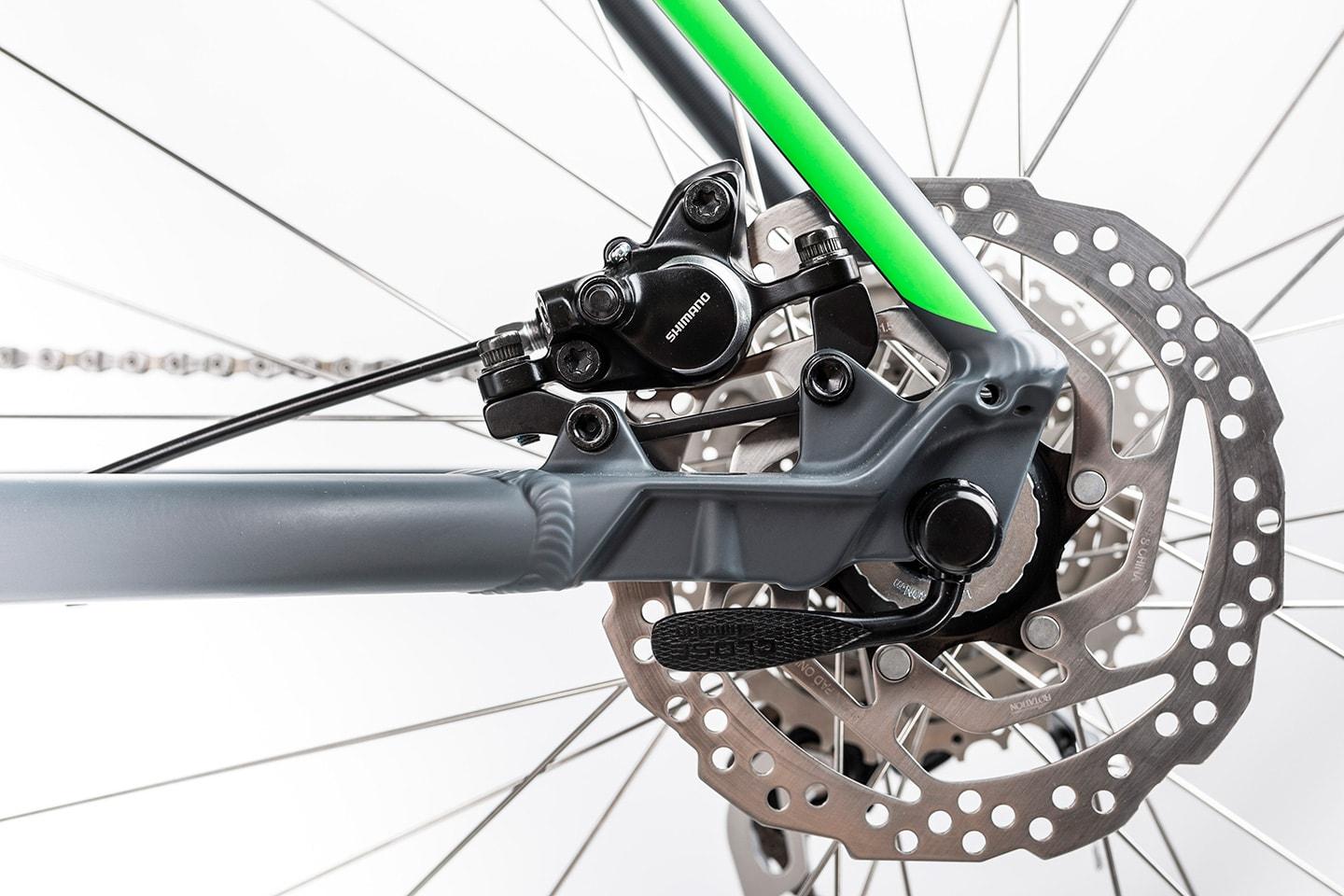

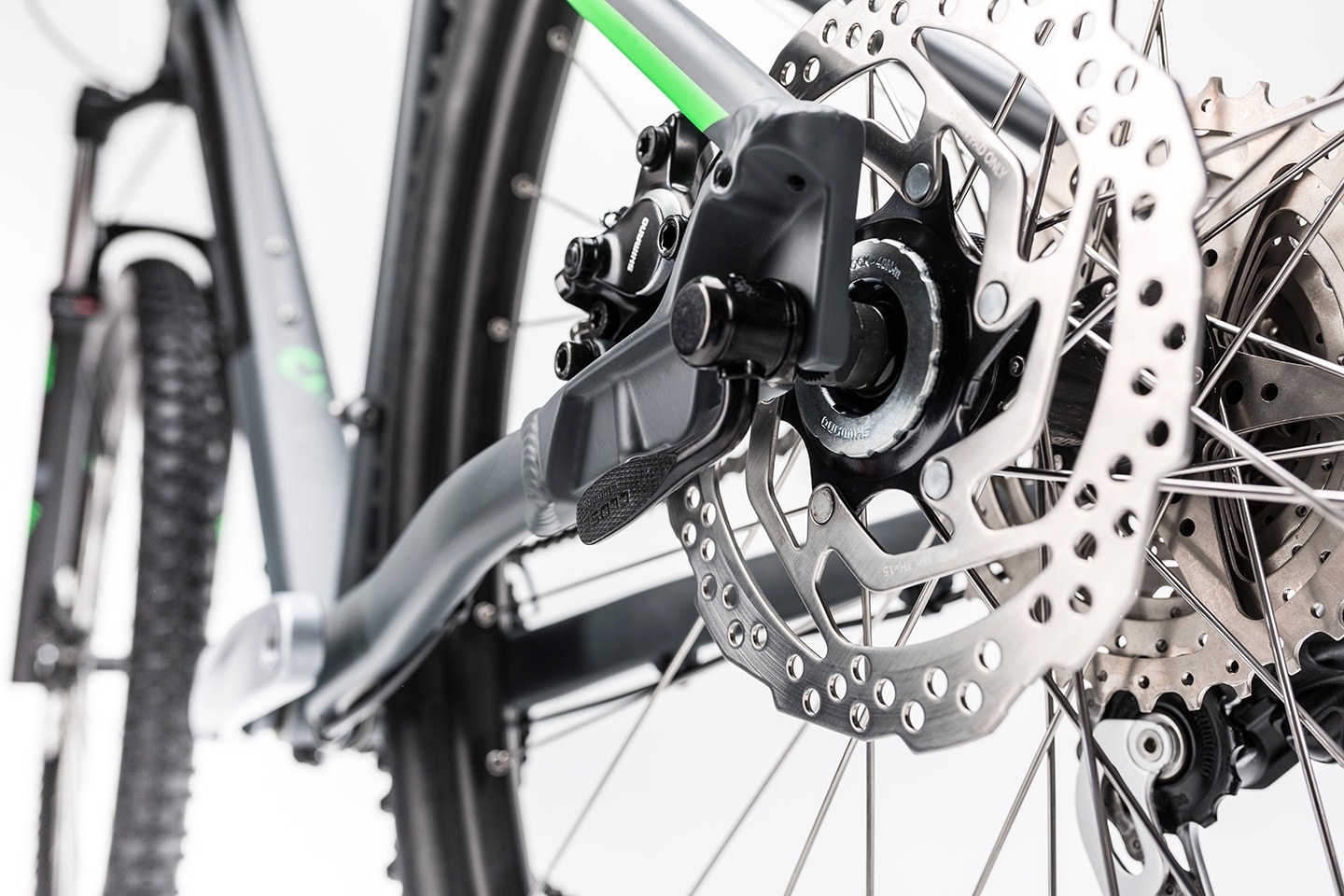

BRAKE SYSTEMShimano BR-M315, Hydr. Disc Brake (160/160)

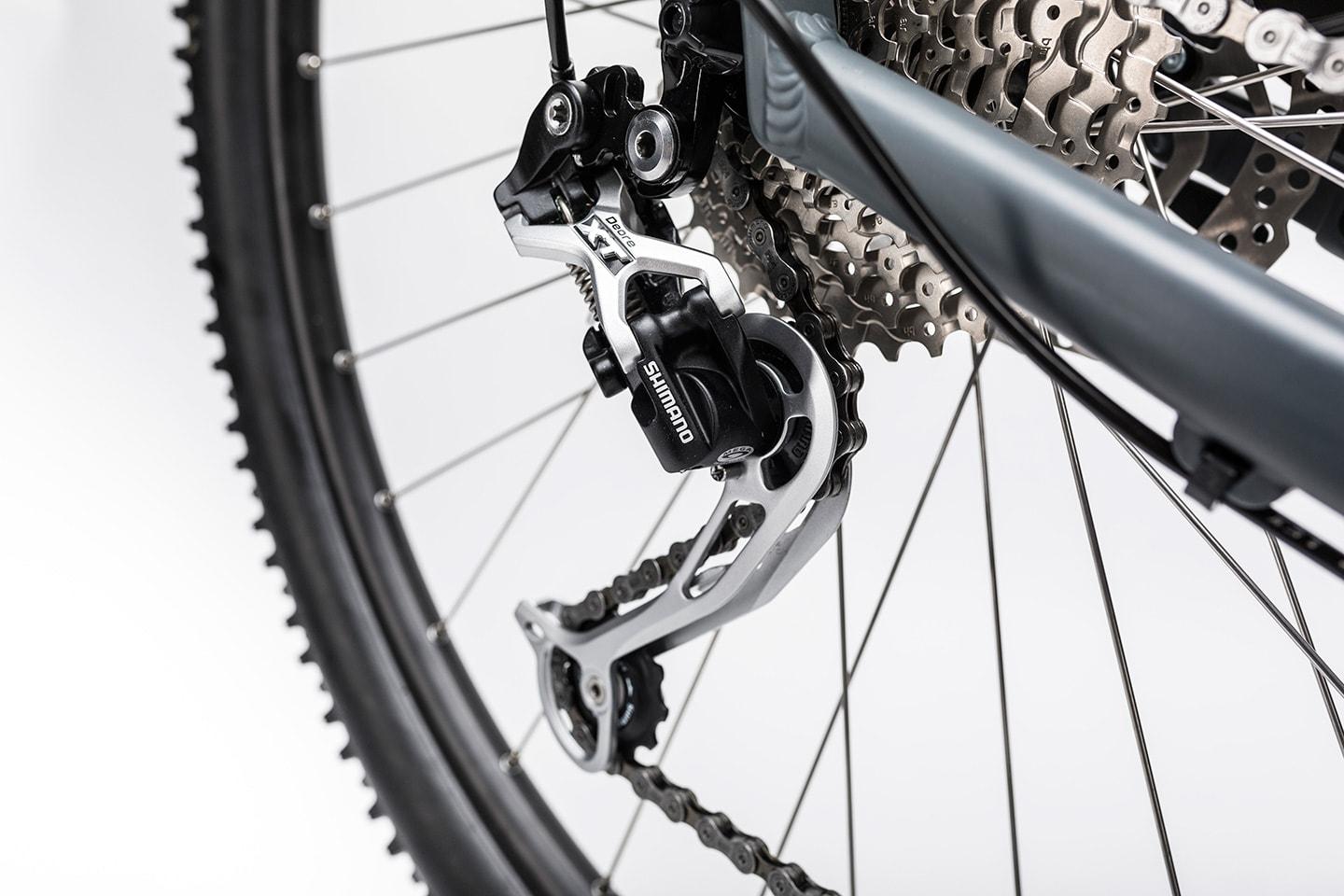

REAR DERAILLEURShimano XT RD-M772, Shadow, 9-Speed
FRONT DERAILLEURShimano FD-M4000, Downswing, 31,8

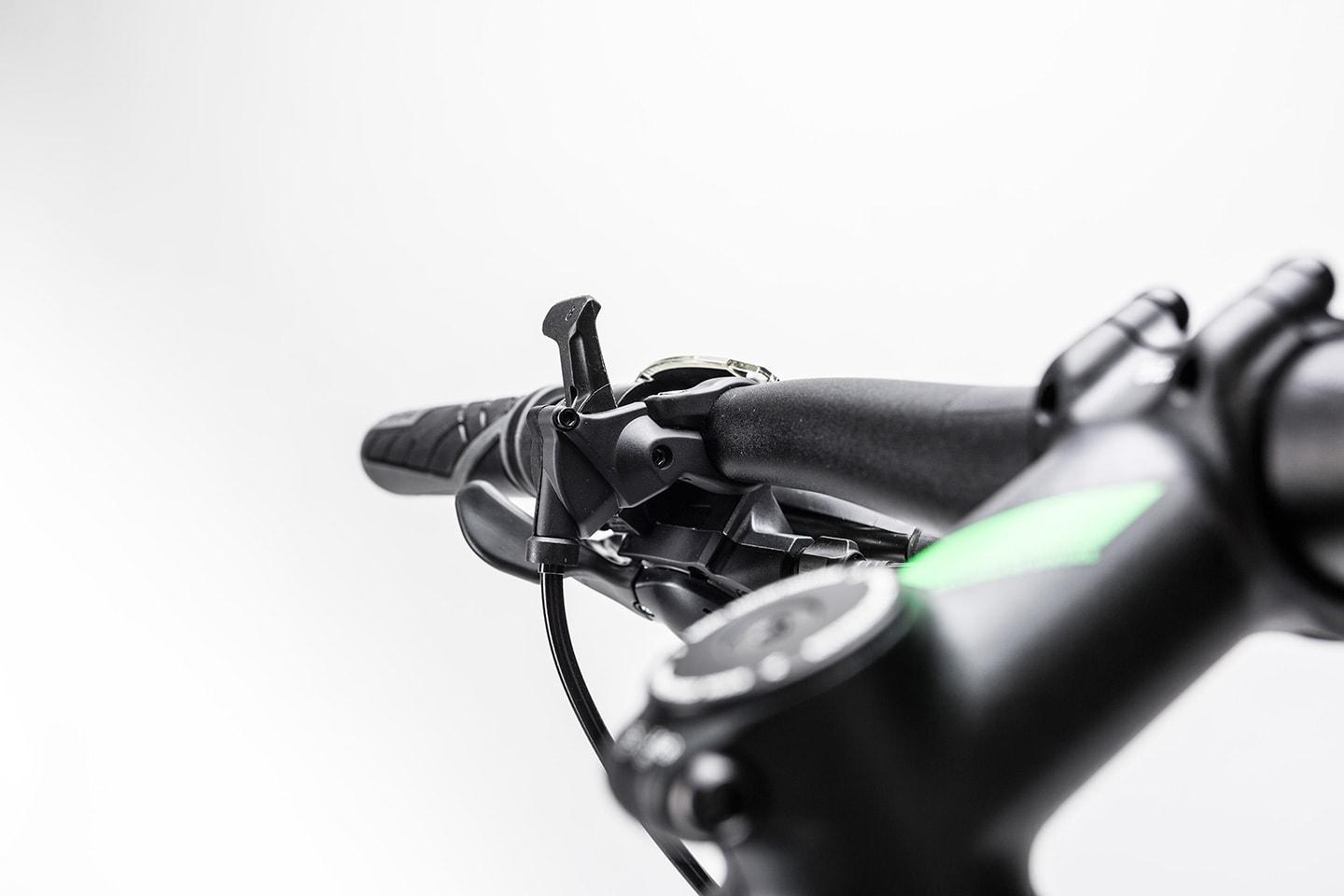

SHIFTERSShimano SL-M4000, Rapidfire-Plus
CRANKSETShimano FC-M3000, 40x30x22T, 175mm
CASSETTEShimano CS-HG300, 12-36T
CHAINShimano CN-HG53
FRONT HUBShimano HB-TX505
REAR HUBShimano FH-TX505
RIMSCUBE ZX20, 32H, Disc
TIRESSchwalbe Smart Sam, Active, 2.25"

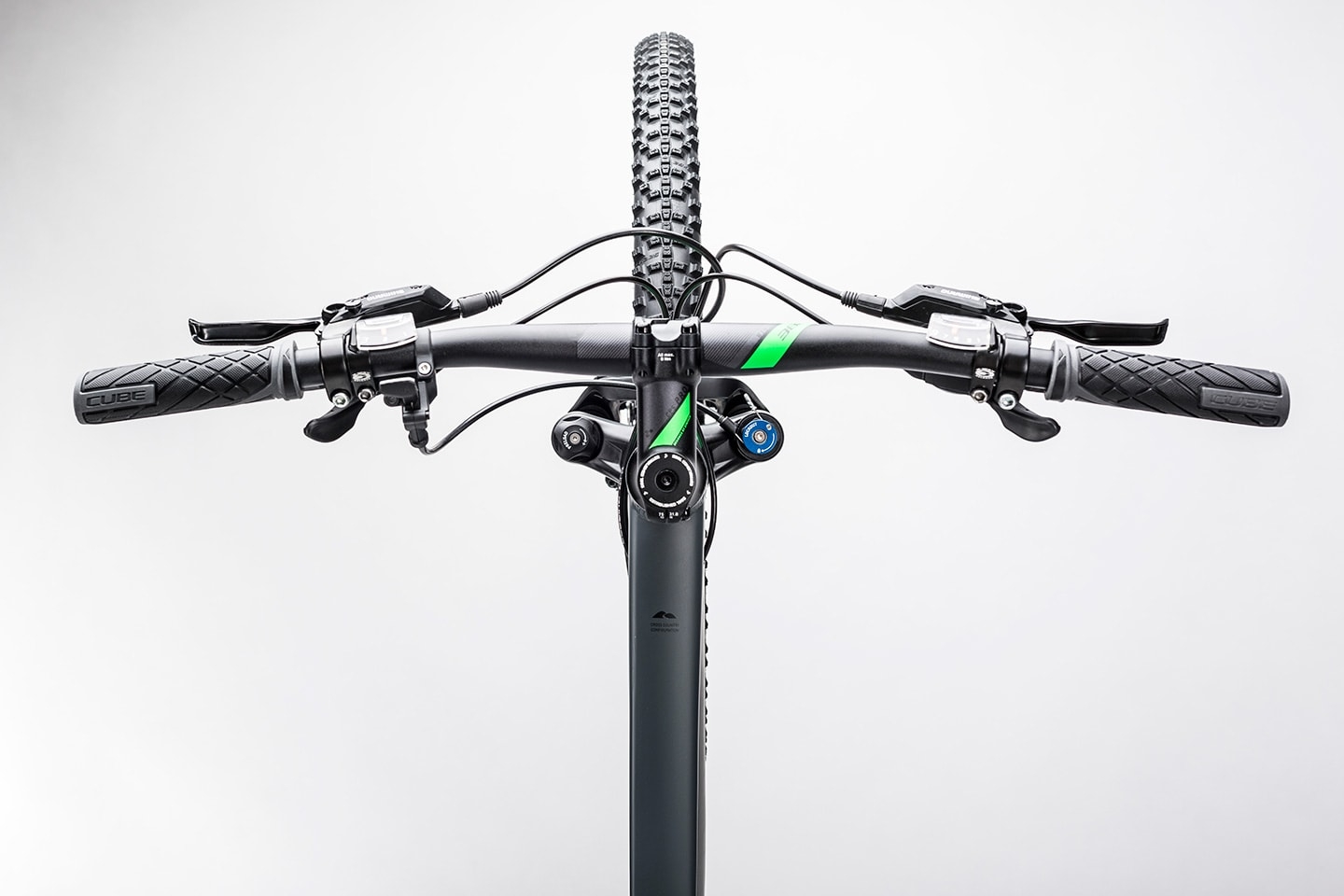

HANDLEBARCUBE Rise Trail Bar, 680mm
GRIPSCUBE Performance Grip

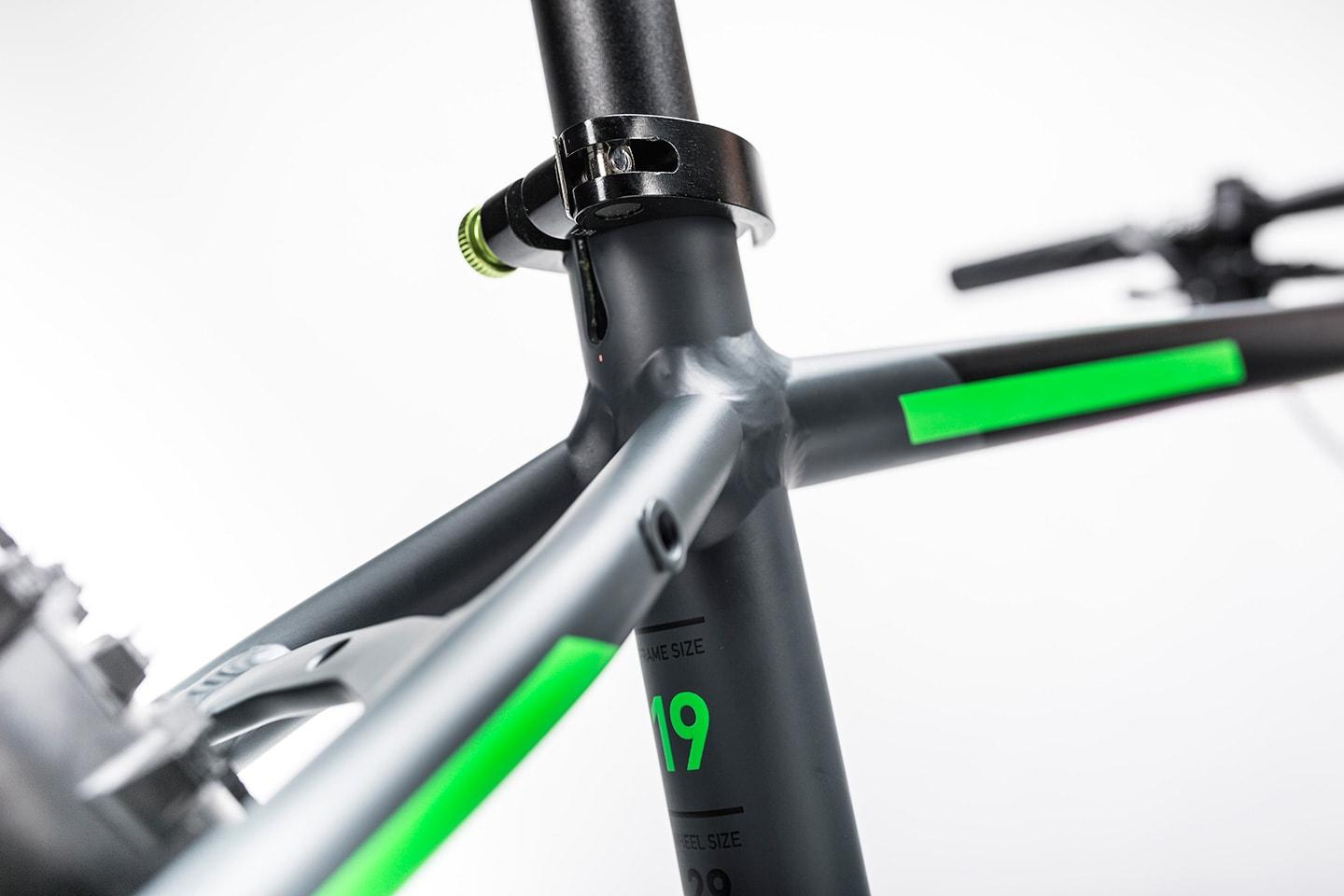

SEAT POSTCUBE Performance Post, 27.2mm
SEATCLAMPCUBE Varioclose, 31.8mm
SADDLECUBE Active 1.1
HEADSETFSA No.10, Semi-Integrated
PEDALSCUBE PP MTB
WEIGHT14.2 kg
COLORdarkgrey´n´green
ART. NO802000

GEOMETRY

Frame: We use our own Mechanical Forming process on the top and down tubes of the 6061 aluminium frame, which means it's both light and strong. Integrated disc mounts are part of the disc-specific design, while careful cable routing and a durable paint finish mean it'll keep its good looks for ages. CUBE Agile Ride Geometry lends the Analog ample manoeuvrability, playfulness and comfort - regardless of how you ride it.

Bike details

detail_image_0
detail_image_1
detail_image_2
detail_image_3
detail_image_4
detail_image_5
detail_image_6
