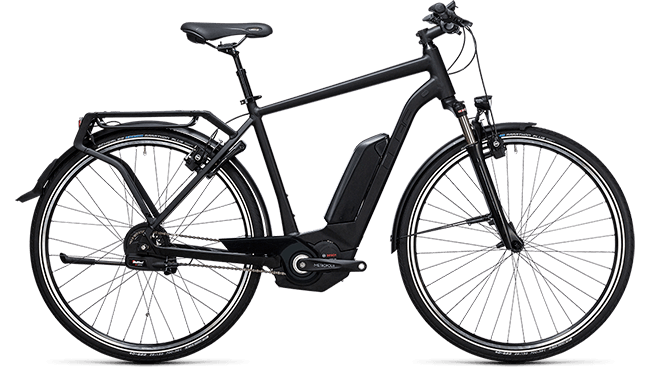

DELHI HYBRID
Pro 500

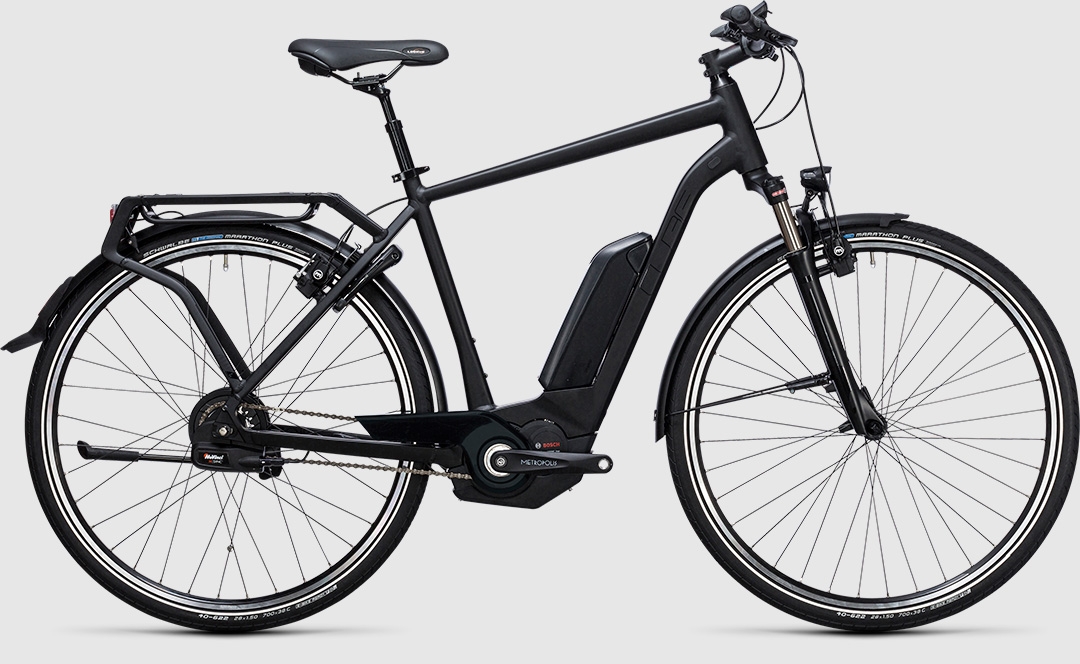

Perfection down to the smallest detail and exlusive features previously unavailable with an urban e-bike: that's our new Delhi Hybrid Pro 500. Highlights of this exceptional bike include the comfortable Suntour suspension fork, low-maintenance, automatic NuVinci H|Sync hub gear and, of course, the powerful Bosch CX drive with its 500Wh battery. This is an e-bike that you're going to fall in love with. Love the technology, love the ride.
AUSSTATTUNG
| FRAME | Aluminium Superlite, Trekking Hybrid Premium Comfort, IC, Double Butted |
|---|---|
| SIZE | Men: 50, 54, 58, 62; Trapeze: 46, 50, 54; Easy Entry: 46, 50, 54, 58 |
| FORK | SR Suntour NCX D LO Air, 75mm |
| GEAR TEETH | NuVinci, 22T |

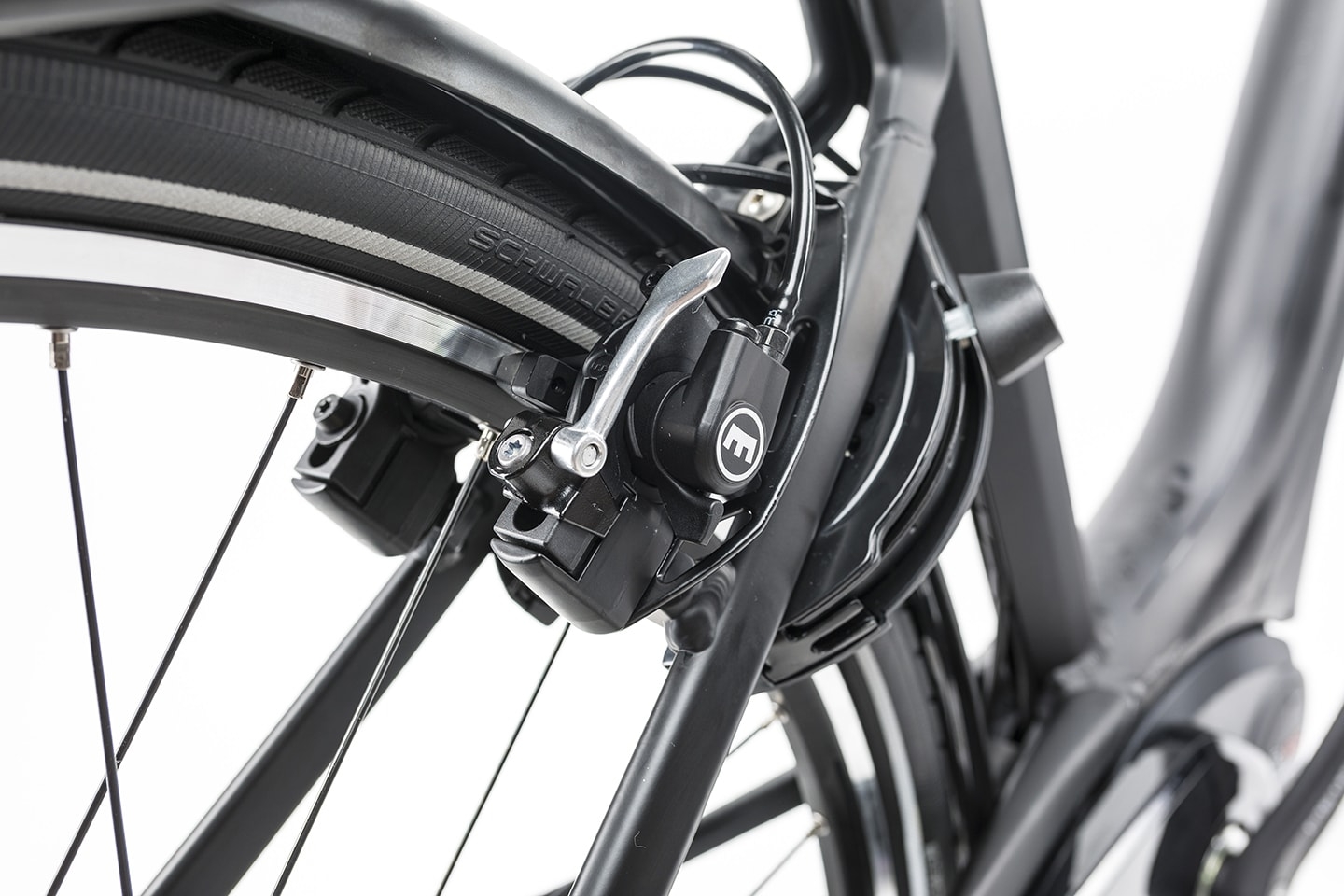

| BRAKE SYSTEM | Magura HS11, Hydr. Caliper Brake |

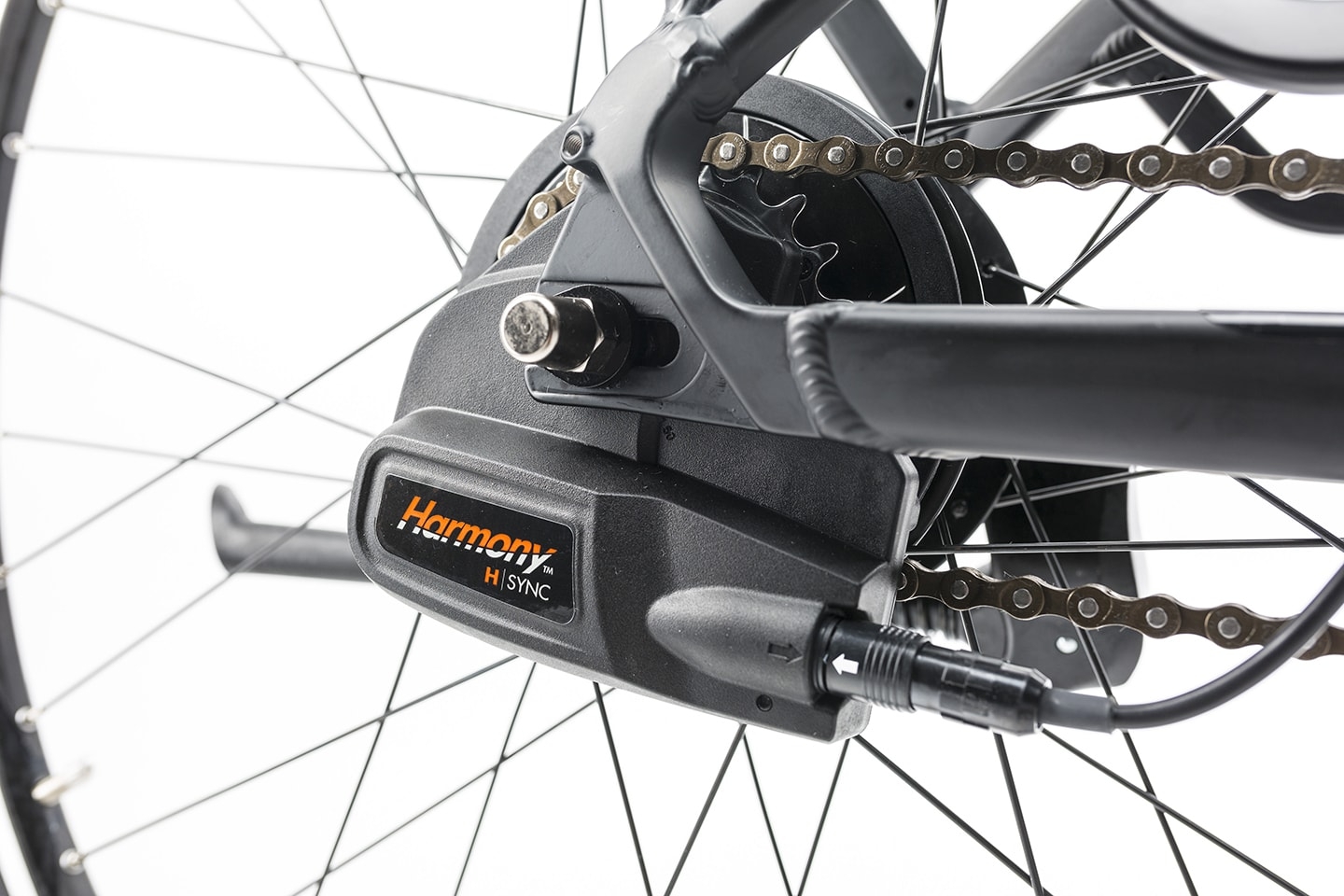

| SHIFTERS | NuVinci H|SYNC Autogear |
| CRANKSET | FSA Metropolis Urban AL-8, 18T |
| GEAR TEETH | NuVinci, 22T |
| CHAIN | KMC Z610, EcoProTeQ |
| FRONT HUB | Shimano Deore HB-T610, QR |
| REAR HUB | NuVinci N380, Nut |
| RIMS | CUBE ZX24, 36H, V-Brake |
| TIRES | Schwalbe Marathon Plus, Flatless, 40-622 |
| HANDLEBAR | CUBE Rise Trail Bar, 700mm; EE: CUBE Comfort Shape Bar |
| GRIPS | CUBE Natural Fit Comfort |
| SEAT POST | CUBE Suspension Seatpost, 27.2mm |
| SEATCLAMP | CUBE HYBRID Performance Close, 31.8mm |
| SADDLE | Selle Royal Lookin Classic, Royalgel™ |
| HEADSET | FSA Orbit 1.5E ZS, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm); EE: FSA No.10, Semi-Integrated |
| PEDALS | CUBE PP Trekking |

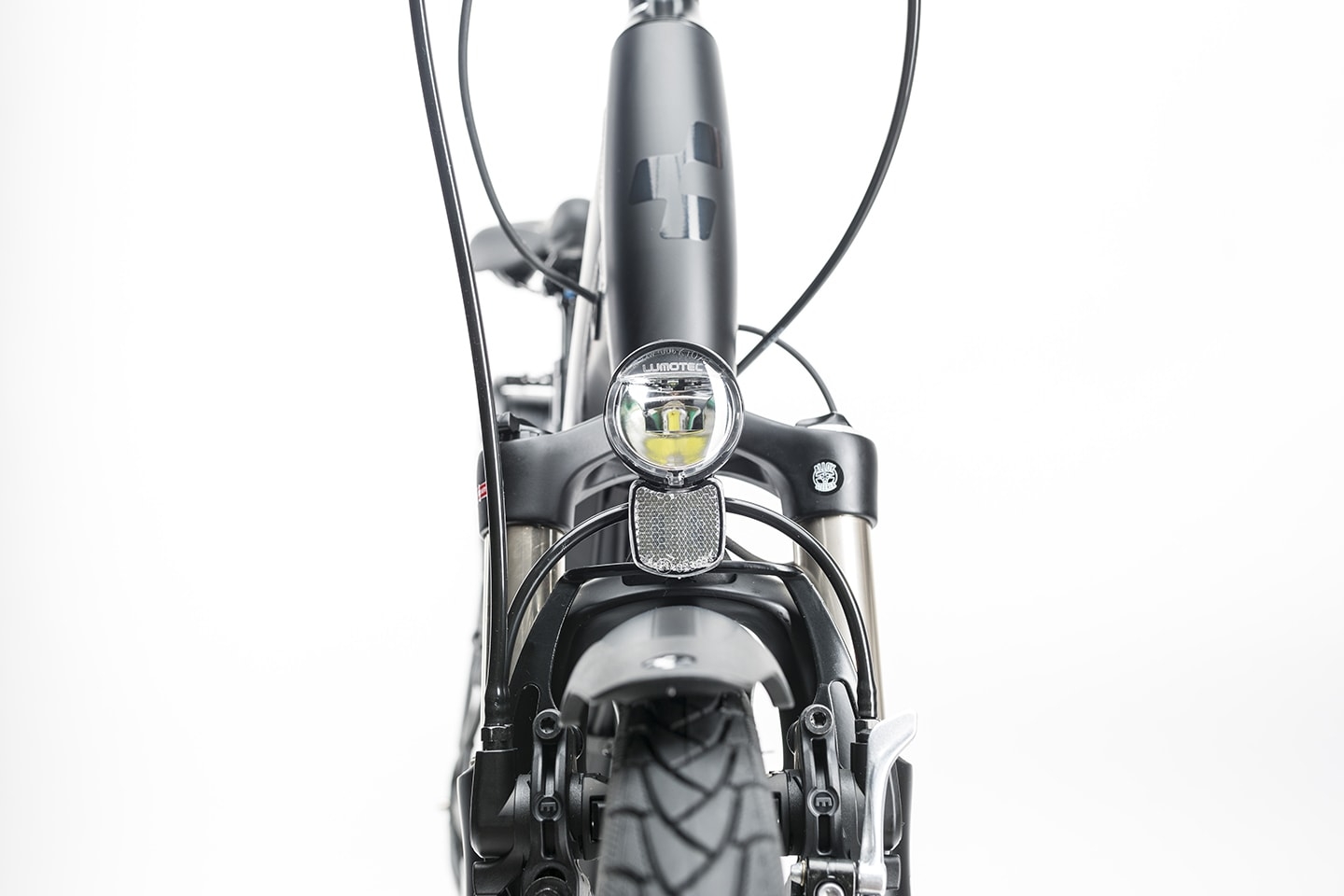

| FRONT LIGHT | Busch&Müller Lumotec IQ Avy |
| BACKLIGHT | Busch&Müller Toplight 321 E Plus |
| KICKSTAND | CUBEstand Pro, Adjustable |
| MUDGUARDS | SKS Stingray |
| BELL | Humpert |
| CARRIER | CUBE Integrated Carrier, SnapIt Adapter and Rails |
| WEIGHT | 25.6 kg |
| COLOR | black edition |

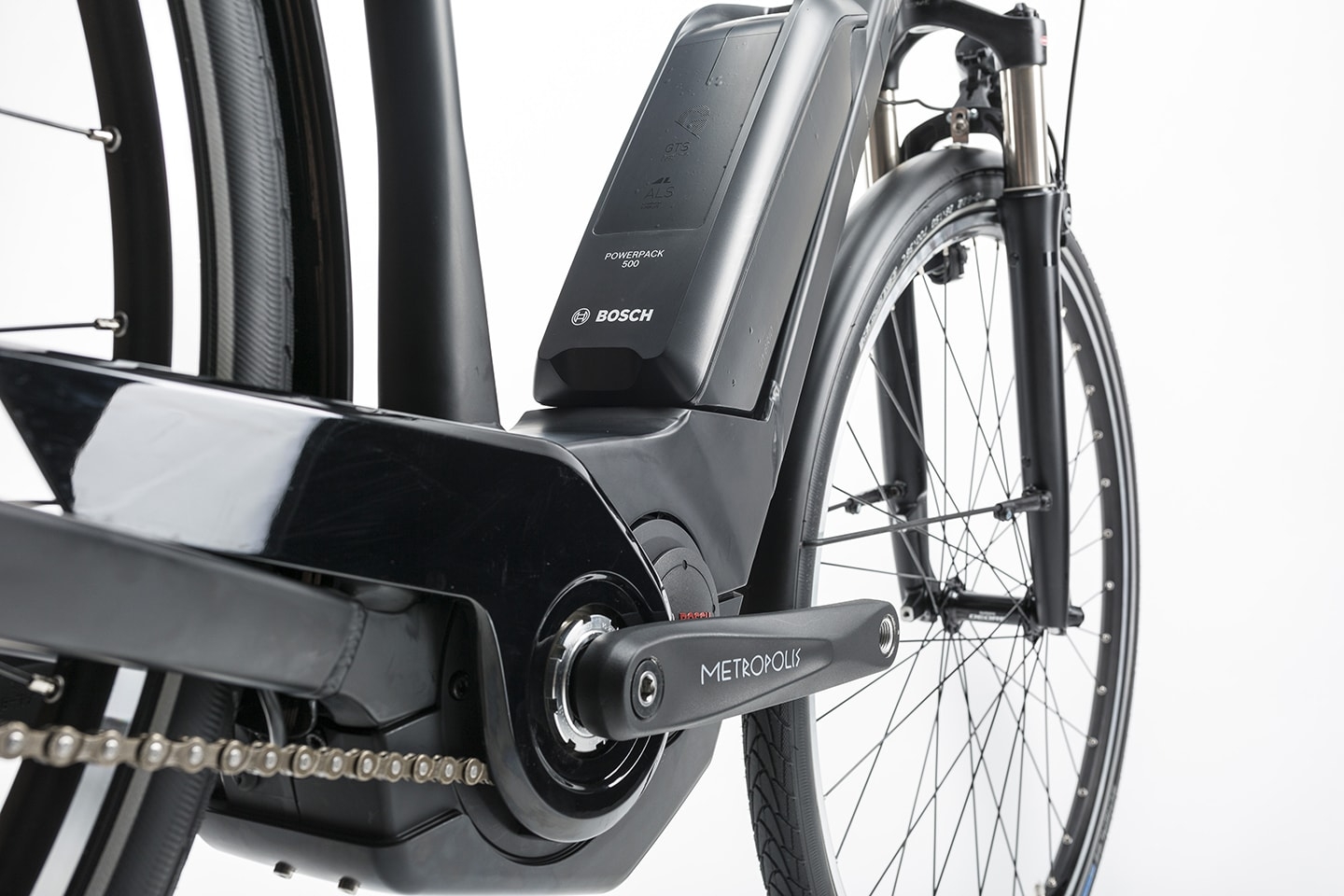

| ENGINE | Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt) |
| BATTERY | Bosch PowerPack 500 |

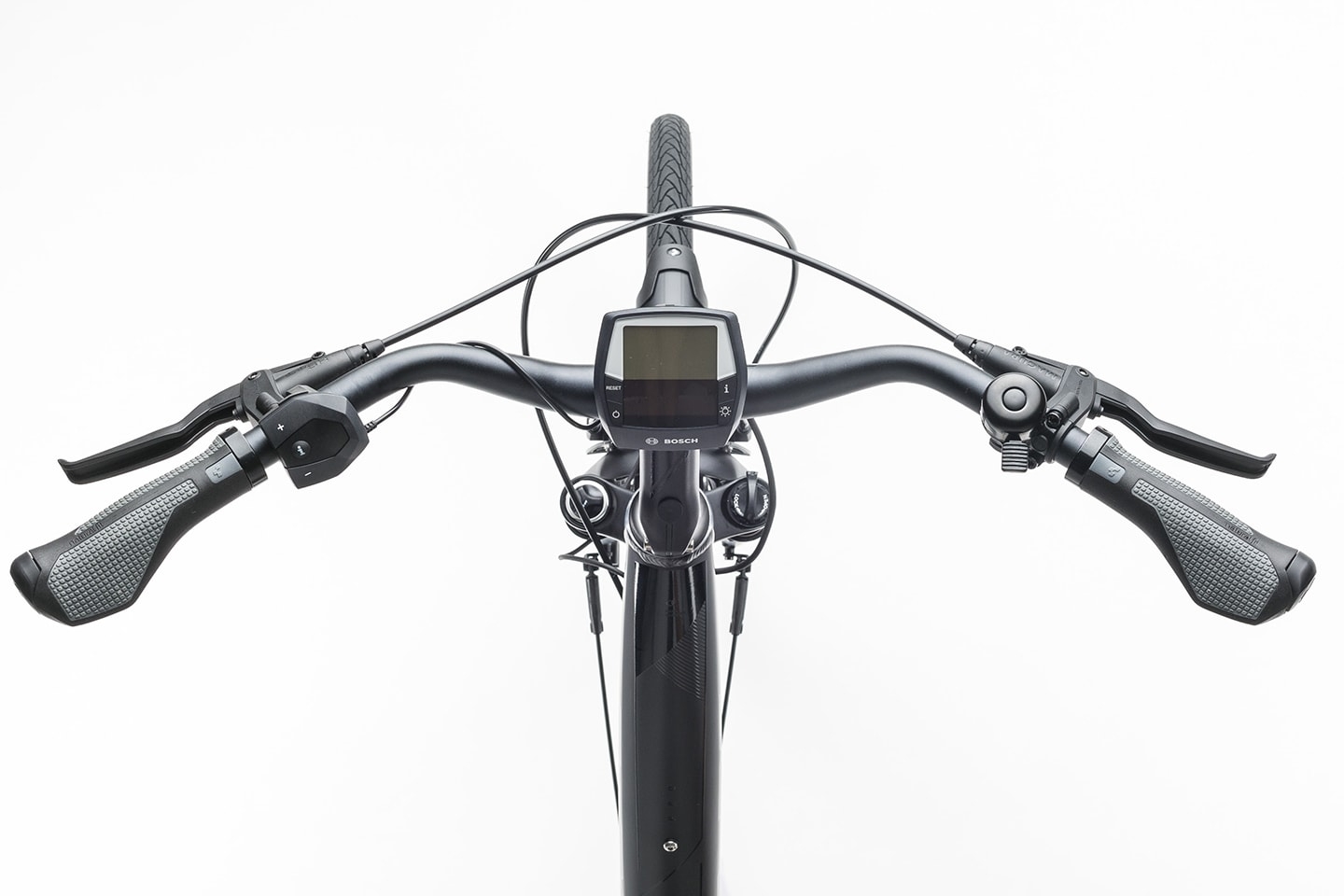

| DISPLAY | Bosch Intuvia |
| Bosch 4A | |
| ART. NO | 830260 |
GEOMETRY

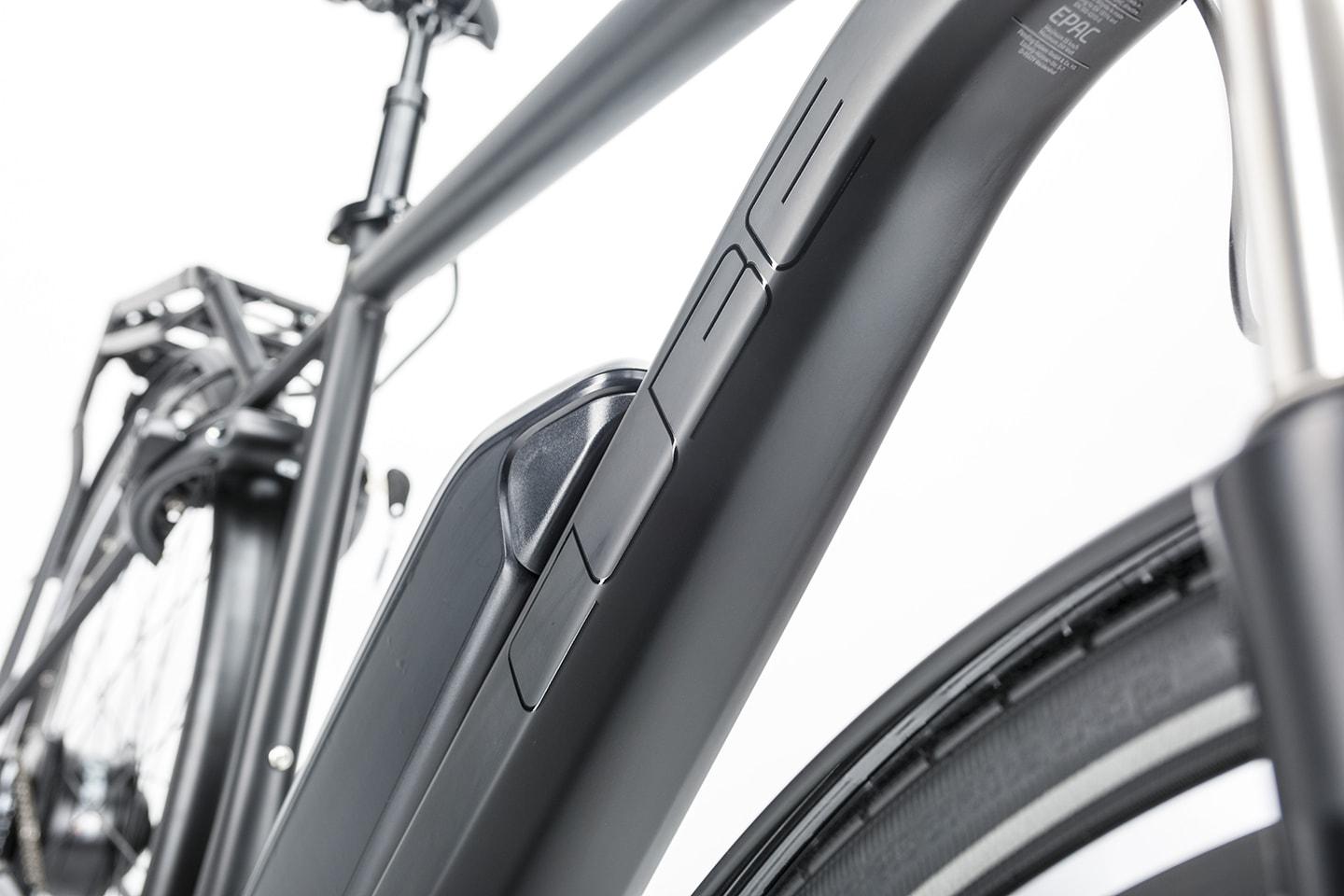

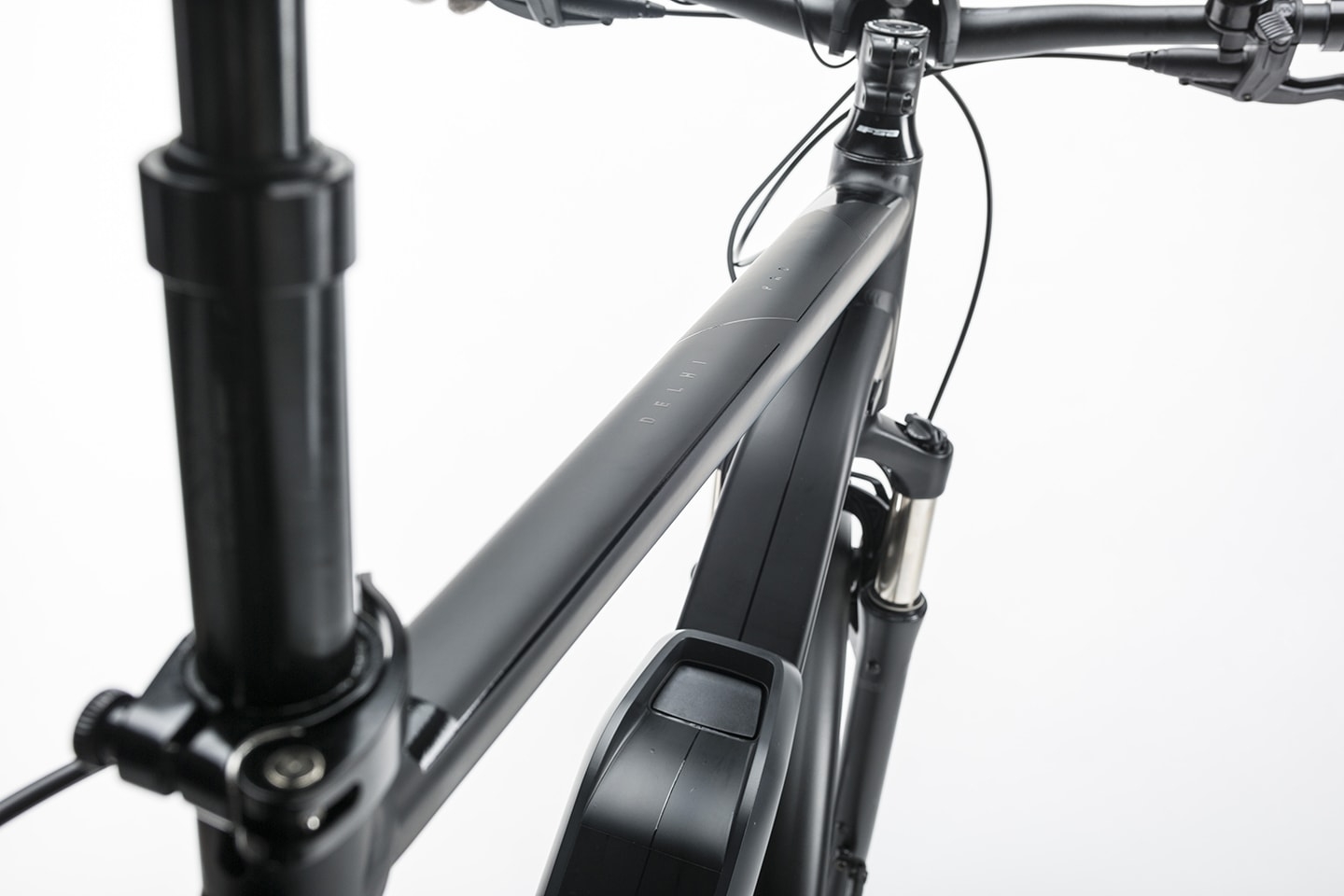

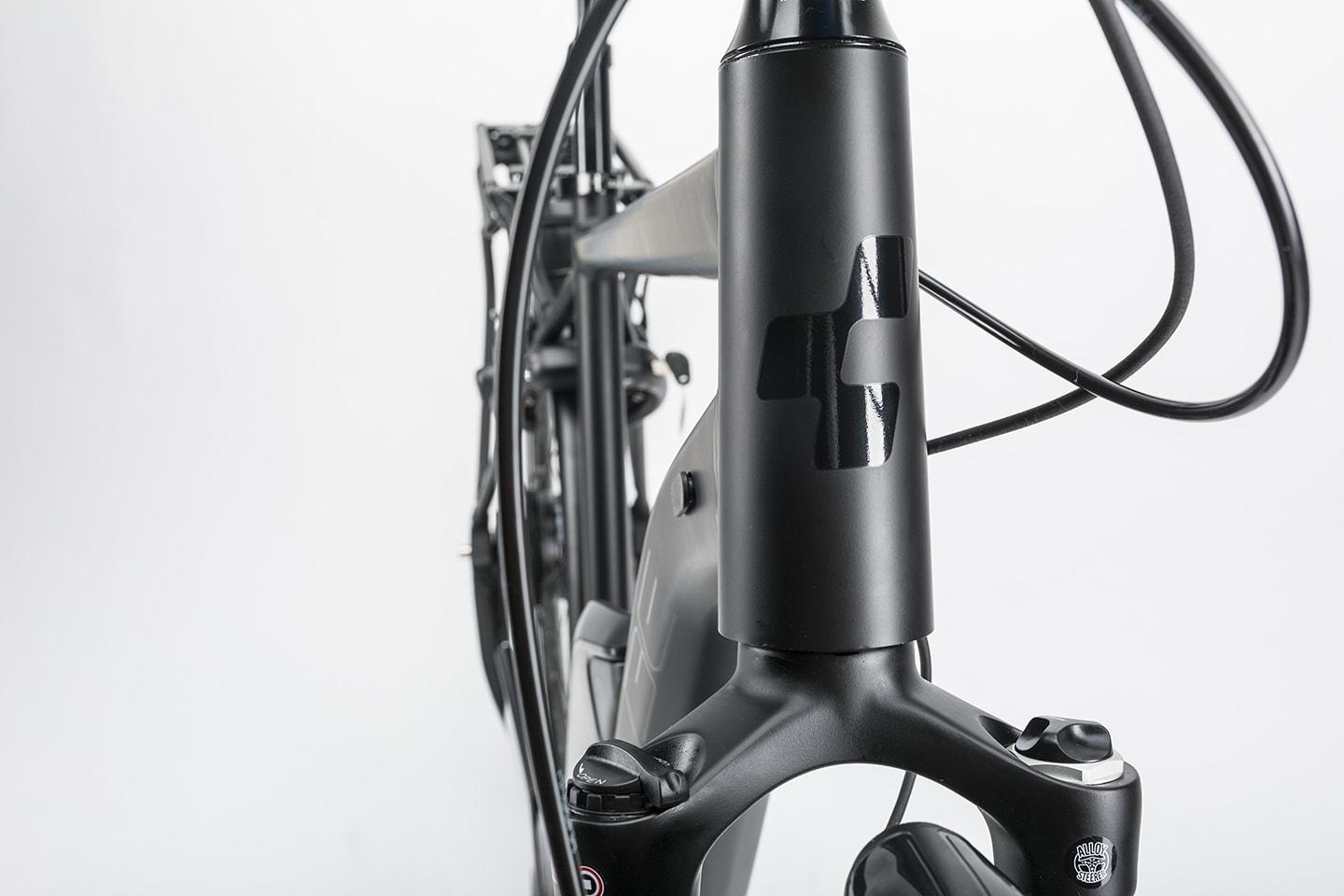

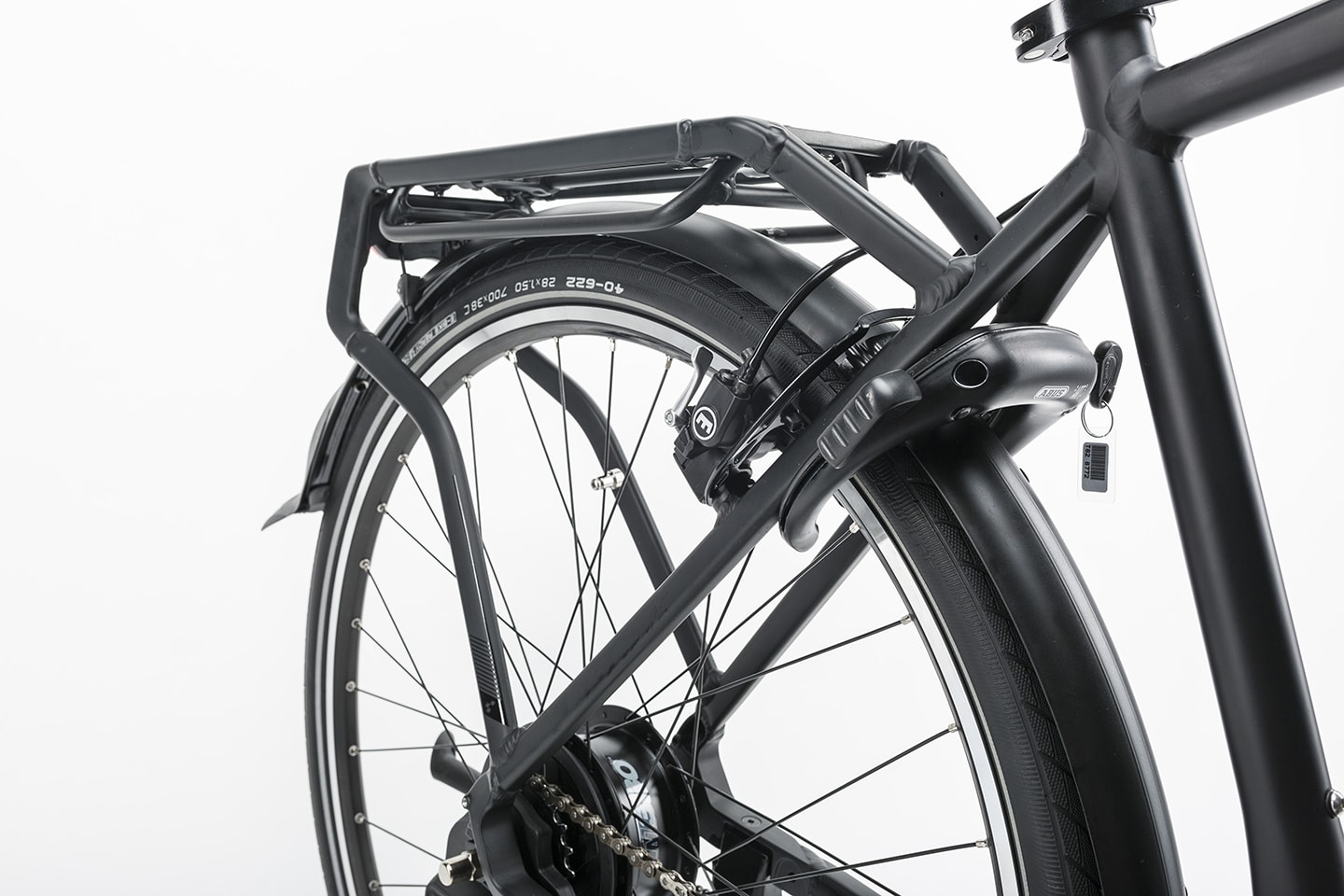

Frame: Features like the integrated carrier - which is welded on the frame - plus cable routing inside the hydroformed down tube have enabled us to achieve an extraordinary chassis design with unsurpassed safety reserves built in. For 2017 we've refined battery positioning to improve handling dynamics, whether you opt for the Easy Entry, Classic Men's or Trapeze options. The integrated modular carrier system means that wear components can be easily replaced. Our Efficient Comfort Geometry works with the complex Superlite aluminium frame - optimised around the requirements of the Bosch system down to the last detail - to deliver super comfort and incredible stability for an unforgettable riding experience.
