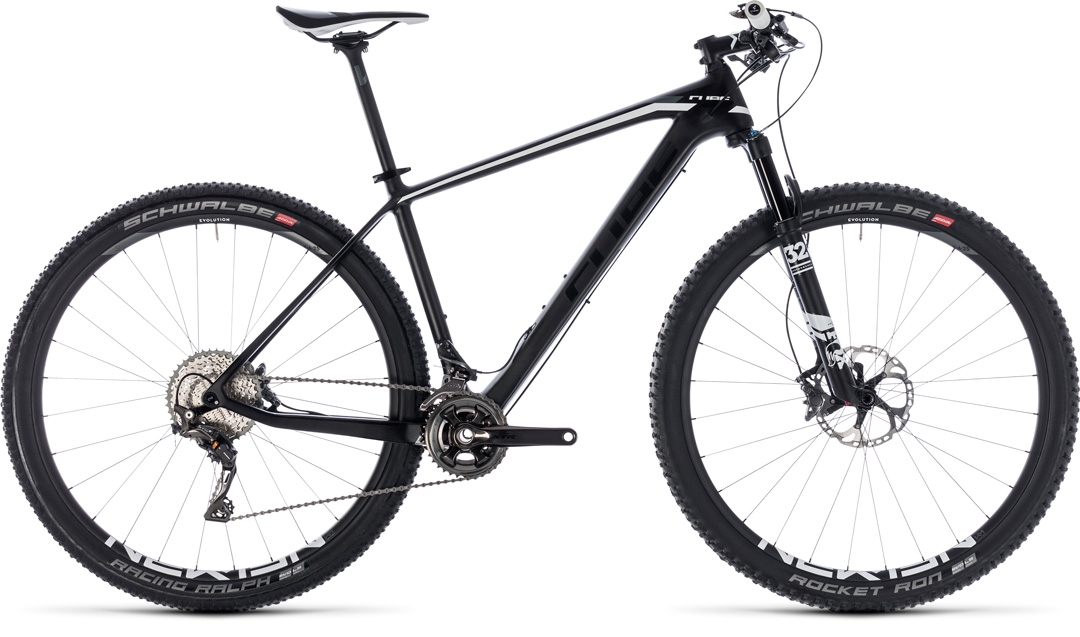

ELITE C:62
Race
The Elite C:62 Race is an uncompromisingly high performance carbon speed machine, but that doesn't mean we've sacrificed versatility on the altar of speed. The superbly light, efficient frame is the obvious choice for cross-country and marathon racing, but it's also a great option for any rider who just enjoys getting the best out of their fitness. For 2018 we've paired it with an exclusive selection of components incuding a 2x11 Shimano XTR gear setup, XTR hydraulic disc brake and Fox 32 Performance fork. Combined with a Newmen carbon handlebar and seatpost and Newmen wheelset with 25mm width rims, it's everything you need to go racing... or just to ride hard and fast.
AUSSTATTUNG
| FRAME | C:62 Monocoque Advanced Twin Mold Technology, ARG2, Tapered Headtube, PressFit BB, 12x142mm, Integrated Cable Routing |
|---|---|
| SIZE | 15", 17", 19", 21", 23" |
| FORK | Fox 32 Float SC FIT4, 2-Position Remote Lever, Tapered, 15x110mm, 100mm |
| BRAKE SYSTEM | Shimano XTR BR-M9000, Hydr. Disc Brake (180/160) |
| REAR DERAILLEUR | Shimano XTR RD-M9000-DSGS, ShadowPlus, 11-Speed |
| FRONT DERAILLEUR | Shimano XTR FD-M9020-D, Direct Mount, Side Swing |
| SHIFTERS | Shimano XTR SL-M9000-I Direct Attach |
| CRANKSET | Shimano XTR FC-M9020, 36x26T |
| CASSETTE | Shimano XT CS-M8000, 11-42T |
| CHAIN | Shimano CN-HG600-11 |
| WHEELSET | Newmen Evolution SL A25, 28/28 Spokes, 15x110mm/12x142mm, Tubeless Ready |
| FRONT TIRE | Schwalbe Rocket Ron, Addix Speed, Kevlar, 2.25, LiteSkin |
| REAR TIRE | Schwalbe Racing Ralph, Addix Speed, Kevlar, 2.25, LiteSkin |

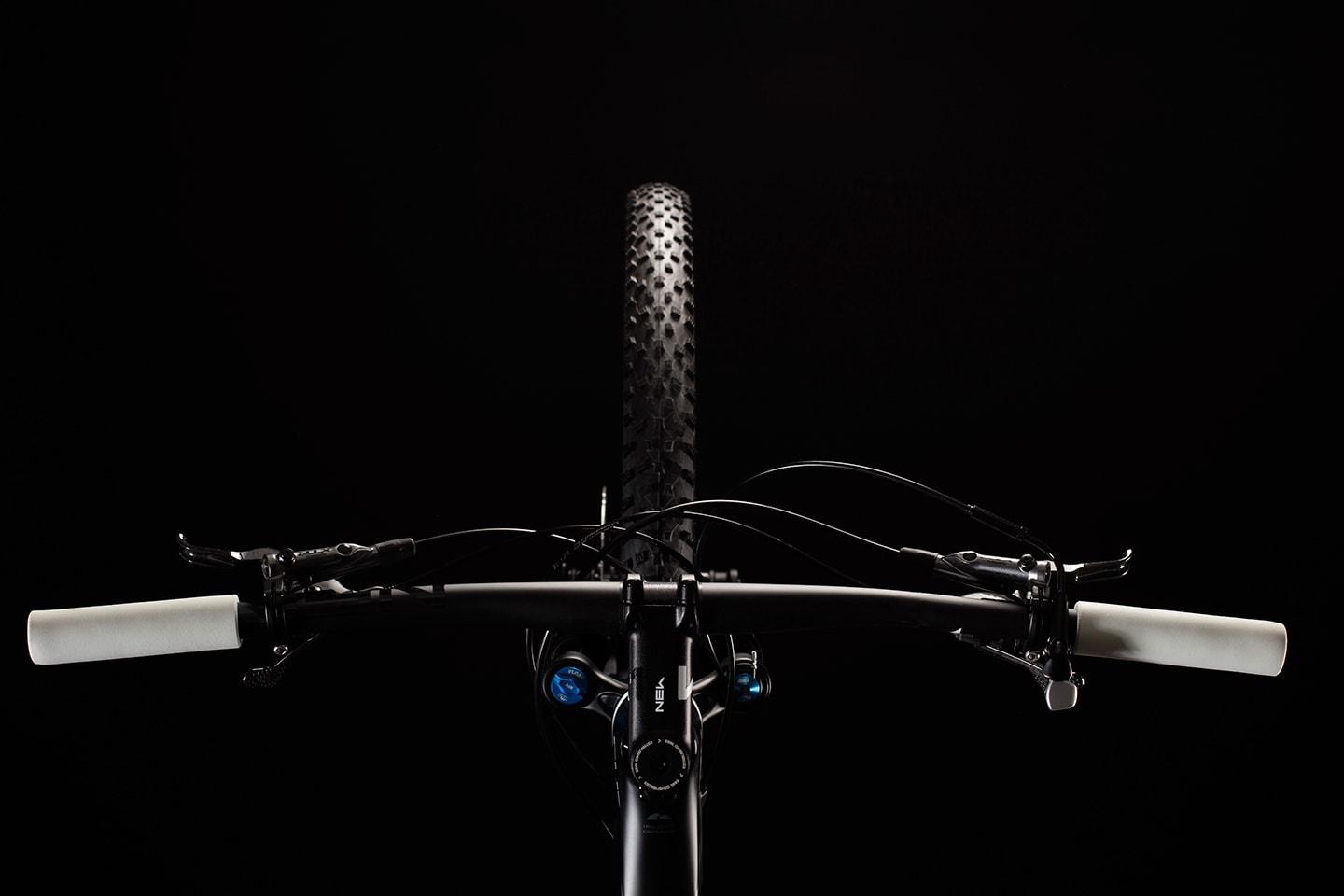

| HANDLEBAR | Newmen Advanced 318.0, Carbon, 740mm |
| GRIPS | CUBE SCR |
| SEAT POST | Newmen Advanced, Carbon, 27.2mm |
| SEATCLAMP | CUBE Varioclose, 31.8mm |
| SADDLE | CUBE Race EXC 145, Carbon |
| HEADSET | FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2" |
| WEIGHT | 9,6 kg |
| COLOUR | blackline |
| ART. NO | 117100 |
GEOMETRY

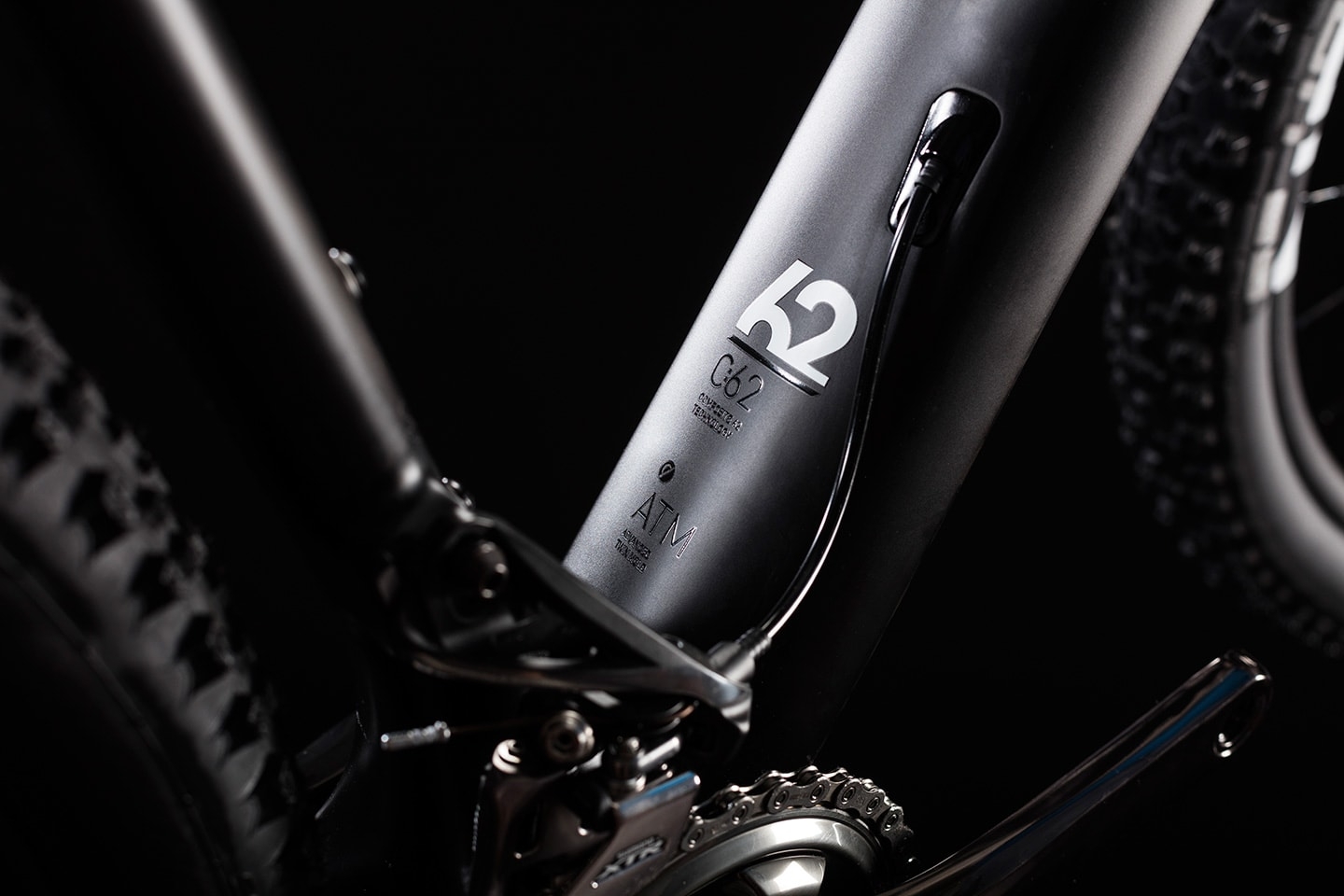

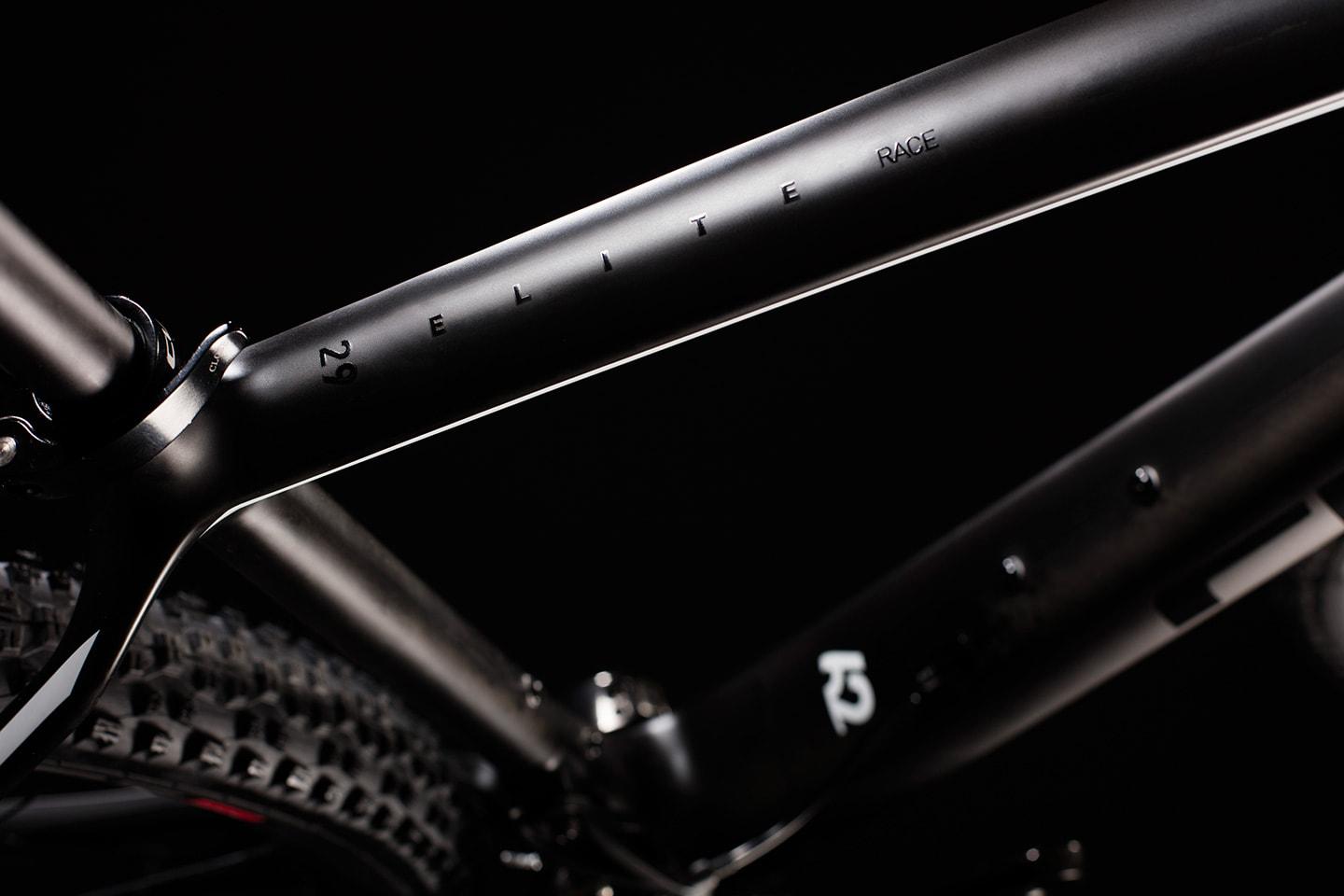

The Elite C:62 Race benefits from our advanced twin mould technology, which gives us the best possible control over the lay-up of the premium C:62 carbon fibres. The result is a frame that's both stiff and extremely light, thanks to smart design features including an oversized, tapered head tube with integrated carbon bearing shells, oversized PressFit bottom bracket shell and 12mm through axle dropouts. Developed specifically to offer racers the best blend of stability and performance, our Agile Ride Geometry (ARG) gives the Elite C:62 Race extraordinary levels of playful manouevrability and steering precision, making it a surprisingly fun trail and race companion. And, as you'd expect, we've routed cables internally to keep gear shifting clean and precise with minimal maintenance.
