KATHMANDU HYBRID
Pro 500

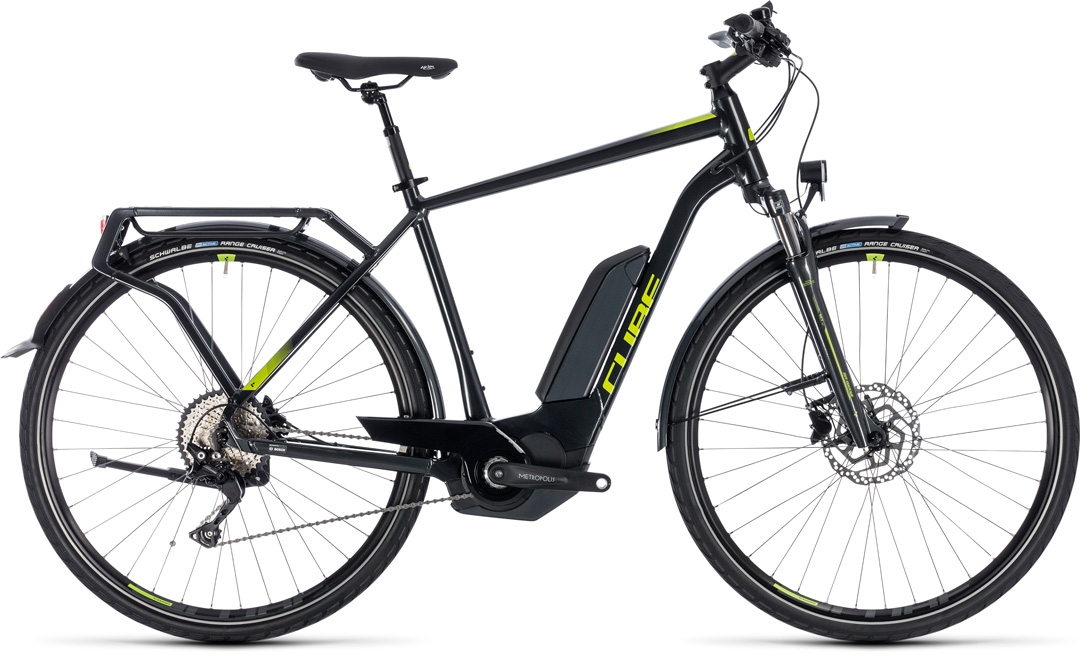

The new CUBE Kathmandu Hybrid Pro 500 is an e-bike for all reasons. Whether you're a commuter, enthusiast or regular cyclist; whether you ride to get around in the city or out in the countryside at weekends; this is the reliable, user-friendly, two-wheeled companion you've been looking for. Fully equipped for any eventuality, you'll love details like the included kickstand and mudguards, neatly integrated luggage rack and powerful battery. We added a suspension fork to smooth out rough road surfaces, and lights so that you can be seen and stay safe. Shimano 10 speed gears work with the Bosch motor to make light work of any road, and Shimano hydraulic disc brakes offer powerful stopping in any weather conditions. We've thought of everything, so you can just enjoy the ride.
AUSSTATTUNG
| FRAME | Aluminium Superlite, Trekking Premium Comfort, Gravity Casting, IC 1.0, Double Butted, Tapered, Disc Only |
|---|---|
| SIZE | Men: 50, 54, 58, 62; Trapeze: 46, 50, 54 |
| FORK | SR Suntour NEX-E25, 63mm |
| BRAKE SYSTEM | Shimano BR-M315, Hydr. Disc Brake (180/160) |
| REAR DERAILLEUR | Shimano Deore RD-M6000-SGS, 10-Speed |
| SHIFTERS | Shimano Deore SL-M6000, Rapidfire-Plus |
| CRANKSET | FSA Metropolis Urban AL-8, 15T |
| CASSETTE | Shimano Deore CS-HG500, 11-42T |
| CHAIN | KMC X10 |
| FRONT HUB | Shimano HB-TX505, QR, Centerlock |
| REAR HUB | Shimano FH-TX505, QR, Centerlock |
| RIMS | CUBE SX20, 36H, Disc |
| TYRES | Schwalbe Range Cruiser, Active, K-Guard, 40x622 |
| HANDLEBAR | CUBE Rise Trail Bar, 700mm |
| GRIPS | CUBE Natural Fit Comfort |
| SEAT POST | CUBE Suspension Seatpost, 27.2mm |
| SEATCLAMP | CUBE Varioclose, 31.8mm |
| SADDLE | Selle Royal Ariel |
| HEADSET | FSA Orbit Z-t-R ECO, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Integrated 1 1/2" |
| PEDALS | CUBE PP Trekking |

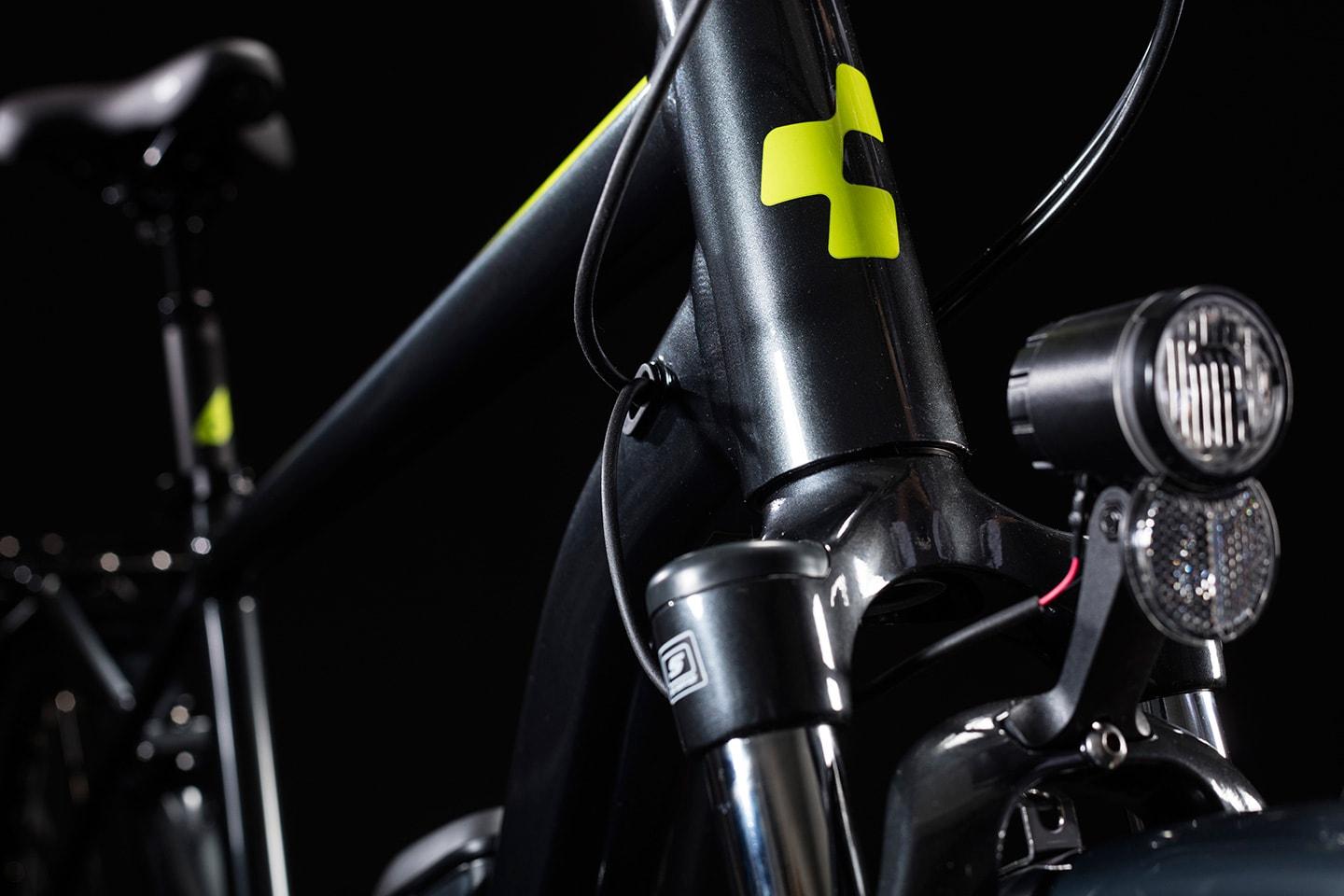

| FRONT LIGHT | Trelock LS230, 6V, DC |
| REAR LIGHT | Busch&Müller Toplight 321 E Plus |
| KICKSTAND | CUBEstand Cmpt |
| MUDGUARDS | SKS Stingray |
| BELL | Humpert |
| CARRIER | CUBE Integrated Carrier 1.0, SnapIt Adapter and Rails |
| WEIGHT | 24 kg |
| COLOUR | iridium´n´green |
| DRIVE UNIT | Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt) |

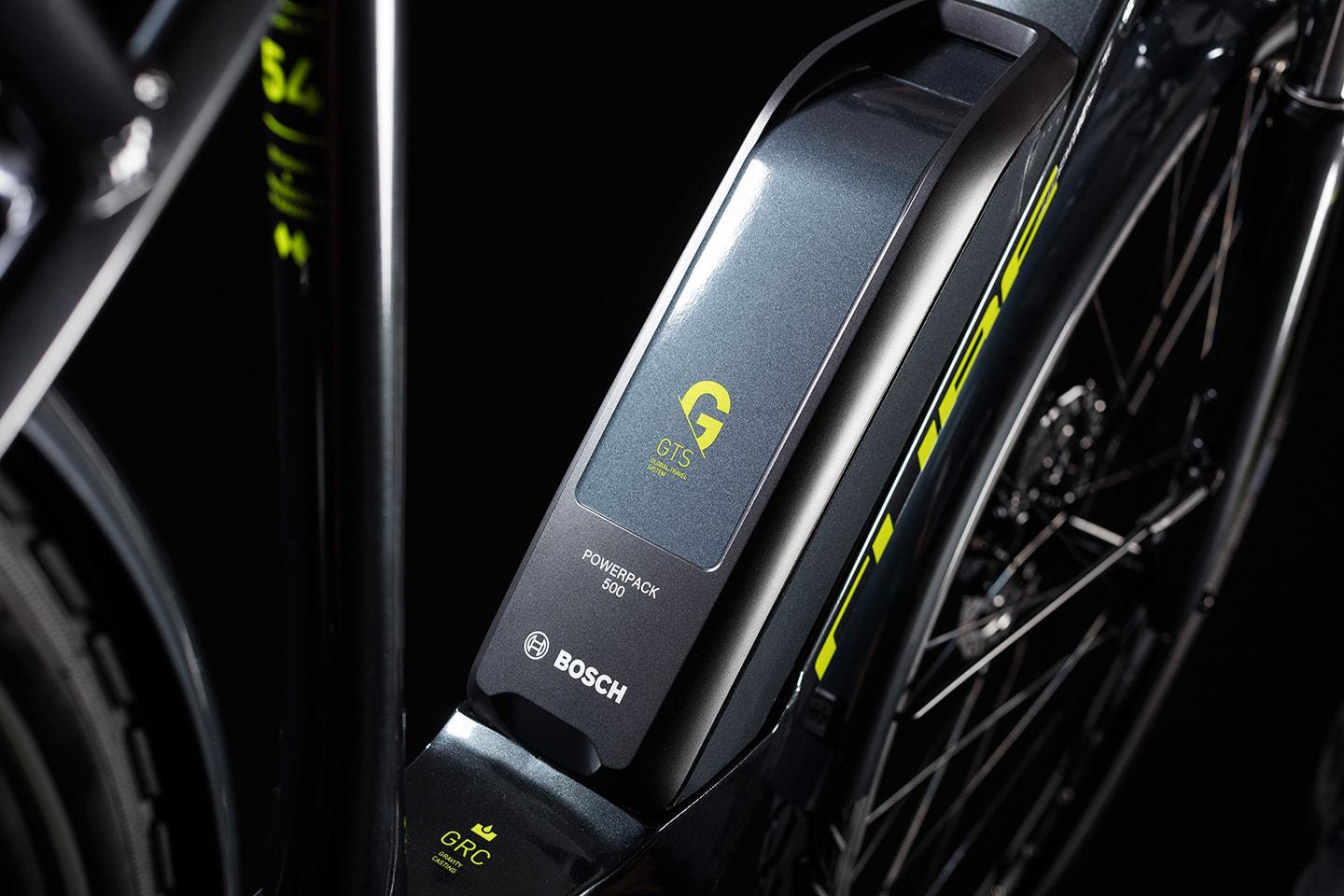

| BATTERY | Bosch PowerPack 500 |
| DISPLAY | Bosch Intuvia |
| CHARGER | Bosch 2A |
| ART. NO | 131300 |
GEOMETRY

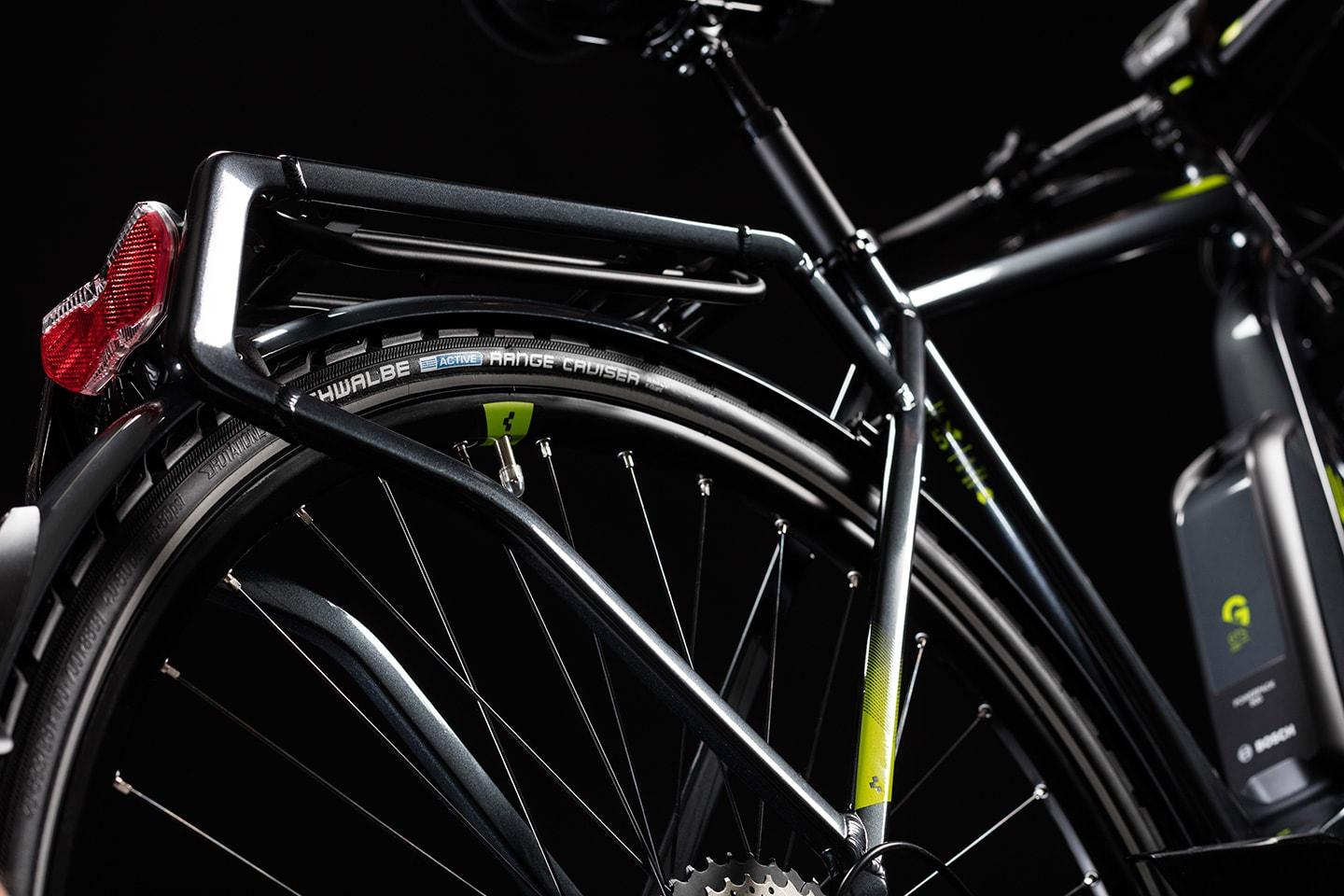

The Kathmandu Hybrid Pro 500's integrated luggage carrier is a great example of how our designers' attention to detail pays off: it's neat, stiff, strong and will carry a variety of loads in complete safety. The powerful Bosch CX motor system and 500Wh battery are mounted low for the best possible handling characteristics, helped along by our proprietary Efficient Comfort Geometry (ECG) for stress-free pedalling, mile after mile. Advanced design features borrowed from our engineering test team's vast experience include oversized, hydroformed tubes for safe handling and efficient power delivery. We even routed cables internally for clean looks and long-lasting, reliable gear shifting.
