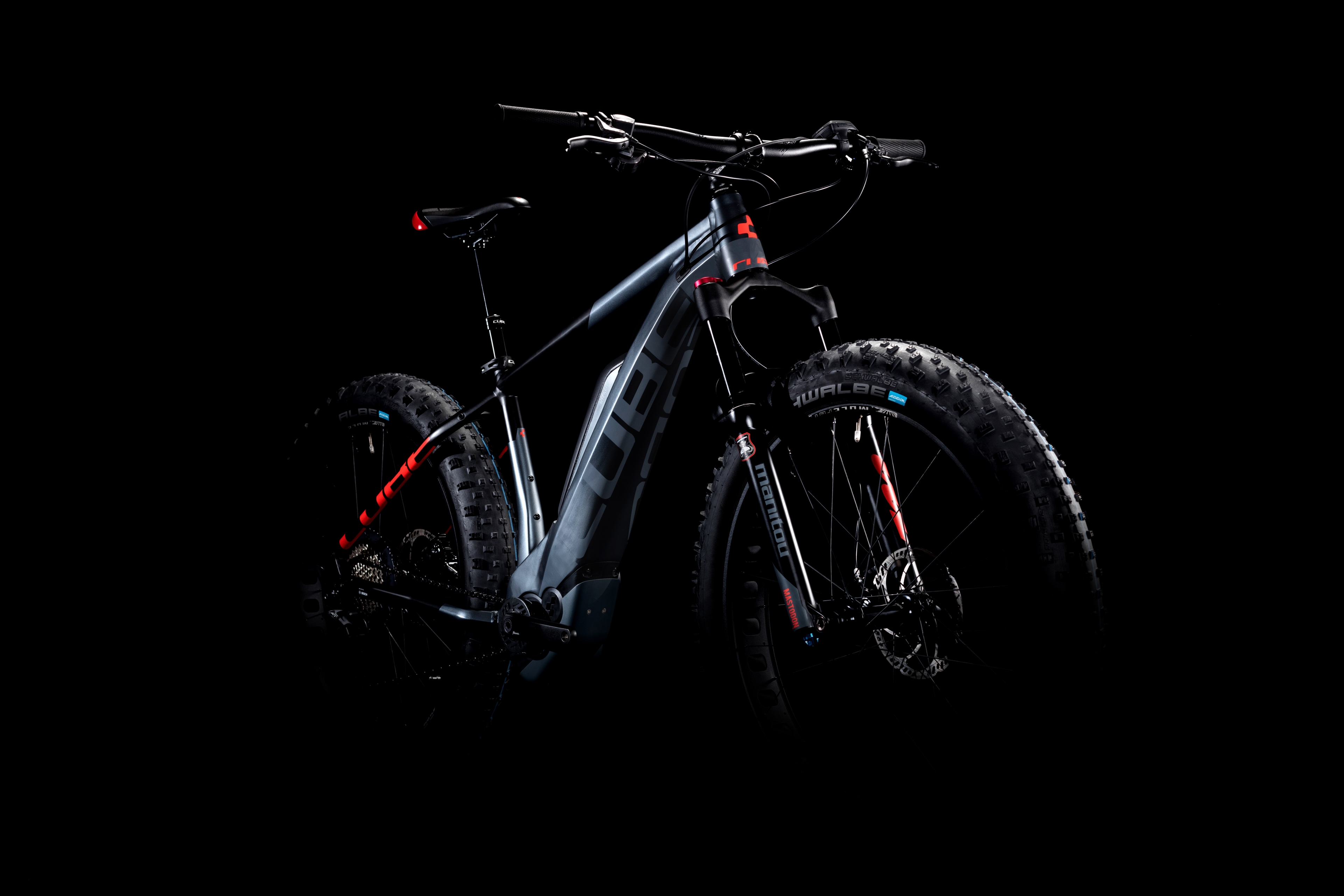

NUTRAIL HYBRID
500
If you believe that true freedom can only be experienced when you're willing to try something new, we've got the perfect bike for you. The Nutrail Hybrid blends fatbike versatility with Bosch power to serve up the ultimate go-anywhere package. With 4.0 inch tyres, a powerful Bosch CX drive and smooth Manito Mastodon Comp fork it simply knows no limits, rolling on with nonchalent ease whether you're on a rock mountainside or in the thick of the urban jungle. This CUBE masterpiece - with an aluminium frame designed specifically around the needs of the Bosch system and fat tyres - contains all our frame-building know-how and fastidious attention to detail. From the 11 speed Shimano XT transmission to the powerful Magura MT5 hydraulic disc brakes and dropper post, there's everything you need here to open your mind, jettison the familiar and go explore.
AUSSTATTUNG
| FRAME | Aluminium Superlite, Gravity Casting, ARG, Double Butted, Disc Only, Tapered Headtube, Internal Cable Routing |
|---|---|
| SIZE | 17", 19", 21" |
| FORK | Manitou Mastodon Comp, Tapered, 15x150mm, 120mm |
| BRAKE SYSTEM | Magura MT5, Hydr. Disc Brake (180/180) |
| REAR DERAILLEUR | Shimano XT RD-M8000-DGS, ShadowPlus, 11-Speed |
| SHIFTERS | Shimano XT SL-M8000, 11-Speed |
| CRANKSET | CUBE Fat Crank, 16T |
| CASSETTE | Shimano SLX CS-M7000, 11-46T |
| CHAIN | KMC X11e Turbo |
| WHEELSET | Answer Fat Atac 80SL, 15x150mm / 12x177mm |
| TYRES | Schwalbe Jumbo Jim Kevlar 4.0, Addix Speedgrip, Tubeless Easy |
| HANDLEBAR | Race Face Ride 35, 760mm |
| GRIPS | CUBE Race Grip 31mm, 1-Clamp |
| SEAT POST | CUBE 120mm Adjustable Seatpost, Handlebar Lever, Internal Cable Routing, 30.9x420mm |
| SEATCLAMP | CUBE Varioclose, 34.9mm |
| SADDLE | Selle Royal Voga |
| HEADSET | FSA 1.5E ZS, Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm) |
| WEIGHT | 24,3 kg |
| COLOUR | iridium´n´red |
| DRIVE UNIT | Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt) |

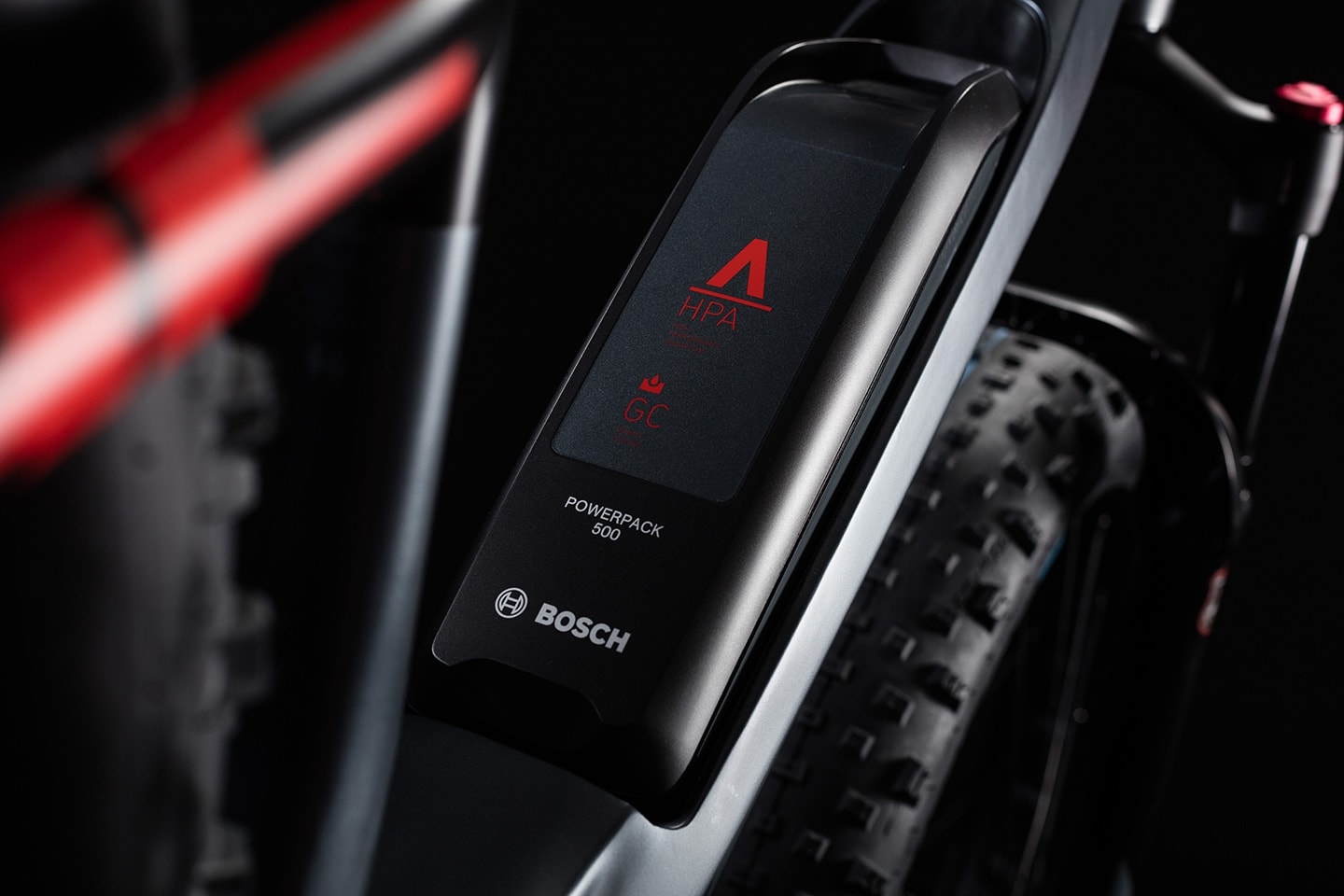

| BATTERY | Bosch PowerPack 500 |
| DISPLAY | Bosch Purion |
| CHARGER | Bosch 4A |
| ART. NO | 138950 |
GEOMETRY
We faced two challenges in designing the Nutrail Hybrid. On the one hand, we set out to build a superb fatbike that would be fun to ride, whether that's on an everyday basis or on longer back country adventures. And on the other, we needed to perfectly integrate the Bosch drive, with all its specific requirements, into a frame designed around 4 inch tyres. It wasn't easy, but we got there the usual CUBE way: by sweating the details. Triple butting, hydroforming and clever design all contribute to a frame that's extremely light, with precision handilng to match. The tapered head tube and 177m rear through axle provide even more rigidity. We positioned the drive and battery for optimum performance and this, combined with our Agile Ride Geometry (ARG) guarantees faultless, intuitive handling. Luggage rack mounting points give the Nutrail extra practicality for day-to-day use. And, of course, we routed cables internally for smooth shifting and clean looks.
