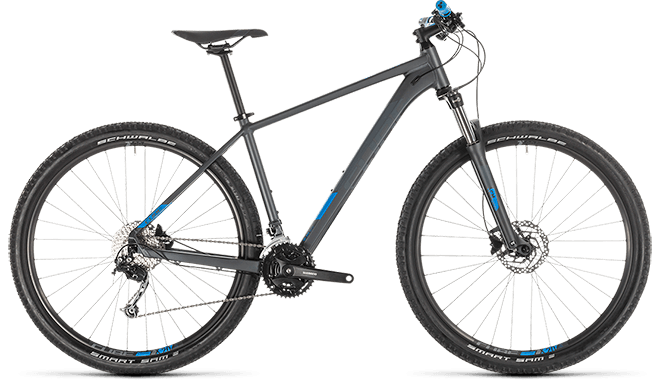

AIM
SL

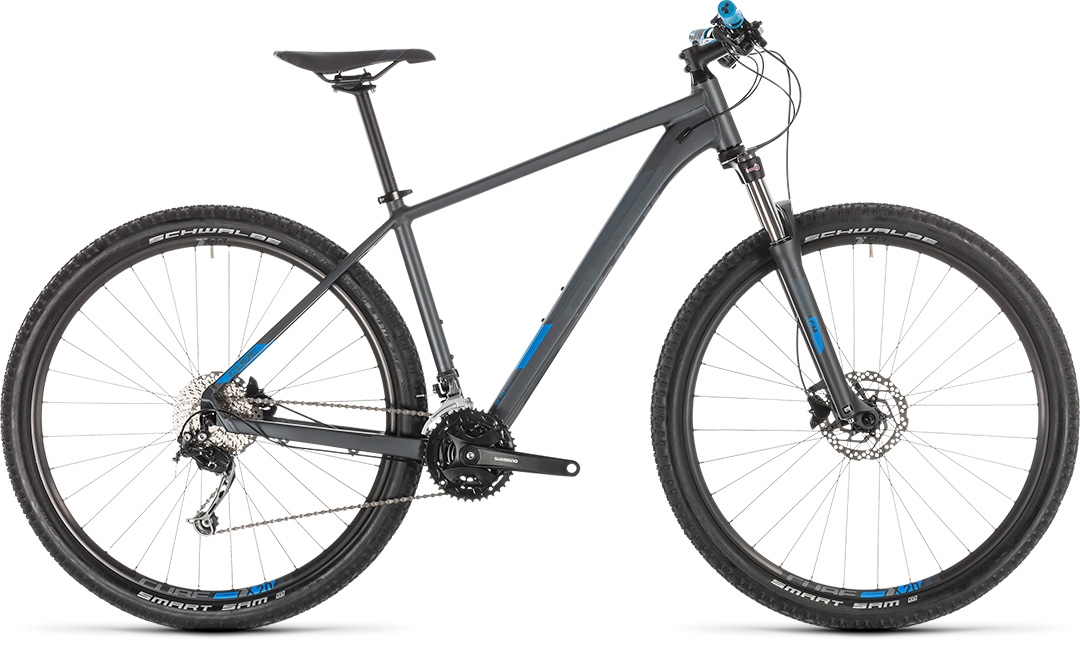

Our range-topping Aim has earned its SL tag. With its high quality, lightweight and precise-handling aluminium chassis and blend of durable, reliable components, it's the perfect choice for aspiring mountain bikers looking to broaden their horizons. The 27 speed Shimano transmission gives you the gear range you need to tackle any climb, while powerful Shimano hydraulic disc brakes mean you're always in control of your speed on the way back down - and the Suntour suspension fork with remote lockout smooths the way ahead. It's all you need for exploring off the beaten track, whether it's an evening ride on your local trail or a longer weekend adventure out in the hills. And, with our Size Split system, you're sure to be able to find the perfect fit.
AUSSTATTUNG
| FRAME | Aluminium Lite, AMF, Internal Cable Routing, Easy Mount Kickstand Ready |
|---|---|
| SIZE | Size Split: 27.5: 14", 16", 18" // 29: 17", 19", 21", 23" |
| FORK | SR Suntour XCM RL Disc, 100mm, Remote Lockout |
| BRAKE SYSTEM | Shimano BR-MT200, Hydr. Disc Brake (160/160) |
| REAR DERAILLEUR | Shimano Deore RD-M592, 9-Speed |

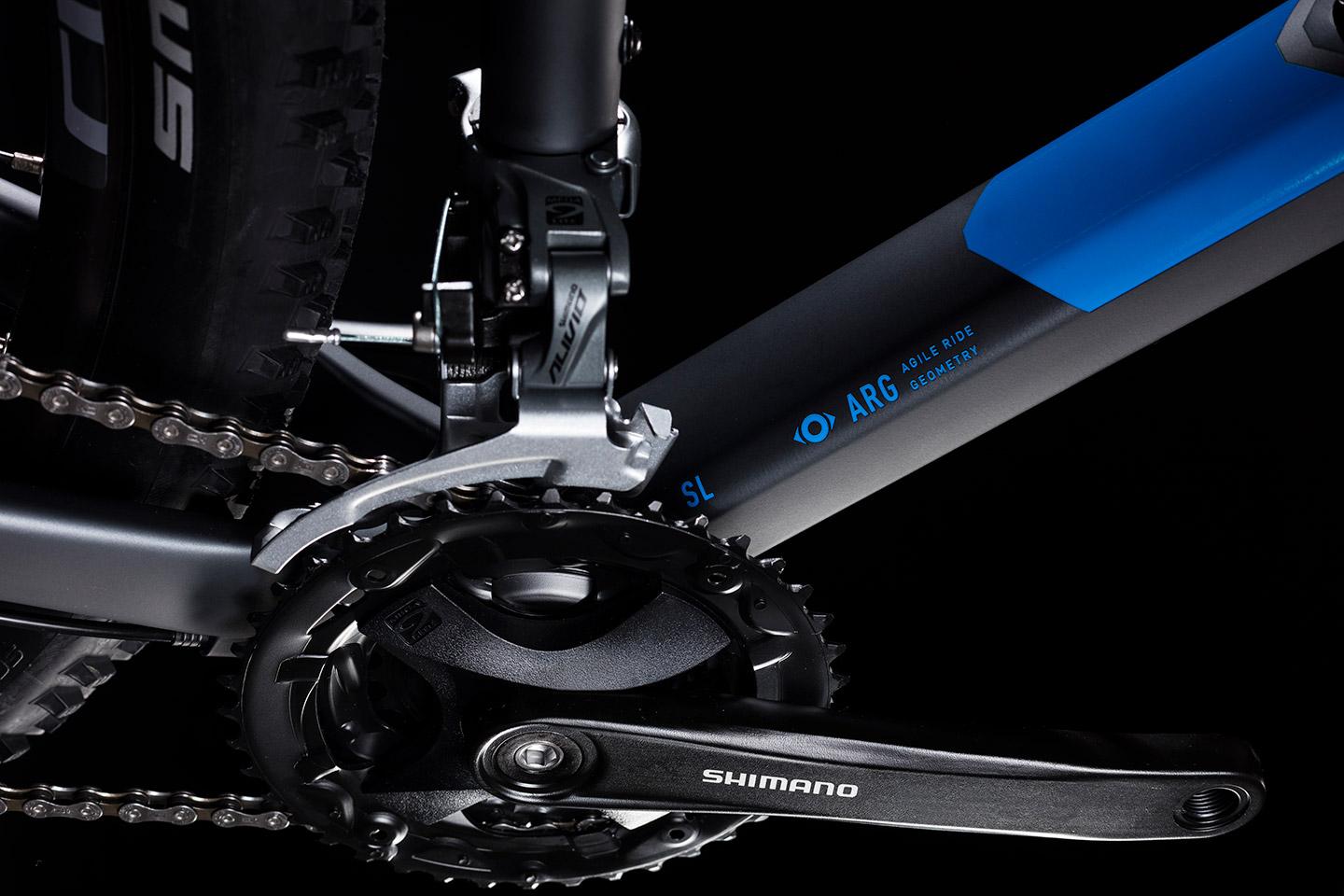

| FRONT DERAILLEUR | Shimano FD-M4000, Downswing, 31.8mm Clamp |
| SHIFTERS | Shimano SL-M2000, Rapidfire-Plus |
| CRANKSET | Shimano FC-MT100, 40x30x22T, 175mm |
| CASSETTE | Shimano CS-HG400, 12-36T |
| CHAIN | Shimano CN-HG53 |
| FRONT HUB | Shimano HB-TX505, QR, Centerlock |
| REAR HUB | Shimano FH-TX505, QR, Centerlock |
| RIMS | CUBE ZX20, 32H, Disc |
| TYRES | Schwalbe Smart Sam, Active, 2.25 |

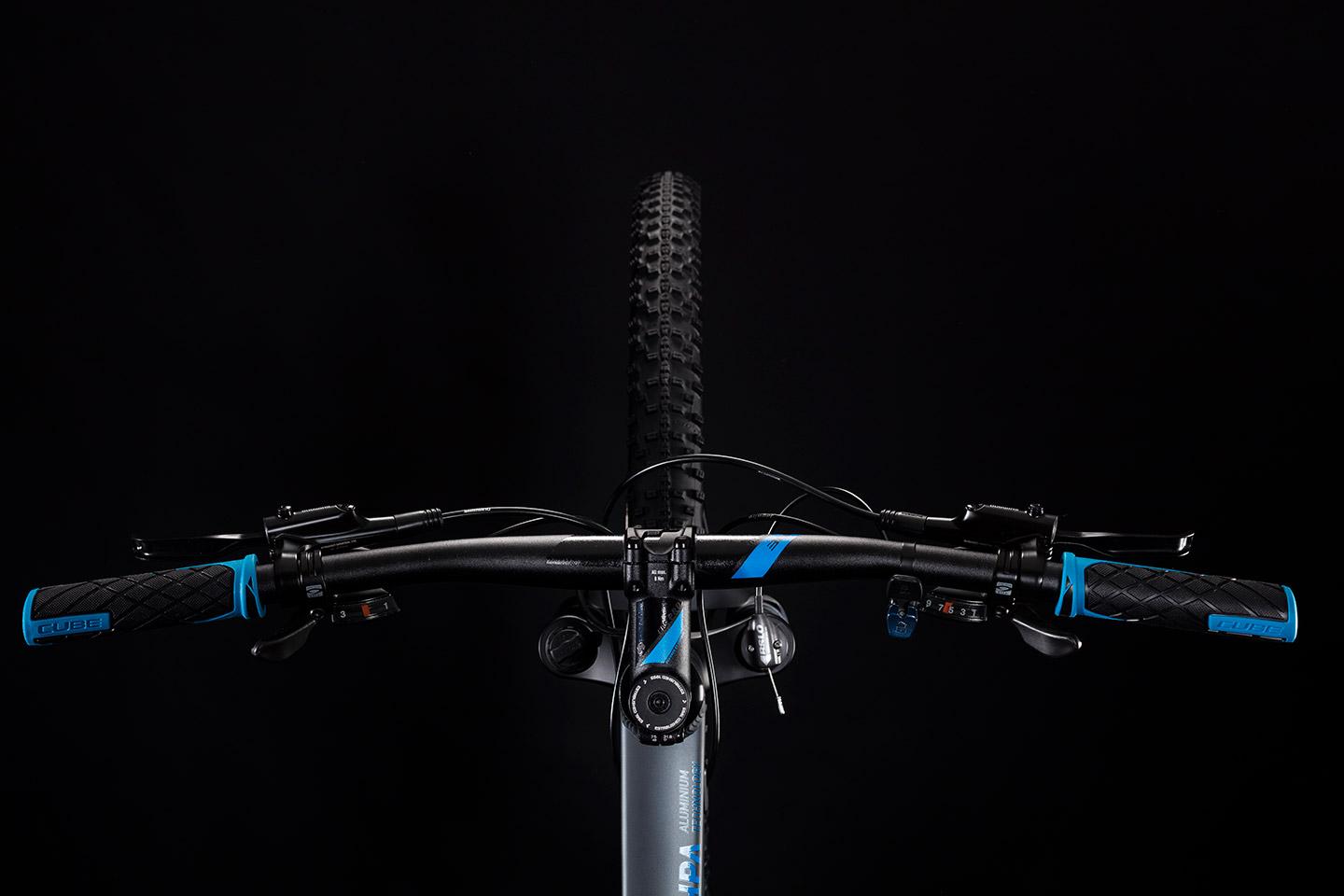

| HANDLEBAR | CUBE Rise Trail Bar, 680mm |
| GRIPS | CUBE Performance Grip |
| SEAT POST | CUBE Performance Post, 27.2mm |
| SEATCLAMP | CUBE Varioclose, 31.8mm |
| SADDLE | CUBE Active 1.1 |
| HEADSET | CUBE No.10 Semi-Integrated |
| PEDALS | CUBE PP MTB |
| WEIGHT | 14,3 kg |
| COLOUR | iridium´n´blue |
| ART. NO | 201500 |
GEOMETRY

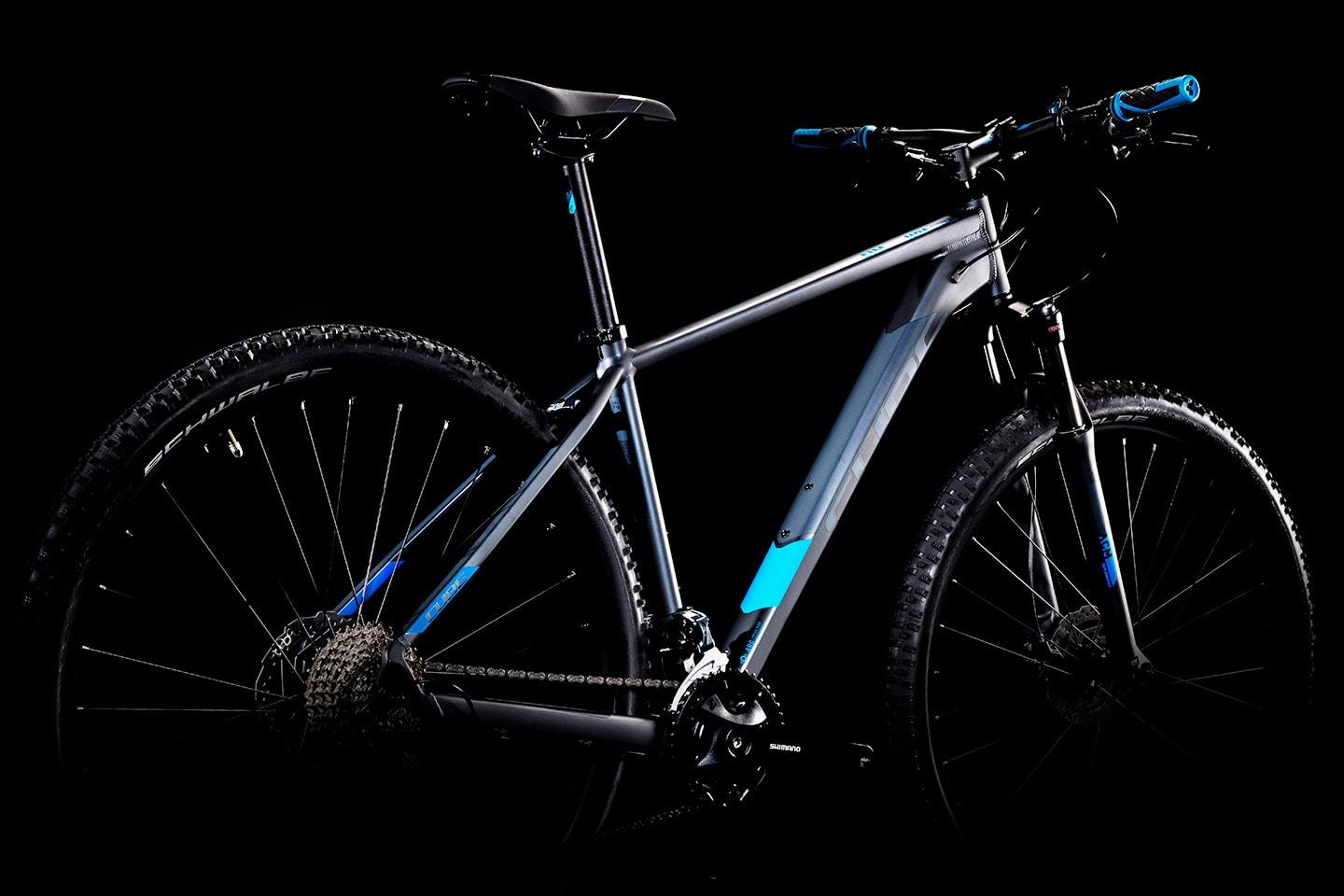

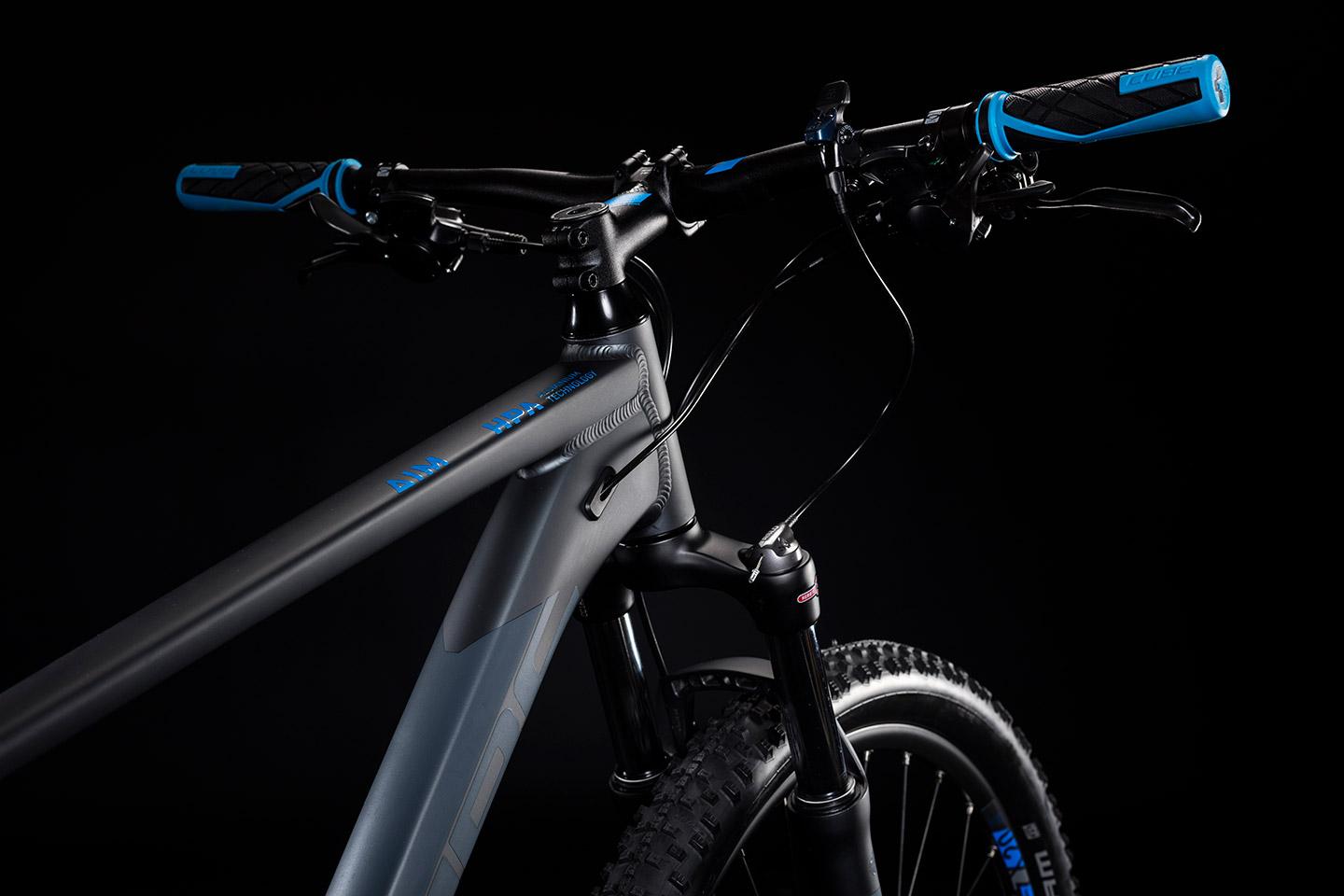

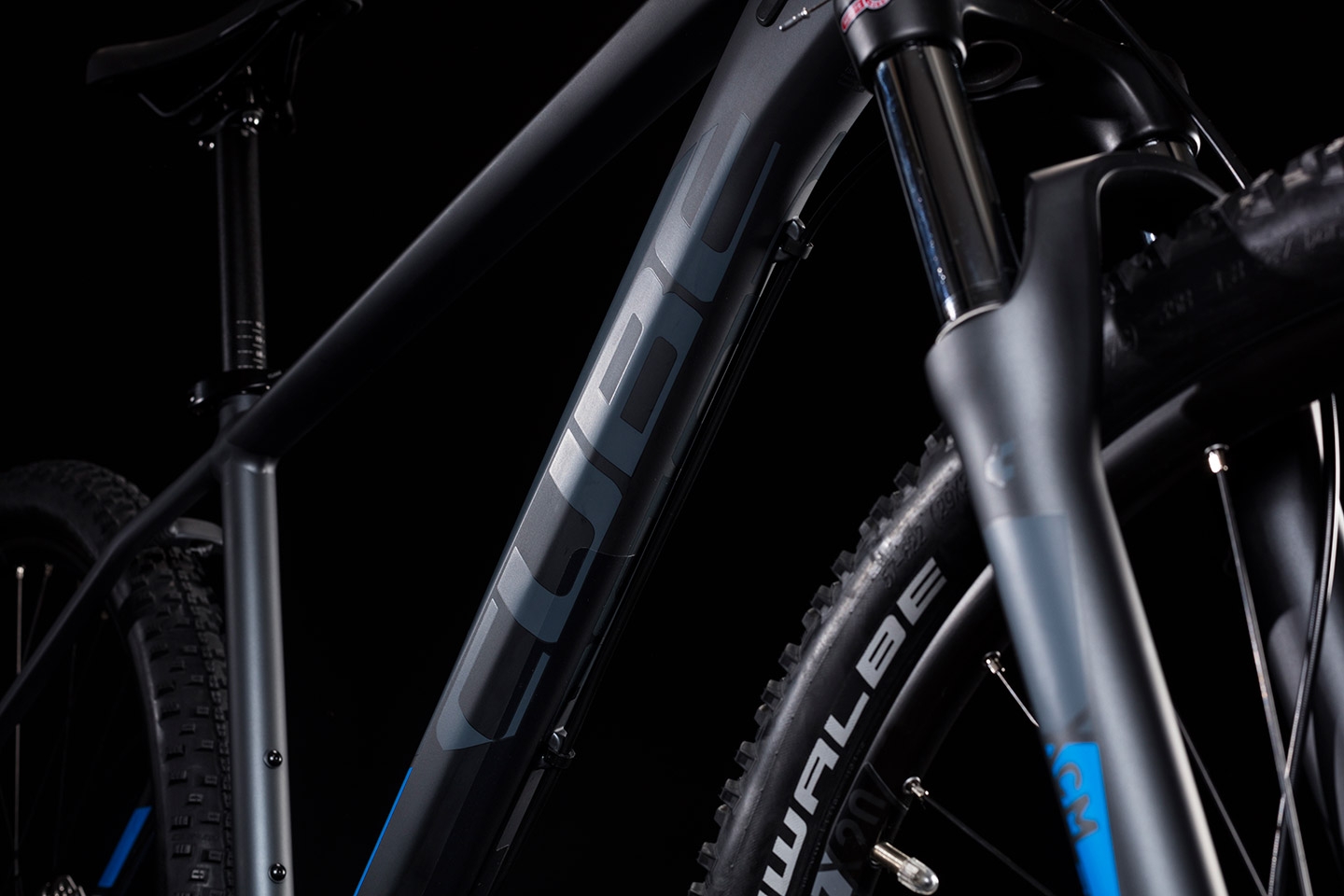

Keen riders want a bike that'll respond quickly, safely and intuitively. That's why our engineers designed complex profile top and down tubes, made using our Advanced Mechanical Forming process out of 6061 aluminium. They combine to make a lightweight, rigid backbone for precise steering and effortless acceleration, while our Agile Ride Geometry ensures a ride that's stable when you need it and inspiringly nimble when you want it. New for 2019, our design team has also reworked the rack and mudguard mounting points to allow quick, easy and seamlessly elegant attachment of these accessories to convert your Aim SL into a weekend tourer and weekday commuter. With internally routed cables for cleaner gear shifts and reduced maintenance, it's all part of the attention to detail that makes the Aim SL a compelling blend of comfort, liveliness and practicality.
