ANALOG
Caught the mountain bike bug? Then you'll find a willing partner in the Analog. Its high-quality aluminium frame, balanced handling and reliable components add up to a package that's perfect for trail fun. Whether you pick the 27.5in or 29er version, you're assured of a good fit thanks to our Size Split system. Each one is ergonomically tailored to offer a responsive, comfortable ride thanks to our Agile Ride Geometry. The complex-profile top and down tubes - shaped using our proprietary Mechanical Forming process - form a strong, light and safe backbone around which our engineering team has built a light, nimble frame that'll stay the course. Neatly hidden rack and fender mounts make a weekday commuter or weekend tourer conversion quick, simple and elegant. There's a smooth RockShox suspension fork to keep the front wheel tracking straight and true even on rough trails, powerful Shimano hydraulic disc brakes to ensure you're always in control, and Sram's wide-ranging and slick-shifting 1x12 gears to help tame any climb. It's everything you need to explore as far off-road as your curiosity takes you.
AUSSTATTUNG
| FRAME | Aluminium Lite, AMF, Internal Cable Routing, Easy Mount Kickstand Ready |
|---|---|
| SIZE | Size Split: 27.5: 14", 16", 18" // 29: 17", 19", 21", 23" |
| FORK | RockShox XC 30 TK Coil, 100mm, Remote Lockout |
| BRAKE SYSTEM | Shimano BR-MT200, Hydr. Disc Brake (160/160) |
| REAR DERAILLEUR | Sram SX Eagle™, 12-Speed |
| SHIFTERS | Sram SX Eagle™ Trigger |

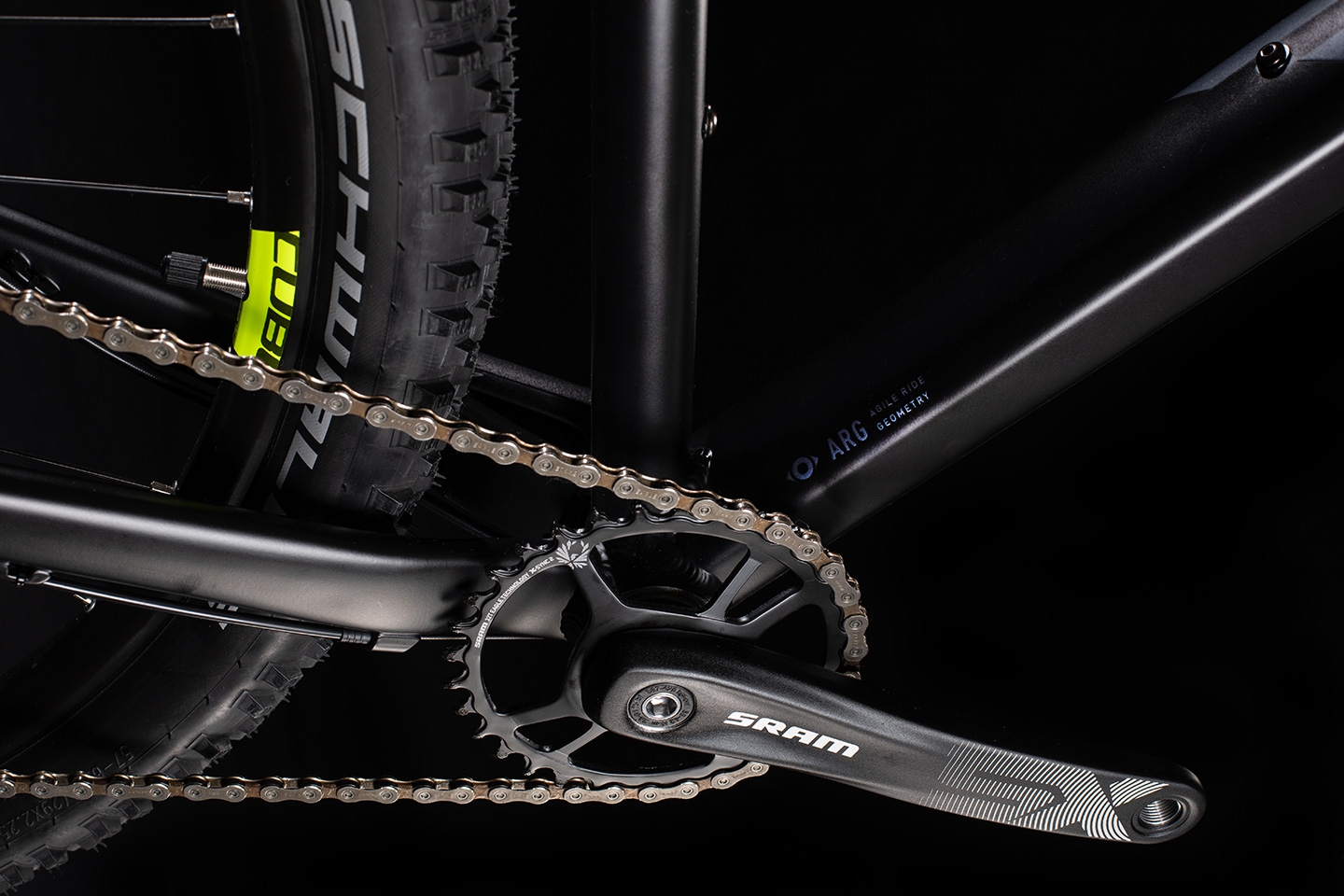

| CRANKSET | Sram SX Eagle™ Powerspline, 32T, 175mm |
| CASSETTE | Sram PG-1210 Eagle™, 11-50T |
| CHAIN | Sram SX Eagle™ |
| FRONT HUB | Shimano HB-TX505, QR, Centerlock |
| REAR HUB | Shimano FH-TX505, QR, Centerlock |
| RIMS | CUBE SD20, 32H, Disc |
| TYRES | Schwalbe Smart Sam, Active, 2.25 |
| HANDLEBAR | CUBE Rise Trail Bar, 680mm |
| GRIPS | CUBE Performance Grip |
| SEAT POST | CUBE Performance Post, 27.2mm |
| SEATCLAMP | CUBE Varioclose, 31.8mm |
| SADDLE | Natural Fit Venec Lite |
| HEADSET | CUBE FPH863, Semi-Integrated |
| PEDALS | CUBE PP MTB |
| WEIGHT | 13,8 kg |
| COLOUR | black´n´flashyellow |
| ART. NO | 302100 |
GEOMETRY

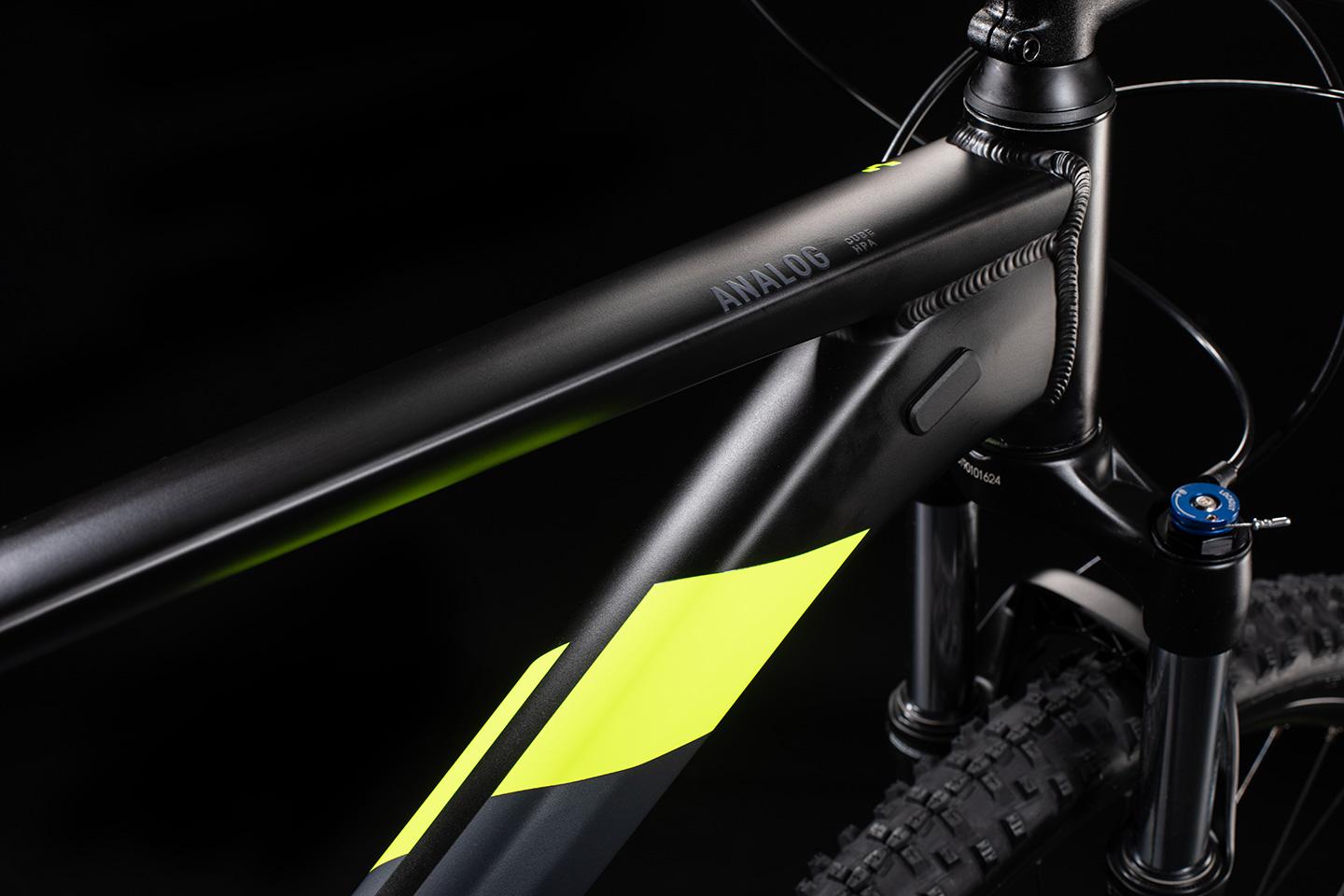

Our engineers put just as much time, effort and energy into our most affordable bikes as they do into the very highest performance race machines. That's because, regardless of whether you're a professional athlete chasing podium positions or an ordinary rider looking for a bike to go exploring at the weekends, you'll want a frame that'll respond quickly, safely and intuitively. Complex top and down tubes, made using our Advanced Mechanical Forming process out of 6061 aluminium, make a lightweight, rigid backbone for precise steering and effortless acceleration, while our Agile Ride Geometry ensures a ride that's stable when you need it but nimble when you want it - the best of both worlds. Hidden rack and mudguard mounts make a conversion to weekday commuter or longer distance explorer quick and easy, and internally routed cables ensure reliable gear shifting and clean looks. It's all part of the attention to detail that makes our aluminium hardtails a compelling blend of comfort, liveliness and practicality.
