ACID 200
ALLROAD

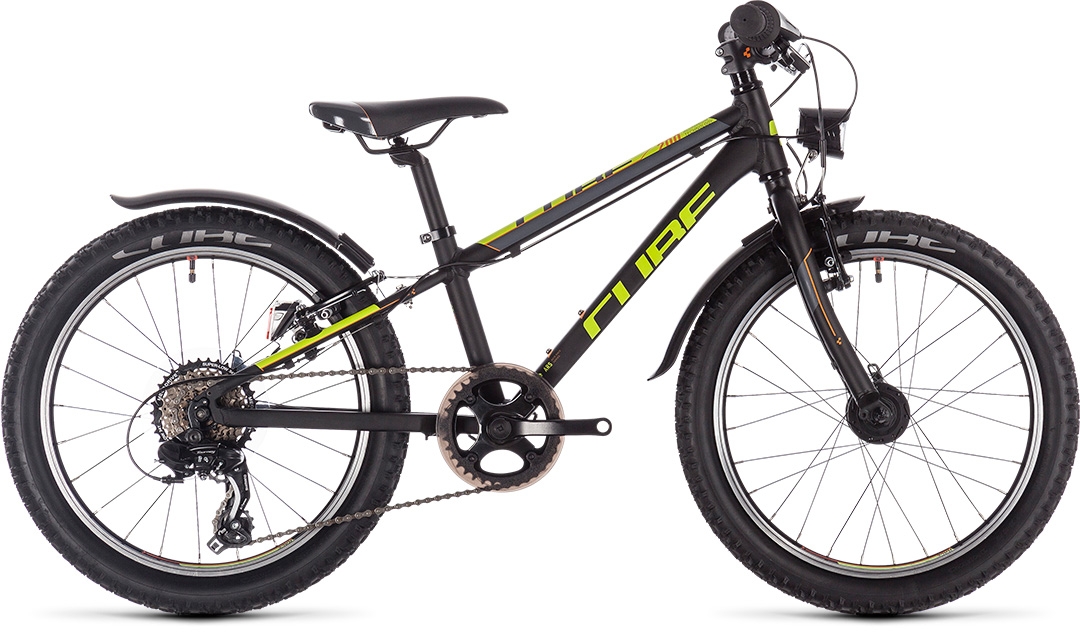

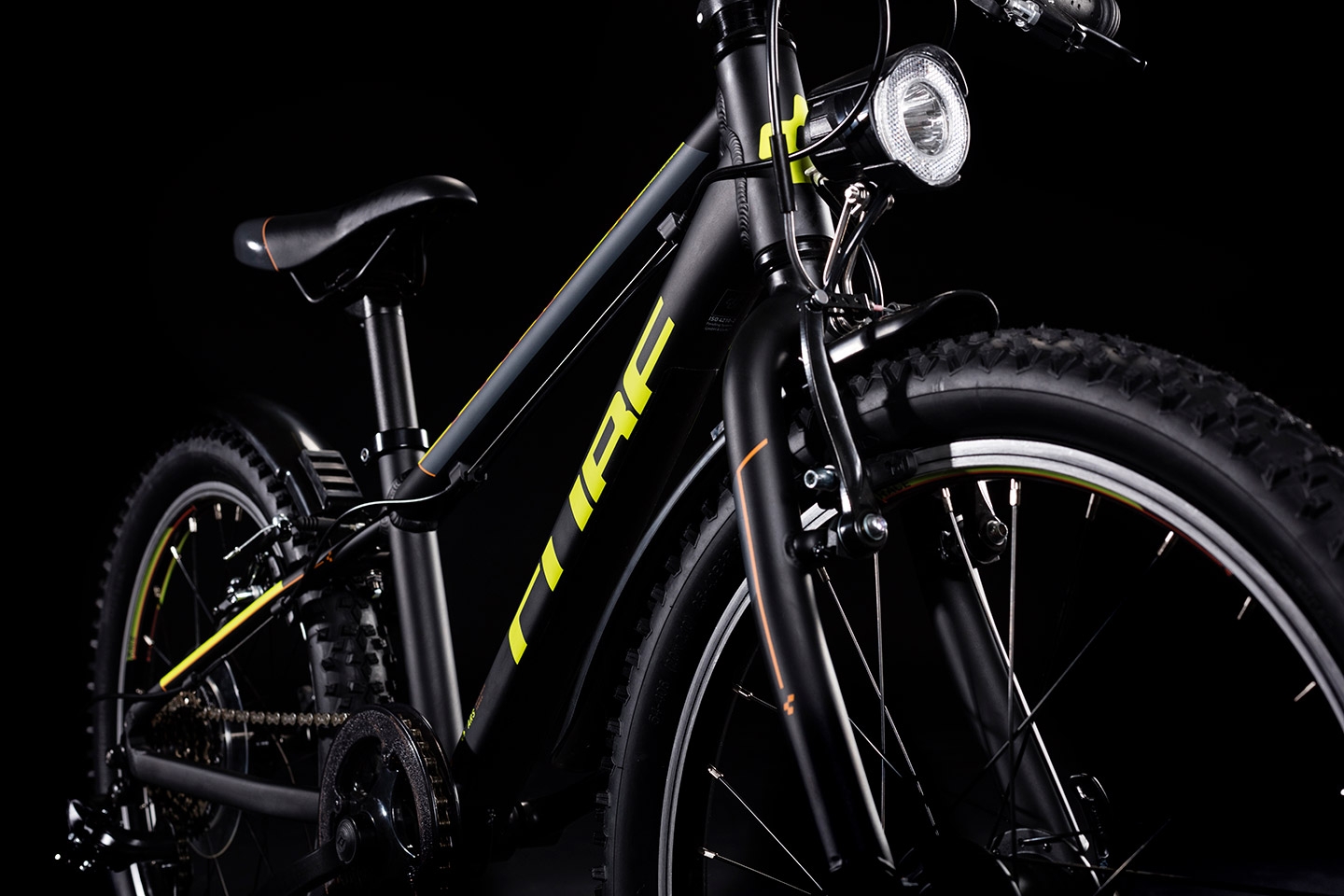

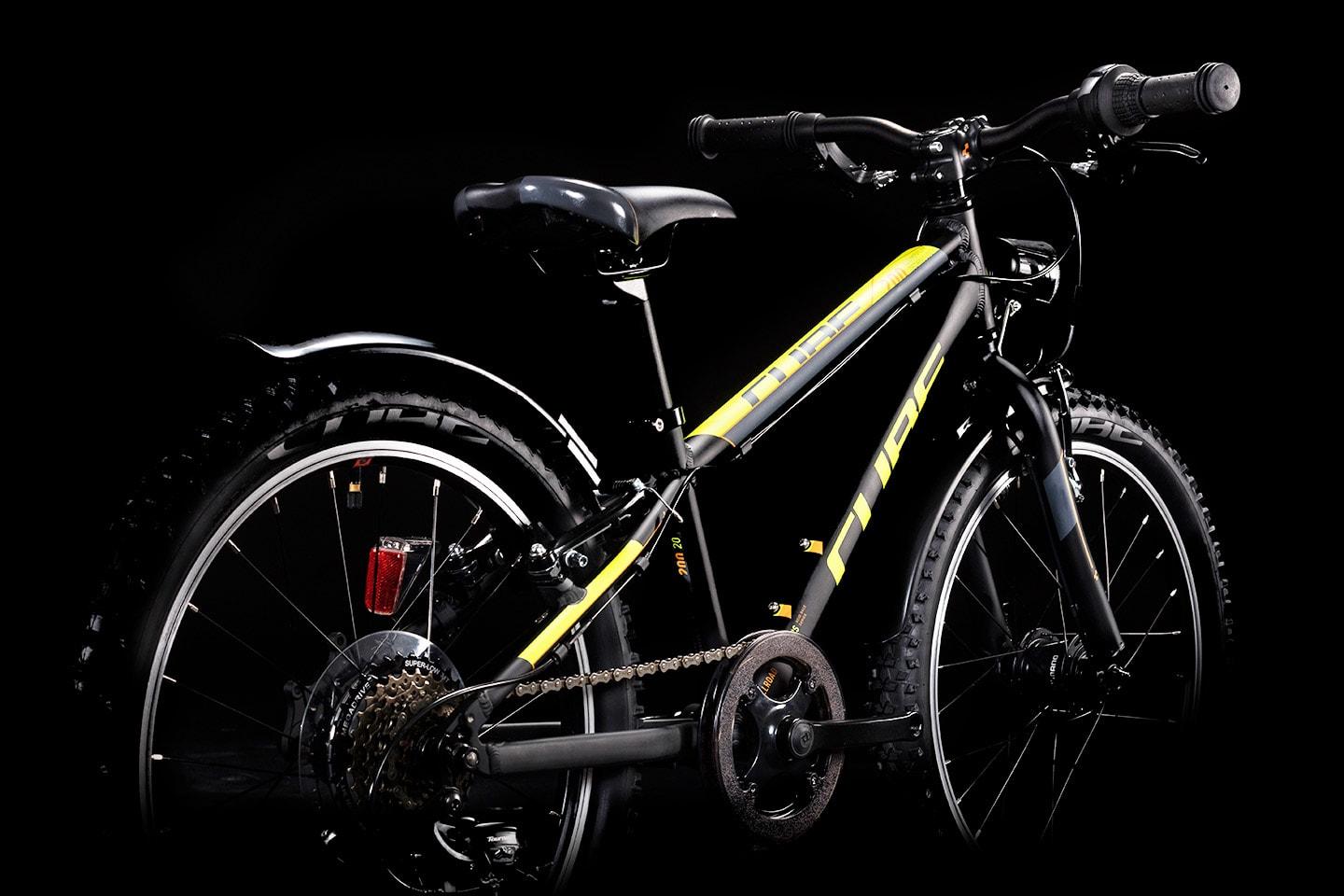

Where can you find a roadworthy kid's bike that's also ideal for family trail rides? Our design team is one step ahead of you - allow us to introduce the Acid 200 Allroad. With all the cool factor of a real mountain bike, it also has all the safety features that parents want for peace of mind. The heat-treated 6061 aluminium frame benefits from the same attention to detail as all our bikes, so it's the ideal foundation on which to build your child's confidence and riding skills. With an easily replaceable gear hanger you can rest assured that little mishaps needn't result in expensive damage - perfect for an enthusiastic junior rider who's just finding their cycling feet. The child-specific V-brakes are specially adapted to work well with small hands and feature a power modulator on the front brake, to reduce the chance of a sudden handful resulting in an unscheduled dismount... and tears. Shimano's smooth-shifting 7-speed transmission has enough range to help tired legs up big hills and fresh legs speed down the other side. And then we added a pair of high-quality LED lights powered by a hub dynamo - which means there are no batteries to run out - and a pair of snap-on mudguards. It's everything your youngster needs to ride safely on road and off. There's no better introduction to the joys of exploring by bike...
AUSSTATTUNG
| FRAME | Alu Lite 6061 |
|---|---|
| SIZE | 20" |
| FORK | Rigid Hi-Ten fork |
| BRAKE SYSTEM | Alloy V-Brake with Powermodulator |
| REAR DERAILLEUR | Shimano RD-M300, 7-Speed |

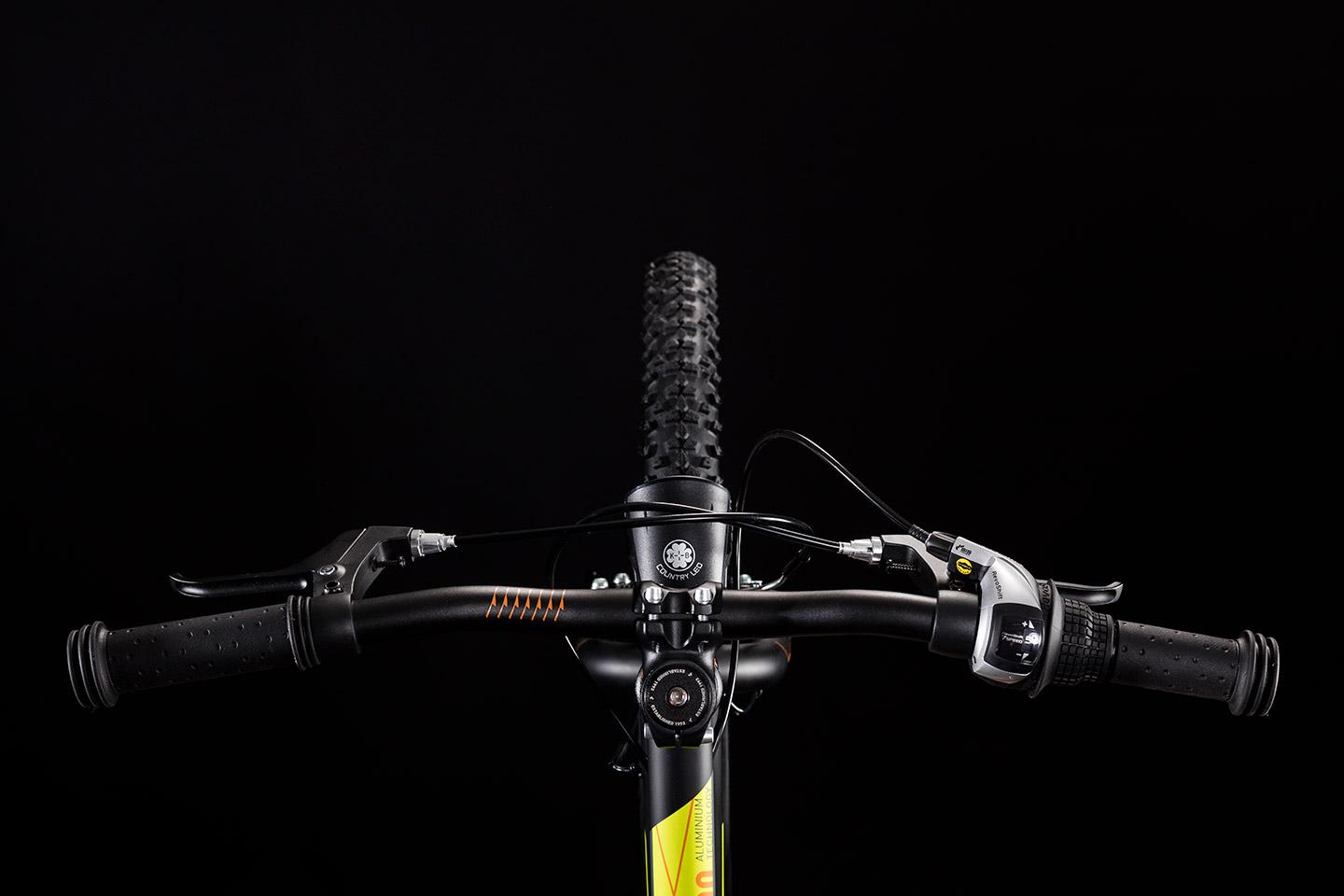

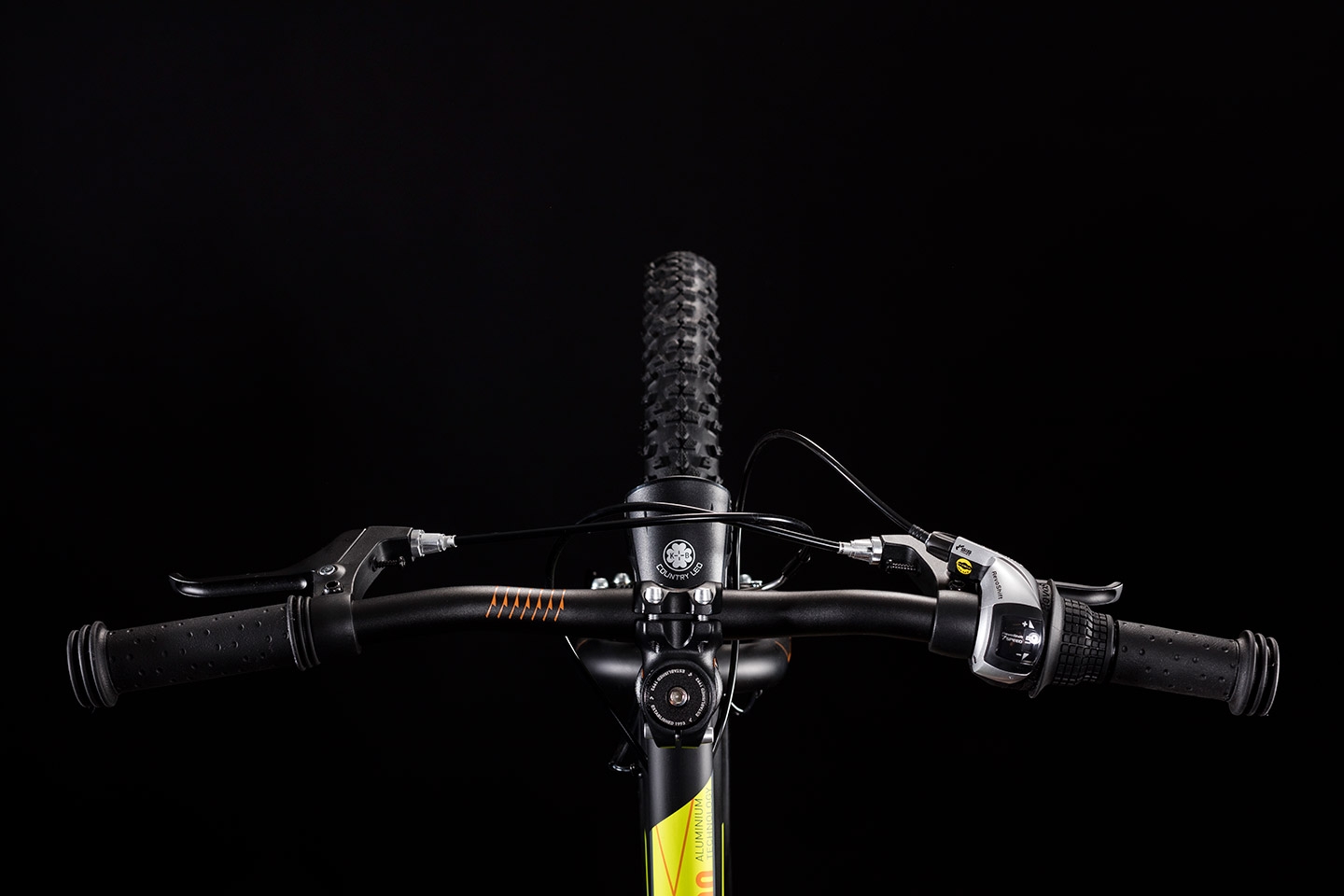

| SHIFTERS | Shimano SL-RS45, Revo Shift |
| CRANKSET | Samox, 36T, 127mm with Chainguard, Alu |
| CASSETTE | Sunrace MFM300.7, 13-34T |
| CHAIN | KMC HV500 |
| FRONT HUB | Shimano DH-C4001-1N |
| REAR HUB | CUBE Aluminium |
| RIMS | Aluminium |
| TYRES | CUBE IMPAC Smartpac |
| HANDLEBAR | CUBE Alu Lite, 560mm |
| GRIPS | Velo |
| SEAT POST | CUBE Alu Lite |
| SEATCLAMP | CUBE |
| SADDLE | CUBE Kid |
| HEADSET | CUBE A-Headset |
| PEDALS | CUBE Kid |
| FRONT LIGHT | Büchel Country LED |
| REAR LIGHT | Trelock Standlight |
| KICKSTAND | Center Kickstand, Adjustable |
| MUDGUARDS | Future Forms Snap on |
| BELL | Nuvo |
| WEIGHT | 10,8 kg |
| COLOUR | black´n´yellow´n´orange |
| ART. NO | 322200 |
GEOMETRY

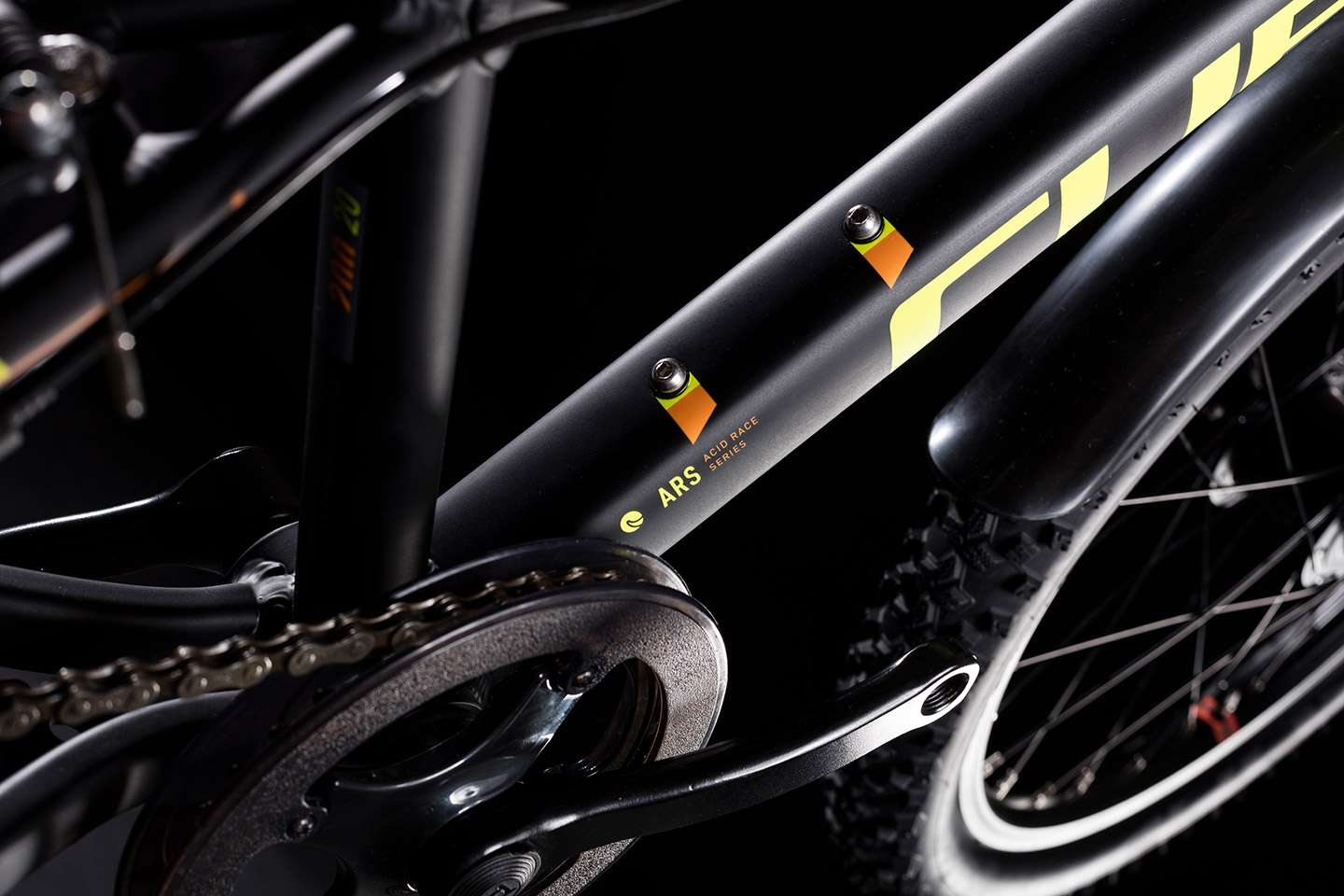

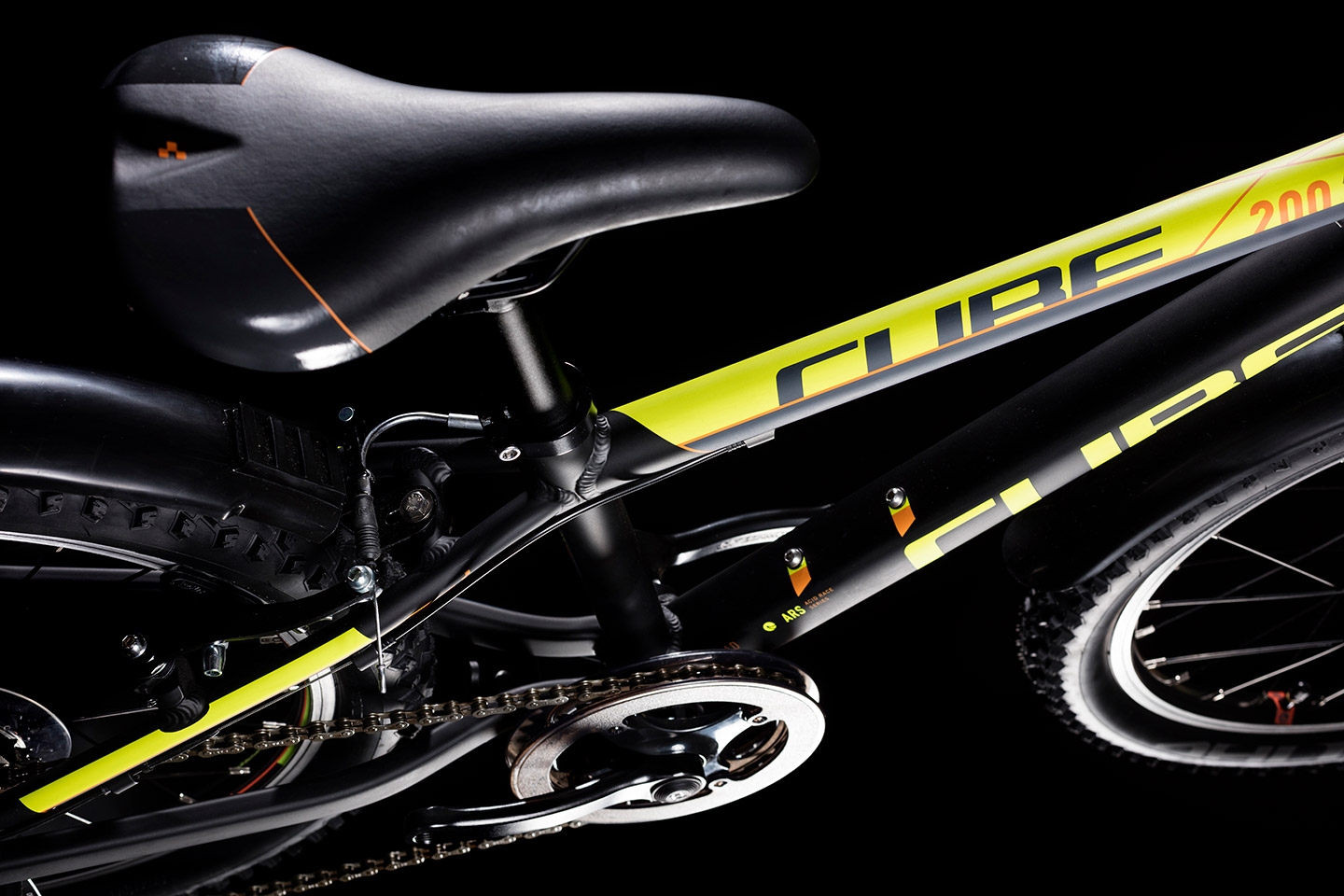

The Acid 200's heat-treated 6061 aluminium frame has the same quality and durability as our full-size mountain bikes. It's also as light as our engineers can reasonably make it, thanks to a curved and formed down tube designed specifically to suit a young rider's weight. Because we know that accidents can happen when they're pushing their limits, we've made the derailleur hanger easily replaceable so that a crash doesn't write off the frame. Just like a real mountain bike, there are V-brake bosses front and rear. And a choice of colours means there's an Acid 200 to suit every budding junior rider.
