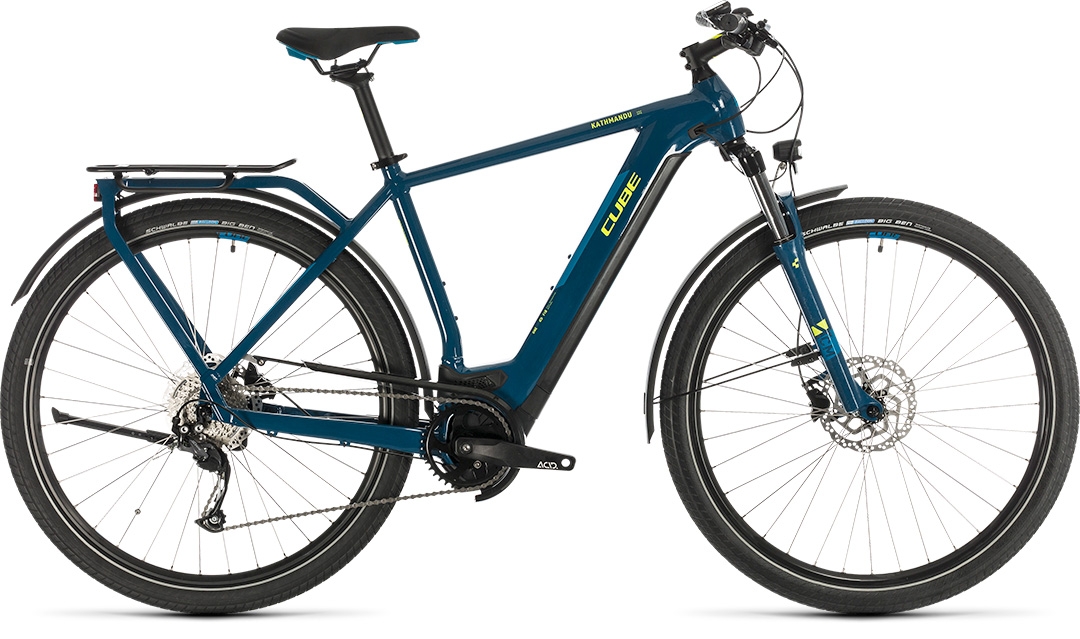

KATHMANDU HYBRID

ONE 625

The spirit of adventure doesn't come with a price tag attached. That's why we developed the Kathmandu Hybrid ONE - a truly affordable, fourth-generation Bosch-powered touring e-bike that's designed specifically for the curious of mind. Go wherever your imagination leads you, take what you need with you, and explore new horizons. With its strong, rigid Integrated Carrier 2.0 and advanced frame design, the Kathmandu Hybrid ONE is the reliable companion you'll need on your two-wheeled journeys. Based around our new Modular Battery System, the elegant down tube has ample room for the Bosch PowerTube, hidden behind an easily accessed cover. The new design isn't just exceptionally neat - it also meant our engineers could offer the option of a larger capacity battery for even more range, while still leaving room for bottle cage mounts. The included CUBE kickstand frees you from finding a 'convenient' wall or tree on which to rest your bike, while full-length mudguards help keep you drier on wet roads and the lights allow you to see and be seen, regardless of how late in the day you end up riding. The Suntour suspension fork, combined with wide Schwalbe tyres, smooths out even the bumpiest of roads. And easy-to-use, reliable Shimano 9-speed gears work seamlessly with the Bosch drive system to boost your pedalling and make every ride and every hill that little bit easier. We even fitted powerful Shimano hydraulic disc brakes for safe, assured stopping in any weather conditions. Our goal was to sweat the details, so you can just jump on and ride wherever your spirit of adventure demands. Because life's too short to be saying, 'one day, I'll get around to doing that ride'. Do it now. Do it with the Kathmandu Hybrid ONE.

AUSSTATTUNG

FRAMEAluminum Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Tapered Headtube, Full Integrated Battery, Integrated Carrier 2.0
SIZEMen: 50, 54, 58, 62; Trapeze: 46, 50, 54; Easy Entry: 46, 50, 54, 58
FORKSR Suntour XCM ATB Coil, 100mm
BRAKE SYSTEMShimano BR-MT200, Hydr. Disc Brake (180/180)
REAR DERAILLEURShimano RD-M2000-SGS, 9-Speed
SHIFTERSShimano SL-M2010-9R, Rapidfire-Plus
CRANKSETACID E-Crank, 38T, 175mm
CASSETTEShimano CS-HG201, 11-36T
CHAINKMC X9
FRONT HUBShimano HB-TX505, QR, Centerlock
REAR HUBShimano FH-TX505, QR, Centerlock
RIMSCUBE EX23, 36H, Disc, Tubeless Ready
TYRESSchwalbe Big Ben, Performance, 55-622
HANDLEBARCUBE Rise Trail Bar, 700mm
GRIPSCUBE Performance Grip
SEAT POSTCUBE Performance Post, 30.9mm
SEATCLAMPCUBE Varioclose, 34.9mm
SADDLENatural Fit Sequence Comfort
HEADSETFSA Orbit 1.5B ZS-R, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
PEDALSCUBE PP MTB
FRONT LIGHTCUBE Shiny 50 Lux, 6-12V, DC
REAR LIGHTCUBE IC 2.0 Rear LED, 6-12V, DC
KICKSTANDCUBEstand Cmpt
MUDGUARDSACID 65
BELLMini Bell

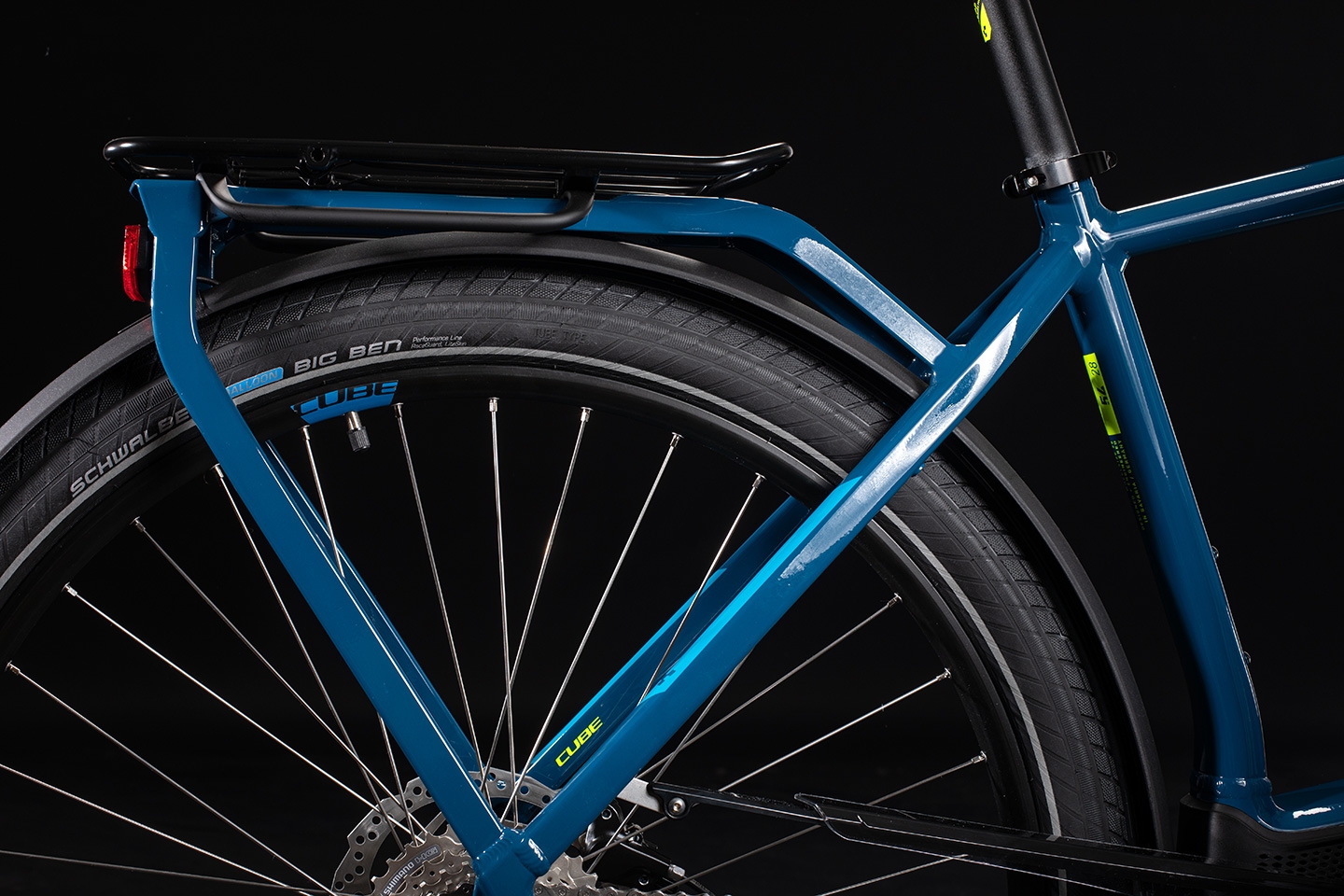

CARRIERCUBE Integrated Carrier 2.0, CUBE Adapter Compatible, SnapIt Compatible and Rail
WEIGHT25,5 kg
COLOURblue´n´yellow
DRIVE UNITBosch Drive Unit Performance CX Generation 4 (75Nm) Cruise (250Watt)
BATTERYBosch PowerTube 625
DISPLAYBosch Purion
CHARGERBosch 2A
ART. NO331182

GEOMETRY

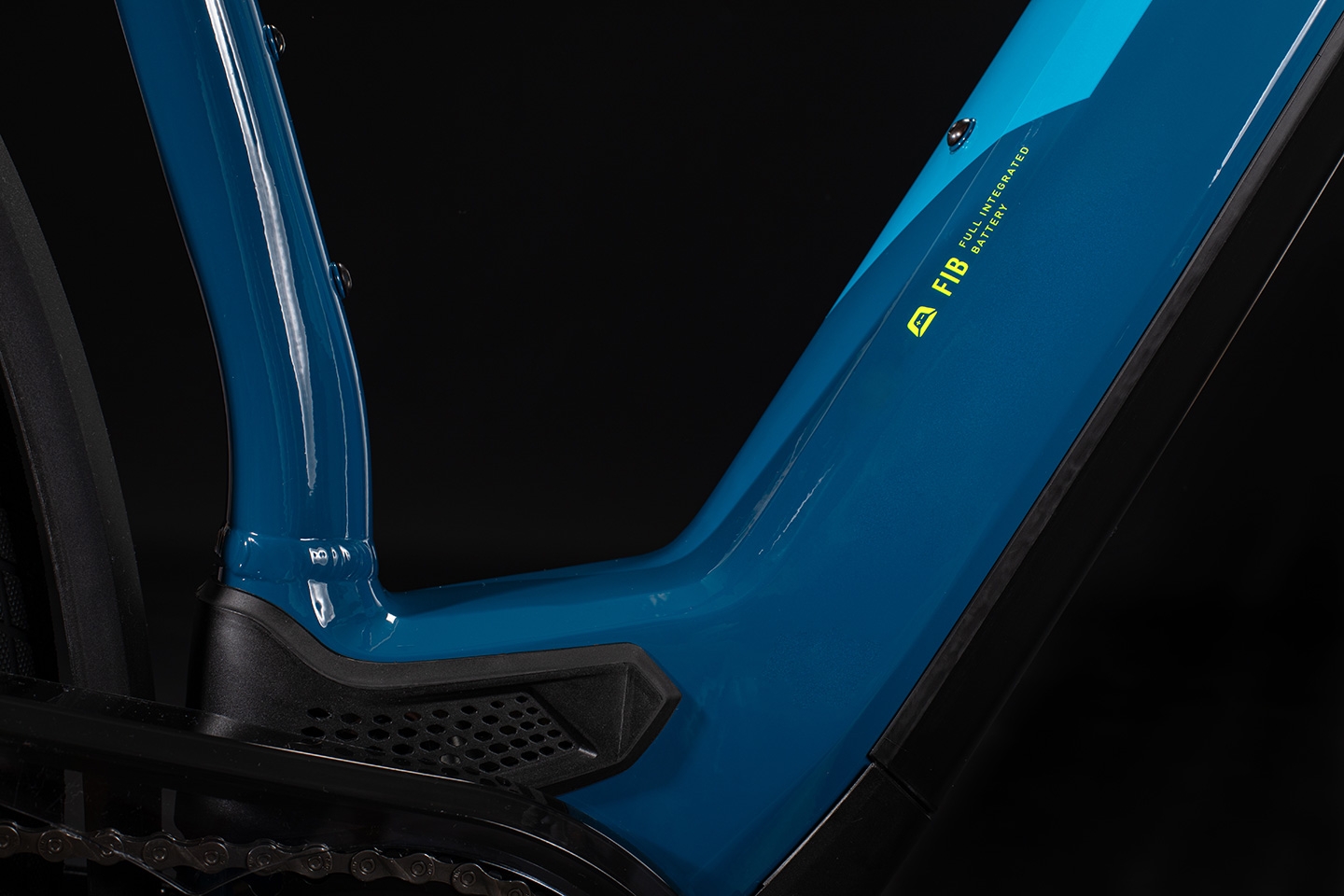

The Kathmandu Hybrid carries with it a deserved reputation for versatility, durability and comfort. Completely redesigned around Bosch's superb new fourth-generation CX drive unit for 2020, we've built on this solid foundation with a new frame that's better looking, more practical and easier to live with than ever. The heart of the new frame is the gravity cast down tube with new Modular Battery System. Protected behind an easily accessed cover, the Bosch power unit fits tidily within the Kathmandu Hybrid's sleek frame, leaving plenty of space for if you want swap to a bigger battery with extra capacity for extended range. The new Integrated Carrier 2.0 provides the most stable platform possible for carrying your gear, whilst complementing the frame's clean lines and boasting replaceable wear components - so you're assured of a long service life. The tapered head tube assures accurate steering from the 100mm suspension fork, internal cable routing keeps gear shifts clean and precise with no need for regular maintenance, and we even included a neatly integrated kickstand mount. As every keen traveller knows, the secret to success lies in the details.
