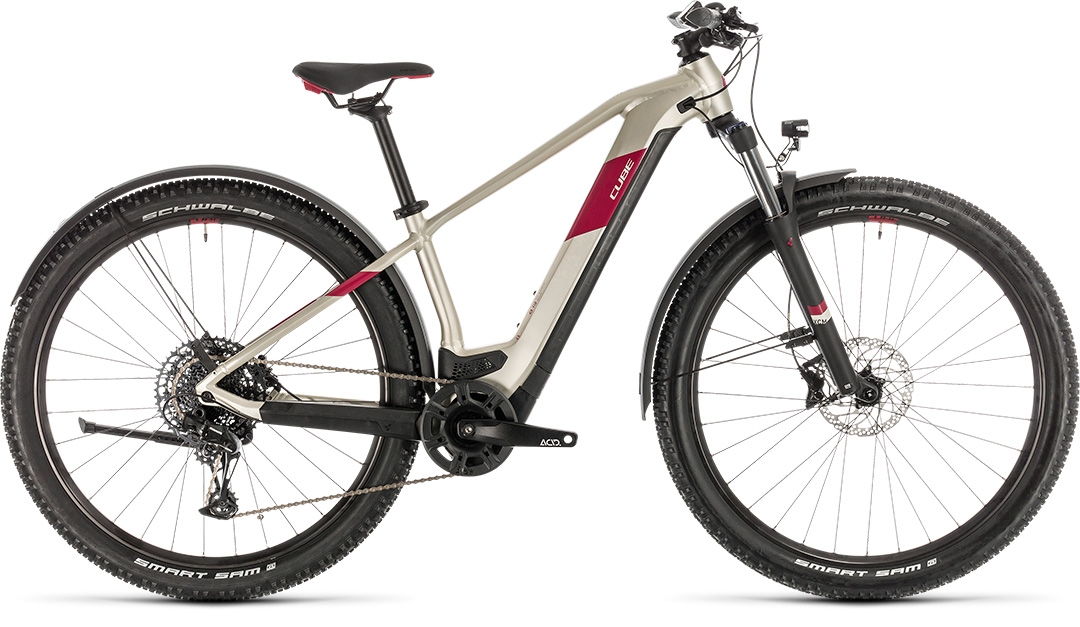

Access Hybrid
EX 500 Allroad 29
We've always thought that the saying 'Jack of all trades, master of none' was rather unfair on Jack - and the Access Hybrid EX Allroad is a case in point. By taking our versatile, well-equipped Access Hybrid EX e-MTB and equipping it with Bosch's CX Generation 4 drive unit, we've created a bike that can take on anything. From weekend trails in the mountains to weekday commuting and everything in-between, it's got the kit that you need - and, with the option of both standard and trapeze frames, every woman can find her perfect fit. We know that practicality is a key concern for some riders, so you'll be glad to know that the front and rear lights, mudguards and CUBE kickstand are standard features. The powerful Bosch power unit is completely contained inside the down tube, protected by an easy-access cover - and the extra space that this arrangement has freed up means there's the option of an even larger capacity battery, for extra range. Fast-rolling 29er wheels shod with big-volume, grippy Schwalbe tyres work with the Suntour XCM34 Boost fork's 120mm of travel to serve up all the comfort and control you need, whether you're tackling mean city streets or technical forest trails. Strong, progressive Shimano hydraulic disc brakes have got your back on the descents, while the fourth-generation Bosch drive unit and Sram SX Eagle 12-speed transmission give you the power and gear range to take on any climb with ease. The Natural Fit women's saddle and carefully chosen contact points, combined with our Agile Ride Geometry, make for fit and handling that feels completely natural. And, of course, you've the reassurance of knowing that the Access Hybrid EX Allroad has passed every in-house safety test we could throw at it. So don't fret about Jack not being up to the job. Because the Access Hybrid EX Allroad definitely is... whatever the job in question.
AUSSTATTUNG
| FRAME | Aluminium Superlite, Gravity Casting, Agile Ride Geometry, 1.5 Headtube, Internal Cable Routing, Semi-Integrated Battery, Kickstand/Fender/Carrier Mounting Points |
|---|---|
| SIZE | 15", 17", 19", Trapeze: 15", 17", 19" |
| FORK | SR Suntour XCM34 Coil, Tapered, 15x110mm, 120mm, Lockout |
| BRAKE SYSTEM | Shimano BR-MT420/MT400, Hydr. Disc Brake (203/180) |
| REAR DERAILLEUR | Sram SX Eagle™, 12-Speed |
| SHIFTERS | Sram SX Eagle™ Trigger, Single Click |
| CRANKSET | ACID E-Crank, 38T, 175mm |
| CASSETTE | Sram PG-1210 Eagle™, 11-50T |
| CHAIN | Sram SX Eagle™ |
| FRONT HUB | Shimano HB-MT400-B, 15mm, Boost, Centerlock |
| REAR HUB | Shimano FH-TX505, QR, Centerlock |
| RIMS | CUBE EX30, 32H, Disc, Tubeless Ready |
| TYRES | Schwalbe Smart Sam, Active, 2.60 |
| HANDLEBAR | CUBE Rise Trail Bar, 700mm |
| GRIPS | Natural Fit All Terrain |
| SEAT POST | CUBE Performance Post, 30.9mm |
| SEATCLAMP | CUBE Varioclose, 34.9mm |
| SADDLE | Natural Fit Sequence WS |
| HEADSET | FSA Orbit Z 1.5B ZS, Top Zero-Stack 1 1/2" (OD 56mm), Bottom Zero-Stack 1 1/2" (OD 56mm) |
| PEDALS | CUBE PP MTB |
| FRONT LIGHT | AXA Compactline 20, 6-12V, DC |
| REAR LIGHT | Busch&Müller Xeltec, DC |
| KICKSTAND | CUBEstand Cmpt |
| MUDGUARDS | ACID 75 |
| BELL | Mini Bell |
| WEIGHT | 24,8 kg |
| COLOUR | titan´n´berry |
| DRIVE UNIT | Bosch Drive Unit Performance CX Generation 4 (75Nm) Cruise (250Watt) |
| BATTERY | Bosch PowerTube 500 |
| DISPLAY | Bosch Purion |
| CHARGER | Bosch 2A |
| ART. NO | 338266 |
GEOMETRY
Never stand still for too long. It's a pretty good approach to take in life, and it also happens to be one that you could apply to our frame designers. The brand-new Access Hybrid 29 is the result of their never-ending quest for perfection - a fourth-generation Bosch-powered e-MTB that builds on all our experience to make a better handling, easier to live with bike. With a design centred around our new Modular Battery System, its sleek looks are down to the fact that the Bosch power unit lives entirely inside the down tube under a protective, easily accessed cover. The new design frees up enough space for a bottle cage mount and the option of a higher capacity battery, so you can extend your rides even further. The smooth, powerful Bosch motor boosts your pedalling via an intentionally rigid frame design that encompasses a 12mm Boost rear axle, oversized chain stays and a 1.5in head tube - all features designed to ensure efficient power delivery, accurate steering and rock-steady handling. We've designed it around the needs of a 120mm fork - so you've plenty of suspension travel to smooth out the trail ahead - and internal cable routing even includes provision for a stealth dropper post upgrade. And the best news of all? We've designed all this sophisticated frame wizardry in both standard and trapeze options, so that every woman can find the perfect Access Hybrid 29 for her own needs. What's stopping you?
