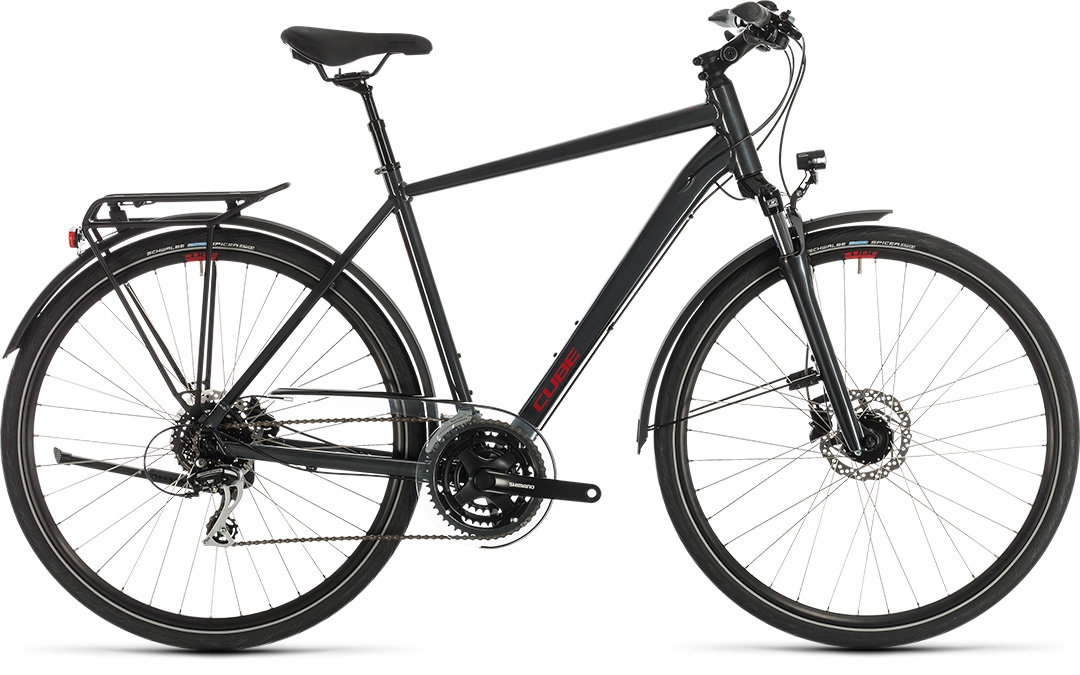

TOURING ONE
The Touring ONE has everything you need for fun, hassle-free cycling - no more, no less. From its light aluminium frame to the carefully selected components, we've concentrated on comfort and efficiency so that you can simply get on and ride. Our engineers created the most comfortable riding position possible with the aid of our Efficient Comfort Geometry, and double-butted aluminium tubes remove weight wherever possible to give better ride quality without sacrificing strength. Ultra-neat rack and mudguard mounting points maintain the Touring ONE's clean looks whilst allowing us to kit it out with a full complement of accessories from kickstand to chain guard and integrated lighting system, so it'll easily take on any role. And, with components like a comfortable Suntour suspension fork, reliable Shimano 24-speed transmission and powerful Shimano hydraulic disc brakes, it's pretty much the Swiss Army knife of cycling. Whether you ride for pleasure or simply to get to work, the Touring ONE will get you where you need to be in comfort and style. Enjoy the ride...
AUSSTATTUNG
| FRAME | Aluminium Superlite Trekking Comfort Double Butted |
|---|---|
| SIZE | Men; 46, 50, 54, 58, 62, Trapeze: 46, 50, 54, Easy Entry: 45, 49, 53 |
| FORK | SR Suntour NEX, 63mm |
| BRAKE SYSTEM | Shimano BR-MT200, Hydr. Disc Brake (160/160) |
| REAR DERAILLEUR | Shimano RD-M360, 8-Speed |
| FRONT DERAILLEUR | Shimano FD-TX800, Topswing, 31.8mm Clamp |
| SHIFTERS | Shimano Altus SL-M315, Rapidfire-Plus |
| CRANKSET | Shimano FC-TY301, 48x38x28T, 175mm |
| CASSETTE | Shimano CS-HG31, 11-34T |
| CHAIN | KMC Z51 |
| FRONT HUB | Shimano DH-3D37, Hub Dynamo, QR, Centerlock |
| REAR HUB | Shimano FH-TX505, QR, Centerlock |
| RIMS | CUBE ZX20, 36H, Disc |
| TYRES | Schwalbe Spicer, Active, 40-622 |
| HANDLEBAR | CUBE Rise Trail Bar, 680mm; EE: CUBE Comfort Shape Bar |
| GRIPS | Natural Fit Comfort |
| SEAT POST | CUBE Suspension Seatpost, 27.2mm |
| SEATCLAMP | CUBE Screwlock, 31.8mm |
| SADDLE | Natural Fit Sequence Comfort |
| HEADSET | CUBE FPH863, Semi-Integrated |
| PEDALS | CUBE PP MTB |
| FRONT LIGHT | AXA Compactline 20, AC |
| REAR LIGHT | Trelock LS 613 Duo Flat |
| KICKSTAND | CUBEstand Cmpt |
| MUDGUARDS | ACID 53 |
| BELL | Mini Bell |

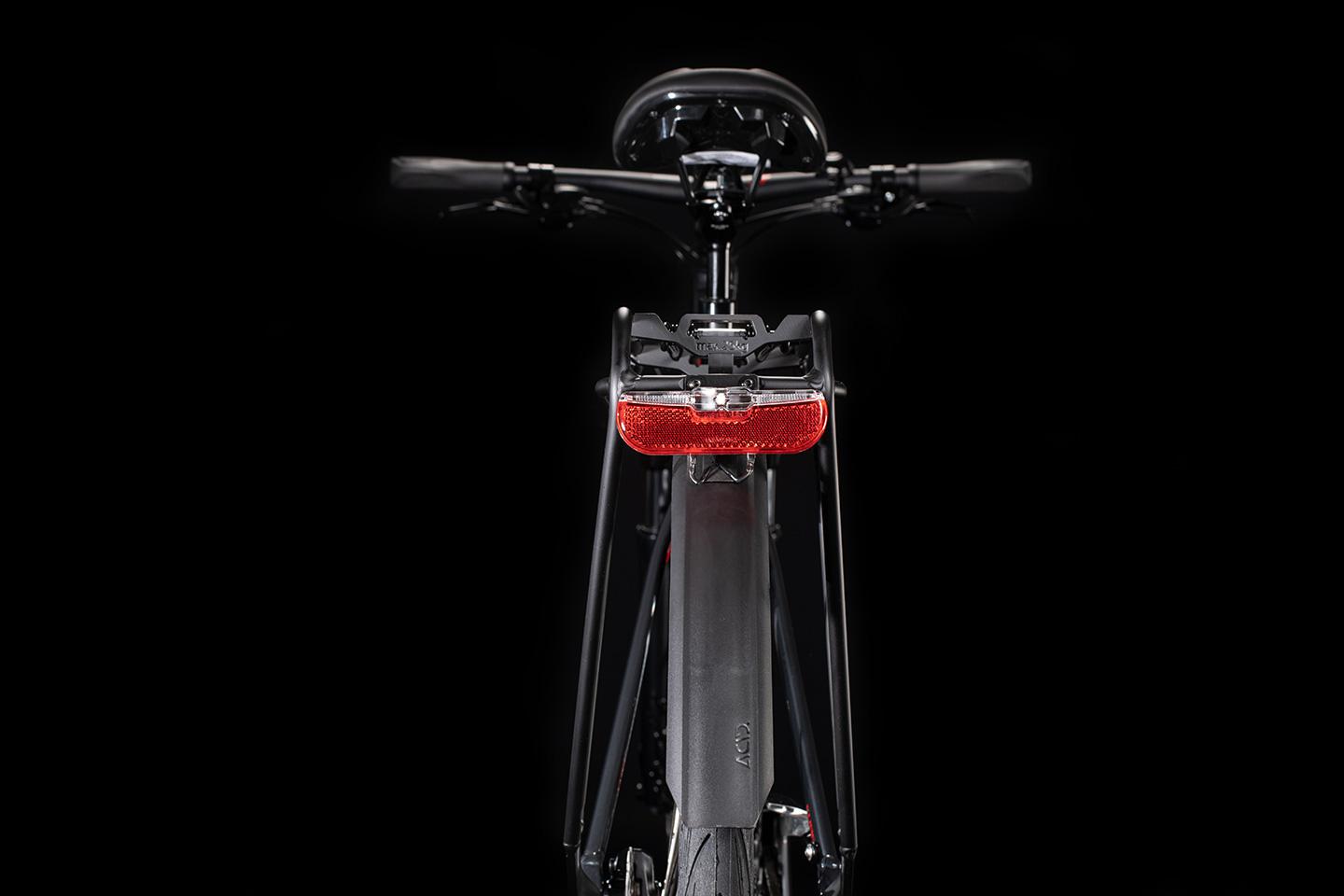

| CARRIER | ACID Semi-Integrated Carrier, ACID RILink Adapter Compatible |
| WEIGHT | 16,6 kg |
| COLOUR | iridium´n´red |
| ART. NO | 348050 |
GEOMETRY

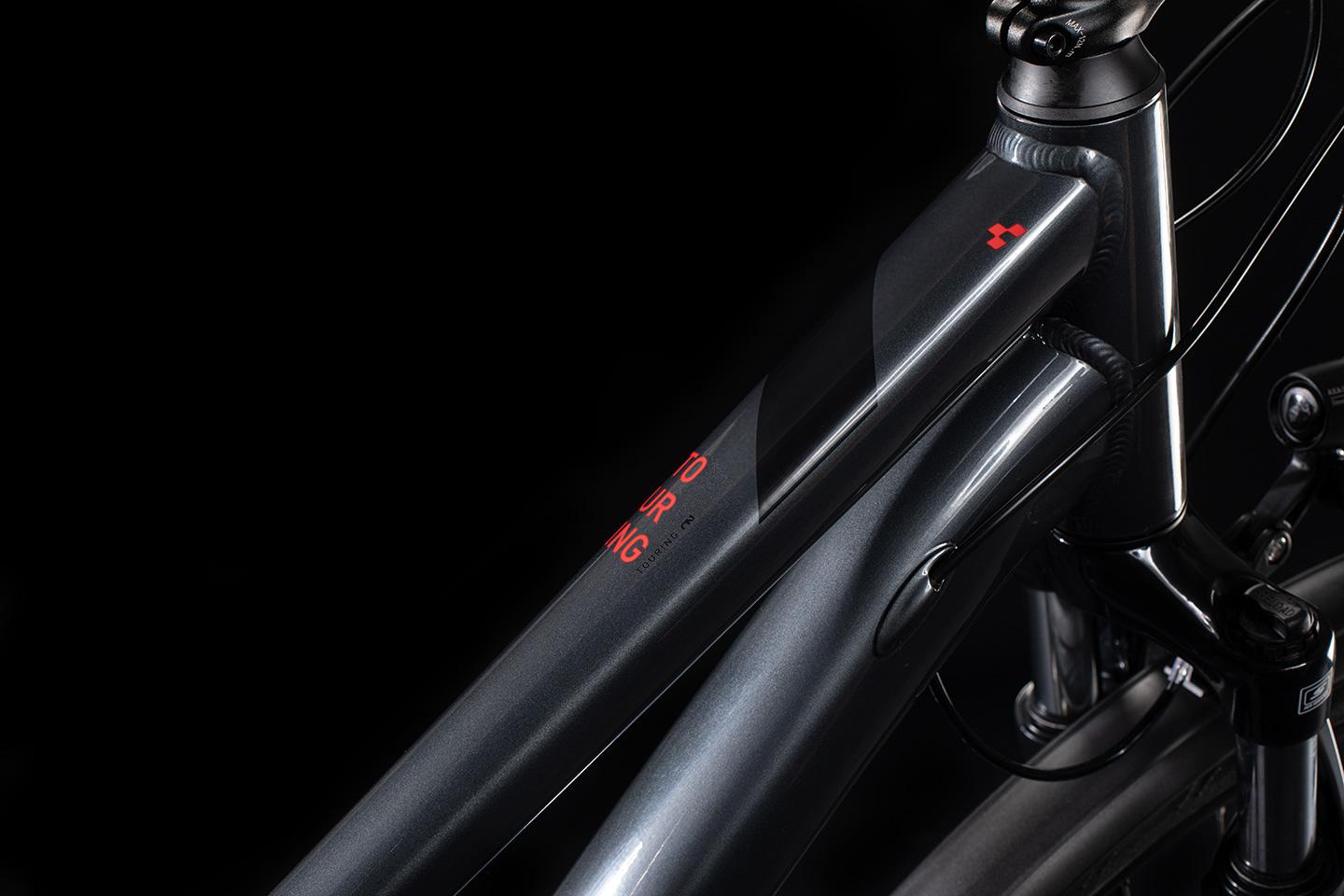

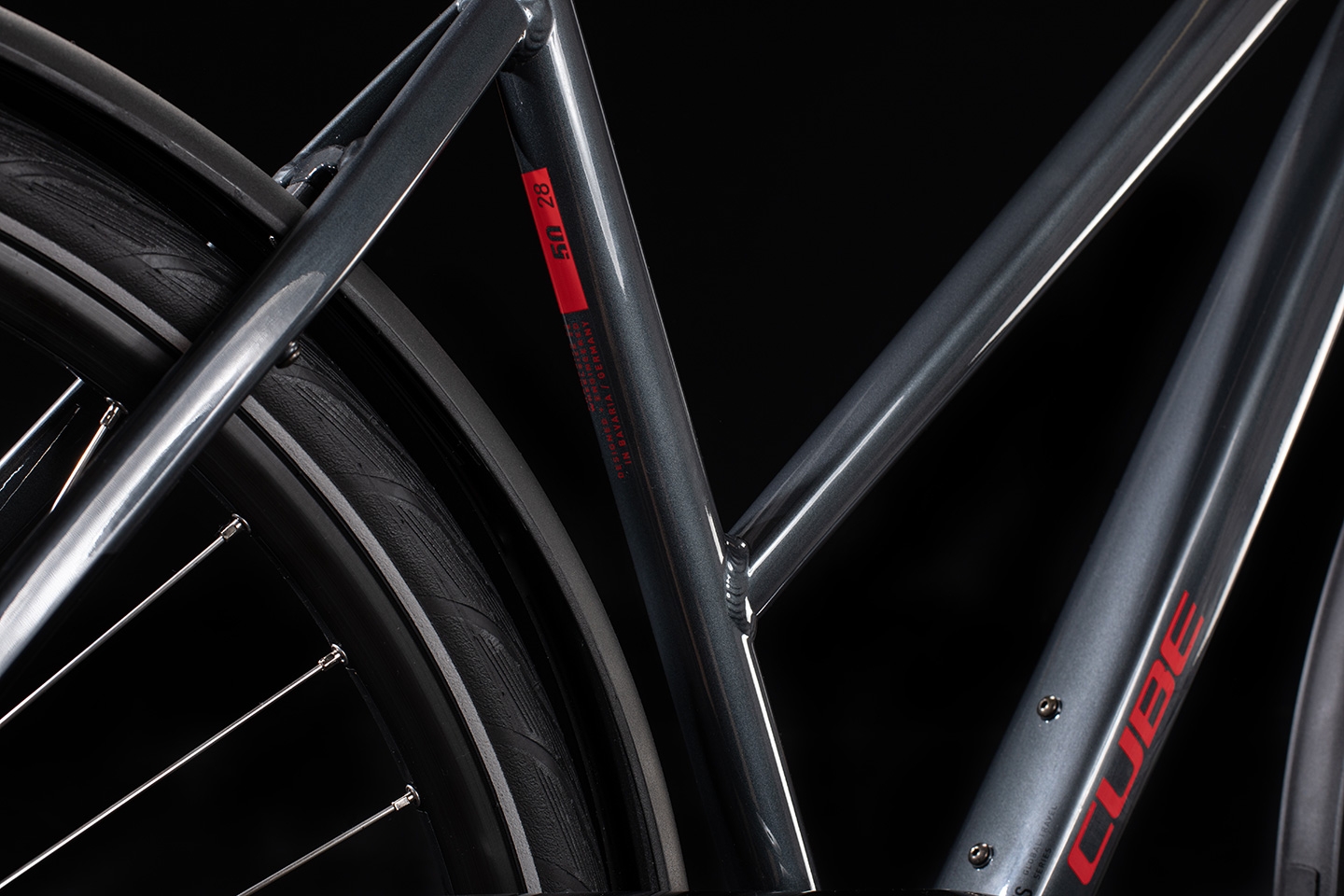

The heart of the Touring is its high-quality, low-weight, double-butted aluminium frame. Designed with our Efficient Comfort Geometry to be comfortable and efficient for long days in the saddle, it'll surprise you with its nimble and easy handling. The Easy Entry version is sleek and easy to use, with the best possible access for easy mounting and dismounting. There's also a sporty-looking trapeze frame, while the men's classic diamond frame's five sizes mean you're assured of finding the perfect fit for you. Every frame features our exceptionally neat luggage carrier and cables routed inside the down tube, which keeps the looks svelte and ensures that your gears will keep shifting smoothly for longer. And, of course, we remembered to leave space for water bottle mounts for those long excursions into the countryside. We like to think we thought of everything... so you can just enjoy the ride.
