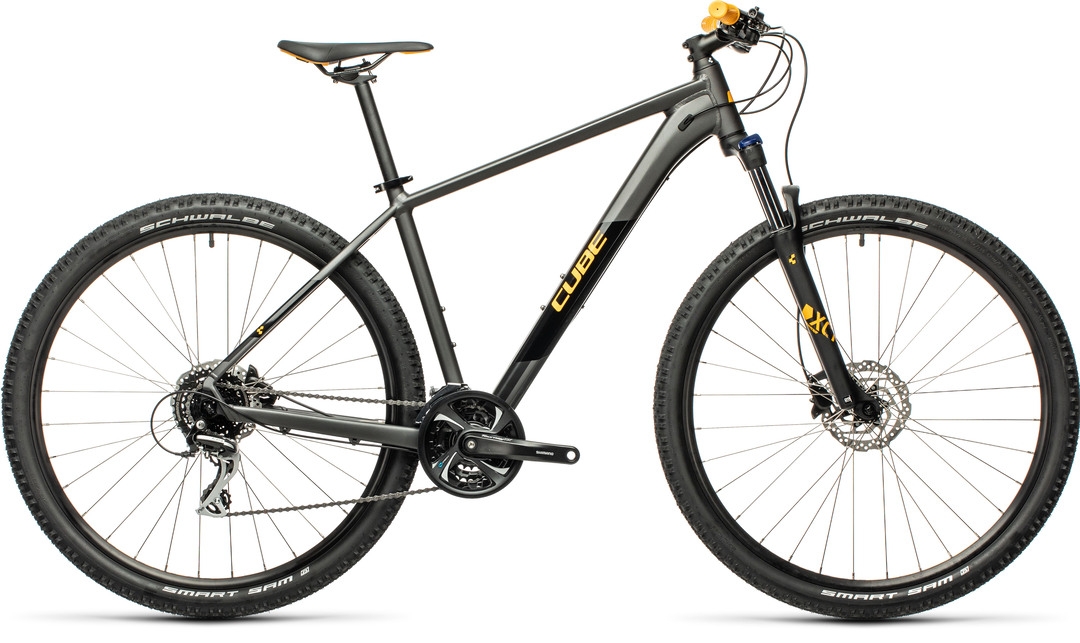

AIM
RACE
When you know you've got the mountain biking bug, you'll need a bike that allows your skills and confidence to grow. With its suspension fork and powerful, dependable Shimano hydraulic disc brakes, you can be sure that the Aim Race has got your back. Add the reliability of the slick-shifting Shimano gears, and you'll know you're onto a winner. It even features hidden rack and mudguard mounting points, so a conversion to weekend tourer or weekday commuter is quick and easy.
AUSSTATTUNG
| FRAME | Aluminium Lite, AMF, Internal Cable Routing, Easy Mount Kickstand Ready |
|---|---|
| SIZE | Size Split: 27.5: XS (14"), S (16") // 29: M (17"), L (19"), XL (21"), XXL (23") |
| FORK | SR Suntour XCM Disc, 100mm, Lockout |
| BRAKE SYSTEM | Shimano BR-MT200, Hydr. Disc Brake (160/160) |
| REAR DERAILLEUR | Shimano RD-M360-SGS, 8-Speed |
| FRONT DERAILLEUR | Shimano FD-M310, Top Swing, 31.8mm Clamp |

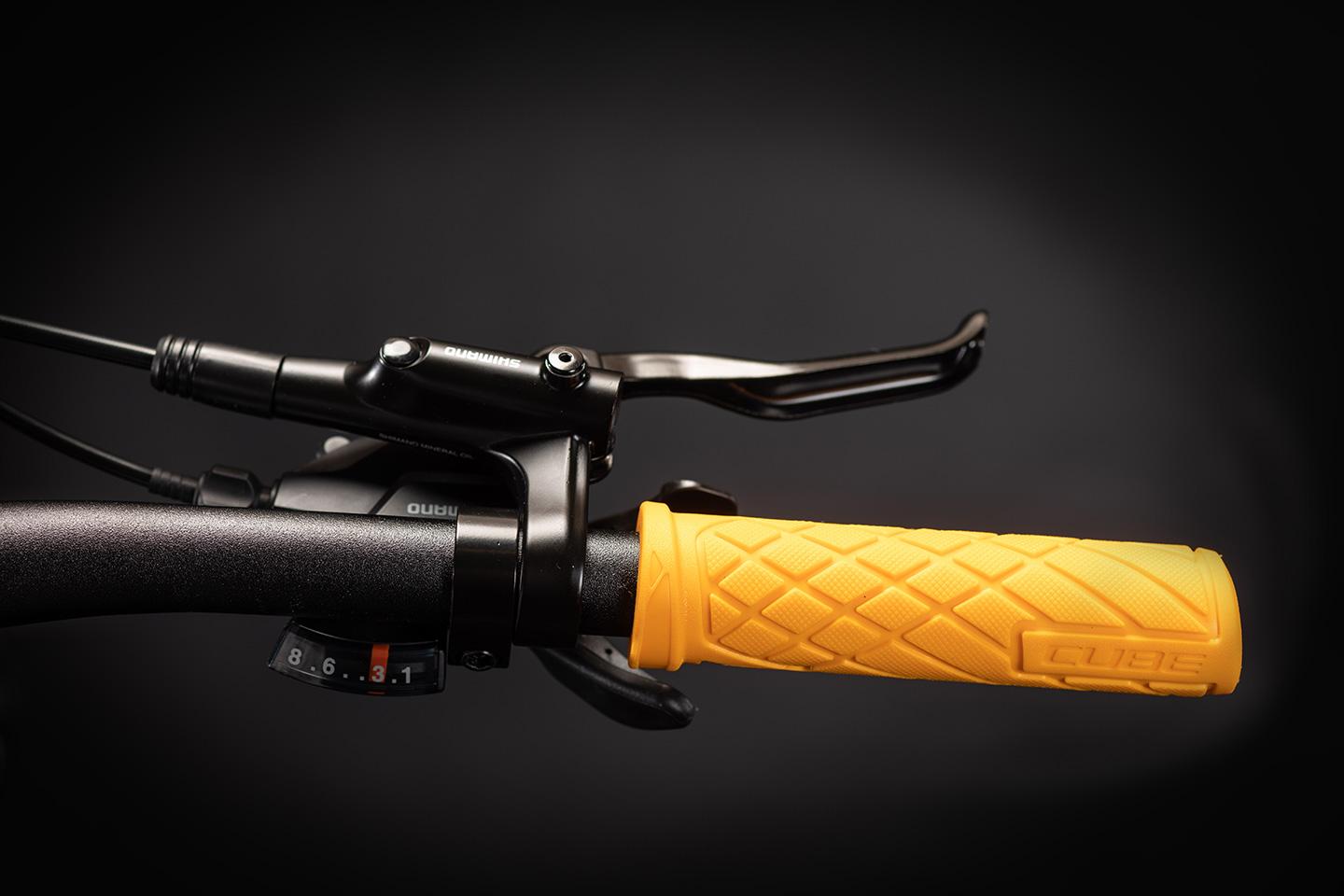

| SHIFTERS | Shimano SL-M315, Rapidfire-Plus |
| CRANKSET | Shimano FC-TX801, 42x32x22T, 170mm |
| CASSETTE | Shimano CS-HG318, 11-34T |
| CHAIN | KMC CU8.3 |
| FRONT HUB | Shimano HB-TX505, QR, Centerlock |
| REAR HUB | Shimano FH-TX505, QR, Centerlock |
| RIMS | CUBE ZX20, 32H, Disc |
| TYRES | Schwalbe Smart Sam, Active, 2.1 |
| STEM | CUBE Performance Stem, 31.8mm |
| HANDLEBAR | CUBE Rise Trail Bar, 680mm |
| GRIPS | CUBE Performance Grip |
| SEAT POST | CUBE Performance Post, 27.2mm |
| SEATCLAMP | CUBE Varioclose, 31.8mm |

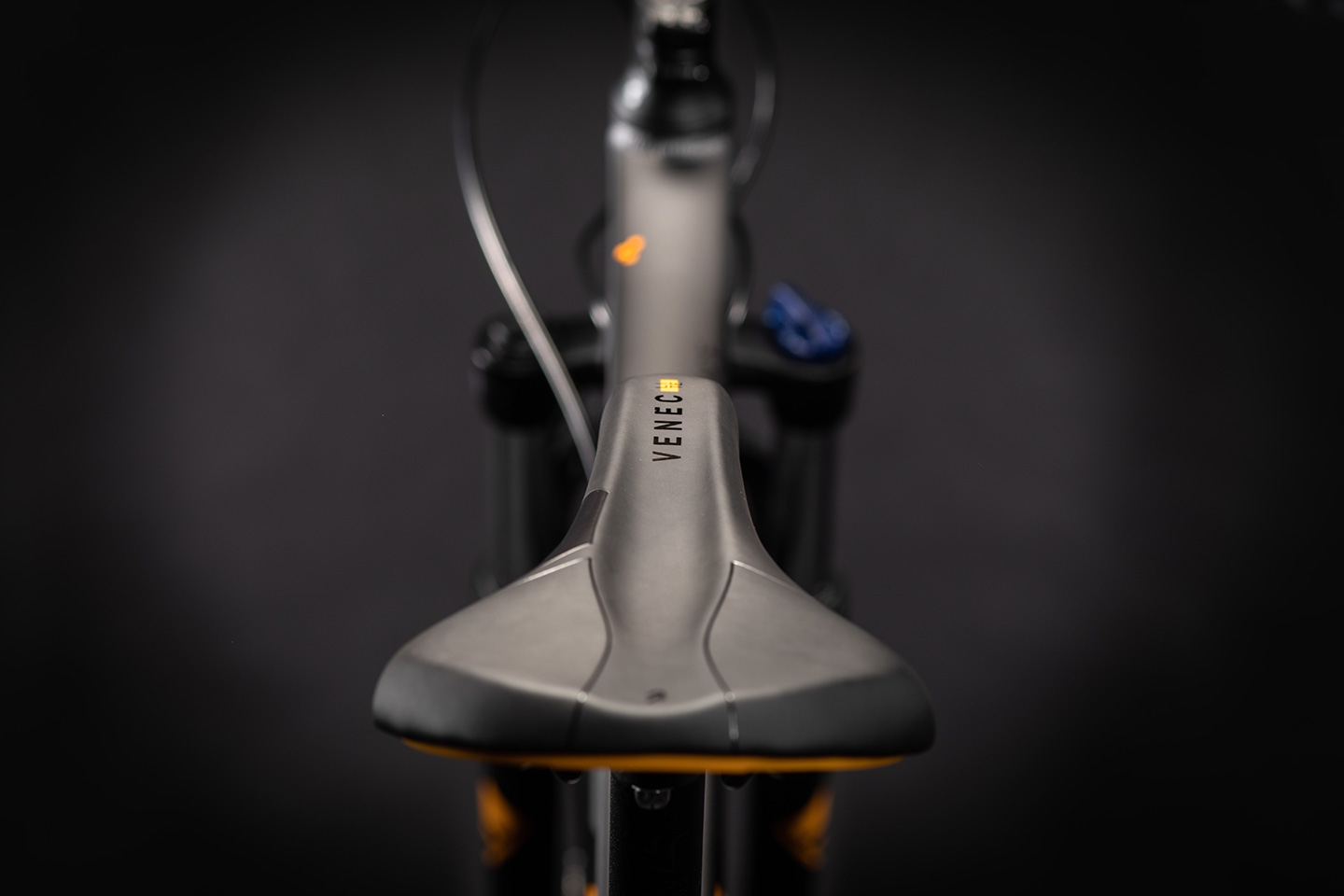

| SADDLE | Natural Fit Venec Lite |
| HEADSET | CUBE FPH863, Semi-Integrated |
| PEDALS | CUBE PP MTB |
| WEIGHT | 14,3 kg |
| COLOUR | darkgrey´n´orange |
| ART. NO | 401400 |
GEOMETRY

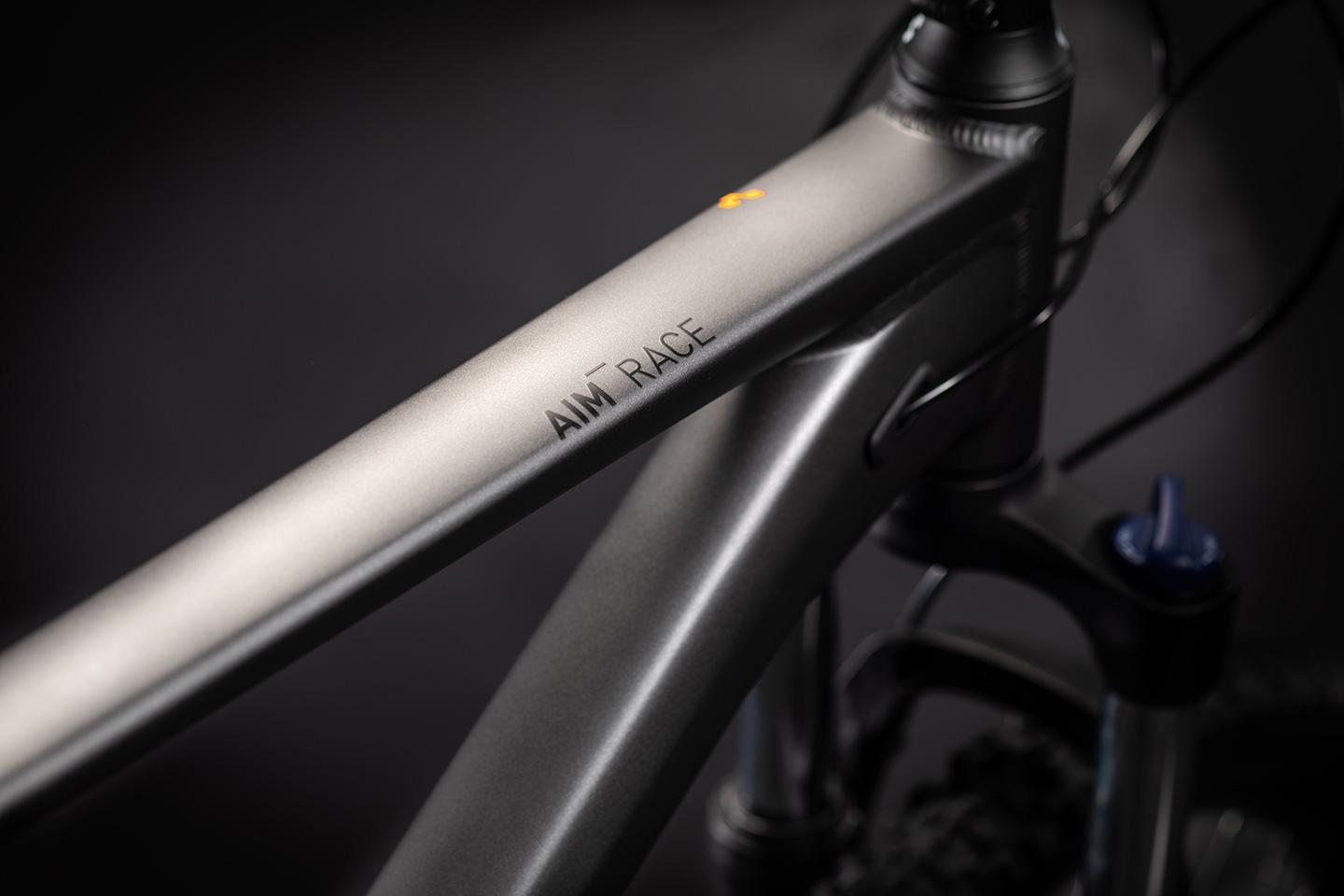

You want a bike that responds quickly, safely and intuitively. That's why the Aim's top and down tubes have complex profiles - to ensure that it steers accurately and accelerates effortlessly. Built with 6061 aluminium using our Advanced Mechancial Forming process, it's your guarantee of a lightweight, comfortable and durable frame. Internally routed cables keep your gears running smoothly with reduced maintenance, and Agile Ride Geometry delivers assured, nimble handling to put a smile on your face, every time. There's even rack and guard mounts, too, for added versatility.
