REACTION
TM
With its fast-rolling 29er wheels and RockShox 35 Silver air fork boasting 130mm of smooth, easily adjustable travel, you can tell right away that the Reaction TM is a bike that's up for a challenge. We fitted Magura's powerful MT Thirty hydraulic disc brakes - with a 200mm rotor up front and a 180mm at the rear - and a wide 760mm handlebar to ensure you're always in full control, even on the toughest trails. Sram's simple, reliable and wide-ranging SX Eagle 1x12 transmission puts the right gear for any situation within easy reach. And we even fitted a dropper post, so you're ready for those pulse-quickening line choices.
AUSSTATTUNG
| FRAME | Aluminium Lite, Trail Motion Geometry, AMF, ARG, Internal Cable Routing, Easy Mount Kickstand Ready, Tapered Headtube, Press Fit BB, Fits up to 2.8" 27.5+ Tires |
|---|---|
| SIZE | 29: S (16"), M (18"), L (20"), XL (22") |
| FORK | RockShox 35 Silver TK Air, 110x15mm, Tapered, 130mm |
| SUSPENSION FORK | RockShox 35 Silver TK Air, 110x15mm, Tapered, 130mm |
| BRAKE SYSTEM | Magura MT Thirty, Front 4-Piston/Rear 2-Piston, Hydr. Disc Brake (203/180) |
| REAR DERAILLEUR | Sram NX Eagle™, 12-Speed |
| SHIFTERS | Sram SX Eagle™ Trigger |

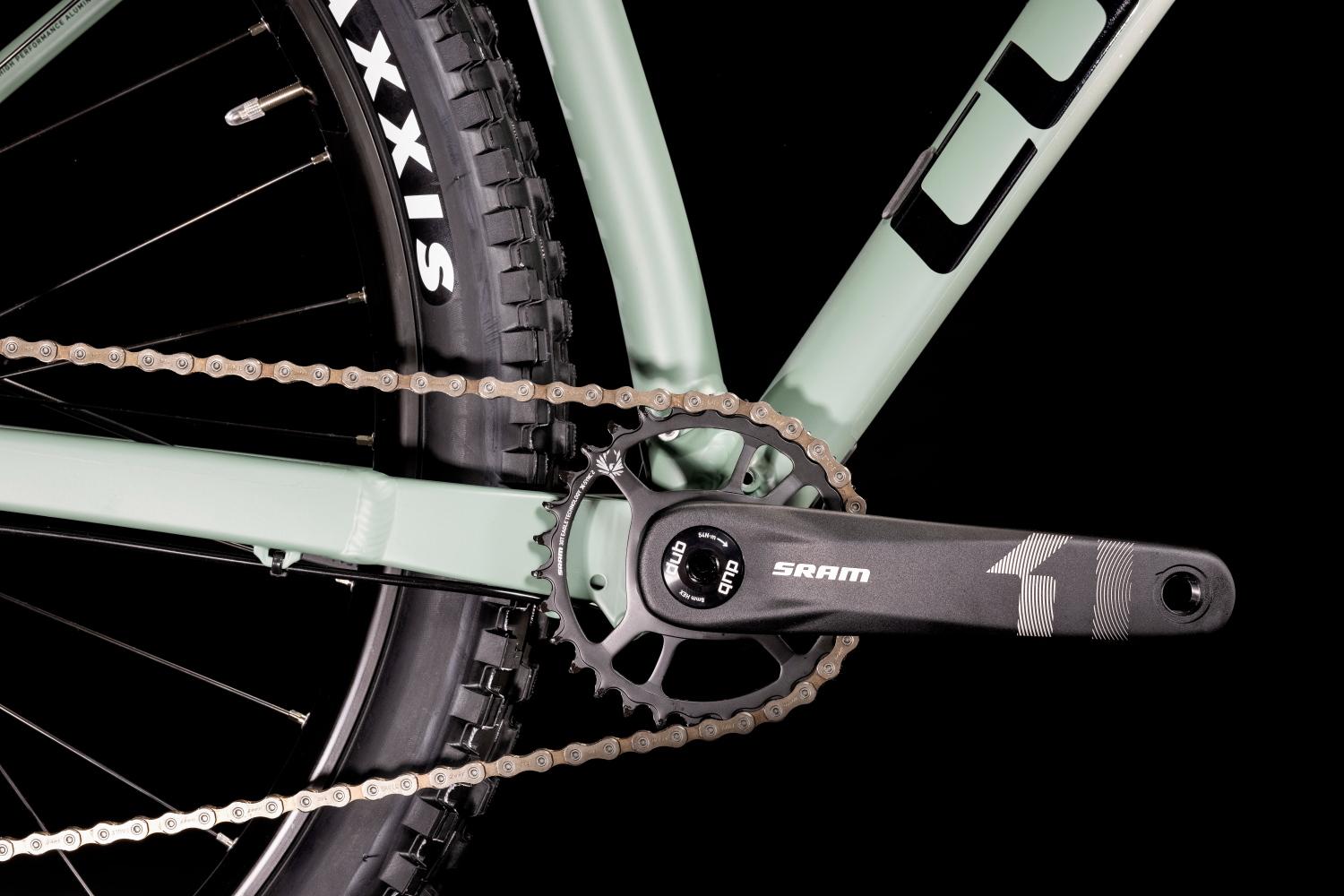

| CRANKSET | Sram X1 1000 Eagle™ DUB 30T, Boost, 170mm |
| CASSETTE | Sram PG-1210 Eagle™, 11-50T |
| CHAIN | Sram SX Eagle™ |
| FRONT HUB | Shimano HB-MT400-B, 15mm, Boost, Centerlock |
| REAR HUB | Shimano FH-MT400-B, 12mm, Boost, Centerlock |
| RIMS | CUBE EX30, 32H, Disc, Tubeless Ready |
| FRONT TYRE | Maxxis Minion DHF, MaxxTerra/EXO+, Tubeless Ready, 2.5 WT |
| REAR TYRE | Maxxis Minion DHR II, MaxxTerra/EXO+, Tubeless Ready, 2.4 WT |
| STEM | Newmen Evolution 318.4, 31.8mm |
| HANDLEBAR | Newmen Evolution 318.20, 760mm |
| GRIPS | ACID React Pro |

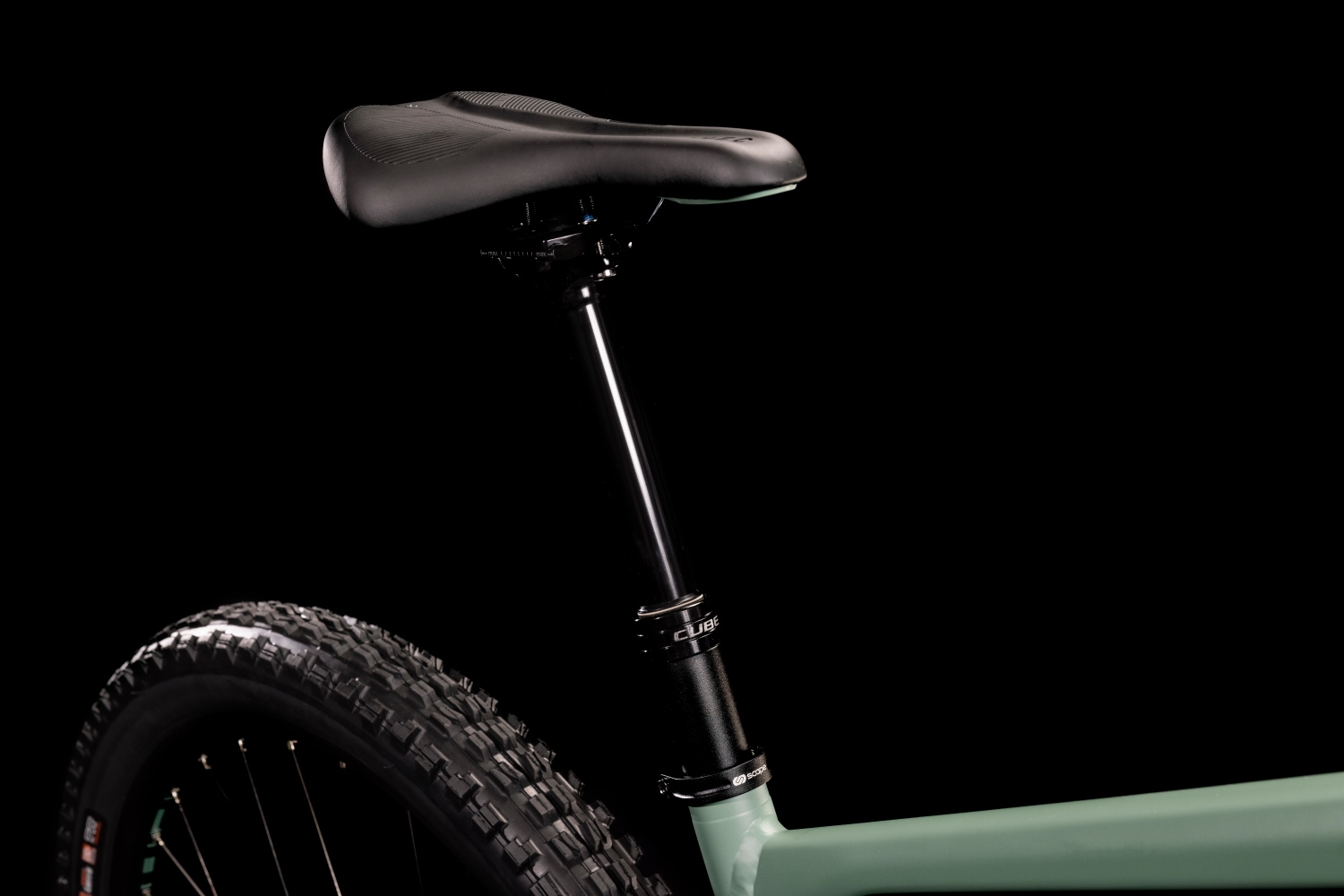

| SEAT POST | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 30.9mm (S: 120mm, M, L, XL: 130mm) |
| SEAT CLAMP | CUBE Screwlock, 34.9mm |
| SADDLE | Natural Fit Venec Lite |
| HEADSET | VP Integrated, Top 1 1/8", Bottom 1 1/2" |
| PEDALS | ACID PP MTB |
| WEIGHT | 14,7 kg |
| COLOUR | olive´n´lime |
| ART. NO | 515100 |
GEOMETRY

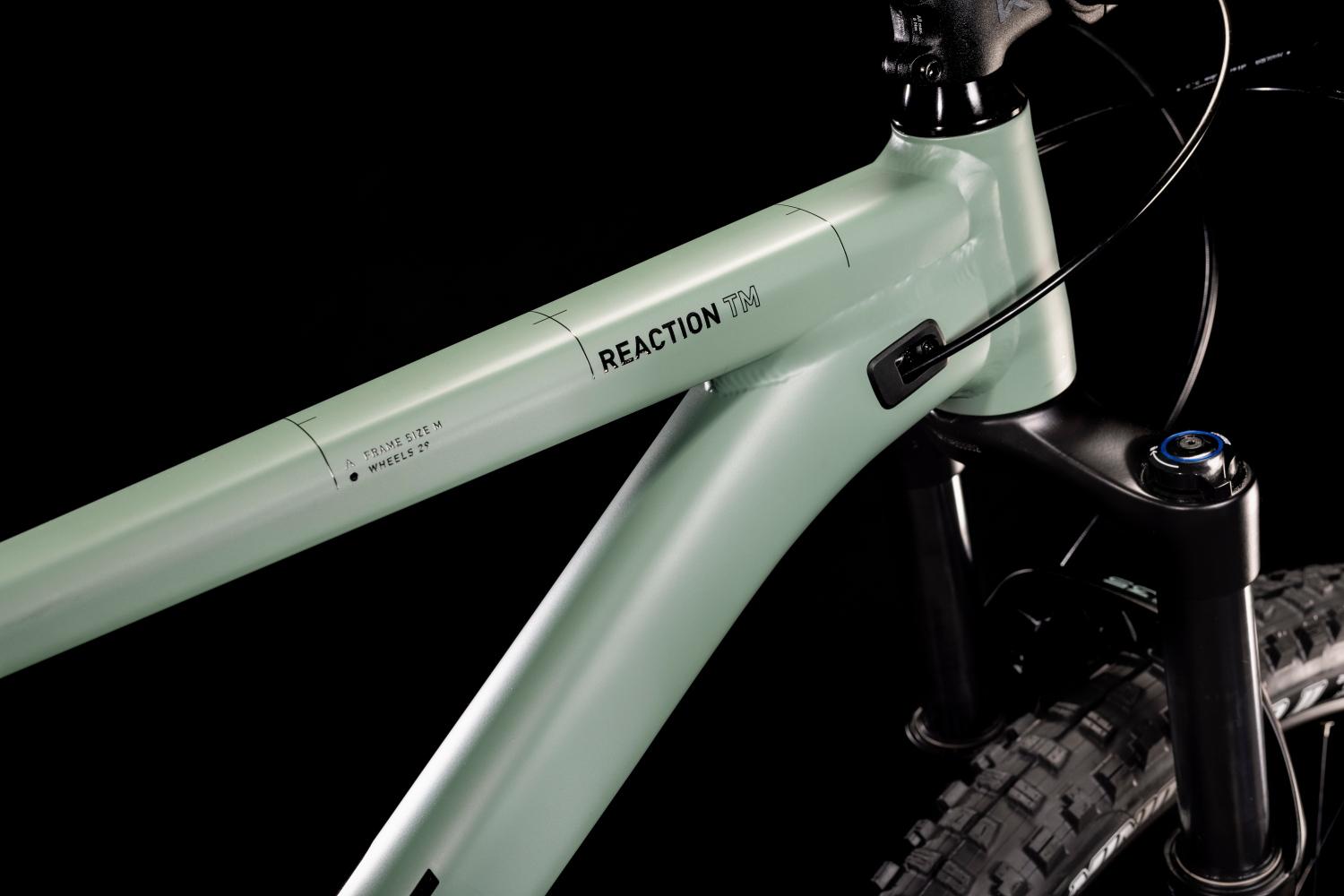

The Reaction TM's triple-butted, hydroformed aluminium chassis encompasses all our frame-building know-how to create a bike that's fast, light and tough. The Boost thru axle, complex profile down tube and tapered head tube combine to ensure accurate steering, even on rough trails. But we didn't forget comfort - slimmed-down seatstays will help keep you riding 'til sundown. And internal cable routing keeps mud and water out of your gear cables, so you can spend more time riding and less time wrenching.
