AXIAL WS
RACE
Getting the best out of your riding, training or racing is important. It's why we made the Axial WS Race. Designed to combine comfort and speed, the legendary reliability and performance of Shimano's 105 components let you concentrate on the ride. Slick, wide-ranging 2x11 gears tackle any route with ease, while powerful hydraulic disc brakes give you the confidence to push your limits, whatever the conditions. Ride fast, ride free.
AUSSTATTUNG
| FRAME | Aluminium 6061 T6 Superlite, Road Comfort Geometry, Fender Option, 12x142mm |
|---|---|
| SIZE | 47, 50, 53, 56 |
| FORK | CUBE CSL Race Disc, Full Carbon, 1 1/8" - 1 1/4" Tapered, Flat Mount, 12x100mm |
| RIGID FORK | CUBE CSL Race Disc, Full Carbon, 1 1/8" - 1 1/4" Tapered, Flat Mount, 12x100mm |
| BRAKE SYSTEM | Shimano 105 BR-R7070, Hydr. Disc Brake, Flat Mount (160/160) |
| REAR DERAILLEUR | Shimano 105 RD-R7000-DGS, 11-Speed |
| FRONT DERAILLEUR | Shimano 105 FD-R7000, 31.8mm Clamp |
| SHIFT/ BRAKE LEVERS | Shimano 105 ST-R7025 |

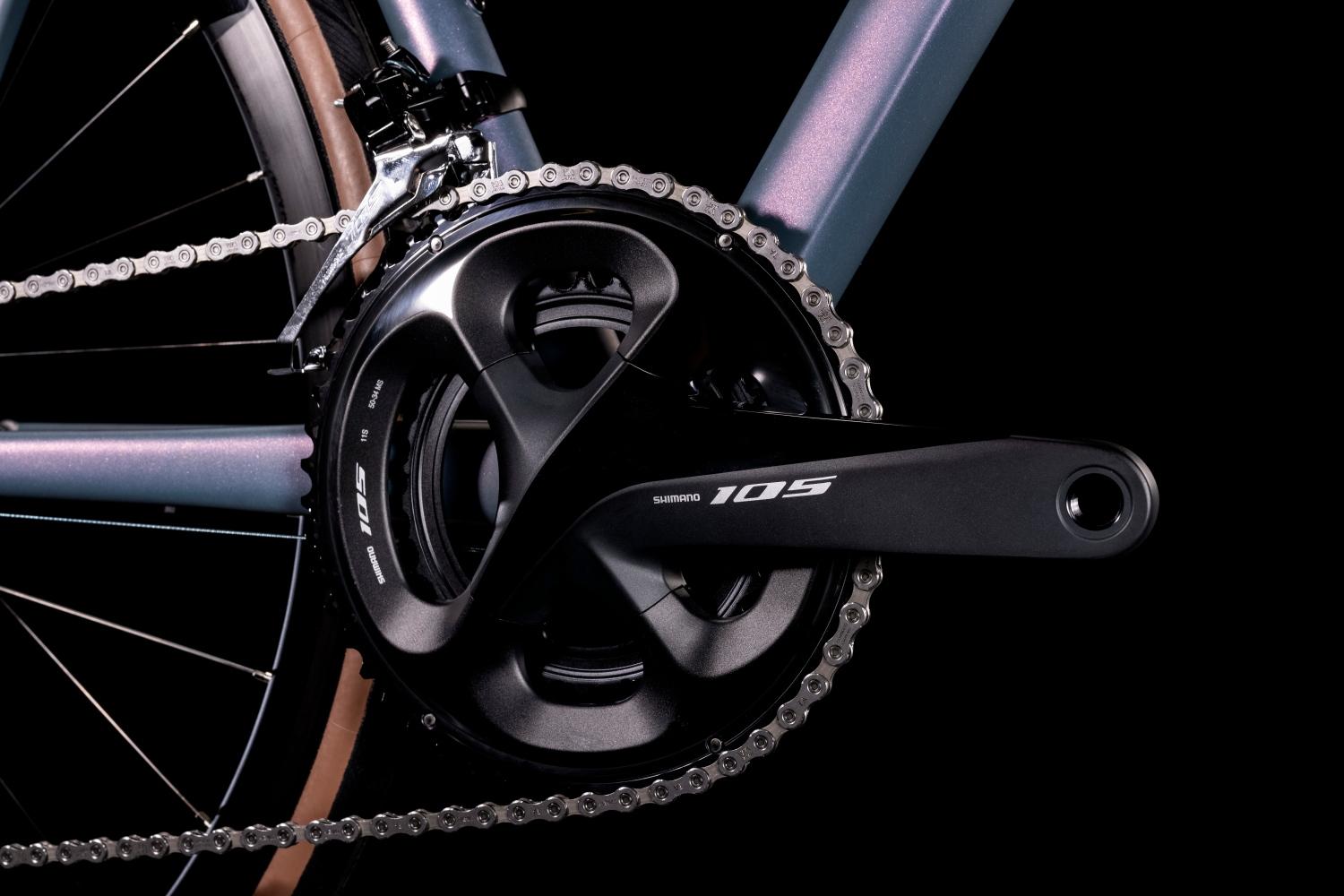

| CRANKSET | Shimano 105 FC-R7000, 50x34T |
| CASSETTE | Shimano 105 CS-HG700, 11-34T |
| CHAIN | Shimano CN-HG600-11 |
| WHEELSET | CUBE RA 1.9 Aero Disc, 12x100mm / 12x142mm |
| TYRES | Conti Ultra Sport 3, Kevlar, 28-622 |
| STEM | CUBE Performance Stem SL, 31.8mm |
| HANDLEBAR | CUBE Compact Race Bar |
| HANDLEBAR TAPE | ACID Bartape RD |
| SEAT POST | CUBE Performance Post, 27.2mm |
| SEAT CLAMP | CUBE Screwlock, 31.8mm |
| SADDLE | Natural Fit Venec Lite WS |
| HEADSET | VP Z-t, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Integrated 1 1/4" |
| WEIGHT | 9,7 kg |
| COLOUR | sparklelilac´n´black |
| ART. NO | 529300 |
GEOMETRY

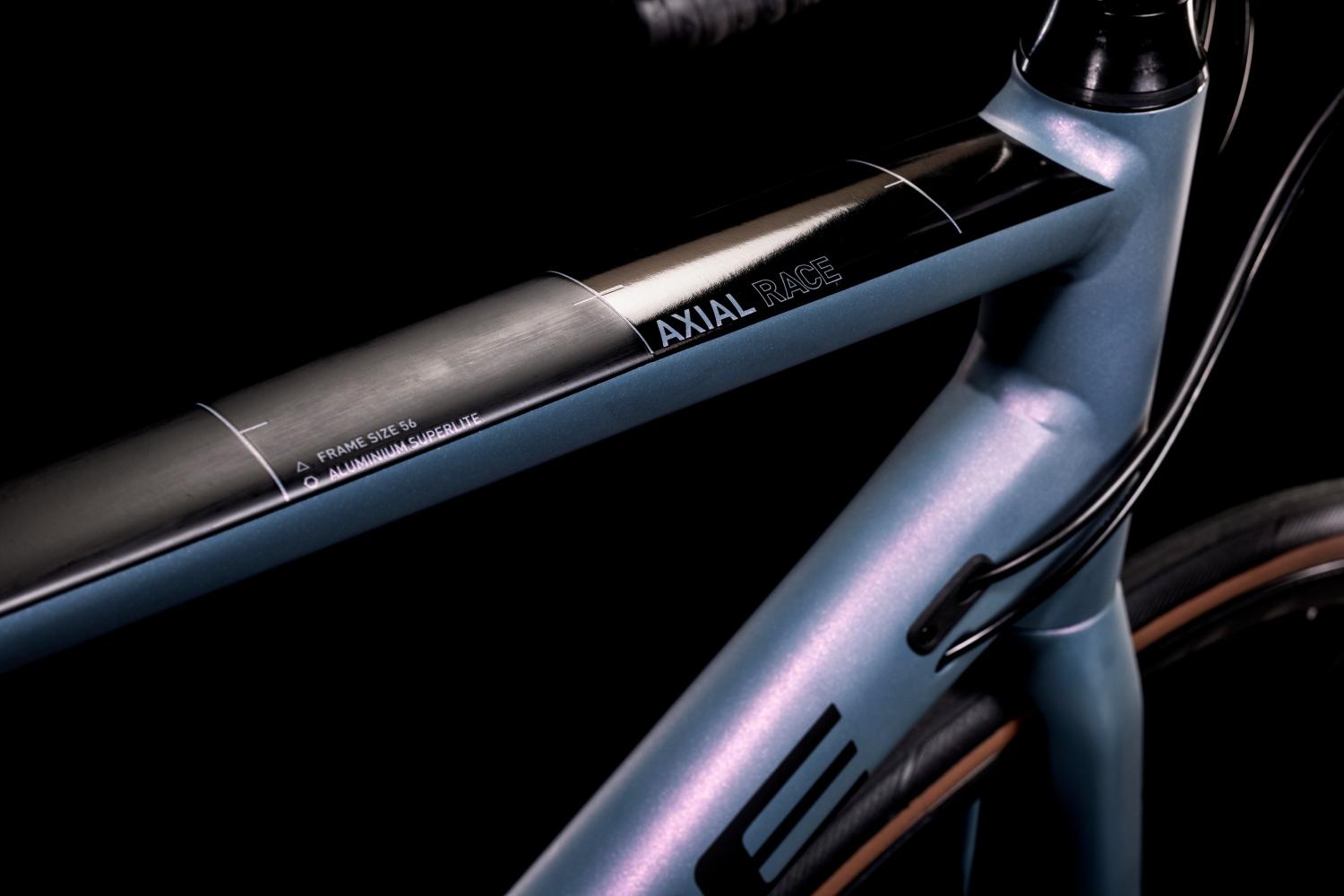

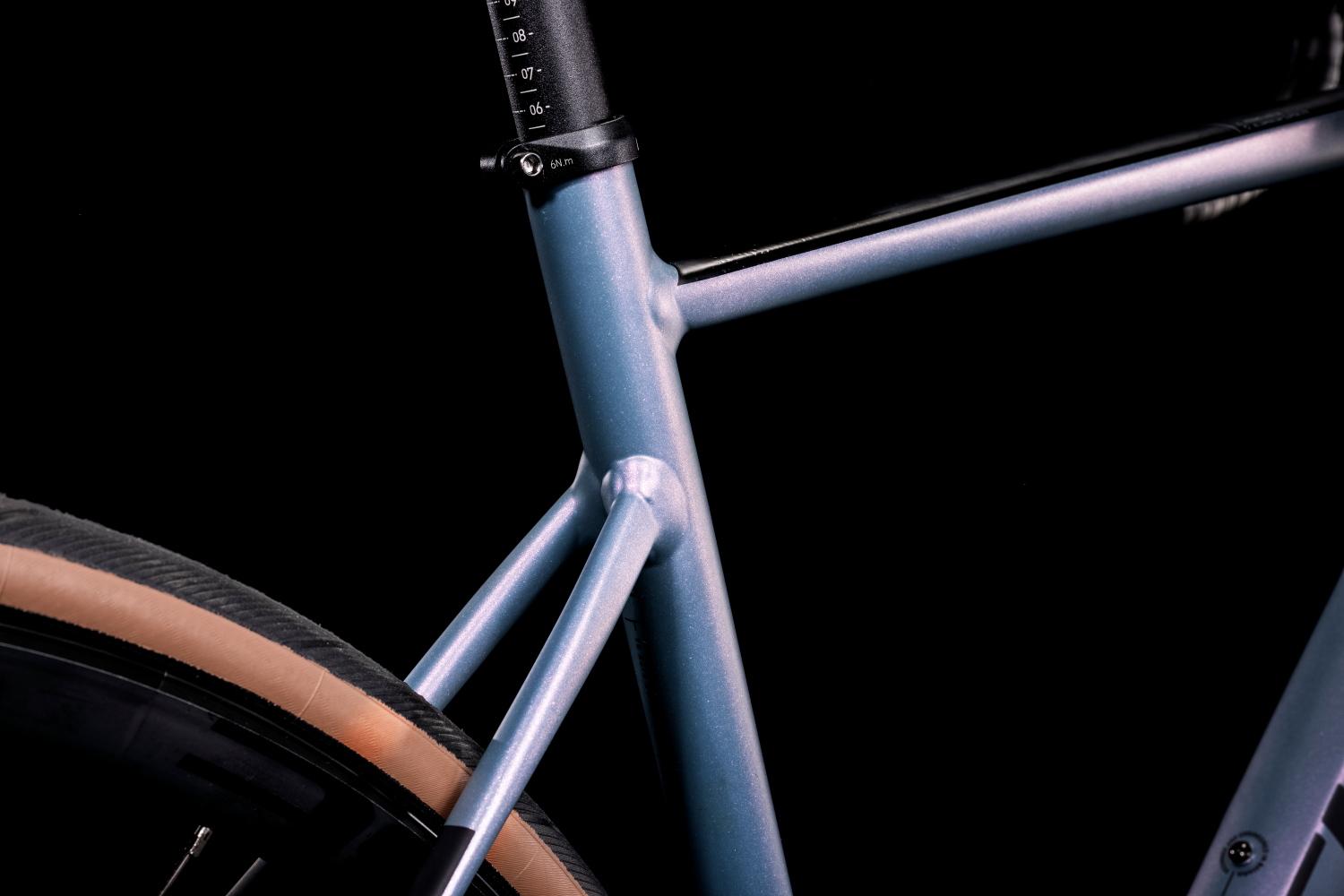

We built the Axial WS Race's frame for efficiency and comfort. With its tapered head tube, cross-ovalised down tube and thru axles front and rear, it delivers uncompromising speed and steering accuracy. Disc brake mounts ensure even the longest descent is no problem. And a carbon fork and slender seatstays help keep you comfortable, however long you're in the saddle.
