ACID 240 HYBRID ROOKIE
SL
Kids aren't daft, and there comes a time when they'll want a bike as good as mum and dad's. With the Acid 240 Hybrid Rookie SL, now they can. It features the same Bosch drive unit and battery as many of our adult hybrids, so your young rider has the power boost they need to ride further, faster and longer - good news for family outings. The Suntour air fork is easily adjustable to suit smaller, lighter riders - we even used a thinner handlebar and grips for better comfort and control with small hands. Shimano's 10-speed gears are super reliable and offer a great range, and powerful hydraulic disc brakes safely rein in any excess enthusiasm. It's good to go.
AUSSTATTUNG
| FRAME | Aluminium Superlite, Gravity Casting, Agile Ride Geometry, Double Butted, Disc Only, Internal Cable Routing |
|---|---|
| SIZE | 24" |

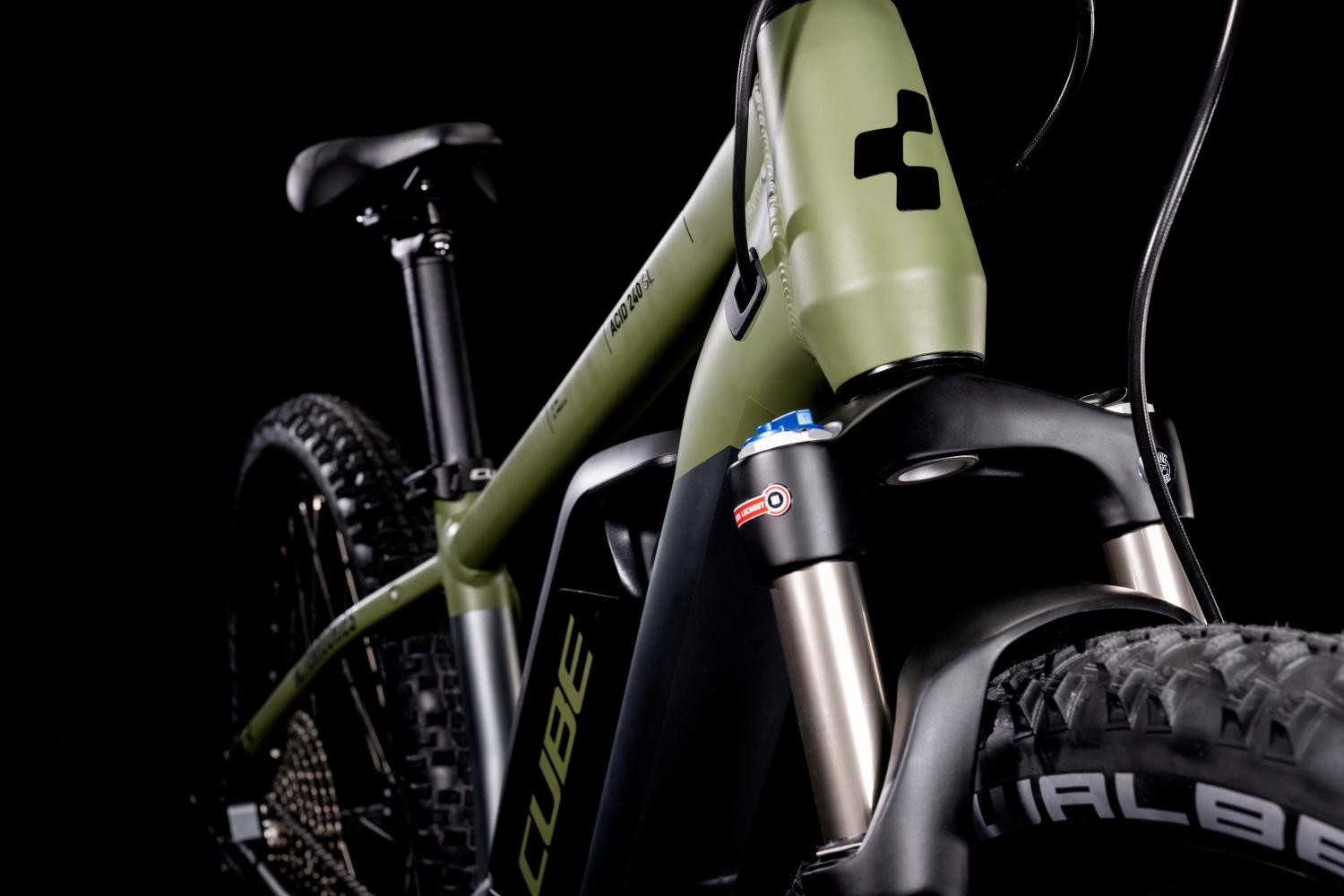

| FORK | SR Suntour XCR LO Air JR, 80mm |
| SUSPENSION FORK | SR Suntour XCR LO Air JR, 80mm |
| BRAKE SYSTEM | Magura MT Thirty, Front 2-Piston/Rear 2-Piston, Hydr. Disc Brake (180/160) |
| REAR DERAILLEUR | Shimano Deore RD-M4120-SGS, 10-Speed |
| SHIFTERS | Shimano Deore SL-M4100, Rapidfire-Plus |
| CRANKSET | ACID E-Crank, 160mm, 38T |
| CASSETTE | Shimano Deore CS-M4100, 11-42T |
| CHAIN | KMC X10 |
| RIMS | CUBE ZX20, 32H, Disc |
| TYRES | Schwalbe Smart Sam, Active, 2.35 |
| STEM | CUBE Performance Stem Kids, 25.4mm |
| HANDLEBAR | CUBE Rise Trail Bar Kids, 590mm, 25.4 |
| GRIPS | Natural Fit Kids Grip, Ø 19mm |
| SEAT POST | CUBE Performance Post, 30.9mm |
| SEAT CLAMP | CUBE Varioclose, 34.9mm |
| SADDLE | CUBE Kid |
| HEADSET | CUBE FPH863, Semi-Integrated |
| PEDALS | CUBE PP MTB |
| WEIGHT | 18,7 kg |
| COLOUR | trailmotion |
| DRIVE UNIT | Bosch Drive Unit Active Generation 3 (40Nm) Cruise (250Watt) |

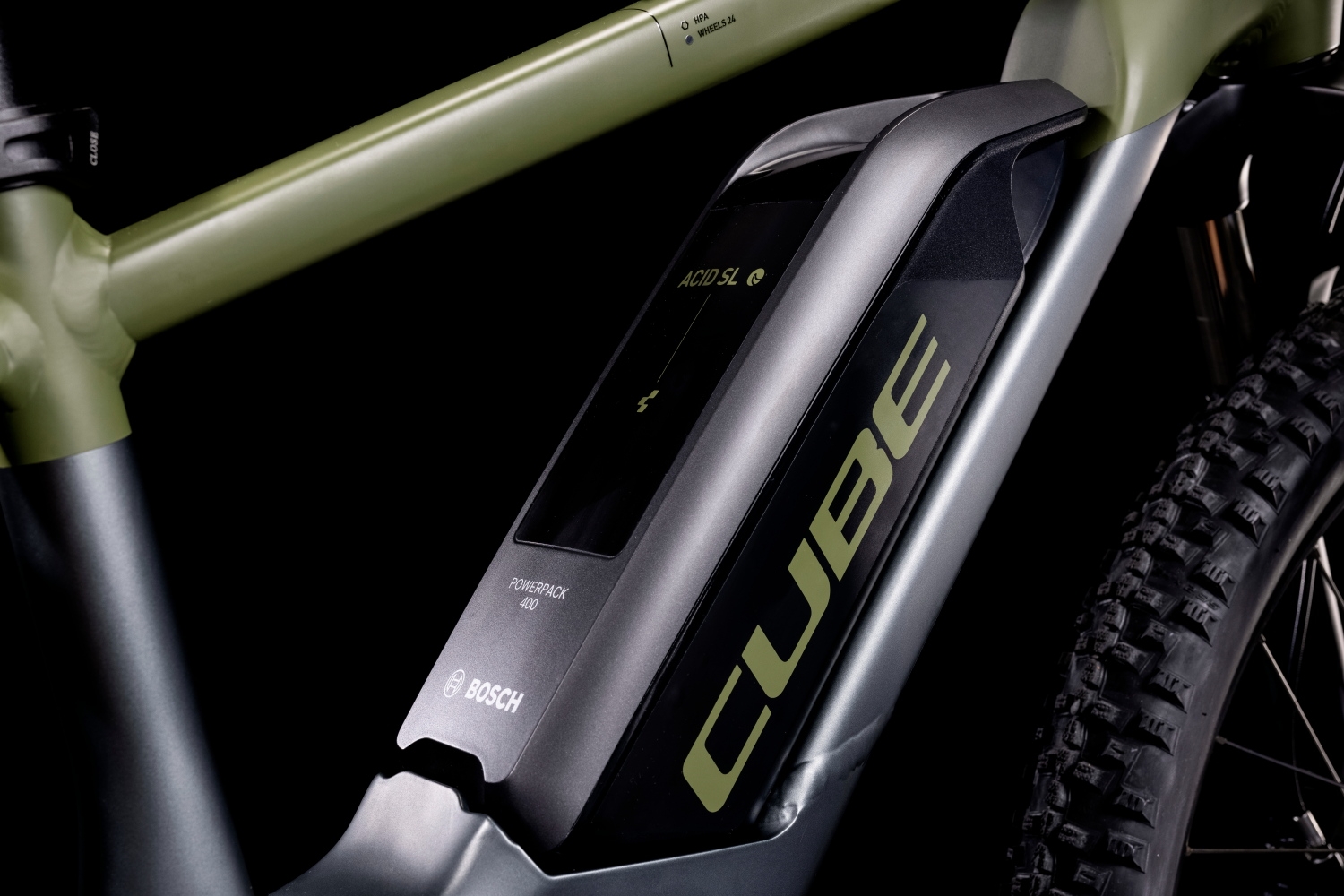

| BATTERY | Bosch PowerPack 400 |
| DISPLAY | Bosch Purion |
| CHARGER | Bosch 2A |
| ART. NO | 530060 |
GEOMETRY
It's fair to say that Bosch didn't have perfectly proportioned kids' bikes in mind when they designed their world-beating drive systems, but that hasn't prevented us from neatly integrating it into the Acid 240 Hybrid Rookie's frame. Using the same design and construction techniques as our adult hybrid mtbs, we've built a junior hybrid that's both fun to ride and safe as well. Internal cable routing significantly reduces maintenance, and we even included mounts for a CUBE kickstand.
