REACTION HYBRID
SL 750 ALLROAD 29

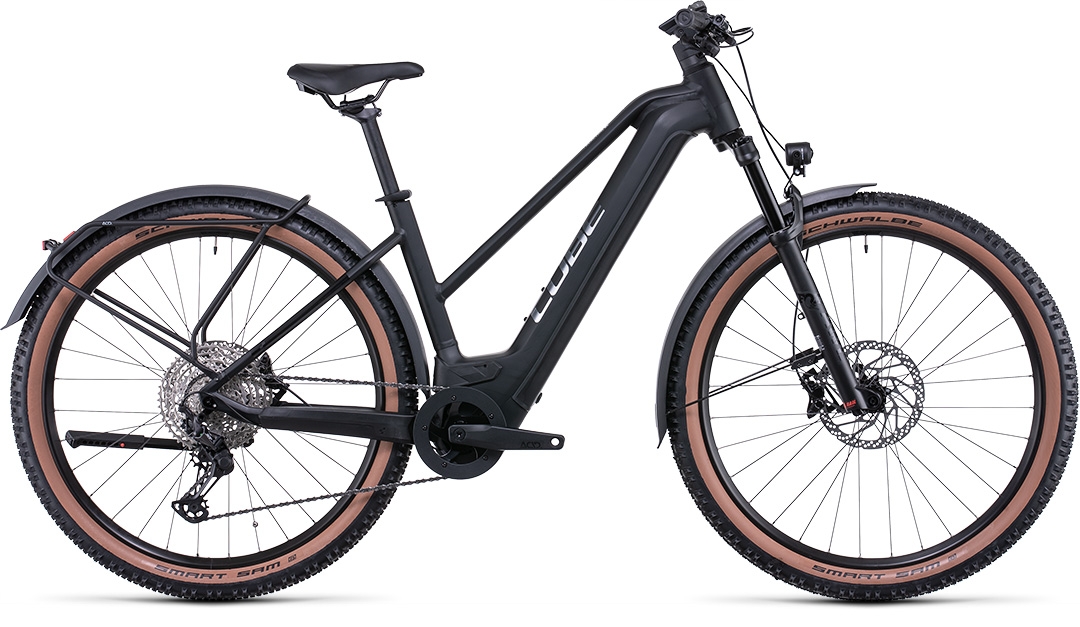

With the brand-new Reaction Hybrid SL 750 Allroad 29 you'll be able to take the road less travelled, wherever it leads. Bosch's fourth-generation CX drive unit and high-capacity 750Wh battery serve up mile after mile (after mile) of dependable pedal assistance. Fox's 34 AWL fork smooths the way ahead, while Shimano's slick-shifting XT 1x12 gears put you in full control. Full-length mudguards and a luggage carrier add stacks of practicality. And the integrated light set and powerful, four-piston Shimano hydraulic disc brakes ensure your safety in all conditions and at any time of day.
AUSSTATTUNG

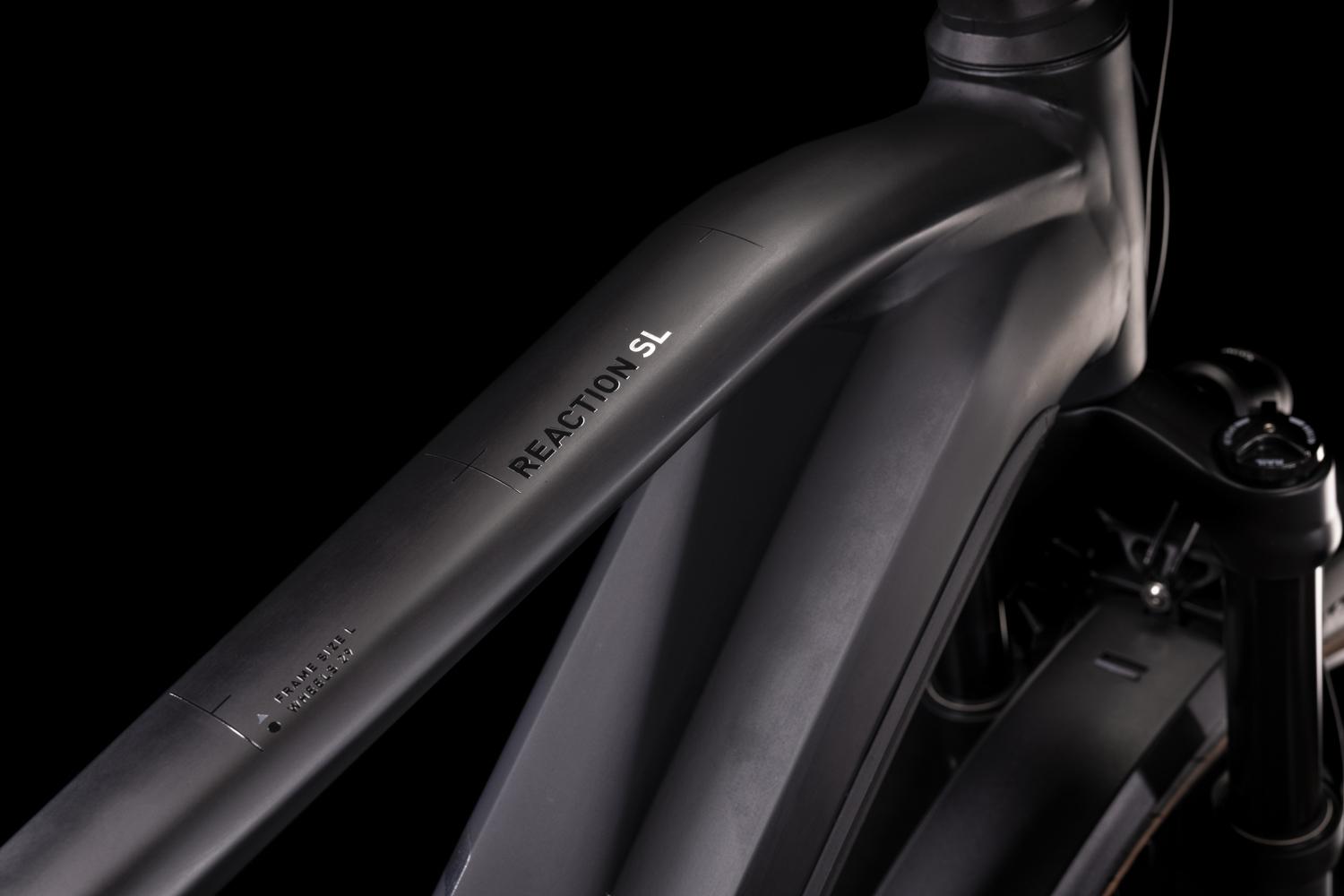

| FRAME | Aluminium Superlite, Gravity Casting, Agile Ride Geometry, 1.5 Headtube, Boost 148, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points |
|---|---|
| SIZE | M (17"), L (19"), XL (21"), XXL (23"); Trapeze: M (17"), L (19") |
| FORK | Fox 34 Float AWL, 2-Position Sweep-Adjust RAIL Damper, Tapered, 15x110mm, E-Bike Optimized, 120mm |
| SUSPENSION FORK | Fox 34 Float AWL, 2-Position Sweep-Adjust RAIL Damper, Tapered, 15x110mm, E-Bike Optimized, 120mm |
| BRAKE SYSTEM | Shimano BR-MT420, Hydr. Disc Brake (203/203) |
| REAR DERAILLEUR | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
| SHIFTERS | Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus |
| CRANKSET | ACID E-Crank, 175mm, 38T |
| CASSETTE | Shimano Deore CS-M6100, 10-51T |
| CHAIN | Shimano CN-M6100 |
| FRONT HUB | Shimano HB-MT400-B, 15mm, Boost, Centerlock |
| REAR HUB | Shimano FH-MT410-B, 12mm, Boost, Centerlock |
| RIMS | CUBE EX30, 32H, Disc, Tubeless Ready |
| TYRES | Schwalbe Smart Sam, Active, Kevlar, 2.6 |
| STEM | CUBE Performance Stem E-MTB, 31.8mm |
| HANDLEBAR | CUBE Rise Trail Bar, 720mm |
| GRIPS | ACID React Pro |
| SEAT POST | CUBE Performance Post, 30.9mm |
| SEAT CLAMP | CUBE Screwlock Semi Integrated w/ Hidden Tool, 36mm |
| SADDLE | Natural Fit Sequence |
| HEADSET | ACROS AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
| PEDALS | ACID PP MTB |

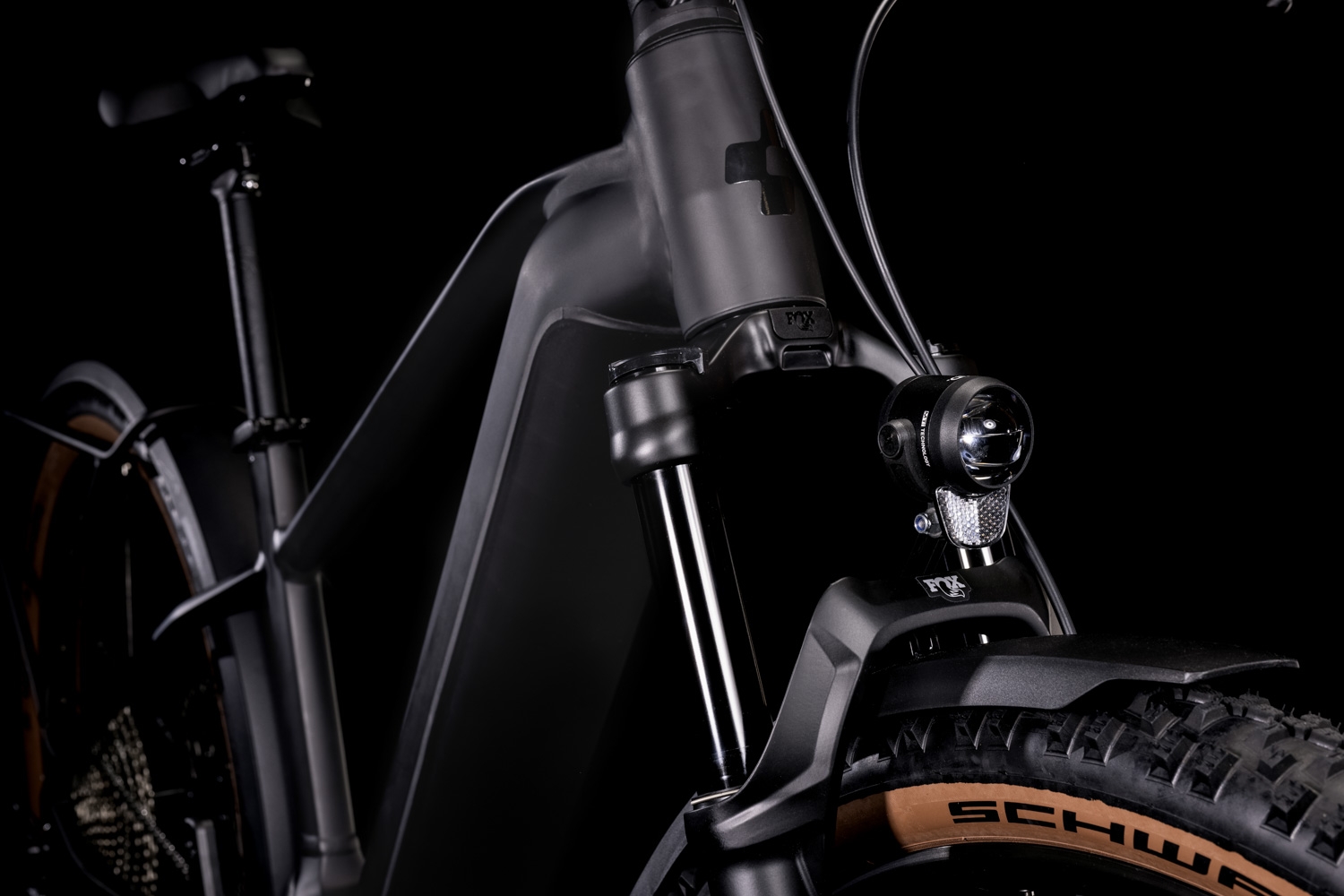

| FRONT LIGHT | ACID Front Light PRO-E 110, 5-16V, DC |
| REAR LIGHT | ACID Mudguard Rear Light PRO-E, 12V, DC |
| KICKSTAND | ACID Pro Flat Mount Kickstand |

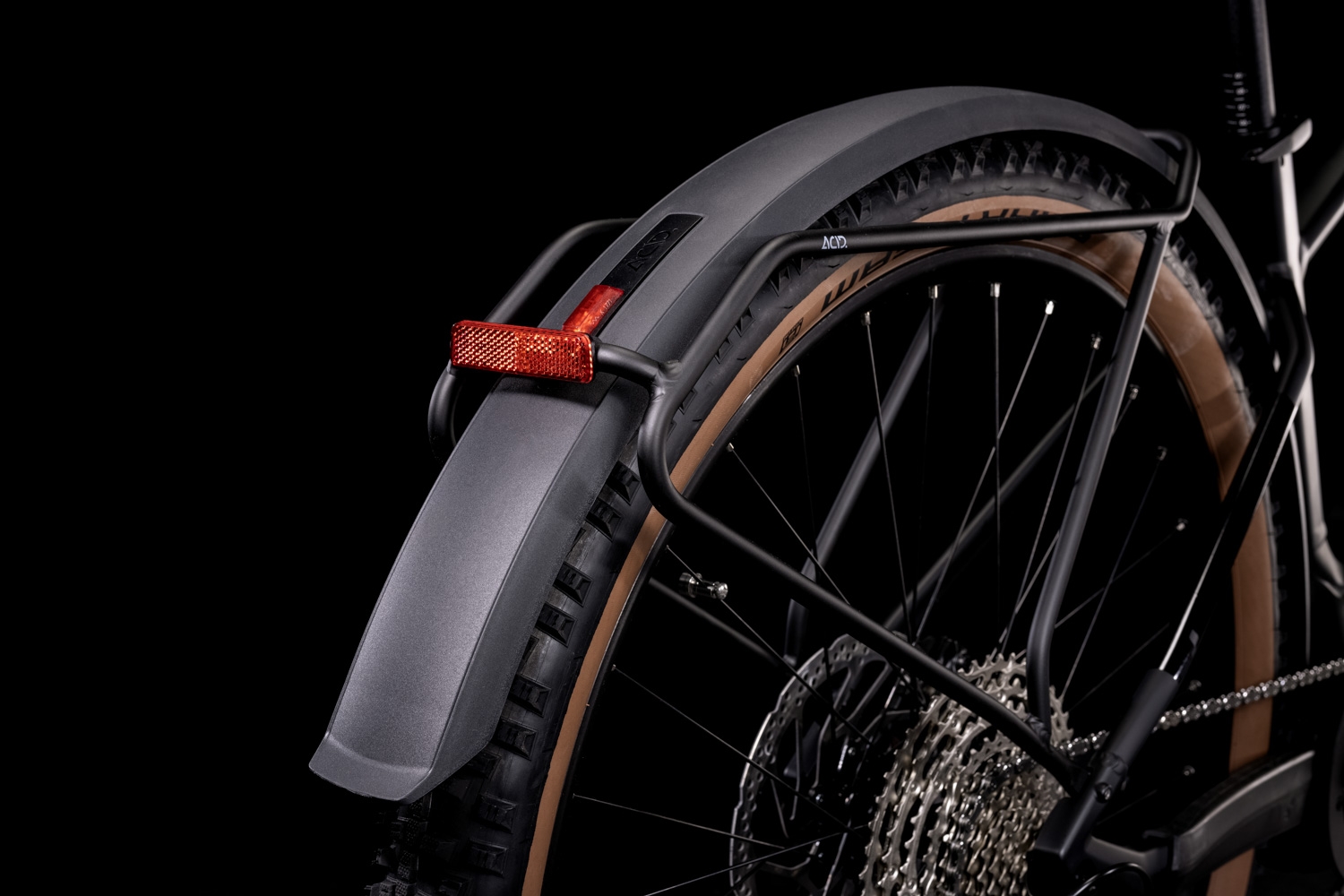

| MUDGUARDS | ACID 75 BB-Mount |
| BELL | Knog Oi |
| CARRIER | ACID Gepäckträger Rail, SIC, 29" Boost |
| WEIGHT | 24,6 kg |
| COLOUR | black´n´metal |
| DRIVE UNIT | Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System |
| BATTERY | Bosch PowerTube 750 |

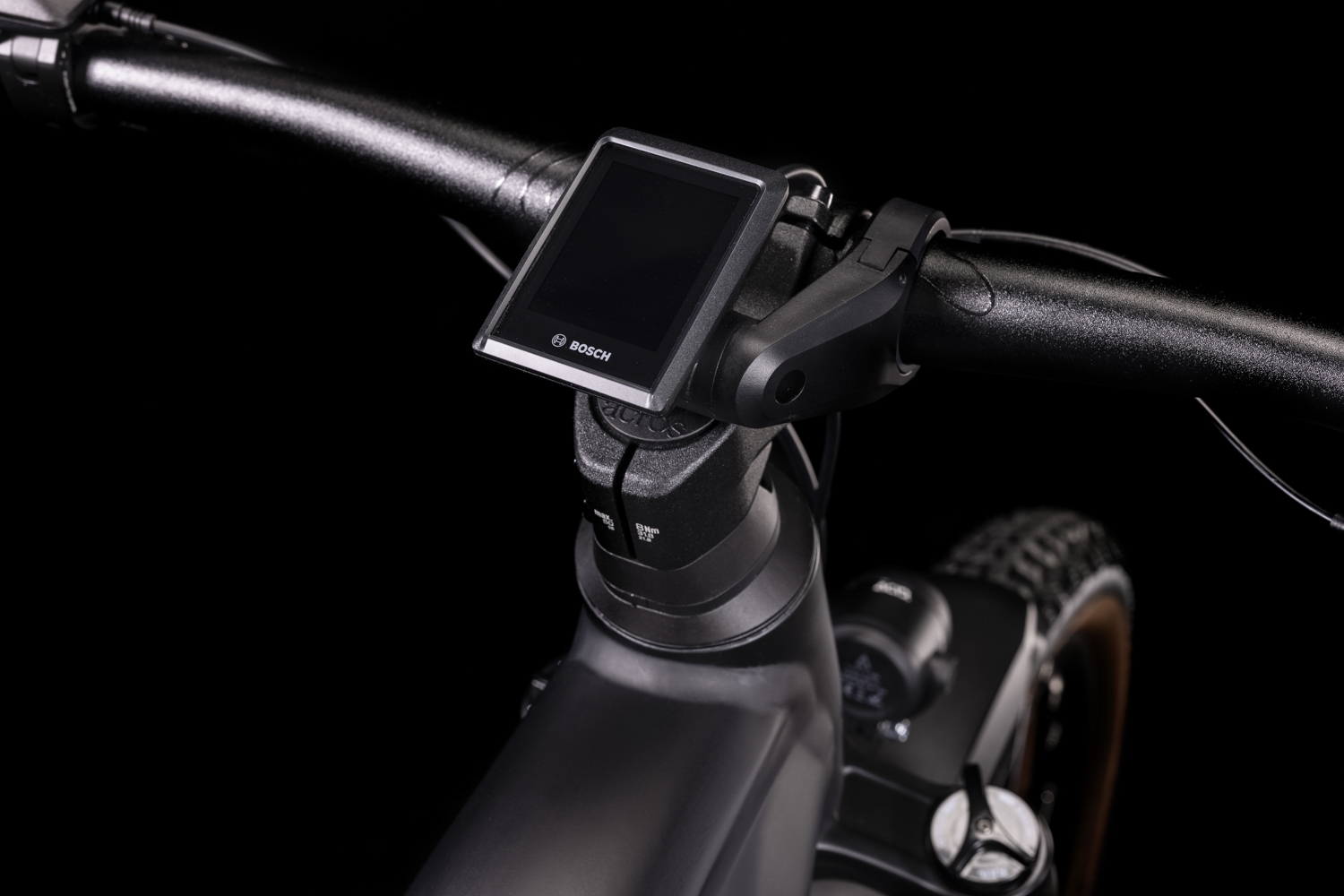

| DISPLAY | Bosch Kiox 300 |
| CHARGER | Bosch 4A |
| ART. NO | 534333 |
GEOMETRY

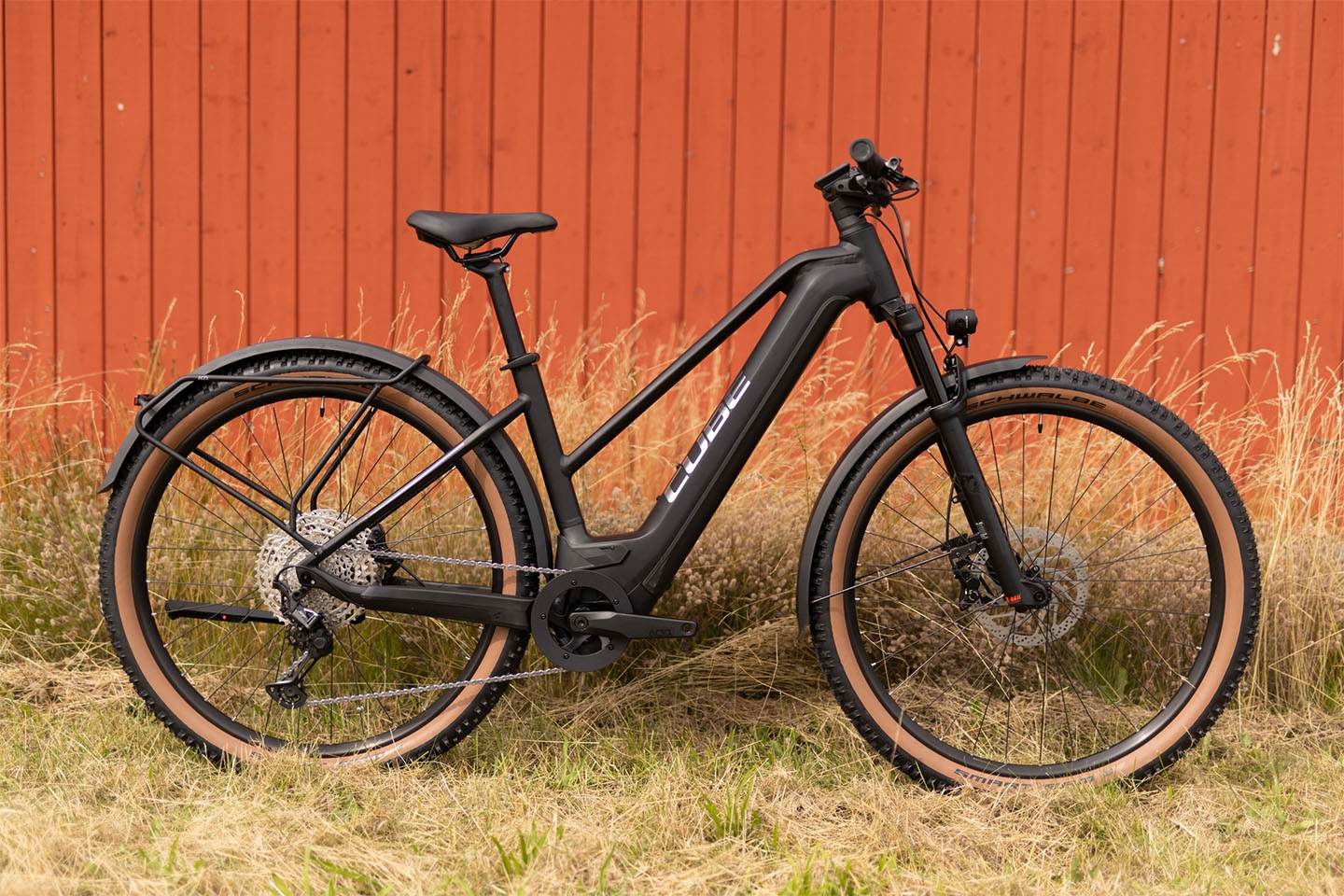

Our brand-new Reaction Hybrid Allroad frame starts with our Modular Battery System, fully enclosing the big capacity 750Wh battery in the down tube. A double-chamber seat tube adds extra strength, and we reduced the standover for easier access. Mudguards, an Acid carrier system, a kickstand and lights add extra practicality. The 1.5in head tube ensures accurate steering no matter what the trail throws your way. Combined with our Agile Ride Geometry, it's your guarantee of safe, lively and intuitive handling. There's a Trapeze frame option, which provides the same performance benefits in a layout that some riders might prefer. And, of course, we used Bosch's proven fourth-generation drive unit for that reliable extra boost to your pedalling.
