KATHMANDU
PRO

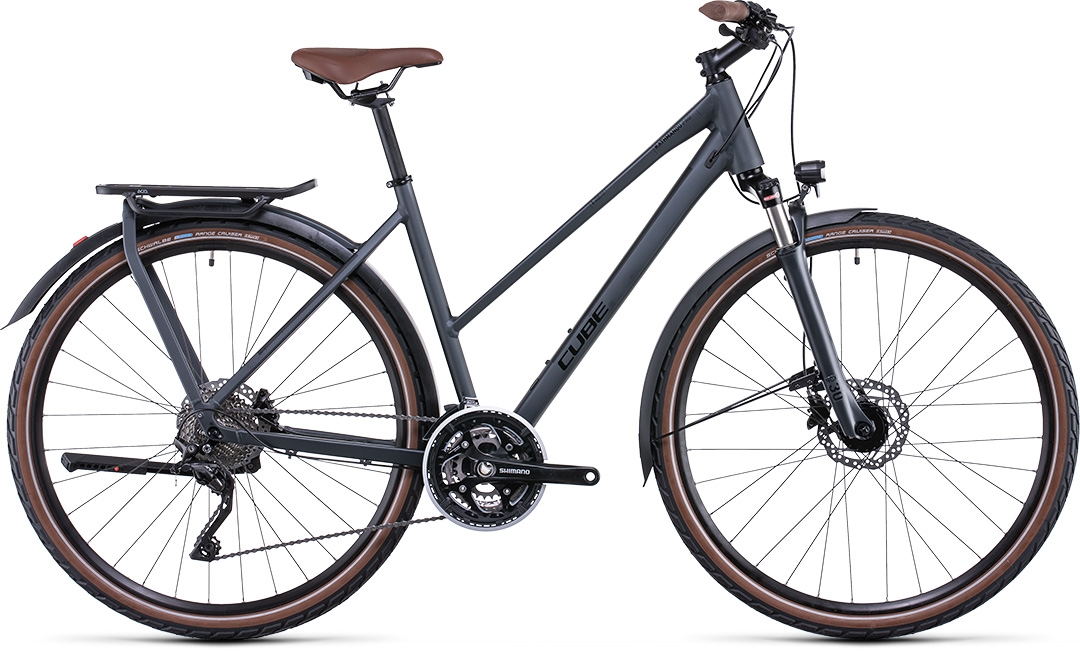

Completely reworked for 2022, we designed the Kathmandu Pro to have everything you need and nothing that you don't. From the redesigned Integrated Carrier to the full-length mudguards, front and rear lights and CUBE FM kickstand, it's the practical everyday companion that's rugged enough to take on longer trips, too. A Suntour air suspension fork makes even the roughest roads smoother, for a more comfortable ride. Shimano's legendarily reliable 3x10 gears give you the range you need to make light work of any route. And Shimano hydraulic disc brakes ensure you can always stop safely, no matter what you're carrying or what the weather is throwing your way. Urban jungle or distant horizon, the Kathmandu Pro has got your back.
AUSSTATTUNG
| FRAME | Aluminium Superlite, Trekking Comfort, IC 3.0, Double Butted |
|---|---|
| SIZE | Men: XS (46cm), S (50cm), M (54cm), L (58cm), XL (62cm), Trapeze: XS (46cm), S (50cm), M (54cm) |
| FORK | SR Suntour NCX D LO Air, 63mm, Lockout |
| SUSPENSION FORK | SR Suntour NCX D LO Air, 63mm, Lockout |
| BRAKE SYSTEM | Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (160/160) |
| REAR DERAILLEUR | Shimano XT RD-T8000, 10-Speed |
| FRONT DERAILLEUR | Shimano Deore FD-T6000, Top-Swing, 31.8mm |
| SHIFTERS | Shimano Deore SL-M6000, Rapidfire-Plus |
| CRANKSET | Shimano FC-T551, Hollowtech II, 48x36x26T, 175mm, Integrated BB, Chainguard |
| CASSETTE | Shimano CS-HG500, 11-34T |
| CHAIN | KMC X10 |
| FRONT HUB | Shimano DH-3D37, Hub Dynamo, QR, Centerlock |
| REAR HUB | Shimano FH-MT400, 12mm, Centerlock |
| RIMS | CUBE ZX20, 32H, Disc |
| TYRES | Schwalbe Range Cruiser, Active, 47-622 |
| STEM | CUBE Performance Stem Pro, 31.8mm |
| HANDLEBAR | CUBE Comfort Trail Bar, 660mm |
| GRIPS | Natural Fit Comfort |
| SEAT POST | CUBE Performance Post, 27.2mm |
| SEAT CLAMP | CUBE Screwlock, 31.8mm |

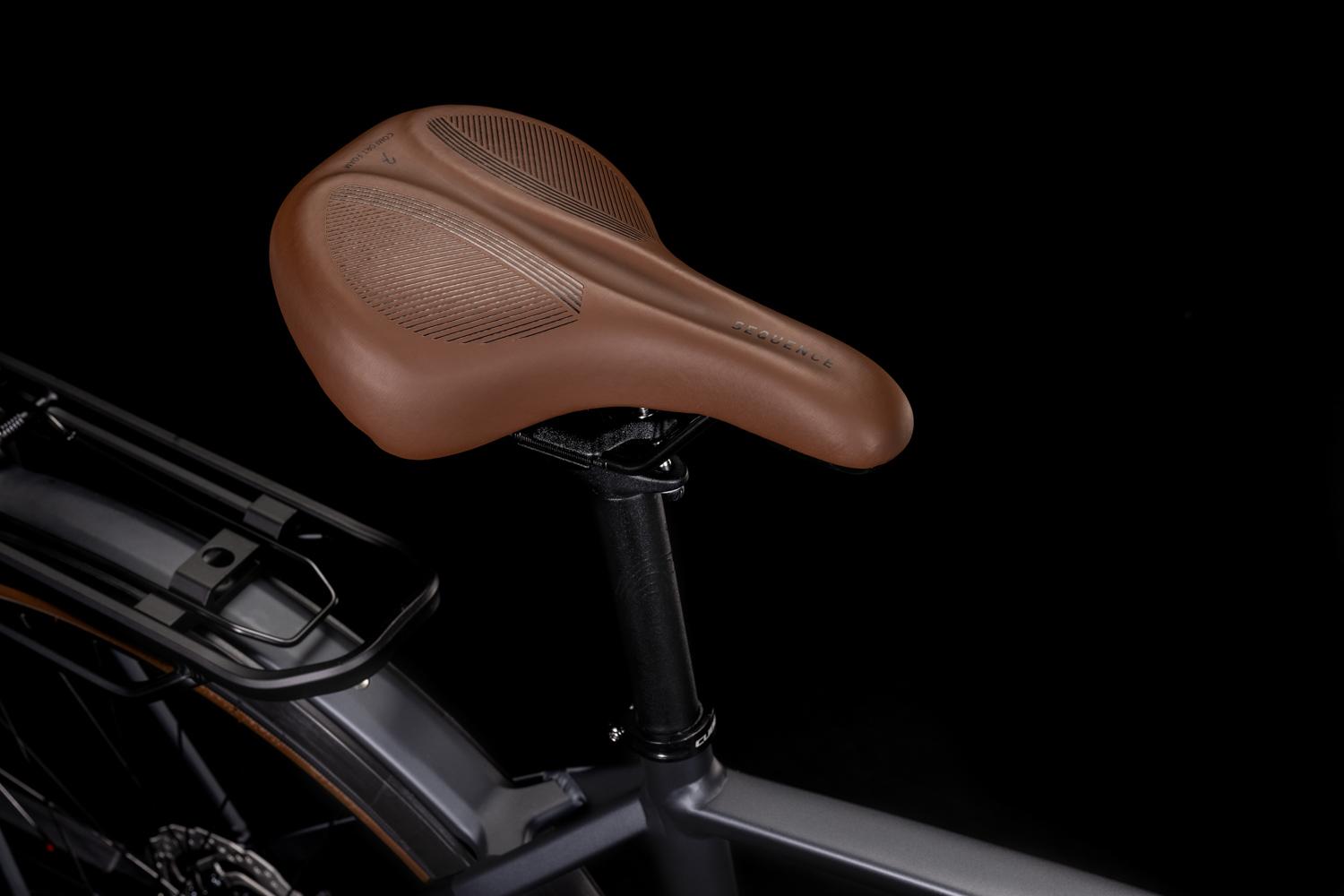

| SADDLE | Natural Fit Sequence Comfort |
| HEADSET | VP Integrated, Top 1 1/8", Bottom 1 1/2" |
| PEDALS | ACID PP Trekking |
| FRONT LIGHT | CUBE Shiny 50 |
| REAR LIGHT | ACID Mudguard Rear Light PRO-D, 6V, AC |
| KICKSTAND | ACID Pro Flat Mount Kickstand |
| MUDGUARDS | ACID 56 Integrated Carrier 3.0 |
| BELL | Ring Bell |
| CARRIER | ACID Integrated Carrier 3.0, CUBE Adapter Compatible |
| WEIGHT | 15,9 kg |
| COLOUR | grey´n´black |
| ART. NO | 548300 |
GEOMETRY

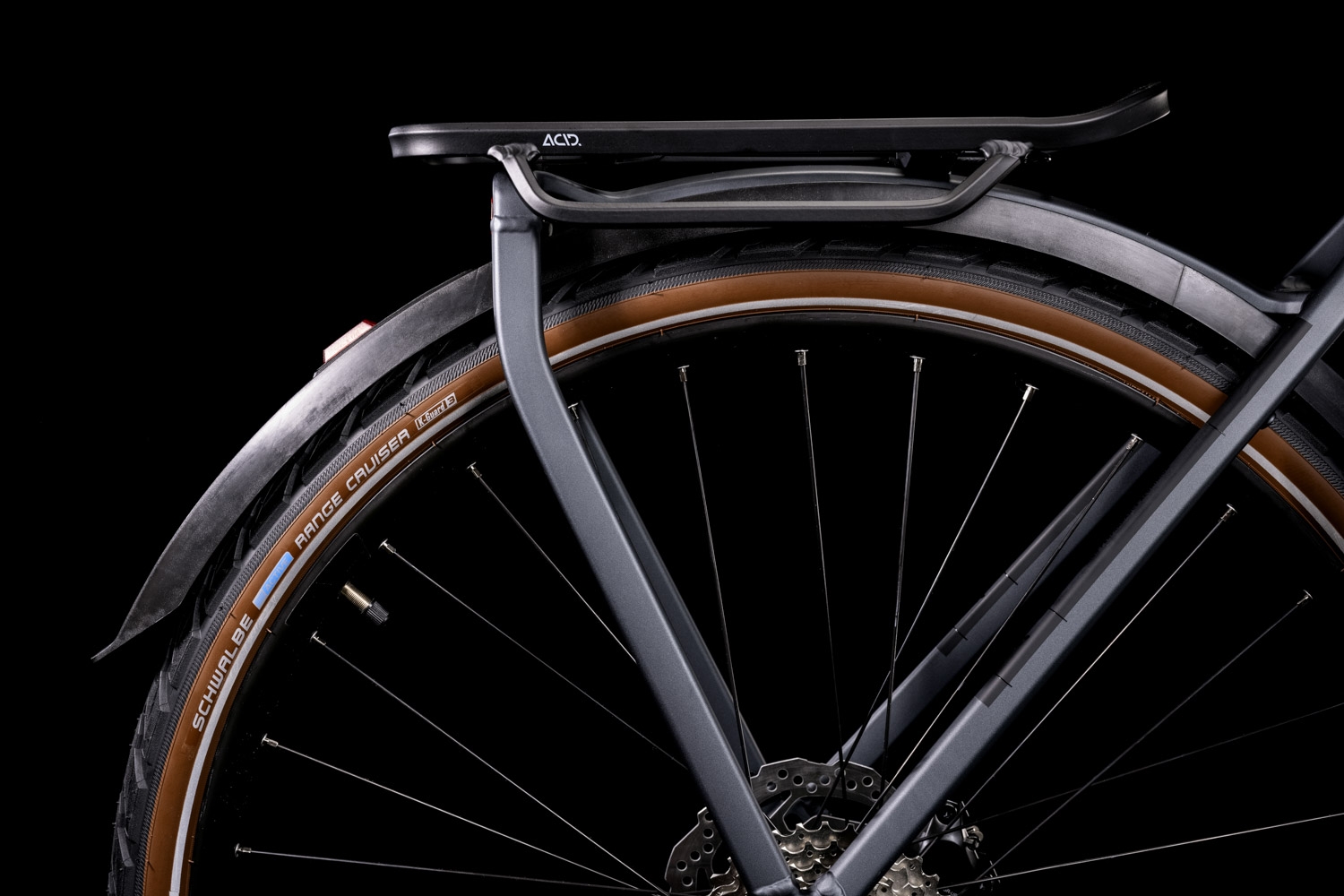

Completely redesigned for 2022, we've taken everything that's good about the Kathmandu and made it even better. So, for example, the reworked Integrated Carrier 3.0 is designed to work seamlessly with our Acid mudguard. We've fitted a flat mount for the rear disc brake - it also accommodates the kickstand - and used Smooth Welding to give the frame joints a tidy, organic appearance. But it's not all about looks. We also upgraded the rear end to a thru axle and added a tapered head tube for improved rigidity and steering precision, even when fully laden. With internal cable routing to keep your gear shifts smooth with minimal maintenance, we reckon we've thought of everything. Just don't forget your toothbrush...
