KATHMANDU
SL
Cycling is a great way to reduce your carbon footprint. With the brand-new Kathmandu SL, we've gone the extra mile to use recycled materials wherever possible. So it features a front light that's made from recycled materials, and mudguards manufactured from recycled PET. It's a small thing, but it's our way of doing what we can. Shimano's XT components are easy to use and the last word in reliable performance. The comfortable, easy-to-adjust RockShox Paragon air suspension fork makes long days in the saddle a pleasure. And, with the reworked Integrated Carrier 3.0, mudguards, lighting set and kickstand, we like to think we've set a new standard for low-impact, low-carbon travel.
AUSSTATTUNG
| FRAME | Aluminium Superlite, Trekking Comfort, IC 3.0, Double Butted |
|---|---|
| SIZE | Men: XS (46cm), S (50cm), M (54cm), L (58cm), XL (62cm), Trapeze: XS (46cm), S (50cm), M (54cm) |
| FORK | RockShox Paragon Gold Fast Black, 65mm, Lockout |
| SUSPENSION FORK | RockShox Paragon Gold Fast Black, 65mm, Lockout |
| BRAKE SYSTEM | Shimano XT, Hydr. Disc Brake, PM/FM (180/160) |
| REAR DERAILLEUR | Shimano XT RD-T8000, 10-Speed |
| FRONT DERAILLEUR | Shimano XT FD-T8000, Top Swing, 31.8mm |
| SHIFTERS | Shimano XT SL-T8000 |
| CRANKSET | Shimano XT FC-T8000, Hollowtech II, 48x36x26T, 175mm, Integrated BB, Chainguard |
| CASSETTE | Shimano CS-M771, 11-34T |
| CHAIN | Shimano CN-HG95 |
| FRONT HUB | Shimano DH-UR700-3D, Hub Dynamo, QR, Centerlock |
| REAR HUB | Shimano FH-MT400, 12mm, Centerlock |
| RIMS | CUBE EX21, 32H, Disc, Tubeless Ready |
| TYRES | Continental Pure Contact, 47x622, Foldable |
| STEM | CUBE Performance Stem Pro, 31.8mm |
| HANDLEBAR | CUBE Comfort Trail Bar, 660mm |
| GRIPS | Natural Fit Comfort |
| SEAT POST | CUBE Performance Post, 27.2mm |
| SEAT CLAMP | CUBE Screwlock, 31.8mm |

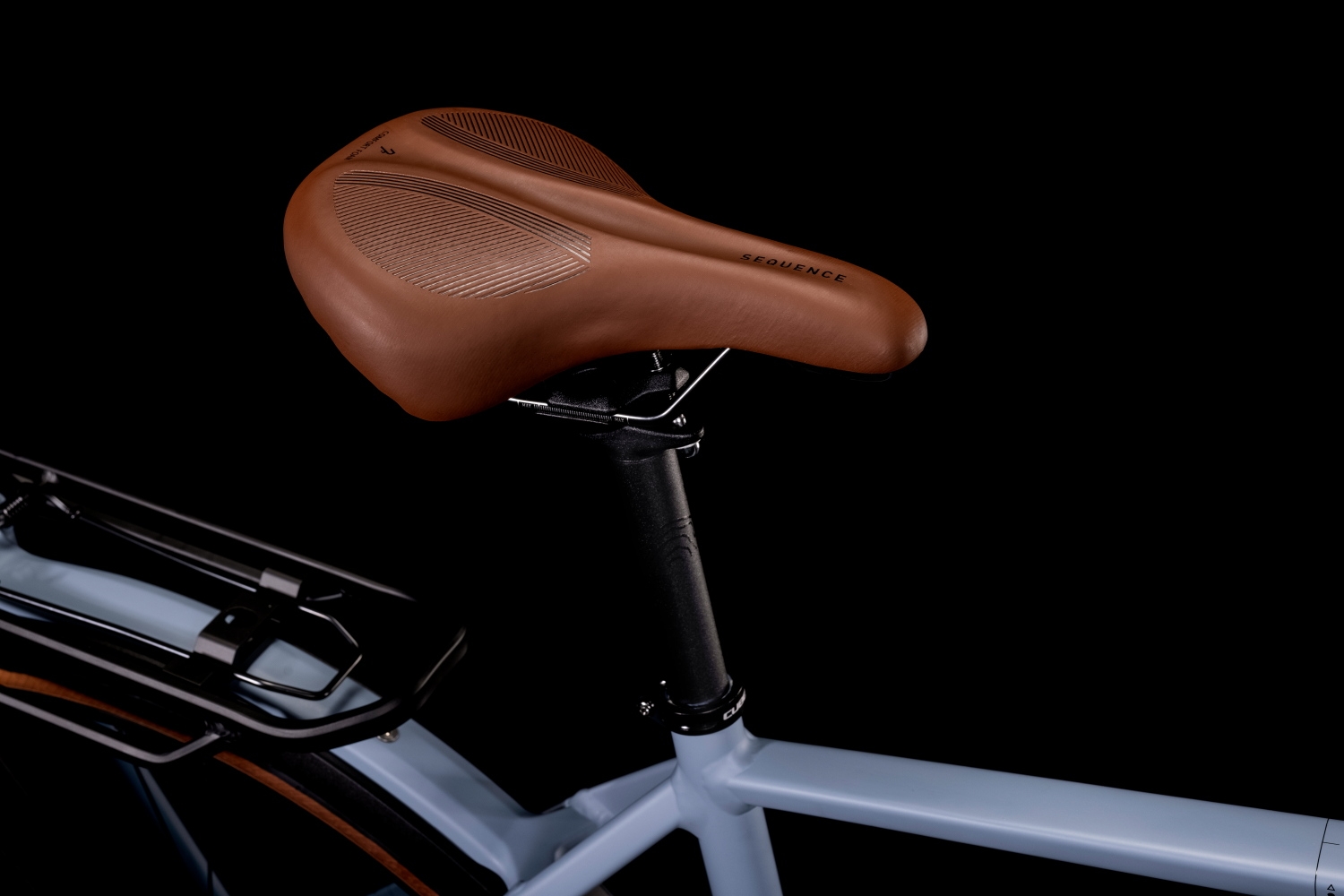

| SADDLE | Natural Fit Sequence Comfort |
| HEADSET | VP Integrated, Top 1 1/8", Bottom 1 1/2" |
| PEDALS | ACID PP Trekking |
| FRONT LIGHT | CUBE IQ-XS-Friendly N Plus |
| REAR LIGHT | ACID Mudguard Rear Light PRO-D, 6V, AC |
| KICKSTAND | ACID Pro Flat Mount Kickstand |

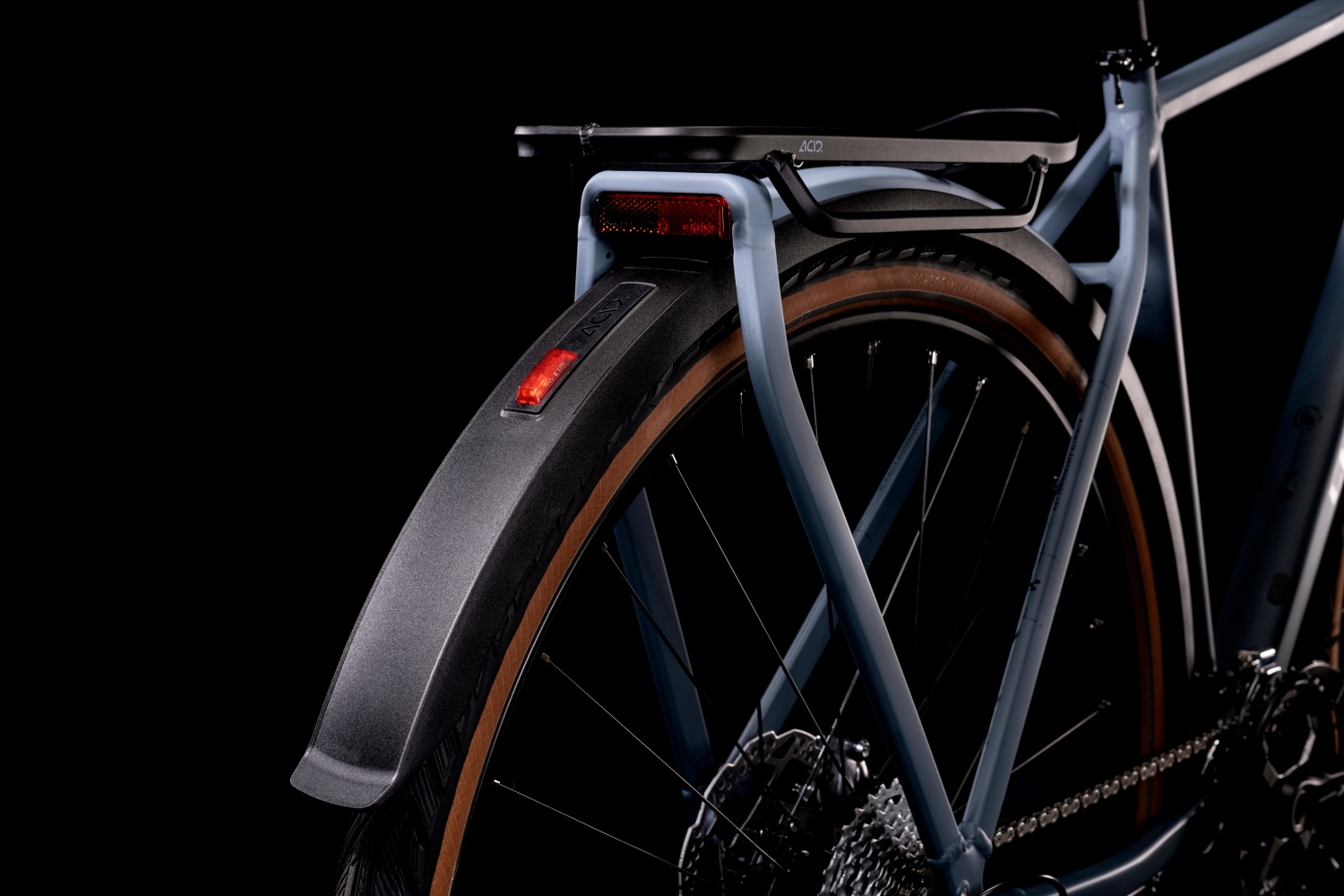

| MUDGUARDS | ACID 56 Integrated Carrier 3.0 |
| BELL | Knog Oi |
| CARRIER | ACID Integrated Carrier 3.0, CUBE Adapter Compatible |
| WEIGHT | 14,5 kg |
| COLOUR | storm´n´black |
| ART. NO | 548400 |
GEOMETRY

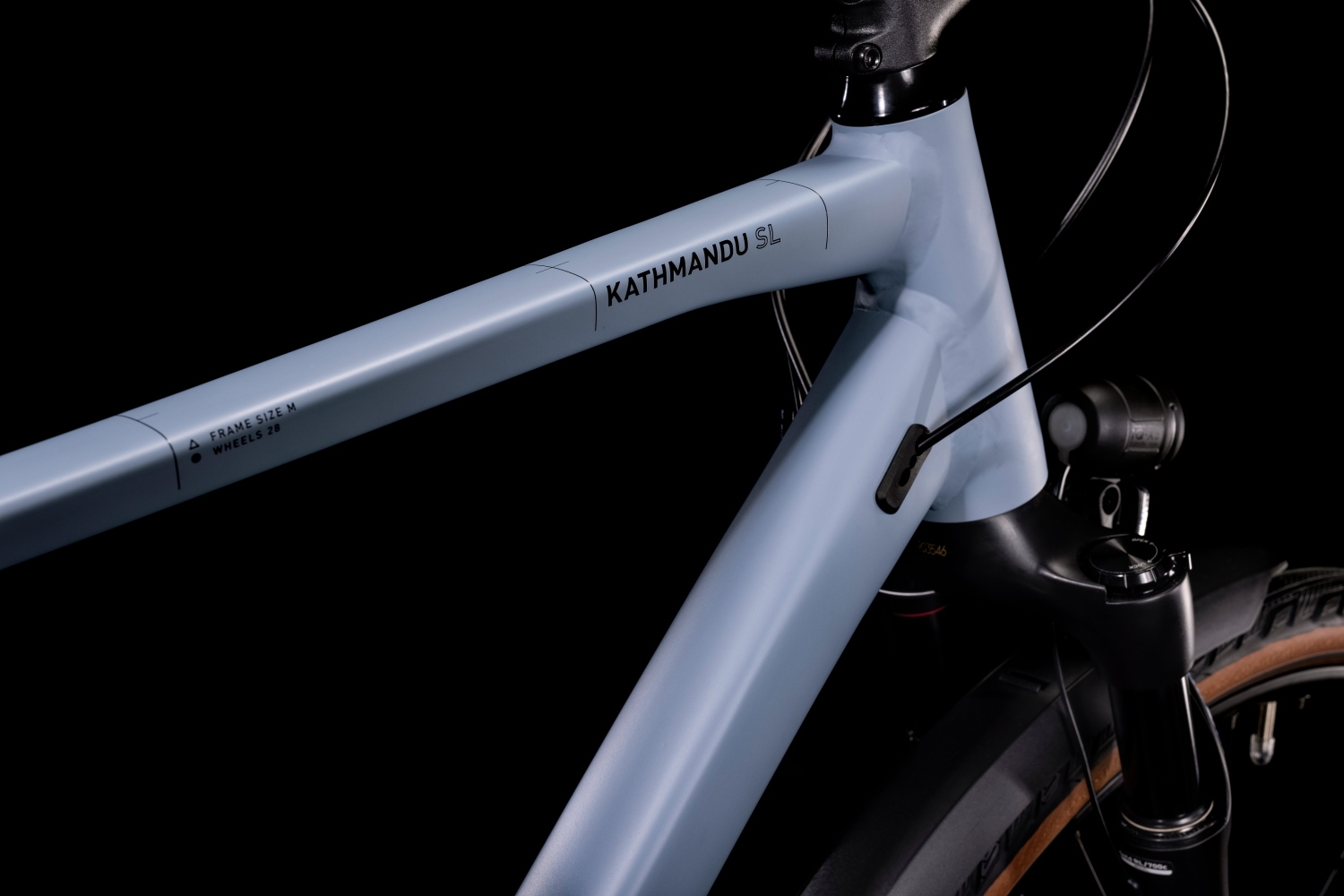

Completely redesigned for 2022, we've taken everything that's good about the Kathmandu and made it even better. So, for example, the reworked Integrated Carrier 3.0 is designed to work seamlessly with our Acid mudguard. We've fitted a flat mount for the rear disc brake - it also accommodates the kickstand - and used Smooth Welding to give the frame joints a tidy, organic appearance. But it's not all about looks. We also upgraded the rear end to a thru axle and added a tapered head tube for improved rigidity and steering precision, even when fully laden. With internal cable routing to keep your gear shifts smooth with minimal maintenance, we reckon we've thought of everything. Just don't forget your toothbrush...
