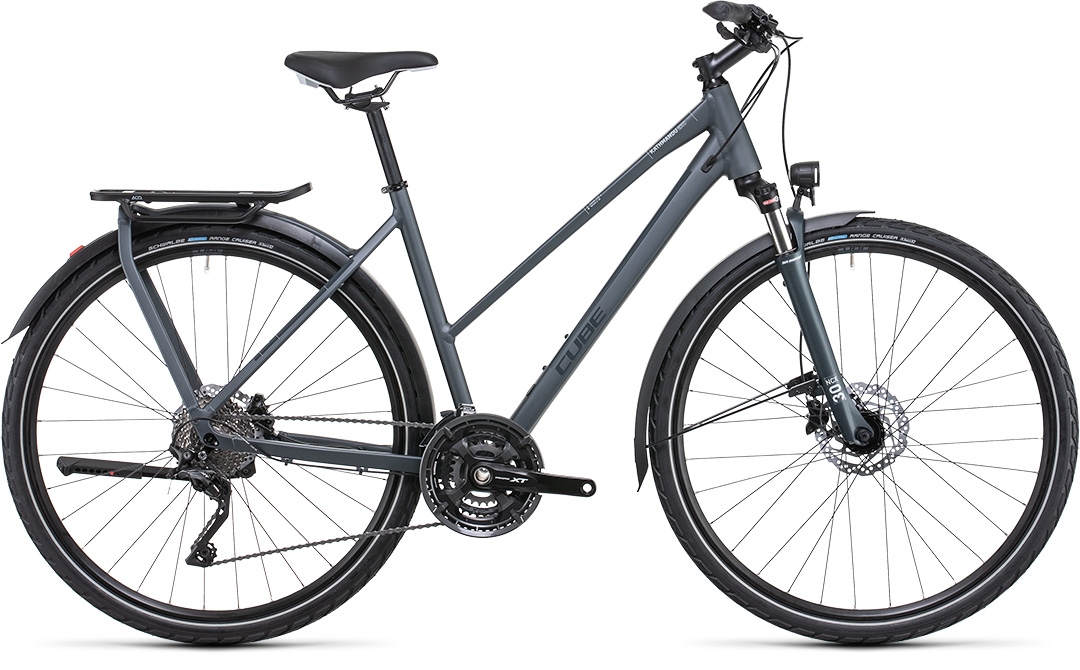

KATHMANDU

EXC

From zipping across town to tackling mountain passes you've never ridden before, the brand-new Kathmandu EXC is designed to get you there - and back - in comfort and style. We chose Shimano's 3x10 XT gears for their deserved reputation for reliability and ease of use. Then we added powerful Shimano hydraulic disc brakes, so you know you're in full control at all times. Finally, we selected an easily adjustable Suntour air suspension fork to take the edge off rough road surfaces. With our redesigned Integrated Carrier 3.0 and a full complement of accessories - including mudguards, kickstand and lights - you've everything you need. Just jump on and go...

AUSSTATTUNG

FRAMEAluminium Superlite, Trekking Comfort, IC 3.0, Double Butted
SIZEMen: XS (46cm), S (50cm), M (54cm), L (58cm), XL (62cm), Trapeze: XS (46cm), S (50cm), M (54cm)
FORKSR Suntour NCX D LO Air, 63mm, Lockout
BRAKE SYSTEMShimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (160/160)

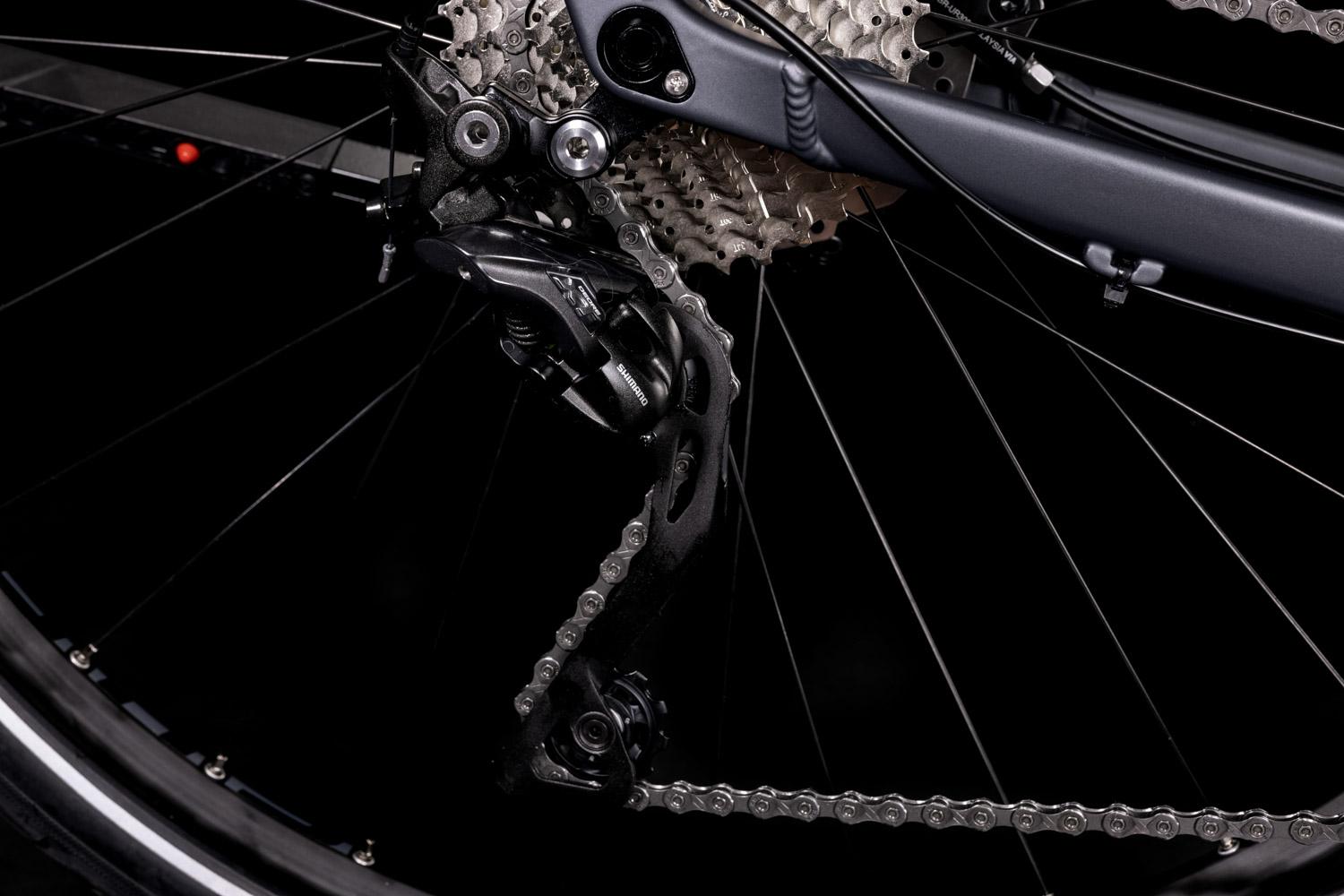

REAR DERAILLEURShimano XT RD-T8000, 10-Speed
FRONT DERAILLEURShimano Deore FD-T6000, Top-Swing, 31.8mm
SHIFTERSShimano Deore SL-M6000, Rapidfire-Plus
CRANKSETShimano XT FC-T8000, Hollowtech II, 48x36x26T, 175mm, Integrated BB, Chainguard
CASSETTEShimano CS-HG500, 11-34T
CHAINKMC X10
FRONT HUBShimano DH-UR700-3D, Hub Dynamo, QR, Centerlock
REAR HUBShimano FH-MT400, 12mm, Centerlock
RIMSCUBE EX21, 32H, Disc, Tubeless Ready
TYRESSchwalbe Range Cruiser, Active, K-Guard, 47-622
STEMCUBE Performance Stem Pro, 31.8mm
HANDLEBARCUBE Comfort Trail Bar, 660mm
GRIPSNatural Fit Comfort
SEAT POSTCUBE Performance Post, 27.2mm
SEAT CLAMPCUBE Screwlock, 31.8mm
SADDLENatural Fit Sequence Comfort
HEADSETVP Integrated, Top 1 1/8", Bottom 1 1/2"
PEDALSACID PP Trekking
FRONT LIGHTCUBE IQ-XS-Friendly N plus
REAR LIGHTACID Mudguard Rear Light PRO-D, 6V, AC
KICKSTANDACID Pro Flat Mount Kickstand

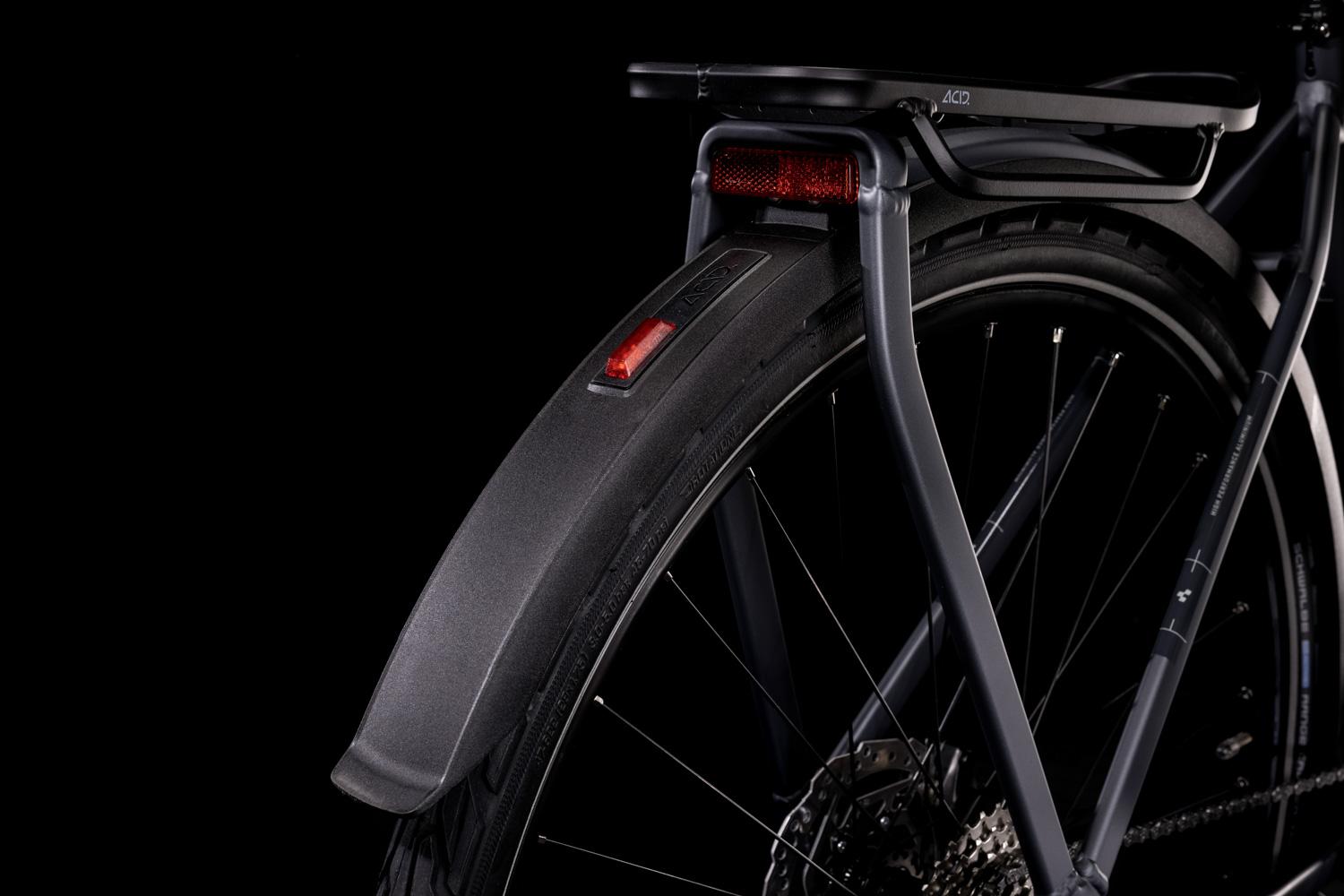

MUDGUARDSACID 56 Integrated Carrier 3.0
BELLKnog Oi
CARRIERACID Integrated Carrier 3.0, CUBE Adapter Compatible
WEIGHT15,5 kg
COLOURdarkgrey´n´grey
ART. NO548350

GEOMETRY

Completely redesigned for 2022, we've taken everything that's good about the Kathmandu and made it even better. So, for example, the reworked Integrated Carrier 3.0 is designed to work seamlessly with our Acid mudguard. We've fitted a flat mount for the rear disc brake - it also accommodates the kickstand - and used Smooth Welding to give the frame joints a tidy, organic appearance. But it's not all about looks. We also upgraded the rear end to a thru axle and added a tapered head tube for improved rigidity and steering precision, even when fully laden. With internal cable routing to keep your gear shifts smooth with minimal maintenance, we reckon we've thought of everything. Just don't forget your toothbrush...

Bike details

detail_image_0
detail_image_1
