STEREO 120
PRO
The Stereo 120 Pro sets the baseline for comfort, control and agility on the trail. There's a RockShox Judy Silver air fork and Manitou Radium Expert air shock for bump-smoothing duties. Powerful Magura MT Thirty hydraulic disc brakes harness the tenacious grip of Schwalbe tyres to keep your speed in check. And Sram's NX Eagle 1x12 transmission's huge range and ease of use puts the right gear for any trail just a click or two away. It's got the trail smarts to take you further. Are you up for it?
AUSSTATTUNG
| FRAME | HPA Advanced Hydroform, ATG, ETC 4-Link, AXH |
|---|---|
| SIZE | Size Split: 27.5: XS // 29: S, M, L, XL |
| FORK | RockShox Judy Silver TK Air, Tapered, 15x110mm, 130mm |
| SUSPENSION FORK | RockShox Judy Silver TK Air, Tapered, 15x110mm, 130mm |

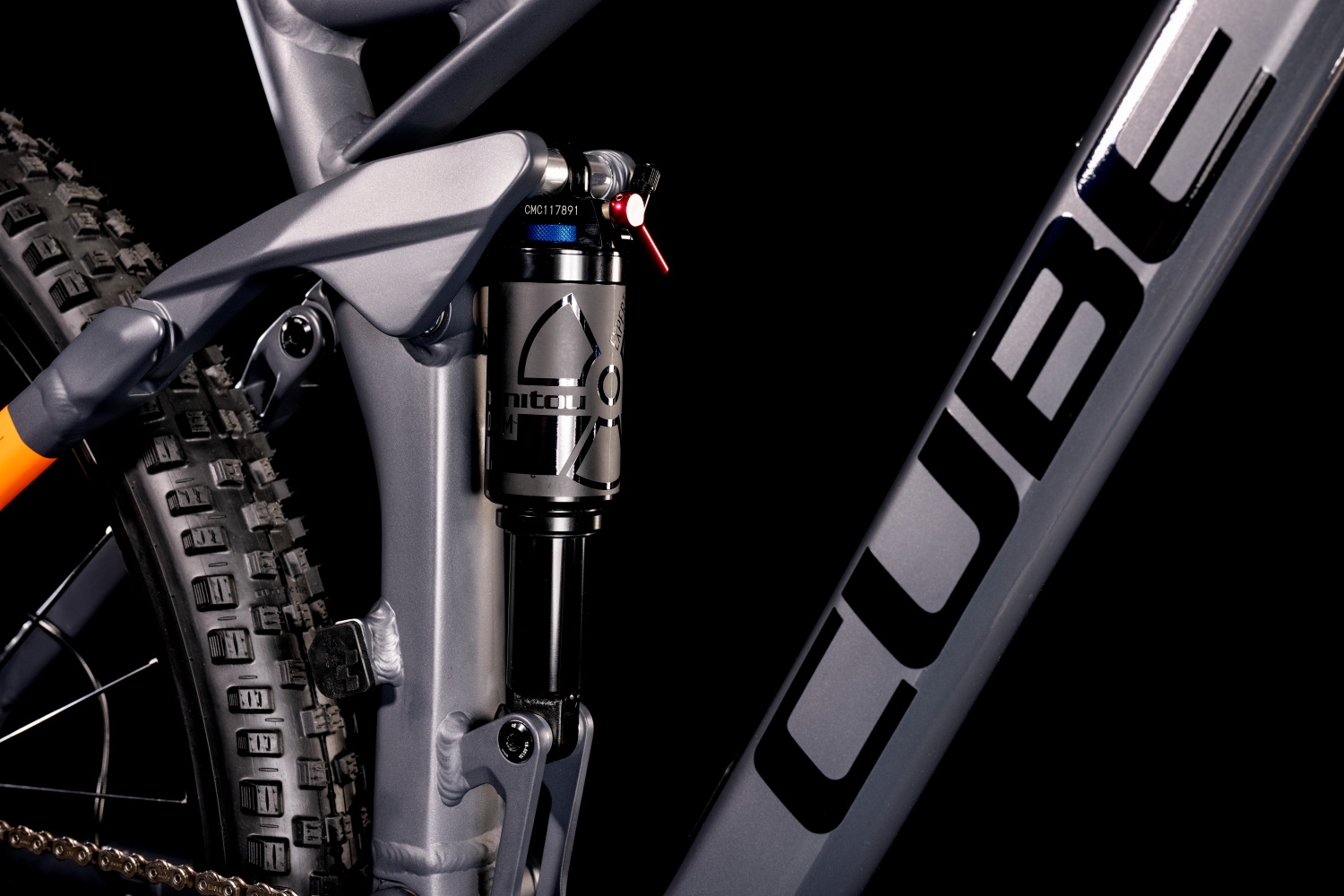

| SHOCK | Manitou Radium Expert RL, 190x45mm, Rebound Adjust, Lockout |
| SHOCK HARDWARE | Top: 40x8mm, Bottom: 22x8mm |
| BRAKE SYSTEM | Magura MT Thirty, Front 2-Piston/Rear 2-Piston, Hydr. Disc Brake (180/180) |
| REAR DERAILLEUR | Sram NX Eagle™, 12-Speed |
| SHIFTERS | Sram SX Eagle™ Trigger |

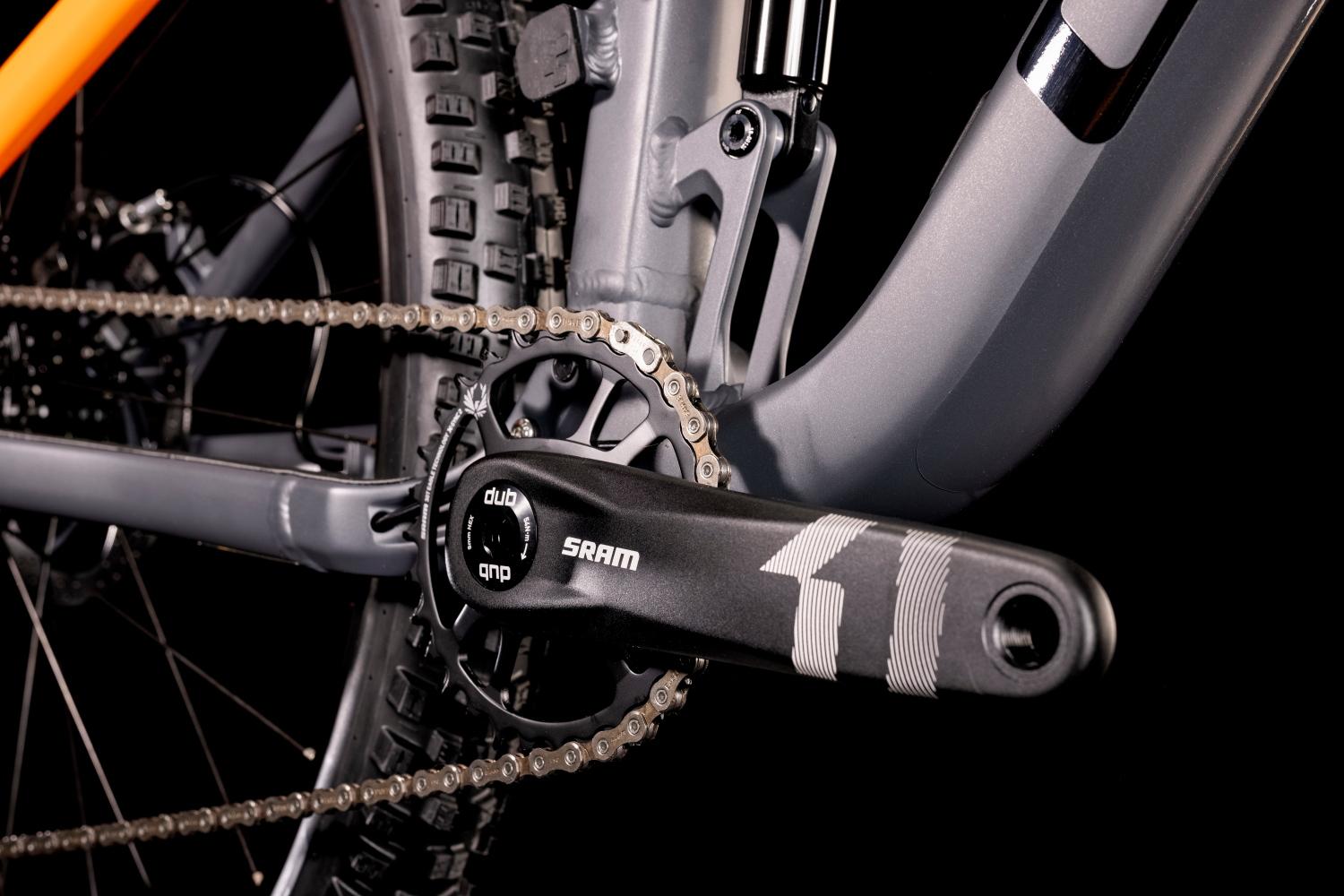

| CRANKSET | Sram X1 1000 Eagle™ DUB 30T, Boost, 175mm (170mm for XS/S) |
| CASSETTE | Sram PG-1210 Eagle™, 11-50T |
| CHAIN | Sram SX Eagle™ |
| FRONT HUB | Shimano HB-MT400-B, 15mm, Boost, Centerlock |
| REAR HUB | Shimano FH-MT400-B, 12mm, Boost, Centerlock |
| RIMS | CUBE EX25, 32H, Disc |
| TYRES | Schwalbe Nobby Nic, Addix Performance, Kevlar, 2.4 |
| STEM | Newmen Evolution 318.4, 31.8mm |
| HANDLEBAR | Newmen Evolution SL 318.25, 760mm |
| GRIPS | ACID React Pro |
| SEAT POST | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm, (XS: 100mm, S: 120mm, M/L/XL: 130mm) |
| SEAT CLAMP | CUBE Screwlock, 34.9mm |
| SADDLE | Natural Fit Venec Lite |
| HEADSET | VP Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm) |
| WEIGHT | 14,8 kg |
| COLOUR | grey´n´orange |
| ART. NO | 553100 |
GEOMETRY
Like all our frames, the Stereo 120 is all about providing the best performance at the lowest possible weight. Hydroformed tubing is triple butted to save as much weight as possible without sacrificing strength. The tapered head tube and Boost 148 rear axle ensure steering precision and excellent pedalling efficiency. And it's all built around our Efficient Trail Control kinematics and a 130mm fork, with Agile Trail Geometry putting you firmly in control at all times. New for 2022, we even added a SizeSplit XS option with 27.5in wheels for riders who are shorter in stature, but don't want to sacrifice performance.
