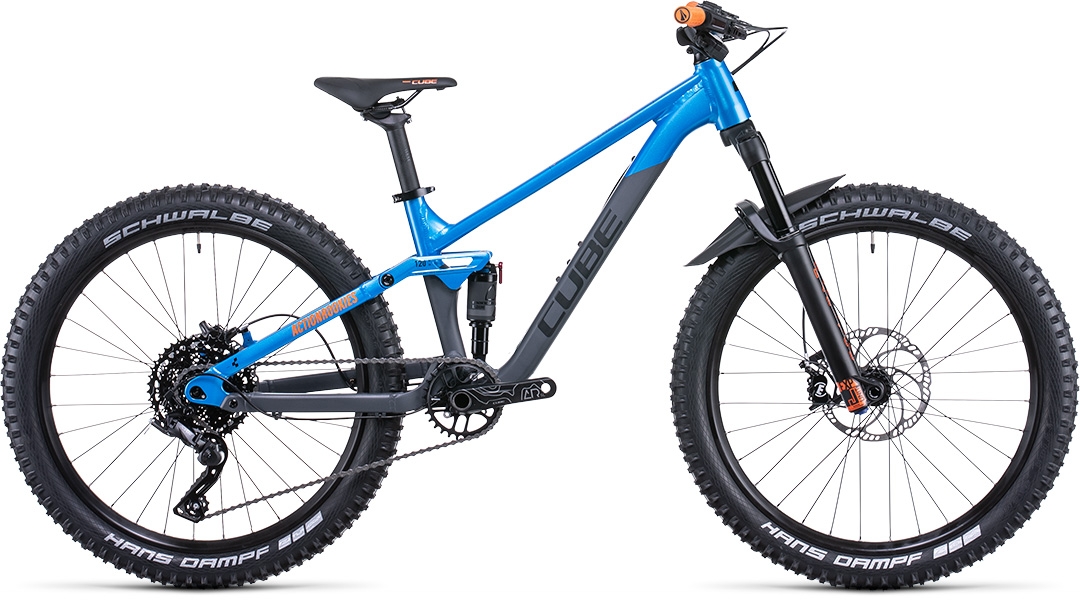

STEREO 240
ONE
When the bug bites, it's only natural that the mini mountain biker in the family is going to want a bike to match their enthusiasm. The Stereo 240 One Action Team's Manitou J unit fork and Radium rear shock - with kids' specific tune - is the one they're going to want. With its 24-inch wheels and perfectly proportioned frame, it's every inch a real mountain bike scaled down to size. That's why we fitted the easy-to-use 1x9 gear system, and powerful Magura hydraulic brakes - so your little shredder is as safe and confident coming down the hill as they are going up.
AUSSTATTUNG
| FRAME | HPA Ultralight, Advanced Hydroform, Triple Butted, ETC 4-Link, ISCG Mount, 120mm travel |
|---|---|
| SIZE | 24" |
| FORK | Manitou Machete J-Unit Air, Tapered, 15x110mm, 120mm |
| SUSPENSION FORK | Manitou Machete J-Unit Air, Tapered, 15x110mm, 120mm |
| SHOCK | Manitou Radium Expert RL, 165x38mm, Rebound Adjust, Lockout |
| SHOCK HARDWARE | Top: 30x8mm, Bottom: 22x8mm |
| BRAKE SYSTEM | Magura MT Thirty, Front 4-Piston/Rear 2-Piston, Hydr. Disc Brake (180/160) |
| REAR DERAILLEUR | Microshift Advent RD-M6195M, 9-Speed |
| SHIFTERS | Microshift Advent SL-M9295-R |
| CRANKSET | AR CUBE DMA 30T, 130mm |
| CASSETTE | Microshift CS-H093, 11-42T |
| CHAIN | KMC X9 |
| FRONT HUB | Shimano HB-MT400-B, 15mm, Boost, Centerlock |
| REAR HUB | Shimano FH-MT400-B, 12mm, Boost, Centerlock |
| RIMS | CUBE EX30, 32H, Disc, Tubeless Ready |
| TYRES | Schwalbe Hans Dampf, Addix Performance, Kevlar, 2.35 |
| STEM | CUBE Performance Stem SL, 31.8mm |
| HANDLEBAR | SDG Slater JR, 660mm |
| GRIPS | SDG Slater JR |
| SEAT POST | CUBE Performance Post, 30.9mm |
| SEAT CLAMP | CUBE Varioclose, 34.9mm |
| SADDLE | CUBE Kid |
| HEADSET | VP I-t, Integrated, Top 1 1/8", Bottom 1 1/2" |
| WEIGHT | 12,6 kg |
| COLOUR | actionteam |
| ART. NO | 559060 |
GEOMETRY
Loads of experience goes into every CUBE frame - and the Stereo 240 is no exception. The wheels may be smaller than our other full-suspension bikes, but the attention to detail is just as thorough. We use the same kind of butted-aluminium tubes as our full-size bikes, and apply the same suspension kinematics. There's a replaceable gear hanger so that the inevitable crashes don't result in an expensive frame repair, and it's all passed our strict in-house safety tests with flying colours - so you know it's not just a fun ride, but a safe one too.
