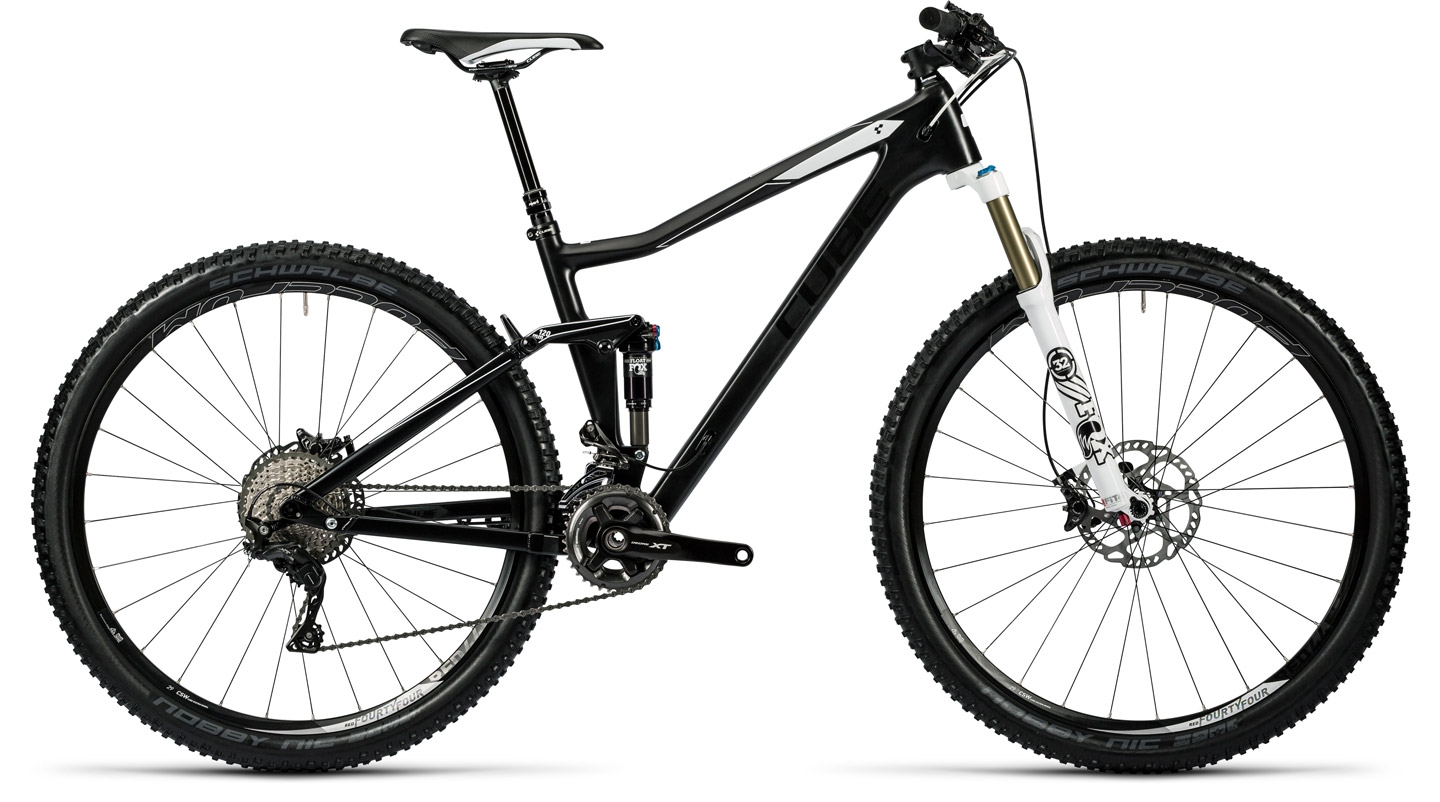

Stereo 120 HPC

Race

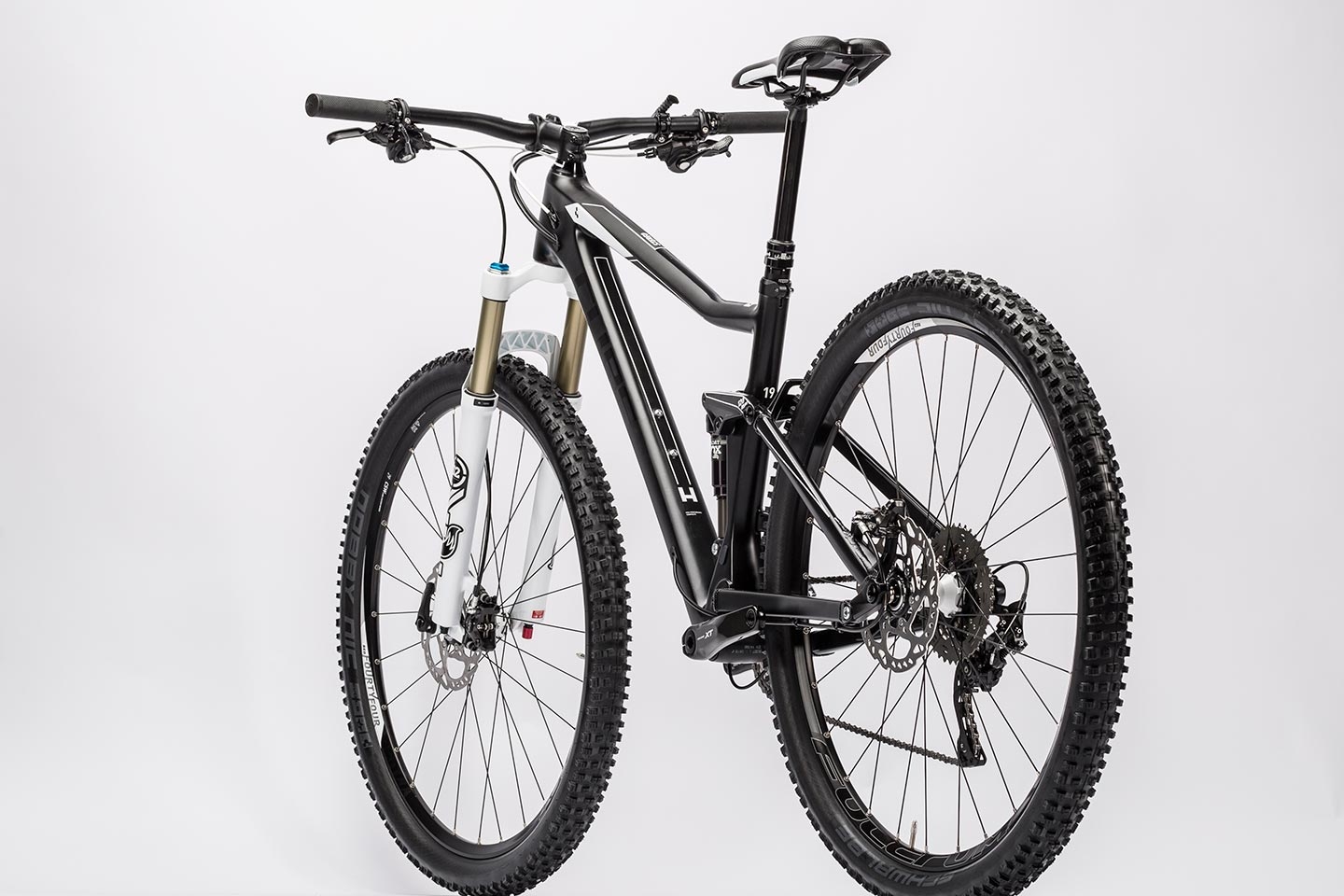

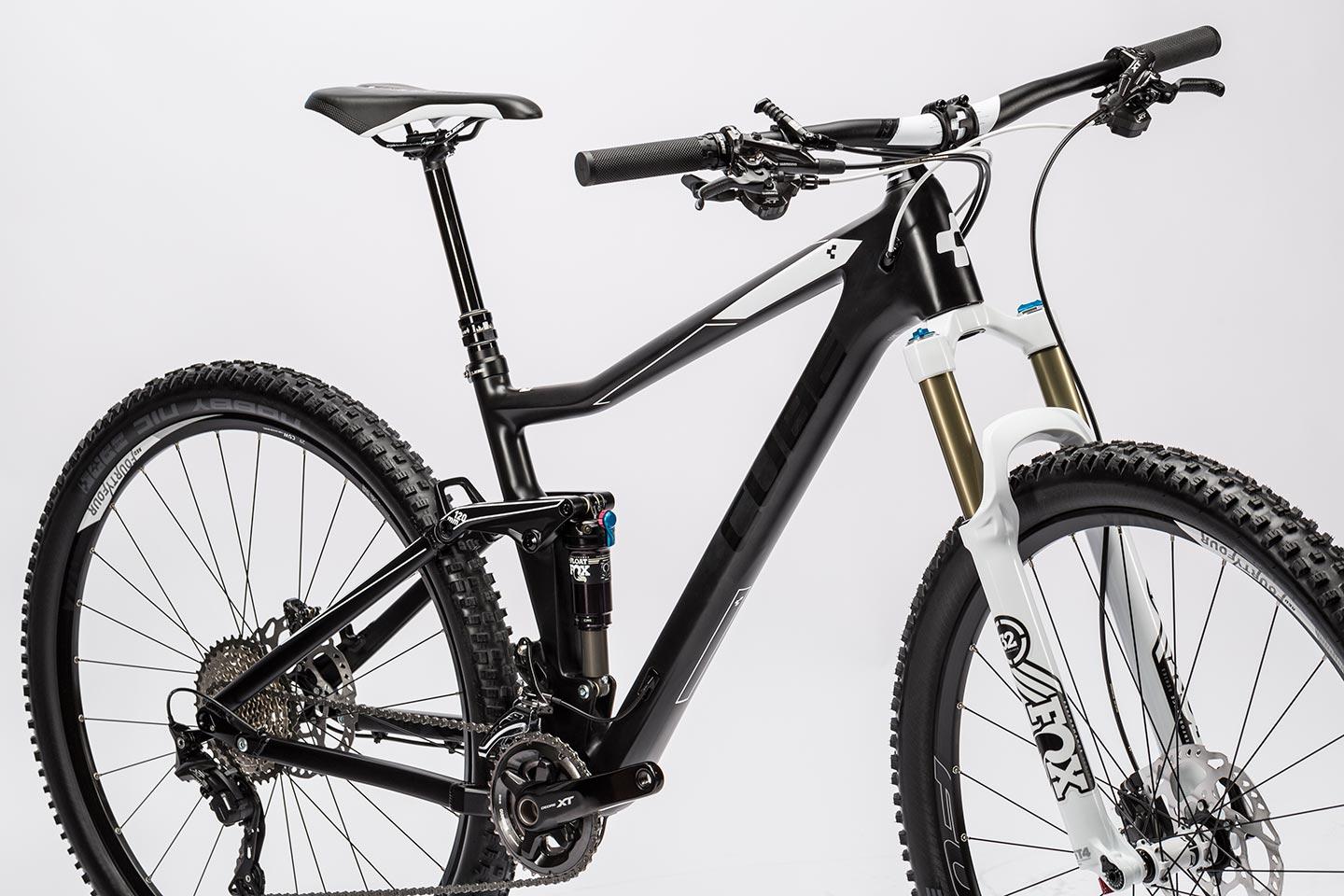

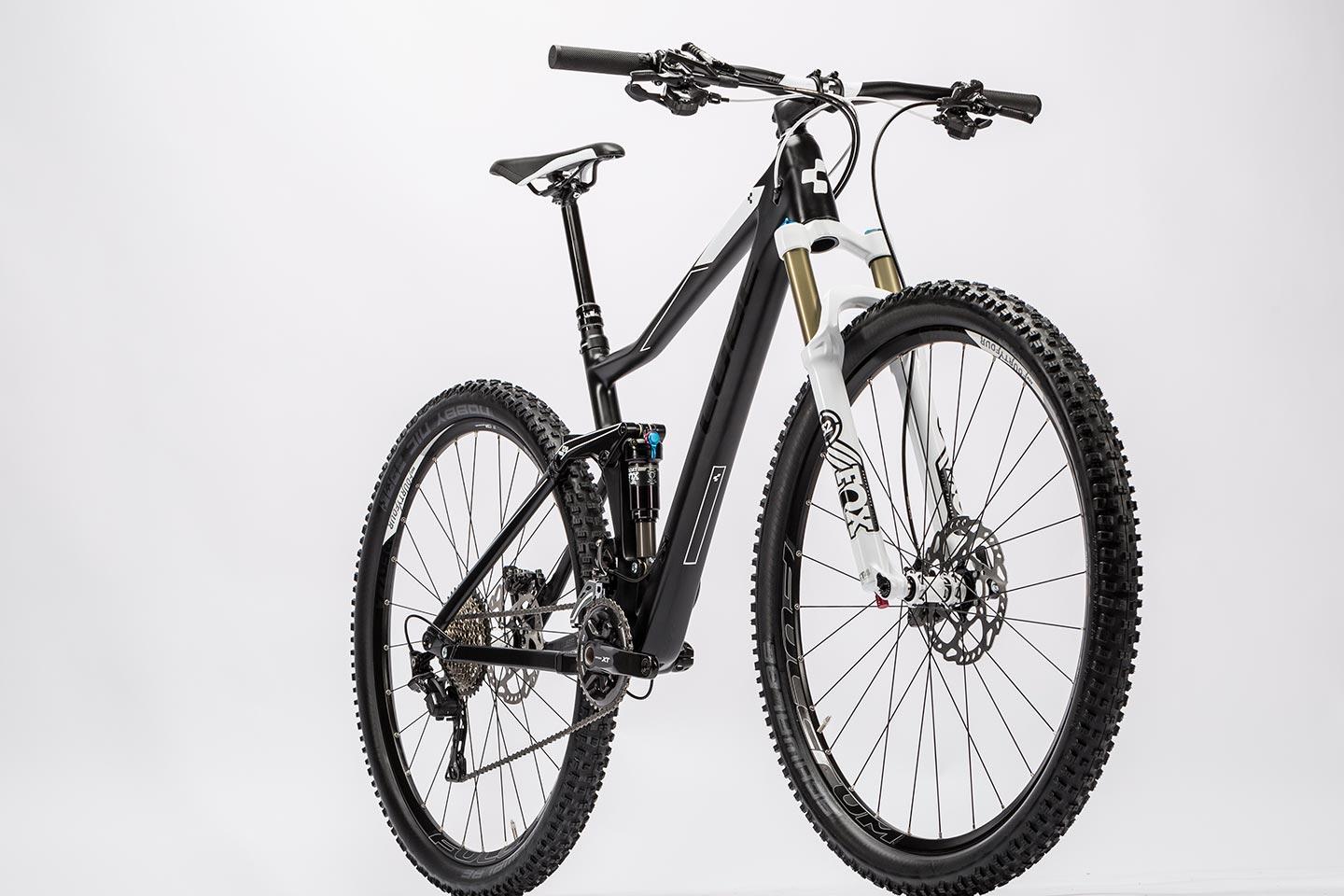

With its new chassis design - featuring a clever combination of carbon main frame and high strength aluminium chainstays - the Stereo 120 HPC Race is blisteringly fast on singletrack and in endurance events, but an equally capable trail all-rounder when things are getting rough. The combination of superb handling and Shimano's new 2x11 XT groupset translates into endless singletrack miles with maximum riding smiles. It's an ideal trail companion for keen riders of all persuasions - and available for the first time with either 27.5 or 29 inch wheels, thanks to Size-Split.

AUSSTATTUNG

FRAMEHPC Carbon Monocoque Advanced Twin Mold Technology, Aluminum 6061 T6 Rear Triangle, ATG, ETC 4-Link, AXH
SIZE27.5: 16", 18", 20" // 29er: 19", 21", 23"

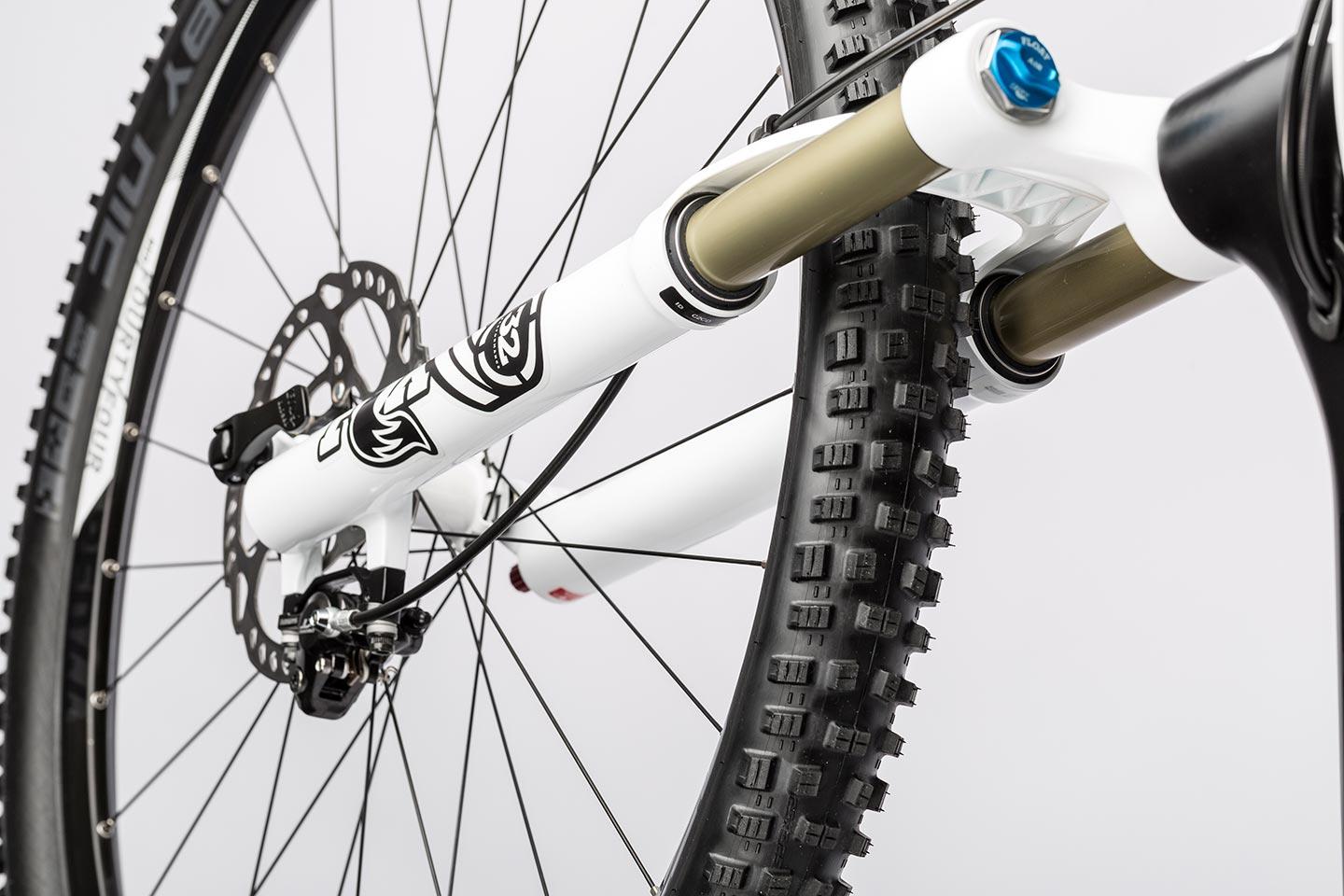

FORKFox 32 Float FIT4, 15QR, Tapered, 120mm

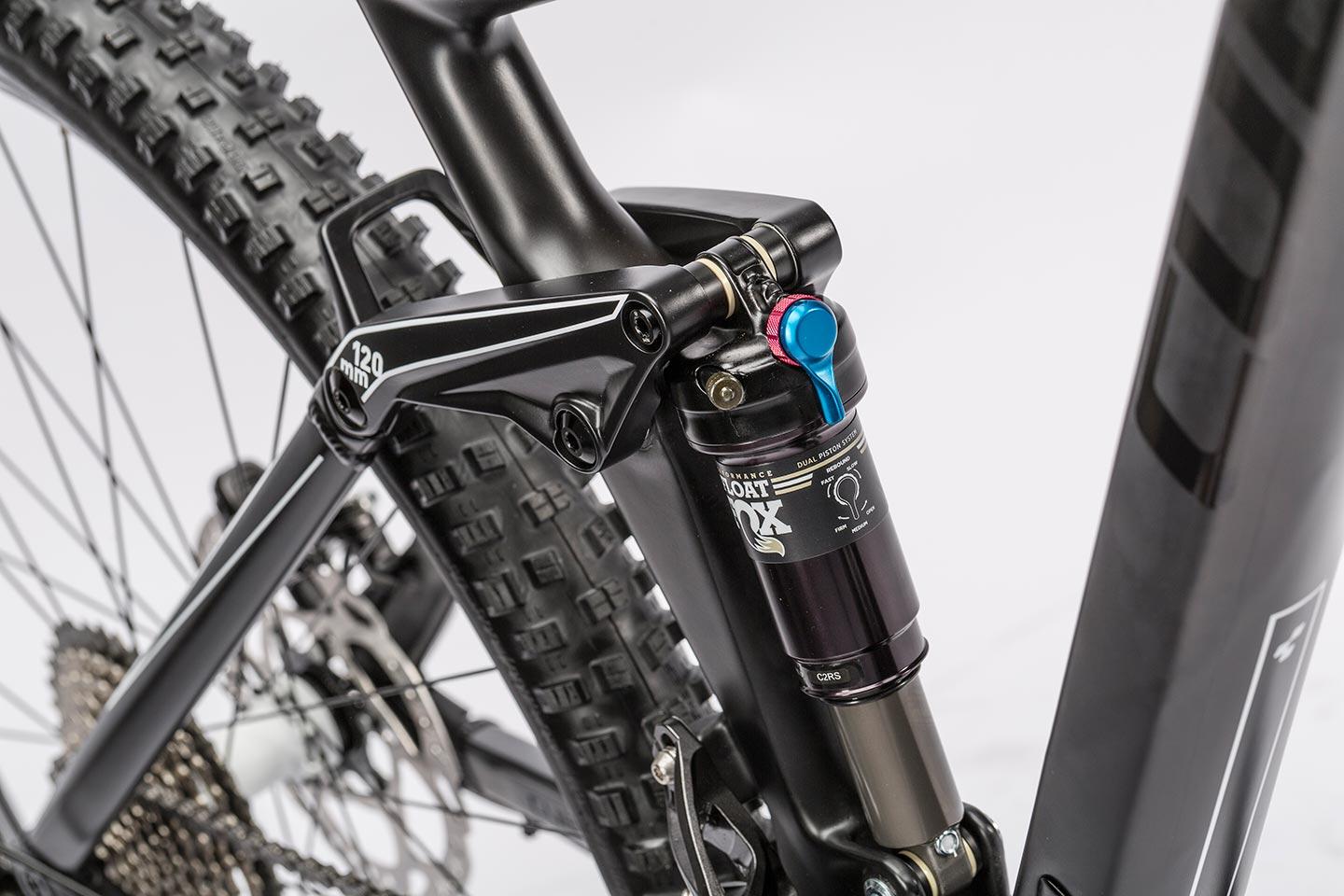

SHOCKFox Float DPS, 184x44mm, Open/Medium/Firm Mode, LV Air Canister
SHOCK HARDWARETop: 30x8mm, Bottom: 22x8mm
BRAKE SYSTEMShimano XT BR-M8000, Hydr. Disc Brake (180/180)
REAR DERAILLEURShimano XT RD-M8000-DGS, ShadowPlus, 11-Speed, Direct Mount
FRONT DERAILLEURShimano XT FD-M8020-D, Direct Mount, Side Swing
SHIFTERSShimano XT SL-M8000-I, Direct Attach
CRANKSETShimano XT FC-M8000, 36x26T, 175mm
CASSETTEShimano XT CS-M8000, 11-40T
CHAINShimano CN-HG600-11
WHEELSETFulcrum Red 44, 28/28 Spokes, 15QR/X12
TIRESSchwalbe Nobby Nic Kevlar 2.25, LiteSkin

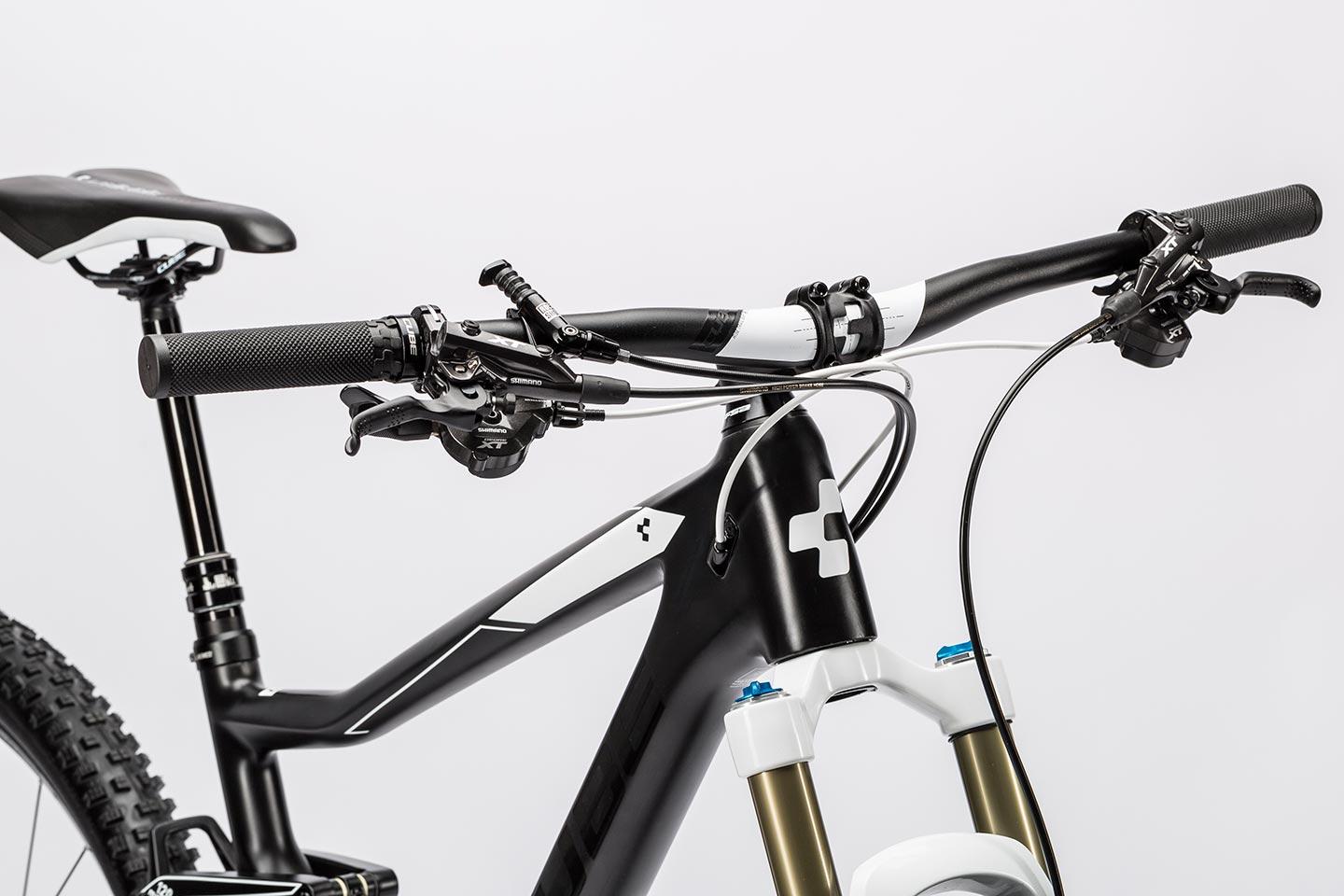

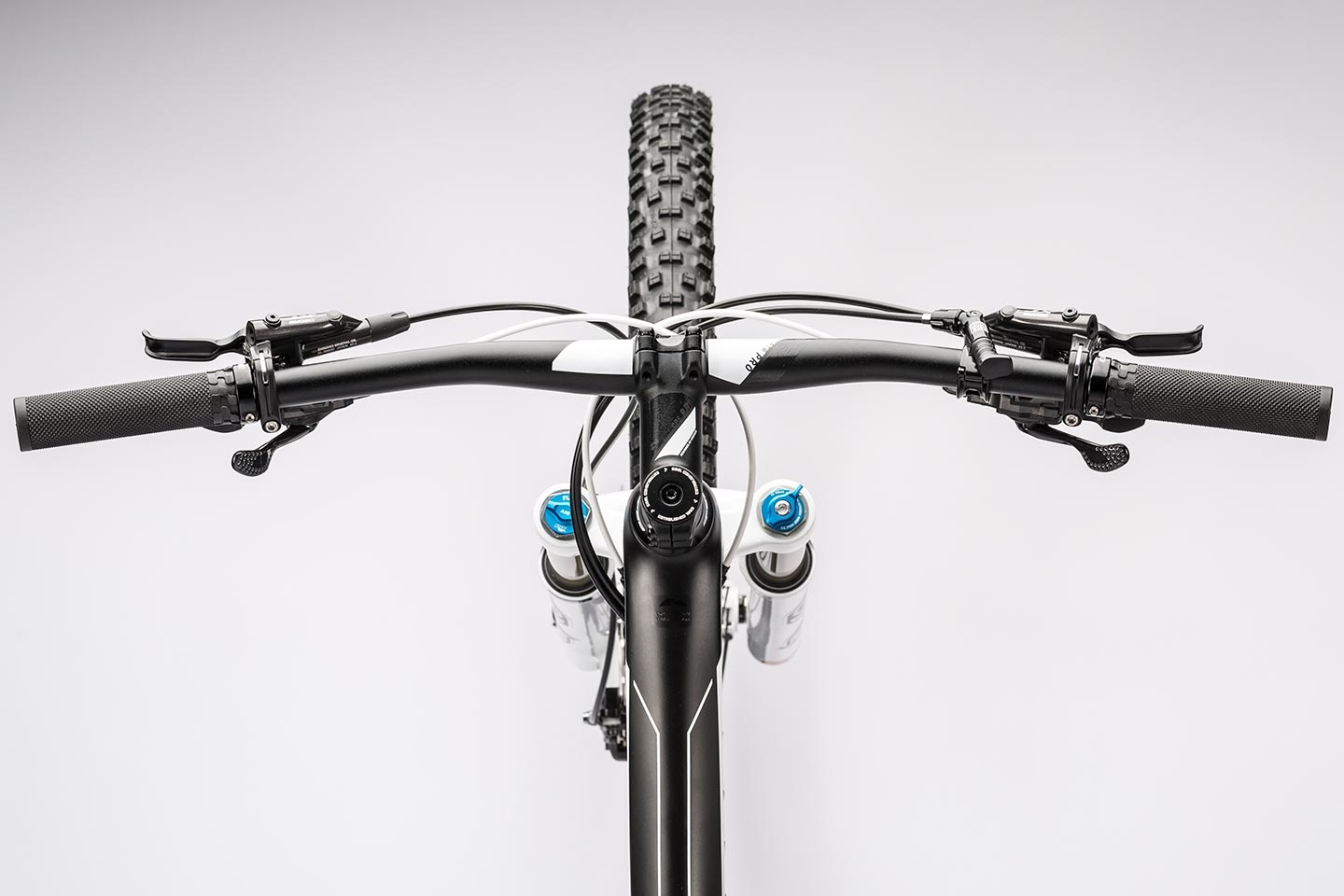

HANDLEBARCUBE Rise Trail Bar Pro, 740mm
GRIPSCUBE Race Grip, 1-Clamp
SEAT POSTRock Shox Reverb Stealth 31.6mm, 430x150mm (380x125mm for smallest frame size)
SEATCLAMPCUBE Screwlock, 34.9mm
SADDLESelle Italia SC1
HEADSETFSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2"
WEIGHT12.45 kg
COLORcarbon´n´white
CIKKSZÁM754300

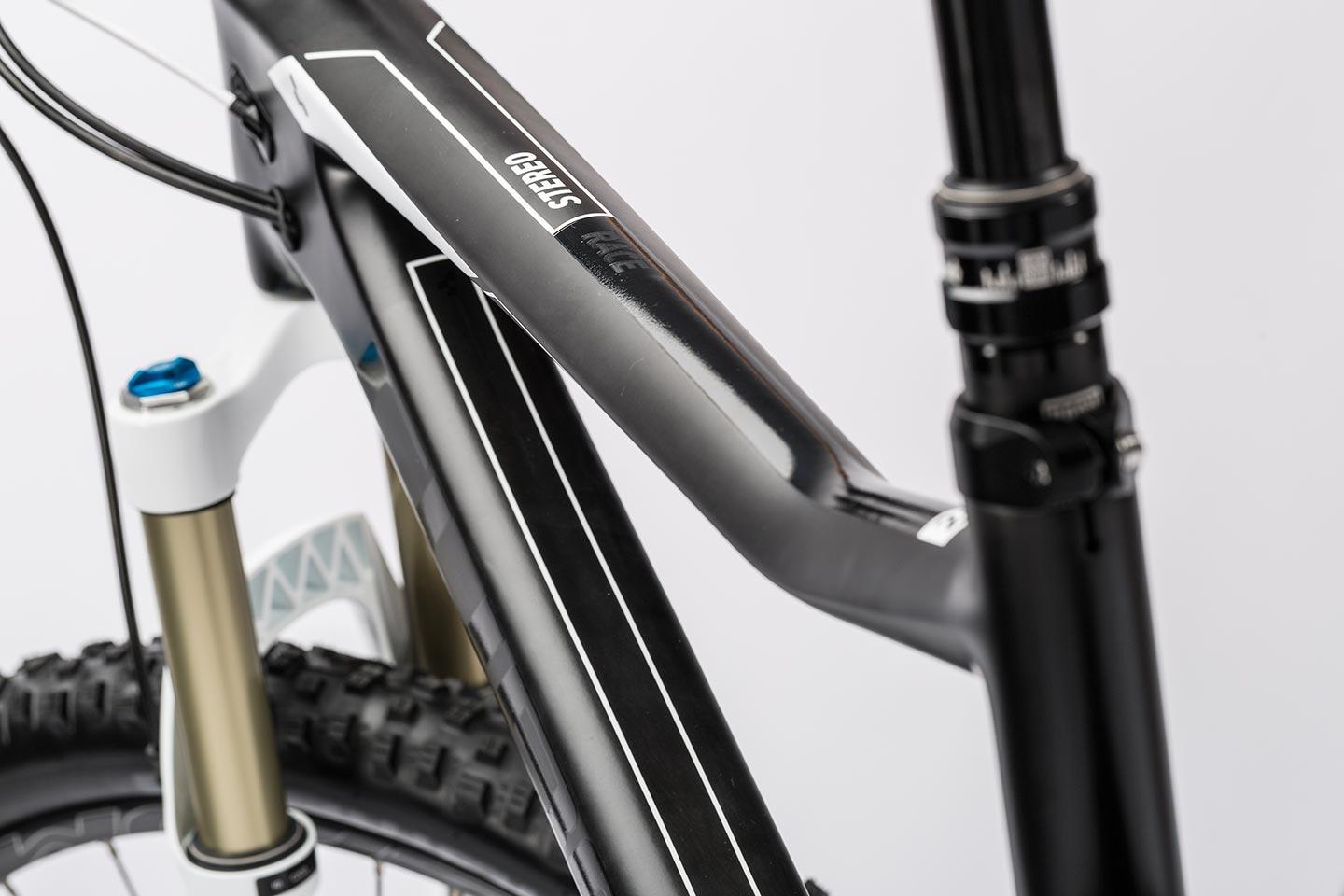

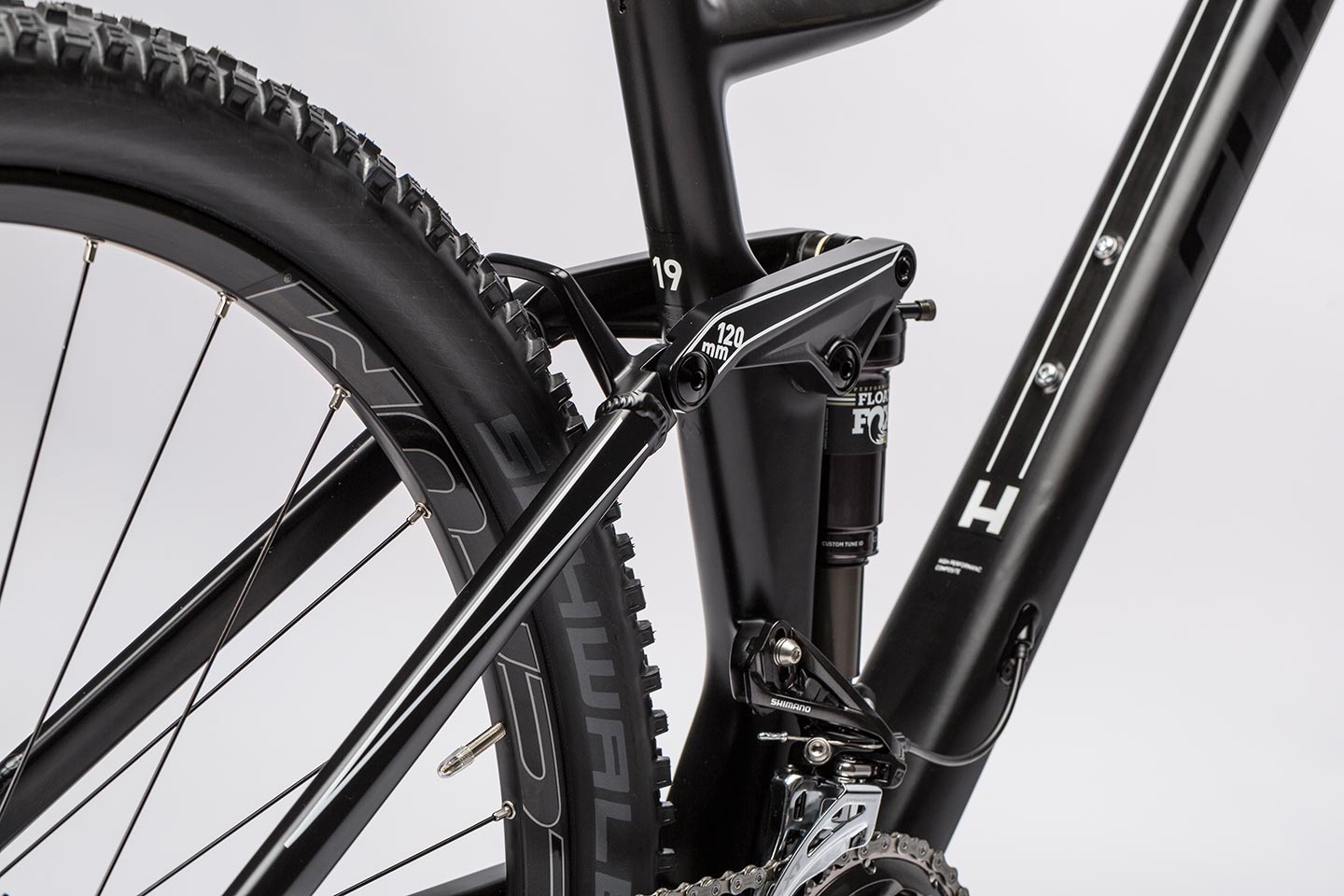

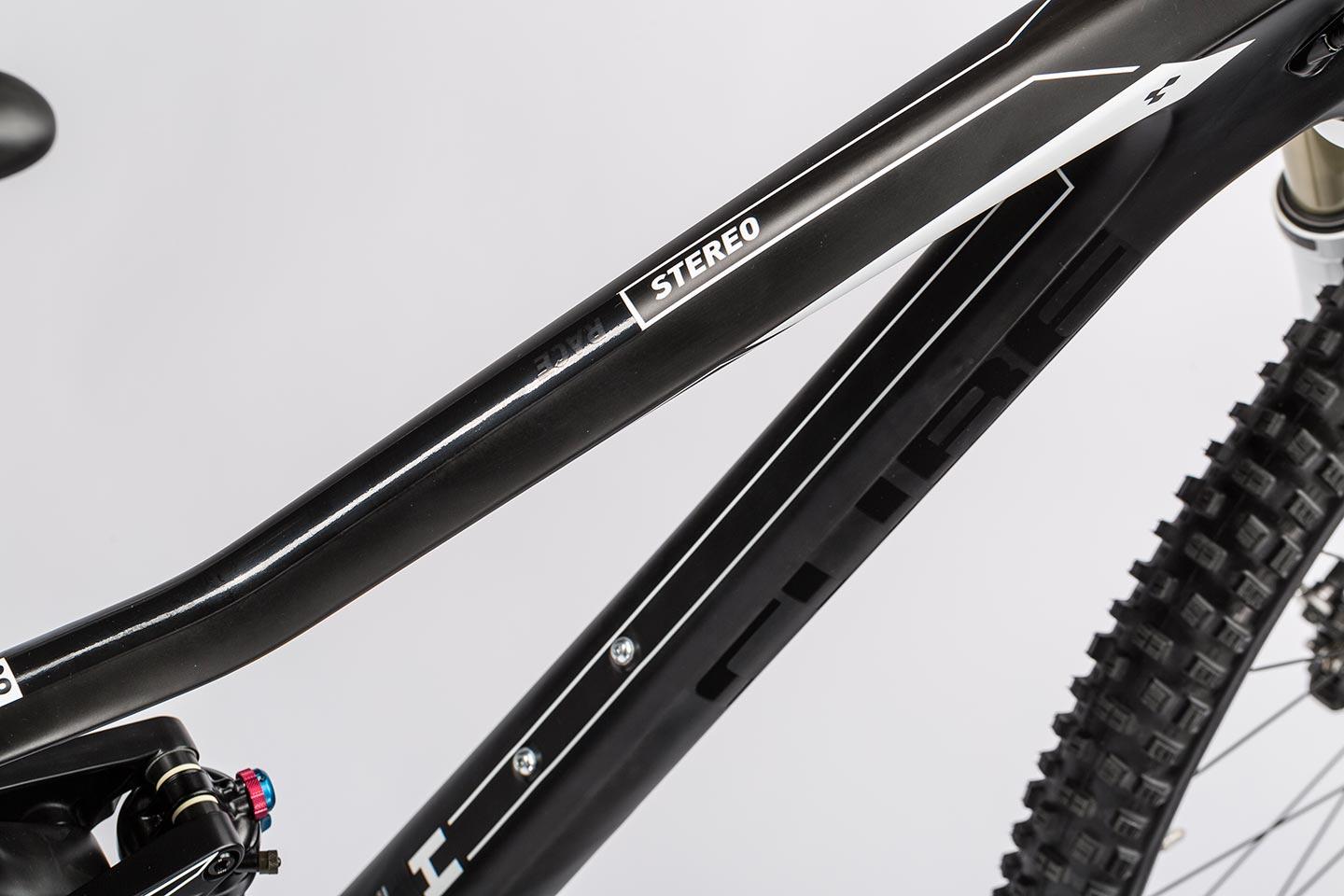

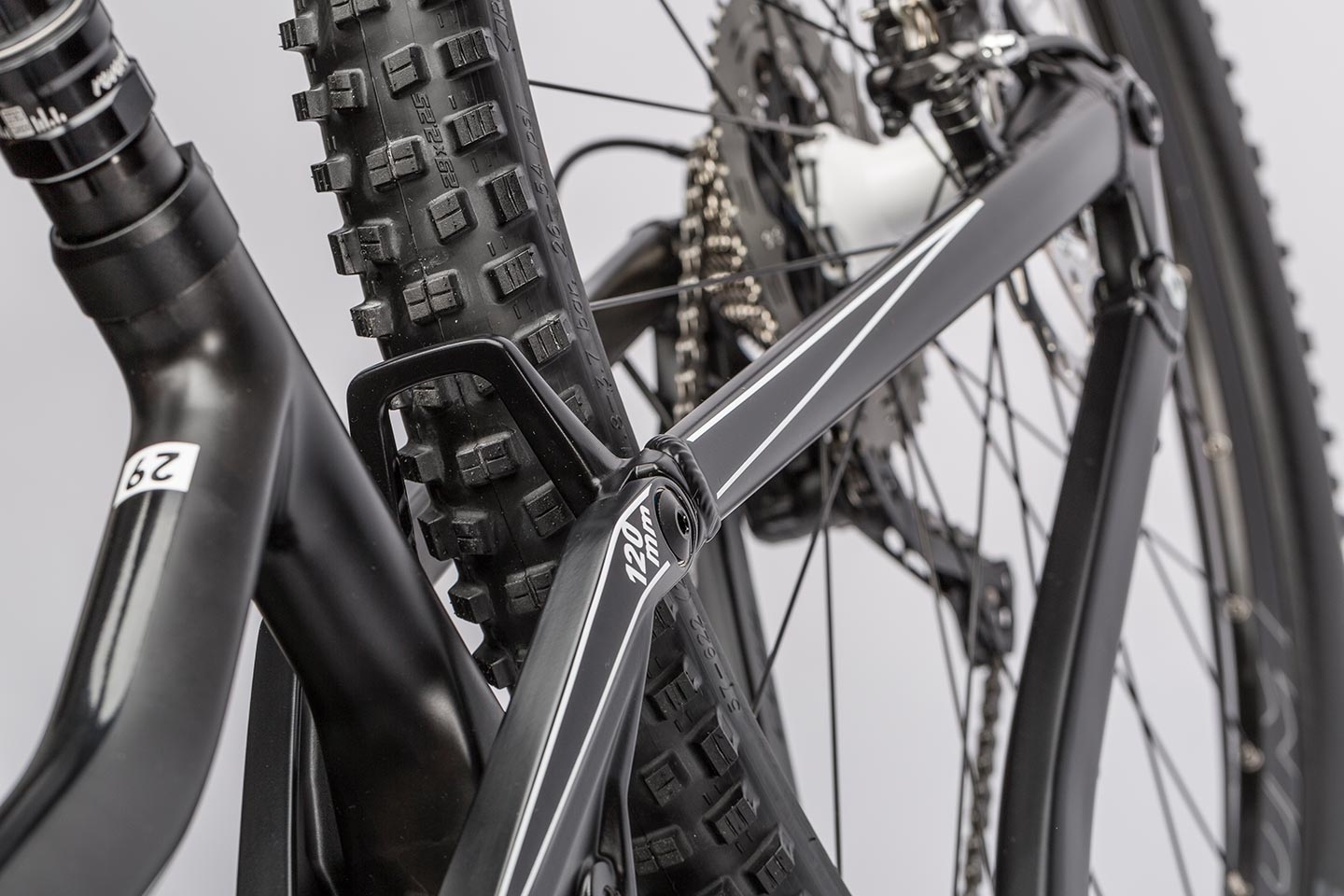

The Stereo HPC is a combination of a superlight carbon monocoque main frame - produced with our state-of-the-art Advanced Twin Mould techniqe - with 6061 T6 aluminium chainstays and a forged Trail Motion Rocker linkage. Tapered head tube, internal cable routing, PressFit bottom bracket and X12 HR axle are all part of the package. CUBE's Efficient Trail Control (ETC) suspension design and Agile Trail Geometry (ATG) come together to give the Stereo 120 HPC Race consistent suspension performance across all frame and wheel sizes and, of course, the same superb ride characteristics that you'd expect of any of our Stereo models. There's no better or more versatile 120mm full susser.
