Hyde
Race

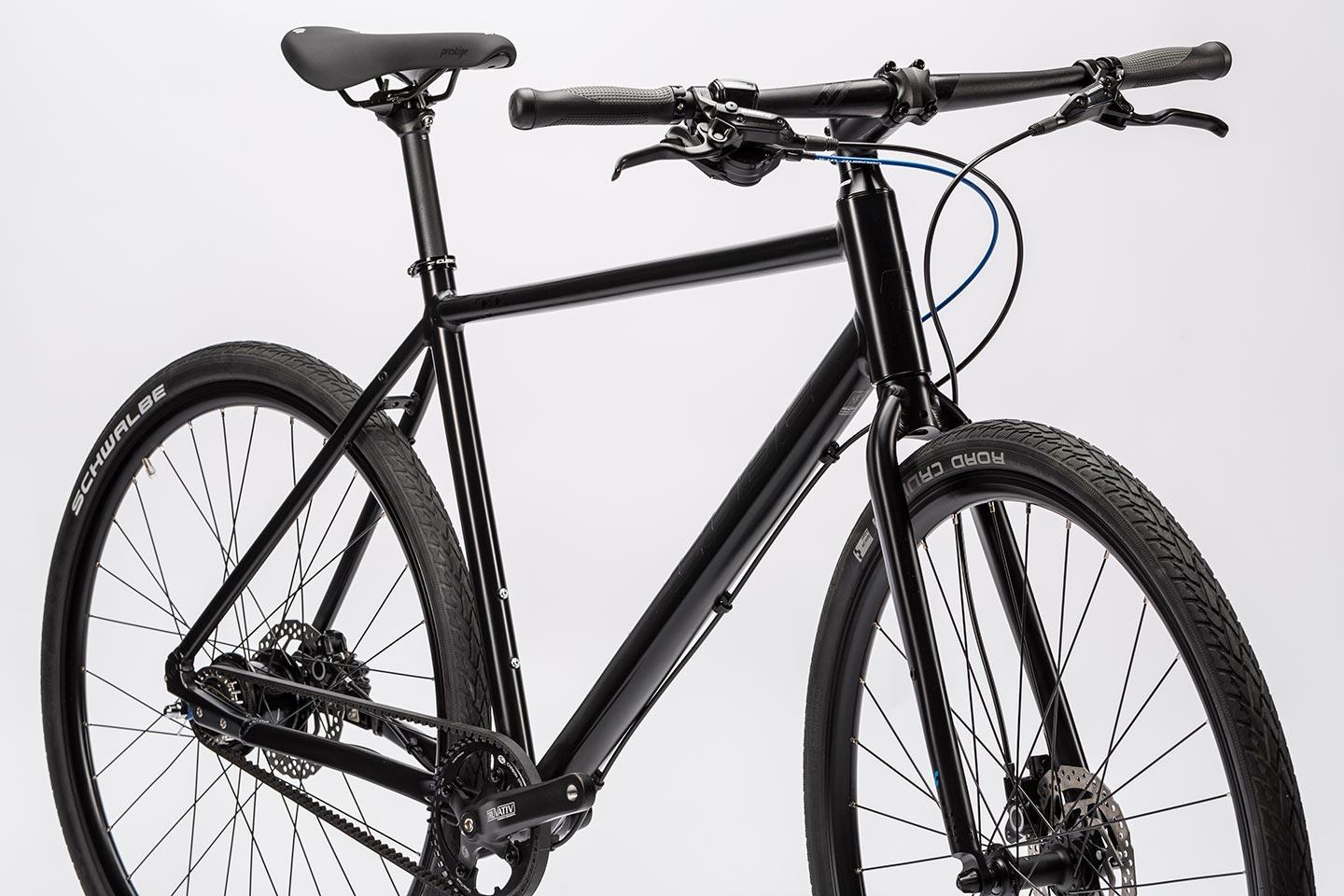

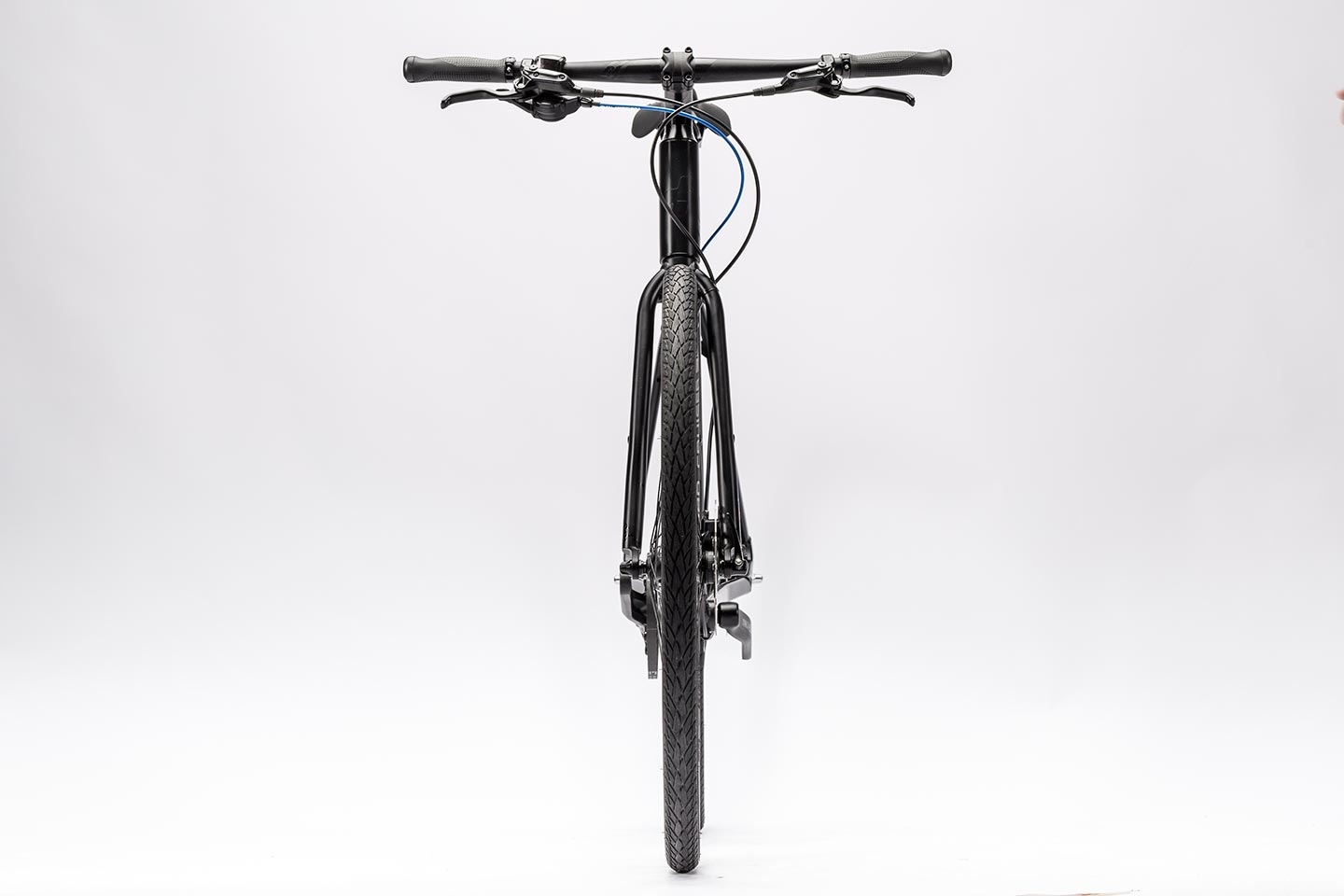

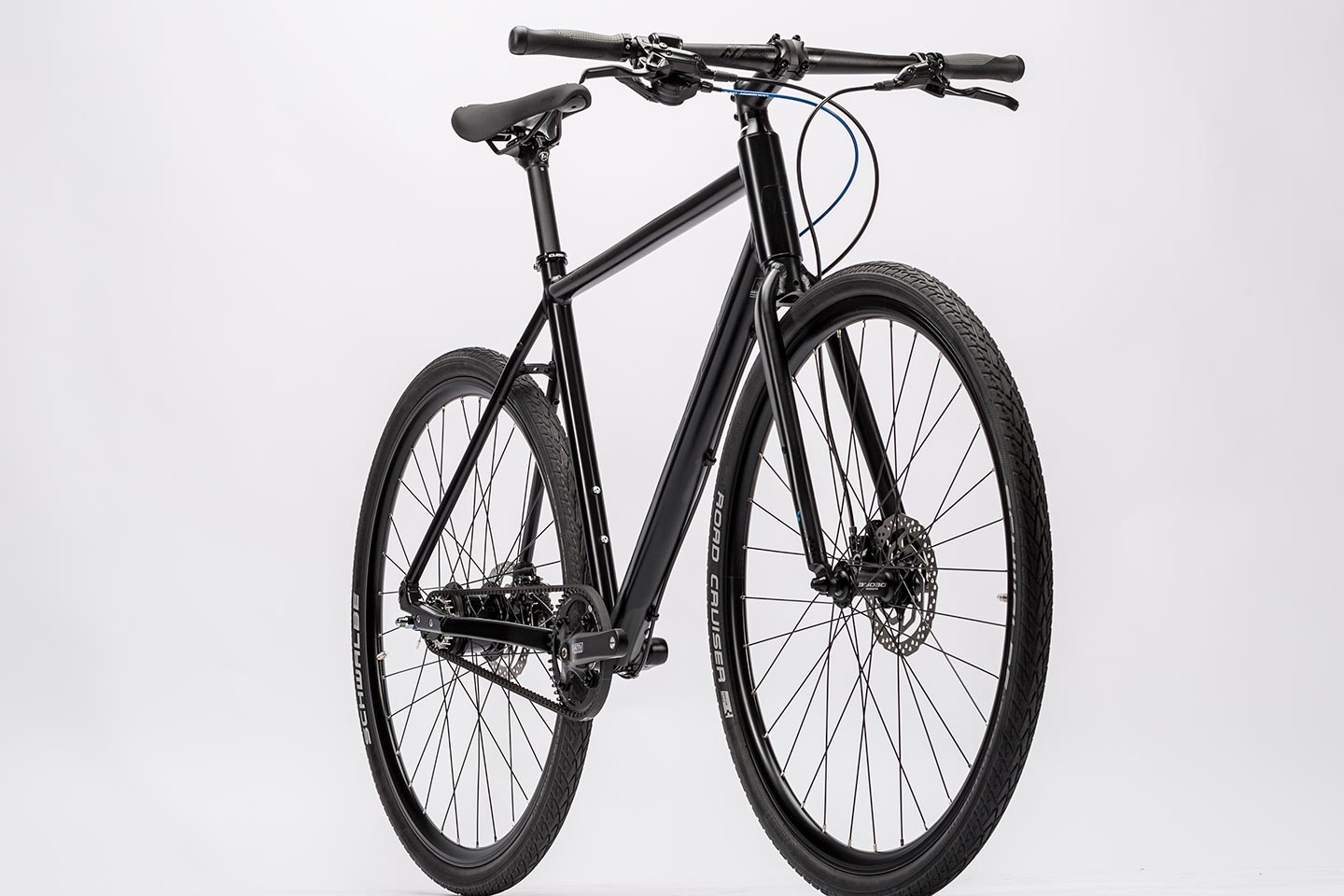

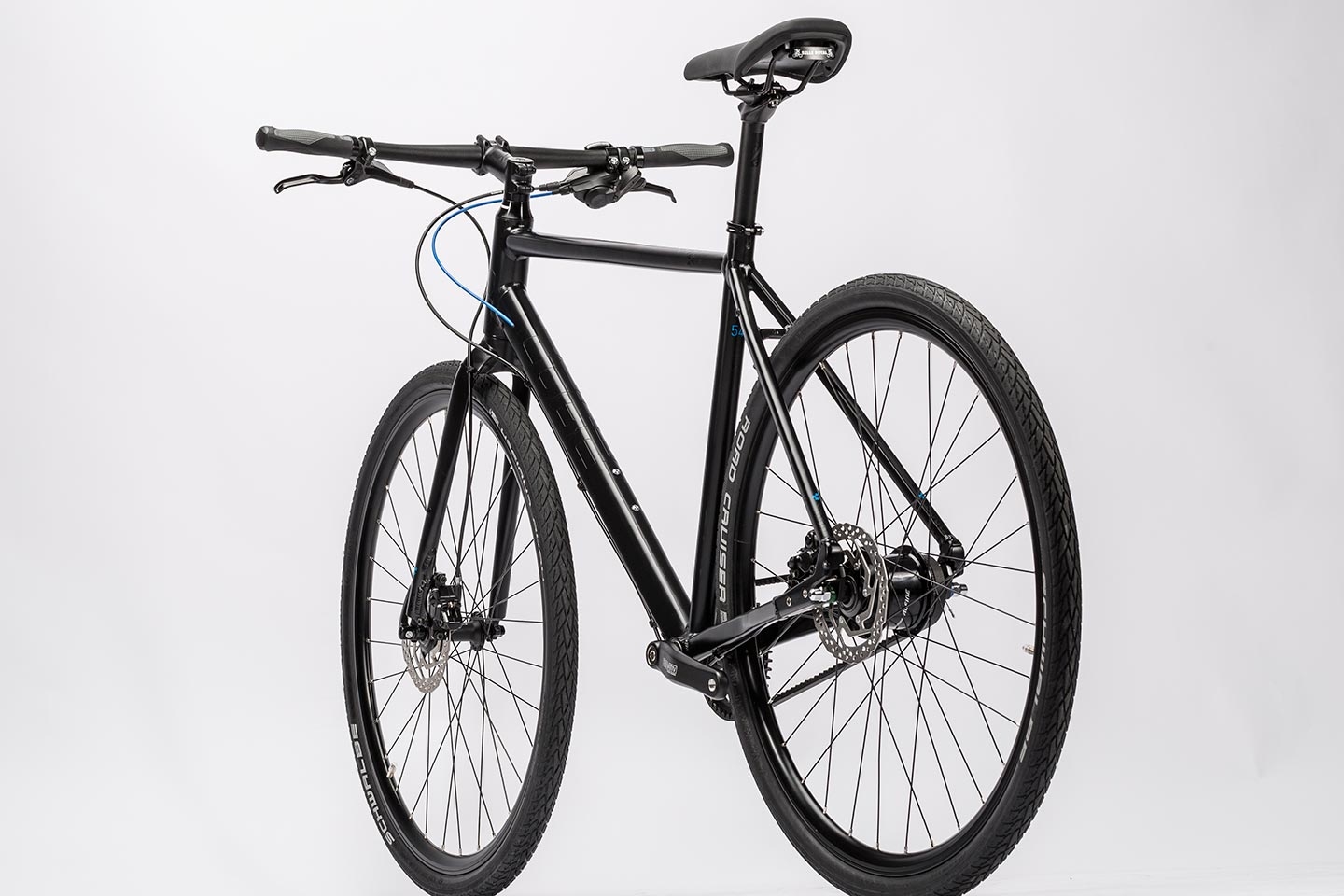

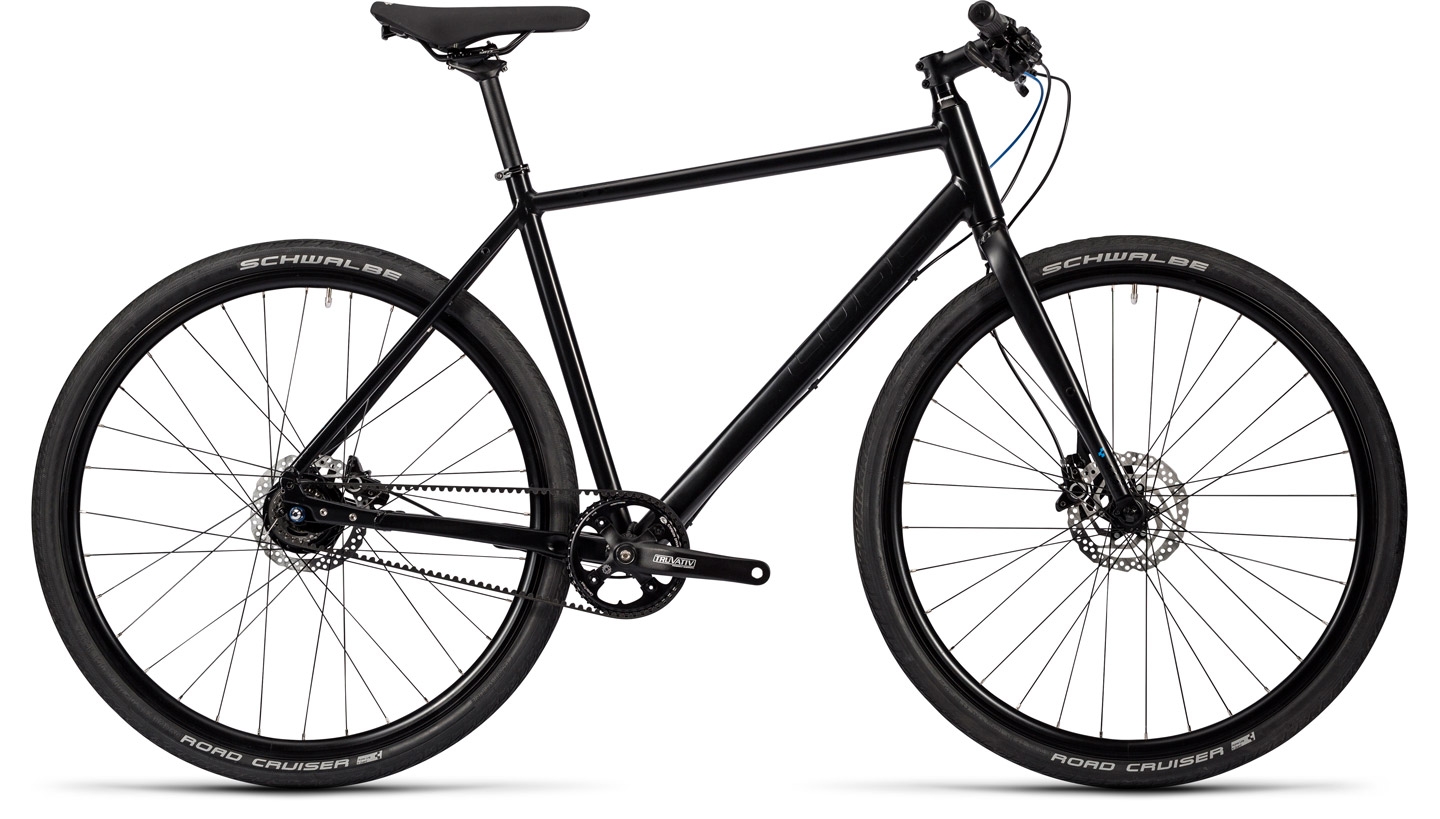

The Hyde Race is our answer to the very specific demands of urban riding. The silent Gates Carbon Drive belt is an important part of the solution, rendering trouser legs smeared with chain oil a thing of the past. And it goes without saying that 'Race' isn't just a word that we've added to the frame. We sweated the details, not just in terms of state-of-the-art propulsion from the 8 speed Alfine hub, but also making the bike as light as possible. The Hyde Race is a true urban speed machine.
AUSSTATTUNG
| FRAME | Aluminium Superlite Urban Double Butted |
|---|---|
| SIZE | 46, 50, 54, 58, 62 |
| FORK | Aluminium Rigid Fork |
| GEAR TEETH | Gates CDN Center Track, 22 |
| BRAKE SYSTEM | Shimano BR-M355, Hydr. Disc Brake (160/160) |
| SHIFTERS | Shimano Alfine SL-S7000 |

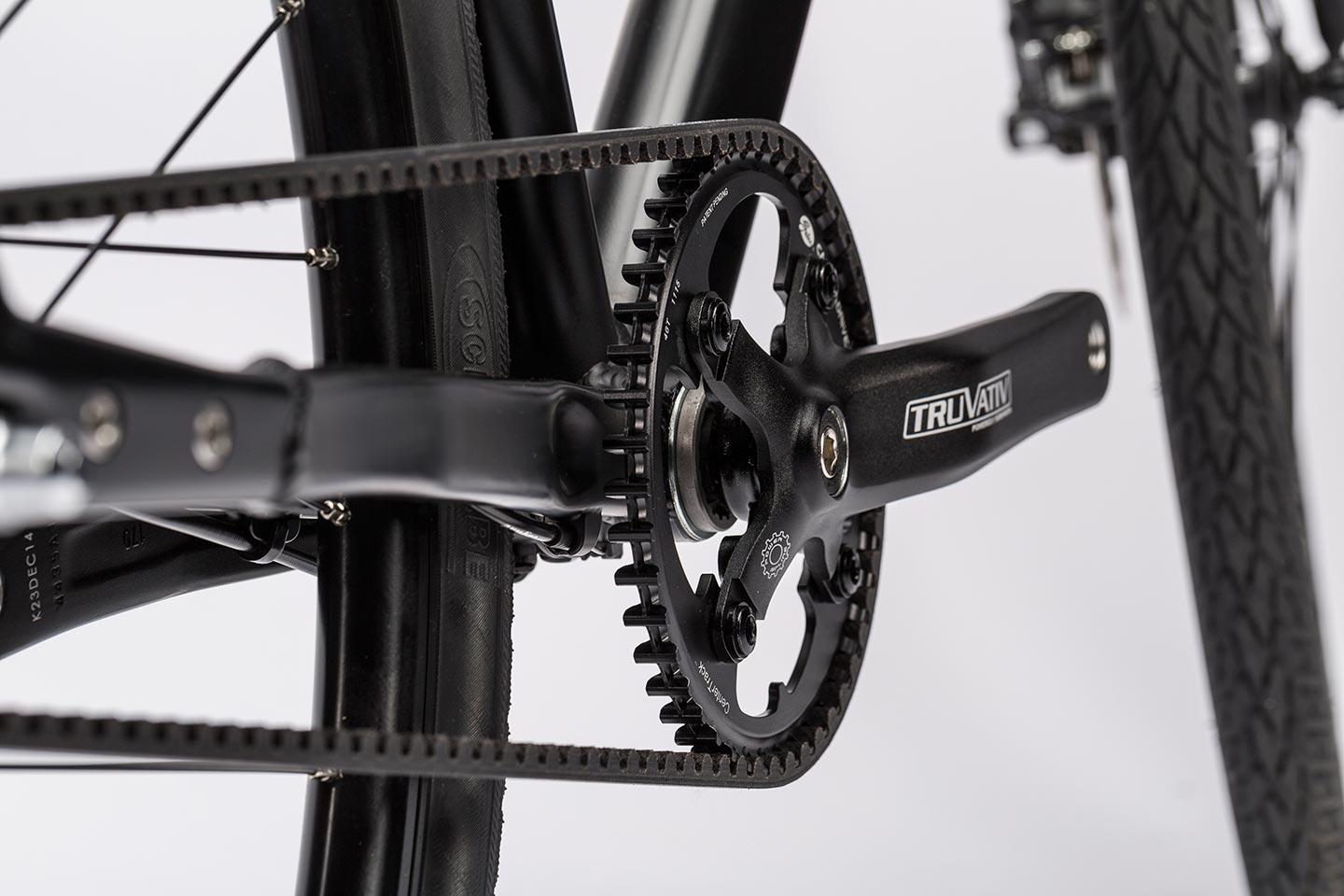

| CRANKSET | Truvativ E400, Gates CDX 46T, BB Power Spline, 170mm |
| GEAR TEETH | Gates CDN Center Track, 22 |
| CHAIN | Gates CDN, 111 |
| FRONT HUB | Shimano Deore HB-M615, Centerlock |

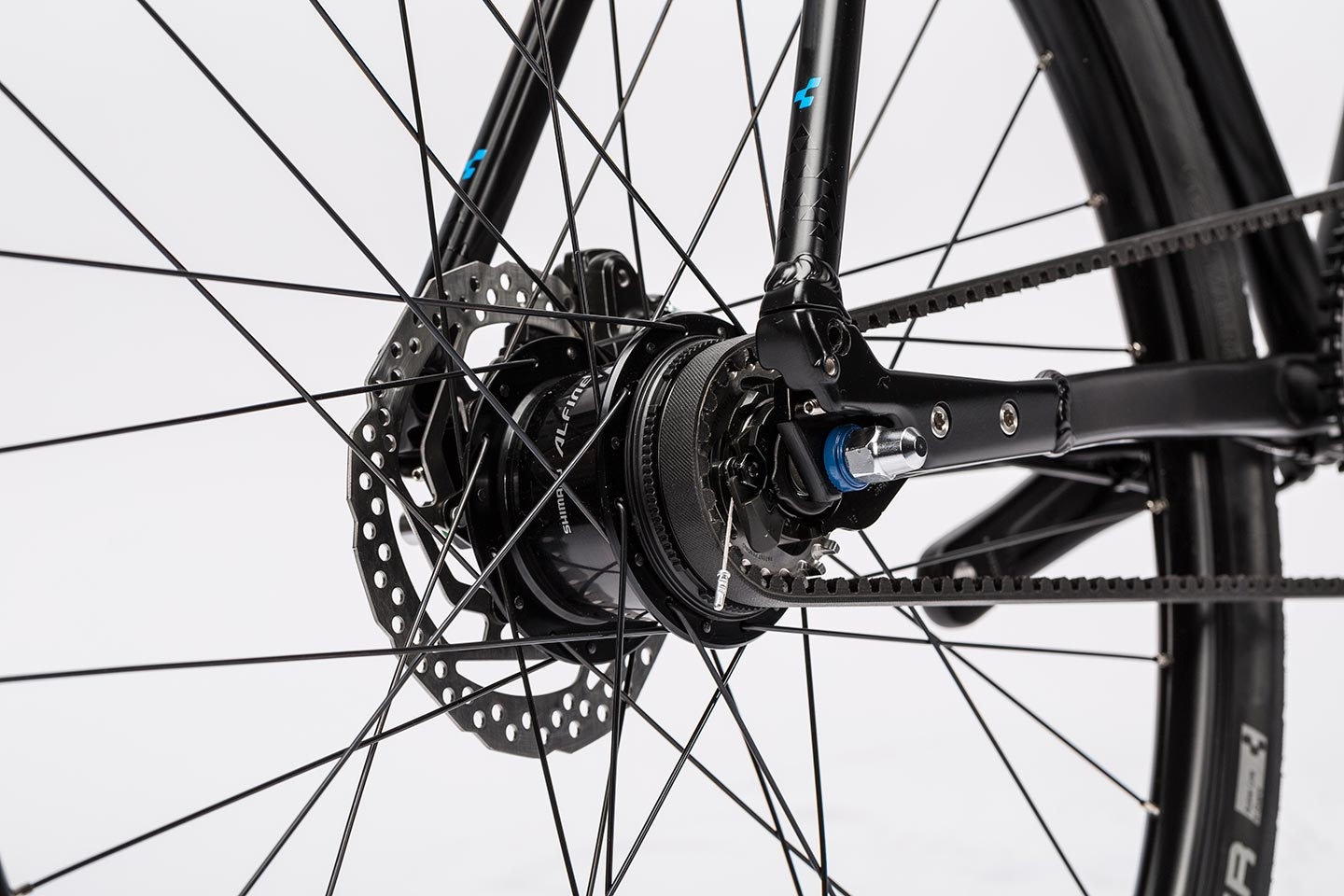

| REAR HUB | Shimano Alfine SG-S7000, 8-Speed |
| RIMS | CUBE UX24 |
| TIRES | Schwalbe Road Cruiser, Active, 42x622 |

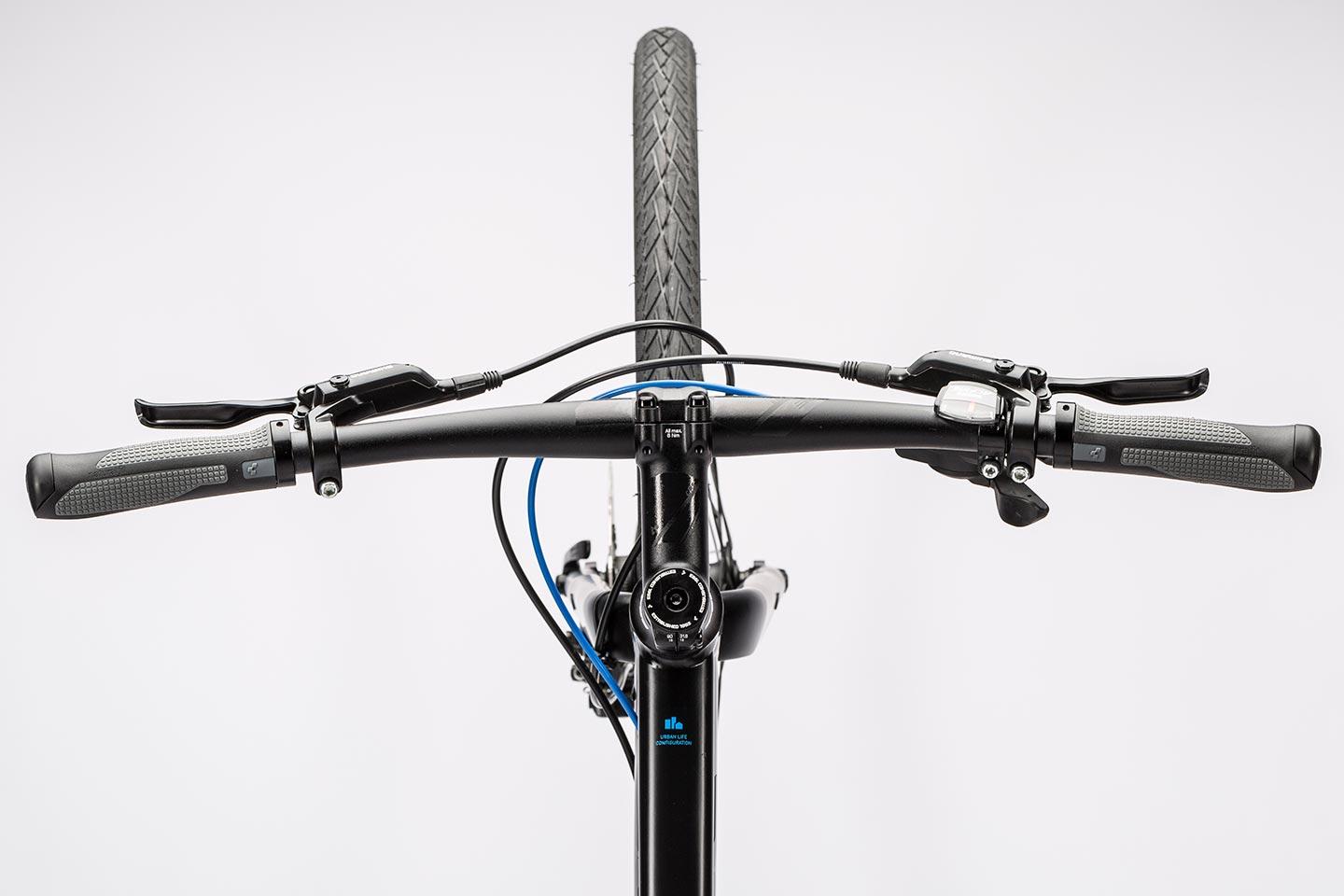

| HANDLEBAR | CUBE Flat Race Bar, 660mm |
| GRIPS | CUBE Natural Fit Race |
| SEAT POST | CUBE Performance Post, 27.2mm |
| SEATCLAMP | CUBE Screwlock, 31.8mm |
| SADDLE | Selle Royal Prestige |
| HEADSET | FSA No.10, Semi-Integrated |
| PEDALS | CUBE Aluminium MTB |
| WEIGHT | 12.3 kg |
| COLOR | black blue |
| BAR KODAS | 738002 |

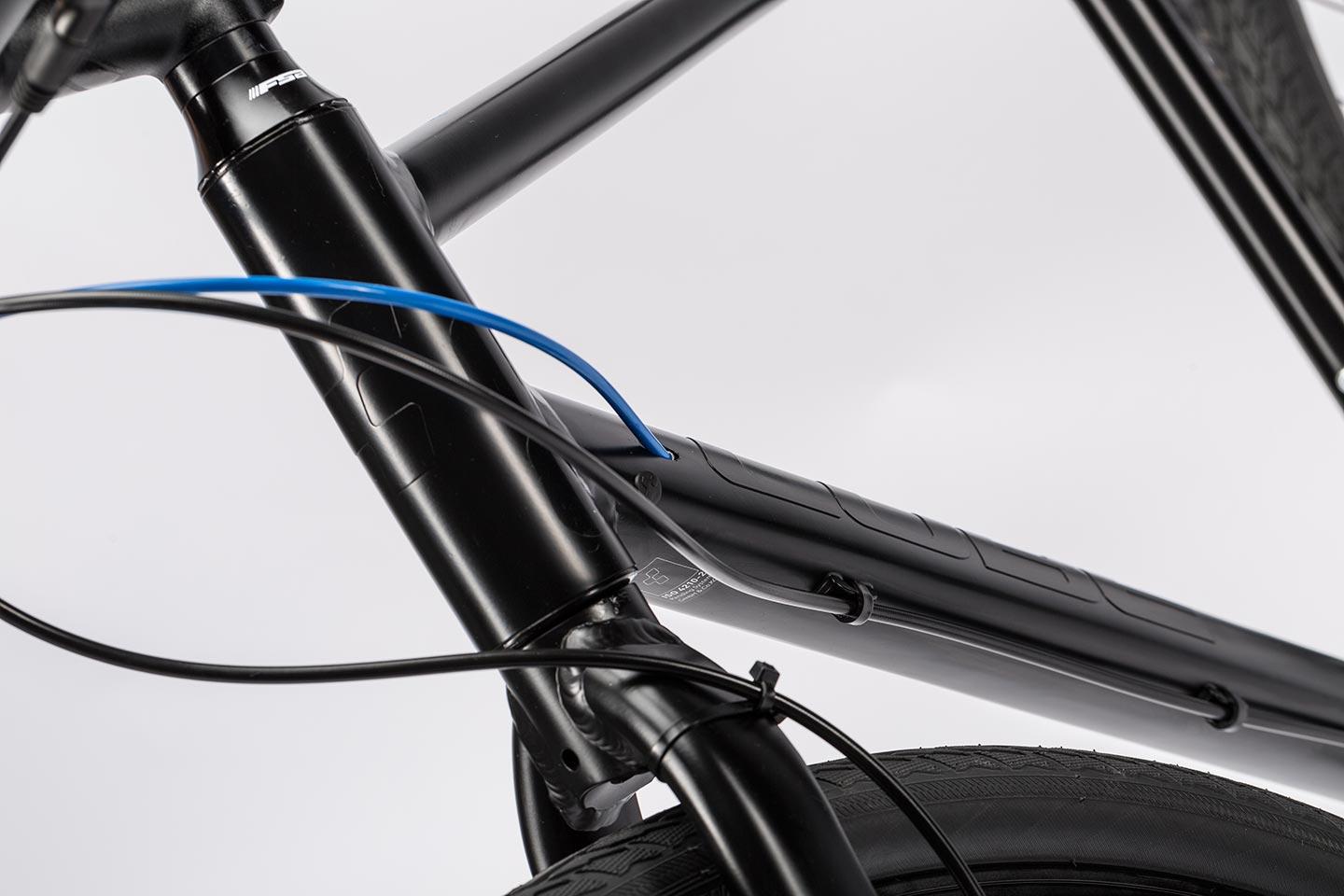

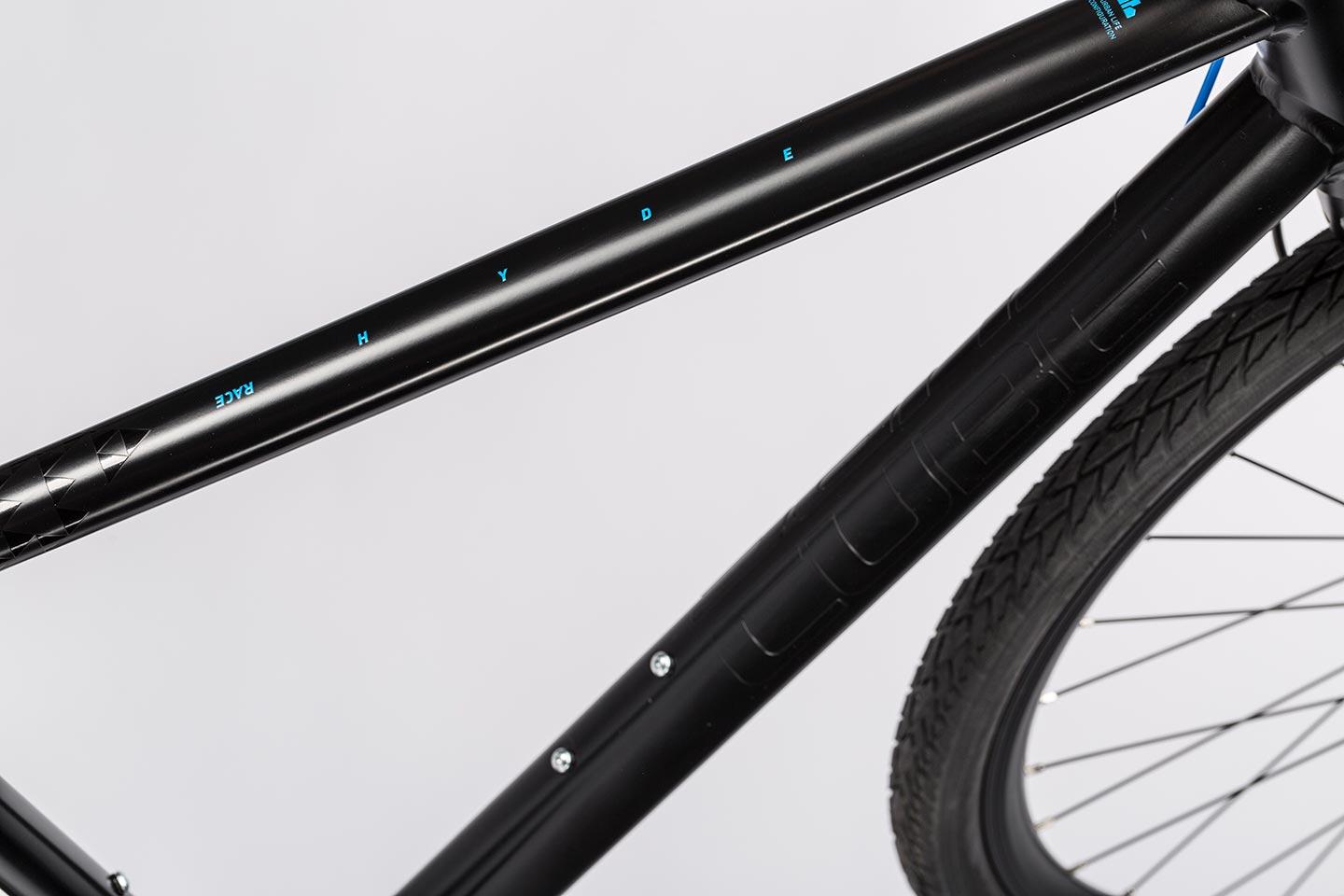

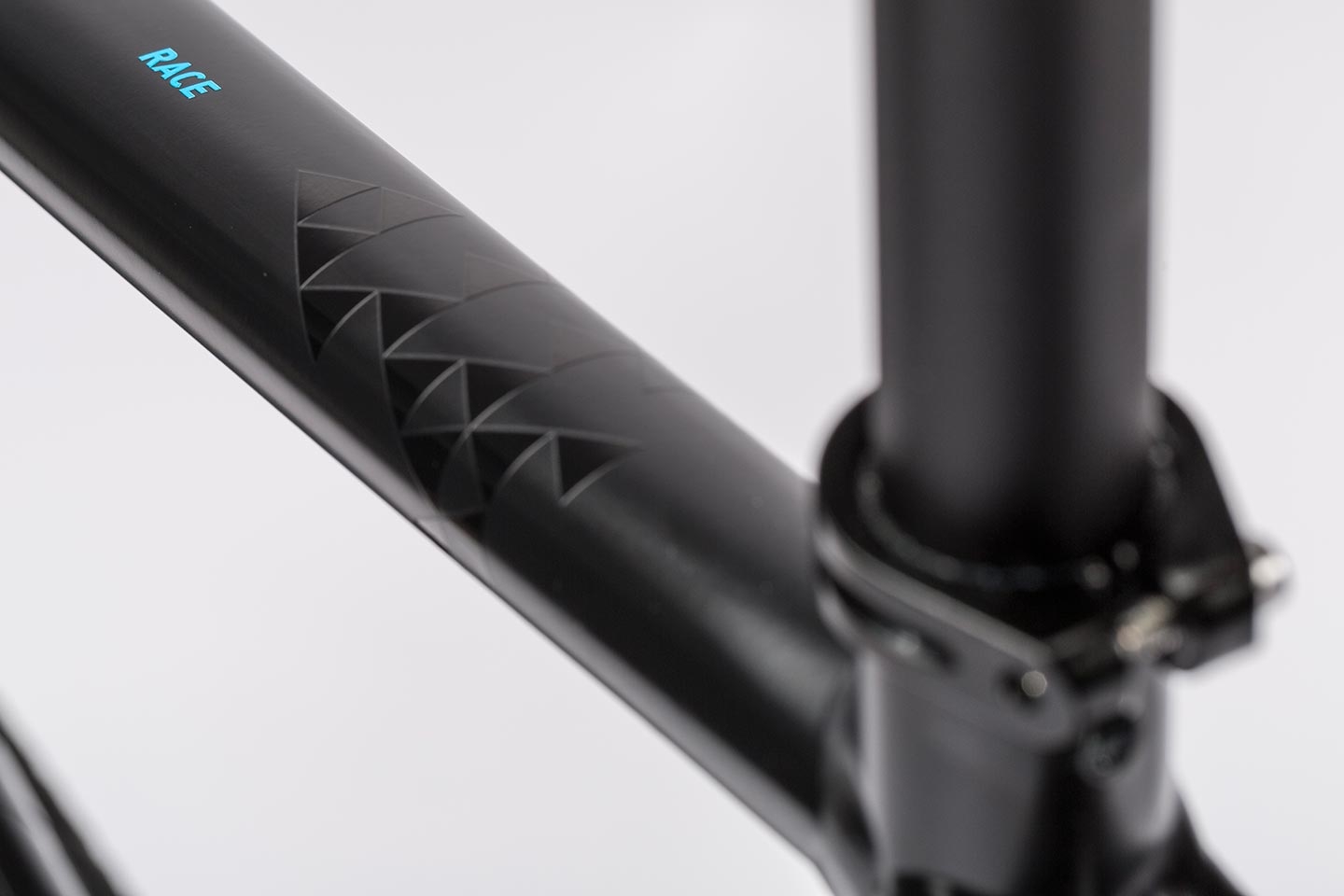

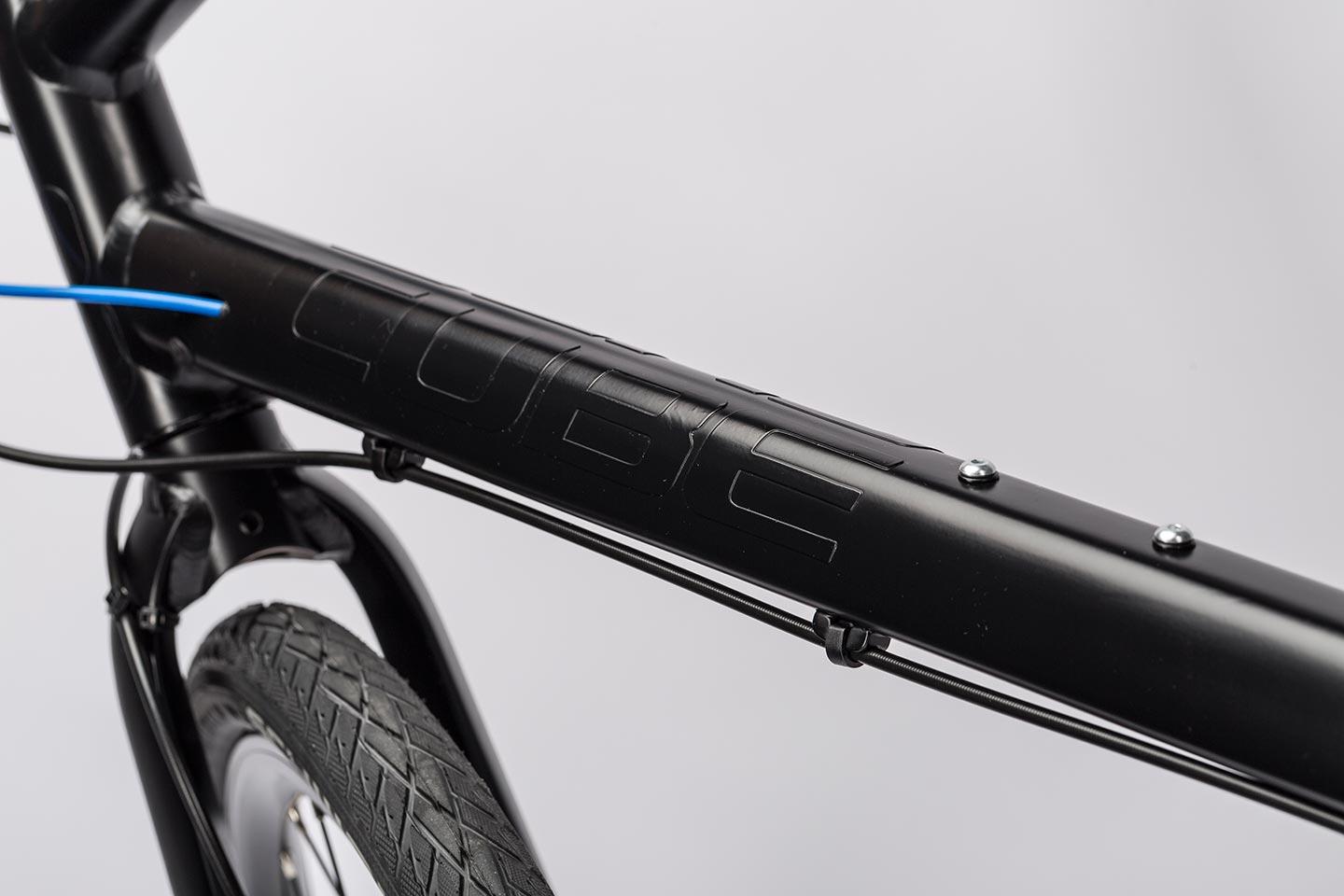

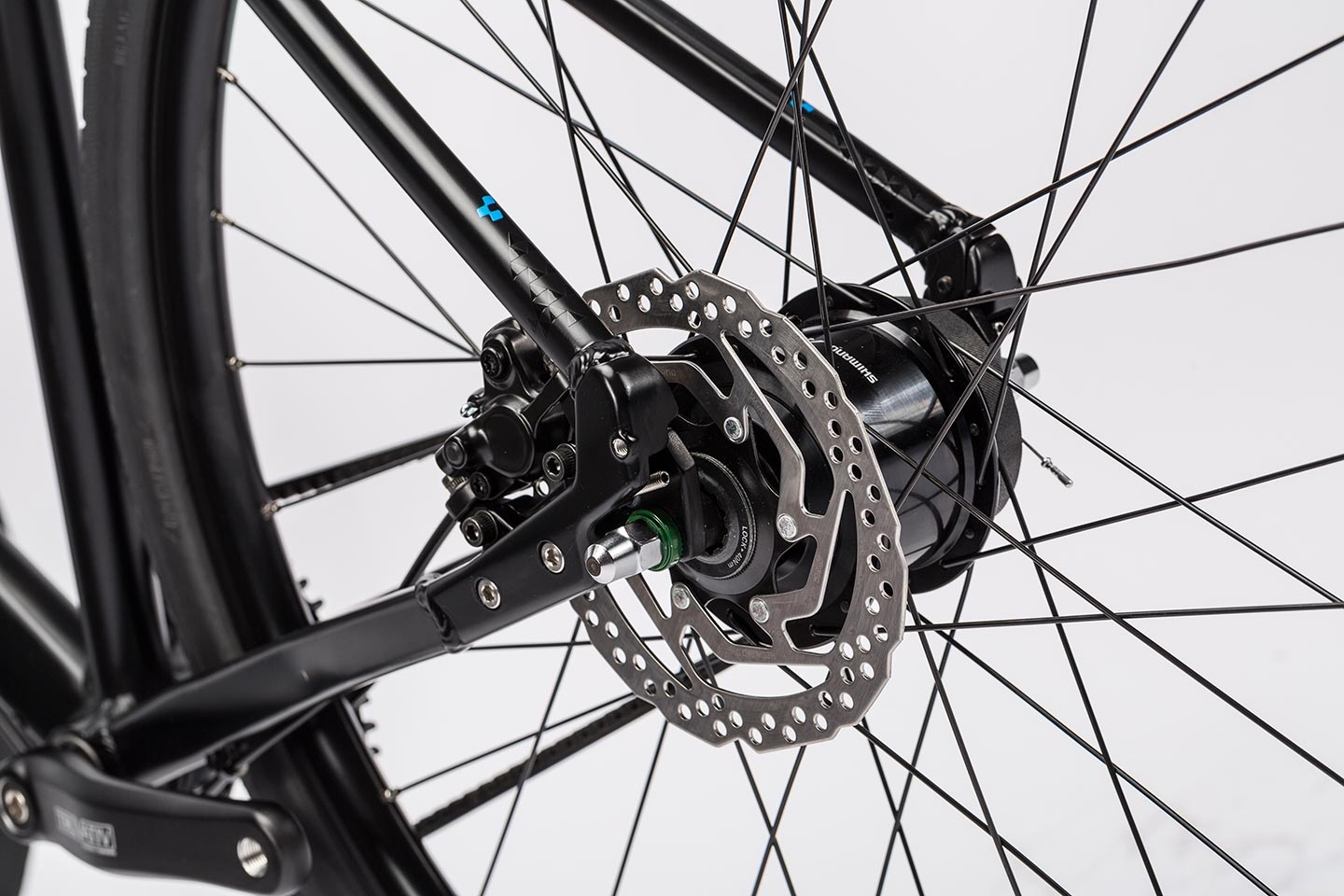

Aside from high quality, double butted frame tubes, we made the Hyde's frame with torsional rigidity in mind and also added a bunch of unique features. For example, the frame can be opened via the innovative Split & Side Dropout when the drive belt has to be changed. Belt tension can also be adjusted easily, and locked with two screws. We've concealed cables in the down tube, allowing the classically elegant tube shapes to be shown at their best and reducing maintenance at the same time. We've also looked at the best way to attach mudguards, a luggage rack, kickstand and a frame lock.
