AIM
Race

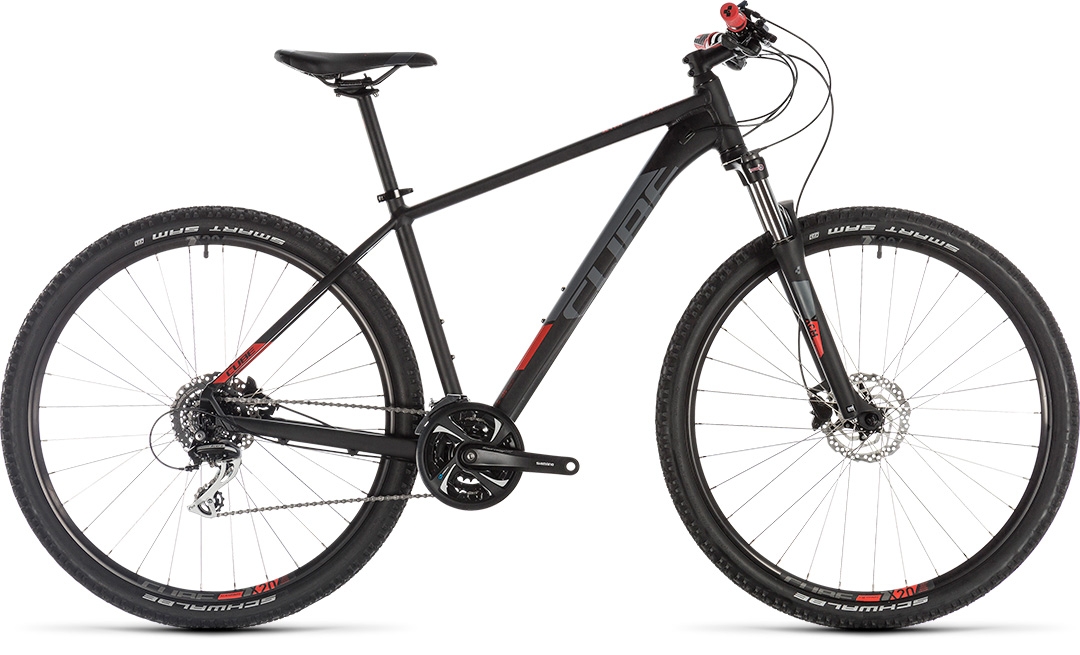

When your mountain biking ambitions begin to reach a little further afield, you'll need a bike that's up to the task. That's where the Aim Race comes in - a reliable, well-equipped trail companion that won't let you down, even as your skills and confidence grow. With redesigned rack and mudguard mounting points for 2019, it's also incredibly versatile and easy to set up for the weekday commute or a longer tour. A remote lockout Suntour suspension fork, powerful Shimano hydraulic disc brakes, 24 speed transmission are all topped off with our Size Split frame packed full of the same attention to detail that we lavish on our high end bikes. There's an Aim Race that's the perfect fit for you, so what are you waiting for?
AUSSTATTUNG
| FRAME | Aluminium Lite, AMF, Internal Cable Routing, Easy Mount Kickstand Ready |
|---|---|
| SIZE | Size Split: 27.5: 14", 16", 18" // 29: 17", 19", 21", 23" |
| FORK | SR Suntour XCM Disc, 100mm, Remote Lockout |
| BRAKE SYSTEM | Shimano BR-MT200, Hydr. Disc Brake (160/160) |
| REAR DERAILLEUR | Shimano RD-M360-SGS, 8-Speed |
| FRONT DERAILLEUR | Shimano FD-TY700-TS6, Top Swing, 31.8mm Clamp |
| SHIFTERS | Shimano SL-M310, Rapidfire-Plus |
| CRANKSET | Shimano FC-TY501, 42x34x24T, 170mm |
| CASSETTE | Shimano CS-HG200, 12-32T |
| CHAIN | KMC Z7 |
| FRONT HUB | Shimano HB-TX505, Centerlock |
| REAR HUB | Shimano FH-TX505, Centerlock |
| RIMS | CUBE SD20, 32H, Disc |
| TYRES | Schwalbe Smart Sam, Active, 2.1 |
| HANDLEBAR | CUBE Rise Trail Bar, 680mm |
| GRIPS | CUBE Race SL Grip 29.5mm, 1-Clamp |
| SEAT POST | CUBE Performance Post, 27.2mm |
| SEATCLAMP | CUBE Varioclose, 31.8mm |
| SADDLE | CUBE Active 1.1 |
| HEADSET | CUBE No.10 Semi-Integrated |
| PEDALS | CUBE PP MTB |
| WEIGHT | 14,4 kg |
| COLOUR | black´n´red |
| BAR KODAS | 201400 |
Geometrija

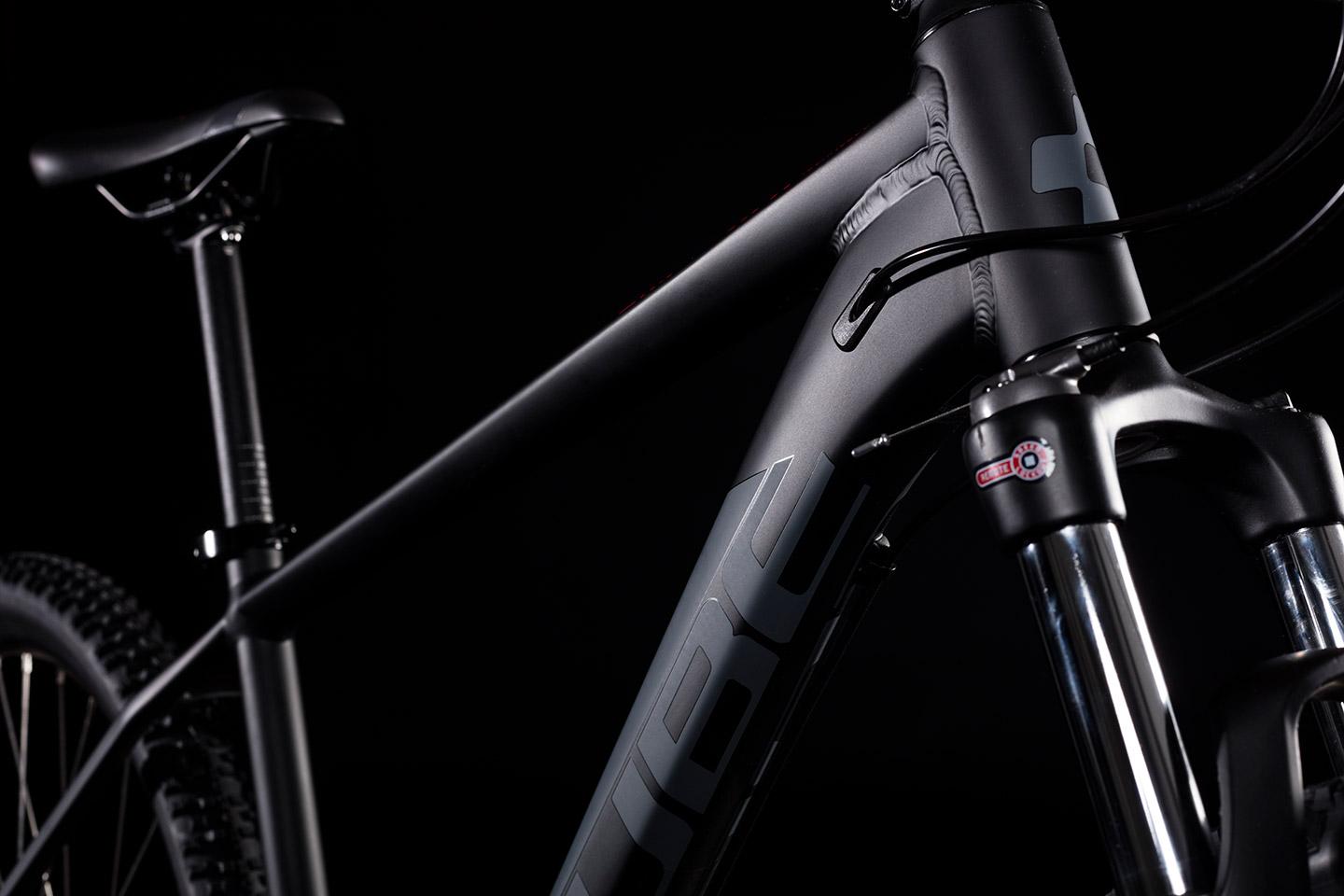

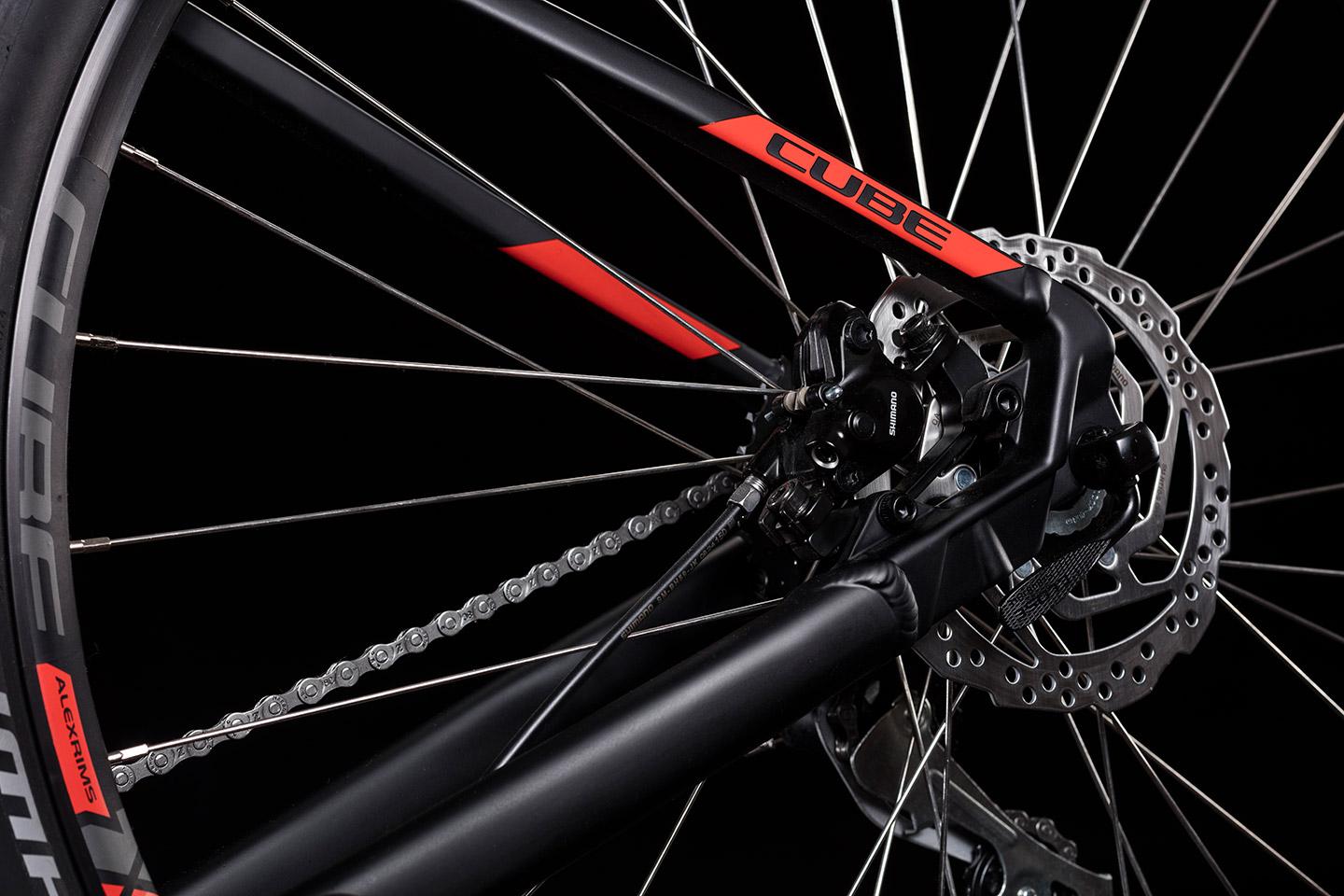

At CUBE we never cut corners, wheter we're designing a bike for professional athletes or one for messing about in the woods or riding down to the shops. From the integrated disc brake mount tucked unobtrusively between the seat and chainstays to the carefully redesigned rack and mudguard mounting points, our engineers sweated every detail of the Aim Race's 6061 aluminum chasis. The complex profile, mechanically formed top and down tubes combine with Agile Ride Geometry to deliver a ride that's safe and efficient while remaining both lively and comfortable. We even routed the cables internally, adding to the frame's sleek looks while improving gear shift performance and drastically reducing the need for regular maintenance.
