curve

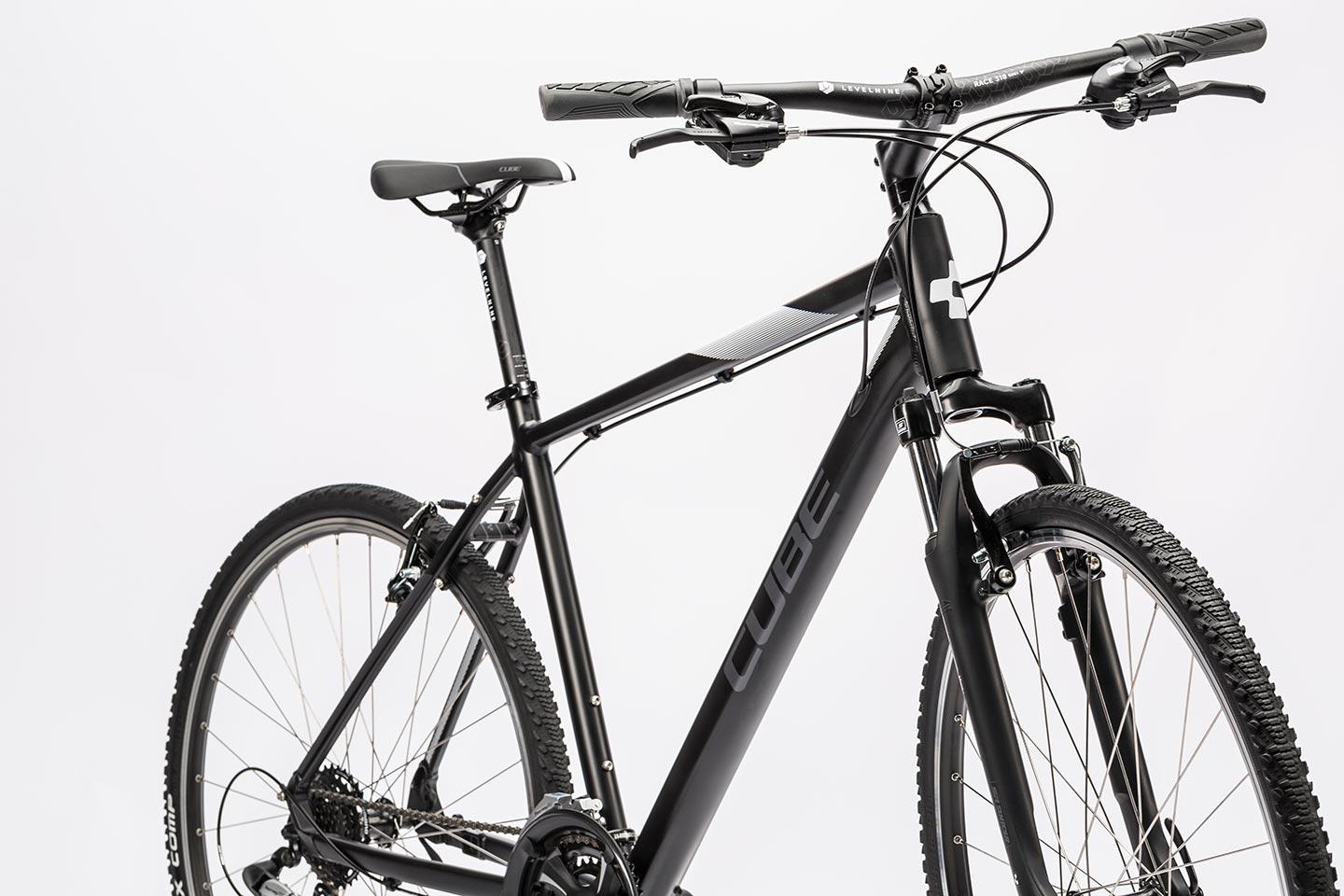

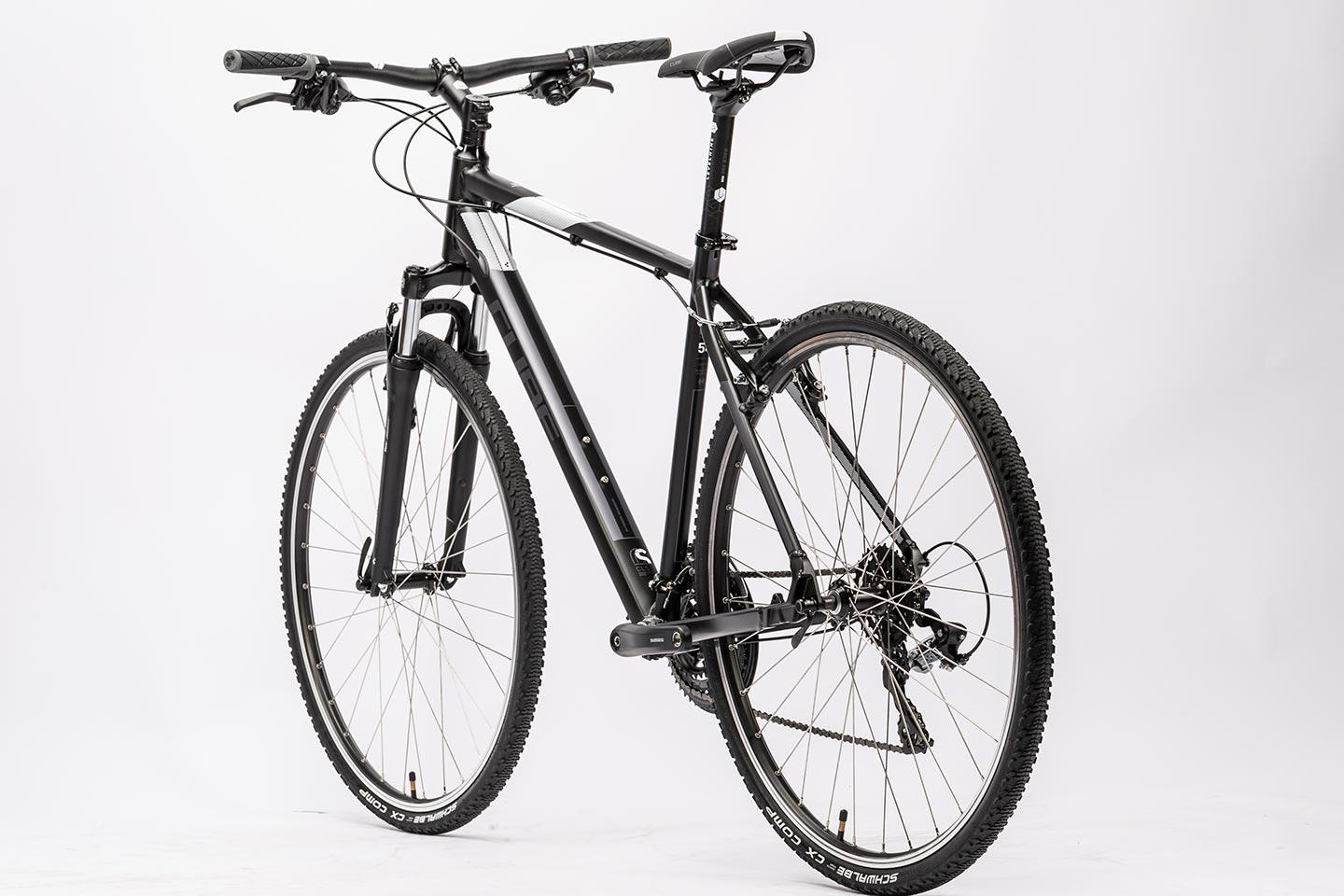

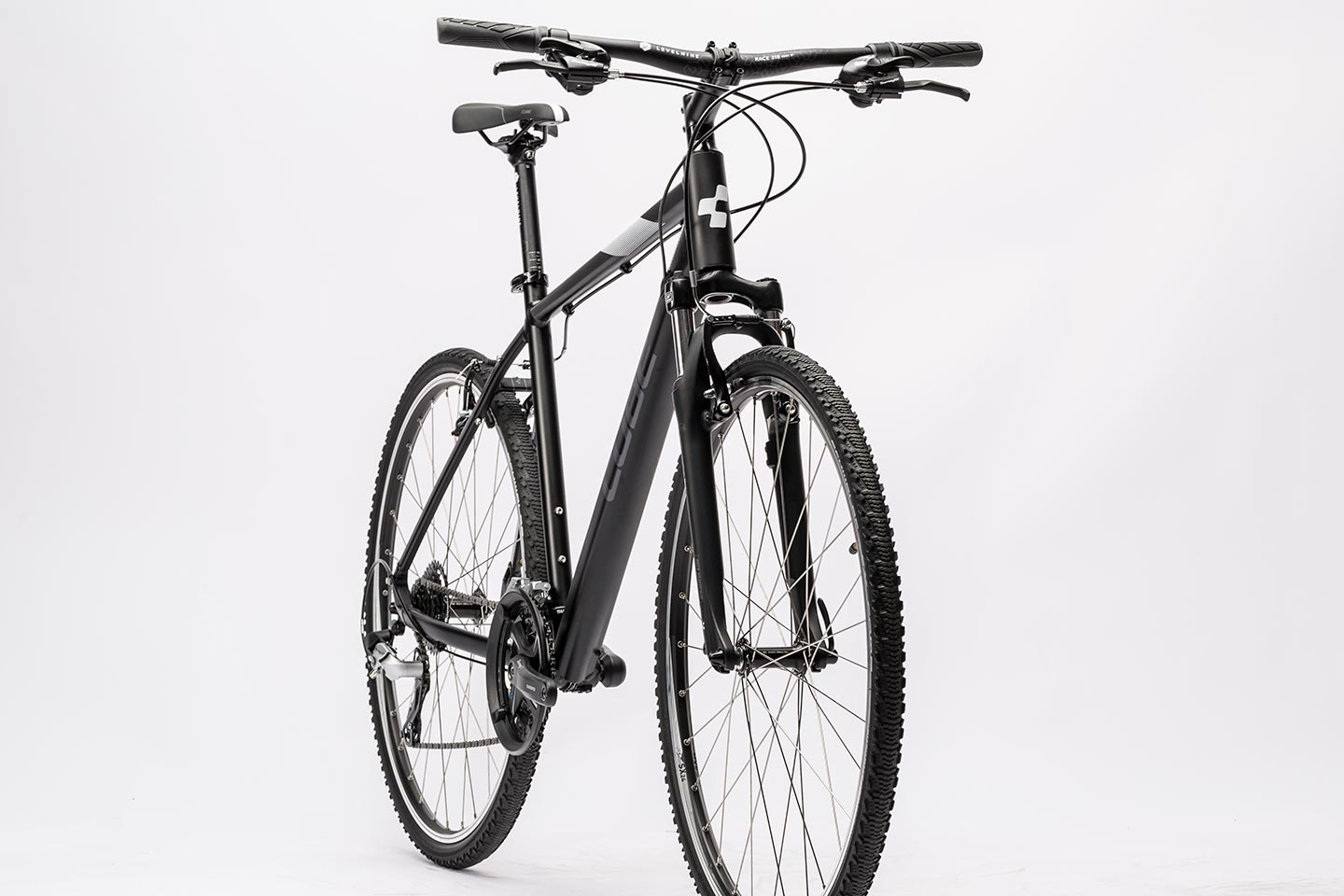

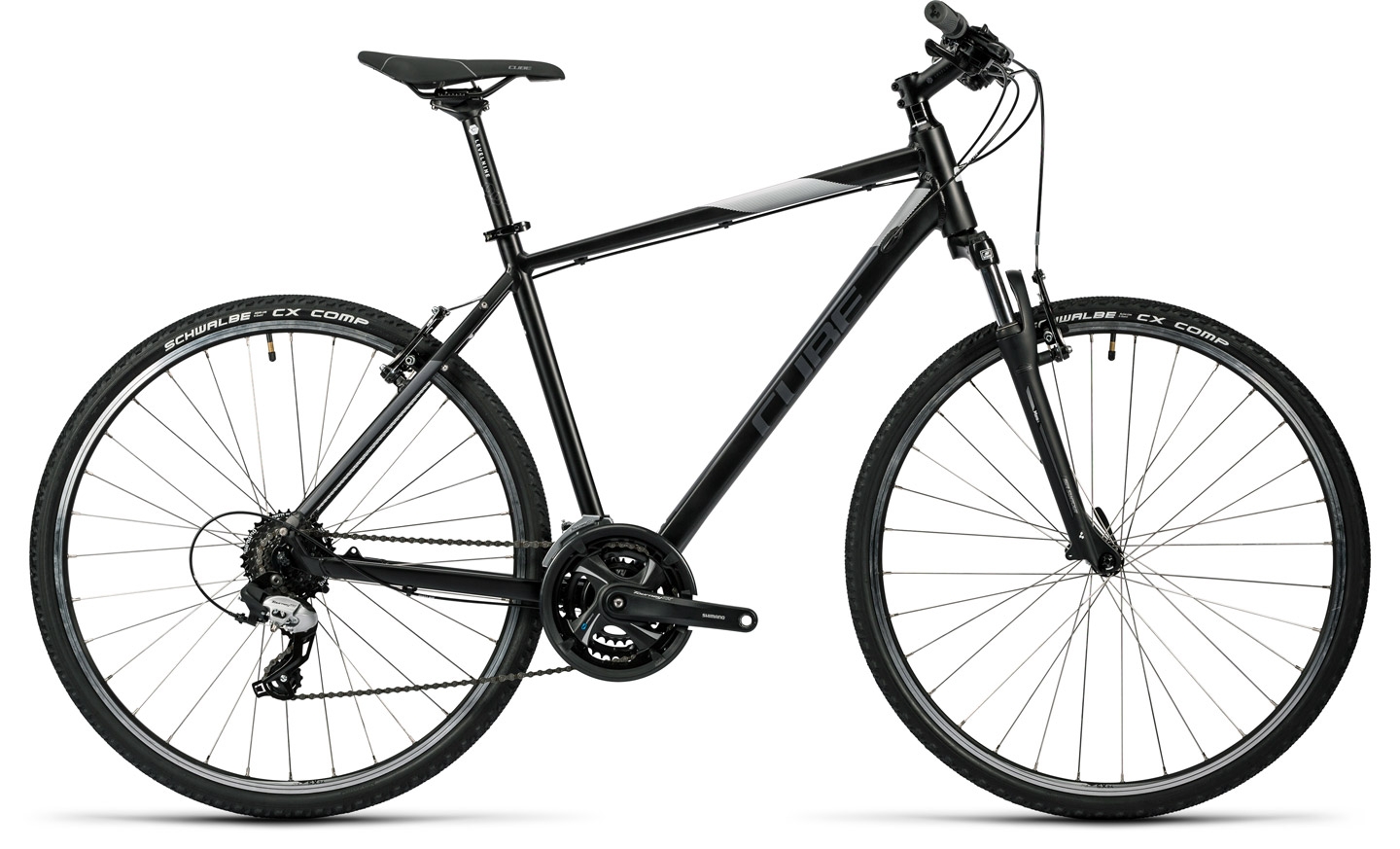

Our Curve is the ideal introduction to the world of freedom on two wheels. It's the perfect Country Lite Series bike for exploring urban areas or even further afield. With a high quality frame featuring details you wouldn't normally see in this category plus powerful V-brakes, 24 gears and a comfortable Suntour suspension fork, this is a reliable and safe ride companion in any situation.
AUSSTATTUNG
| FRAME | Aluminium Superlite Trekking Cross Double Butted |
|---|---|
| SIZE | 46, 50, 54, 58, 62, Trapeze: 46, 50, 54 |

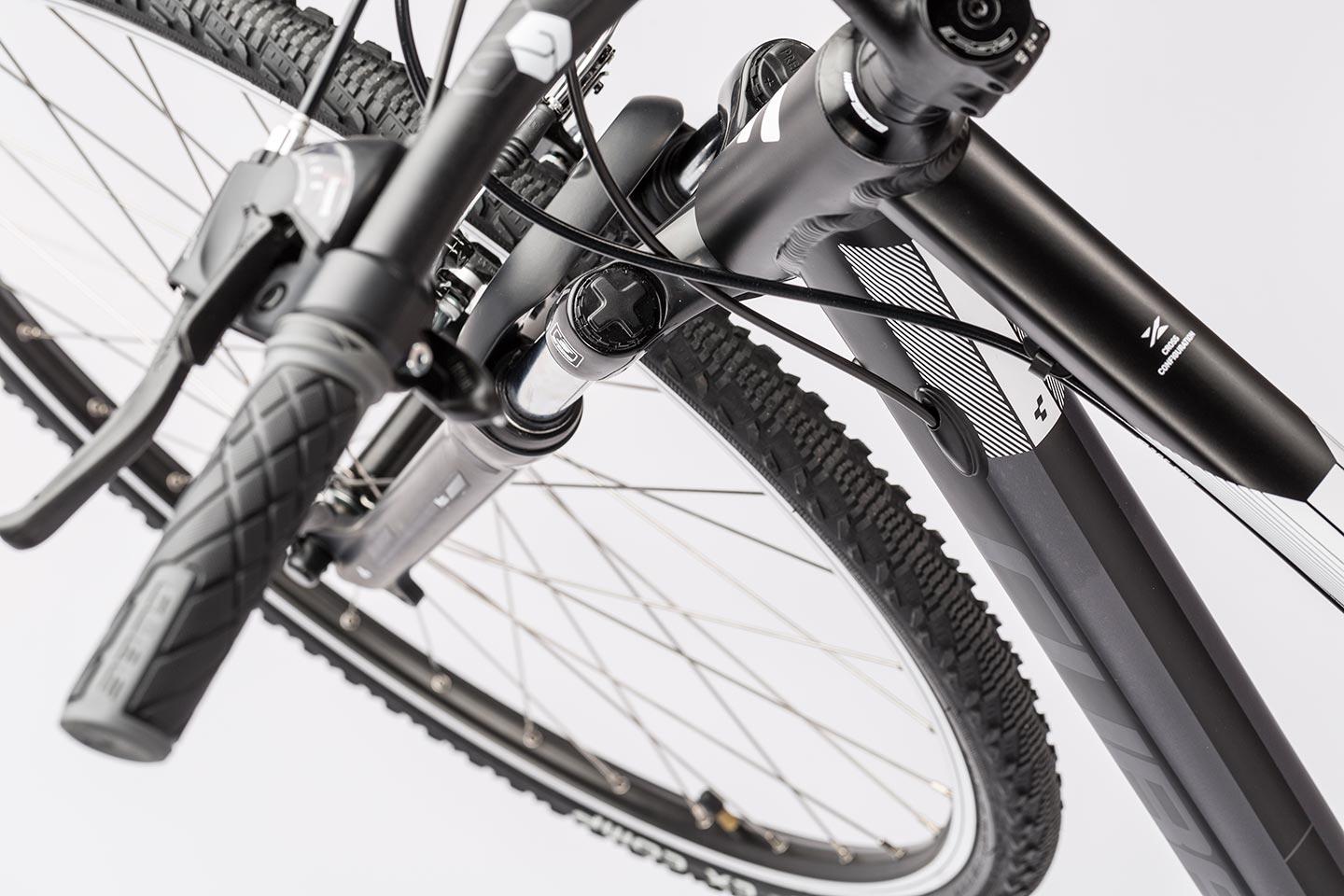

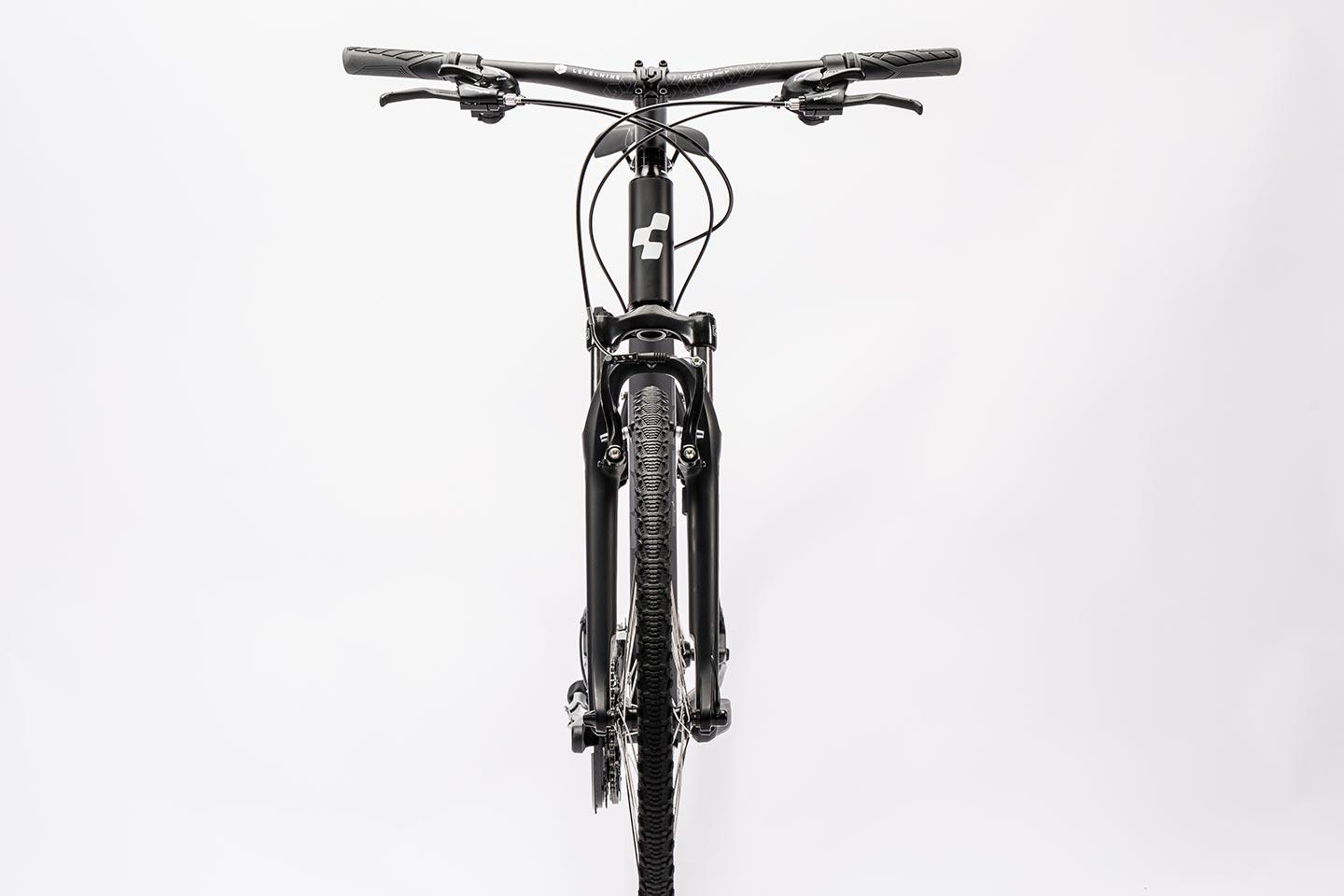

| FORK | SR Suntour |

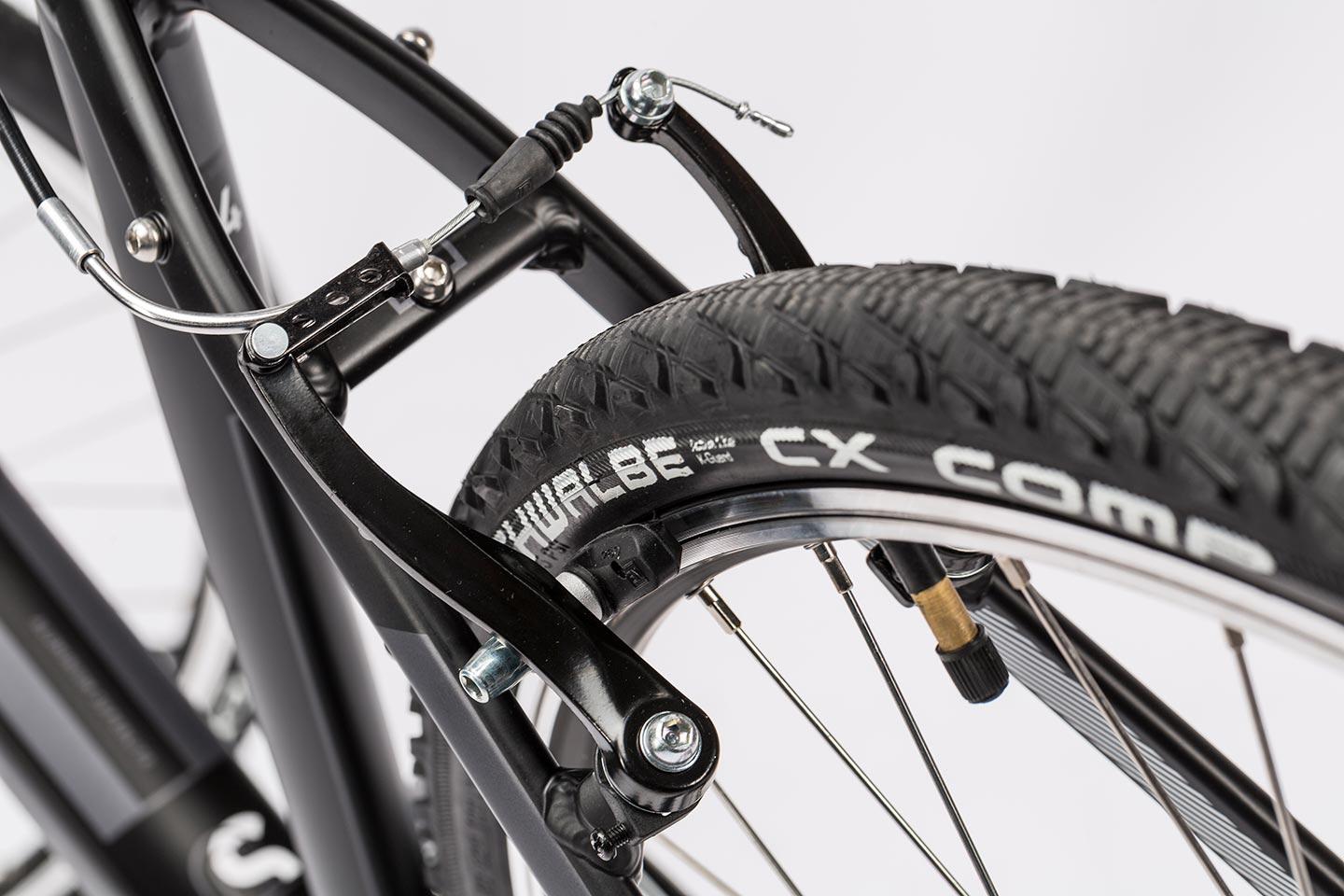

| BRAKE SYSTEM | V-Brake |
| REAR DERAILLEUR | Shimano Tourney RD-TX800, 8-Speed |
| FRONT DERAILLEUR | Shimano Tourney FD-TX800, Topswing, 31.8mm |
| SHIFT-BRAKE-LEVERS | Shimano STI Tourney ST-TX800 |
| CRANKSET | Shimano Tourney FC-T801, 48x36x26T, BB-UN100, 175mm, Chainguard |
| CASSETTE | Shimano CS-HG31, 11-34T |
| CHAIN | KMC Z51 |
| FRONT HUB | Shimano Altus HB-RM40 |
| REAR HUB | Shimano Altus FH-RM30 |
| RIMS | CUBE SX24 |
| TIRES | Schwalbe CX Comp, Active, 40x622 |

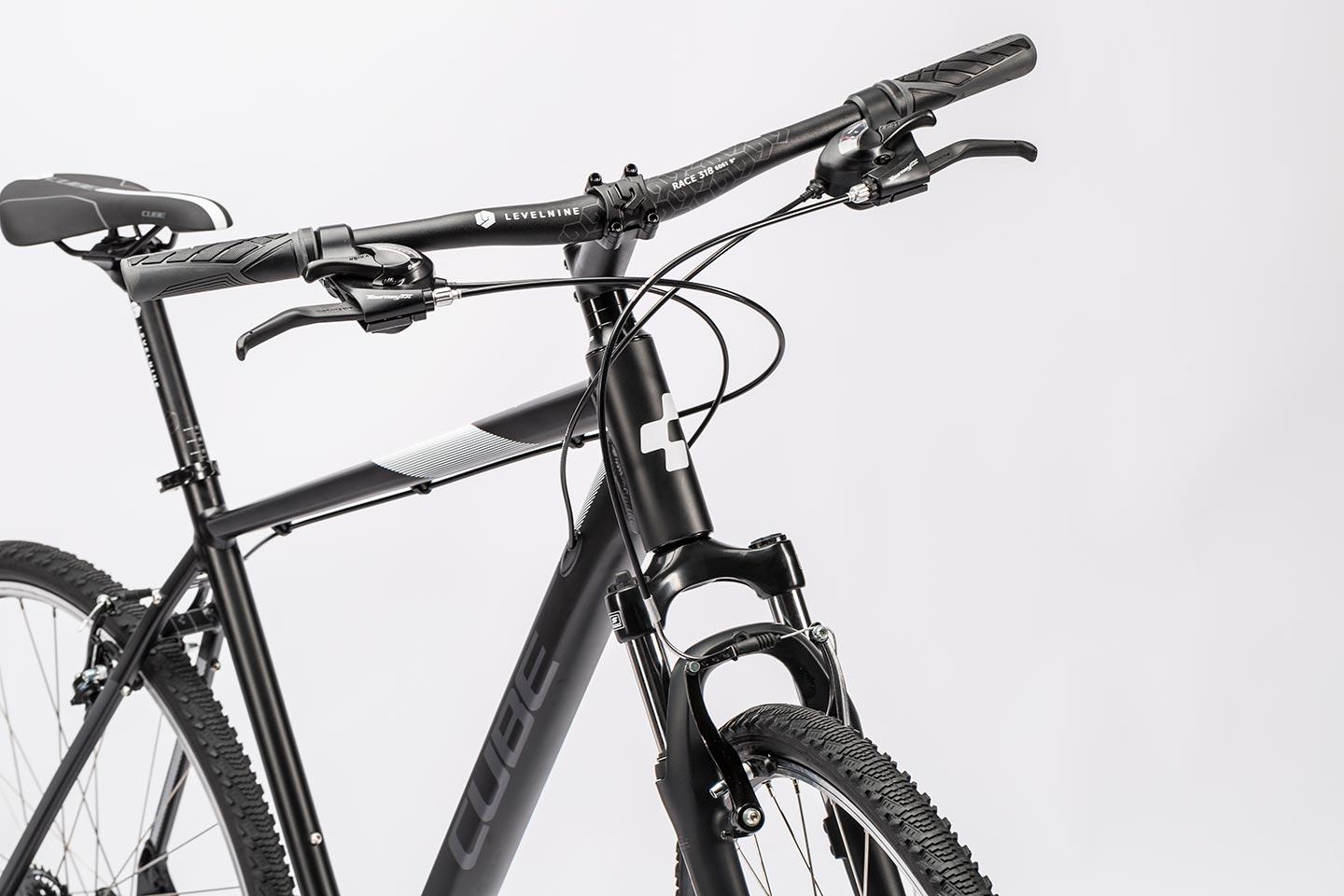

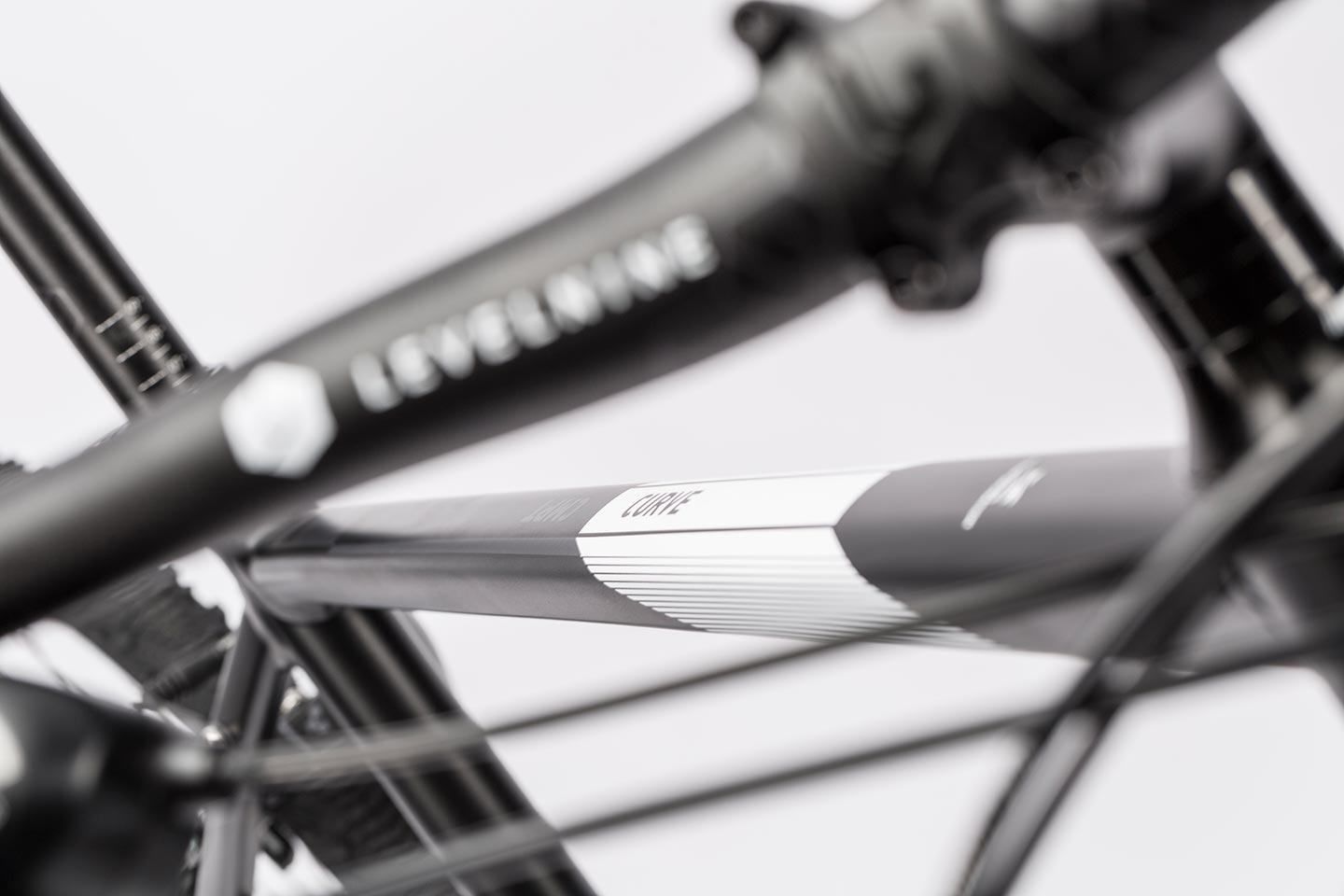

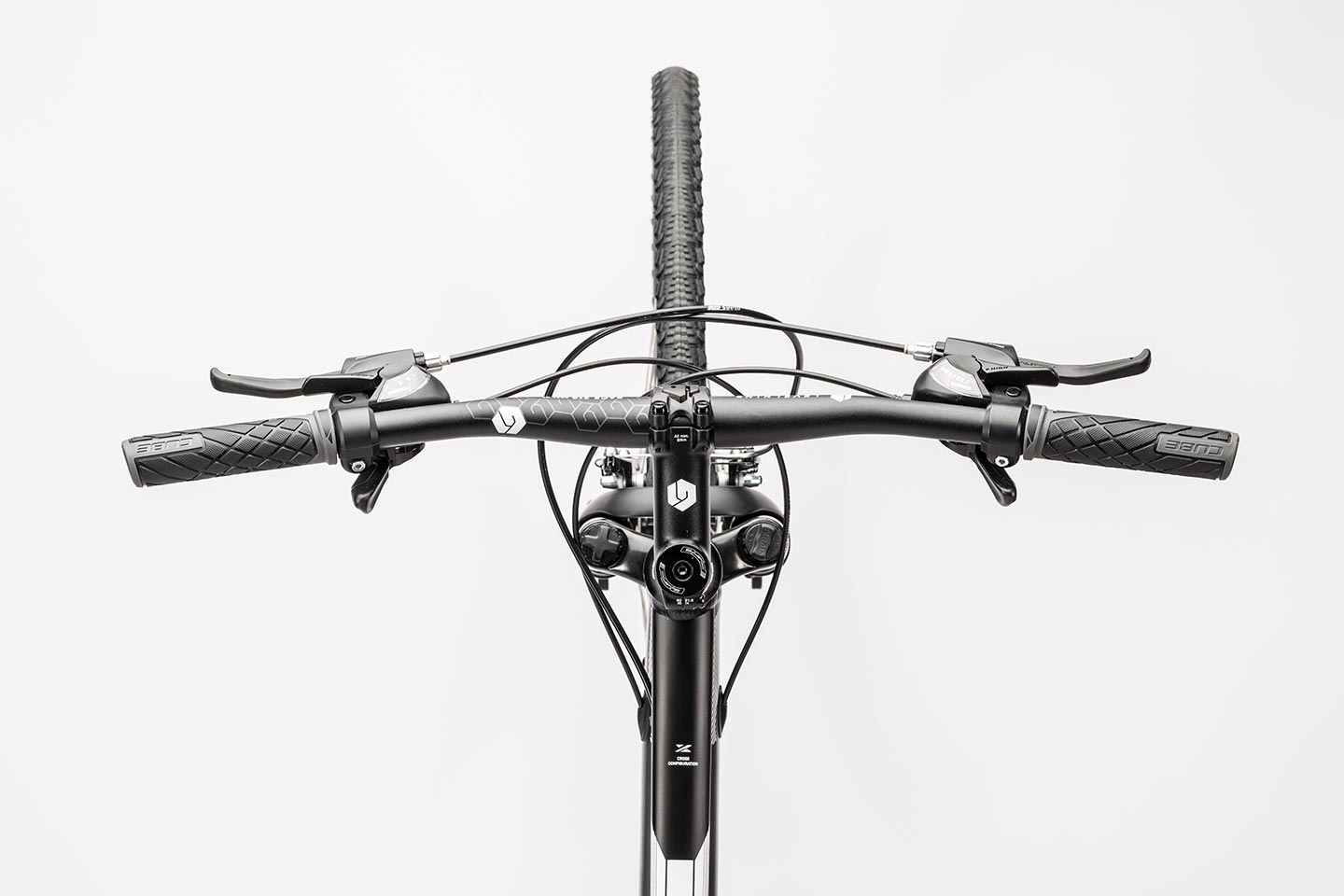

| HANDLEBAR | Level 9 Riser Bar, 660mm |
| GRIPS | CUBE Performance Grip |
| SEAT POST | Level 9 Post, 27.2mm |
| SEATCLAMP | CUBE Varioclose, 31.8mm |
| SADDLE | CUBE Active 1.1 |
| HEADSET | FSA No.10, Semi-Integrated |
| PEDALS | CUBE PP MTB |
| WEIGHT | 12.8 kg |
| COLOR | black grey white |
| ART. L.P. | 731000 |

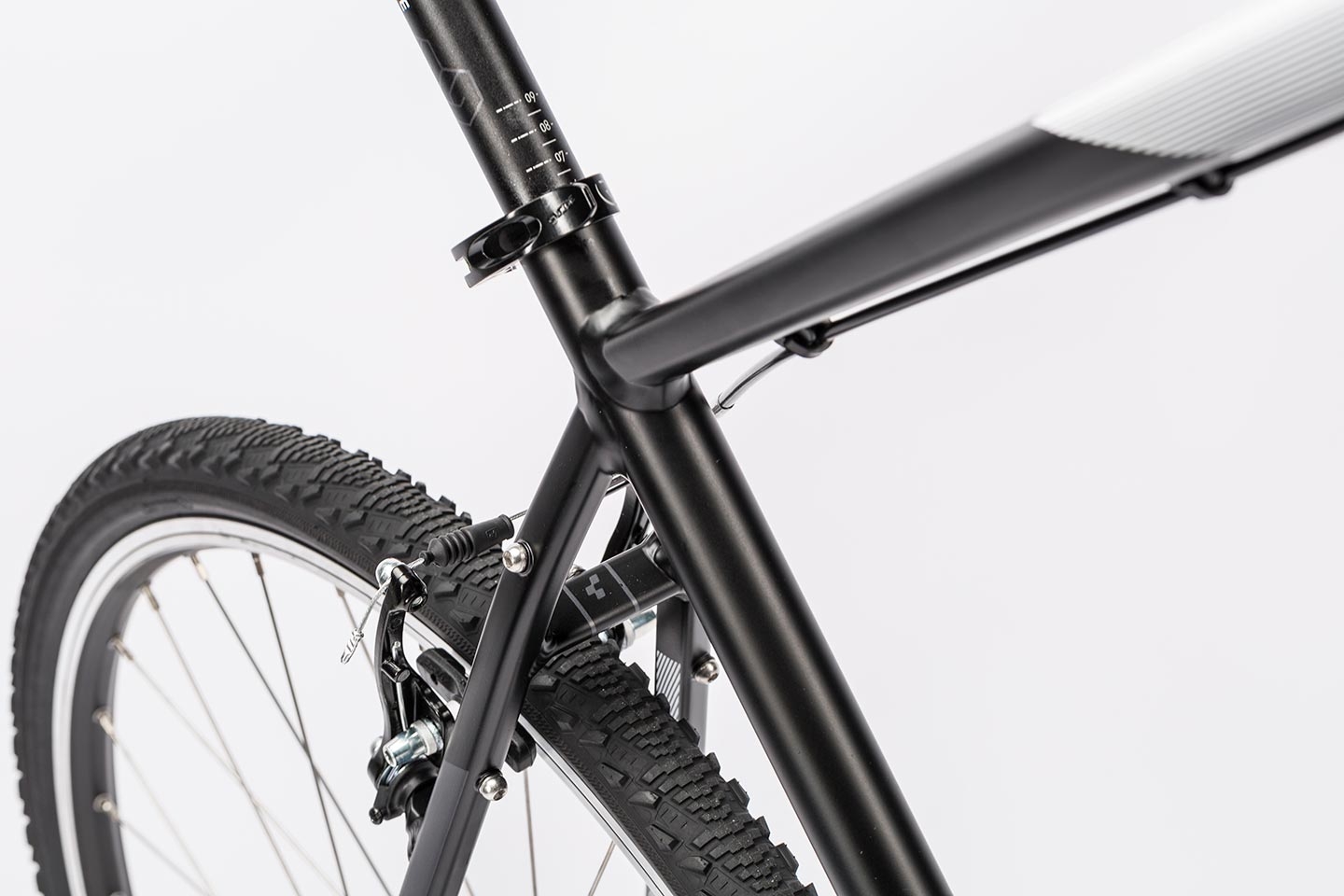

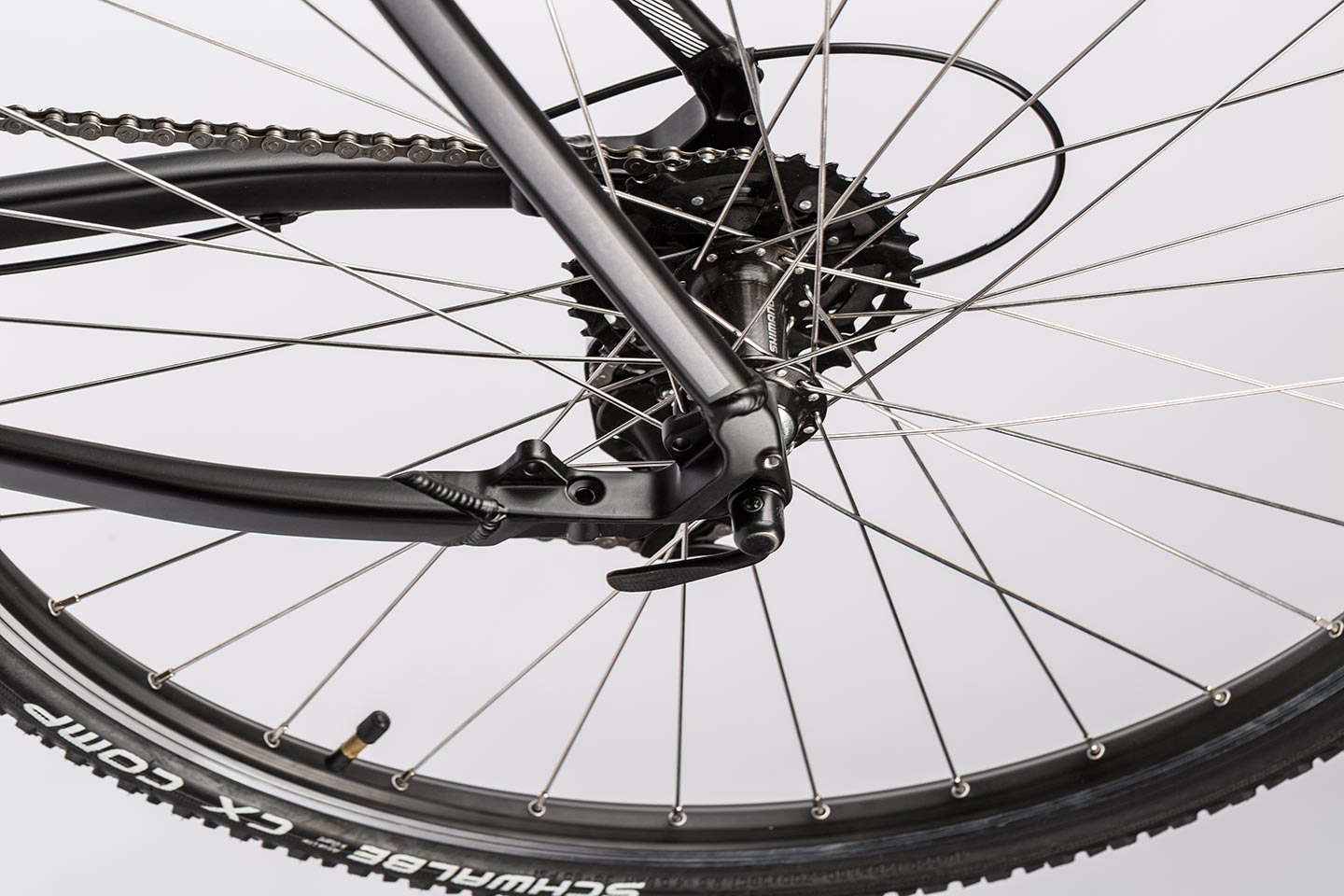

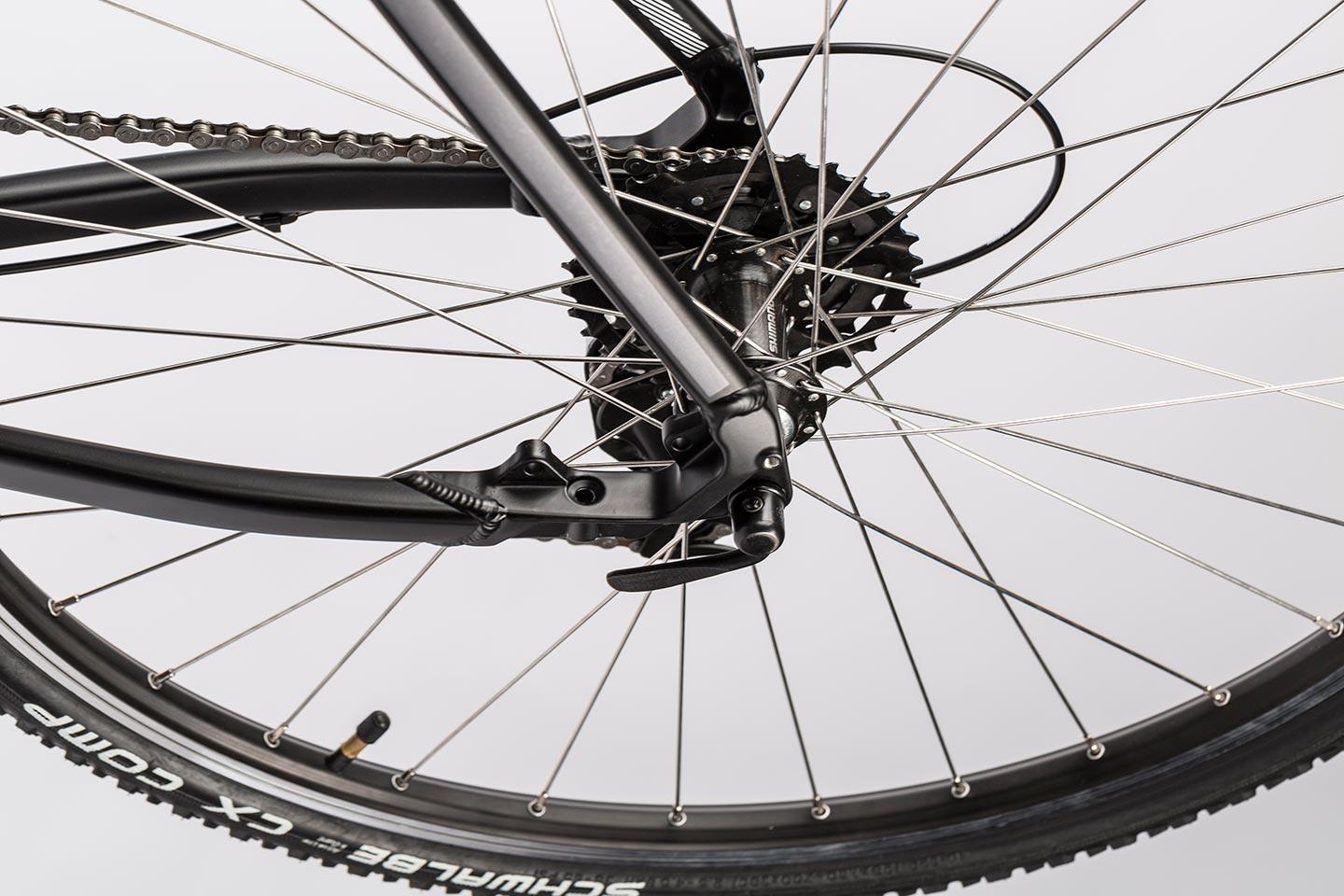

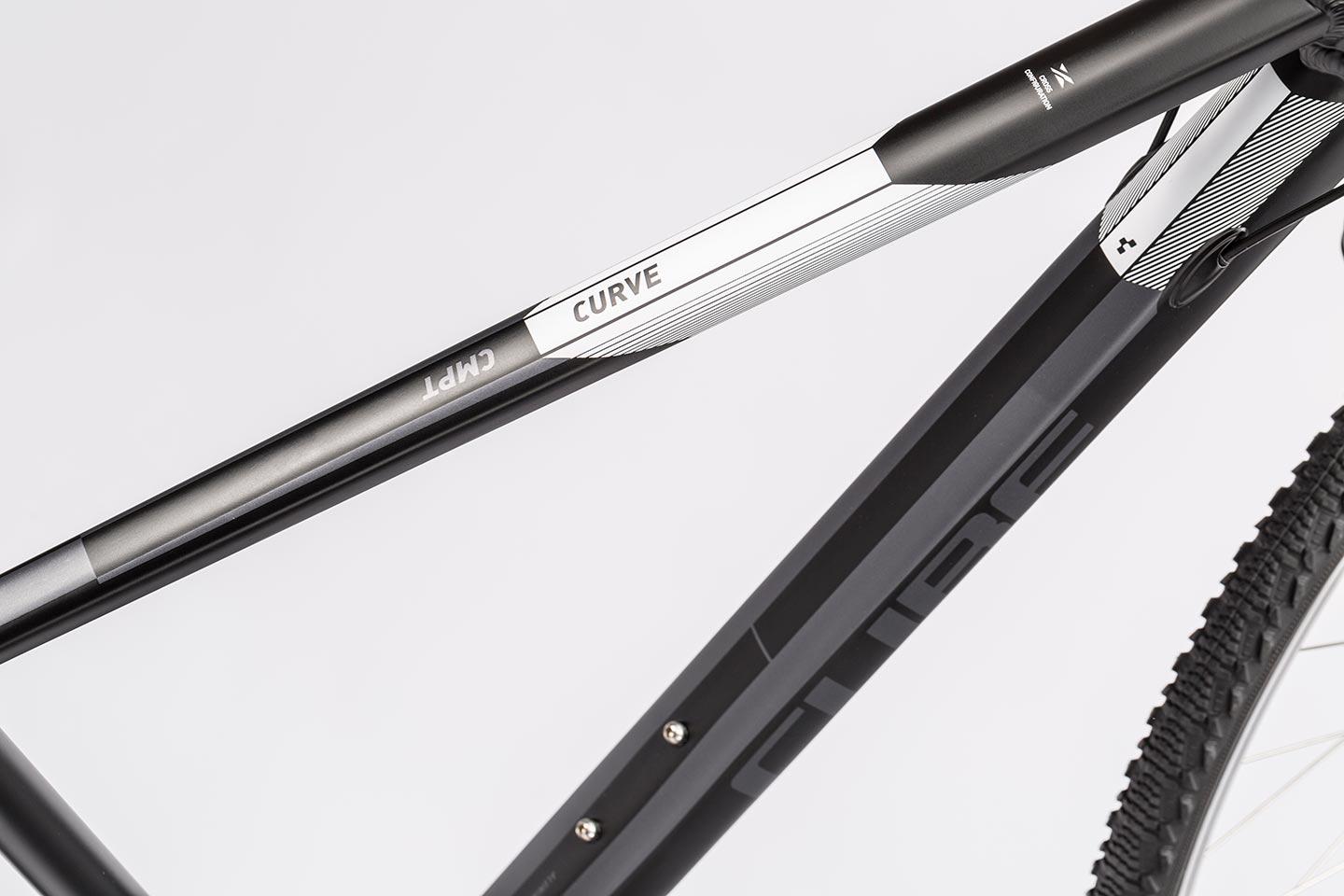

There's a good reason our Curve is lighter than other similar models. It's down to the light, double butted tubes that make up the aluminium frame - including the complex design of the down tube and top tube - plus the 3D forged, multi-funcitonal dropouts with integrated Easy Mount kickstand. As with all our bikes, the CUBE Curve has comfortably passed every EU and in-house stress test we could throw at it.
