TONOPAH
SL
No road is too long, no mountain too steep. Further, faster, lighter... you only get that with our Tonopah SL. It's a new benchmark for low weight and exclusivity amongst hybrid bikes, kitted out with only the finest high-end components. For 2017 we've fine-tuned this bike's weight without sacrificing comfort or ergonomics, as the 2x11 Shimano XT and XTR groupset and premium Fulcrum Red Power wheels demonstrate. A Rock Shox Paragon air suspension fork is the icing on the cake, proving that the Tonopah SL is a hybrid bike in a class of its own.
AUSSTATTUNG
| FRAME | Aluminium Superlite Trekking Cross Taper Double Butted |
|---|---|
| SIZE | 46, 50, 54, 58, 62, Trapeze: 46, 50, 54 |

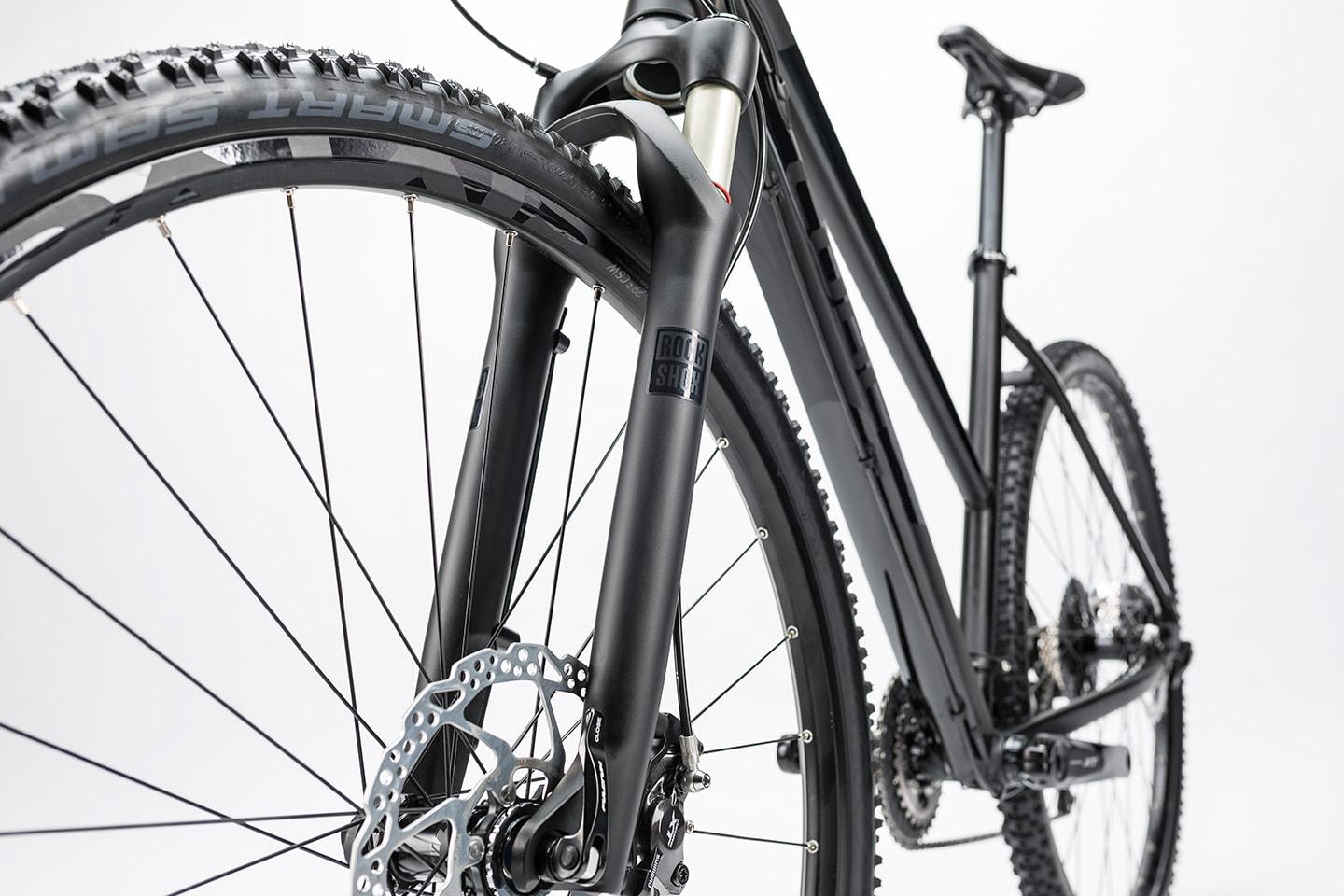

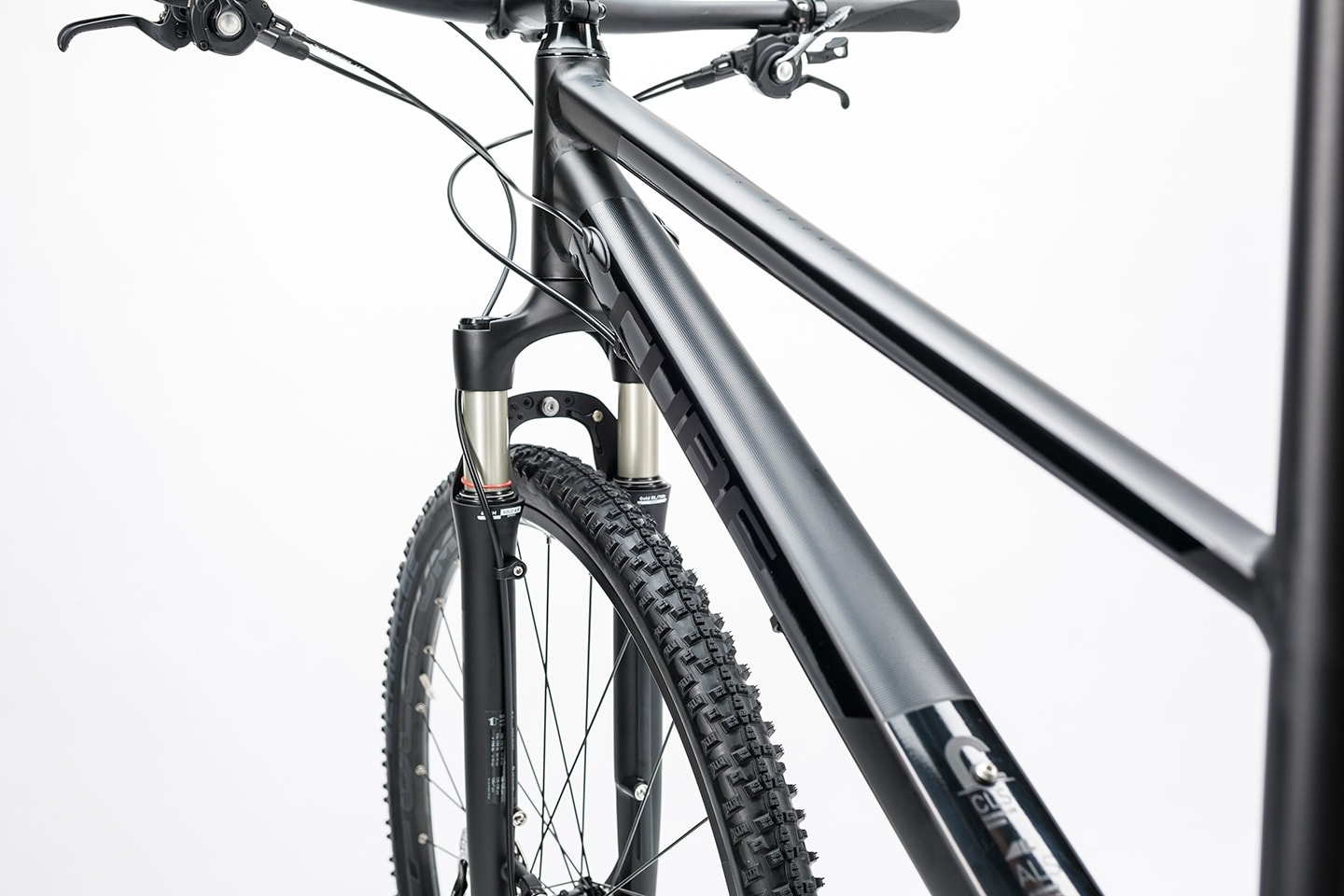

| FORK | Rock Shox Paragon Gold Taper, 63mm, OneLock |

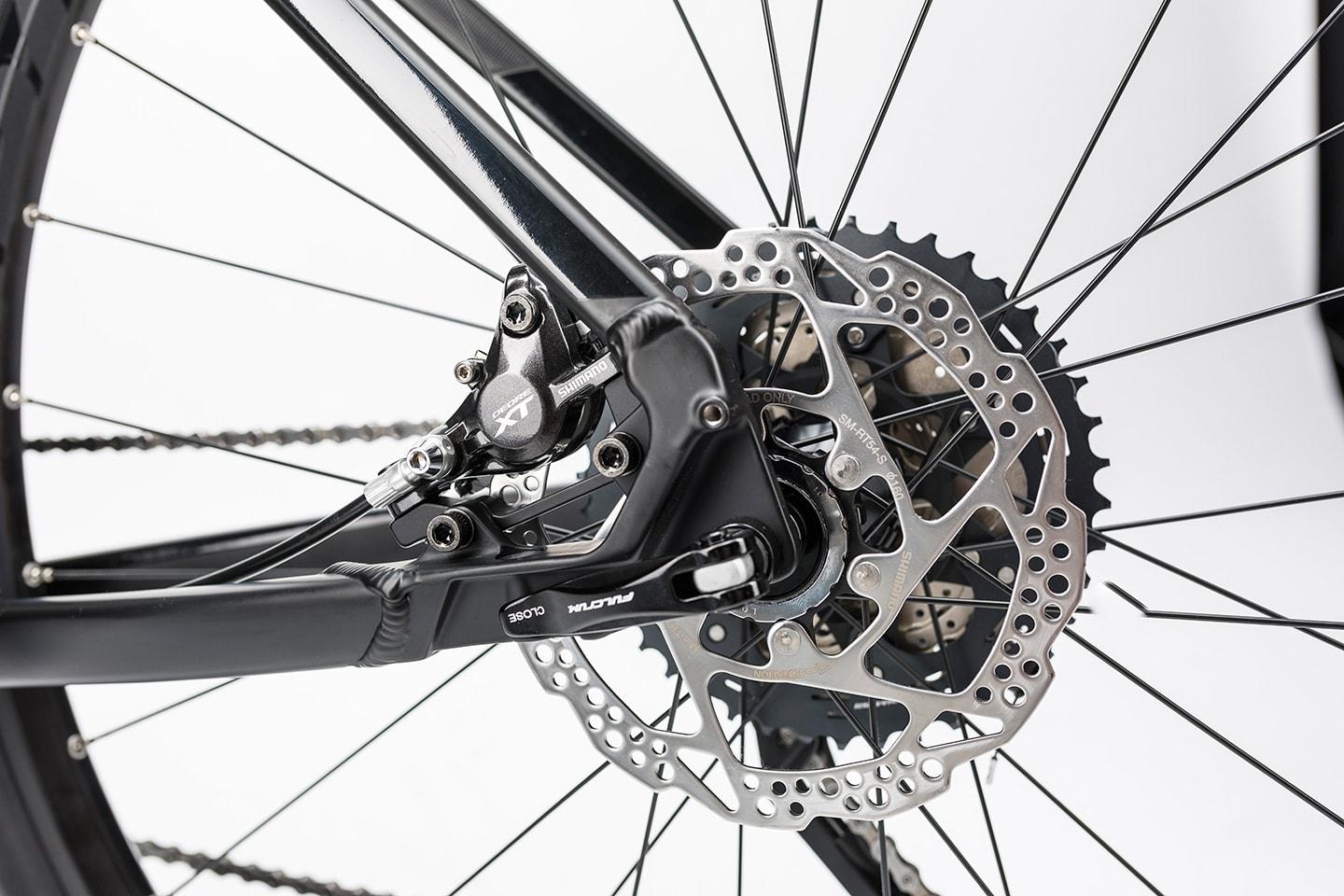

| BRAKE SYSTEM | Shimano XT BR-M8000, Hydr. Disc Brake (180/160) |

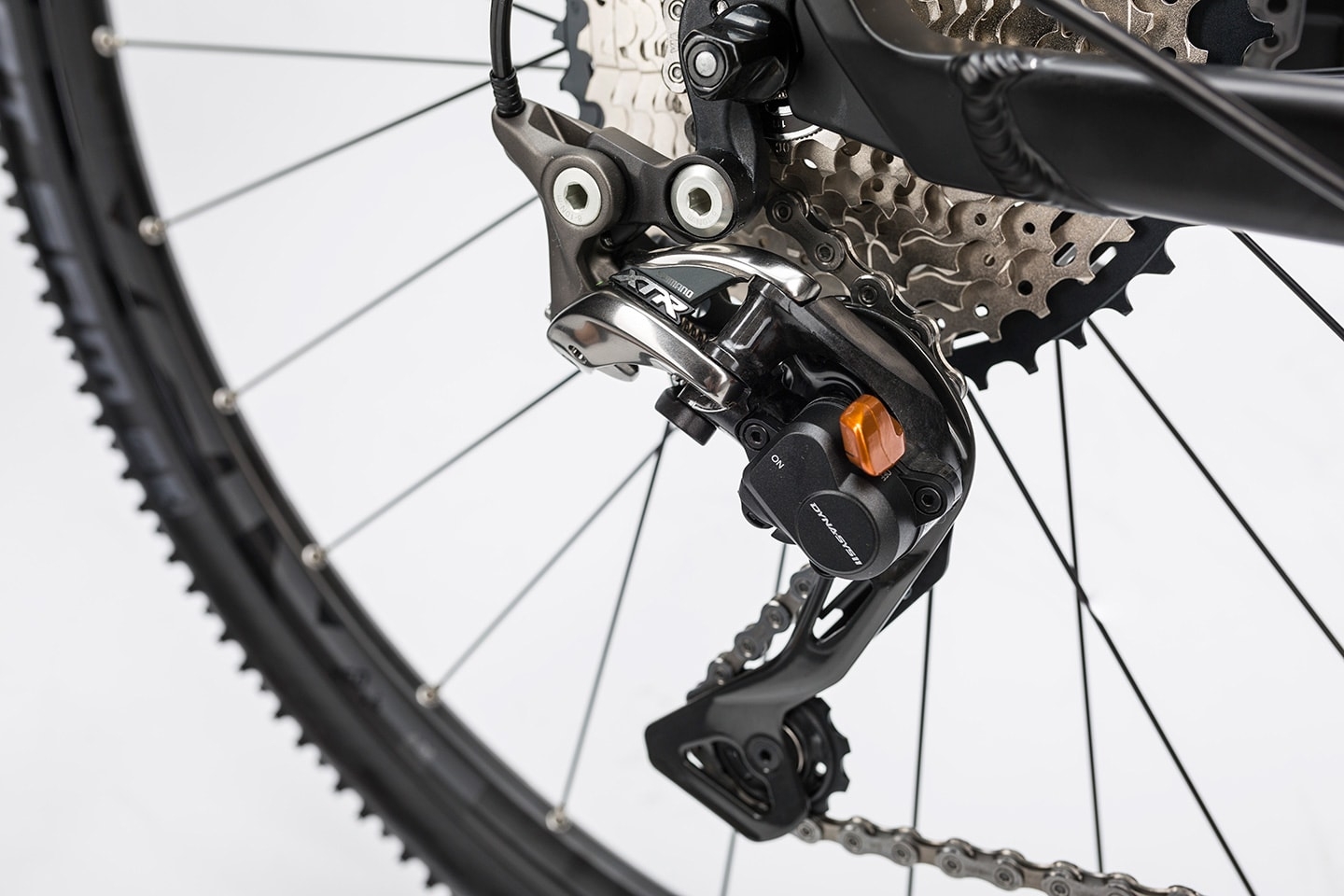

| REAR DERAILLEUR | Shimano XTR RD-M9000, 11-Speed |
| FRONT DERAILLEUR | Shimano XT FD-M8025, Top Swing, 31.8mm |
| SHIFTERS | Shimano XT SL-M8000-I, Direct Attach |

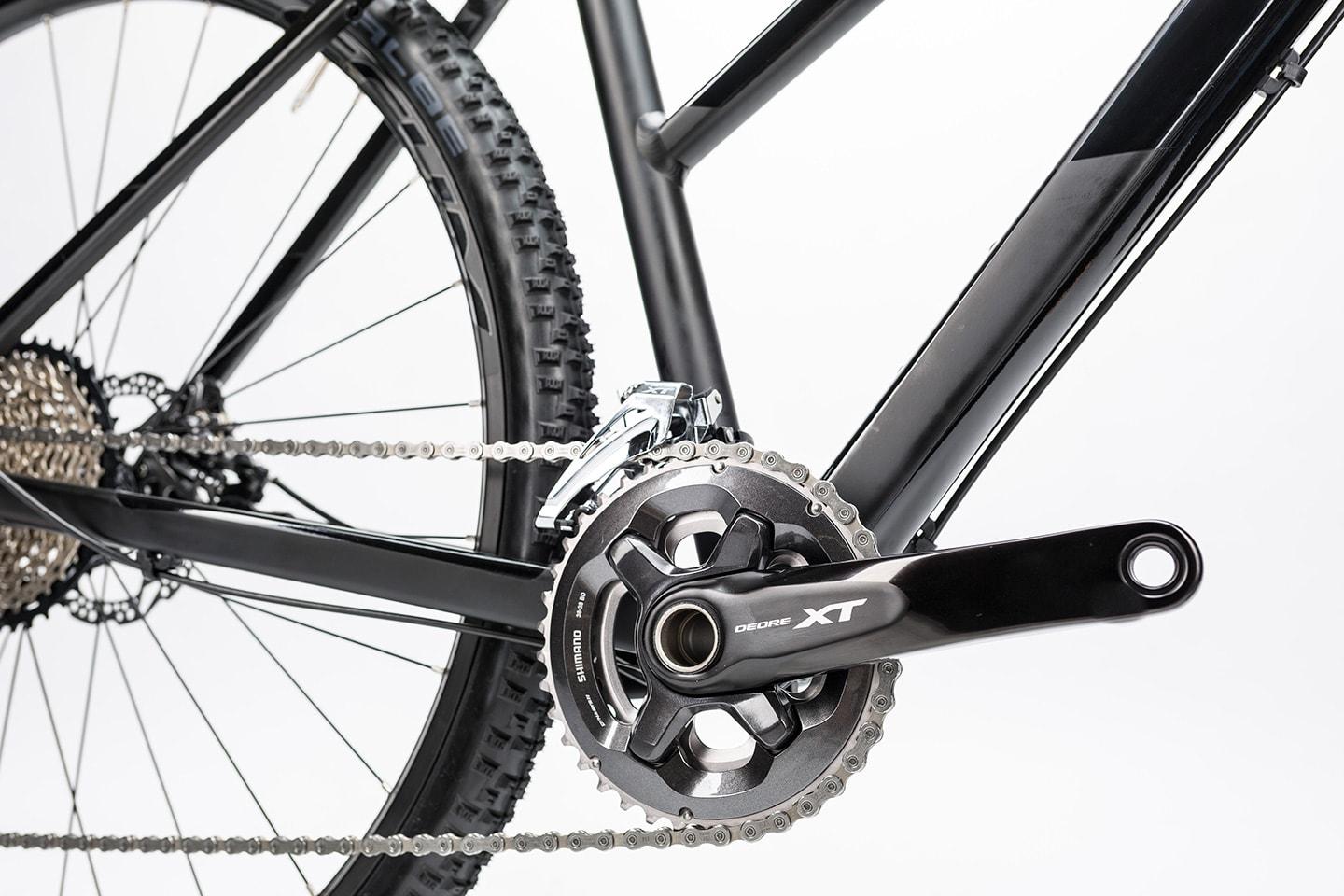

| CRANKSET | Shimano XT FC-M8000, Hollowtech II, 38x28T, 175mm, Integrated BB |
| CASSETTE | Shimano SLX CS-M7000, 11-42T |
| CHAIN | Shimano CN-HG601 |
| WHEELSET | Fulcrum Red 66, Straight Pull, QR/QR, 28H |
| TIRES | Schwalbe Smart Sam, Kevlar Performance, 44x622 |
| HANDLEBAR | CUBE Flat Race Bar Pro Carbon, 740mm |
| GRIPS | CUBE Natural Fit Tour |
| SEAT POST | CUBE Performance Post, 27.2mm |
| SEATCLAMP | CUBE Varioclose, 31.8mm |
| SADDLE | Selle Italia SC1 |

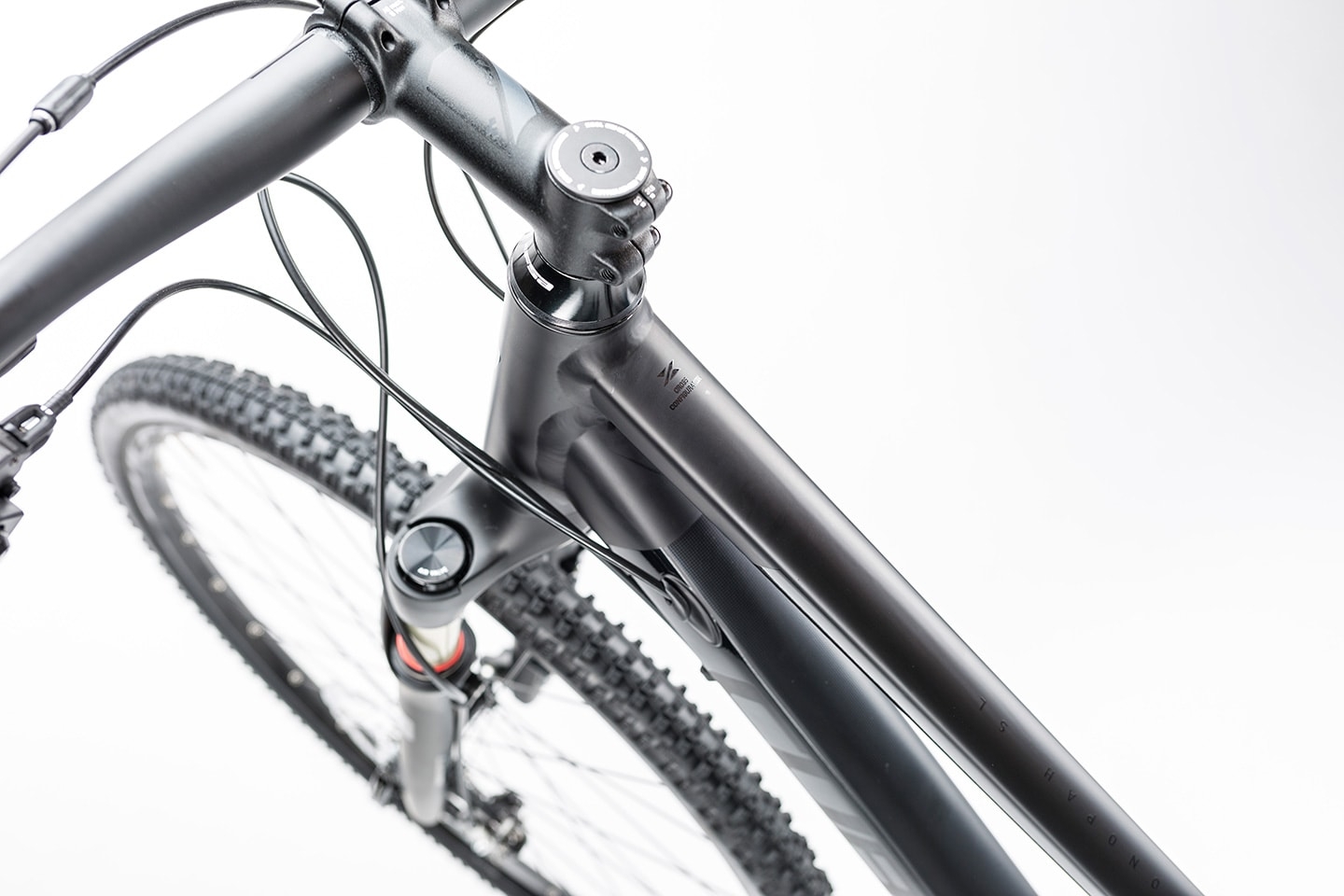

| HEADSET | FSA Orbit Z-t, Top Zero-Stack 1 1/8" (OD44mm), Bottom Integrated 1 1/2" |
| PEDALS | CUBE Aluminium MTB |
| WEIGHT | 11.65 kg |
| COLOR | black edition |
| ART. L.P. | 837001 |
Geometria

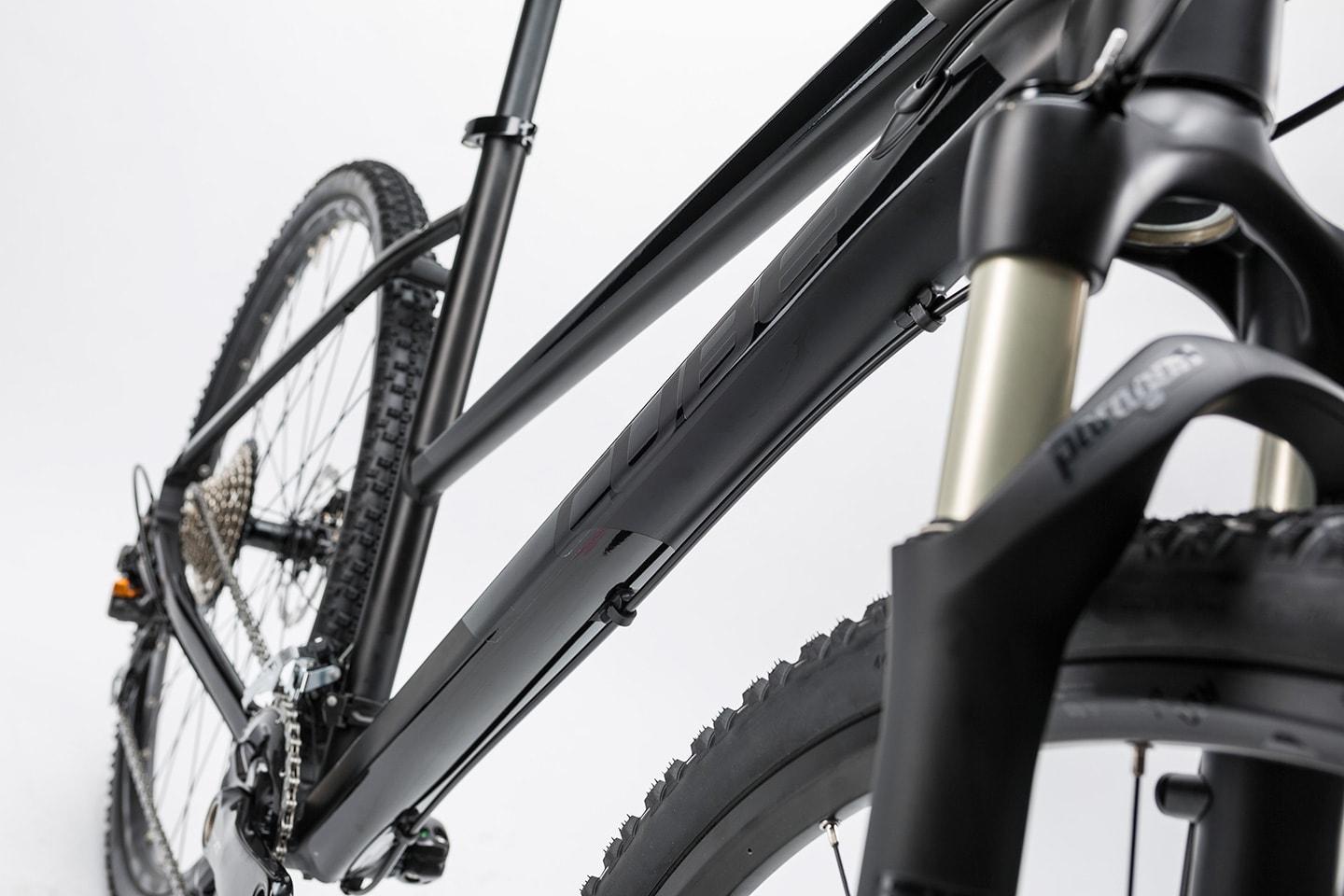

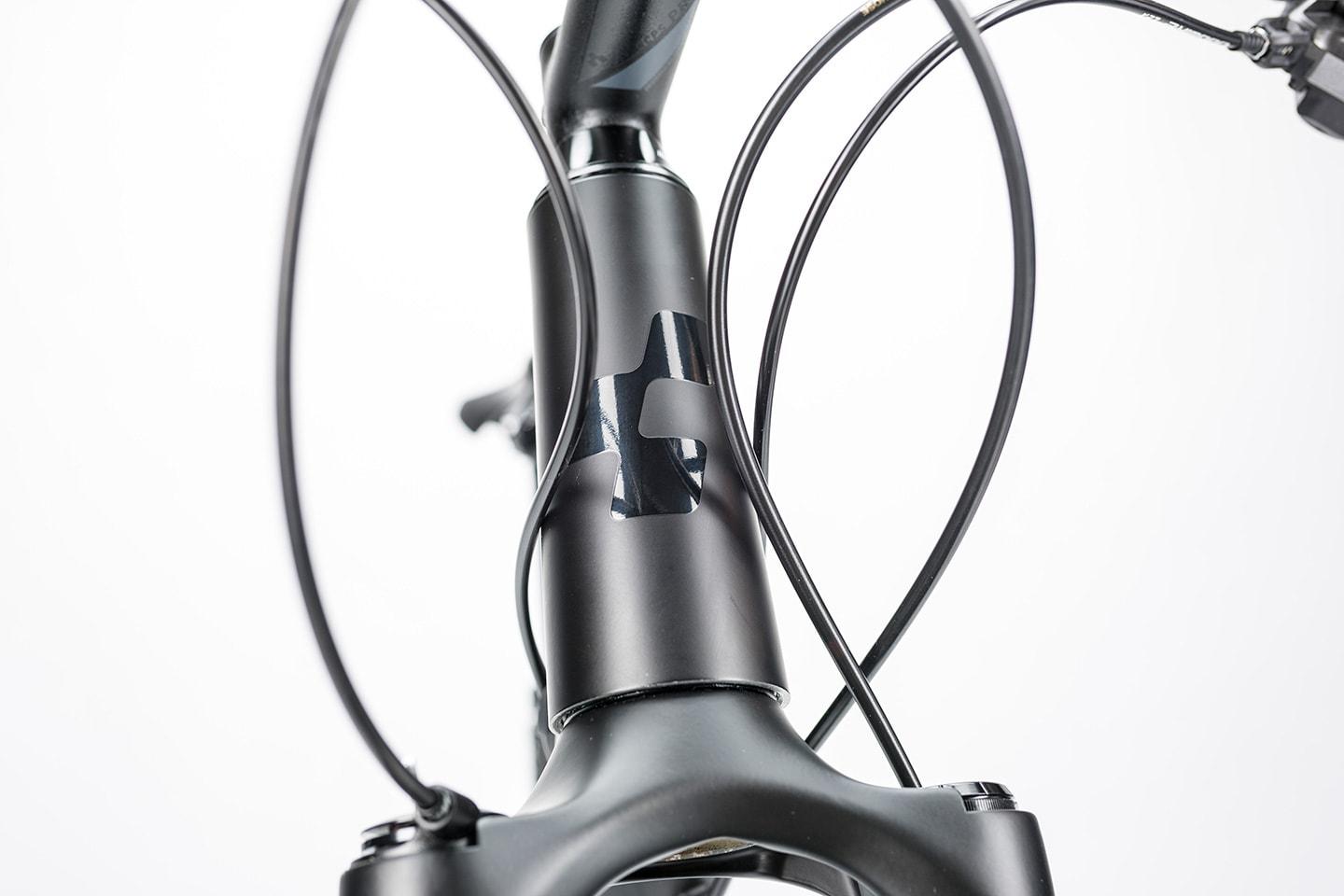

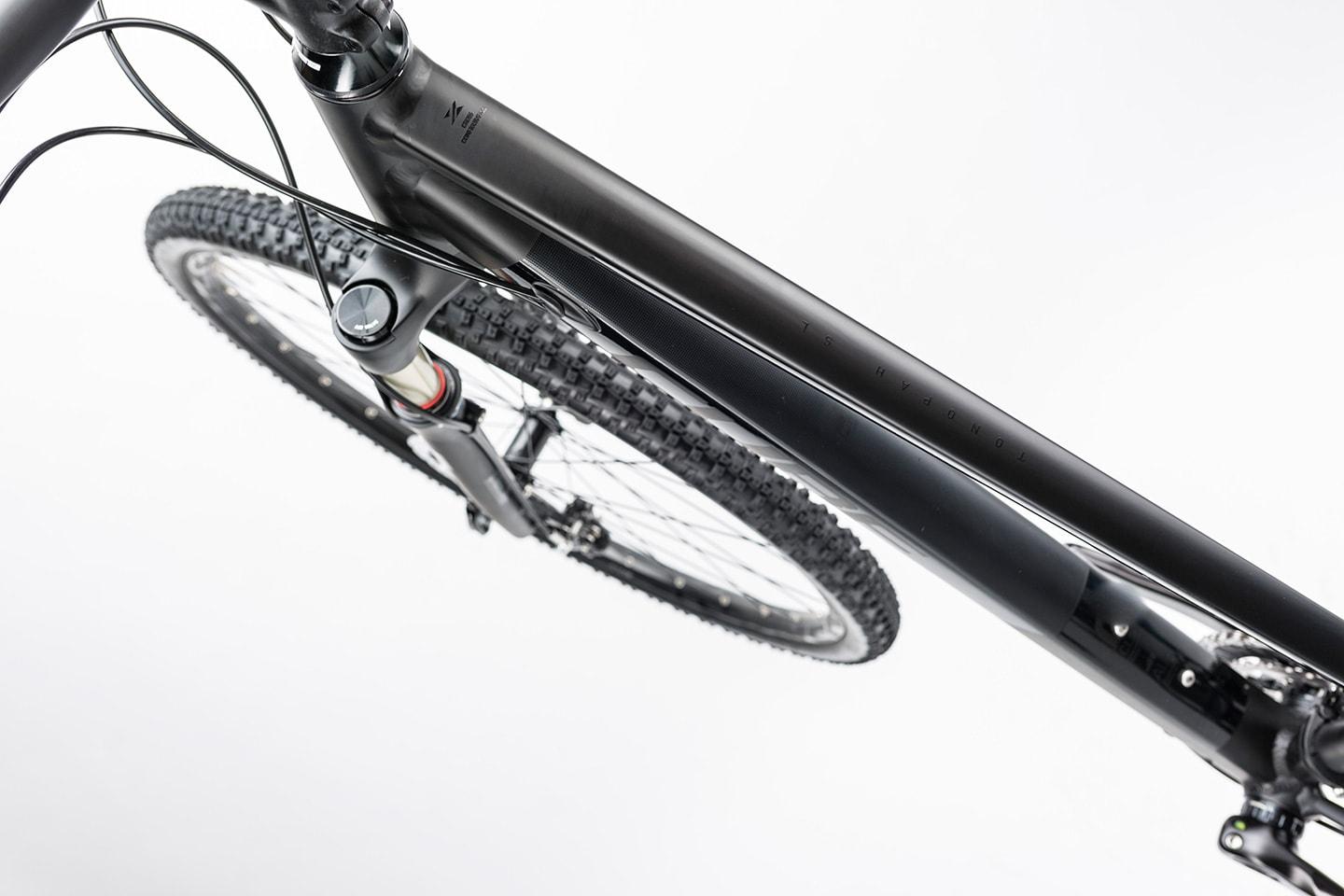

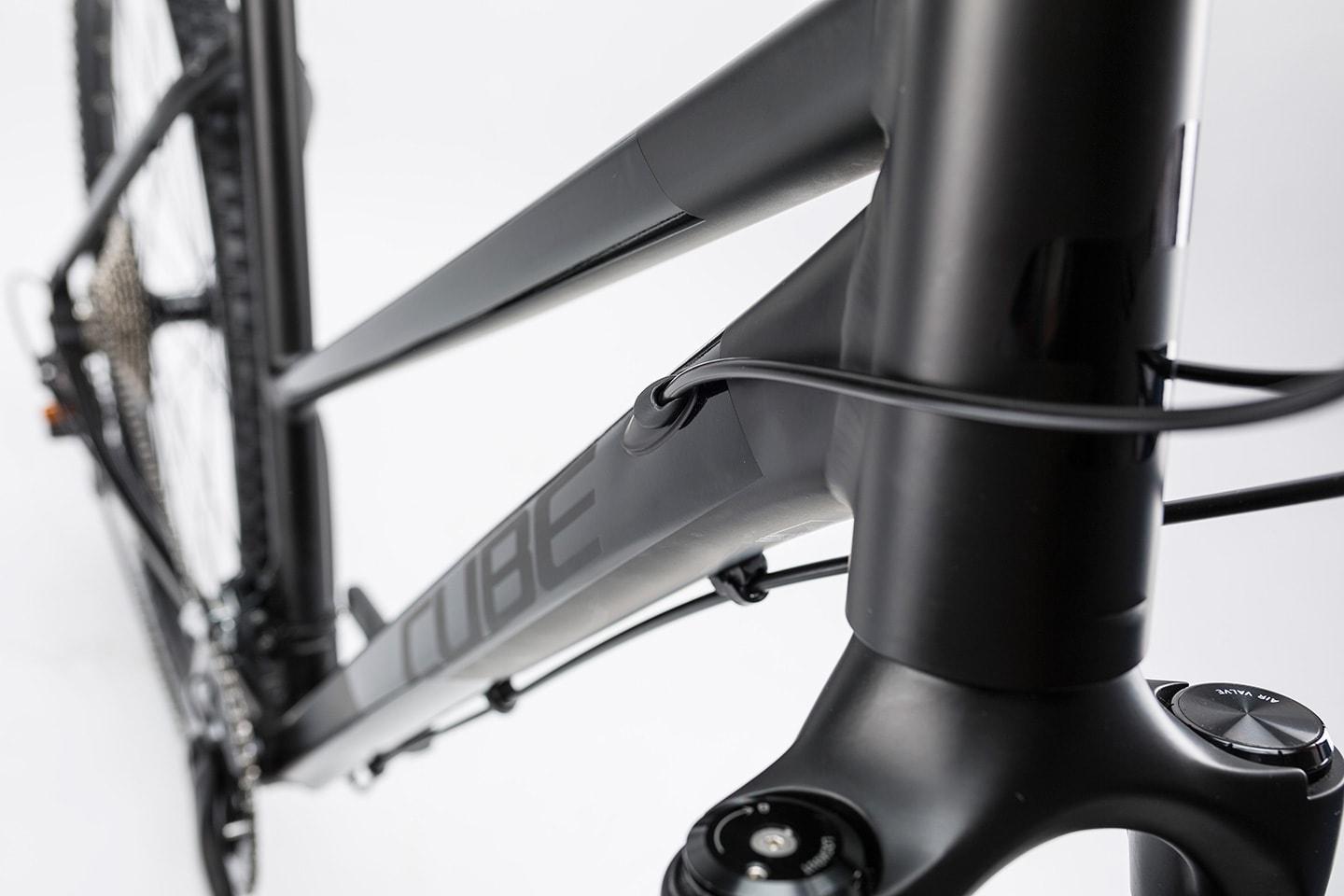

Frame: A high performance bike like the Tonopah SL starts with a high quality frame. The double butted tubeset - made of our own high quality aluminium alloy - is packed full of technical highlights. The Smooth Welding at the head and seat tube junctions, the tapered head tube and 3D forged, multi-functional dropouts are just a few of the details which make the frame both light and stiff, giving it explosive acceleration. Internal cable routing adds to the modern looks while ensuring long-lasting smooth gear performance and reducing the need for maintenance.
