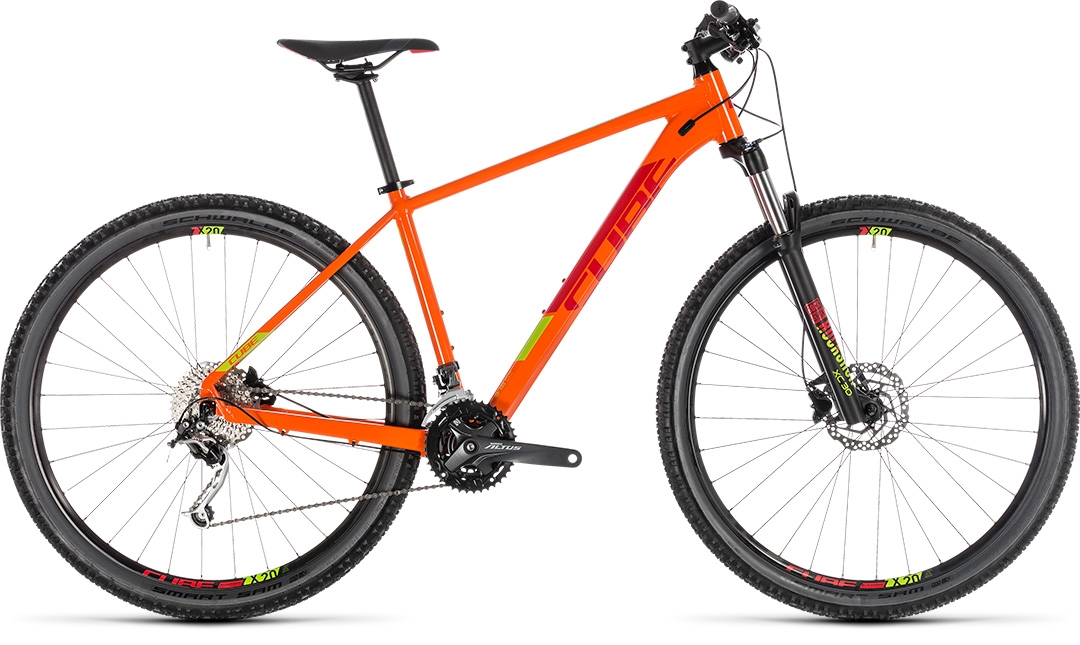

ANALOG
Caught the mountain bike bug? Then you'll find a willing partner in the Analog. Its high quality aluminium frame, balanced handling and reliable components add up to a package that's perfect for trail fun. Whether you pick the 27.5in or 29er version, you're assured of a good fit thanks to our Size Split system. Each one is ergonomically tailored to offer a responsive, comfortable ride at a price that represents outstanding value. With a 3x9 Shimano transmission incorporating an XT rear derailleur, powerful hydraulic disc brakes and the assured performance of a RockShox suspension fork, you've everything you need to explore as far off-road as your curiosity takes you.
AUSSTATTUNG
| FRAME | Aluminium Lite, AMF, Internal Cable Routing, Easy Mount Kickstand Ready |
|---|---|
| SIZE | Size Split: 27.5: 14", 16", 18" // 29: 17", 19", 21", 23" |
| FORK | RockShox XC 30 TK Coil, 100mm, Remote Lockout |
| BRAKE SYSTEM | Shimano BR-MT200, Hydr. Disc Brake (160/160) |
| REAR DERAILLEUR | Shimano XT RD-M772, Shadow, 9-Speed |
| FRONT DERAILLEUR | Shimano FD-M4000, Downswing, 31.8mm Clamp |
| SHIFTERS | Shimano SL-M2000, Rapidfire-Plus |

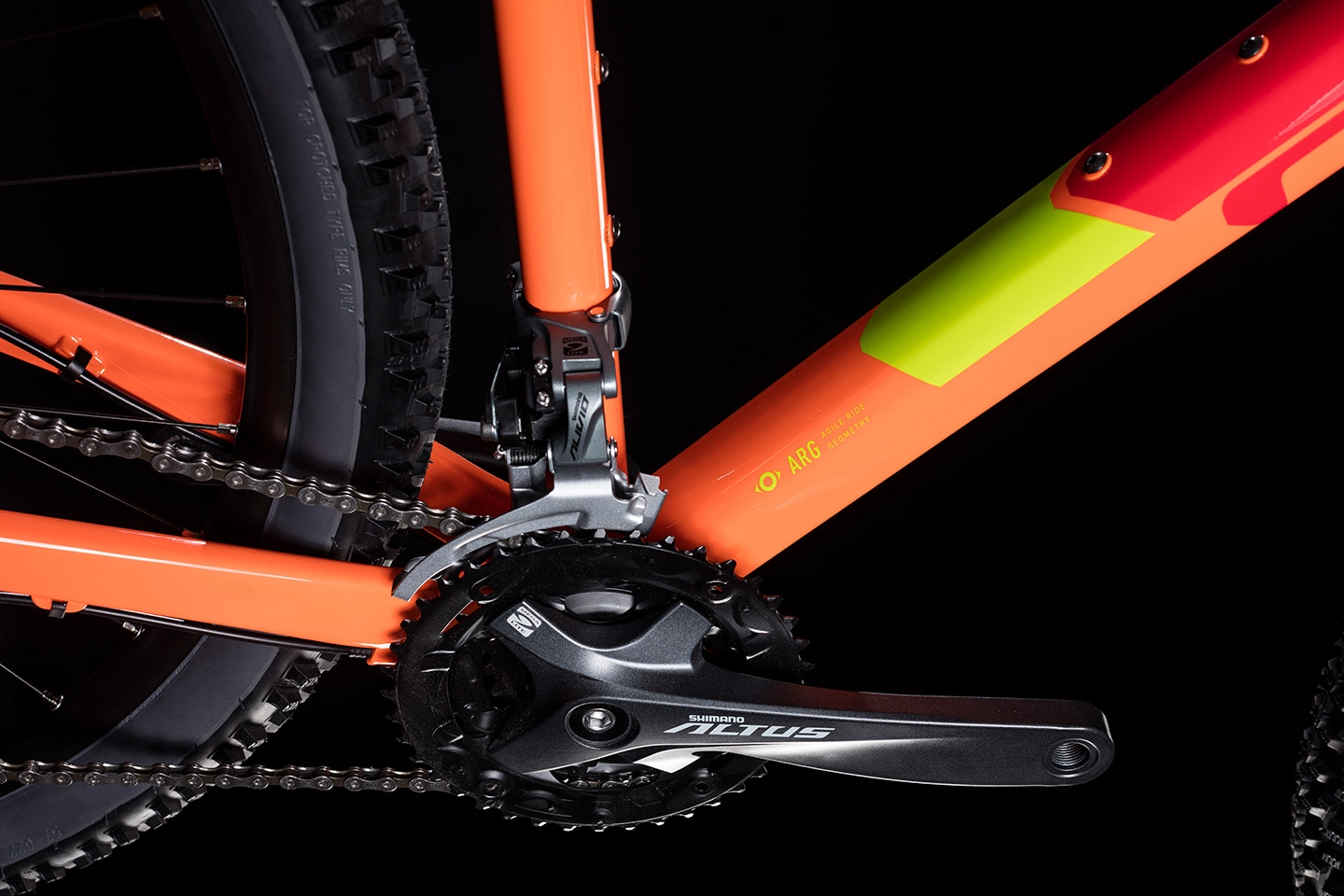

| CRANKSET | Shimano FC-M2000, 40x30x22T, 175mm |
| CASSETTE | Shimano CS-HG400, 12-36T |
| CHAIN | Shimano CN-HG53 |
| FRONT HUB | Shimano HB-TX505, QR, Centerlock |
| REAR HUB | Shimano FH-TX505, QR, Centerlock |
| RIMS | CUBE ZX20, 32H, Disc |
| TYRES | Schwalbe Smart Sam, Active, 2.25 |

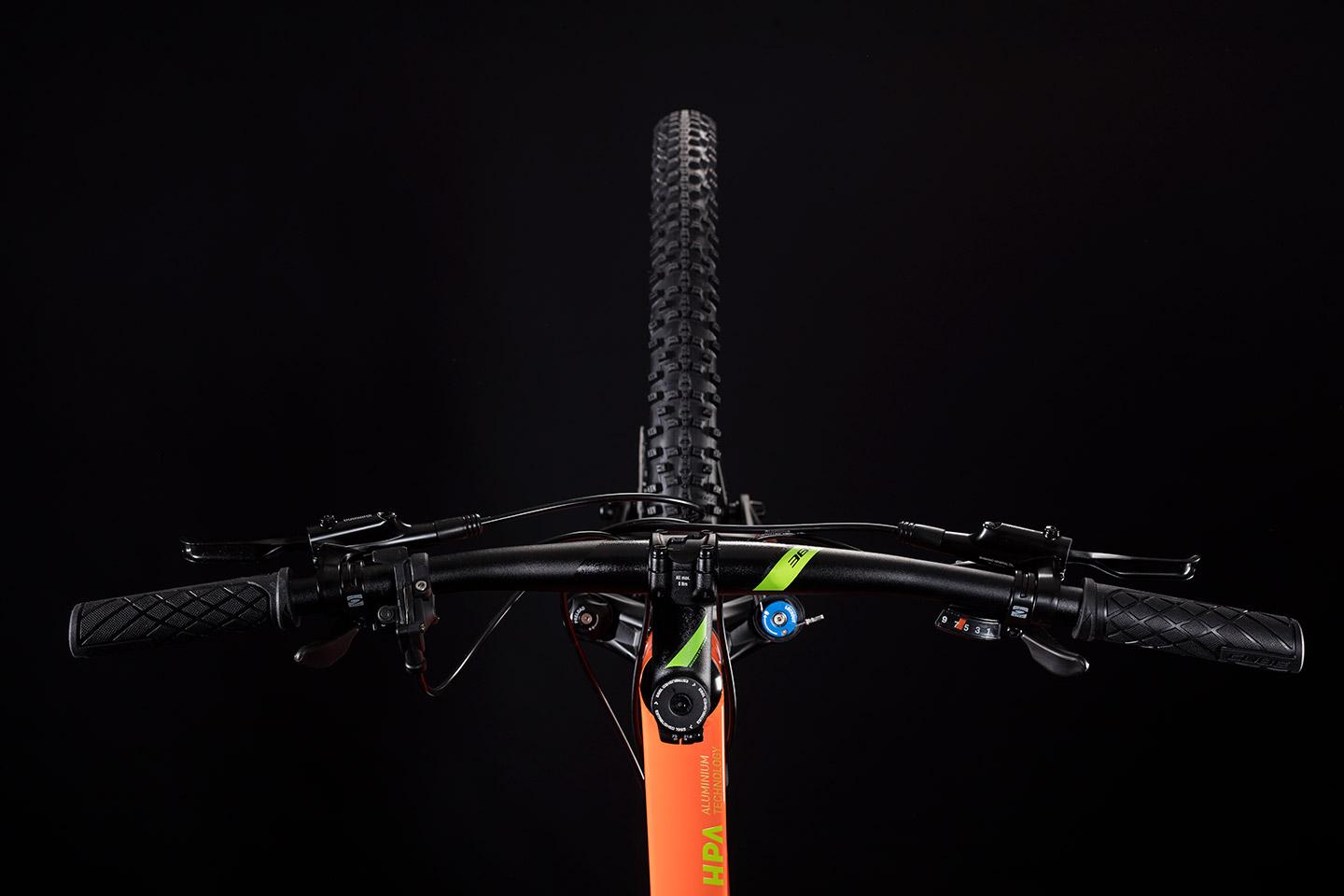

| HANDLEBAR | CUBE Rise Trail Bar, 680mm |
| GRIPS | CUBE Performance Grip |
| SEAT POST | CUBE Performance Post, 27.2mm |
| SEATCLAMP | CUBE Varioclose, 31.8mm |

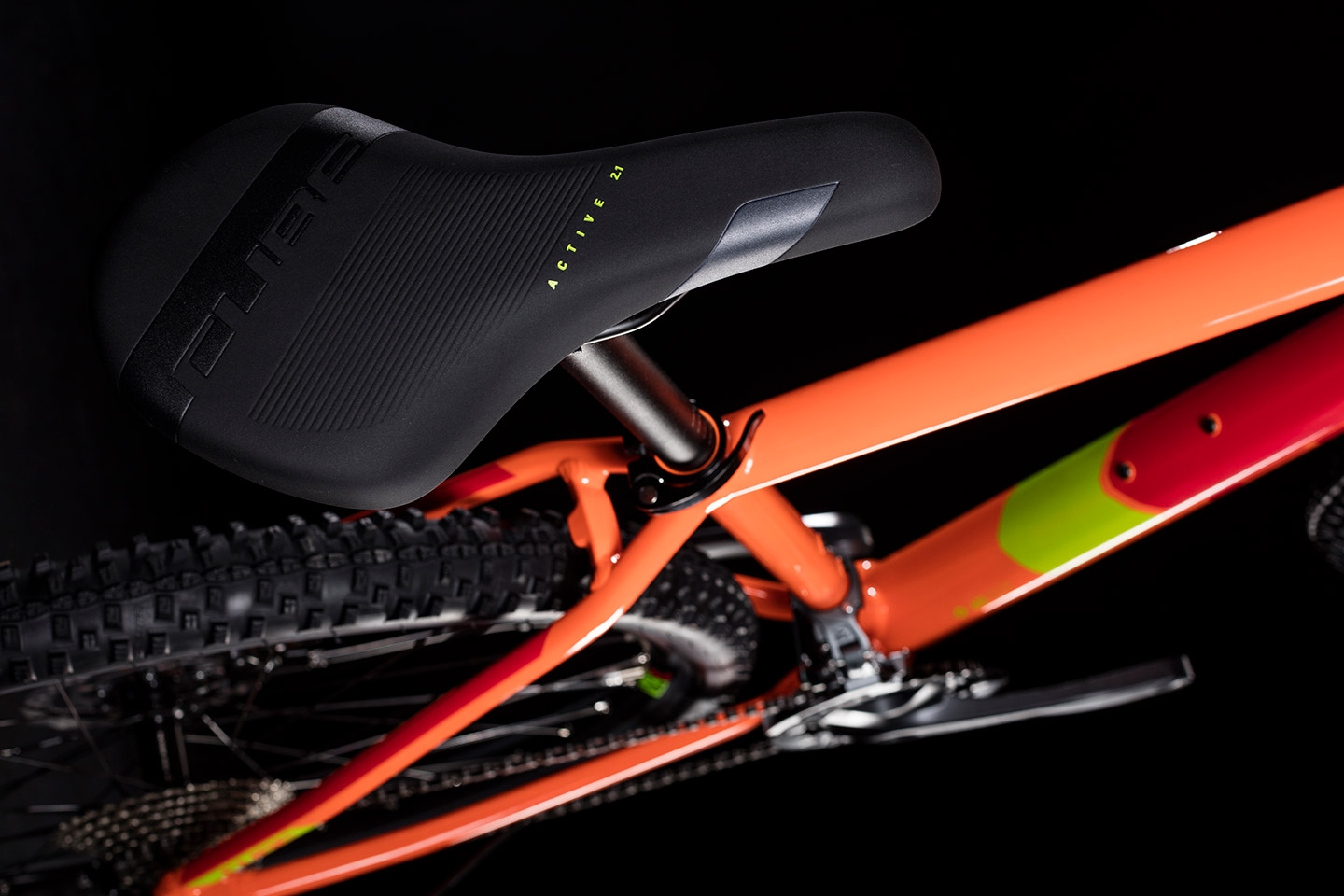

| SADDLE | CUBE Active 1.1 |
| HEADSET | FSA No.10, Semi-Integrated |
| PEDALS | CUBE PP MTB |
| WEIGHT | 14,1 kg |
| COLOUR | orange´n´red |
| ART. L.P. | 202110 |
Geometria

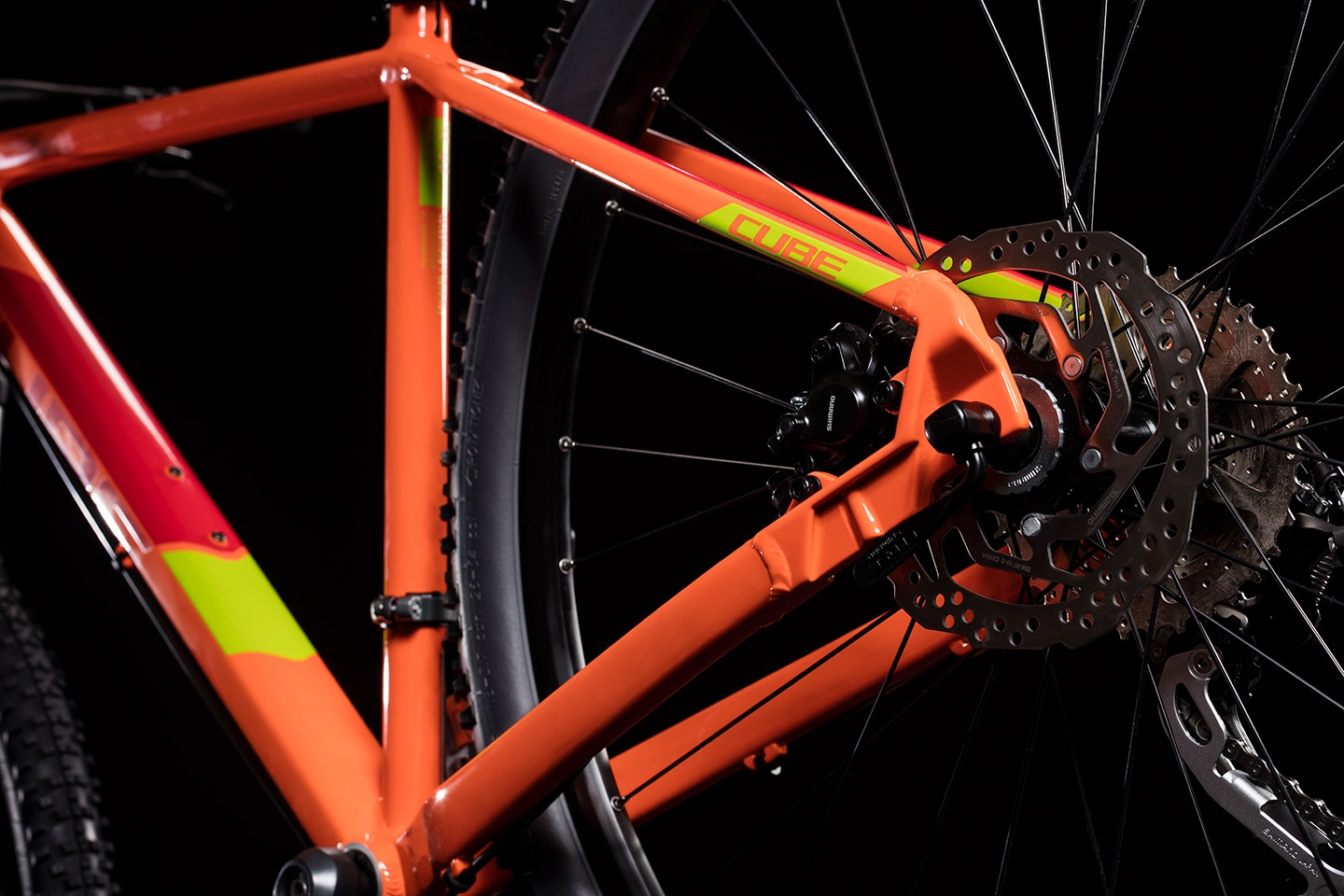

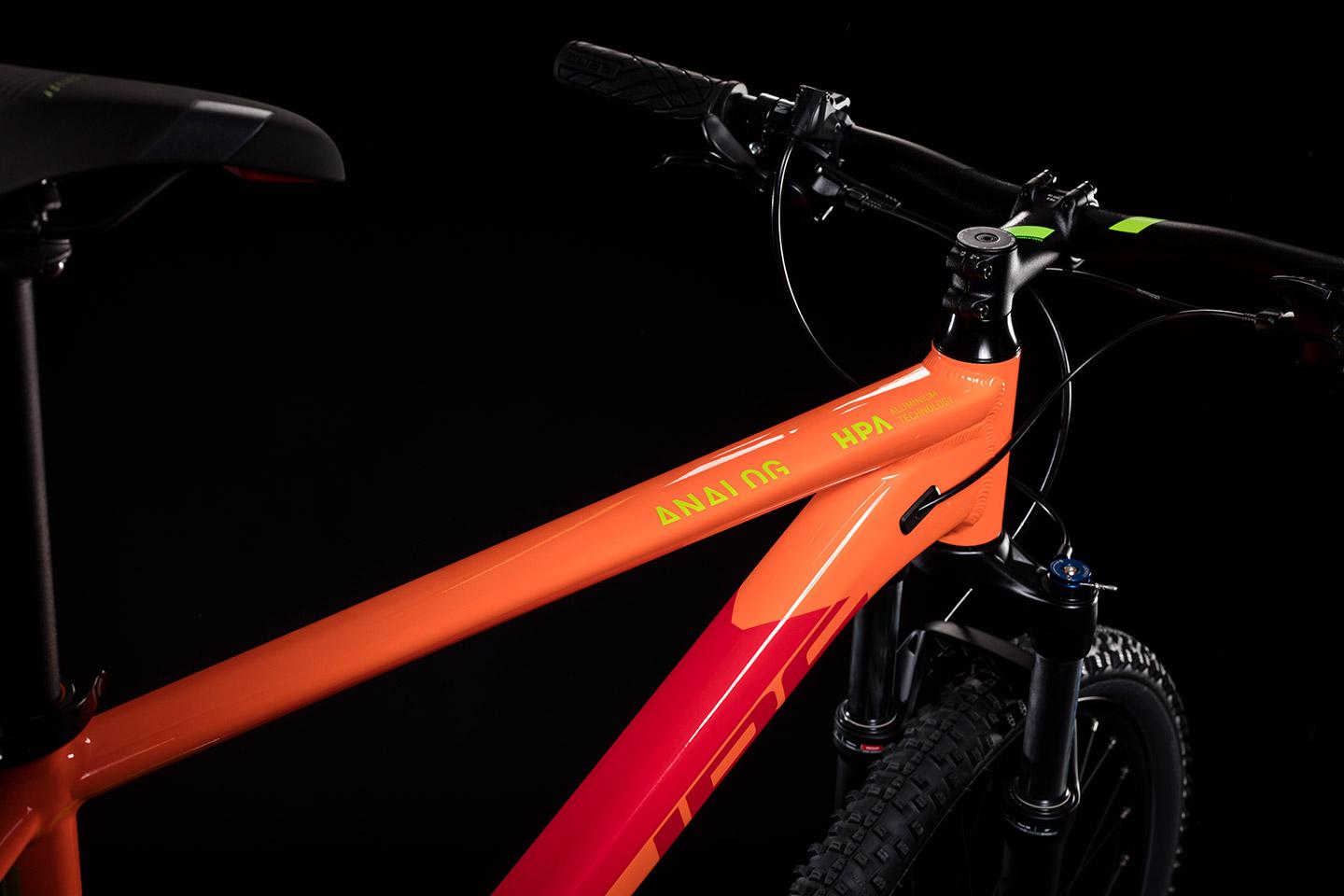

The complex profile top and down tubes of the Analog's frame are designed to be both light and strong. We achieve their sleek shapes using our proprietary Mechanical Forming process. New for 2019, our engineering team redesigned the Analog's seat and chainstays to incorporate incredibly neat, elegant and easy to use rack and mudguard mounting points. Internal cable routing reduces maintenance requirements, while a tough, multi-layer paint finish means that this is a bike that will keep its good looks throughout the rough and tumble of off-road use. And, of course, CUBE's Agile Ride Geometry lends the Analog the manouvrability, playfulness, stability and comfort that you'd expect from one of our hardtails, regardless of how you choose to ride it.
