Stereo 140 HPA
Pro 27.5

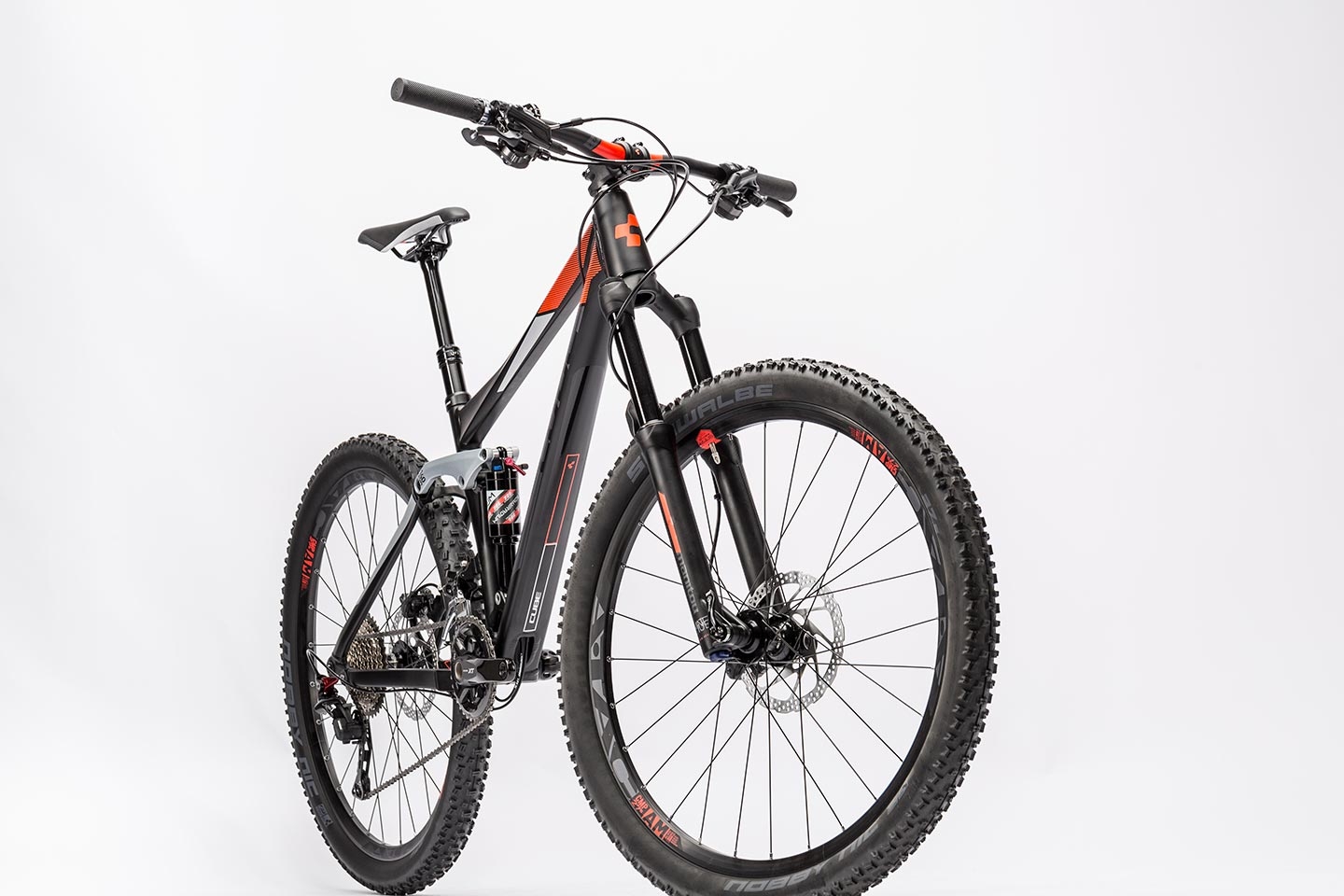

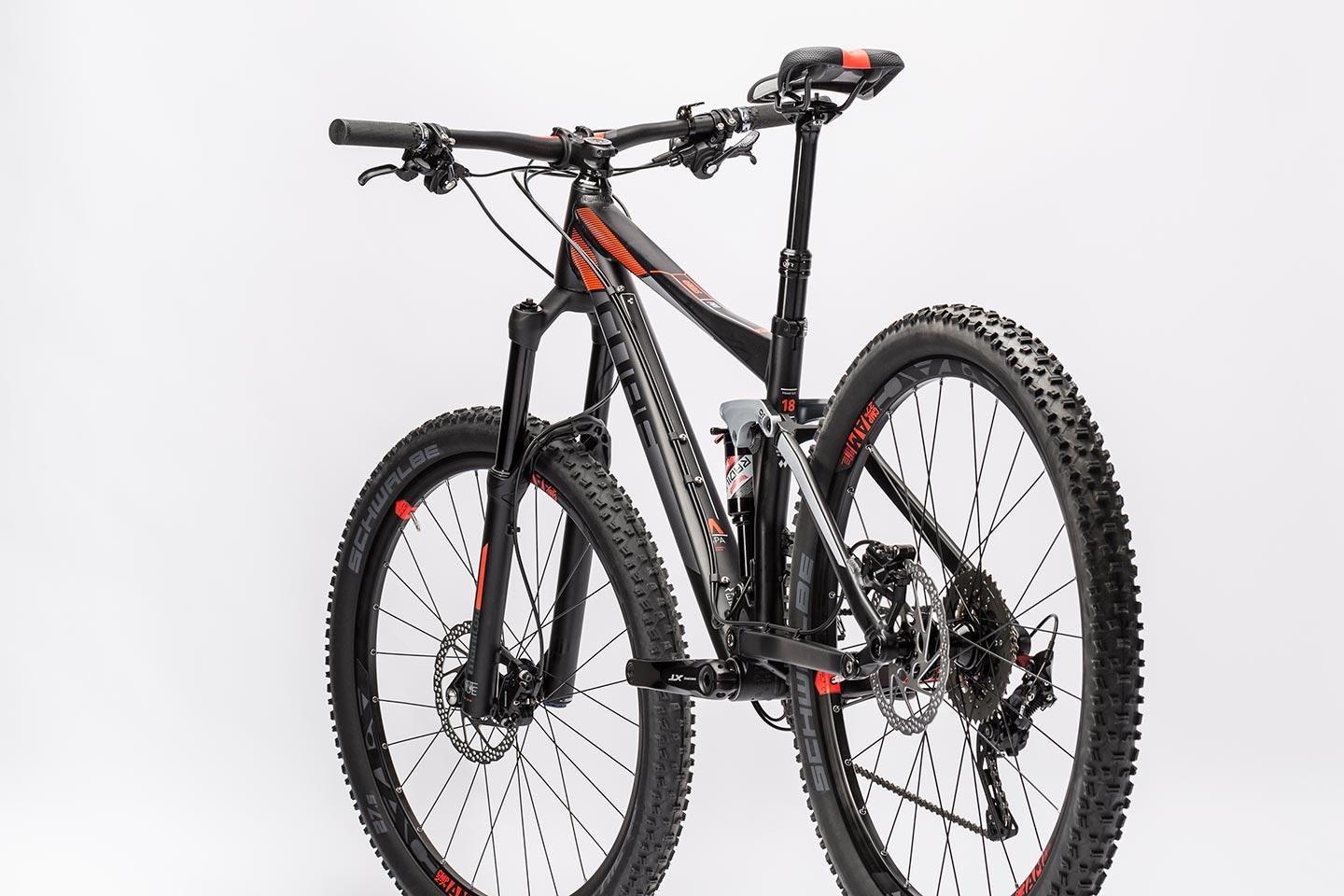

The Stereo 140 HPA Pro is your guarantee of maximum versatility. This potent all-mountain machine - with 27.5 inch wheels and a well thought-out component package - is proof that perfect riding performance and lively, responsive handling runs through the entire Stereo 140 model range. At its best when being pushed hard, the Stereo HPA Pro is versatile enough to tackle any trail challenge that you throw its way.
AUSSTATTUNG
| FRAME | HPA Ultralight, Advanced Hydroform, Triple Butted, ETC 4-Link, ISCG Mount, AXH |
|---|---|
| SIZE | 16", 18", 20", 22" |

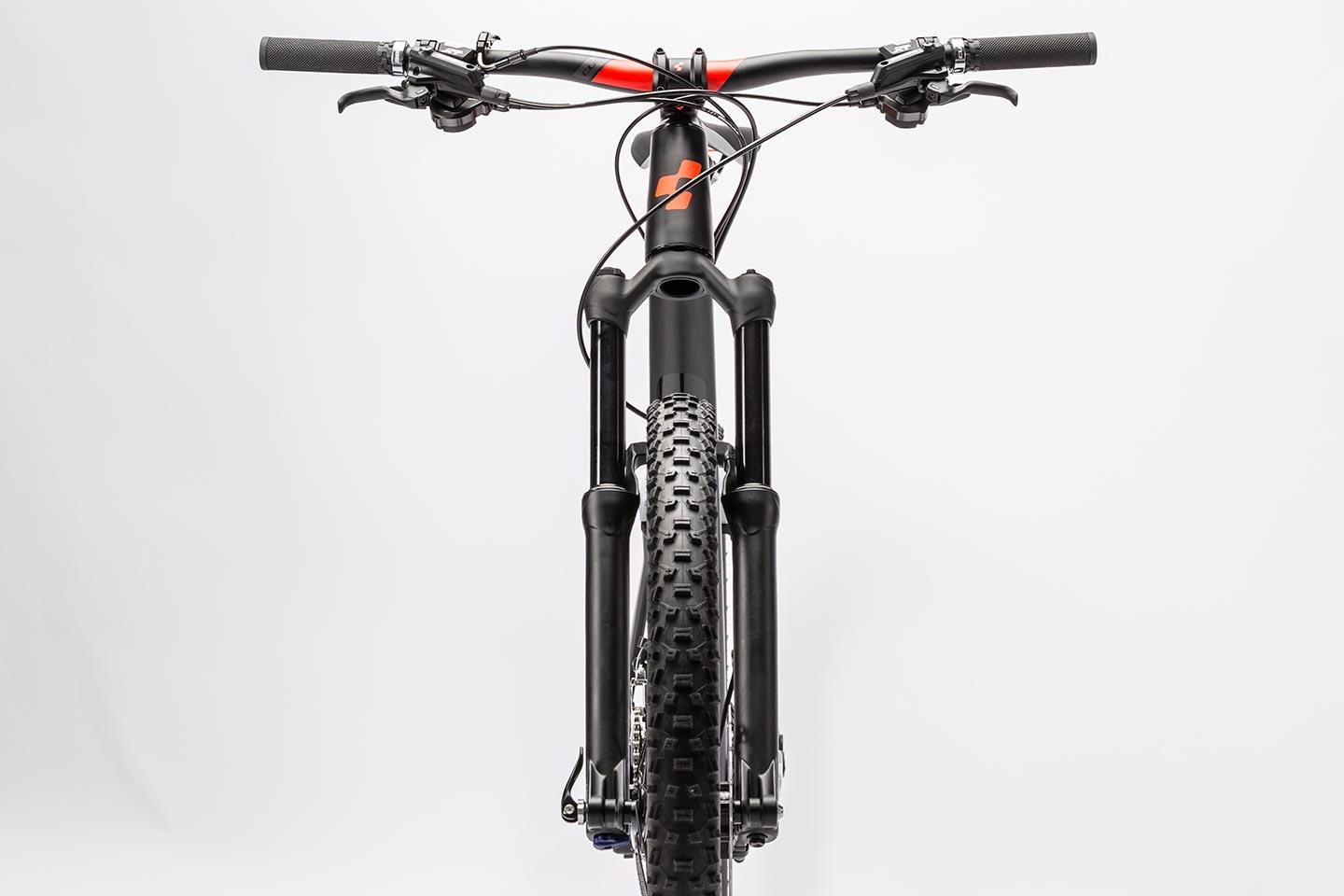

| FORK | Manitou Minute TS Air 27.5, Taper, 15QR, 140mm |

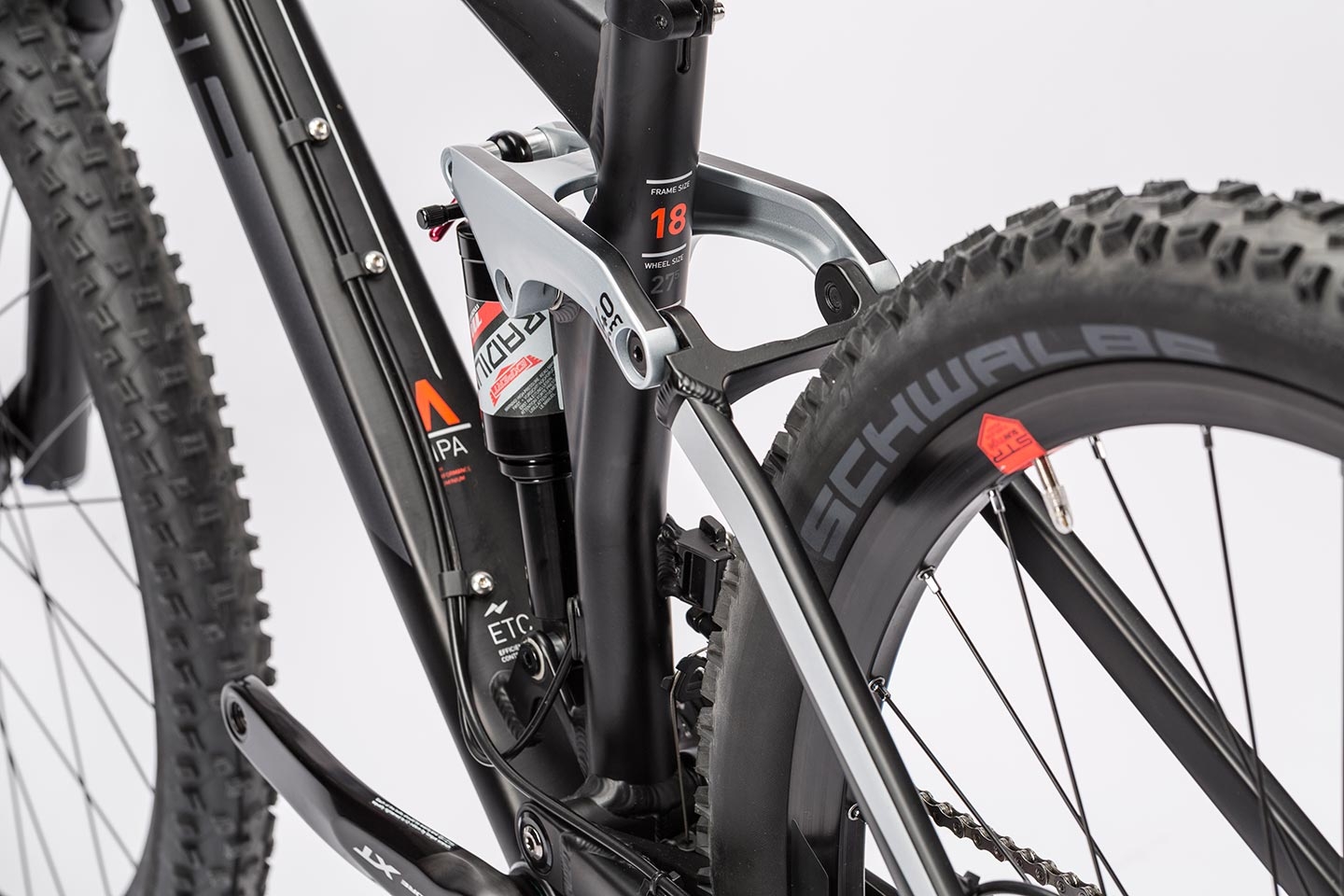

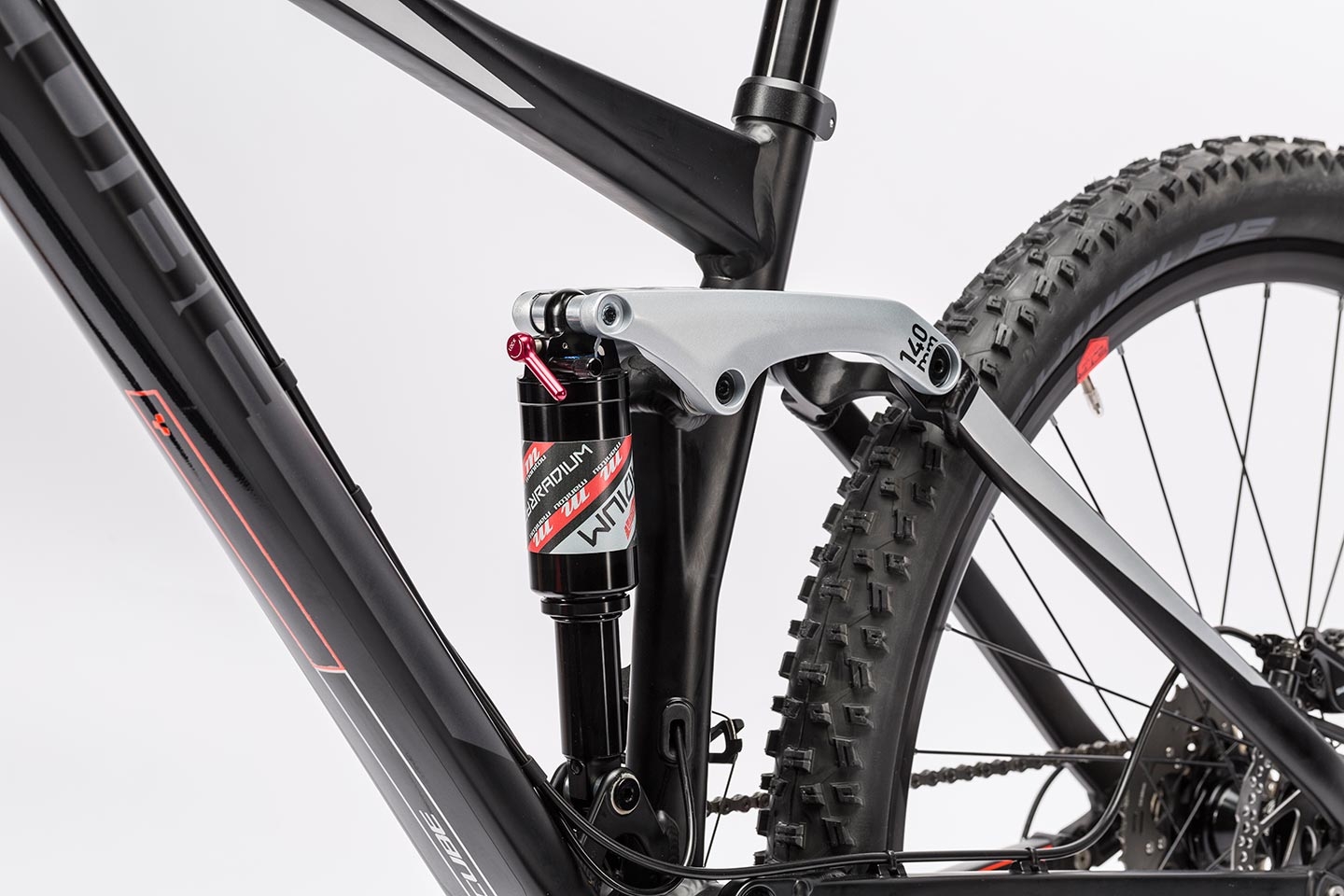

| SHOCK | Manitou Radium Expert RL, 200x57mm, Rebound, Lockout |
| SHOCK HARDWARE | Top: 30x8mm, Bottom: 22x8mm |
| BRAKE SYSTEM | Shimano BR-M506, Hydr. Disc Brake (180/180) |
| REAR DERAILLEUR | Shimano XT RD-M8000-DGS, ShadowPlus, 11-Speed, Direct Mount |
| FRONT DERAILLEUR | Shimano XT FD-M8025-D, Direct Mount, Down Swing |
| SHIFTERS | Shimano XT SL-M8000-B-I, Direct Attach |
| CRANKSET | Shimano XT FC-M8000, 36x26T, 175mm |
| CASSETTE | Shimano XT CS-M8000, 11-40T |
| CHAIN | Shimano CN-HG600-11 |
| WHEELSET | Answer Atac AM, 15QR/X12, Tubeless-Ready 584x23C Rims |
| TIRES | Schwalbe Nobby Nic 2.25 |

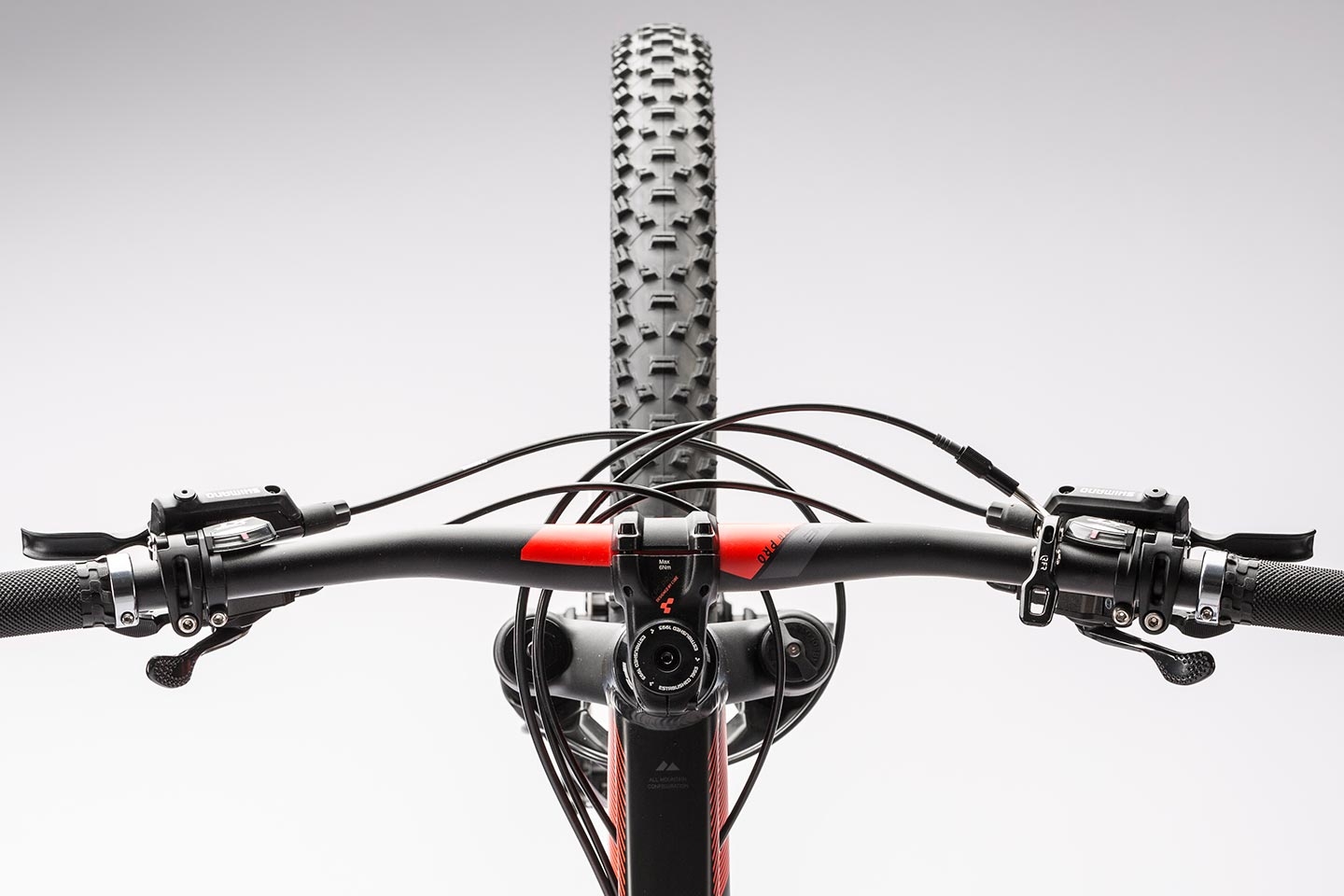

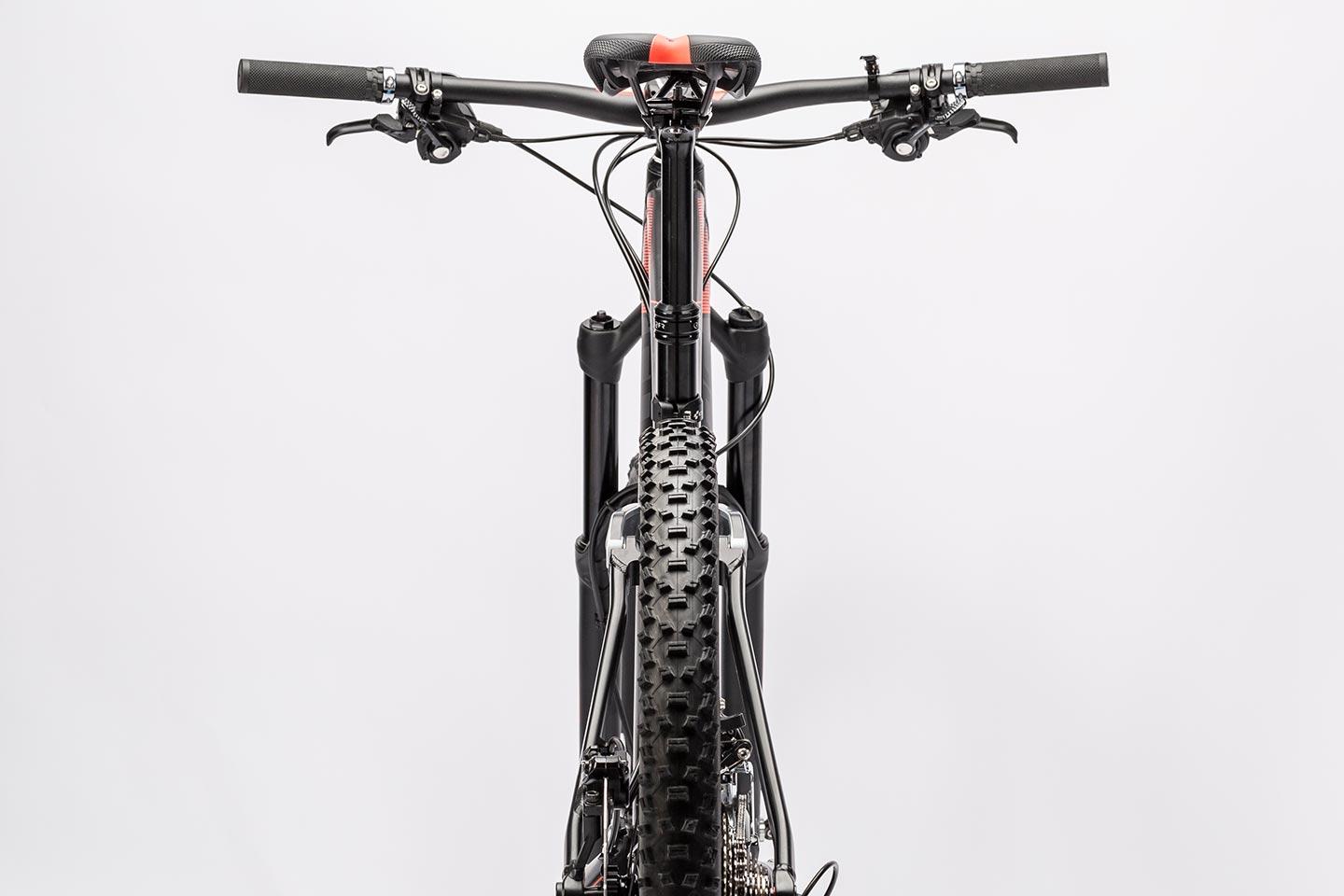

| HANDLEBAR | CUBE Rise Trail Bar Pro, 740mm |
| GRIPS | CUBE Race Grip, 1-Clamp |

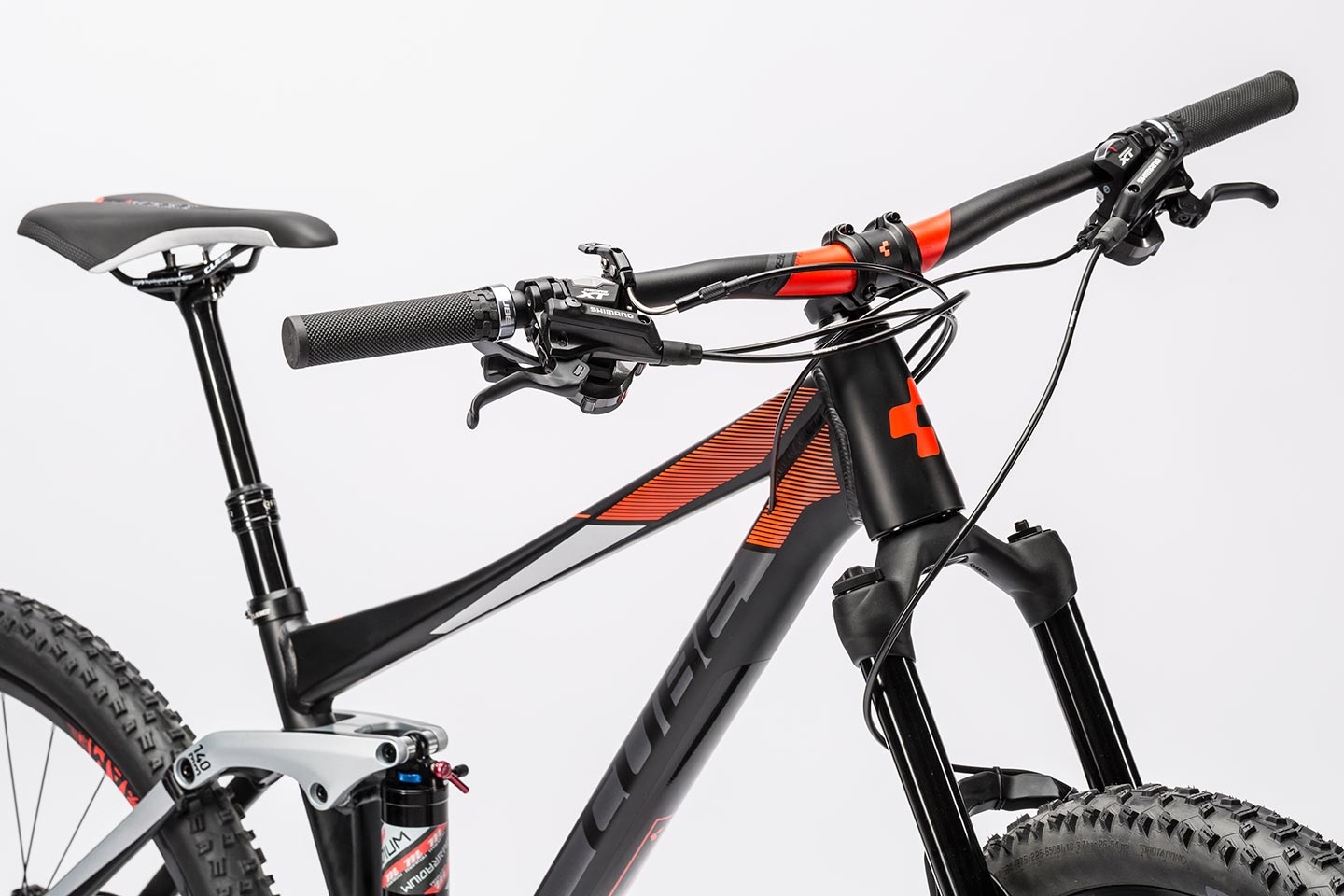

| SEAT POST | CUBE 120mm Adjustable Seatpost, Handlebar Lever, Internal Cable Routing, 31.6x420mm |
| SEATCLAMP | CUBE Screwlock 34.9mm |
| SADDLE | Selle Italia SC1 |
| HEADSET | FSA 1.5E ZS, Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm) |
| WEIGHT | 13.7 kg |
| COLOR | black´n´flashred |
| ART. NO | 755200 |

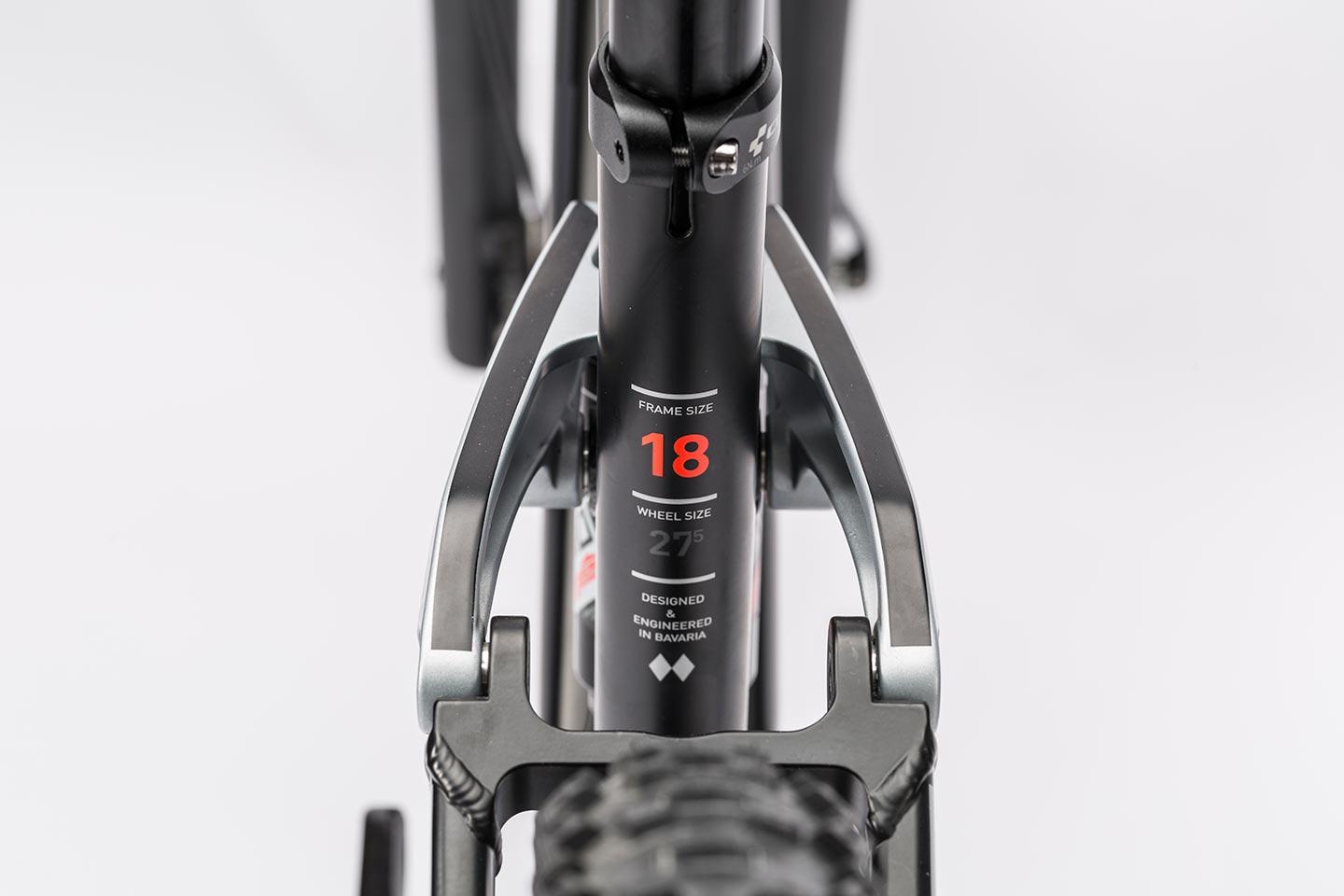

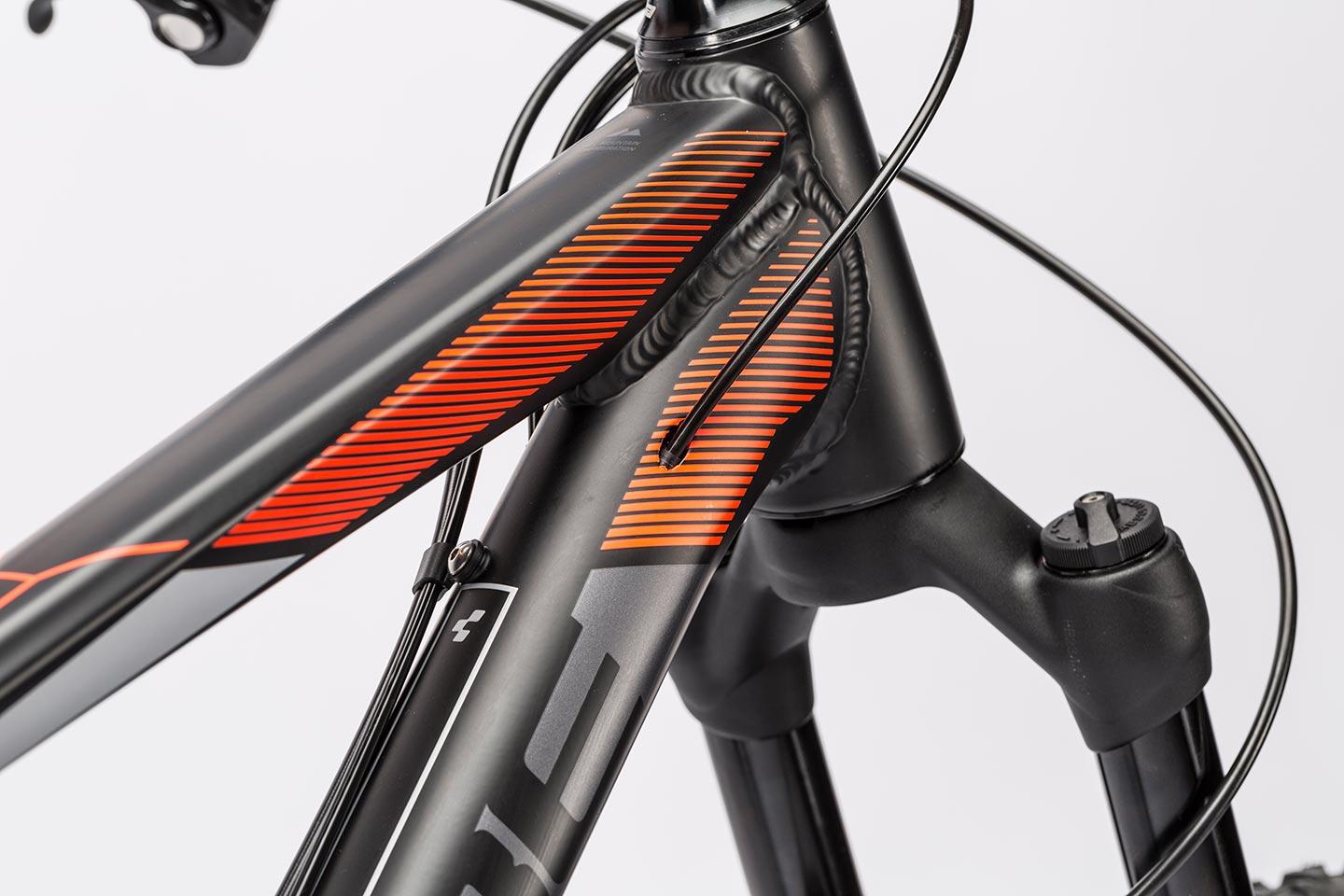

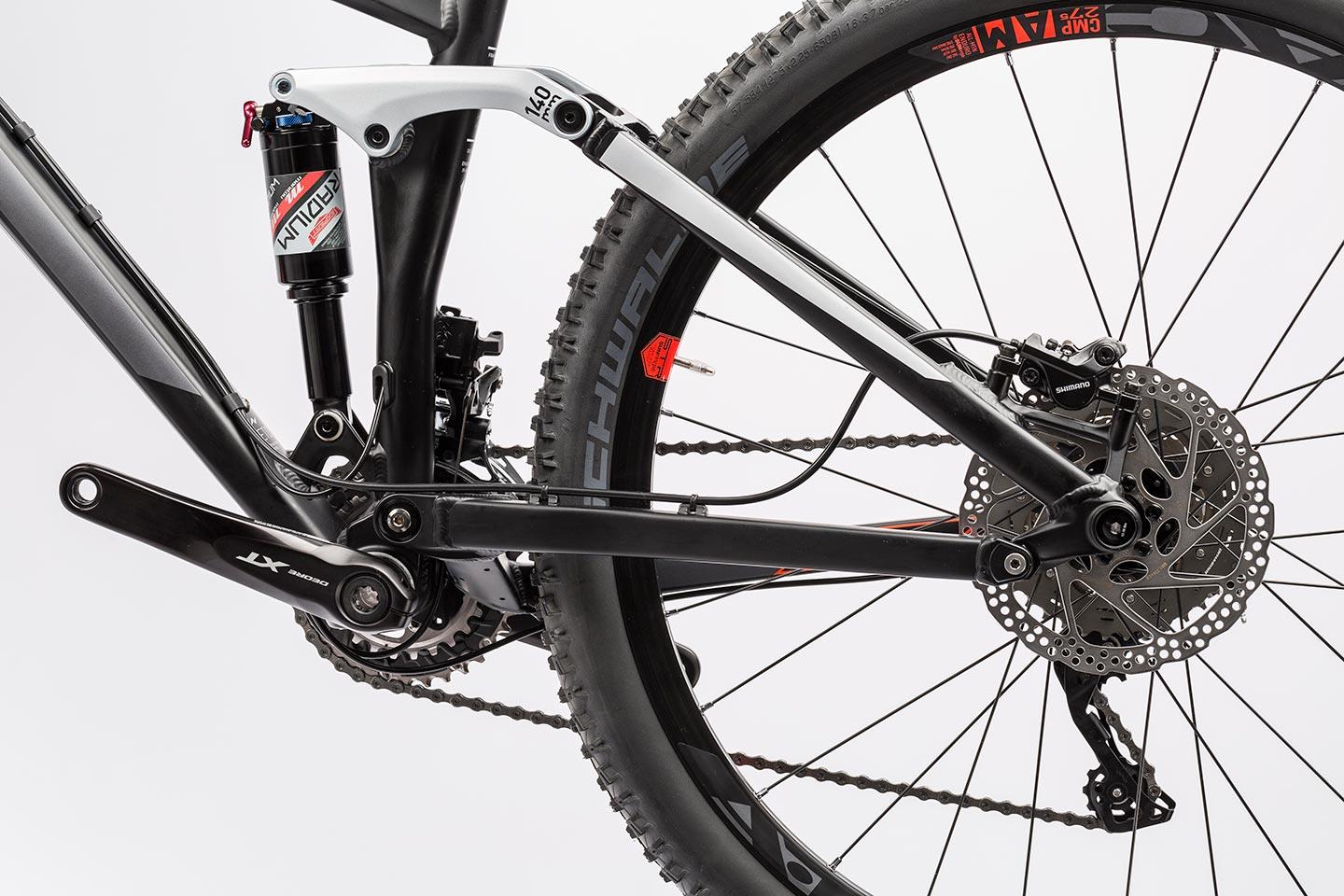

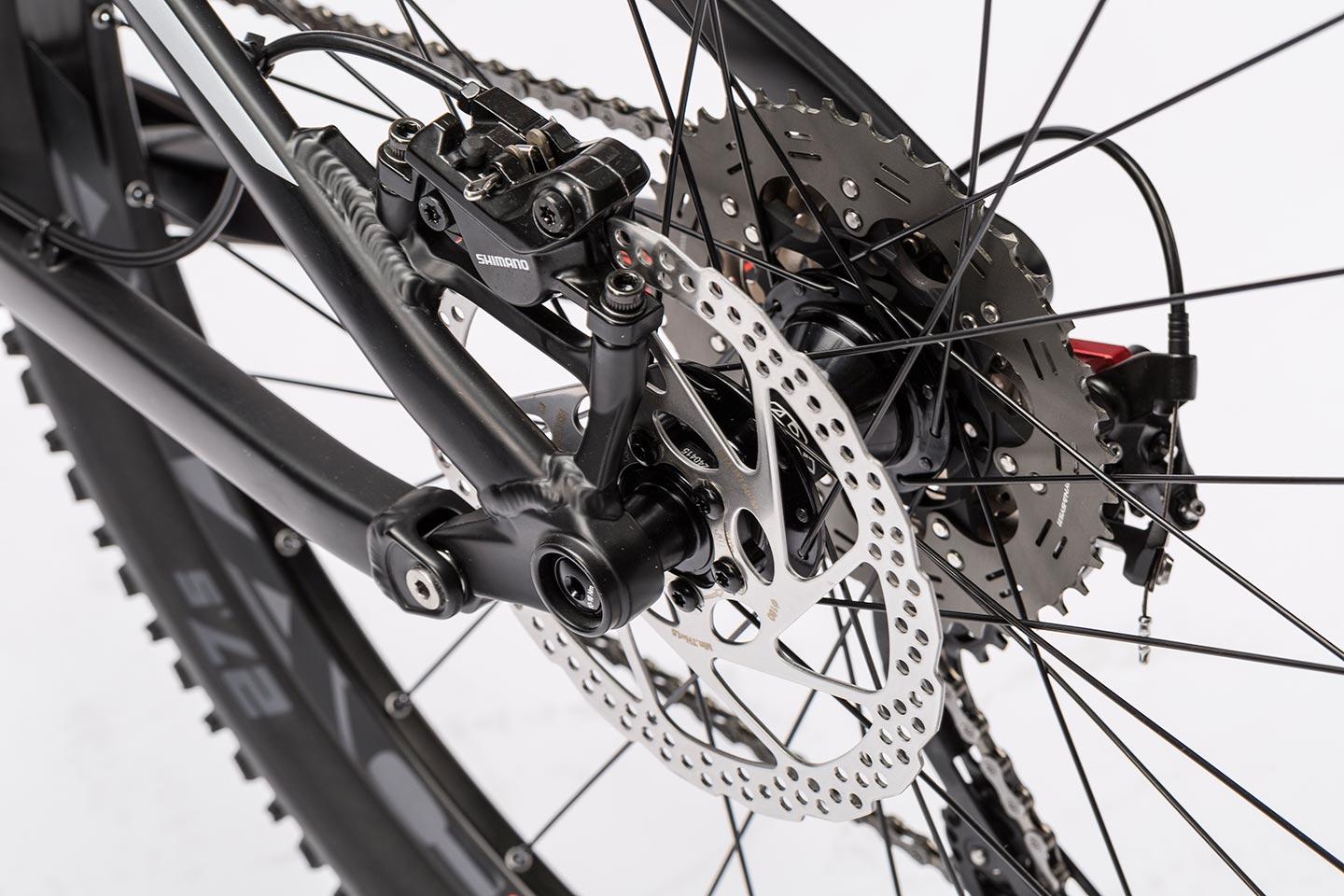

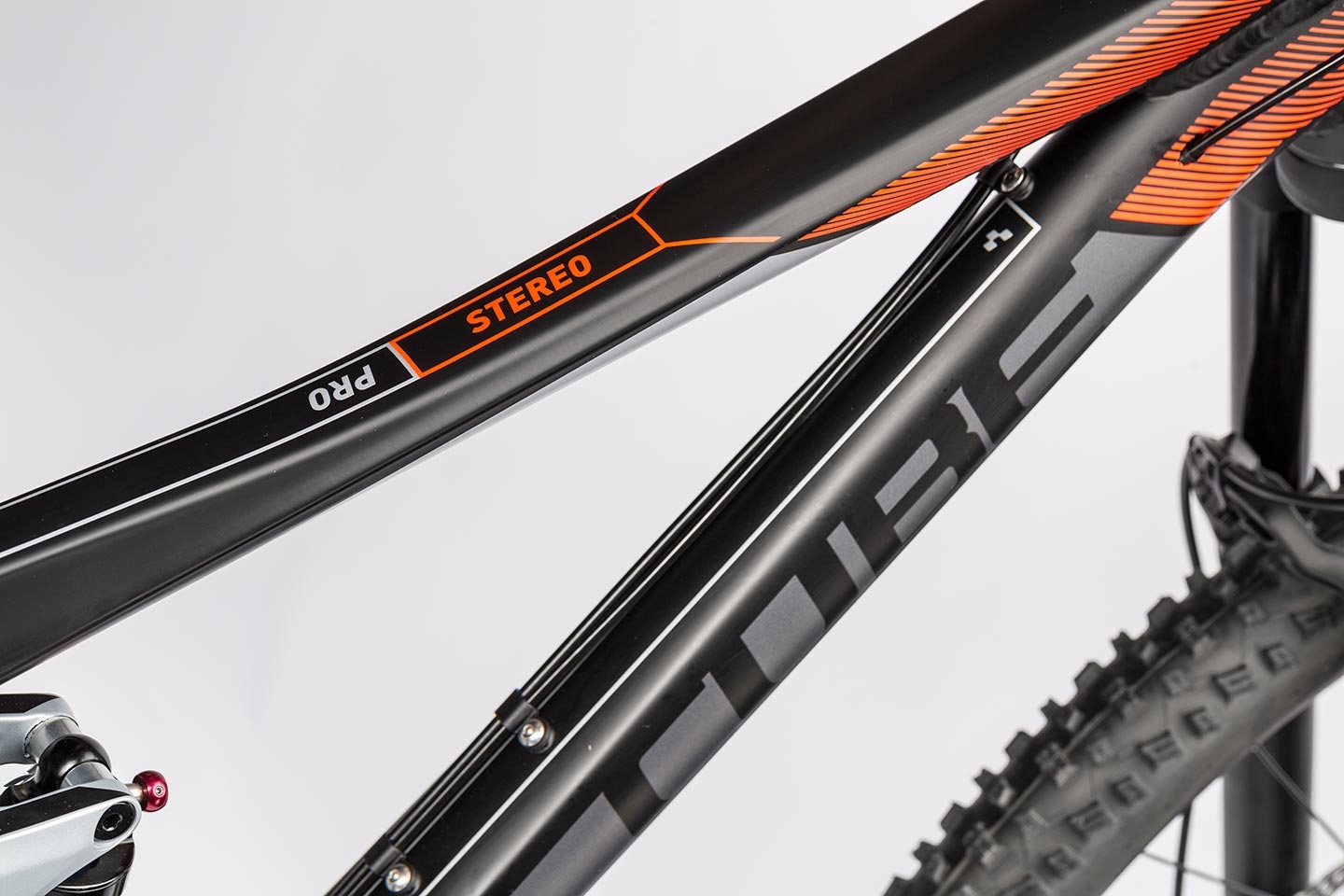

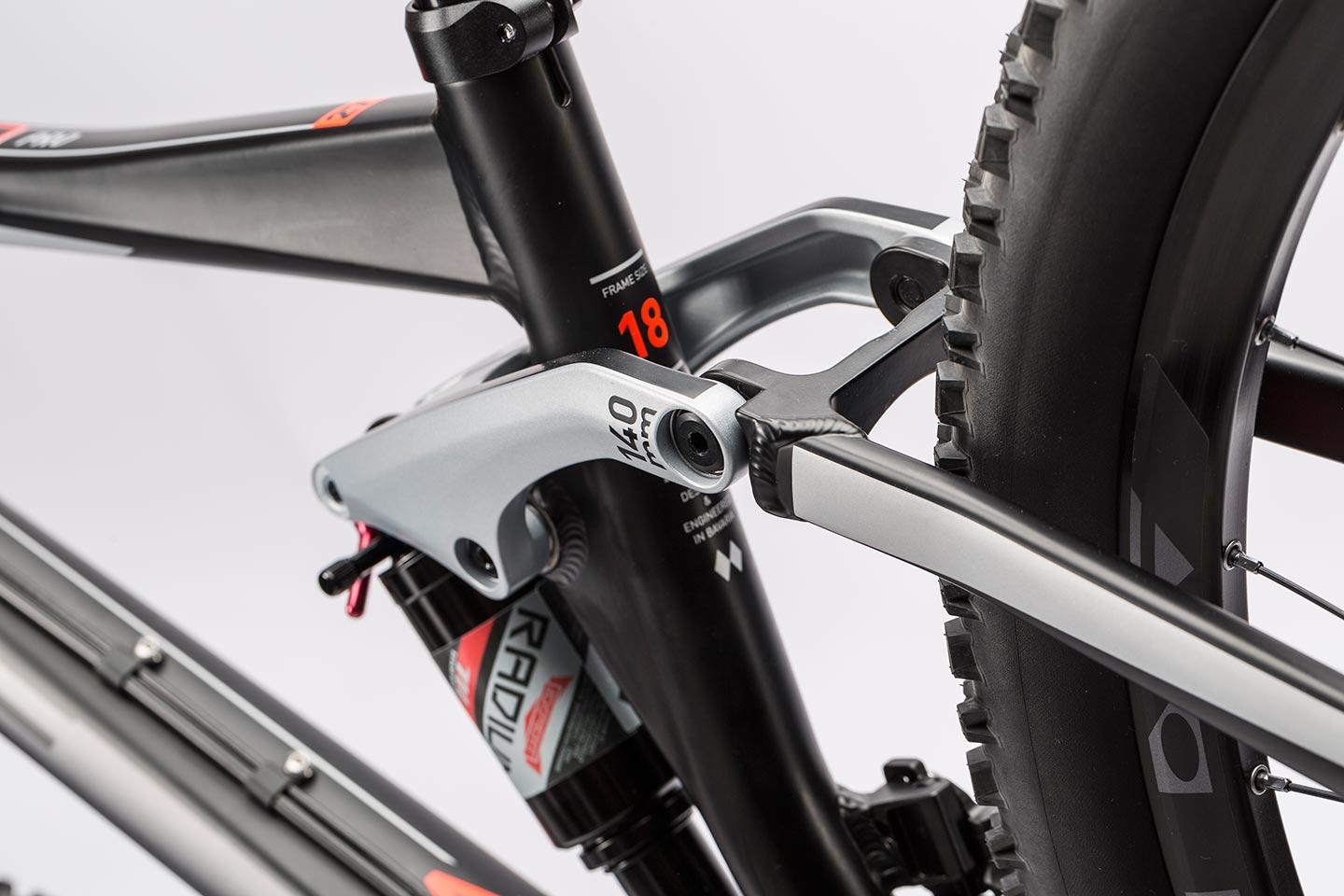

Produced with fastidious attention to detail, the Stereo HPA's triple butted and hydroformed chassis offers everything you could ever want from an aluminium frame. The details include a tapered head tube, PressFit bottom bracket and clever AXH dropouts as well as internal cable routing, integrated disc caliper mounts compatible with 180mm rotors and a stiff, forged rocker linkage. We've developed Agile Ride further - the latest version of Agile Trail Geometry includes reduced standover height for greater clearance and a slightly longer reach. Combined with compact chainstays, it delivers fantastically lively handling while remaining stable at high speed. This is a frame with unmistakable performance pedigree.
