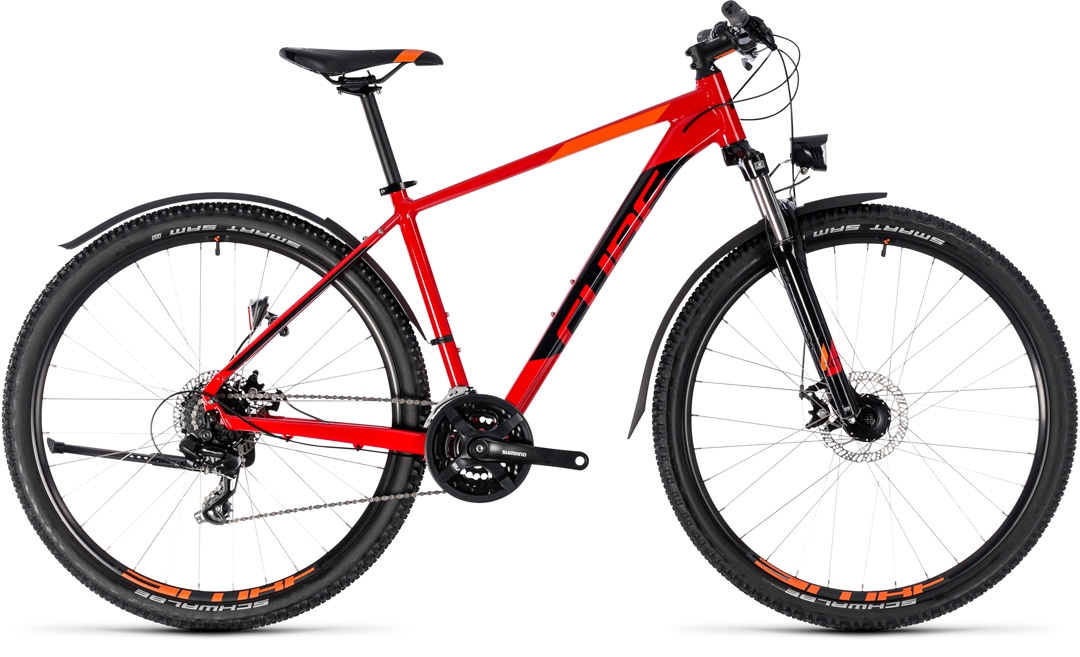

AIM
Allroad
When you want one bike to do it all, the Aim Allroad will be there for you. From weekend offroad adventures to the daily commute, its combination of mountain bike ruggedness and urban practicality is tough to beat. Clip-on mudguards, built-in lighting system and CUBE kickstand are perfect for city streets, while the Suntour suspension fork, wide-ranging gears and powerful mechanical disc brakes are all you need to keep riding when the Tarmac stops. The best of both worlds? We think so - and for 2018 it's also available with our Size Split system, meaning every rider can find their perfect fit.
AUSSTATTUNG
| FRAME | Aluminium Lite, AMF, Internal Cable Routing, Easy Mount Kickstand Ready |
|---|---|
| SIZE | 27.5: 14", 16", 18" // 29: 17", 19", 21" |
| FORK | SR Suntour XCT Coil, 100mm |
| BRAKE SYSTEM | Tektro MD-280, Mech. Disc Brake |
| REAR DERAILLEUR | Shimano RD-TX800, 8-Speed |
| FRONT DERAILLEUR | Shimano FD-T700-TS6, Downswing, 31.8mm |
| SHIFTERS | Shimano ST-EF51, EZ Fire Plus |
| CRANKSET | Shimano FC-TX801, 42x32x22T |
| CASSETTE | Shimano CS-HG200, 12-32T |
| CHAIN | KMC Z7 |
| FRONT HUB | Shimano DH-3D32 Hub Dynamo |
| REAR HUB | Cube Alloy Light |
| RIMS | CUBE SD20, 32H, DISC |
| TYRES | Schwalbe Smart Sam, Active, 2.1 |
| HANDLEBAR | CUBE Rise Trail Bar, 680mm |
| GRIPS | Cube Performance Grips |
| SEAT POST | CUBE Performance Post, 27.2mm |
| SEATCLAMP | CUBE Varioclose, 31.8mm |
| SADDLE | CUBE Active 1.1 |
| HEADSET | CUBE No. 10 Semi-Integrated |
| PEDALS | CUBE PP MTB |
| FRONT LIGHT | LED 15 Lux |
| REAR LIGHT | Trelock Standlight |
| MUDGUARDS | Future Forms Snap On |
| WEIGHT | 15,8 kg |
| COLOUR | red´n´black |
| ART. NO | 101210 |
GEOMETRY

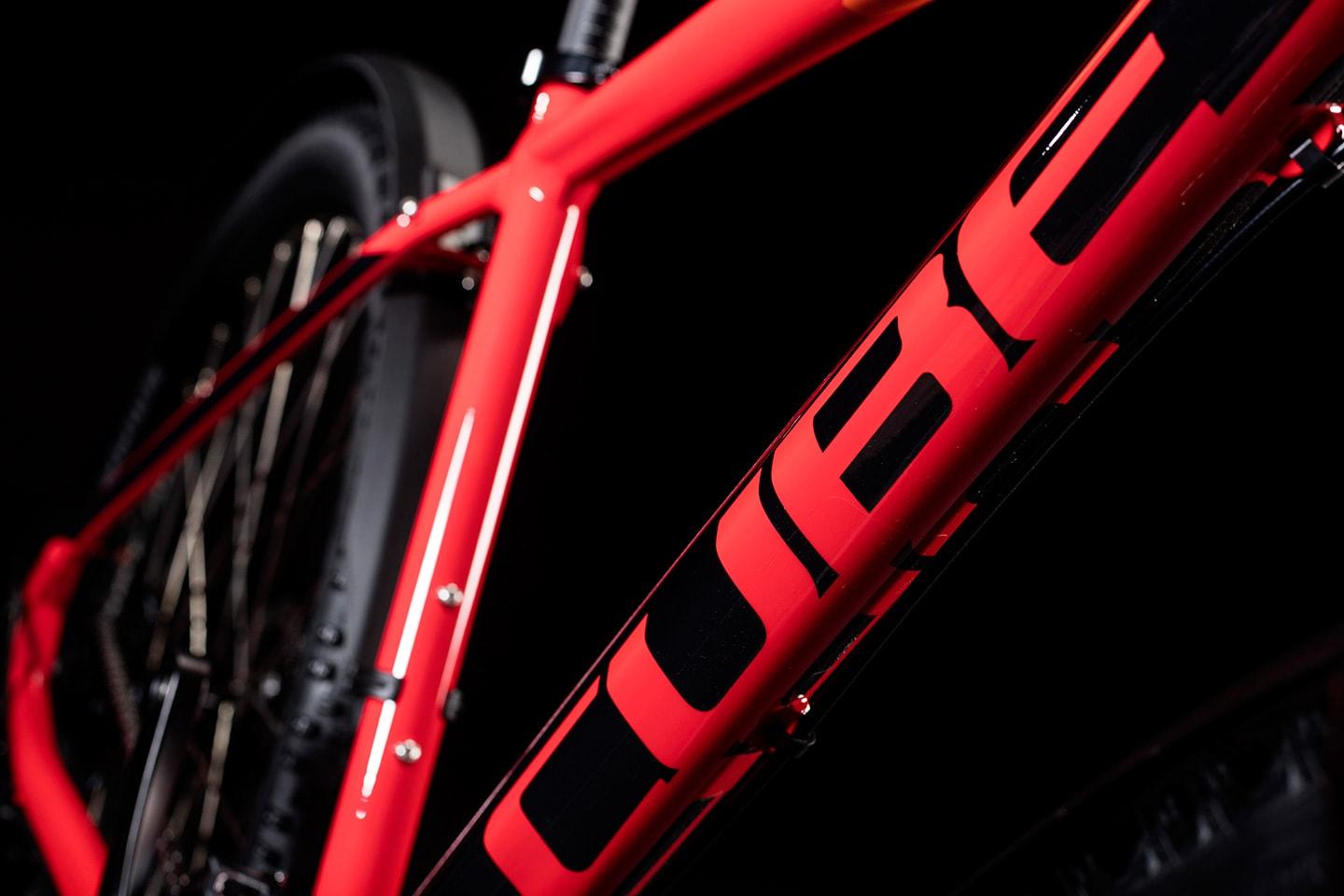

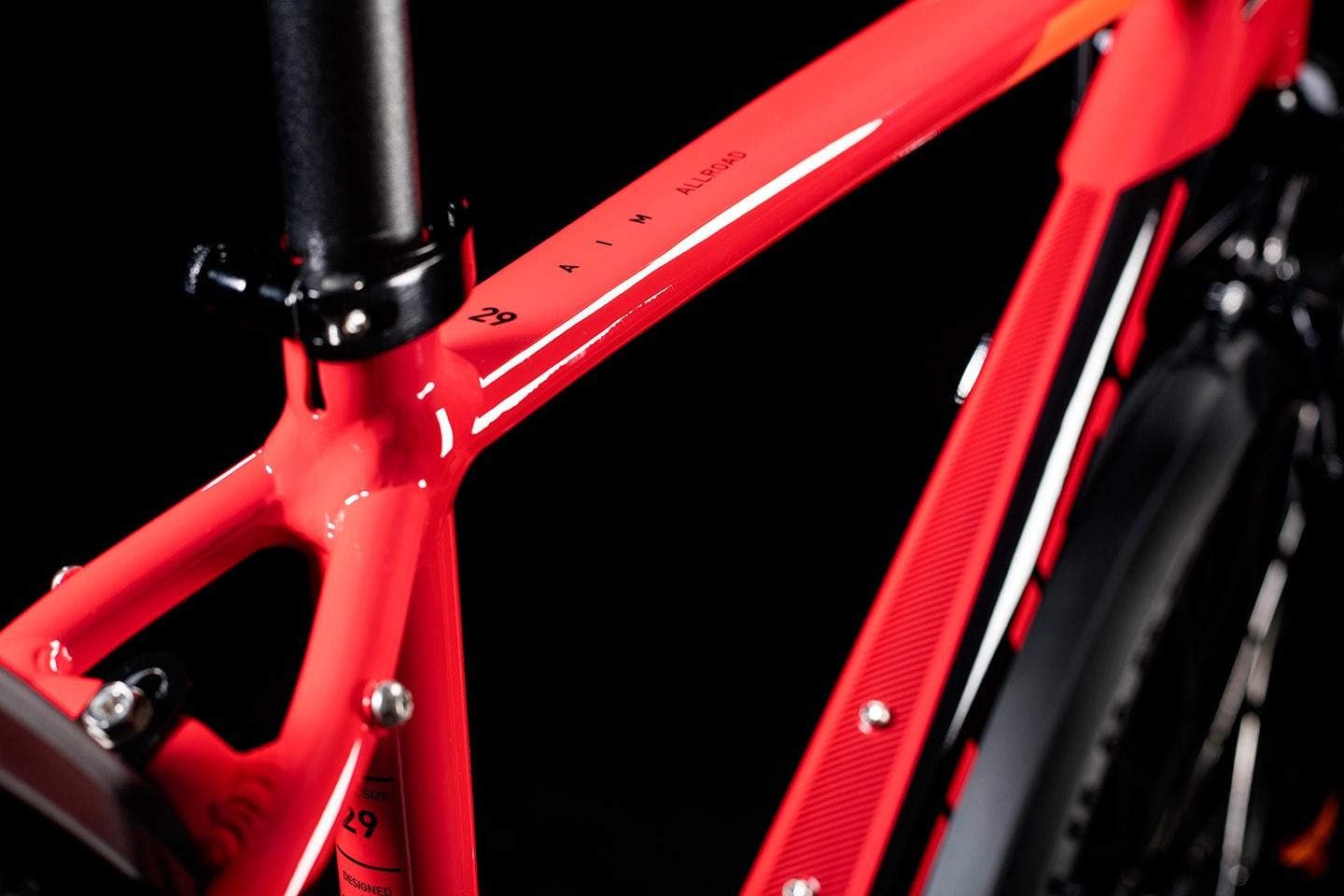

The Aim Allroad shares many of its features with our most sophisticated frames. Internal cable routing keeps gear shifting smooth, reduces maintenance and looks great too. Advanced Mechanical Forming allows our engineers to make a stiff, light, cross-ovalised down tube for maximum efficiency and precise steering. Rack mounts make it easy to add luggage carrying to the list of the Aim Allroad's capabilities. And, of course, we used our renowned Agile Ride Geometry to create a bike that's stable when you need it and inspiring when you want it. Topped off with several layers of paint to keep it looking good for years to come, it's a bike you'll be proud of.
