REACTION
TM

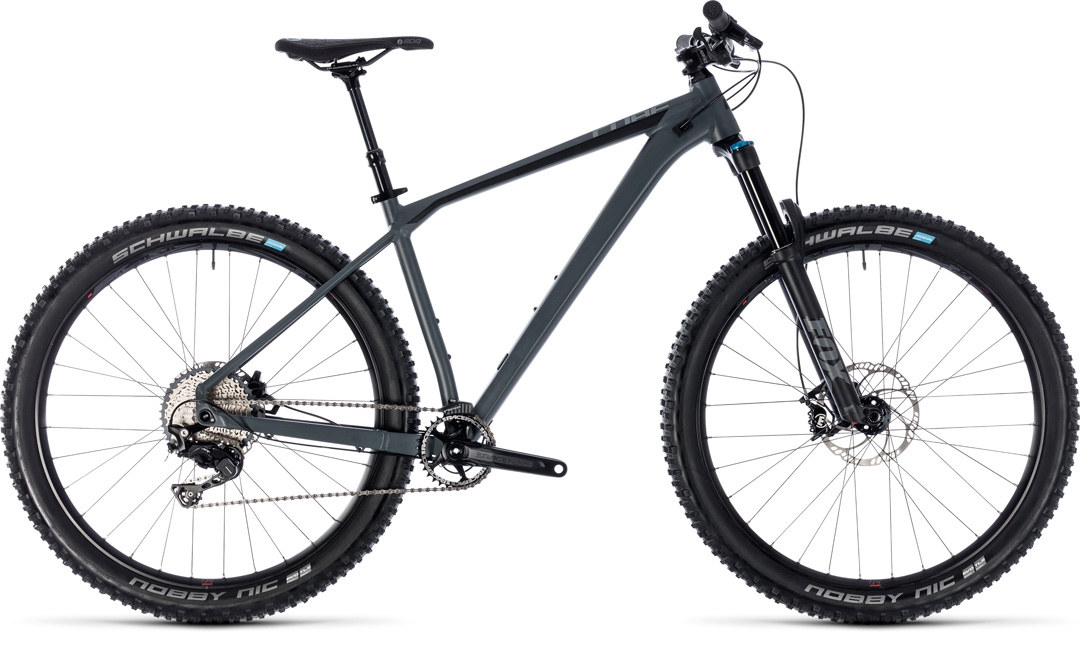

We wanted to make something a bit special with our Reaction TM. After all, it's the pinnacle of the Reaction range - so it made sense to us to pull out all the stops. We began by giving it some serious technical trail ability with 2.6 inch tyres and a 130mm Fox 34 Rhythm fork with Boost axle. Sure, that's a bit fatter and a bit longer than you'd normally find on a bike built for speed, but we figured that you wouldn't want a few rocks to get in the way. Then we added a Shimano XT 1x11 transmission and Magura MT Trail hydraulic discs with four pistons at the front and two at the rear, for smooth and seamless stop-and-go ability. It all just... works. The whole lot, bolted to our new-for-2018 Reaction frameset, makes for the ultimate trail-taming - or race-winning - hardtail. It's your decision.
AUSSTATTUNG
| FRAME | Aluminium Lite, Trail Motion Geometry, AMF, ARG, Internal Cable Routing, Easy Mount Kickstand Ready, Tapered Headtube, Press Fit BB, Fits up to 2.8 27.5" Tires |
|---|---|
| SIZE | 16", 18", 20", 22" |
| FORK | Fox 34 Rhythm, 2-Position Sweep-Adjust GRIP Damper, Tapered, 15x110mm, 130mm |

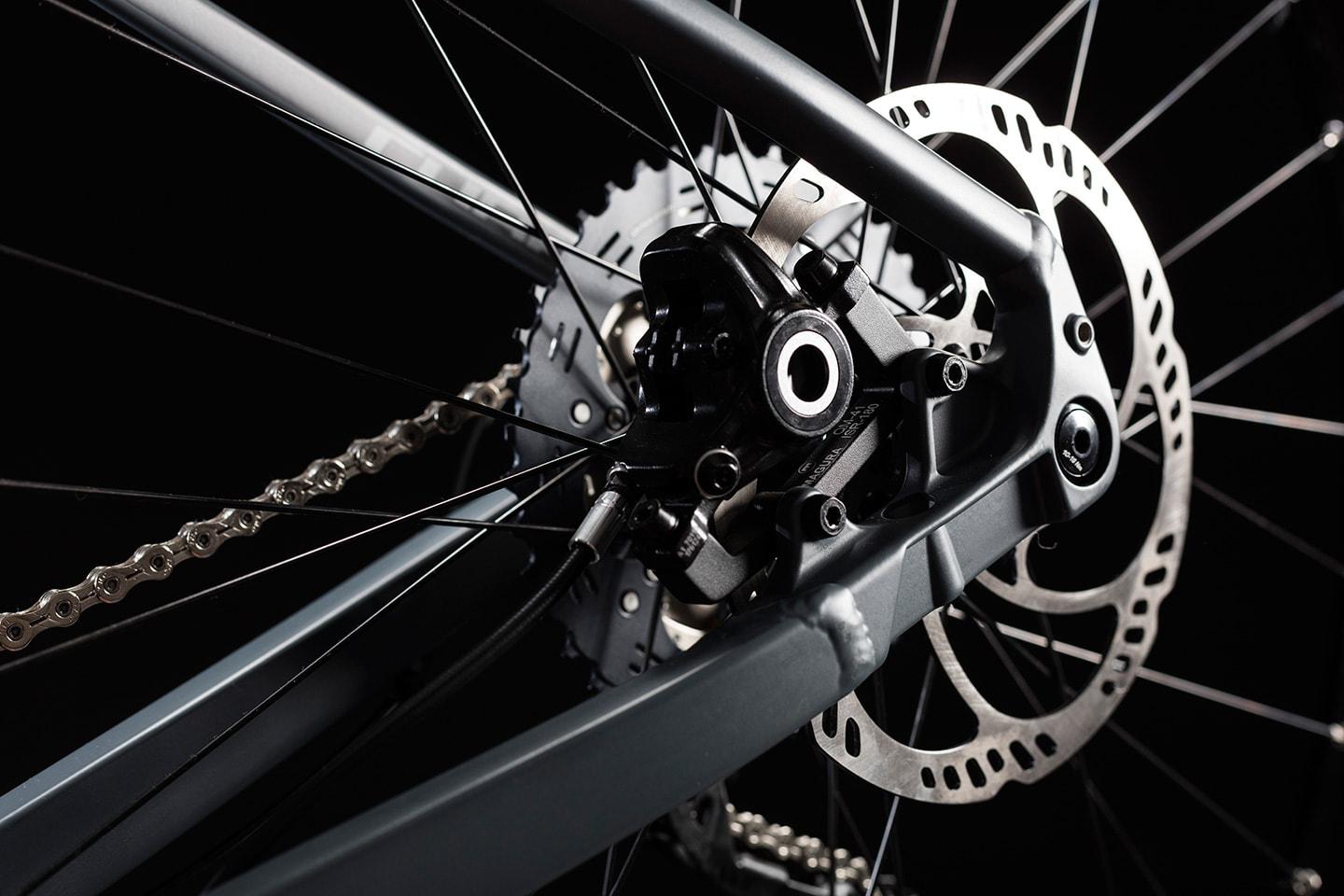

| BRAKE SYSTEM | Magura MT Trail Custom, Hydr. Disc Brake (180/180) |
| REAR DERAILLEUR | Shimano XT RD-M8000-DGS, ShadowPlus, 11-Speed, Direct Mount |
| SHIFTERS | Shimano SLX SL-M7000 |
| CRANKSET | Race Face Aeffect SL 32T, 175mm |
| CASSETTE | Shimano SLX CS-M7000, 11-46T |
| CHAIN | KMC X11 L |
| FRONT HUB | CUBE Alloy Light |
| REAR HUB | CUBE Alloy Light |
| RIMS | Rodi Blackjack Typ 35, 32H, Disc |
| TYRES | Schwalbe Nobby Nic, Addix Speedgrip, Kevlar, Tubeless Easy, 2.6 |
| HANDLEBAR | Race Face Aeffect 35, 760mm |
| GRIPS | CUBE Race Grip 31mm, 1-Clamp |
| SEAT POST | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 27.2mm, 400x105mm |
| SEATCLAMP | CUBE Varioclose, 31.8mm |
| SADDLE | SDG Fly Mtn 2 |
| HEADSET | FSA Orbit I-t, Integrated, Top 1 1/8", Bottom 1 1/2" |
| PEDALS | CUBE Aluminium MTB |
| WEIGHT | 13,1 kg |
| COLOUR | grey´n´black |
| ART. NO | 115100 |
GEOMETRY

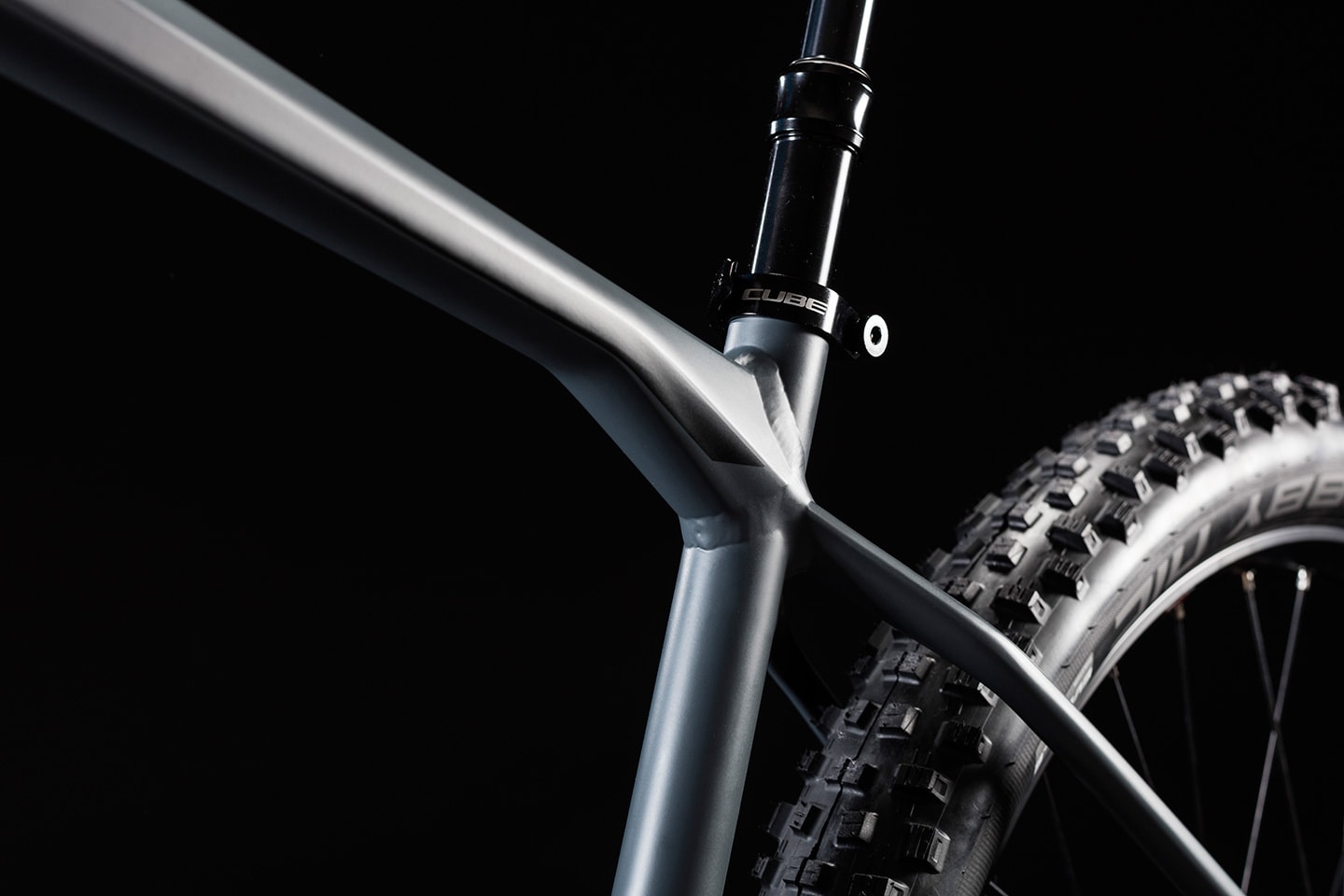

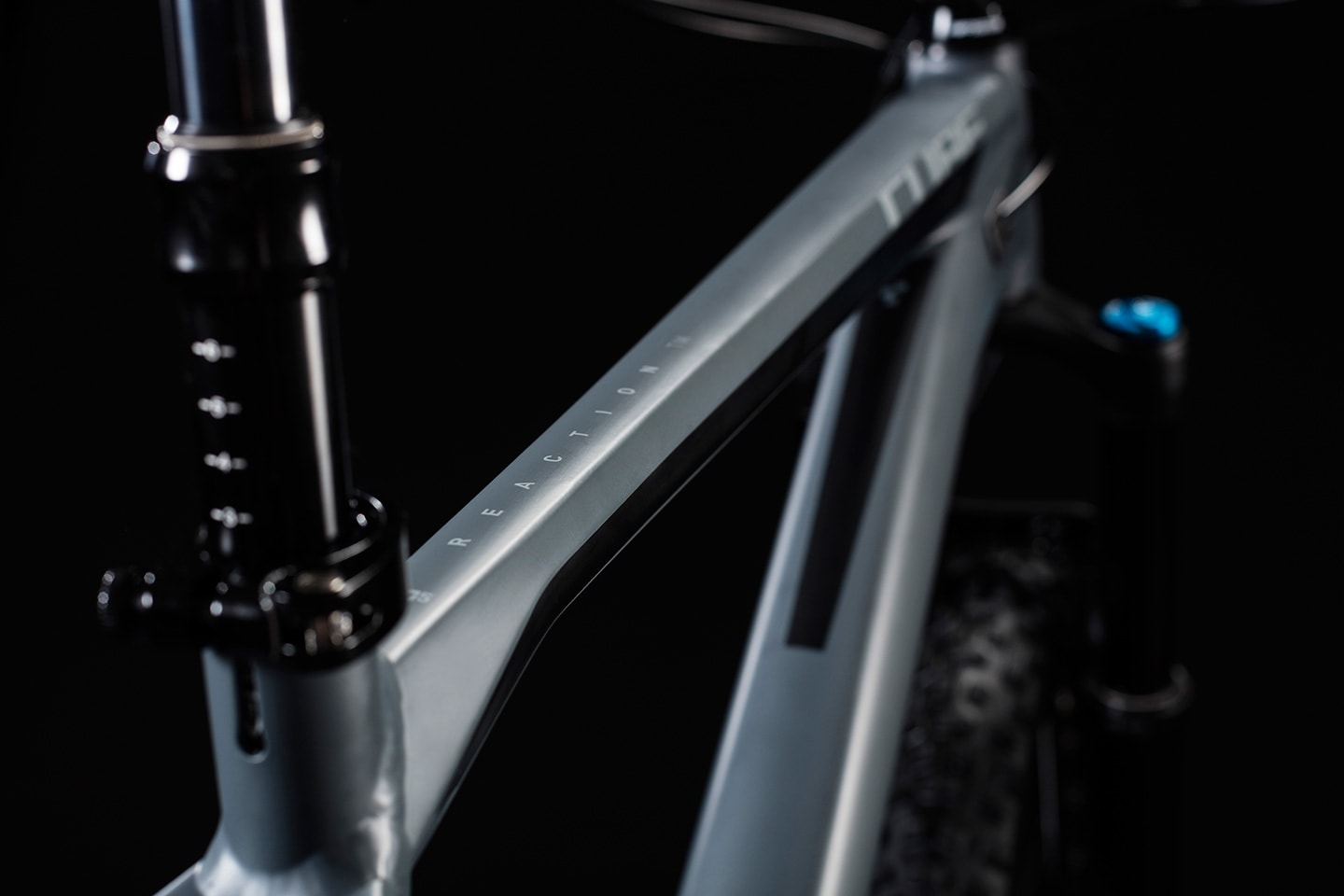

A bike built for speed needs to fulfil three criteria. It must be stiff, it must be light, and it must be comfortable. To improve on our Reaction frame's already superb rigidity our design team equipped the 2018 version with a thru axle at the rear. Combined with the tapered head tube - fitted with a fully integrated, sealed bearing headset - it makes for a frame that steers so accurately, it's almost as though it's linked directly to your brain. Naturally, all that torsional rigidity also makes for rapid forward progress. Double butted, mechanically formed 6061 aluminium tubes shave weight where it's not needed, so you can be sure there isn't a single unncessary gramme. And to improve comfort - and, ultimately, speed - the slender stays and slim seatpost help keep trail shock to a minimum. Finish off with neat internal cable routing, including for a dropper post, and you've got the ultimate hardtail speed machine.
