STEREO HYBRID 160
SL 500 27.5

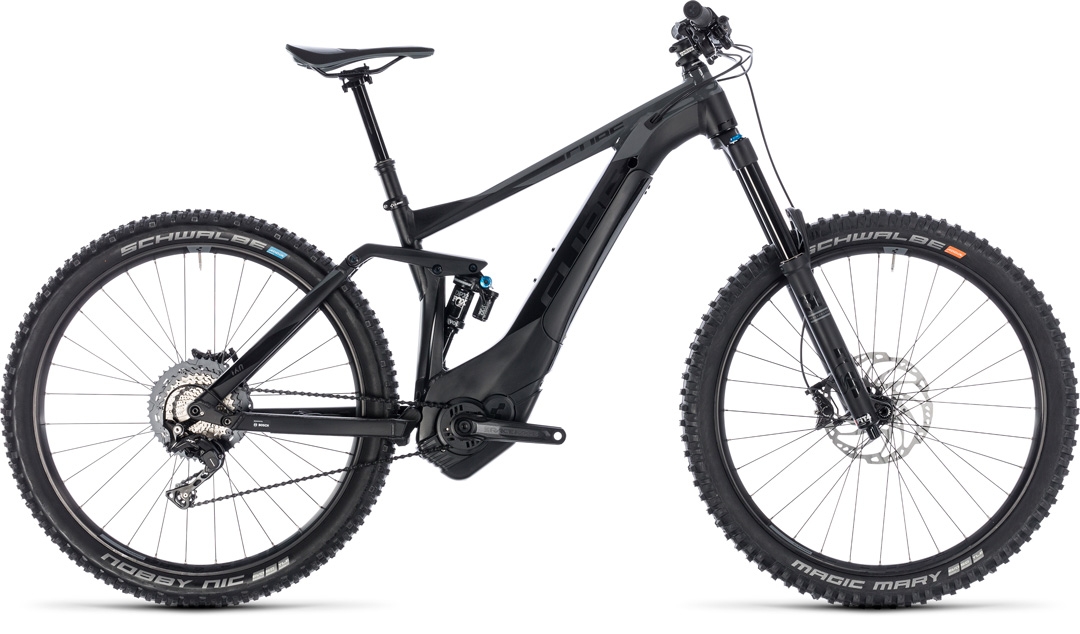

Is it possible to improve upon near-perfection? To our designers, that's just another challenge. The brand new Stereo Hybrid 160 SL takes the concept of an enduro hybrid one step further, blending a newly developed aluminium chassis with a choice selection of components for even better performance than before. With its sleek looks, integrated battery, Bosch CX drive unit and Shimano XT 11 speed transmission, it's a force to be reckoned with in the mountains. Add the rock-swallowing travel provided by a Fox 36 Float Performance 170mm fork and Float DPX2 Performance EVOL shock and you can see why we're so excited by this bike. The Fox Transfer Performance Elite internal dropper post is the icing on the cake. opening up even more line choices for the adventurous rider. You only live once. Shouldn't your bike choice reflect that fact?
AUSSTATTUNG
| FRAME | Aluminium Superlite, Gravity Casting, Tripple Butted, ETC 4-Link, ATG, Boost 148, Tuned Drive Position, AXH, FIB |
|---|---|
| SIZE | 16", 18", 20", 22" |
| FORK | Fox 36 Float GRIP, 3-Position w/Micro Adjust, Tapered, 15x110mm, 170mm |
| SHOCK | Fox Float DPX2 EVOL, 200x57mm, Open(Adjustable)/Medium/Firm Mode |
| SHOCK HARDWARE | Top: 30x8mm, Bottom: 30x8mm |
| BRAKE SYSTEM | Shimano XT BR-M8000, Hydr. Disc Brake |
| REAR DERAILLEUR | Shimano XT RD-M8000-DGS, ShadowPlus, 11-Speed |
| SHIFTERS | Shimano XT SL-M8000-I, Direct Attach |
| CRANKSET | Race Face Aeffect, 165mm, 15T |
| CASSETTE | Shimano SLX CS-M7000, 11-46T |
| CHAIN | KMC X11e Turbo |
| FRONT HUB | Shimano XT HB-M8000, 15QR, Boost, Centerlock |
| REAR HUB | Shimano XT FH-M8010-B, 12mm, Boost, Centerlock |
| RIMS | CUBE EX30, 32H, Disc, Tubeless Ready |
| FRONT TIRE | Schwalbe Magic Mary 2.60, Addix Soft, Tubeless Easy, Super Gravity |
| REAR TIRE | Schwalbe Nobby Nic 2.60, Addix Speedgrip, Tubeless Easy, Super Gravity |
| HANDLEBAR | Race Face Ride 35, 760mm |
| GRIPS | CUBE Race Grip 31mm, 1-Clamp |
| SEAT POST | Fox Transfer Performance Elite 31.6mm (16": 359x100mm; 18": 409x125mm; 20", 22": 456x150mm) |
| SEATCLAMP | CUBE Screwlock, 34.9mm |
| SADDLE | CUBE Race EXC 145 |
| HEADSET | FSA 1.5E ZS, Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm) |
| WEIGHT | 23,7 kg |
| COLOUR | black´n´grey |
| DRIVE UNIT | Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt) |
| BATTERY | Bosch PowerTube 500 |
| DISPLAY | Bosch Purion |
| CHARGER | Bosch 4A |
| ART. NO | 137200 |
GEOMETRY

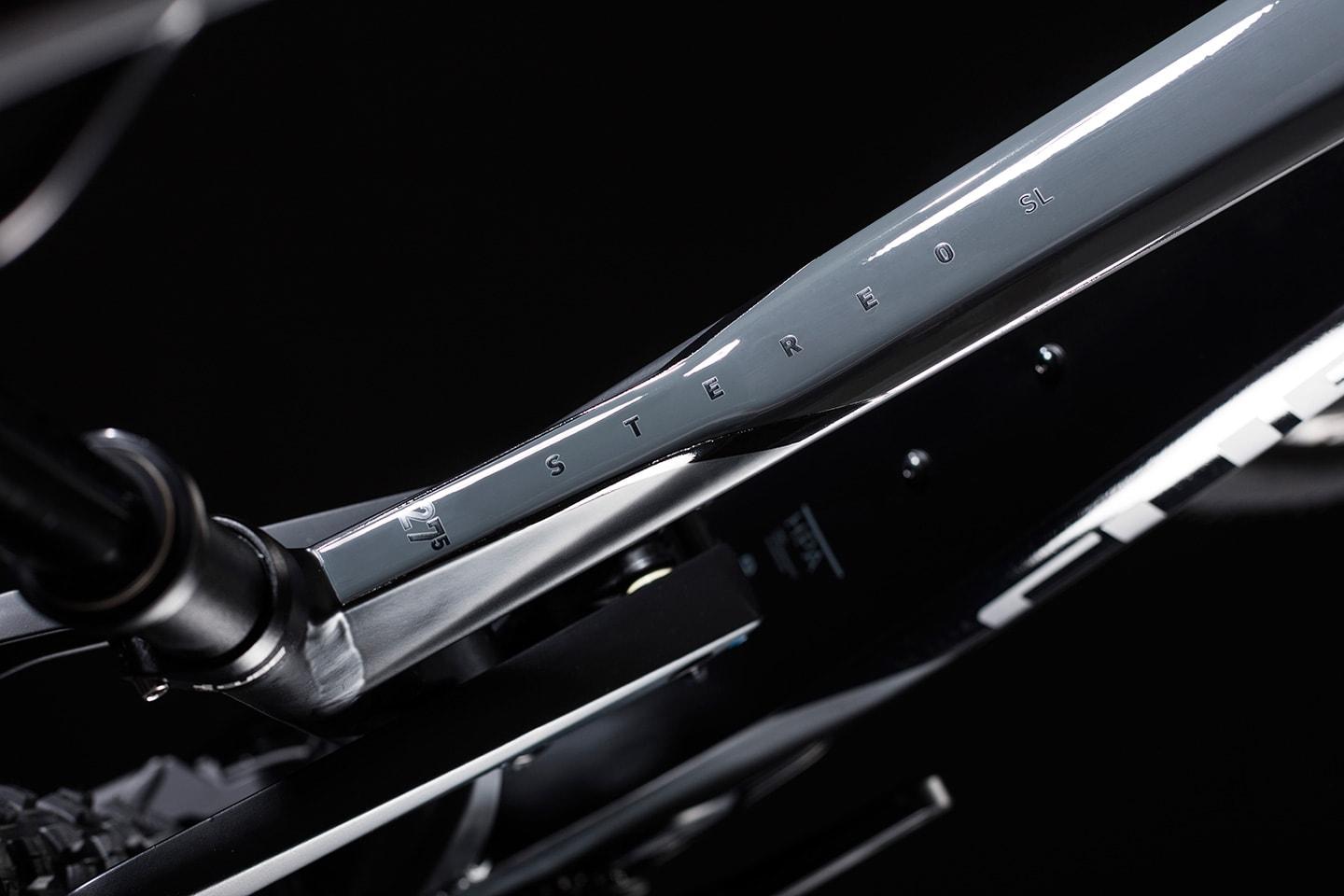

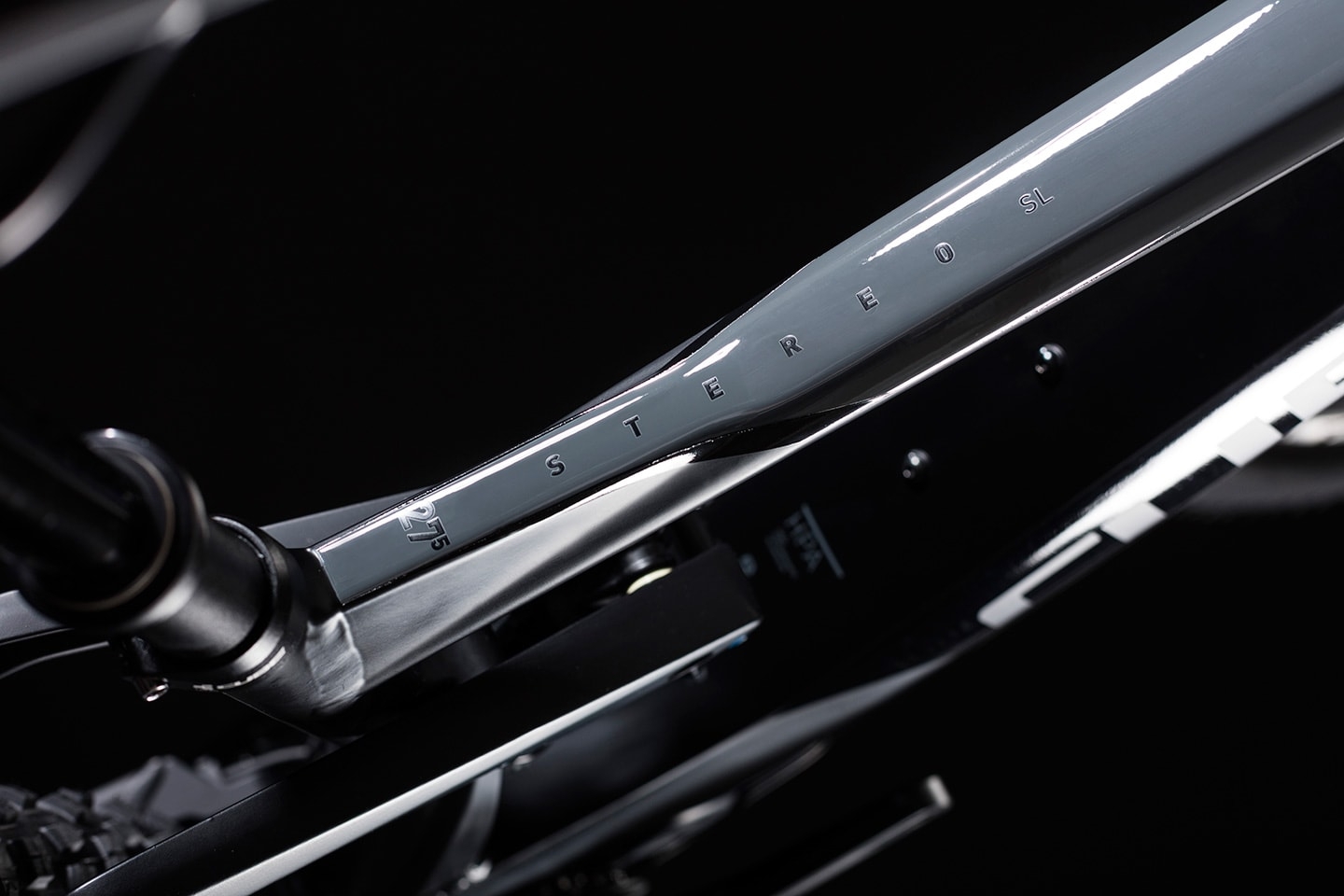

A bike designed to tackle tough trails at speed needs a strong backbone. We went right back to the drawing board for the Stereo Hybrid 160 SL, designing a brand new one piece, gravity cast down tube to join the tapered head tube and Bosch CX motor's custom housing in the most rigid way possible. Housed inside this marvel of engineering is the new Bosch Intube battery, protected from the elements by a dirt-proof cover. It doesn't just look great - it's also practical, since you can recharge without removing the battery from the frame. The elegant rear end features a Boost hub and short chainstays for the best possible handling, while internal cable routing means you'll be spending time enjoying your bike's clean, crisp shifting instead of maintaining it. We reckon we've thought of everything... so you can just ride.
