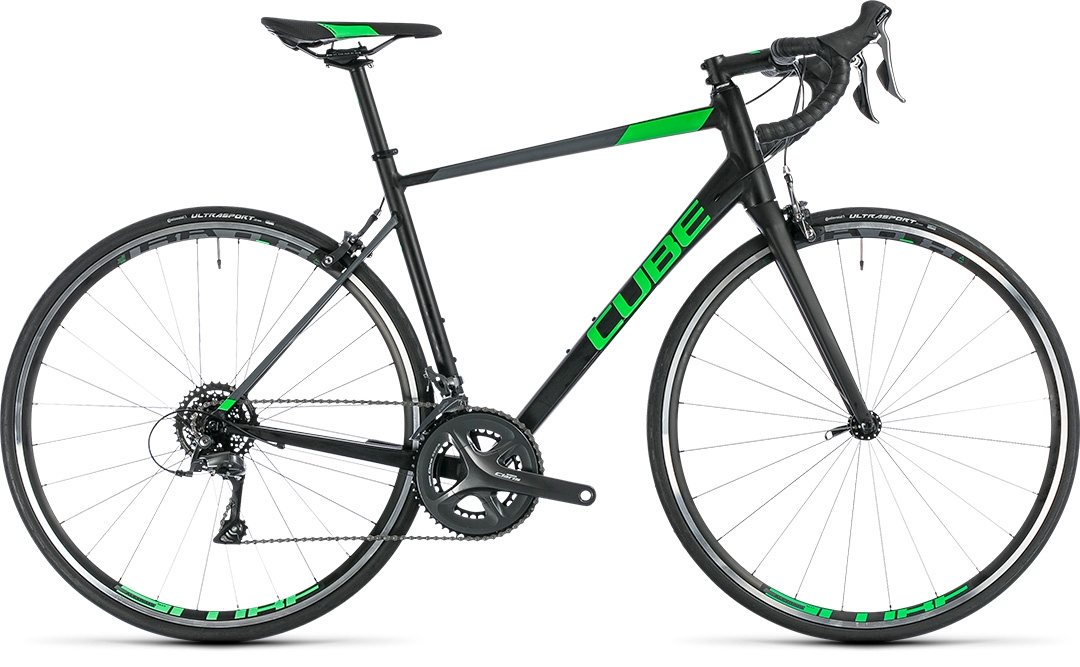

ATTAIN
When the open road calls, you'll want a bike that blends comfort with agility, easy handling and lively performance. The Attain is our affordable introduction to the world of silent freewheeling, new adventures... and speed. We combined proven technology with reliable components and our acclaimed ergonomics so that you can ride further, higher and faster than ever before. Brand new Claris 8 speed components and refined frame features for 2018 mean it's better than ever, too.
AUSSTATTUNG
| FRAME | Aluminium 6061 T6 Superlite, Road Comfort Geometry |
|---|---|
| SIZE | 47, 50, 53, 56, 58, 60, 62 |
| FORK | CUBE CSL Race, One Piece 3D-Forged Steerer/Crown, Carbon Blades, 1 1/8" - 1 1/4" Tapered |
| BRAKE SYSTEM | Shimano Claris BR-R2000 |
| REAR DERAILLEUR | Shimano Claris RD-R2000-GS, 8-Speed |
| FRONT DERAILLEUR | Shimano Claris FD-R2000-BM, 31.8mm |
| SHIFT/ BRAKE LEVERS | Shimano Claris BR-2400 |
| CRANKSET | Shimano Claris FC-R2000, 50x34T, 165mm (47cm), 170mm (50/53/56cm), 175mm (58/60/62cm) |
| CASSETTE | Shimano CS-HG31, 11-34T |
| CHAIN | KMC Z7 |
| WHEELSET | CUBE RA 0.8 Aero, QR/QR |
| TYRES | Conti Ultra Sport 2, 25-622 |
| HANDLEBAR | CUBE Compact Race Bar |
| HANDLEBAR TAPE | CUBE Grip Control |
| SEAT POST | CUBE Performance Post, 27.2mm |
| SEATCLAMP | CUBE Screwlock, 31.8mm |
| SADDLE | CUBE RP 1.0 |
| HEADSET | FSA Z-t, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Integrated 1 1/4" |
| WEIGHT | 9,5 kg |
| COLOUR | black´n´flashgreen |
| ART. NO | 176100 |
GEOMETRY
The key with great frame design is to build in comfort wherever possible, while retaining maximum stiffness for efficient pedalling and safe handling. That's why the Attain's 6061 aluminium double-butted frame features slim, cross-ovalised æro seat stays - for fatigue-reducing vibration absorption - and a tapered head tube with mechanically formed down tube - for razor-sharp steering and rapid forward progress. It's the perfect blend of ride comfort and safe, predictable control in any situation. We've even added some neat features from our high end race frames, including internal cable routing and a PressFit bottom bracket. And, of course, we've built in plenty of clearance for tyres up to 28c - perfect for more comfort on long rides, or on rough roads.
