ATTAIN
SL Disc

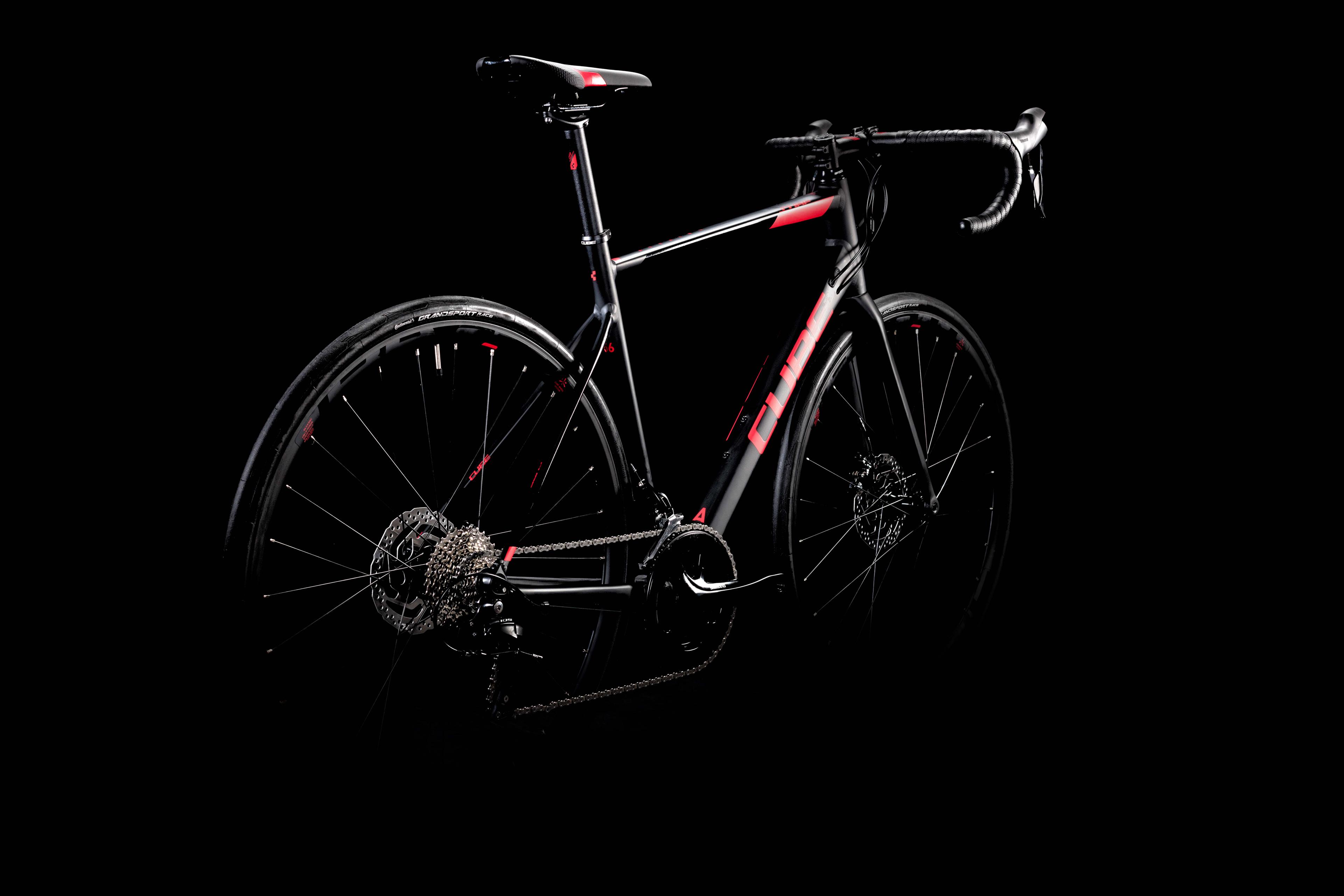

Our Attain series is known for its beguiling blend of comfort and pace. But speed is nothing without control, so for the Attain SL Disc we went the whole way and specced hydraulic disc brakes for the ultimate in stopping power. With smooth, predictable braking at your fingertips no descent is too fast, too steep or too long for this road thoroughbred. And, with the comfort and agility for which the Attain range is renowned, you'll be riding further and faster than ever before.
AUSSTATTUNG
| FRAME | Aluminium 6061 T6 Superlite, Double Butted, Smooth Welded, 3D Flat Mount Disc Brake Dropouts, Road Comfort Geometry, Fender Option, 12x142mm |
|---|---|
| SIZE | 50, 53, 56, 58, 60, 62 |
| FORK | CUBE CSL Race Disc, One Piece 3D-Forged Steerer/Crown, Carbon Blades, 1 1/8" - 1 1/4" Tapered, Flat Mount, 100mm |
| BRAKE SYSTEM | Shimano BR-RS505, Hydr. Disc Brake, Flat Mount (160/160) |
| REAR DERAILLEUR | Shimano 105 RD-5800GS, 11-Speed |
| FRONT DERAILLEUR | Shimano 105 FD-5801, 31.8mm Clamp |
| SHIFT/ BRAKE LEVERS | Shimano ST-RS505 |
| CRANKSET | Shimano FC-RS510, 50x34T, 170mm (50/53cm), 172.5mm (56/58cm), 175mm (60/62cm) |
| CASSETTE | Shimano 105 CS-5800, 11-32T |
| CHAIN | Shimano CN-HG600-11 |
| WHEELSET | CUBE RA 0.8 Aero Disc |
| TYRES | Conti Grand Sport Race SL, 28-622 |
| HANDLEBAR | CUBE Compact Race Bar |
| HANDLEBAR TAPE | CUBE Grip Control |
| SEAT POST | CUBE Performance Post, 27.2mm |
| SEATCLAMP | CUBE Screwlock, 31.8 mm |
| SADDLE | CUBE RP 1.0 |
| HEADSET | FSA Z-t, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Integrated 1 1/4" |
| WEIGHT | 10,1 kg |
| COLOUR | black´n´red |
| ART. NO | 176500 |
GEOMETRY

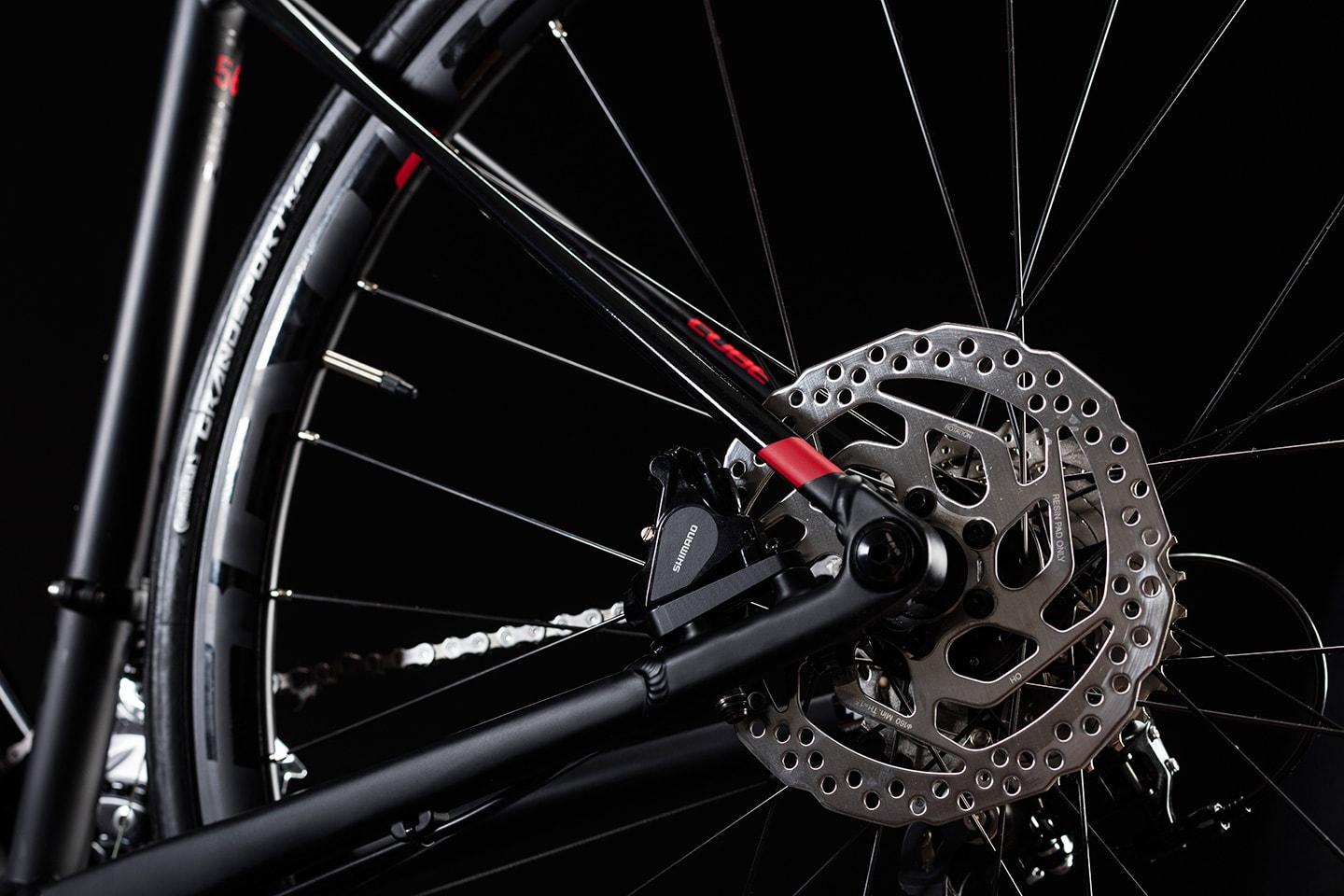

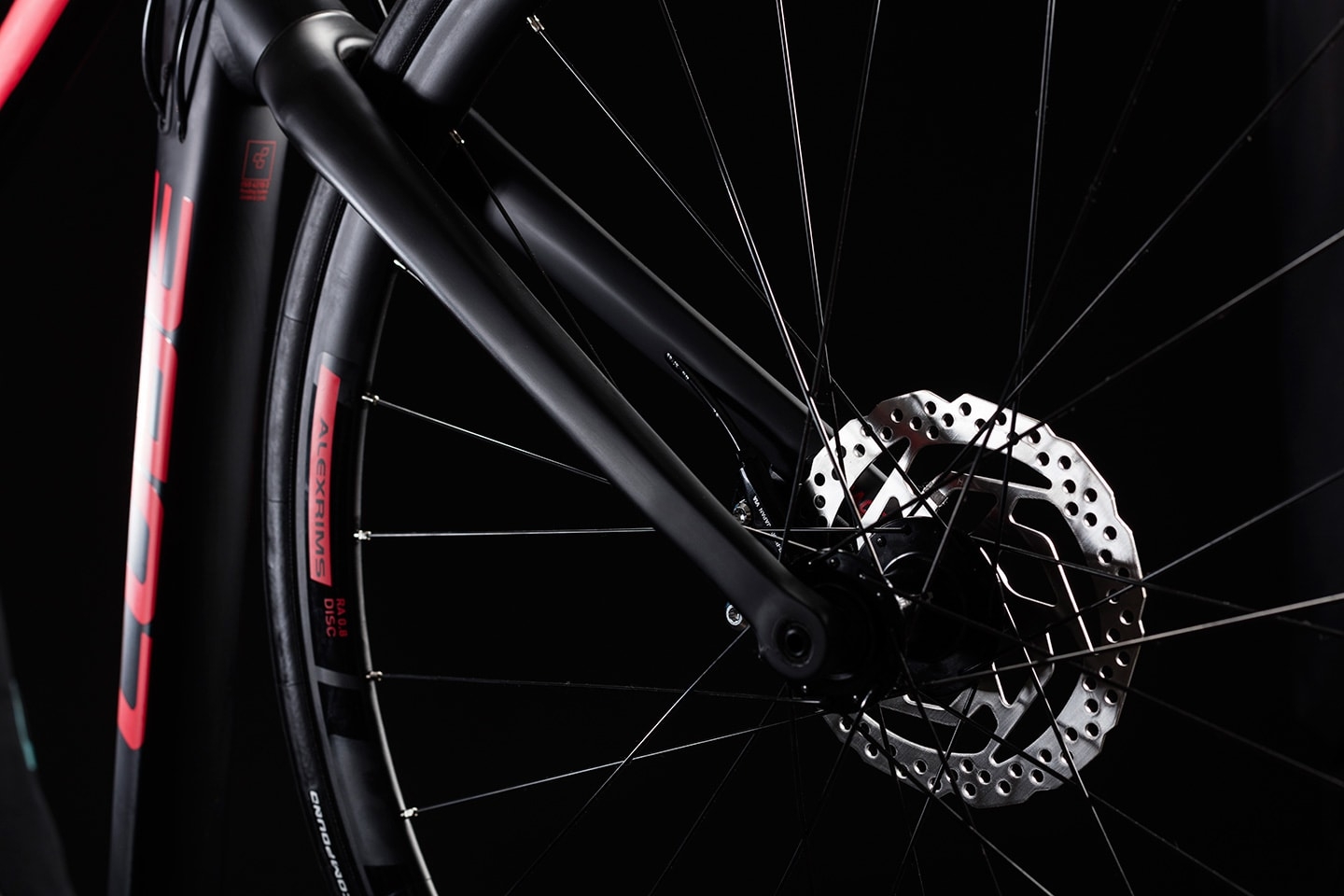

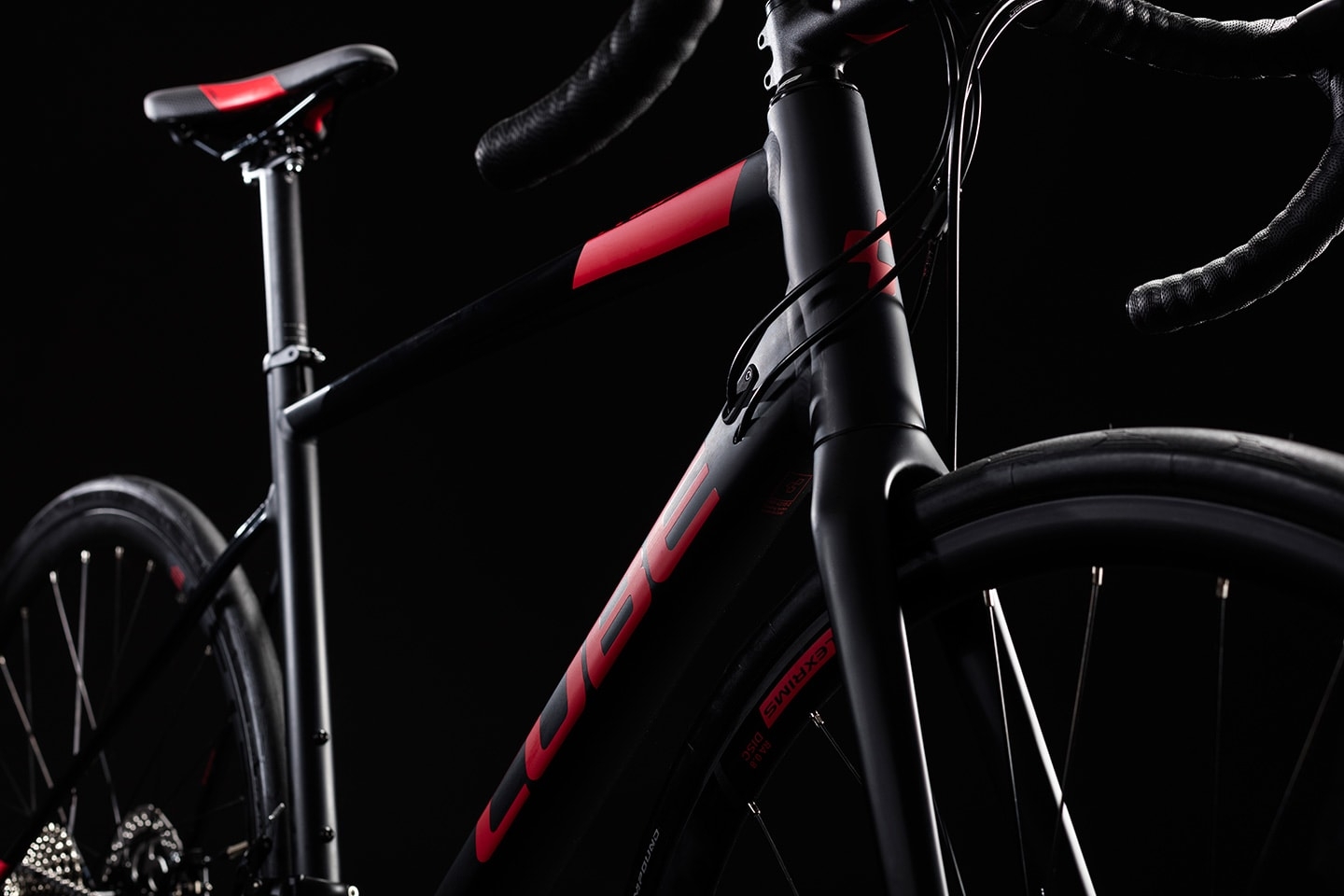

No braking system is more powerful than a hydraulic disc - and that means our engineers had to put in the overtime to design a frame that's up to the job. The Attain SL Disc's X12 thru-axles, disc-specific carbon fork and carefully designed rear end are all built to handle the specific demands of the Shimano hydraulic disc system. As you'd expect, the mechanically formed down tube - joined using our Smooth Welding process to the tapered head tube and PressFit bottom bracket shell - is supremely stiff and effficient, while slender seat stays and the carbon fork blades maintain the Attain series' reputation for comfort by reducing road vibrations and rider fatigue. Internal cable routing, mudguard mounts and plenty of clearance for 28c tyres add up to a bike that's built to keep riding year round, no matter how wet the roads.
