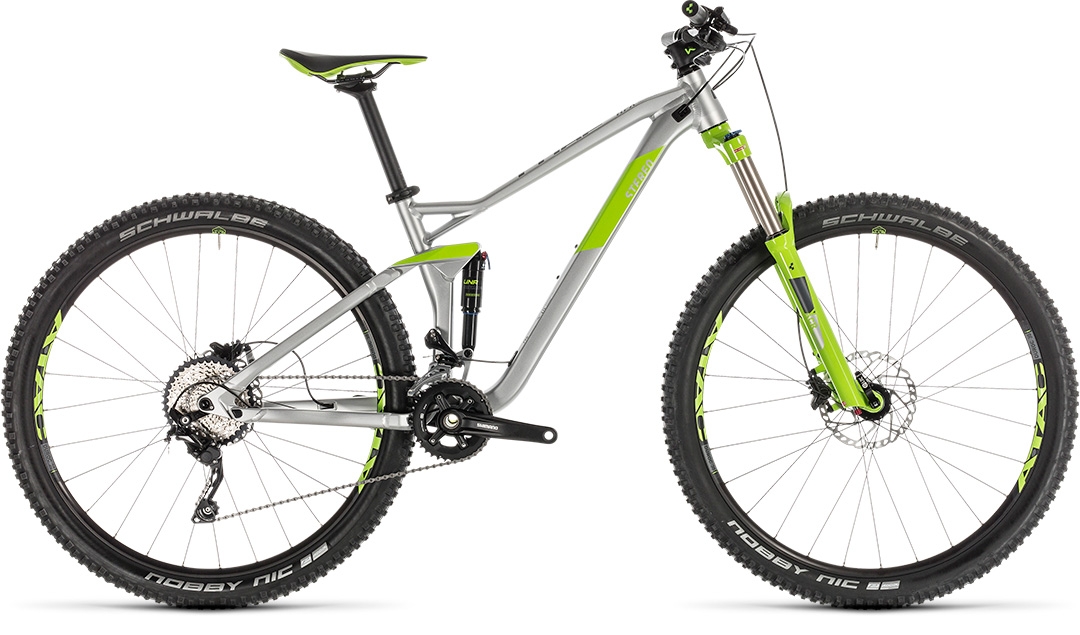

STEREO 120
Pro 29
Comfort, ability and agilty redefined: the all-new Stereo 120 Pro 29 sets a new benchmark in trail-ready full suspension for 2019. Smooth-rolling 29er wheels, redesigned geometry and a completely new frame design make taming any trail a pleasure, wherever your weekend adventures may take you. We've carefully selected a blend of reliable, durable and dependable components so that you can concentrate on the ride. The easily adjustable Suntour UNAir rear shock serves up 120mm of smooth, progressive rear wheel travel while the plush Suntour XCR34 fork offers super-precise, confidence-inspiring steering and 130mm of rock and root-swallowing performance - the perfect pair. Shimano Deore 2x10 transmission components give you the range and reliability you need, and wider tubeless-ready rims are ready to take on the roughest of challenges. It all adds up to a package that's guaranteed to put a smile on your face, ride after ride.
AUSSTATTUNG
| FRAME | HPA Advanced Hydroform, ATG, ETC 4-Link, AXH |
|---|---|
| SIZE | 16", 18", 20", 22" |

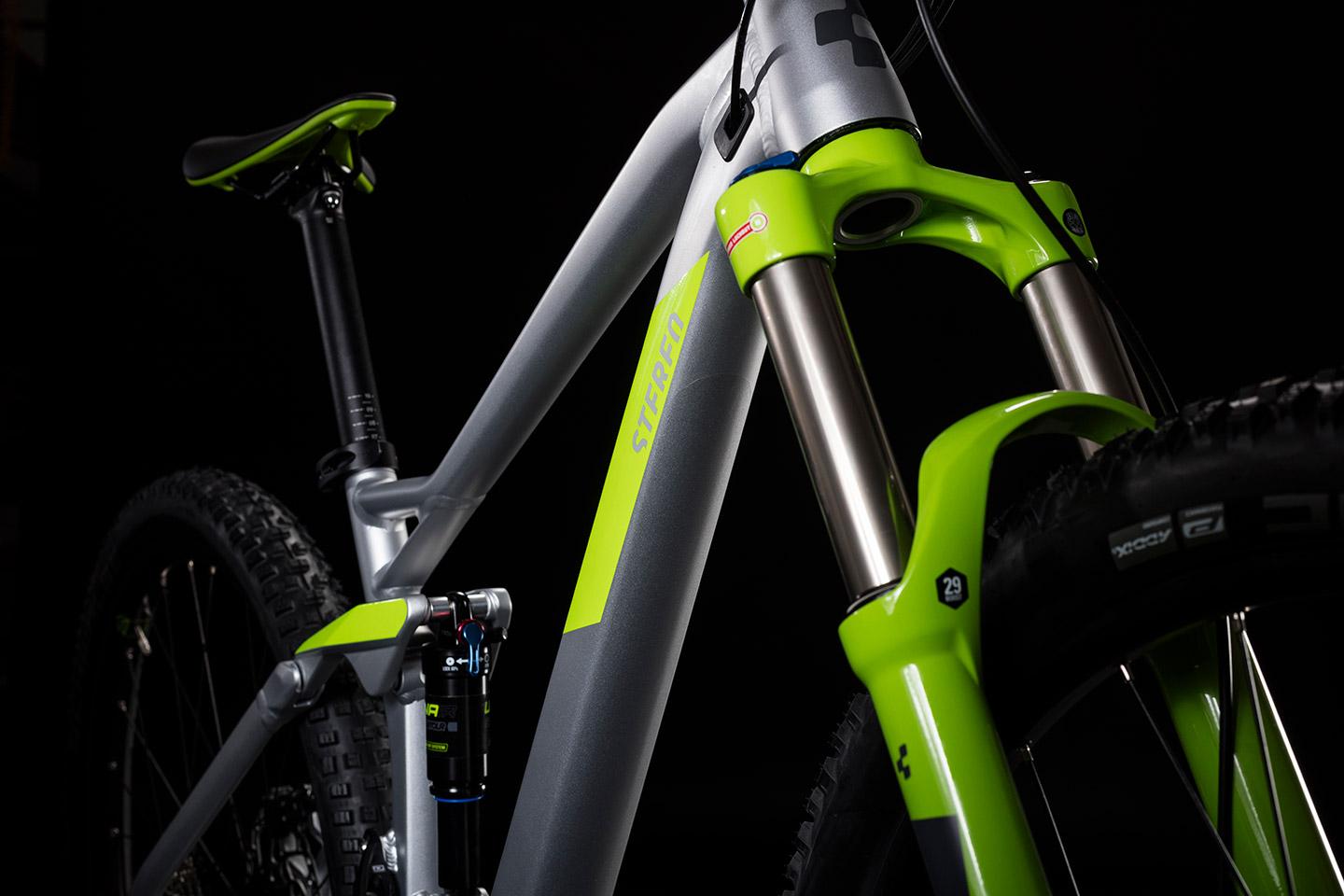

| FORK | SR Suntour XCR34 Air LOR, 15x110mm, 130mm |

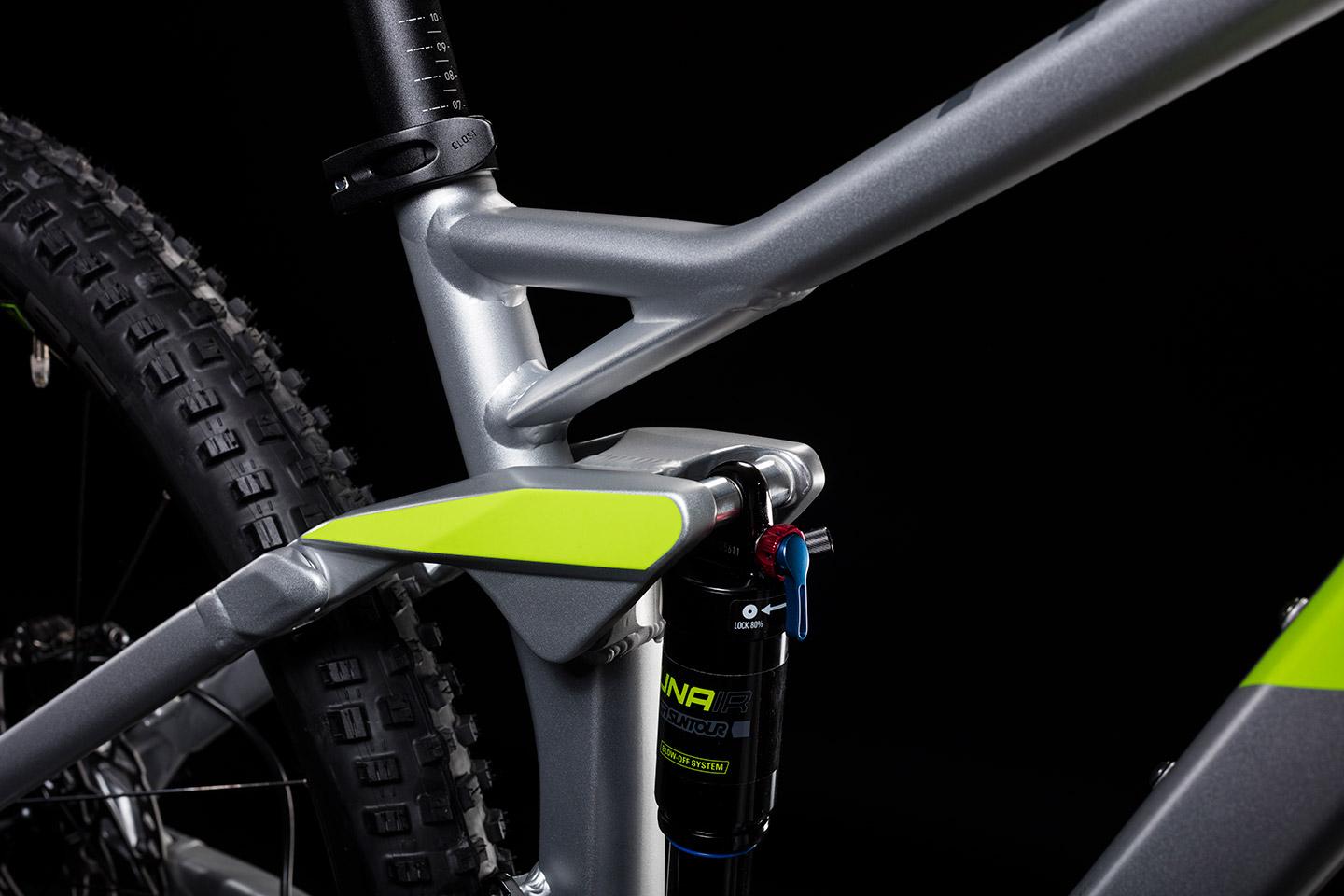

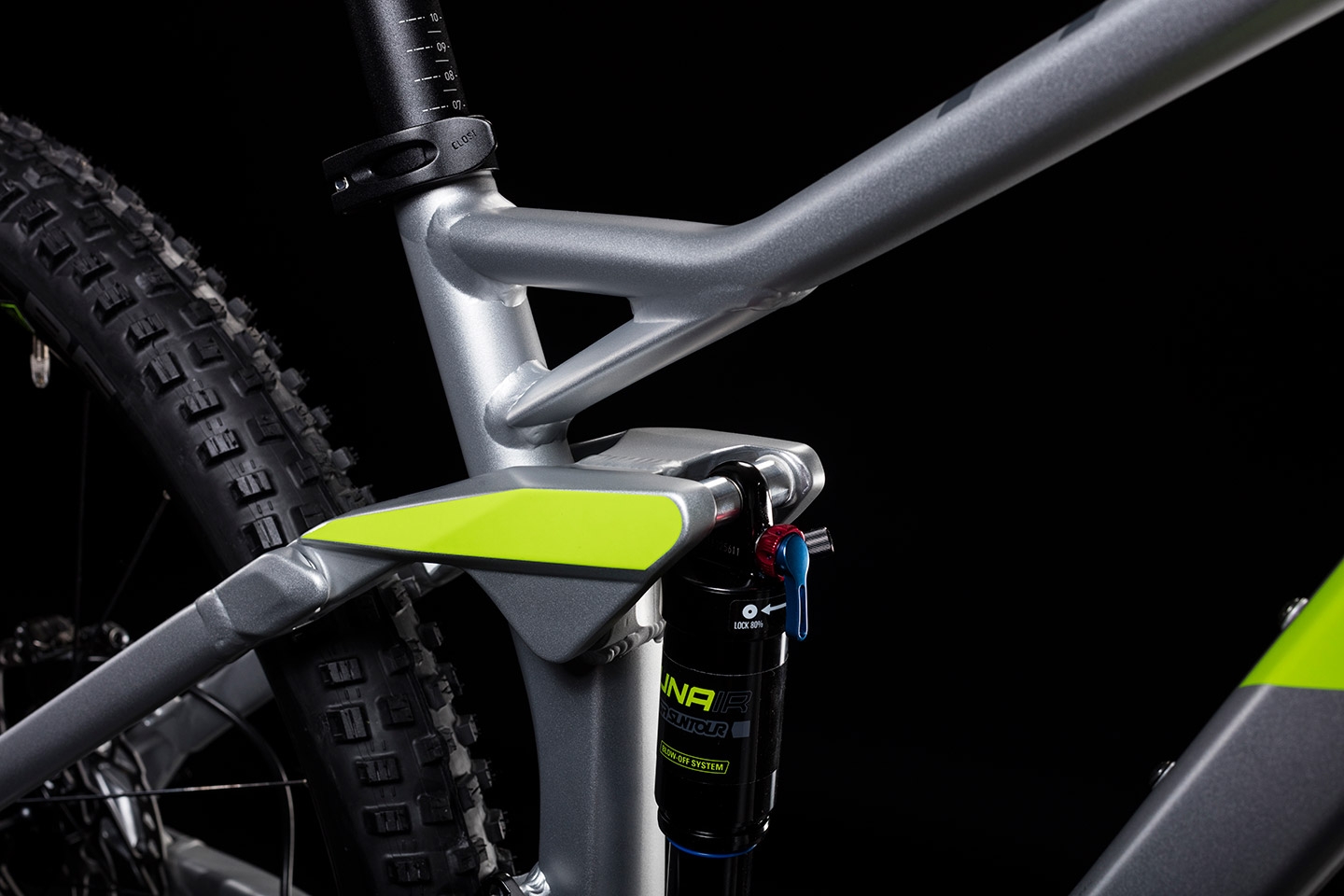

| SHOCK | SR Suntour DUAir LOR, 190x45mm, Rebound Adjust, Lockout |
| SHOCK HARDWARE | Top: 40x8mm, Bottom: 22x8mm |
| BRAKE SYSTEM | Shimano BR-MT500, Hydr. Disc Brake (180/180) |
| REAR DERAILLEUR | Shimano Deore RD-M6000-DSGS, ShadowPlus, 10-Speed, Direct Mount |
| FRONT DERAILLEUR | Shimano Deore FD-M6020-D, Direct Mount, Side Swing |
| SHIFTERS | Shimano Deore SL-M6000-I, Direct Attach, Rapidfire Plus |
| CRANKSET | Shimano FC-MT500-B2, Boost, 36x22T, 175mm |
| CASSETTE | Shimano Deore CS-HG500, 11-42T |
| CHAIN | KMC X10 |
| WHEELSET | Answer Atac Duroc 30, 15x110mm / 12x148mm, Tubeless Ready |
| TYRES | Schwalbe Nobby Nic, Addix Performance, Kevlar, 2.35 |

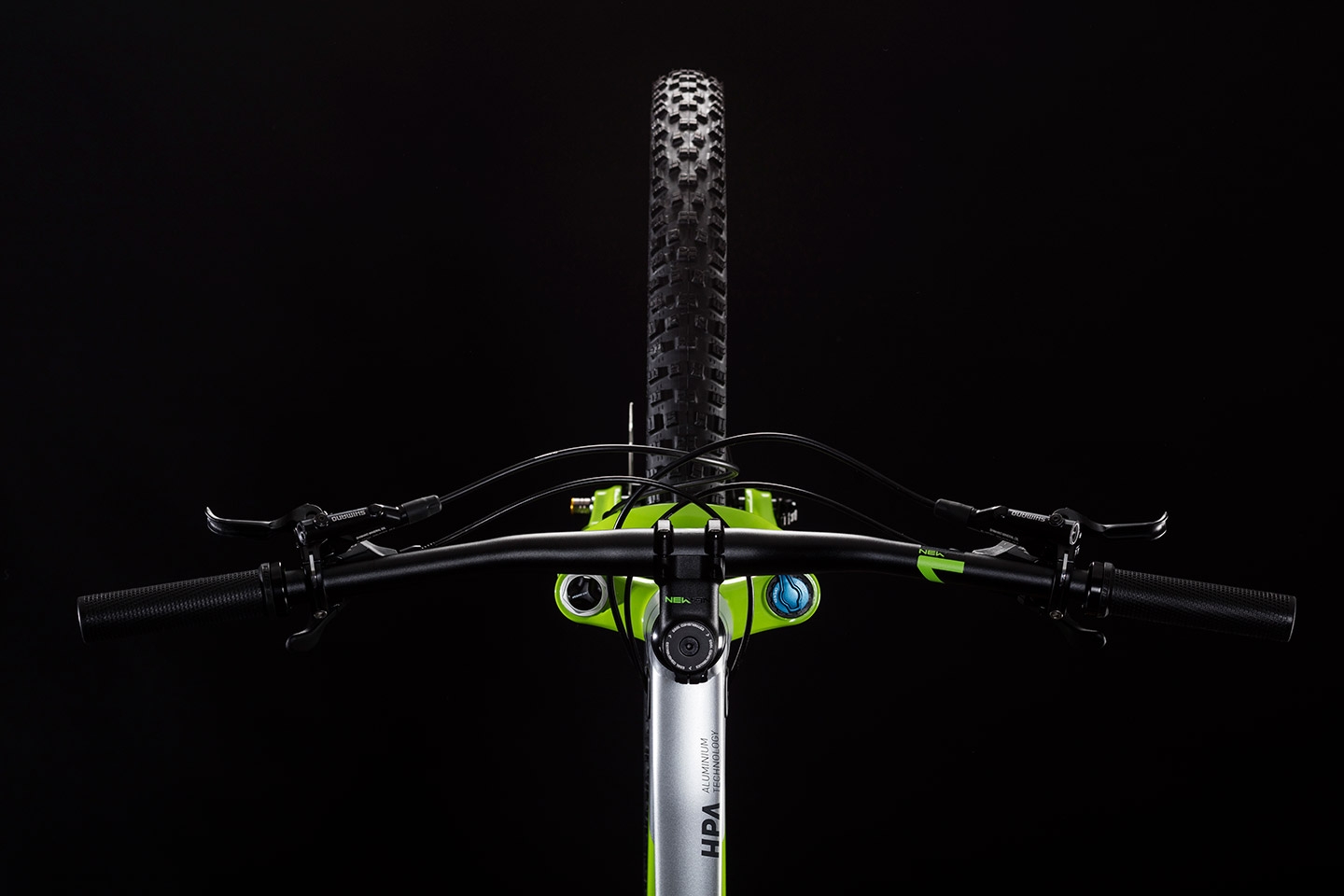

| HANDLEBAR | Newmen Evolution 318.20, 720mm |
| GRIPS | Cube Race SL Grip 29.5, 1-Clamp |
| SEAT POST | CUBE Performance Post, 31.6mm |
| SEATCLAMP | CUBE Varioclose, 34.9mm |
| SADDLE | Natural Fit Kinetic Race |
| HEADSET | FSA 1.5E ZS, Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm) |
| WEIGHT | 14,5 kg |
| COLOUR | silver´n´green |
| ART. NO | 253100 |
GEOMETRY
There wasn't much wrong with the CUBE Stereo 120, but our engineers are never satisfied. Taking their inspiration from our widely-admired Stereo 140 platform, they set about reworking the Stereo 120 Pro 29's frame to make it sleeker, better-handling and more versatile than ever before. Hidden frame pivots, internal cable routing and a compact rocker all contribute to its super-clean looks. As you'd expect, all our aluminimun frame-building expertise has been used to build a frame that's stiff and strong where it needs to be, whilst remaining light and comfortable enough for day-long adventures. So it features triple butting tubes to save weight, and hydroforming to improve stiffness and strength. And we've tweaked the geometry for 2019, to build a bike that's more responsive ever - so you can concentrate on the ride.
